Drolet ULC-S627 User manual

READ AND KEEP THIS MANUAL FOR REFERENCE
45397A.doc
PYROPAK E.P.A. WOOD STOVE MANUAL
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOOD STOVE
Verified and tested following
ULC S627 and UL 1482 Standards
by:
STOVE BUILDER INTERNATIONAL INC..
1700, Leon-Harmel, Quebec City (Quebec), Canada G1N 4R9
Tel : [phone]
Fax : [phone]

1
INTRODUCTION
Stove Builder International, one of the most important wood stove and fireplace manufacturers in
North America, congratulates you on your purchase and wishes to help you get maximum
satisfaction from your wood stove. In the pages that follow, we will give you advice on wood
heating and controlled combustion as well as technical specifications regarding installation,
operation and maintenance of the model you have chosen.
The instructions pertaining to the installation of your wood stove in North America comply with
ULC-S627 and UL-1482 standards.
Readthisentiremanualbeforeyouinstallanduseyournewstove. Ifthisstoveisnotproperly
installed,ahousefiremayresult. Toreducetheriskof fire, followthe installation instructions.
Failure to follow instructions may result in property damage, bodily injury, or even death.
Consultyour municipal building departmentorfire officials aboutrestrictions andinstallation
requirements in your area and the need to obtain a permit.
KEEP THIS INSTRUCTIONS MANUAL FOR FUTURE REFERENCE.
CAUTIONS:
•HOT WHILE IN OPERATION.KEEP CHILDREN,CLOTHING AND FURNITURE AWAY.CONTACT MAY
CAUSE SKIN BURNS.
•DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.
•DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED DURING IGNITION.
•DO NOT BURN WASTE,FLAMMABLE FLUID SUCH AS GASOLINE,NAPHTHA,OR MOTOR OIL.
•DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
•ALWAYS CLOSE THE DOOR AFTER IGNITION.
•DO NOT INSTALL IN A MOBILE HOME
REGISTER YOU WARRANTY ONLINE
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your stove. Keep your sales
invoice. We also recommend that you register
your warranty online at
www.drolet.ca
Registering your warranty online will help us
track rapidly the information we need on your
stove.

2
TABLE OF CONTENTS
SECTION 1.0 - INSTALLATION............................................................................................................. 3
1.1 GENERAL INSTALLATION.................................................................................................3
1.2 POSITIONING THE STOVE.................................................................................................3
1.3 CLEARANCES ........................................................................................................................4
1.3.1 Reduced clearances.................................................................................................................5
1.4 FLOOR PROTECTOR ...........................................................................................................9
SECTION 2.0 CHIMNEY (FLUE SYSTEM) .......................................................................................10
2.1 DEFINITIONS .......................................................................................................................10
2.2 CHIMNEY..............................................................................................................................10

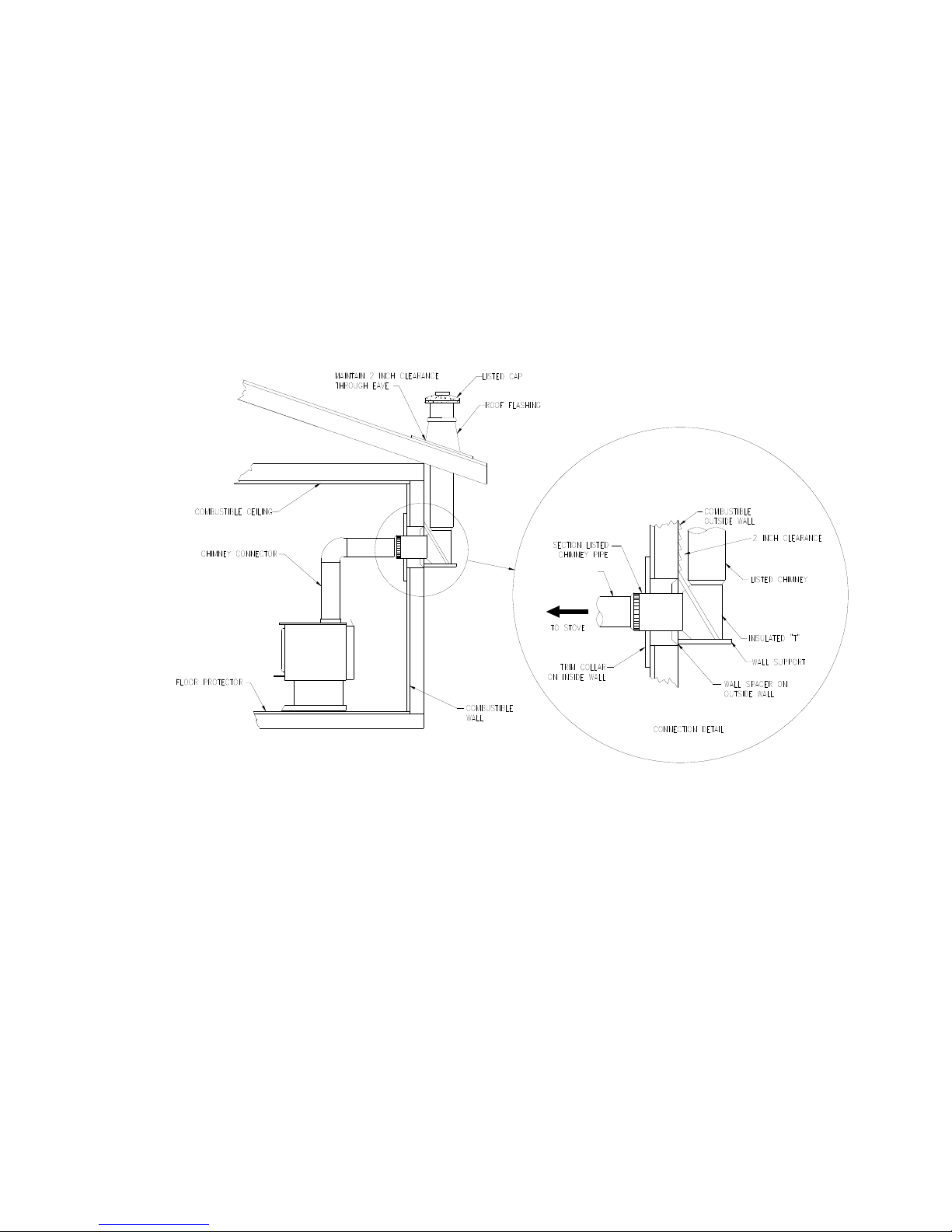

2.2.1 Step by step installation of your factory-built chimney........................................................12
2.2.2 Typical installation through an existing masonry chimney ..................................................23
2.3 CHIMNEY CONNECTOR...................................................................................................26
2.4 DRAFT....................................................................................................................................28
2.5 OUTSIDE COMBUSTION AIR...........................................................................................28
2.6 THE ADVANTAGE OF INSTALLING A BLOWER (FAN) ...........................................29
SECTION 3.0 OPERATION....................................................................................................................30
3.1 SAFETY INFORMATION ...................................................................................................30
3.2 FUEL.......................................................................................................................................32
3.2.1 The use of manufactured logs ...............................................................................................33
3.2.2 Simple wood moisture test....................................................................................................33
3.3 NOTES ABOUT FIRST FIRING.........................................................................................33
3.4 LIGHTING A FIRE...............................................................................................................34
3.5 MAINTAINING THE FIRE.................................................................................................35
3.6 FAN (BLOWER) OPERATION...........................................................................................35
SECTION 4.0 MAINTENANCE .............................................................................................................36
4.1 CLEANING AND PAINTING YOUR STOVE ..................................................................36
4.2 GLASS.....................................................................................................................................36
4.3 GASKETING..........................................................................................................................37
4.4 ASH REMOVAL....................................................................................................................37
4.5 CHIMNEY (FLUE) CLEANING.........................................................................................37
DROLET LIMITED LIFETIME WARRANTY ................................................................................... 39

3
SECTION 1.0 - INSTALLATION
When installed and operated as described in these instructions, the E.P.A Drolet Pyropak wood stove
is suitable for use as a freestanding wood stove in residential installations. The E.P.A Drolet
Pyropak wood stove is not intended for installation in a bedroom or a mobile home.
In Canada, the CSA B365 Installation Code for Solid Fuel Burning Appliances and Equipment and
the CSA C22.1 Canadian National Electrical Code are to be followed in the absence of local code
requirements. In the USA, theANSI NFPA 70 National Electrical Code and NFPA 211 Standard for
Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances are to be followed in the absence of
local code requirements.
In addition to the national installation and/or local building codes, fire officials (or other authorities
having jurisdiction) should be contacted to determine what restrictions and installation requirements
might apply locally.
1.1 GENERAL INSTALLATION
CAUTION:
•MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE
DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT IN HAZARDOUS CONDITIONS.WHERE SUCH
ACTION IS CONSIDERED,THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
•DO NOT CONNECT THIS UNIT TO ANY AIR DISTRIBUTION SYSTEM.
•CRACKED AND BROKEN COMPONENTS,e.g. GLASS PANELS OR CERAMIC TILES,MAY RENDER THIS
INSTALLATION UNSAFE.
•ASOURCE OF FRESH AIR INTO THE ROOM OR SPACE HEATED SHALL BE PROVIDED WHEN REQUIRED.
•CONNECT THE STOVE ONLY TO A LINED MASONRY CHIMNEY CONFORMING TO NATIONAL AND LOCAL
BUILDING CODES FOR USE WITH SOLID FUEL,OR TO A LISTED FACTORY BUILT CHIMNEY SUITABLE FOR
USE WITH SOLID FUEL.
1.2 POSITIONING THE STOVE
It is very important to position the wood stove in an area that will favour the most efficient heat
distribution throughout the house. The stove should therefore be installed in the room where the
most time is spent, and in the most spacious room possible. Recall that wood stoves produce
radiating heat, the heat we feel when we are close to a wood stove. A wood stove also functions by
convection, that is through the displacement of hot air accelerated upwards and its replacement with
cooler air at the floor level. The stove’s convection effect is facilitated by the installation of a
blower.

4
1.3 CLEARANCES
Clearances to any combustibles when measured directly fromthe floor protector to the ceiling must
be a minimumof 84" (2134 mm). Clearances to any combustibles when measured directly from the
front of the stove must be a minimum of 48" (1219 mm). The stove must also be placed so as to
maintain the minimum clearances to combustible walls specified for each type of connector used.
See Table 1.3 below for all clearance measures. Refer to Figure 1.3 for a diagram of each of the
measures A through C.
Clearances to combustible materials
MODELS BACK (A)
Single wall pipe / Double wall SIDES (B) Single wall pipe / Double wall CORNERS (C) Single wall pipe / Double wall HEIGHT (D)*
Pyropak 15.5" (395mm) / 15.5" (395mm) 18" (455mm) / 18" (455mm) 10" (255mm) / 10" (255mm) 84" (2.13m)
*Height, from floor protection to ceiling
You ma
y
decrease these clearances b
y
installin
g
heat radiation shields between the walls or the
ceilin
g
and the stove. These heat radiation shields must be installed permanentl
y
, and can
includesheetmetal,arigidnon-combustiblesheet or a masonr
y
wall. Theinstallationstandards
of such heat radiation shields are listed on the following page.
IT IS STRICTLY FORBIDDEN TO PLACE WOOD WITHIN MINIMUM CLEARANCES

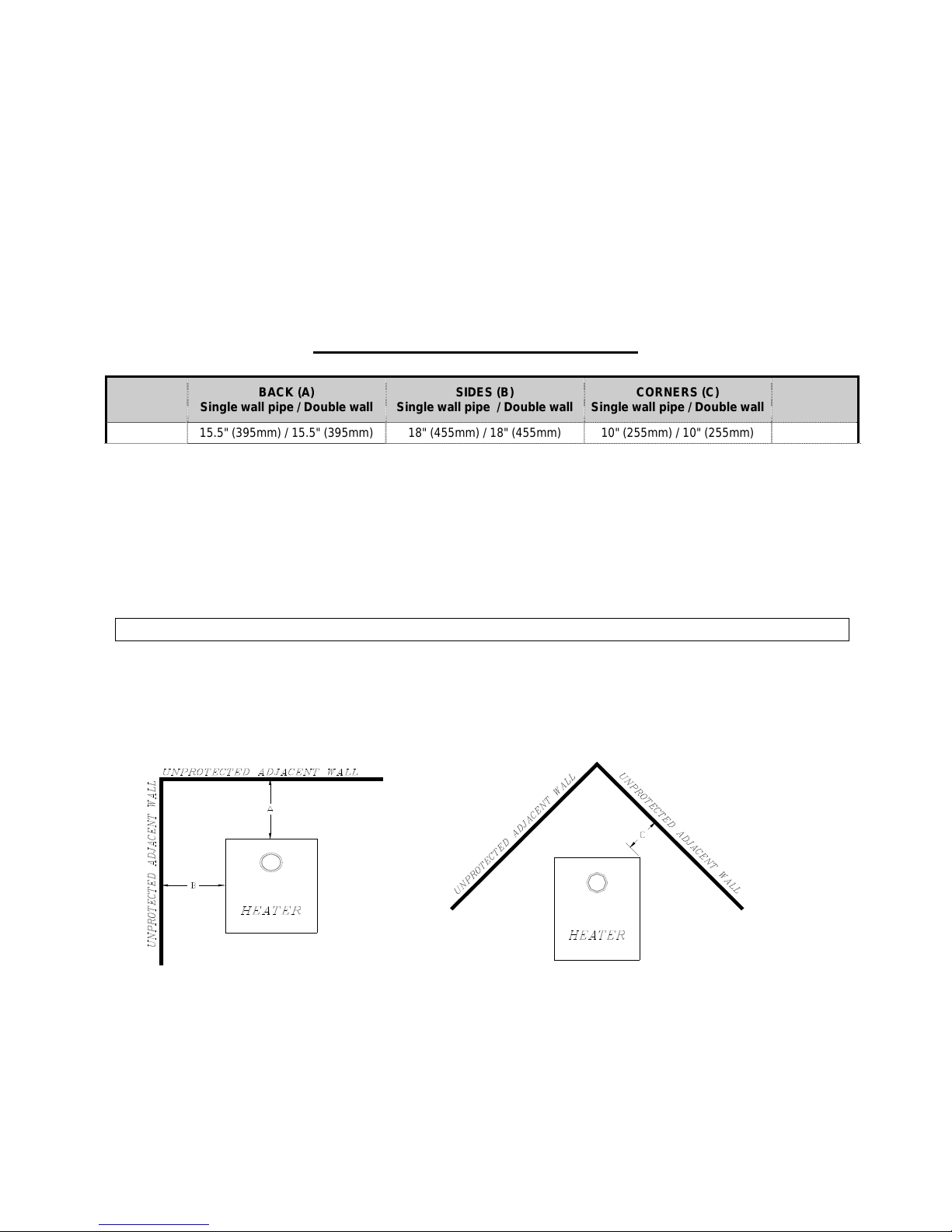

TABLE 1.3 Clearances to combustible materials
FIGURE 1.3 Clearances to combustible materials

5
1.3.1 Reduced clearances
You may decrease the clearances by installing heat radiation shields between the walls or
the ceiling and the stove. These heat radiation shields must be installed permanently, and
can include sheet metal, a rigid non-combustible sheet or a masonry wall.
Clearances of not less than 1" (25 mm) and not more than 3" (76 mm) between the bottom
of the shield and the floor and not less than 3" (76 mm) between the top of the shield and
the ceiling must be respected to allow vertical air circulation behind the shield. The shield
must extend 20" (500 mm) above the stove top and 18" (450mm) to each side of the stove
(see Graphic 1).
Following the installation of such a heat radiation shield, the clearances mentioned on the
stove certification plate may be reduced as stated in the following table.
TYPE OF PROTECTION
Reducing Clearances With
Shielding
Sides and
Rear/Back Top
Sheetmetal, aminimumof 0,024"(0,61mm) spacedout
at least 1" (25mm) by non-combustible spacers (see
graphic 2). 67% 50%
Ceramictiles, oran equivalentnon-combustiblematerial
on fire-proof supports spaced out at least 1" (25 mm) by
non-combustible spacers (see graphic 3). 50% 33%
Ceramictiles, oran equivalentnon-combustiblematerial
on fire-proof supports with a minimum of 0,024" (0,61
mm)sheet metalbackingspacedoutatleast1" (25mm)
by non-combustible spacers (see graphic 4)
67% 50%
Brick spacedoutat least1" (25mm)by non-combustible
spacers (see graphic 5) 50% N/A
Brick with a minimum of 0,024" (0,61 mm) sheet metal
backing spaced out at least 1" (25 mm) by non-
combustible spacers (see graphic 6).
67% N/A

6
Graphic 1
A- Clearance to combustible material with no protection.
B- 500 mm (20 po.) minimum;
C- 25 mm (1 po.) minimum;
D- Between 25 mm (1 po.) and 75 mm (3 po.) ;
E- 75 mm (3 po.) minimum;
F- 450 mm (18 po.) minimum.
1- Wall shielding ;
2- Non-combustible spacers ;
3- Ceiling shielding ;
4- Combustible wall ;
5- Ceiling;
6- Heater (side view) ;
7- Heater (top view).

7
Graphic 2
A- 25 mm (1 po.) minimum;
1- Combustible wall ;
2- Non-combustible spacer;
3- 0.61 mm (0.024") sheet metal.
Graphic 3
A- 25 mm (1 po.) minimum;
1- Combustible wall;
2- Non-combustible spacer;
3- Fire-proof support;
4- Ceramic tile or equivalent non-combustible material.
_____________________________________________________________________________
Graphic 4
A- 25 mm (1 po.) minimum;
1- Combustible wall;
2- Non-combustible spacer;
3- 0.61 mm (0.024") sheet metal;
4- Fire-proof support;
5- Ceramic tile or equivalent non-combustible material.

8
Graphic 5
A- 25 mm (1 po.) minimum;
1- Combustible wall;
2- Non-combustible spacer;
3- Brick.
Graphic 6
A- 25 mm (1 po.) minimum;
1- Combustible wall;
2- Non-combustible spacer;
3- 0.61 mm (0.024") sheet metal;
4- Brick.

9
1.4 FLOOR PROTECTOR
If the stove is to be installed on top of a combustible floor, it must be guarded by a non-combustible
material extending at least 18” (300mm) from the front and 8” (200mm) from the sides and the back
of the firebox., as shown in Figure 1.4 below.
Please note that a floor protection is required with the pedestal models for spark and ash shielding,
but not for limiting floor temperatures fromthe radiant heat of the stove. The stove was designed and
safety tested so that without any protection, the floor would not overheat.
Please refer to local building codes for suitable floor protection materials.
FRONT
18” (457 mm)
SIDES
8” (200 mm)
BACK
8” (200 mm)
FIGURE 1.4 Floor protector
WARNING: do not install in a sleeping room.

10
SECTION 2.0 CHIMNEY (FLUE SYSTEM)
2.1 DEFINITIONS
For clarity, the following definitions should be used with respect to these instructions:
•A chimney system consists of a connector off the top of the stove, and a chimney, which
attaches to the connector and terminates outside the house.
•A chimney can be a masonry chimney (of masonry construction with an inside liner), or a
factory built chimney.
•A factorybuiltchimneycan be a double wall chimney (two concentric pipes with insulation
- sometimes referred to as an insulated solid pack) or an air cooled chimney (three
concentric pipes, with insulation between the first and second pipes, and air between the
second and third pipes).
•A single wall connector is a single pipe.
•A double wall connector has two concentric pipes, no insulation, and is an air cooled
connector.
2.2 CHIMNEY
CAUTION:
•DO NOT fill any framed space around the factory-built chimney with insulation or anyother
material. Insulation placed in this area could cause adjacent combustibles to overheat.
•Do not use makeshift compromises during installation as they may be safety hazards, and a
fire could result.
•Do not connect this unit to a chimney system serving another appliance.
•Do not cut rafters or ceiling joists without first consulting a building official to ensure
structural integrity is not compromised.
Your wood stove may be hooked up with a factory built or masonry chimney. If you are using a
factory built chimney, it must comply with UL103 (USA) or ULCS629 (Canada) standards. It must
therefore be a 6” (152mm) HT Type (2100°F) chimney. It is extremely important that it be installed

11
according to the manufacturer's specifications. The manufacturers’ installation instructions and
specified clearances should always be followed in accordance with local and national installation
codes. In Canada the CSA B365 and the CSA C22.1 installation codes are to be followed. In the
USA the ANSI NFPA 70 and ANSI NFPA 211 installation codes are to be followed.
If you are using a masonry chimney, it is important that it be built in compliance with the
specifications of the Building Code. It must be lined with fire clay bricks, or clay tiles, sealed
together with fire cement, or have a listed solid fuel burning stainless steel liner. Round chimneys
are the most efficient.
The interior diameter of the chimney should be identical to the stove's smoke exhaust. A chimney
which is too small may cause draft problems, since it may not have the required volume to properly
evacuate the quantity of smoke resulting from the combustion. A chimney whish is too large may
also cause draft problems. In fact, a large chimney will be harder to warm-up and may not reach high
enough temperatures to create a proper draft effect. Note that it is the chimney which creates the
draft effect, not your stove. Your stove's performance is therefore directly dependent on an
adequate draft from your chimney.
The following recommendations may be useful for the installation of your chimney:
•Do not connect your stove to a chimney serving another appliance.
•The chimney must rise above the roof at least 3' (0.9 mm) from the uppermost point of
contact. See Figure 2.2.
•The chimney must exceed any part of the building or other obstruction within a 10' (3.04 m)
distance by a height of at least 2' (0.6 m). See Figure 2.2.
•The minimum overall height of the chimney system, measured from the stove top to the
exterior termination cap of the chimney should be at least 12' (3.66m). A chimney which is
too short may lack the “tunnel effect” required to obtain a proper draft.
•Installation of an interior chimney is always preferable to an exterior chimney. Chimneys
constructed outside of the home on an exterior wall should be avoided if possible, especially
in colder climates. The gas which circulates into an interior chimney will cool more slowly,
thus reducing the build-up of creosote and the risk of flue fires.
•All else being equal, cooler chimneys will have less draft than hotter ones. This problem will
be amplified if the chimney is excessively long. A chimney which is excessively long may be
very hard to warm-up due to its higher volume. A cool chimney may even down draft
(reverse flow) due to the difficulty in heating it up to operating temperature while trying to
evacuate the stack gases.
•If an exterior chimney is used, the best results will be obtained by using a connector
vertically off the unit to the highest possible point before elbowing off horizontally to the
exterior chimney. For efficiency and safety reasons the stove must not be installed with an
insulated chimney connected directly to the appliance.
•Using a fire screen at the extremity of the chimney requires regular inspection in order to

12
insure that it is not obstructed, thus blocking the draft. It should be cleaned when necessary.
FIGURE 2.2 Minimum Height of the Chimney
2.2.1 Step by step installation of your factory-built chimney
Theway to install your chimneymayvaryfromone chimneymanufacturertoanother.The instructions
contained in this manual are based on the recommendationsof chimneymanufacturerswhoseproducts
are sold at many North American retailers of wood stoves and related heating accessories.
Wall support system
If your chimney must rise along an outside wall, you need to connect it to your stove through an
adjacent wall. For this type of installation, the following items are normally required :
Chimney
•Suitable lengths of chimney (enough to go up to your roof)
•An adjustable wall support
•A wall thimble
•Anadequate numberof wallbands (onefor every 8feet of chimney,excludingthe roofportion)
•A stove pipe adapter
•One insulated tee & plug
•A roof flashing kit (if necessary)
•A chimney cap.
•Roof guys (if required)

13
Stove pipe
•An adequate number of stove pipe sections.
•A 90o elbow
Typical installation through the wall
FIGURE 2.2.1 (A) Typical installation through the wall

14
1- Startby positioning your stove whereyou would like it to go, takinginto accountthe minimum
clearancesto combustiblematerial. You will then be able to determinewherethe chimney will
pass through the wall. You will probably have to adjust the stove position slightly to ensure
thatyour chimneywill runbetween the studs. Youcanuse astudfinderto locate thestuds.Use
a spoke saw or jig saw to cut a hole, remembering that you need to maintain a clearance of 2
inches between the chimney and any combustible materials. For concrete walls, cut a hole
slightly larger than the outer diameter of the chimney.
2- Oncethe openingcompleted, youneed toframe in thearea toallowfor the installationof a wall
thimble. A wall thimble is not required for installations through concrete walls.
3- You must first secure the wall thimble into the exterior wall surface. Then, do the same inside
and fasten the trim plate.

15

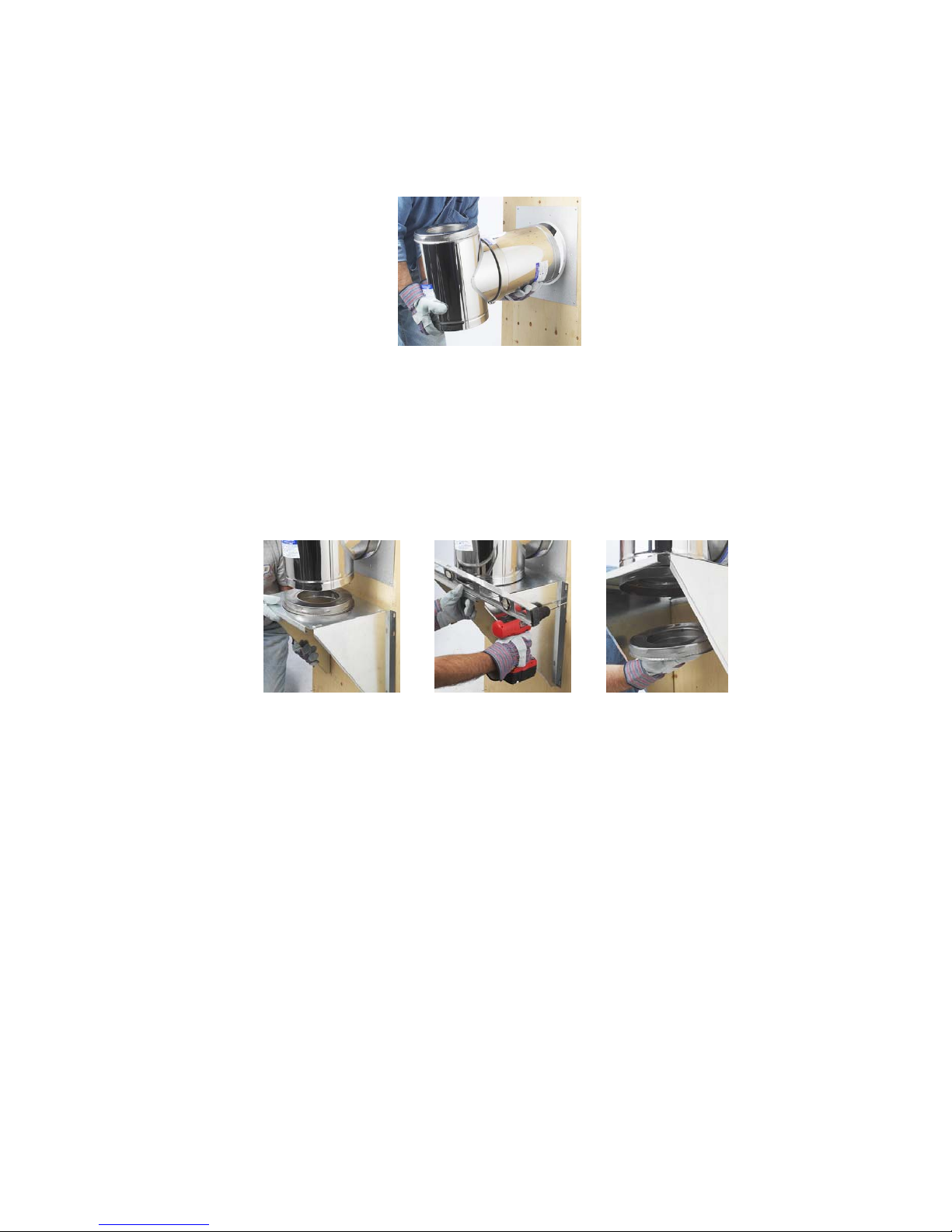

4- Then, from outside the building, slide a short chimney length (attached to the tee) through the
wall thimble. The chimney must extend at least 3 inches into the living space where it attaches
to the stove pipe.
5- You can now install the wall support. Simply slide the wall support up to the tee, ensuring that
the adapter on the support engages with the femalecoupler on the bottom of the tee. When the
wall support is level and properly positioned, you can use lag bolts to secure it into the wall
studs. To complete the installation, install an insulated tee plug below the wall support.

16

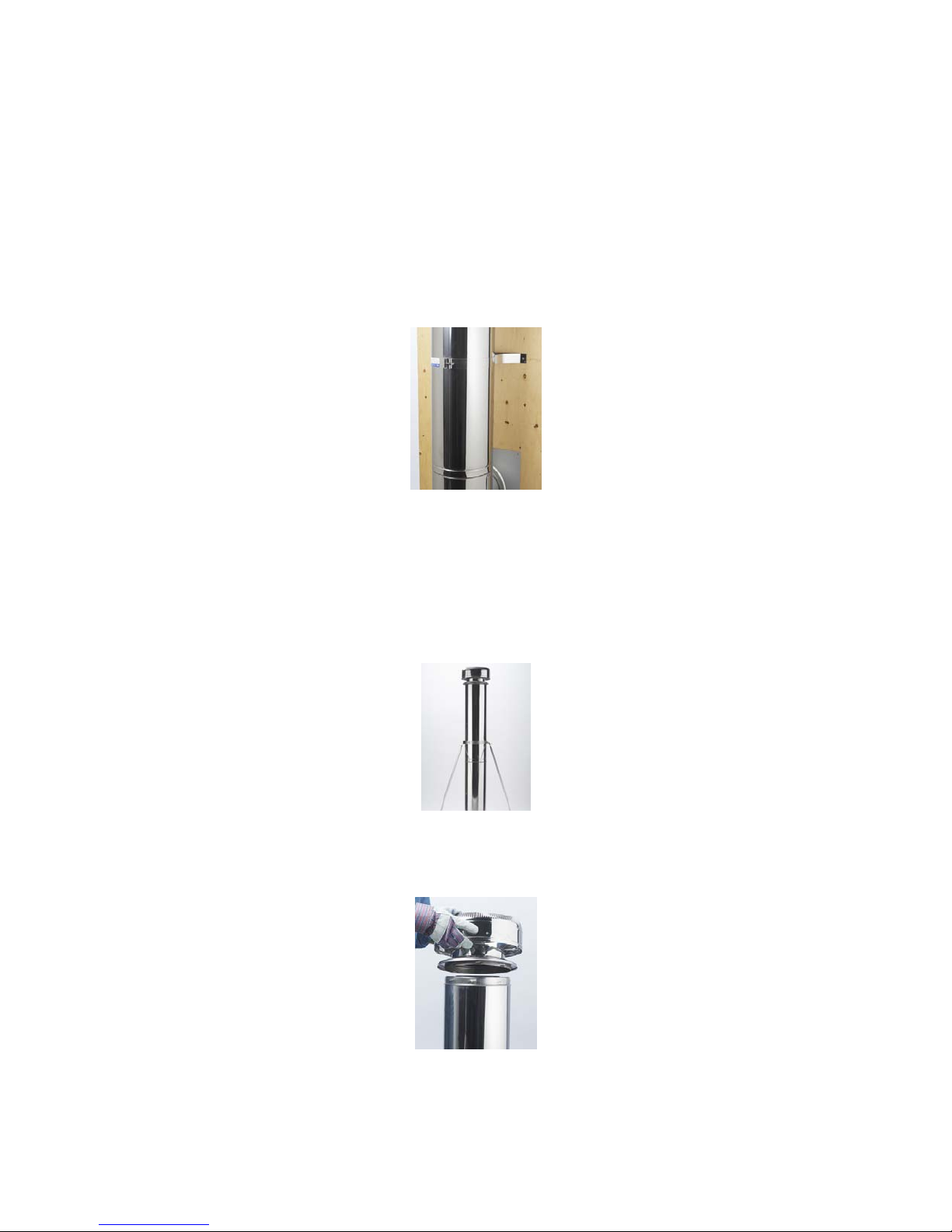

6- You can start to add chimney sections. We recommend that you also use locking bands to
secure all connections. You will need to secure the chimney to the house using wall bands.
Wall bands wrap around the chimney and then attach to the wall. Install the first one 3 feet
above the wall support. Then, you will need another band for each 8 feet of chimney. Note: if
your chimney must be installed through your soffit, install a roof flashing above and
finishing plate below where the roof is cut. Consult the following section called “CEILING
SUPPORT SYSTEM” for more details.
7- Authoritiesrequire that the chimneyextend not lessthan 3feet abovethehighest pointwhereit
passes through the roof of a building and not less than 2 feet above any portion of the building
within 10 feet. If the chimney extends more than 5 feet above the roof deck, roof guys with
telescoping legs and draw bands are required.
8- Finally, twist on your rain cap and you can head back inside.

17
9- You are now ready to connect your chimney to your stove. Simply install the inter-connecting
stove pipe between the stove pipe adapter and the stove. You can follow the instructions in the
following section (section 2.3) of this manual called « CHIMNEY CONNECTOR».
Ceiling support system
If your chimney must rise inside the house and go through the ceiling, you need to connect it to
your stove at the ceiling level. For this type of installation, the following items are normally
required :
Chimney
•An adequate number of chimney sections (enough to go up to your roof)
•A ceiling support kit with stove pipe adapter
•An attic insulation shield
•A roof flashing kit
•A chimney cap
•Roof guys (if necessary)
Stove pipe
•Suitable lengths of stove pipe

18
Typical installation through the ceiling
FIGURE 2.2.1 (B) Typical Installation Through the Ceiling

19
1. Place your stove where you would like it located and use a plumb line to mark the ceiling
directlyabove your stove flue. You willprobably have to adjust this position slightlytoensure
thatyour chimneywill runbetween thejoists.Youcanuse a studfinderto locate thejoists.You
alsoneed to takeinto accountthe minimumclearancesto combustiblematerials.Afteryouhave
determinedwhere thechimney will go throughthe ceiling, use a spokesaw or power jig sawto
cut a hole, remembering that you need a minimum 2-inch clearance between the chimney and
any combustible materials. Depending on whether you have a one or two story structure, you
will need to cut a matching hole through the floor of the attic or second floor living space.
2. Before you install the ceiling support, you need to frame the area.
3. To install the ceiling support, just slide the assembly into the framed opening from below.
Once you ensure that the finishing plate is flush with the underside of the ceiling and assembly
is level, secure it with screws.
