DST FPV01 User manual

www.dst-tec.com
SHENZHEN DREAM SOURCE TECHNOLOGY CO.,LTD
“Play”Passion through Visual Sense
DST-FPV GOGGLES
USER MANUAL

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Thank you for choosing DST's products. Please read this manual
carefully before carrying out relevant operations in order to ensure
correct and safe use of this product, and keep it properly for later use.
The contents of this manual and the specifications of this product are
subject to change without notice.
Preface
Catalogue
1.Packing list
2.Parameters of FPV goggles
3.Graphic illustration of FPV goggles
4.Graphic illustration of power supply box
5.Graphic illustration of installation
6.Frequencies, channels table
7.Operation steps of receiving 5.8G image
8.Brightness, chromaticity, contrast, language, reset adjustment
9.AV input/output functions
10.Charging instruction of power supply box
11.Precautions
12.FAQ
1
2
2
3
3
4
4
5
6
6
7
8

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Prohibit the product will be exposed to long-term light, strong light will make
the LCD screen due to high temperature and dead pixels. In such cases, the
manufacturer and the seller are not responsible. After use, place the video
glasses in a cool place or in the box.
Built-in 5.8GHz wireless receiving, 4 frequency bands, a total of 32 channels,
automatic channel search.
Compatible with standard CVBS signals of the whole systems(NTSC and PAL).
Supports 8 languages(Chinese、English、Spainsh Japanese、Russian、
Germany、French).
Supports AV video input, AV output functions.
Adjustable image brightness, chromaticity, contrast.
Uses high-tech precision optical components, anti-visual fatigue design.
Ergonomic molding, elastic adjustable band comfortable for wearing.
Built-in 7.4 V 1300 mAh lithium battery in the FPV power supply box, sustainable
power supply 2 hours.
，
5.8G antenna
User manual
FPV goggles Power supply box
Power cord USB charging cable
Product warning
Product features
1.Packing list
www.d st-te c.com
SHENZHEN DREAM SOURCE TECHNOLOGY CO.,LTD
“Pla y”Pa ssio n thro ugh Vi sual S ense
DST-FPV GOGGLES
USER MANUAL
1

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Size (length X width X height)
Weight:
Image resolution:
Built-in LCD display:
RF module:
Input/output formats:
Built-in battery:
Working time of power supply box:
Working environment:
Storage condition:
:180 mm * 180 mm * 100 mm
535g
800 * 480
5 inches
5.8GHz
supports CVBS of "N", "P" systems
7.4 V 1300 mAh LiPo
2 hours
0 ℃~45 ℃
-20 ℃~60 ℃
FPV power supply box
Up
ok
Down
Band for power supply box
Power input end
AV output port
AV input port
Menu
5.8G antenna
2.Parameters of FPV goggles
3.Graphic illustration of FPV goggles
2

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
4.Graphic illustration of power supply box
The 7.4 V 1300 mAh lithium battery built in the FPV power supply box can provide
sustainable power supply 2hours.When connecting FPV glasses, the screen can
display the capacity.

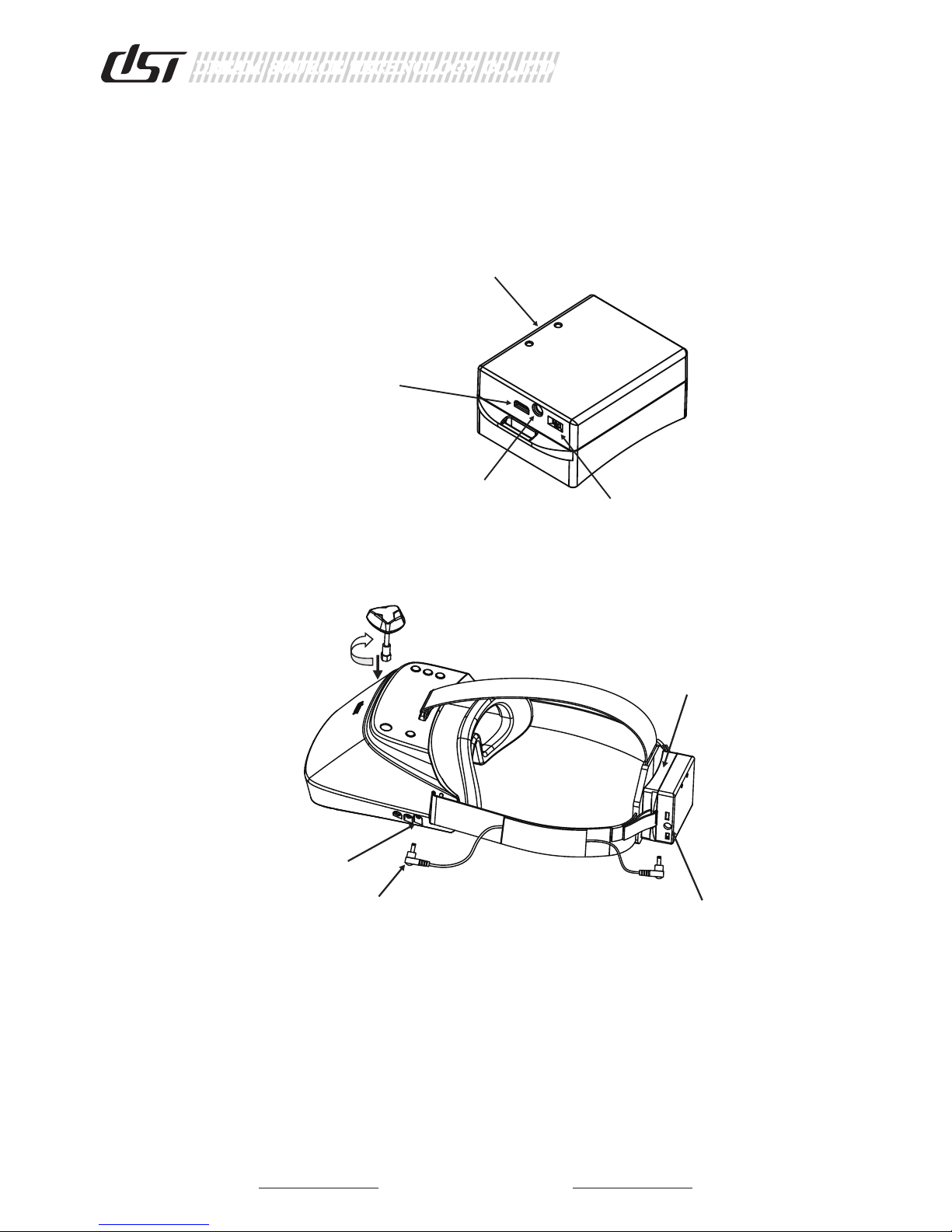

5.Graphic illustration of installation
Power supply box
7.4 V power
output port
Power cord
7.4 V - 24 V power
input port
5.8G antenna
locking direction
Charging indicator
USB charging port
Power output port
Power switch
When installing 5.8G antenna, you need to hold the metal hexagonal nut
of antenna and lock it clockwise.
Plug the DC power cord into the power supply box 7.4v output port and
insert the other end into the FPV eyeglass power input port.
3

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD

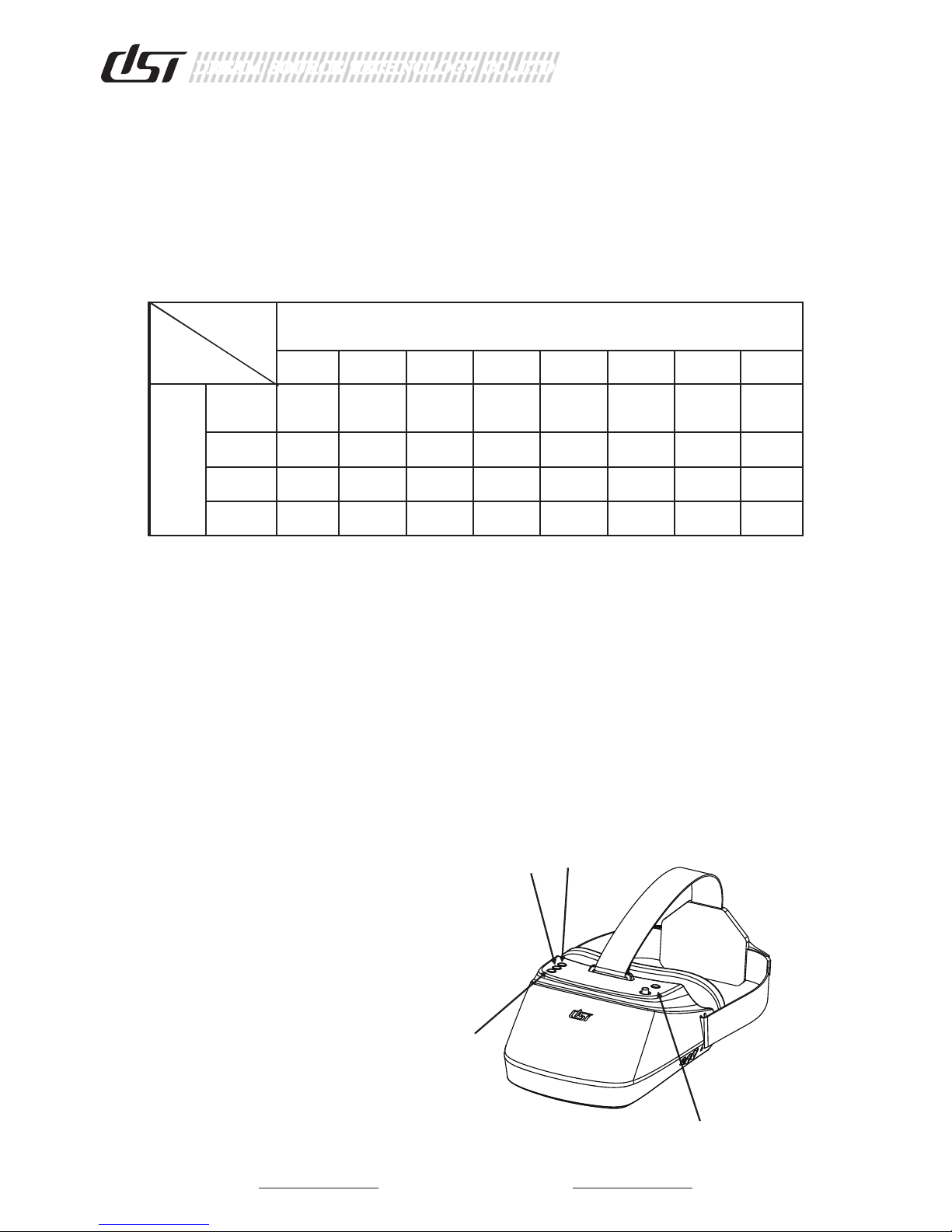

6.Frequencies, channels table
CH
FR
CH (MHZ)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
FR
A5865 5845 5825 5805 5785 5765 5745 5725
B5733 5752 5771 5790 5809 5828 5847 5866
C5705 5865 5665 5645 5885 5905 5925 5845
D5740 5760 5780 5800 5820 5840 5860 5880
CH
As shown in the following picture, FPV goggles support following 4
frequencies (FR) which have 8 channels (CH) each, a total of 32
channels (CH) to choose from. Please choose channels with good
image quality.
7.Operation steps of receiving 5.8G image
Up
Down
Menu
OK
1) Power on FPV Goggles.
2) Press Menu (pictured on the right), enter the menu page and select
scan (pictured on the right).
3) Press OK, and then press Up or Down button to start searching
channels, and you will receive images until it is in accordance with
5.8G transmitting channel.
4

SCAN
GROUP
FREQ
HELDER
CONTR.
KLEUR
LANG.
ROTATIE
HELP
RESET
A
5765
50
60
47
ENGELS
3
A6
www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Warm prompt:
You can receive the images only when 5.8G receiving channel
and 5.8G transmitting channel are the same.
Refer to the frequency channel table for detailed 5.8G receiving
channels.
When you see clear images in the process of searching, press
Menu button to stop searching and stay at the current channel
of clear images.
Displays menu page
8.Brightness, chromaticity, contrast,
language, reset adjustment
Brightness, chromaticity, contrast: press Menu button, enter the
menu page (pictured above) to select brightness, chromaticity,
contrast, and then press OK button, select Up or Down button to
adjust.

Language selection: press Menu button, enter the menu page
(pictured above) to select language, and then press OK button,
select Up or Down button to choose language.

Reset: press Menu button, enter the menu page (pictured above)
to select reset, and then carry out careful operation according to
need.
5

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
9.AV input/output functions
AV input/output connection of FPV goggles is as shown
in the picture below:
AV lines
AV input: composite video signals and analog audio signals of external devices
(e.g., DVD, MP4) are input to the AV input port of FPV goggles through AV lines,
and display images on the screen of FPV goggles.
AV output: video signals inside FPV goggles received by wireless are output
from AV output port of FPV goggles through AV lines, and can be connected to
display devices.
10.Charging instruction of power supply box
AV input port
AV output port
Charging indicator
FPV power supply box
USB charging cable
Power switch
6

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Charging steps
1) Plug the USB charging cable into the 5V charger.
2) Insert the Mico USB charging cable into the FPV power supply box charging
connector.
3) The red light indicates that it is charging, the green light indicates that the battery
is full.
Precautions for use of power supply box
When charging, you must place the FPV power supply box in a dry and ventilated
place, away from heat source and flammable and explosive items.
When charging, you must shut off the power box switch first，then remove the
power supply box from FPV goggles. The process of charging must be watched
to prevent accidents.
When you just finish using FPV goggles and the surface temperature of the built-
in battery is uncooled, please do not charge it immediately, otherwise it will cause
the battery to bulge or a fire.
Before charging, please ensure correct polarity.
In the charging process, avoid fall and external shock, otherwise it will cause
internal short circuit of the battery and danger.
When charging is completed, please pull out the USB charging cable in time,
away from the high voltage power supply.
To ensure the safety of your use, please do not disassemble and modify the power
box.
11.Precautions
For optimal performance, please choose channels with minimum interference.
Before use, please debug the effective range of image transfer and remote
control. Some receiving ends will be interfered by the electronic
transmitting/receiving components around, so try to keep enough space in order
to prevent mutual interference.
Ensure there is no obstacle between the transmitting antenna on the aircraft and
FPV goggles, and make the antenna away from the body as far as possible.
Beginners should fly in the familiar and larger space, to ensure safety.
7

www.dst-tec.com
DREAM SOURCE TECHNOLOGY CO.,LTD
Before flying, please make sure the battery is full charged, which can satisfy the
flight time.
Please do not make this product affected with rain or damp, and do not put liquid
items on this product; please do not use it in a very cold, hot, dusty or humid
environment, and pay special attention when use, so as not to cause FPV
goggles into malfunction.
12.FAQ
No image on display screen:
1) Check whether FPV goggles are connected with the power supply box, and
check whether the battery is low power.
2) Check whether FPV goggles’ receiving channel is in accordance with the
transmitting channel.
3) Check whether the 5.8G antennas of FPV goggles and aircraft are installed.
The signal quality of images received by FPV goggles is poor,
or wireless transmission distance is short:
1) Check whether there is any interference from radio transmitting equipment
with the same frequency in close range, and you should choose other
frequency for FPV goggles to avoid the interference frequency or avoid to
use them in the same site.
2) Check whether the 5.8G antennas of FPV Goggles and aircraft are installed.
3) Check whether there is any obstruction such as mountains, houses, trees,
etc. between FPV goggles and transmitter, and you should use FPV goggles
in the open field.
4) If the screen appears white spots： it could be that FPV goggles are exposed
to hard light, which will focus and burn out the liquid crystal wafer optical
device, causing white spots on LCD.
8
