DTDAUTO MOTOSCAN Manual

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
1
1. OVERVIEW
1.1 INTRODUCTION
- MOTOSCAN is a small motorcycle & Scooter scanner. It researched and
manufactured by DTDAuto Technology Team, Institute of Physics, Vietnam
Academy of Science and Technology since 2013.
- MOTOSCAN used for motorbike repair workshops and motorbike technical
vocational training to determine fault and repair electronic & electrical
system for most motorbikes and scooters in Asia market and some other
market with electronic control system for starting, fuel injection, ignition,
ABS, Smart key, ODO, ECU…
- MOTOSCAN is used for diagnosing fault, repair fault for Engine & ABS
system; automatic programming smart key system; automatic test ECU
inside, automatic engine technical analyzing, intelligent diagnosing without
OBD fault code , ODO value correction, ECU signal simulating,
programming and upgrading standard software of manufacturer inside
ECM, SCU… and many special measurement functions, full-featured for
professional motorbike repair workshop.
- Since 2020, MOTOSCAN has supported advanced function that
communicate with SCU system (Smart key Control Unit) to solve
requirements of automatic smart key programming in case of registration a
new key, lost of the keys, replacing SCU, replacing ECM, copy, restoring
and editing SCU data.
- In particular, with MOTOBOX advance accessory, MOTOSCAN can correct
true odometer value, reprogram ECM, simulate ECU signals, test fault
inside ECU (ECU tester) ... to repair advanced problems in electronic
systems of a new generation motorbikes/scooters.
- MOTOSCAN has supported advanced functions that used diagnosis
solution by analyzing auto data. It can find hard faults that MIL lamp does
not indicate such as: Idling Stop mode trouble, down power when
accelerate, over idle speed, more fuel consumption, weak engine, hard
start and mechanical faults that common diagnostic tools cannot execute.
- Support programming, adjusting and setting parameters in ECU as
electronic key programming, zero point programming of TPS, and air/fuel
ratio programming, idle speed and pulse bandwidth adjustment to control
fuel injection vv...
- A gift MOTODATA software for 01 year (you need pay renewal fee for
the next years) that used to lookup motorbike repair data for PIAGGIO,
HONDA, YAMAHA, SUZUKI, SYM, KYMCO. MOTODATA supports Android,
iOS, and Windows devices as smart phone, Tablet, computer, laptop. In
particular, it integrated workshop management function that helps you
mange orders, customers, inventory, financial…
- Equipment designed as the handheld, good quality, low cost and suitable
for small and medium repair workshop.
 Advantage:
- In-depth features, application range compatible most Asia FI motorcycles
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
2
- A safe and convenient solution supports both MIL and K-Line protocol
- Simple operation with keypad as handheld
- Equipment has integrate compact, design beautiful, professional, high
strength mechanics
- Effective, fast, accurate, reliable, detailed
- Technical support consultant directly from manufacturer
- Update and upgrade via Internet
- 12 months warranty and maintenance as required
- Low price

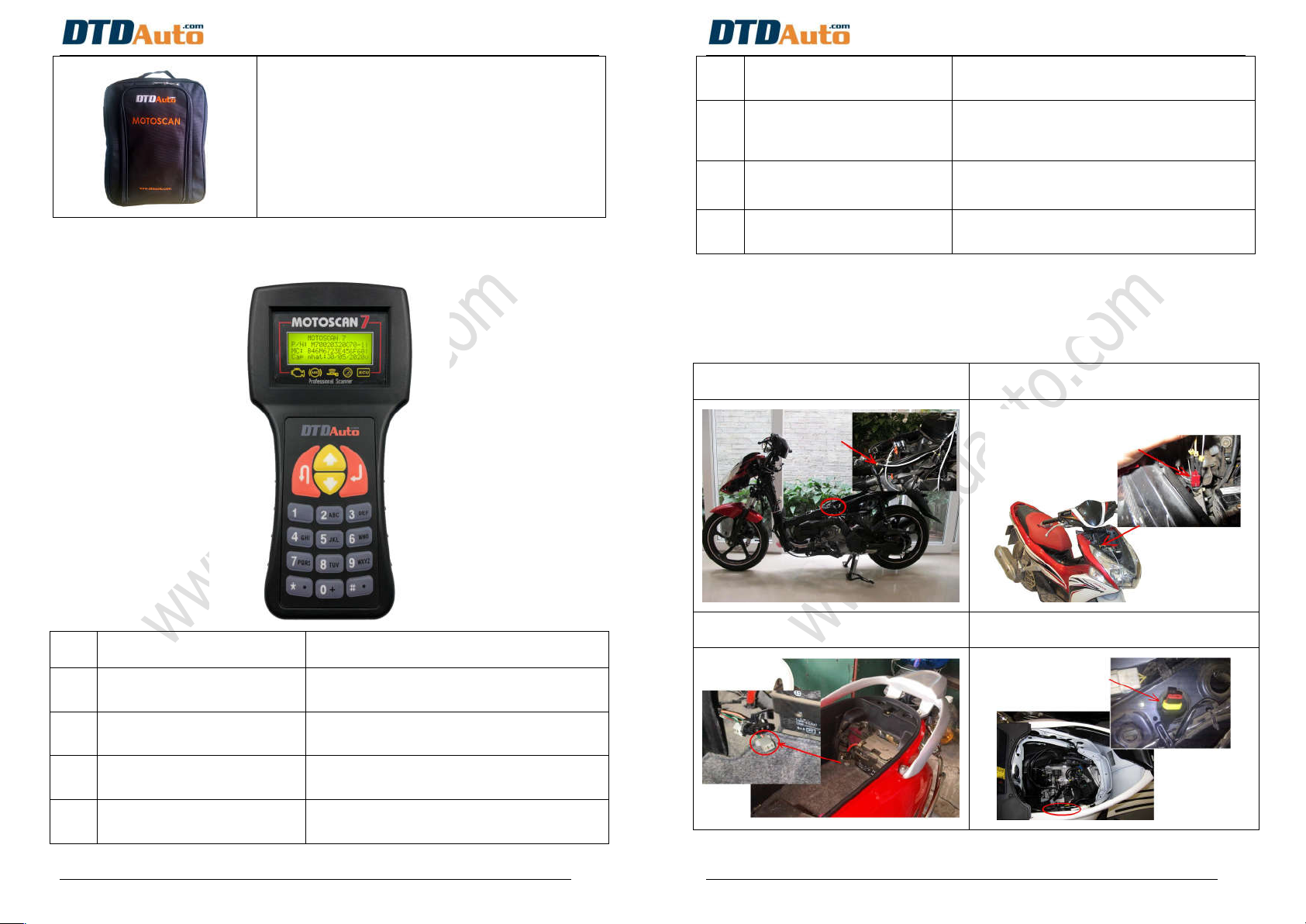

MOTOSCAN package with accessories

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
3
1.2 FUNCTIONS
 FUNCTION 1: DETERMINE FAULT
1. Read, clear fault codes stored in ECUs of engine system and ABS
system
2. Find complex faults that MIL lamp does not indicate such as:
- Diagnose faults by the automatic data analyzing and interviewing the
technicians
+ Can’t start engine
+ Down power when accelerate
+ Idling stop fault
+ Fuel consumption
+ Starter is not work
+ Random acceleration
+ Constant acceleration
+ Idling not work
+ Hard to start engine
+ Weak engine
+ Injector mechanical fault

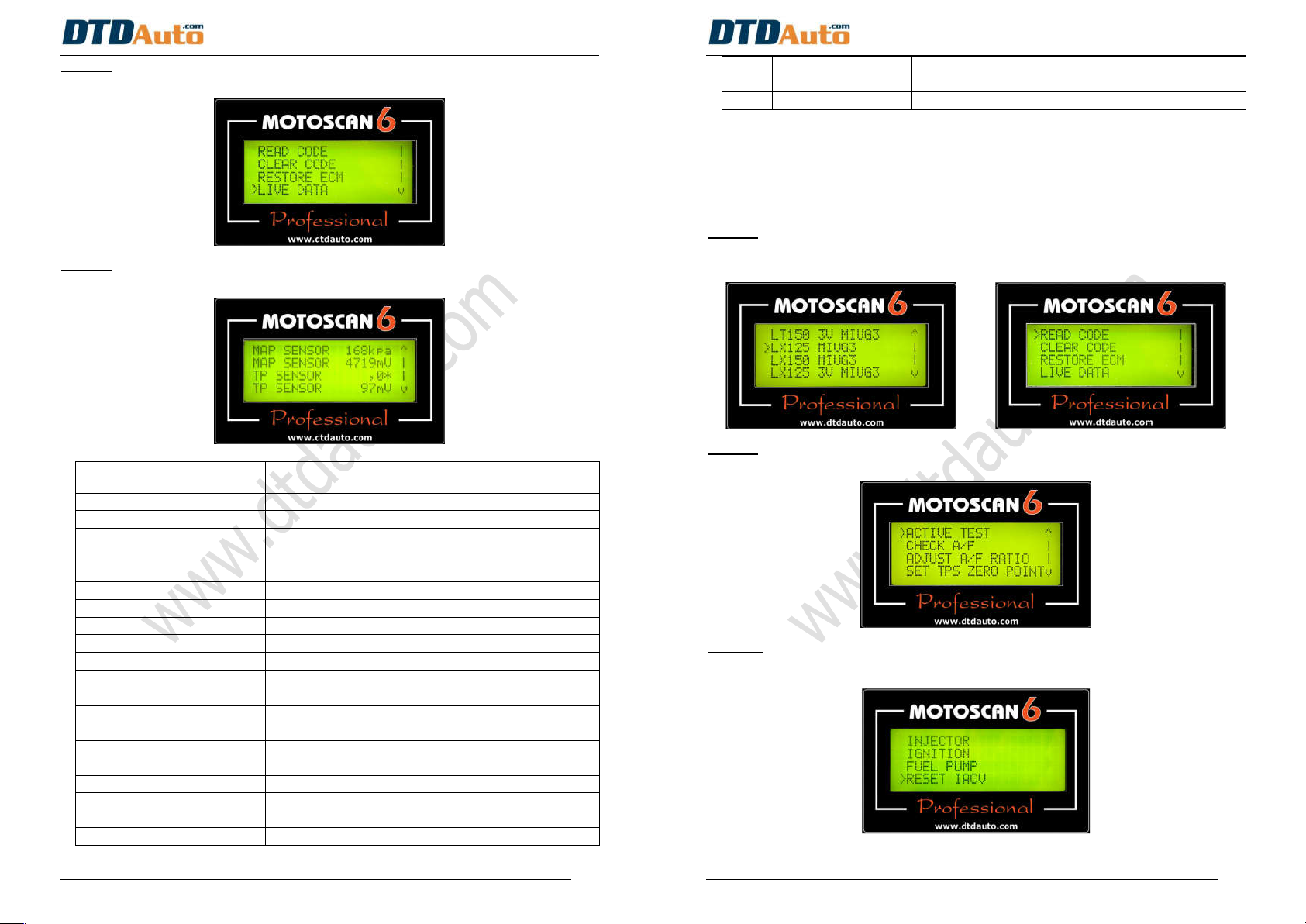

- Diagnose faults by analyzing the engine live data and activate the
actuators
+ Voltage and open angle of throttle position sensor (TPS)
+ Voltage and value of intake air temperature sensor (IAT)
+ Voltage and value of manifold air pressure sensor (MAP)
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
4
+ Voltage and value of engine temperature sensor (ECT)
+ Voltage and value of oxygen sensor (O2S)
+ Value of atmospheric pressure sensor
+ Engine speed (CKP/ NE)
+ Vehicle speed (VSS)
+ Front/rear wheel speed (with ABS system)
+ Status of fuel pump
+ Ignition timing advance (ISA)
+ Fuel injection time (Ti)
+ Starter signal (STP)
+ Status signal of side stand switch (SSTAND-SW)
+ Status Hall sensor
+ Evaporative purge cut solenoid valve output signal (PCS)
+ Output signal active starter relay (ON/OFF)
+ Output signal active PCV
+ Output signal active IACV
+ Output signal active MIL
+ SCS input signal status (service check signal)
+ Open state of step motor (IACV)
+ State of heater of O2 sensor
+ State of brake switch
+ State of Start & Stop indicate lamp
+ State of Star t& Stop mode button
+ State of start button
+ State of pre-positioning
+ Status of direction sensor
+ Status of oil minimum pressure sensor
+ Engine stop command from DSP
+ Battery voltage (BATT)
+ Battery current
+ Short term fuel trim in closed loop
+ Environmental revision coefficient in closed loop
+ Fault code and total fault codes
+ And other parameters vv...
- Activate and reset the actuators: Fuel pump, injector, ignition coil,
IACV (ISCV), O2 heater, pump, blower, head lamp, MIL warning lamp, ABS
warning lamp, Immobilizer lamp, Start&Stop lamp, engine oil pressure
warning lamp, VVA valve, reset pre-positioning of crankshaft ...
 FUNCTION 2: REPAIR FAULT
1. Automatically program smart key for HONDA, YAMAHA, SUZUKI:
- Read all KEYID# and ECMID from vehicle SCU
- Program smart key directly with vehicle or without vehicle (SCU is not
installed on vehicle) for cases:
+ Register more FOB# for all of cases
+ Register FOB# when lost all of the FOB#
+ Delete KEYID in SCU memory

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
5
+ Synchronize SCU & ECM for all of cases
+ Inactivate FOB# code in SCU when lost FOB#
+ Check FOB# & SCU
+ Display status of KEY (ON/OFF)
+ Display SCU information
- Restore SCU data from sample data for HONDA (this function used to
repair software inside SCU when SCU data is fault)
- Copy data from source SCU to destination SCU for all motorbikes that
have Smart key system: HONDA, YAMAHA, SUZUKI (This function used to
repair, swap SCU when have SCU hardware/software fault)
- Quick sync SCU & ECM (without FOB) for HONDA: SH, PCX, X-ADV... and
equivalent vehicles
List of vehicle as below (include other models which use similar ECMS):
- HONDA: SH 125/150/125D/150D/SM, SH 300i ABS, PCX, SH MODE ,
LEAD, AIR BLADE, VISION, X-ADV, FORZA, SUPER CUB, SCOOPY ESP, X-
ADV, CLICK, VARIO
- YAMAHA: JANUS 125, NVX 125, NVX 155 Camo, NVX 155 ABS, AEROX,
LEXI S, NMX, NMAX, SMAX, TMAX, QBIX 125, QBIX 125 S, QBIX 125 ABS
- SUZUKI: GSX R150
2. Programming key immobilizer and get out immobilizer ID code
for PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI,
PEUGEOT, which use similar ECMs) that ECM types: ACII, AC2I, AC5I,
AC8I, AC13I, AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I,
AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACI604,
ACI605, ACI606, ACII, MIU1, MIU2, MIU G3/RIU1, MIU4,
PGN04/PGS02/PGT01
Reset immobilizer, register new key when lost all of the keys, register
additional keys … by many methods (KEY to IMMO. or IMMO. to KEY)
3. Correct and adjust value of digital odometer of HONDA, YAMAHA
(ODO) (use with MOTOBOX)
- HONDA: AIR BLADE 125, CBR 250, FUTURE NEO Fi, FUTURE X Fi, LEAD
125 (2013-2016), LEAD 125 (2017-2018), PCX (2008-2018),
SH 300i (2008-2015), SH 300i (2016-2017), SH 125/150/125D/150D/SM
(2013-2017), SH MODE (2013-2017), MSX, VARIO 150, WINNER, DYLAN,
WAVE 125 (Thailand), CLICK 125i (2013-2014), CLICK 125i (2015-2017),
SCOOPY-i
- YAMAHA: NVX, JANUS, TFX, EXCITER 2019, ACRUZO, EXCITER, FZ 150,
FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3, R15
- SUZUKI: RAIDER 150
Edit, decode odometer data and convert information automatically in
EEPROM
4. Programming ECM firmware (use with MOTOBOX) for:
- HONDA: AIR BLADE 125, LEAD 125, SH MODE, VISION 110
- PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI,
PEUGEOT, which use similar ECMs): ECM types are
AC19I/AC20I/AC24I/AC25I/ AC27I/AC32I, MIU G3/RIU1 and ECM
PGN04/PGS02/PGT01
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
6
Initialize and repair data errors, upgrade the versions of MCU, EEPROM
5. Calibrate and set control parameters in the ECM:
- Calibrate air/fuel ratio (AFR): YAMAHA, PIAGGIO/VESPA (it also support
GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), SYM
- Reset to manufacturer value of ECM: HONDA, YAMAHA, PIAGGIO/VESPA
(it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar
ECMs)
- Offset zero point value and set range of throttle position sensor for
PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which
use similar ECMs)
- Reset IACV: HONDA, YAMAHA, PIAGGIO/VESPA (it also support GILERA,
APRILIA, DERBI, PEUGEOT, which use similar ECMs), KYMCO
- Adjust pulse band width to control fuel injectors (Ti) and idle speed:
YAMAHA, SYM
- Create new and repair data errors, upgrade the version MCU, EEPROM
6. Check component fault inside ECM (this is optional and use with
MOTOBOX)
Test quantity of ECMs for HONDA, YAMAHA, PIAGGIO/VESPA according to
the order
7. Simulate Input/Output signal of ECU to support diagnosing fault
and repair ECU hardware (use with MOTOBOX)
 FUNCTION 3: SPECIALIZED MEASURE TOOL
1. Fast measure and assess capacity, quality of battery
2. Reviewed charging status and rated the quality of the generator,
regulator
3. Measure the air/fuel ratio (A/F) to assess the instantaneous fuel
consumption
4. Measure engine speed (RPM) for all carburetor and PGM-FI/FI with DIY
ECU motorbikes
5. Emulate the signals on motorcycle for fault diagnosis, ECU hardware
repair *
 FUNCTION 4: INFORMATION WITH MOTODATA SOFTWARE
1. Show the current firmware version of ECM and ACU
2. Look up the acronym, position of signal pins for systems: ECM, SCU,
ACU, ODO, IMMO, SMART KEY
3. Look up electrical wiring diagram: principle diagram, schematic assembly
and specified conditions
4. Look up the process assembly, repair, maintenance mechanic, oil
warning lamp reset
5. Manage repair workshop: customer, financial, store, treasury, employees
6. Update version of data software and firmware via Internet
NOTES:
The advanced functions with an asterisk (*), you must purchase additional
MOTOBOX

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
7
1.3 APPLICATION RANGE
- It is diagnostic tool in motorcycle/ Scooter workshops and equipment for
technical training.
- A semi-finished products connect to trainer for electronic injection &
ignition system of PGM-FI motorcycles.
- A safety check equipment of the motorcycles before it is running on the
road and in motorcycle club.
- List of motorcycles as below:
NOTES:
Models of motorcycle brands can different depend on market type. Models
same ECM type as below can work well with MOTOSCAN.
- HONDA:
PCX HYBRID WINNER X SUPPER CUP SONIC 150
LEAD 110 LEAD 125 AIR BLADE FI FUTURE NEO FI
FUTURE X FI PCX VISION WAVE RSX AT
WAVE RSX FI SH 125i SH 150i SH ESP
SH 300i SH MODE WINNER SCR
MSX125 PS SCOOPY - I WAVE 110/125
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
8
CLICK - I VARIO 150 ZOOMER-X X-ADV
- PIAGGIO:
BEVERLY FLY LIBERTY MEDLEY
VESPA 946 VESPA GTS VESPA LX VESPA
PRIMAVERA
VESPA S VESPA SPRINT
- YAMAHA:
EXCITER LATTE GRANDE ACRUZO
FREEGO FREEGO S JANUS CUXI
LUVIAS NOZZA NOUVO NM-X

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
9
NVX155 NVX ABS JUPITER SIRIUS
FZ1 150I GP FZ1 FAZER FZ1 150I FZ-S
TFX YBR YZF
- SUZUKI:
ADDRESS GSX R150 STAR RS 125 EFI STAR SR 170
ABS
HAYATE 125
SS VIVA 115 UA 125 - T GZ150
IMPLUSE EN 150A THUNDER RAIDER 150
- SYM:
ELIZABETH ELIZABETH
V SMART IDLE ELIZABETH
SMART
ELIZABETH
SMART IDLE
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
10
POWER PASING JOYRIDE SHARK 125
SHARK125 CBS SHARK MINI
125 EFI
SHARK MINI
125 SPORT VENUS EFI
VENUS 125 EFI VENUS 125
SMART IDLE
- KYMCO:
PEOPLE S FI PEOPLE 16 FI MANY MACAROL MANY FI
LIKE FI JOCKEY FI
NOTES: Next versions can be updates or upgrades more data, functions
and motorcycle list

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
11
1.4 OPTIONAL MODELS
OPTIONS MODEL APPLICATION
SINGLE MODE
7H All HONDA PGM-FI/FI motorcycles
7Y All YAMAHA PGM-FI/FI motorcycles
7S All SYM PGM-FI/FI motorcycles
DOUBLE
MODE
7HY All HONDA, YAMAHA PGM-FI/FI motorcycles
7HS All HONDA, SYM PGM-FI/FI motorcycles
MULTI MODE 7M All HONDA, YAMAHA, SYM, SUZUKI
PGM-FI/FI motorcycles
PROFESSIONA
L MODE 7
All PIAGGIO/VESPA
(it also support GILERA, APRILIA, DERBI,
PEUGEOT, which use similar ECMs),
HONDA, YAMAHA, SYM, SUZUKI, KYMCO
PGM-FI/FI motorcycles support advanced
functions
MOTOBOX
accessory Standard
Support advanced functions to upgrade ECM,
adjust ODO, simulate ECM input/output signal
for MOTOSCAN
All HONDA, YAMAHA, PIAGGIO/VESPA
(it also support GILERA, APRILIA, DERBI,
PEUGEOT, which use similar ECMs), SYM,
SUZUKI, KYMCO PGM-FI/FI motorbikes
NOTE: if you buy a single mode or double mode then you can pay fee for
upgrading it to multi mode (6M and professional mode (6)
1.5 FUNCTION TABLE FOR THE BRANDS
1.5.1 Function table for brands
BRANDS FUNCTION LIST
PIAGGIO
- Read/Clear fault codes (by DLC) with OBD technology
- Reset ECM, IACV, IDLE, MIL…
- View live data
- Active/ Reset actuators
- Advanced diagnostic for complex fault that don’t indicate
MIL
- Check battery and generator
- Check Air/Fuel ratio for PGM-FI/FI motorcycles
- Adjust Air/Fuel ratio for PGM-FI/FI motorcycles
- Check Air/Fuel ratio for motorcycles that have used
carburetor (optional with adding hardware)
- Measure engine speed (RPM) for all carburetor and PGM-
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
12
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Set zero point value for throttle position sensor (TPS)
- Set operation range for throttle position sensor (TPS)
- Key programming
- Test ECU, sensor*
- Program, repair and upgrade firmware for ECM*
- Simulate repair signals of ECM*
- View ECM information
HONDA
- Read/Clear fault codes (by DLC) with OBD technology
- Restore software in ECU
- Reset ECM, IACV, IDLE, MIL…
- View live data
- Program smart key automatically, read KEY IDs, ECM ID
for all cases of lost of the keys
- Lookup content of fault codes and repairing suggestion
- Advanced diagnostic by analyzing auto data and
description via phenomena
- Advanced diagnostic for complex fault that don’t indicate
MIL
- Detail advanced diagnostic for fault position on wiring
diagram
- Check battery and generator
- Check Air/Fuel ratio for all type PGM-FI/FI motorcycles
- Check Air/Fuel ratio for motorcycles that have used
carburetor (optional with adding hardware)
- Measure engine speed (RPM) for all carburetor and PGM-
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Test ECU, sensor*
- Reinstall, repair, upgrade firmware for ECM*
- Simulate the input and output signal of ECM*
- Adjust value of digital speedometer
(ODO)*
- View ECM information
YAMAHA
- Read/Clear fault codes (by DLC) with OBD technology
- Reset ECM, IACV, IDLE, MIL…
- View live data
- Active actuators
- Lookup content of fault codes, repair suggestion
- Advanced diagnostic for complex fault that don’t indicate
MIL
- Detail advanced diagnostic for fault position on wiring
diagram
- Check battery and generator
- Check Air/Fuel ratio for all type PGM-FI/FI motorcycles
- Adjust Air/Fuel ratio for all type PGM-FI/FI motorcycles
- Check Air/Fuel ratio for motorcycles that have used
carburetor (optional with adding hardware)

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
13
- Measure engine speed (RPM) for all carburetor and PGM-
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Test ECU, sensor*
- Reinstall, repair, upgrade firmware for ECM*
- Simulate the input and output signal of ECM*
- Adjust value of digital speedometer (ODO)*
- View ECM information (depending on FI motorcycles that
have this function)
SYM
- Read/Clear fault codes (by DLC) with OBD technology
- Reset ECM, IACV, IDLE, MIL…
- View live data
- Lookup content of fault codes, repair suggestion
- Check battery and generator
- Check Air/Fuel ratio for PGM-FI/FI motorcycles
- Adjust Air/Fuel ratio for PGM-FI/FI motorcycles
- Check Air/Fuel ratio for motorcycles that have used
carburetor (optional with adding hardware)
- Measure engine speed (RPM) for all carburetor and PGM-
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Simulate the input and output signal of ECM*
- View ECM information
SUZUKI
- Read/Clear fault codes (by MIL)
- Lookup content of fault codes, repair suggestion
- Check battery and generator
- Check Air/Fuel ratio for all type of motorcycles (optional
with adding hardware)
- Measure engine speed (RPM) for all carburetor and PGM-
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Simulate the input and output signal of ECM*
- Adjust value of digital speedometer (ODO)*
KYMCO
- Read/Clear fault codes (by DLC) with OBD technology
- Lookup content of fault codes, repair suggestion
- View live data
- Check battery and generator
- Check Air/Fuel ratio for PGM-FI/FI motorcycles
- Adjust Air/Fuel ratio for PGM-FI/FI motorcycles
- Check Air/Fuel ratio for motorcycles that have used
carburetor (optional with adding hardware)
- Measure engine speed (RPM) for all carburetor and PGM-
FI/FI with DIY ECU motorbikes (optional with adding cable)
- Simulate the input and output signal of ECM*
- View ECM information
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
14
NOTES: The advanced functions with an asterisk (*), you must purchase
additional MOTOBOX
1.5.2 Function table for models of the brands
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
HONDA
AIR BLADE
2008-2010
AIR BLADE
2010-2012
AIR BLADE
2013 nay
CBR 250
CLICK-i
CLICK 125i
DYLAN
LEAD 110
LEAD 125
FORZA
FUTURE NEO FI
FUTURE X FI
FUTURE 125 FI
PCX (08-15)
PCX (16-18)
PCX HYBRID
X-ADV
PS
VISION
VISION ESP
SONIC 150
SH125i
SH150i
SH125 ESP

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
15
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
SH150 ESP
SH 300i
SH 300i ABS
SH MODE
WAVE RSX FI
SCR 110
SUPPER CUB C125
WINNER X
MSX 125
SCOOPY-i
VARIO
WAVE 110i
WAVE 125(Thái Lan)
WAVE 125i
ZOOMER
Other HONDA FI
HONDA
Carburetor
PIAGGIO
BEVERLY 125
MIUG3
BEVERLY 300
MIUG3
BEVERLY 350
MIUG3
FLY 125 MIUG3
FLY 150 MIUG3
FLY 125 3V MIUG3
FLY 125 AC19I/20I
FLY 125 C191/201
FLY 150 3V MIUG3
FLY 150 AC19I/20I
FLY 150 AC191/201
FLY AC
II/2I/5I/8I/13I
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
16
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
LIBERTY 125 3V
PNG04/PGS02/PGT01
LIBERTY 125
AC19I/20I/
LIBERTY 125
AC191/201
LIBERTY 125 AC
II/2I/5I/8I/13I
LIBERTY 150 3V
MIUG3
LIBERTY 150 3V
PGN04/PGS02/PGT01
LIBERTY 150
AC191/201
LIBERTY 150 AC
II/2I/5I/8I/13I
LIBERTY ABS
PGS06
X10 125 MIUG3
X10 350 MIUG3
MEDLEY 125
PGQ16
MEDLEY 150
PGQ16
PIAGGIO FI khác
PIAGGIO
Carburetor
VESPA 946 125 3v
MIUG3
VESPA 946 150 3V
MIUG3
GTS125 MIUG3
GTS150 MIUG3
LXV125 3V MIUG3
GTS125 ABS
MIUG3

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
17
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
GTS300 ABS
MIUG3
LT 125 3V MIUG3
LT 150 3V MIUG3
LX 125 MIUG3
LX 125 AC19I/20I
LX 125 AC191/201
LX 125 ACII/
2I/5I/8I/13I
LX 150 MIUG3
LX 150 AC19I/20I
LX 150 AC191/201
LX 150 ACII/
2I/5I/8I/13I
LX 125 3V MIUG3
LX 150 3V MIUG3
LX 125 3V PGN04/
PGS02/PGT01
LX150 3V PGN04
LXV125 2V MIUG3
LXV125 3V MIUG3
LXV150 3V MIUG3
PRIMAVE 125
MIUG3
PRIMAVE 150
MIUG3
PRIMAVE 125
PGN04/PGS02/PGT01
PRIMAVE 150
PGN04/PGS02/PGT01
PRIMAVERA ABS
S125 MIUG3
S150 MIUG3
S125 3V MIUG3
S150 3V MIUG3
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
18
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
SPRINT 125 3V
PGN04/PGS02/PGT01
SPRINT 150 3V
PGN04/PGS02/PGT01
SPRINT ABS
VESPA FI khác
VESPA
Carburetor
SUZUKI
ADDRESS 110
HAYATE 125 SS
UA 125-T
VIVA 115
GZ150-A
GSX R150
EN150-A
RAIDER 150
THUNDER150/150S
IMPLUSE
STAR RS 125 EFI
STAR SR 170 ABS
Other SUZUKI FI
SUZUKI
Carburetor
SYM
ATTILA-V SMART
IDLE
ELIZABETH SMART
IDLE
ELIZABETH 110
ELIZABETH 2014
ELIZABETH 20 năm
ELIZABETH SMART
FANCY

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
19
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
JOYRIDE
SHARK 125
SHARK 125 CBS
STAR
SHARK MINI 125
EFI
SHARK MINI 125
SPORT
PASSING EFI
POWER EFI
VENUS EFI
VENUS 125 EFI
VENUS 125 CBS
VENUS 125 SMART
IDLE
Other SYM FI
SYM
Carburetor
YAMAHA
ACZURO DELUXE
ACZURO
STANDARD
AEROX
CUXI
JANUS
EXCITER 150 GP
EXCITER 150 RC
EXCITER
MOVISTAR 150
EXCITER CAMO 150
EXCITER GP 2019
EXCITER RC 2019
EXCITER MON.2019
EXCITER DOX.2019
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
20
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
EXCITER MOV.2019
EXCITER 150i 2019
FREEGO 2019
FREEGO S 2019
FZ 150
FZ 150I GP
FZ 150I MOVISTAR
FZ-S
TFX
YZC
YBR
JUPITER FI
GRAVITA
JUPITER FI GREEN
JUPITER FI GP
JUPITER FI RC
LATTE 2019
LEXI
LUVIAS GTX FI
LUVIAS FI
NM-X
NMAX
NOZZA
NOZZA LIMITED
NOUVO LX
NOUVO SX RC
NOUVO SX STD
NOUVO SX GP
NVX 155
NVX 155 ABS
R15
SIRIUS RC FI
SMAX
TMAX

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
21
LIST OF
MOTORCYCLES
READ/CLEAR CODE
RESTORE ECU
VIEW LIVE DATA
ACTIVE ACTUATOR
CHECK A/F
ADJUST A/F
SET TPS ZERO POINT
ADV.DIAGNOSIS
CHECK BATTERY
CHECK GENERATOR
PROGRAM SMART KEY/
IMMOBILIZER
CORRECT ODO (*)
ECM PROGRAMMING(*)
ECM INFO
QBIX
GRANDE STD
GRAND DUL.2019
GRAND STD.2019
FZ1 FAZER
YBR
YZF-R3
Other YAMAHA FI
YAMAHA
Carburetor
KYMCO
PEOPLE S FI
PEOPLE 16 FI
MANY MACAROL FI
MANY FI
LIKE FI
JOCKEY FI
Other KYMCO FI
KYMCO
Carburetor
NOTES: The advanced functions with an asterisk (*), you must purchase
additional MOTOBOX
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
22
1.6 EQUIPMENT COMPONENT
IMAGE DESCRIPTION
Main machine
Hand tool with LCD and function button
(View detail 1.7 item)
P/No: MT001-DLC
Data cable
Used to determine fault, view live data active
actuators and calibrate parameters via DLC
connector (K-line communication protocol)
Data cable for YAMAHA (CAN BUS
communication protocol)
P/No: MTS06-SP01
HONDA Smart key cable
Used for HONDA: SH, PCX, X-ADV…)
P/No: MTS06-LV01
HONDA Smart key cable
Used for HONDA: AIR BLADE, LEAD, VISION,
VARIO, CLICK)
P/No: MTS06-YS01
YAMAHA/SUZUKI Smart key cable

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
23
RPM cable used for measuring RMP
without OBD
P/No: MT001-TEST
Data cable used for checking battery and
generator
Accessory measure exhaust (Optional)
Accessory to repair, reinstall and upgrade
the ECU firmware (optional)
P/No: MT001-UPDATE
Cable use for software updates of
versions and models upgrade
P/No: MT0006-LINK
Cable data used to connect with
MOTOBOX (Optional)
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
24
P/No: MT001-POWER
12V/ DC power cable
220V/AC to 12V/ DC power converter
P/No:
MT001-YAMAHA’s LL
Extendable cable for YAMAHA
P/No: MT001-JUMP1 &
P/No: MT001-JUMP2
Jumper for reading fault code by MIL
Data CD on PC include:
- User guide video
- MOTODATA software
GUIDE BOOK

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
25
HAND BAG
1.7 DESCRIPTION OF FUNCTION KEYPADS
No COMPONENT FUNCTION DESCRIPTION
1 LCD Main display Display all information for the using.
Show on 20 x 4 characteristics
2 “Enter/ OK” button perform a command menu follow
selection
3 “Exit/ Cancel” button Exit or cancel the function, current
display
4 “Shift Up” button Shift cursor to Up to select function or
show next page
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
26
5 “Shift Down” button Shift cursor to Down to select function
or show previous page
6 “Shift Left” button
(Key for enter number 4)
Shift cursor to Left to show previous
fault code in case many codes is
detected
7 “Shift Right” button
(Key for enter number 6)
Shift cursor to Right to show next fault
code in case many codes is detected
8 0 9 number keypads Use enter number for fault codes need
to lookup
2. DLC LOCATION ON THE MOTORCYCLE BRANDS
& WIRING CONNECTION DIAGRAM
2.1 DLC LOCATION ON THE MOTORCYCLE BRANDS
YAMAHA HONDA
SYM/ KYMCO PIAGGIO

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
27

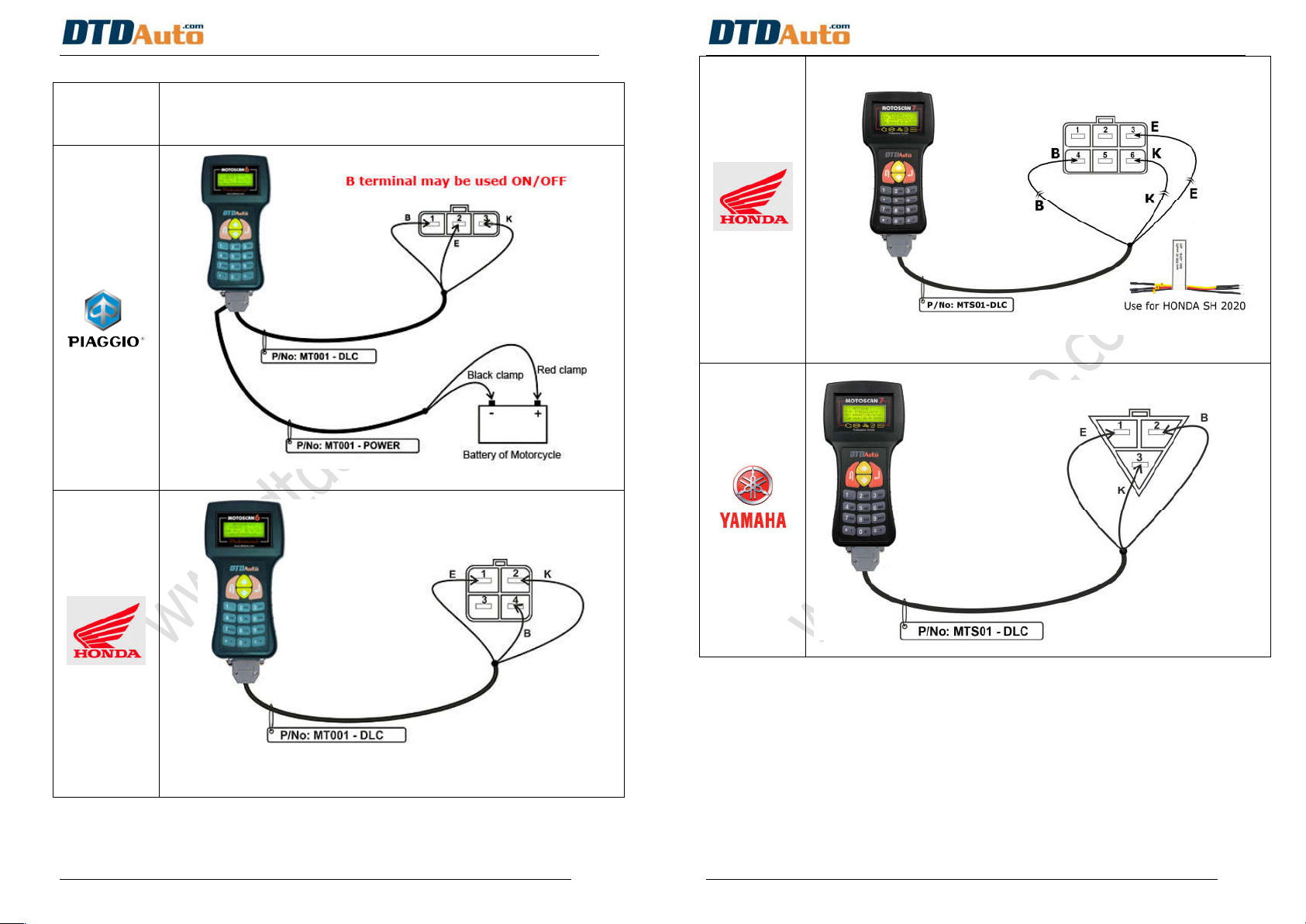

2.2 CONNECTING DLC ON THE MOTORCYCLE BRANDS
BRANDS ELECTRICAL WIRING CONNECTION DIAGRAM
(K: K-Line; E: Negative battery; B: Positive battery)
(Type 1)
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
28
(Type 2)
(Type 1)

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
29
(Type 2)
Step 1: Disconnect the connector between dashboard and ECU
Step 2: Connect the K wiring of cable to ECU diagnose
connector
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
30
(Type 3)

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
31
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
32

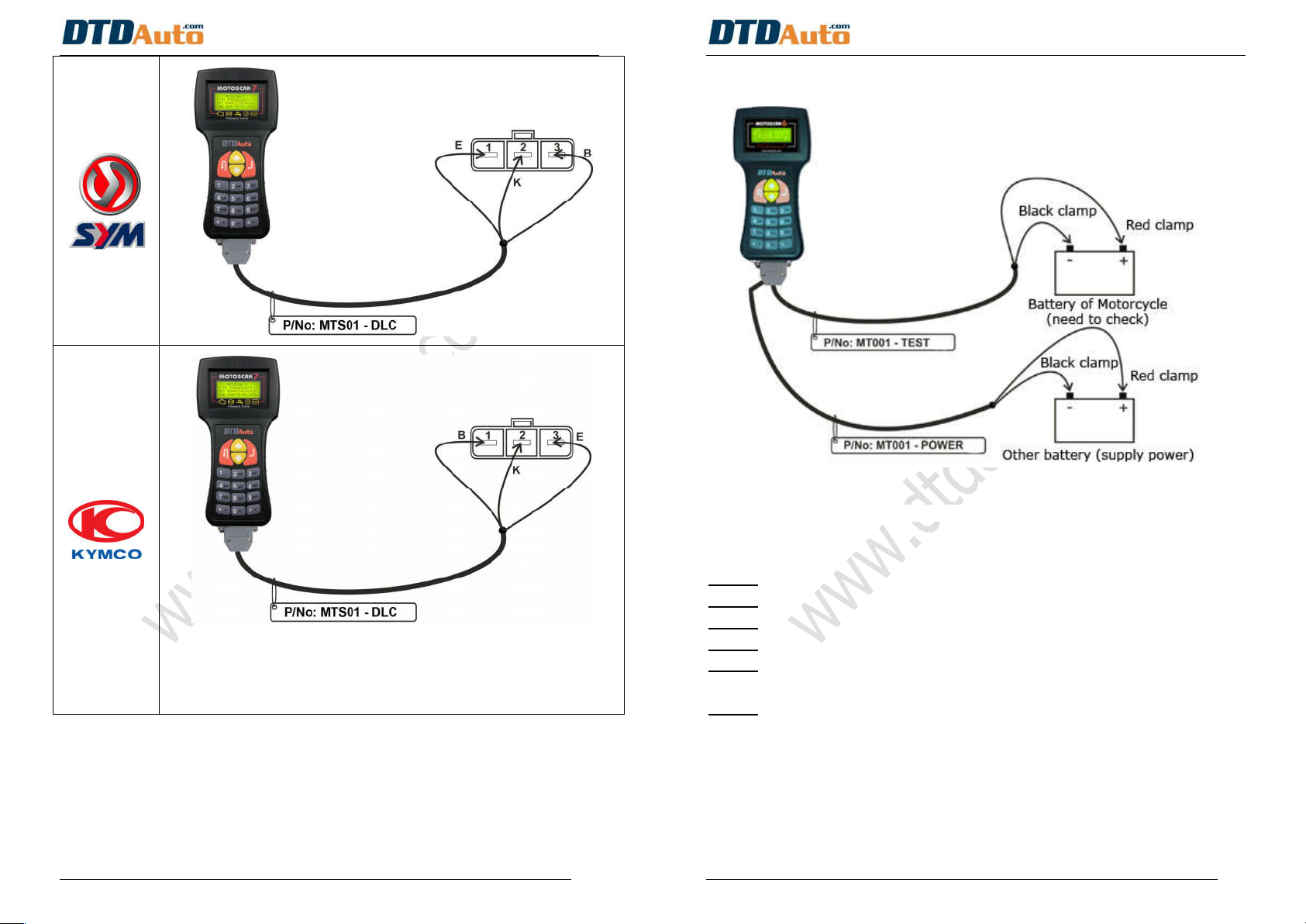

2.3 CONNECTING WIRE FOR SPECIAL FUNCTIONS (CHECK
BATTERY, GENERATOR)
3. FUNCTIONS
3.1 READ FAULT CODES FROM ECU
This function used to read fault codes stored in ECU of PGM-FI /FI
motorcycles, reading fault codes though data link connector (DLC).
Step 1: Turn off ignition key
Step 2: Connect DLC cable to MOTOSCAN machine
Step 3: Connect DLC cable to DLC connector of motorcycle follow guide
Step 4: Turn on ignition key
Step 5: Press start pedal or start button for crank spin about 10
sec. or more
Step 6: Select “CONNECT TO VEHICLE” menu from main interface of the
screen then press “Enter/ OK” button. The screen displays list of
motorcycle brands.

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
33
Step 7: Select brand name to read fault codes (Example: HONDA) then
press “Enter/ OK” button. Check instructions on the screen. Press “Shift
Down” button to view more information then press “Enter/ OK” button.
The screen displays list of markets of HONDA brand. If you select HONDA
Viet Nam then you select “VIET NAM” menu then press “Select/ OK”
Step 8: The screen displays models of brand. Select a model of motorcycle
for reading codes (Example: LEAD 110). Press “Enter/ OK” button, the
screen displays function table:
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
34
Step 9: Select “READ CODE” menu then press “Enter/ OK” to view
codes and content of fault. The screen will display as below:
You follow the instructions on screen then press “Select/ OK”, the screen
display current code fault of motorcycle:
If the screen display as below then press “Select/ YES” to execute
detailed diagnosis by electric wiring diagram:
NOTES:
You view and execute as instructions on the screen then press “Select/
OK” button until the end result screen shows.
Current
Fault code
Order of fault
code
Total of fault
codes

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
35
Enter “07A” fault code into MOTODATA software to view code fault content
and fault position on electronic wiring diagram.
After execute “Read code” if ECU has not stored fault codes then the screen
displays as below:
NOTES:
- Now, this function used for HONDA, YAMAHA PGM/FI-FI motorcycles. Next
update, it will support for other brands.
- This function uses event-driven advanced diagnostic solution. It can find
hard faults that MIL lamp does not indicate.
Press “Enter/ YES” button, the screen will be displayed list of troubles that
your motorcycle can occur:
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
36
Press “Shift Down and Up” button to view list of troubles.
Press “Enter/ OK” button to select a trouble that your motorcycles is
occurring, next you do the steps following instruction on the screen until
the end result screen shows.

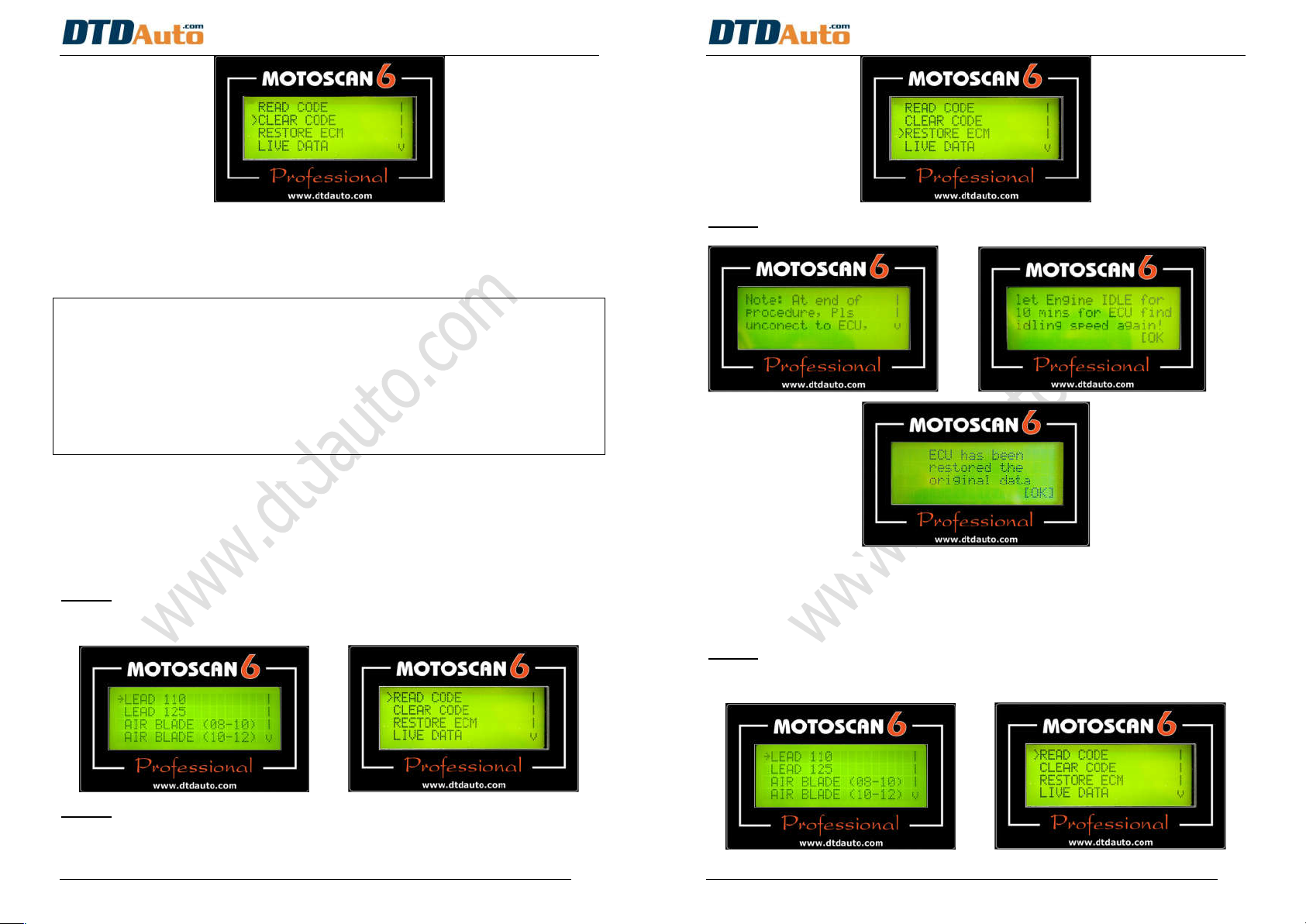

3.2 CLEAR FAULT CODES IN ECU MEMORY
This function used to clear fault codes stored in the ECU to complete the
repair or delete virtual fault codes stored in the ECU memory.
Step 1: From the screen displays models of brand, select a model of the
motorcycle (Example: LEAD 110) then press "Enter/ OK" button. The
screen displays function table.
Step 2: Press “Shift Down and Up” button to select "CLEAR CODE”
menu then press “Enter/ OK" button.

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
37
If you sure that you want to clear fault codes, press the "Enter/ OK"
button.
If you do not want to clear fault codes, please press "Exit / Cancel"
button.
IMPORTANT NOTES:
After the repairs and parts replacement, you need to run motorcycle in the
loading, fast speed of engine about 15 minutes to heat the engine. Read
fault codes more times, if fault codes still show on MOTOSCAN, means your
repairs not completed, you need to review.
If not any fault codes show on MOTOSCAN then repair you have done.
Check results with the scanner again if necessary...
3.3 RESTORE SOFTWARE IN ECU
Now, this function supports for HONDA, PIAGGIO motorcycles. It used to
restore software in ECU to manufacturer’s original state. When you execute
this function, you need execute in accordance with the instructions on
screen of MOTOSCAN. Especially, you need start engine for 10 minutes
after restoring to have ralenti again.
Step 1: From the screen displays models of brand. Select a model of the
motorcycle (Example: LEAD 110) then press "Enter/ OK" button. The
screen displays function table.
Step 2: Press “Shift Down and Up” button to select "RESTORE ECU”
menu then press “Enter/ OK" button.
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
38
Step 3: Press “Shift Down” button to view full instructions:
3.4 VIEW LIVE DATA
This function used for the purpose of inspection and analysis of input signal
circuit (INPUT) of the ECU to determine difficult fault that OBD automatic
mode cannot be determined.
Step 1: From the screen displays models of brand, select a model of the
motorcycle to view live data (Example: LEAD 110) then press "Enter/ OK"
button. The screen displays function table.

Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
39
Step 2: Press “Shift Down and Up” button to select "LIVE DATA” menu,
then press “Enter/ OK" button.
Step 3: Press the "Shift Down and Up" button to switch view page to
next or previous.
No. ACRONYMS DESCRIPTION
1 BAT. voltage Battery Voltage (V)
2 Side stand SW Side Stand Switch status (ON/OFF)
3 IG. advance Ignition Timing Advance (* C)
4 TP sensor Throttle Position Sensor (* C)
5 IACV Idle Air Control Valve status (ON/OFF)
6 MAP sensor Manifold Air Pressure Sensor (V and Kpa)
7 ECT sensor Engine Coolant Temperature (* C)
8 Engine spd Engine Speed (rpm)
9 IAT sensor Intake Air Temperature Sensor (* C)
10 INJ. time Injection time (ms)
11 Vehicle spd Vehicle speed (km/h)
12 ECM SFTRIM Short term fuel trim in closed loop
13 ENV.REV.CO Environmental revision coefficient in closed
loop
14 EVAP SIGNAL Evaporative purge cut solenoid valve output
signal (ON/OFF)
15 ST-MAG SIG Output signal active starter relay (ON/OFF)
16 SCS OUT SIG SCS Input signal status (service check
signal) (Open/short)
17 PCV OUT SIG Output signal active Van PCV (ON/OFF)
Version 4/5/6/7
DTDAUTO VIETNAM Co., Ltd – EDITED 29/10/2020
www.dtdauto.com
40
18 IAC OUT SIG Output signal active Van IAC (ON/OFF) (g/s)
19 MIL OUT SIG Output signal active MIL (ON/OFF)
20 Atmosph. P# Atmospheric pressure
3.5 ACTIVE/RESET ACTUATORS
Now, this function supports for HONDA, PIAGGIO motorcycles. It used to
active, check and analyse output signal circuit (OUTPUT) of the ECU and
actuators to determine difficult faults OBD diagnostic mode cannot be
determined.
Step 1: From the screen display models of brand, select a model to active
actuators (Example: Vespa LX 125 MIUG3). Press “Enter/ OK” button, the
screen displays function table.
Step 2: Select the "ACTIVATE TEST" menu to activate and test the
actuators then press “Enter/ OK” button.
Step 3: The screen displays list of actuators. Choose an actuator to enable
activation (Example: RESET IACV) then press “Enter/ OK” button.
