DTS INSIGHT MegaNETIMPRESS Installation and operation manual

Startup Manual
DTS INSIGHT CORPORATION

I
Startup Manual
No. M2380AN-05
Publication History
Edition Date of Issue Description
1st Edition December 4, 2005 Initial publication
2nd Edition December 13, 2005 Description is modified.
3rd Edition August 16, 2006 Description is modified.
4th Edition March 10, 2014 URL description is modified.
5th Edition March 20, 2014 Description for NETIMPRESS next is added.
(1) No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, without the written permission of DTS INSIGHT
CORPORATION.
(2) The contents of this manual are subject to change without prior notice due to
improvement of the functionality.
(3) If any question about the contents of this manual arises, contact DTS INSIGHT
CORPORATION.
(4) DTS INSIGHT CORPORATION shall not be held responsible for direct or indirect
adverse effects resulting from operation of this system irrespective of the above item
(3).
Product and company names mentioned in this manual are the trademarks of their
respective owners.
© 2014 DTS INSIGHT CORPORATION. All rights reserved
Printed in Japan

II
Contents
1 Overview & Features.....................................................................................1
2 Notes & Points...............................................................................................2
3 Checking Hardware and Software (Standard Package).............................3
3.1 Hardware.................................................................................................................... 3
3.2 Software ..................................................................................................................... 4
4 Installing the Software..................................................................................5
5 Setting up IP Address to Programmer Main Unit.......................................6
6 Connecting with a PC (AZ490 Setting Remote Controller)........................9
7 Adding a License to the Control Module ..................................................11
8 Creating Impress Module Folder (YIM)......................................................12
9 Downloading Files and Setting Programming Environments.................14
10 Using the Remote Controller AZ490..........................................................18
10.1 Basic Operation tab.................................................................................................. 19
10.2 Parameter Table 1 tab.............................................................................................. 20
10.3 File Transfer tab ....................................................................................................... 21
11 Impress Module Folder (YIM).....................................................................22
11.1 Folder Management ................................................................................................. 22
11.2 Folder Configuration................................................................................................. 23
12 Key File ........................................................................................................24
13 SUM Check Function of YSM file...............................................................26
14 CSB File .......................................................................................................28

1
1 Overview & Features
The MegaNETIMPRESS/C”arNETIMPRESS/NETIMPRESS next (hereafter called as
“NETIMPRESS”) is the in-circuit programmer that can perform high-speed on-board
programming of an microcomputer with built-in flash ROM or flash ROM connected to
external bus of a microcomputer.
The NETIMPRESS can support programming various devices by inserting the compact
module (hereafter called as “Control Module”), which contains programming firm data for
each microcomputer, into the programmer main unit.
The Control Module uses the Compact Flash (CF) card as its media.
You can add a target device to program by adding programming conditions to the Control
Module in a form of a license.
The NETIMPRESS can be also used as a stand-alone since programming conditions are
saved in the Control Module.
Also, you can control the programmer very flexibly from a PC, as it has the 100Base-Tx
interface. You can build up an automatically-controlled production line system by using the
Remote Package AZ491 that is available for an additional order.
AAA.YLC: License for Device A
BBB.YLC: License for Device B

2
2 Notes & Points
The Control Module is specifically designed and built for the NETIMPRESS programmer and
cannot be used for any other purposes. (A CF card commercially available cannot be used
as the Control Module.)
About this manual
This Startup Manual describes only the initial setup procedures required to perform
programming.
For detailed specifications of the NETIMPRESS main unit, Control Module, probe, software,
etc., see their relevant manuals.
This Startup Manual explains how to install the software, set up an IP address in the
NETIMPRESS main unit, add a license to the Control Module and file operation steps. This
Startup Manual describes the processes up to the step to control the programmer from a PC.
For the information on how to set up environments of each device and connection
information, which vary depending on each device, see the manual of the relevant manual of
the Control Module or probe.
Note:
The Control Module (CF card) is not added with the license when delivered. Be sure to add
the license (extension: YLC), which is provided in CD-ROM.
PC Requirements
The NETIMPRESS runs only on a Windows PC (Windows XP, and Windows7).
An Ethernet cable (10BASE-T, and 100BASE-TX) to connect the programmer and a PC is
a user-prepared item. (When you make one-to-one connection without using a hub, you
need a cross cable.)
The reader for the CF card (USB connection, for example) at the side of a PC is a
user-prepared item.

3
3 Checking Hardware and Software (Standard Package)
This chapter explains the standard package of hardware and software that will be provided
for the NETIMPRESS programmer. (The hardware and software to be provided may differ
depending on your environments.)
3.1 Hardware
The following items are included in the hardware package of the NETIMPRESS.
(1) NETIMPRESS main unit (AF320/AF420/AF520/AF620/AF430)
(2) AC adapter specially built for the NETIMPRESS
(/AC4P INPUT: 100V to 240V OUTPUT: 12V)
(3) Control Module (Media: Compact Flash (CF) card)
(4) CD-ROM: 1 to 2 pieces (License Pack, Utility) depending on a target device
(5) Target probe, adapter, etc., which vary depending on a target device

4
3.2 Software
The following items are included in the software package of the NETIMPRESS.
(1) AZ490 (Remote Controller to download the various files, execute the device functions
and set up various parameters)
(2) AZ482 (F/DF Sheet Generator to create a file to set up an IP address to the programmer
main unit and download the files)
(3) AZ481 (Key File Generator to create an ID code Key to communicate with a PC, and a
SUM file)

5
4 Installing the Software
The software to make the various settings to the NETIMPRESS programmer is available at
our website:
https://www.dts-insight.co.jp/en/support/support_netimpress/top/index.php?m=Software
Download the following software from the above mentioned web site:
(1) AZ490 (Remote Controller)
(2) AZ482 (F/DF Sheet Generator)
(3) AZ481 (Key File Generator)
Since they are the self-expanding files, decompress them on a PC and install them.
Note:
When you complete installing them and if you choose the default setting, they will be
registered in [DTS INSIGHT Tools], which you can open by selecting [Start] →[Program].

6
5 Setting up IP Address to Programmer Main Unit
To set up an IP address to the programmer main unit so as to control it via Ethernet from a
PC, follow the below steps.
* As a stand-alone, you can set IP address by using FUNC E2 to E4. For how to operate
NETIMPRESS as a stand-alone, refer to a chapter “Setting Ethernet” of an instruction
manual.
(1) Start up the AZ482 (F/DF Sheet Generator) that has been installed on your PC.
(2) From the Menu bar, select [File] →[New] →[Communication].

7

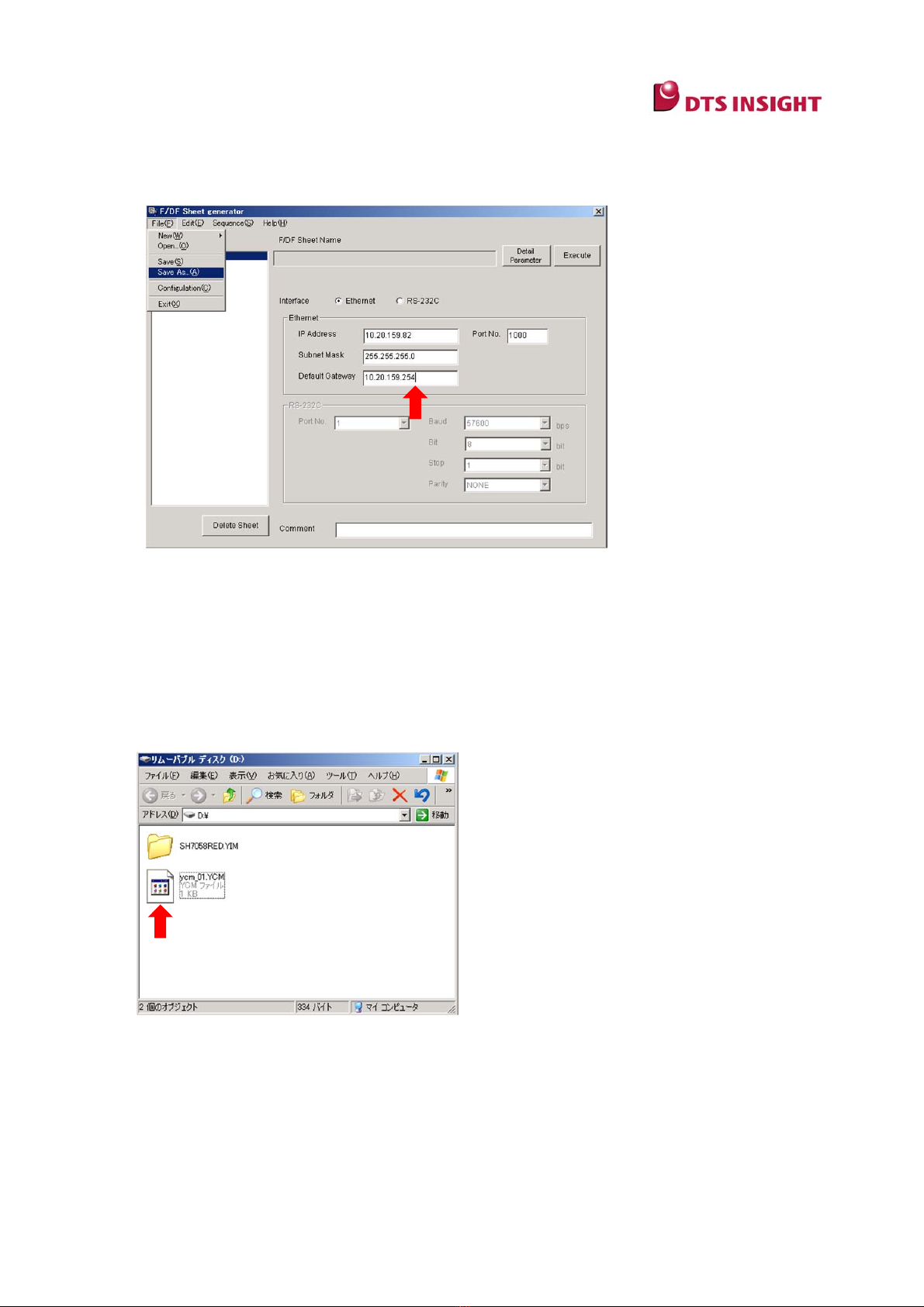

(3) Enter IP address, port information, etc. to set up in the programmer main unit, and select
[File] →[Save As] and enter a file name with extension “.ycm” to save. (This file name
can be changed.)
Note:
[Default Gateway] does not have to be set up in most cases, just enter “0.0.0.0”. When using
the NETIMPRESS via a router, enter an address of the router.
* Enter 1000 for Port No. if there is no problem on the network.
(4) Copy the xxx.ycm file you created to right underneath the drive of the Control Module (CF
card) by using the card reader of the CF card.
(5) Insert the Control Module into the slot of the NETIMPRESS main unit and turn on the
power.
(6) The message “YCM DATA SET?” is displayed on the LCD of the NETIMPRESS main
unit. Then, press either “EXE1” or “EXE2”. (For Mega/C”arNETIMPRESS , press EXE1
and EXE2, both of them are the user-defined keys with no names.)

8
The IP address information is set up in the NETIMPRESS and displayed on the LCD.
Then, the NETIMPRESS main unit is started.

9
6 Connecting with a PC (AZ490 Setting Remote Controller)
To set up environments to control the NETIMPRESS from the Remote Controller AZ490,
follow the steps below.
(1) Start the AZ490.
(2) Enter IP address and port number of the NETIMPRESS main unit and press
Communication Check .
When communication is established, the window as shown below (“File Transfer”) appears.
Then, communication between a PC and the NETIMPRESS main unit can be started.

10

11
7 Adding a Licence to the Control Module
To add a licence to the Control Module, follow the steps below.
(1) Click … button in the Add Licence field located in the center of the CF Card
Information tab.
(2) File selection window is shown. Select the licence file (xxx.YLC) that is provided in the
form of CD-ROM, and then click OK button.
(3) Click Add Licence in the Add Licence filed. Then the licence is added into CF card.
* The added licence information is written in the special area in CF card. The licence
information will remain even if you format the CF card.

12
8 Creating Impress Module Folder (YIM)
With the Control Module, you can save and maintain a programming object and
programming environments data in a folder called Impress Module folder (YIM). When you
finish adding a license, create the YIM folder and set up programming environments.
How to create YIM folder
(1) Click Create YIM folder in the IMPRESS Folder at the upper left of the File Transfer
tab. (As the Module Name dialog window appears, enter any name and click OK .
* In case that Create YIM folder button is dimmed, click [Control Module] which you can find
at the top of tree view on Folder/File List window.

13
(2) The name of YIM folder you have created is displayed in the Folder/File List window.
Then, right-click on the YIM folder you have created and select [Select] →[OK].
* You can select the folder by double-clicking the folder on the tree view of Folder/File List
window, or clicking Select YIM Folder on the main window.
(3) The YIM folder you have selected in Step 2 becomes the current folder and its name is
displayed at the top of the AZ490.
What is the Current folder?:
The files are loaded and the device functions are executed using the current folder. When
various setup files are loaded to the Control Module, they are copied to the current folder.

14
9 Downloading Files and Setting Programming Environments
This chapter explains the steps to download the various files to set up programming
environments to the current YIM folder.
It also explains how to download the definition program (extension: CM), parameter
(extension: PRM), and bundle files.
(1) Downloading the Definition Program
Click the Load Definition Program in the Control Module field to load the Definition
Program file (with extension CM) that is provided in the form of a CD-ROM.
(2) Downloading parameters
Select the Load Parameter in the Parameter Table filed to load the parameter file (with
extension “PRM”) that is provided in the form of a Micom pack download from our Website.

15
(3) Downloading the bundle files
Download the bundle files that are required for programming by pressing
the Copy File(Load) in the Bundle File field.
The KEY file, BTP file and AMK file are the major bundle files.
* Since the bundle files to be provided differ depending on each device, check with the
manual of the Control Module you use.

16
(4) Setting up parameters
The parameters you have downloaded in Step 2 are the default values and you need to
modify them according to your environments.
Open the Parameter Table 1 tab and make the settings. For details, see the Manuals for
Control Module and Micom-Pack. The parameters you need to modify are operating voltage,
clock, communication baud rate, etc.
* If you change the setting on this window, click OK button at the center of right side to
reflect the settings.

17
(5) Downloading a programming object
As you finish Step 1 to Step 4, most of programming environments are now set up. Then, the
next step is to download a programming object by clicking Load Object Data on the
Object Data field.
(6) Executing the device function
As you complete setting up programming environments and downloading a programming
object, all preparations for programming are done. You can now start programming by
executing the device functions (E.P.R normally) on the Basic Operation tab.
* E.P.R is a command to do a sequence of actions of delete, write, and read-check (verify)
the flash memory.
