Biostar K8VHA-M User manual

iiii
iEnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
Any changes or modification made to this equipment void the user’s authority
to operate this equipment.
This equipment generates, uses, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
* All external cables connecting to this basic unit must be shielded.
C. D. C. Statement
ThisdigitalapparatusdoesnotexceedtheClassBlimitsforradionoiseemissions
from digital apparatus as set out in the radio interference regulations or the Canadian
Department of Communications.
CE Mark
This equipment is in conformity with the EMC directive.

iiii
iiii
ii
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Overview
The information in this document is subject to change without notice and
should not be construed as a commitment by the manufacturer.
The manufacturer assumes no responsibility for any errors that might appear
in this document.
The software described in this document is furnished under a license and may
be used or copied only in accordance with the terms of such license. No responsibility
is assumed for the use or reliability of software or equipment that is not supplied by the
manufacturer or its affiliated companies.
Copyright Notice
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, photocopying, recording or otherwise, stored in any
retrieval system of any nature without the prior written permission of the manufacturer.
Trademark
Other product and company names mentioned herein may be trademarks and/
or service marks of their respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
Nvidia and nforce is registered trademark of Nvidia.
Sis is registered trademark of Silicon Integrated Systems Corporation.
PS/2 is registered trademark of International Business Machines Corporation.
VIAis registered trademark of VIATechnologies, Inc.
ATI is registered trademark of ATI Technologies, Inc.
AMD is registered trademark of Advanced Micro Devices, Inc.

iiiiii
iiiiii
iii EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Important Safety Information
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don‘t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.
4. For pluggable equipment, the socket-outlet shall be installed near the equip-
ment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when install. A drop or fall could cause
injury.
7. Do not leave this equipment in an environment unconditioned, storage
temperature above 40°C, it may damage the equipment.
8. The openings on the enclosure are for air convection hence protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source when connect the equipment to the
power outlet.
10. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord. The power cord must be rated for the product
and for the voltage and current marked on the product’s electrical ratings label.
The voltage and current rating of the cord should be greater than the voltage and
current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.
13. Never pour any liquid into ventilation openings, this could cause fire or electrical
shock.
14. Never open the equipment. For safety reason, qualified service personnel
should only open the equipment.
15. If one of the following situations arises, get the equipment checked by service
personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not work well or you can not get it work according to
user‘s manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage

iviv
iviv
iv
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Table of Contents
FCC Statement.............................................. i
Overview ...................................................... ii
Important Safety Information .................iii
Table of Contents....................................... iv
Section 1. Layout of K8VHA-M................1
Section 2. Component Index......................2
Section 3. K8VHA-M Features...................3
Section 4. Package Contents.......................6
Section 5. Installation and Setup ..............7
Section 6. Trouble Shooting.....................16
StudioFun!TM ...............................................18
WarpSpeederTM...........................................19

11
11
1EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard

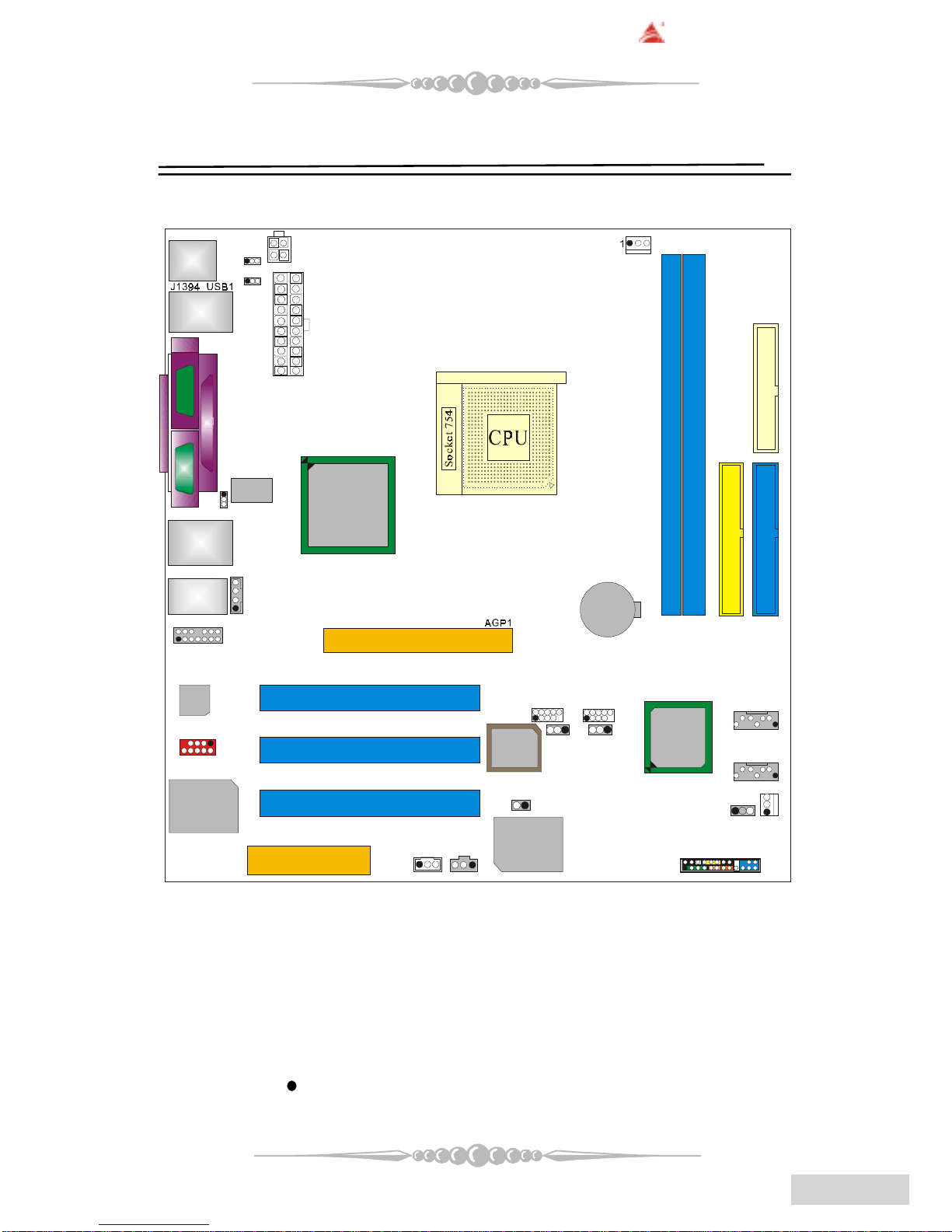

Section 1. Layout of K8VHA-M
NOTE: “ ” represents the first pin.
JKBMS1
K/B
&
Mouse
JCOM1
JPRNT1
Parallel Port
COM2
JUSBLAN1
JCOM2
JAUDIO
USB
&
1394
JATXPWR2
JKBV1
1
1
JUSBV2 JATXPWR1
K8T800
CPU1
AGPSLOT
PCI1
PCI2
PCI SLOT
PCI3
PCI SLOT
PCI SLOT
JAUDIO1
1
213 14
Codec
JCDIN1
1
JWOL1
1
CNR1
IEEE1394
CHIP
JCMOS11
JPANEL1
1
2
FLOPPY DISK CONN.
FDD1
DIMM1
DIMM2
JCFAN1
JUSB4
291 10
JUSBV4
1
JUSB3
29
110
JUSBV3
1
VT8237
23
24
JSFAN1
1
PRIMARY IDE CONN.
SECONDARY IDE CONN.
BAT1
IDE1IDE2
JSATA2
17 4
JSATA1
17 4
LAN PHY
CNR SLOT
BIOS
1
JUSBV1
SPDIF_OUT
1
Winbond
I/O
J1394B1
1
210
9
COM1
USB
&
LAN
J3 1

22
22
2
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 2. Component Index
This section helps you to locate the components in the motherboard and to find
the details about them.
A. ATXPowerConnector(JATXPWR1) B. ATXPowerConnector(JATXPWR2)
C. PowerSourceSelectionforKeyboardandMouse(JKBV1) D. PowerSourceSelectionforUSB(JUSBV2)
E. BackPanelConnectors F. PowerSourceSelectionforUSB(JUSBV1)
G. CD-ROMAudio-InHeader(JCDIN1) H. FrontAudioHeader(JAUDIO1)
I. AcceleratedGraphicsPortSlot(AGP1) J. PCIBUSSlots(PCI1-3)
K. Front1394header(J1394B1) L. CommunicationNetworkRiserSlot(CNR1)
M. WakeOnLANHeader(JWOL1) N. DigitalAudioConnector(SPDIF_OUT)
O. FrontPanelConnector(JPANEL1) P. SystemFANHeader(JSFAN1)
Q. ClearCMOSFunction(JCMOS1) R. CaseOpenConnector(J3)
S. SerialATAConnectors(JSATA1-2) T. PowerSourceSelectionforUSB(JUSBV3)
U. PowerSourceSelectionforUSB(JUSBV4) V. FrontUSBHeader(JUSB3)
W. FrontUSBHeader(JUSB4) X. IDEConnectors(IDE1-2)
Y. FloppyDiskConnector(FDD1) Z. DIMMModules(DIMM1/DIMM2)
A1. CPUFanConnector(JCFAN1)
K8T800
Codec
IEEE 1394
CHIP
VT8237
BAT1
LANPHY
BIOS
Winbond
I/O
A
B
C
D
E
F
G
HI
J
K
LL M LNO
P
Q
R
S
TU V
W
X
Y
Z
A1

33
33
3EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 3. K8VHA-M Features
In this section, you shall find all the information about the
motherboard in your computer, including its features, layout,
component index, various jumpers, headers, connectors, and also
the installation guide to help you a quick and correct installation
of your system.
A. Hardware
CPU * Supports Socket 754.
* Supports AMD AthlonTM 64 processor.
* Processor interface via Hyper-TransportTM Technology.
* 800/ 600/ 400/ 200 clock rates with “Double Data Rate” style operation for
1600/ 1200/ 800/ 400 MT/s in both directions simultaneously.
Chipset
* North Bridge: VIA K8T800.
* South Bridge: VIA VT8237.
Main Memory
* Supports 72-bit (64-bits + 8-bits ECC) DDR SDRAM.
* Supports 266, 333, 400 and 200 MHz DDR technologies.
* Maximum memory size is 2 GB.
Super I/O
* Chip: Winbond W83697HF.
* Integrate hardware monitor functions.
Slots * Three 32-bit PCI bus master slots.
* One CNR slot.
* One AGP 4X/ 8X slot.

44
44
4
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
On Board IDE
* Supports four IDE disk drives.
* Supports PIO Mode 5, Bride Mode and Ultra DMA 33/ 66/ 100/ 133 Bus
Master Mode.
LAN PHY (optional)
* Chip: VIA VT6103.
* Supports 10 Mb/s and 100 Mb/s auto-negotiation operation.
* Half/ Full duplex capability.
IEEE 1394 Chip (optional)
* Chip: VIA VT6307.
* Support 2 ports with transfer up to 400 mb/s.
* Compliant with PCI specification v2.2.
On Board AC'97 Sound Codec
* Chip: CMI9739A.
* Compliant with AC'97 specification.
* AC97 2.2 interface.
* Supports 6 channels.
On Board Peripherals
a. Rear side
- 2 serial ports
- 1 parallel port. (SPP/EPP/ECP mode)
- 1 audio port in vertical position.
- 1 RJ-45 LAN jack. (optional)
- PS/2 mouse and PS/2 keyboard.
- 4 USB2.0 ports.
- 1 IEEE1394 (FirewireTM) connector. (optional)
b. Front Side
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88
Mbytes.
- 4 USB2.0 ports.
- 1 front audio header.
- 1 S/PDIF Out header.
- 1 IEEE1394 (FirewireTM) port. (optional)

55
55
5EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Dimensions
ATX Form Factor: 24.4 cm x 24.4 cm (W X L)
B. BIOS & Software
BIOS * Award legal BIOS.
* APM1.2.
* ACPI.
* USB Function.
Software
* Supports WarpspeederTM, 9th TouchTM, BootBlockerTM, WinFlasherTM,
FLASHERTM and StudioFunTM (optional).
* Offers the highest performance for Windows 98 SE, Windows 2000,
Windows Me, Windows XP, UNIX Series, etc.

66
66
6
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 4. Package Contents
Checkwhat you haveboughtbefore you startyour DIY action.
If there are anything missing, please contact your dealer
immediately.
* HDD Cable x 1
* FDD Cable x 1
* User's Manual x 1
* Fully Setup Driver CD x 1
* StudioFun! Application CD x 1 (optional)
* USB 2.0 Cable x 1 (optional)
* S/PDIF Cable x 1 (optional)
* Rear I/O Panel for ATX Case x 1
* Serial ATA Cable x 1 (optional)
* Serial ATA Power Switch Cable x 1 (optional)
* Front IEEE 1394 Cable x 1 (optional)

77
77
7EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 5. Installation and Setup
In this section, you will learn how to install the CPU, DDR
Module, and also how to set up jumpers and all the information
about the components on the motherboard. Not only can you find
the installation steps, but also the details and locations of the
components on the motherboard.
1. CPU Installation
The motherboard supports AMD processor in the 754 pin package. The
motherboard uses a CPU socket called PGA754 for easy CPU installation. When you
are installing the CPU, make sure the CPU has a cooling fan attached on the right to
prevent overheating. If you do not find the cooling fan, contact your dealer and make
sure to install them before turning on the computer.
Step1: Pull the lever sideways away from the socket and then raise the
lever up to a 90-degree angle.
Step2: Look for the white dot/cut edge. The white dot/cut edge should
point towards the lever pivot. The CPU will fit only in the
correct orientation.
Step3: Hold the CPU down firmly, and then close the lever.
Step4: Put the CPU fan on the CPU and buckle it. Connect the CPU fan
power cable to the JCFAN1. This completes the installation.
2 Central Processing Unit: CPU
These fan headers support cooling fans built in the computer. Orient the fans to
make the heat sink fins to allow air flow to go across the onboard heat sinks instead of
the expansion slots. The fan wiring and plug may be different according to the fan
manufacturer. Connect the fan cable to the connector while matching the black wire to
the ground pin.
(1) CPU Fan Headers: JCFAN1
Pin Assignment
1 Ground
2 +12V
3 FAN RPM Sense
3
1
Step 2Step 1 Step 3 Step 4

88
88
8
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard

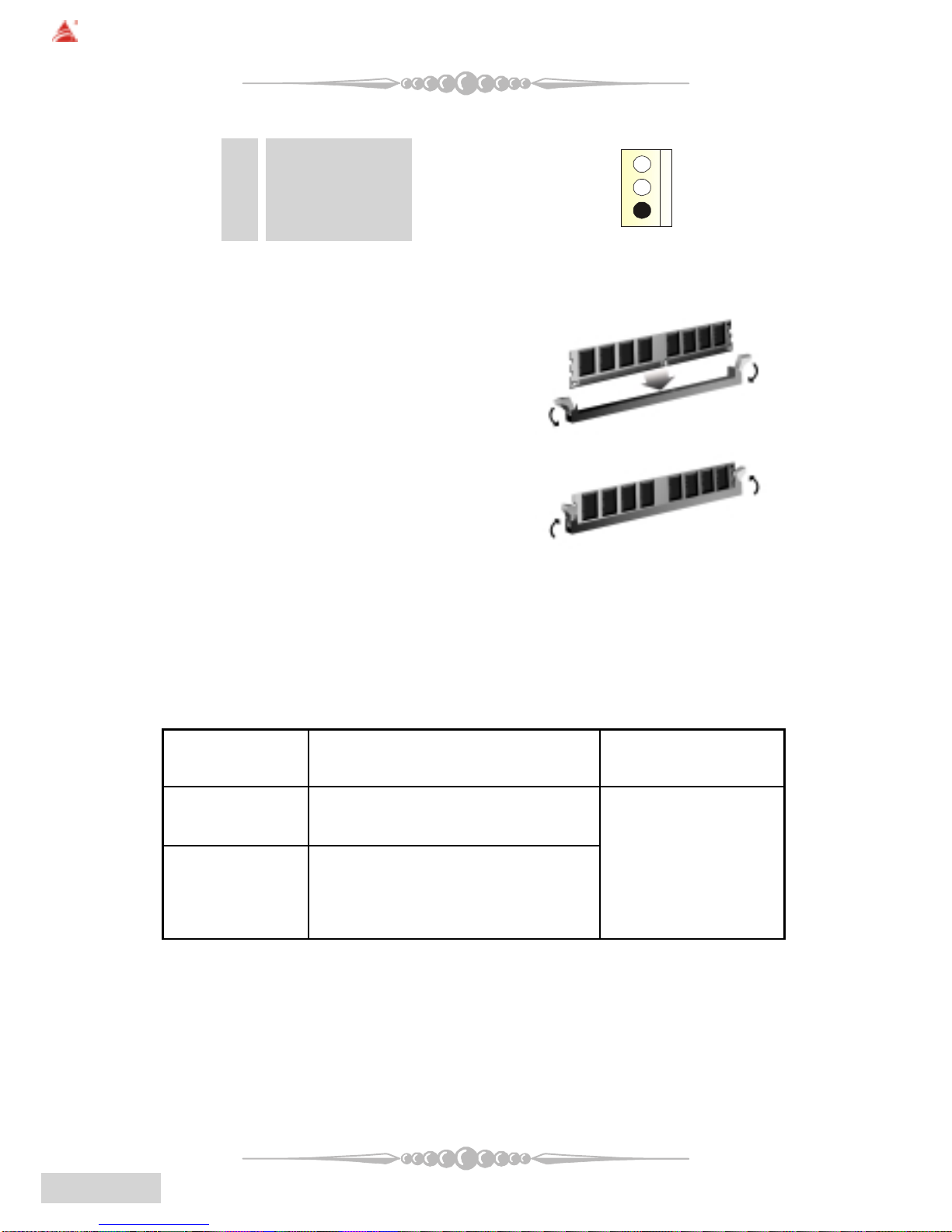

(2) System Fan Header: JSFAN1
Pin Assignment
1 Ground
2 +12V
3 FAN RPM Sense
3. Installing DDR Module
1. Unlock a DIMM slot by
pressing the retaining clips
outward. Align a DIMM on the
slot such that the notch on the
DIMM matches the break on
the slot.
2. Insert the DIMM firmly and
vertically into the slot until the
retainingchipsnapback in place
and the DIMM is properly
seated.
4. DDR DIMM Modules: DIMM1/ DIMM2
DRAM Access Time: 2.5V Unbuffered/ no registered DDR SDRAM
PC2100/ PC2700/ PC3200 Type required.
DRAM Type: 128MB/ 256MB/ 512MB/ 1GB DIMM Module. (184 pin)
TotalMemorySizewithUnbufferedDIMMs
DIMM Socket
Location DDR Module Total Memory Size
(MB)
DIMM1
DIMM2
64MB/ 128MB/ 256MB/ 512MB/
1GB *1
64MB/ 128MB/ 256MB/ 512MB/
1GB *1
Max is 2GB
***Only for reference***
1
3

99
99
9EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard

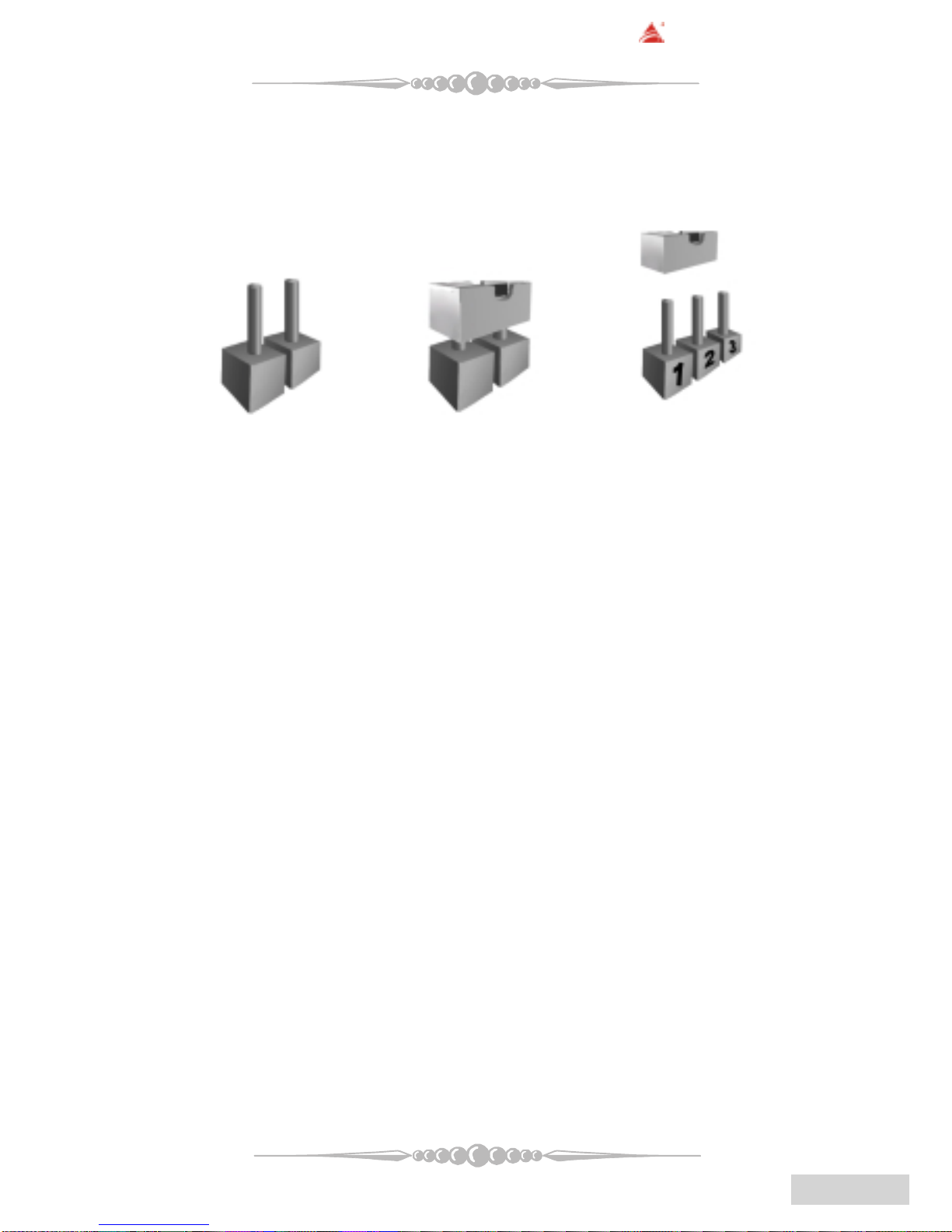

5. How to set up Jumpers?
The illustration shows how to set up jumpers. When the Jumper cap is placed
on pins, the jumper is “close”. If no jumper cap is placed on the pins, the jumper is
”open”. The illustration shows a 3-pin jumper whose pin 1 and 2 are “close” when
jumper cap is placed on these 2 pins.
Jumper open Jumper close Pin1-2 close
6. Jumpers, Headers, Connectors & Slots:
(1) Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector
supports the provided floppy drive ribbon cables.
(2) Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has
two HDD connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.
(3) Peripheral Component Interconnect Slots: PCI 1-3
This motherboard is equipped with 5 standard PCI slots. PCI stands for Pe-
ripheral Component Interconnect, and it is a bus standard for expansion cards.
This PCI slot is designed as 32 bits.
(4) Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that video card. This motherboard sup-
ports video cards for PCI slots, but it is also equipped with an Accelerated
Graphics Port (AGP). An AGP card will take advantage of AGP technology to
improve video efficiency and performance, especially with 3D graphics.
(5) Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it de-
fines a hardware scalable riser card interface, which supports modem only.

1010
1010
10
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
2
1
1
23
4
56
7

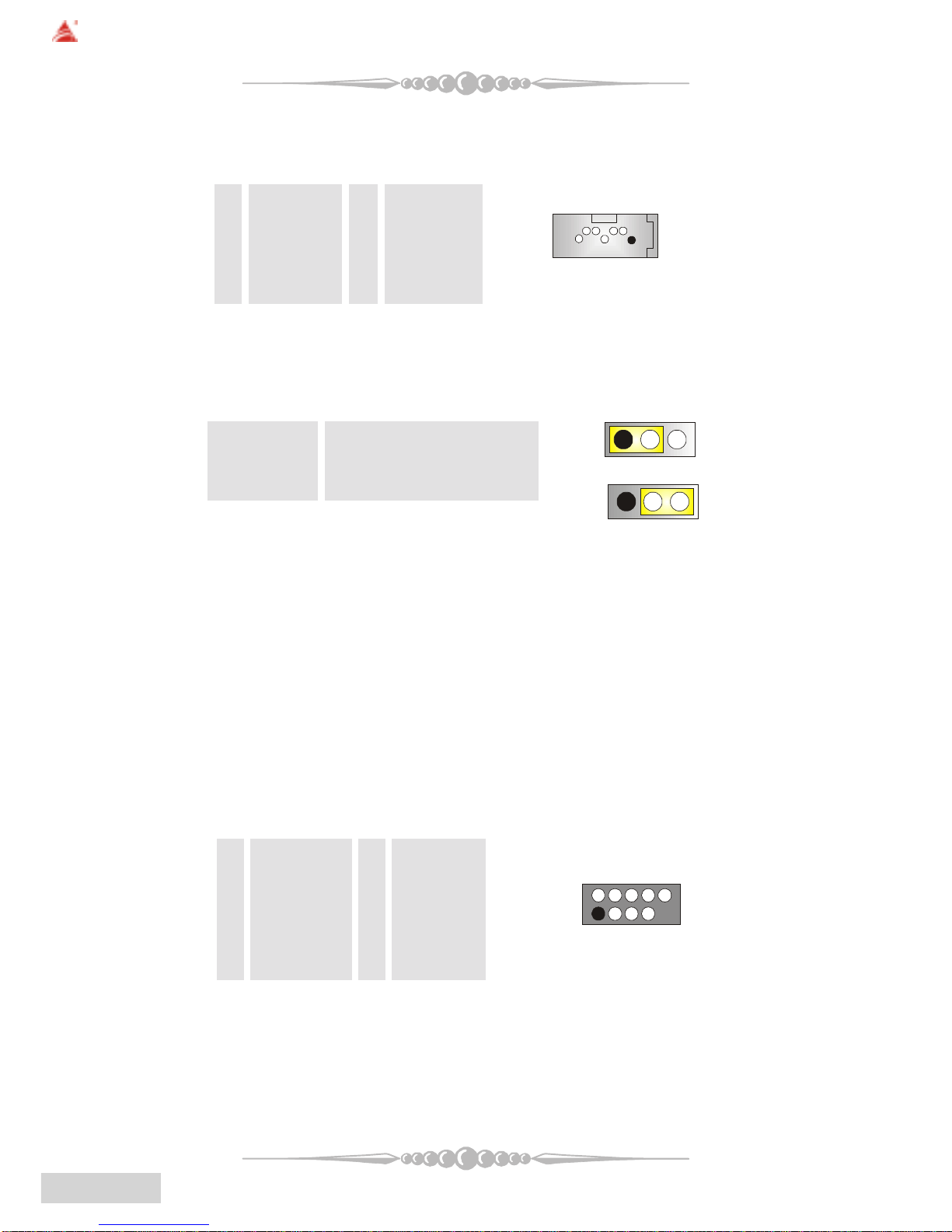

(6) Serial ATA Connector: JSATA1/ JSATA2
The motherboard has a PCI to SATA Controller with 2 channels SATA interface.
It satisfies the SATA 1.0 spec and can transfer data with 1.5 GHz speed.
Pin Assignment Pin Assignment
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground
(7) Clear CMOS Jumper: JCMOS1
This jumper helps you to clear the Real Time Clock (RTC) Ram in CMOS. You
can erase the CMOS RTC Ram data to clear the CMOS memory of date, time,
and system setup parameters.
JCMOS1 Assignment
Pin 1-2 Close Normal Operation (default)
Pin 2-3 Close Clear CMOS Data
* Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to "Pin 2-3 Close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 Close".
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
(8) Front USB Header: JUSB3/ JUSB4
The motherboard provides two USB 2.0 Pin Header. USB 2.0 technology
increases data transfer rate up to a maximum of 480 Mbps, which is 40 times
faster than USB 1.1, and is ideal for connecting high-speed USB interface
peripherals such as USB HDD, digital cameras, MP3 players, printers, modems,
etc.
Pin Assignment Pin Assignment
1 +5V(fused) 2 +5V(fused)
3 USBP4- 4 USBP5-
5 USBP4+ 6 USBP5+
7 Ground 8 Ground
9 KEY 10 NC
31
31

1111
1111
11 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
1
10
1
1
2
0
+5V
10 +12V 20 +5V

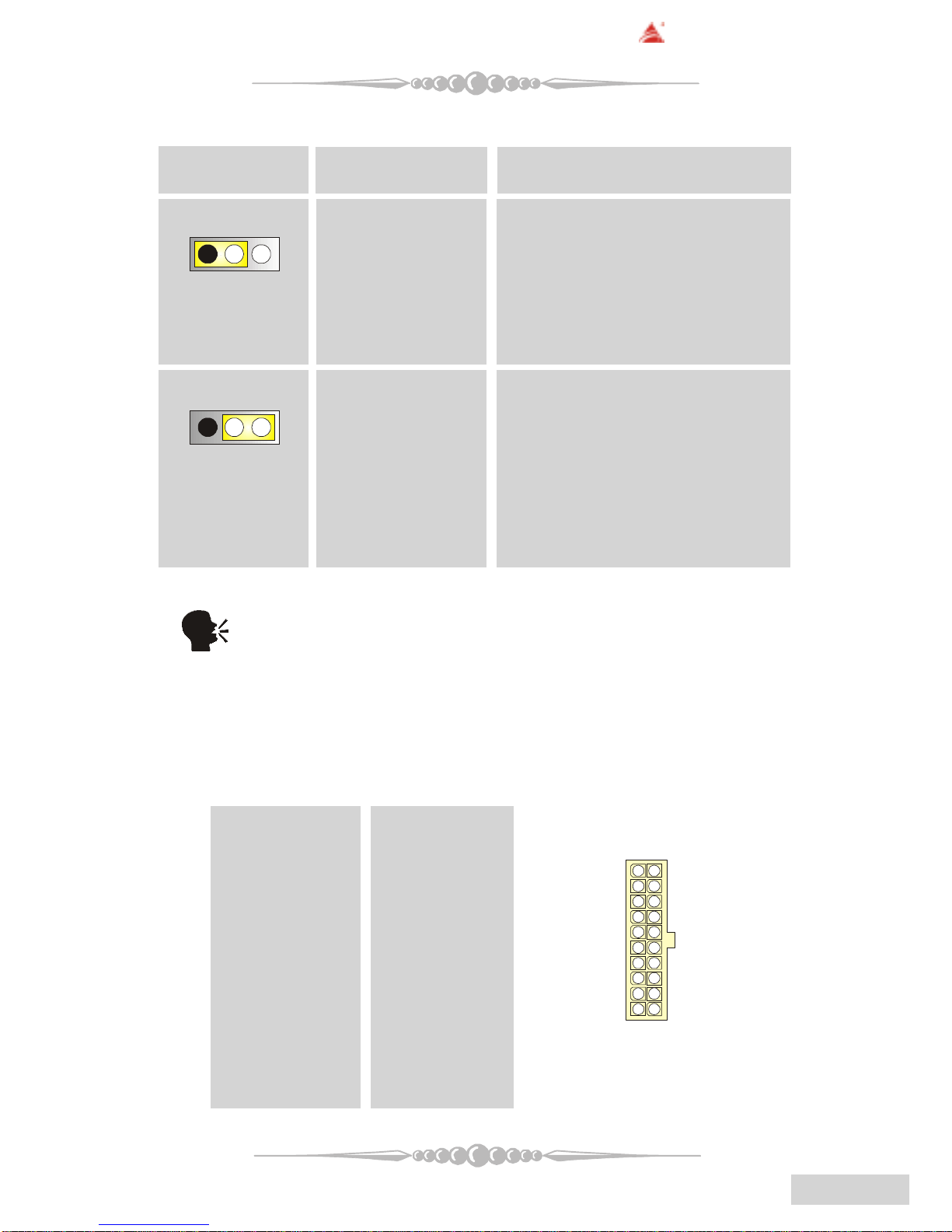

(9) Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV3/ JUSBV4
(10) Power Connectors: JATXPWR1/ JATXPWR2
The motherboard supports ATX power supply for the power system. Before
installing the power supply connector, please make sure that all components are
installed properly.
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 Standby Voltage 19 +5V
Note: 1. In order to support this function “Power-on the system via USB
devices”, "JUSBV1/JUSBV2/ JUSBV3/ JUSBV4" jumper cap should
be placed on pin 2-3 respectively.
2. Use +5V Standby Voltage for S3 mode.
JUSBV1/ JUSBV2/ Assignment Description
JUSBV3/ JUSBV4
JUSBV1: 5V for USB port located at
the JUSBLAN1 connector port.
JUSBV2: 5V for USB port located at
the J1394_USB1 connector port.
JUSBV3: 5V for USB port located at
the JUSB3 connector port.
JUSBV4: 5V for USB port located at
the JUSB4 connector port.
Pin 1-2 close
+5V
JUSBV1: JUSBLAN1 port powered
with standby voltage of 5V.
JUSBV2: J1394_USB1 port powered
with standby voltage of 5V.
JUSBV3: JUSB3 port powered with
standby voltage of 5V.
JUSBV4: JUB4 port powerered with
standby voltage of 5V.
1 3
13
Pin 2-3 close
+5V Standby
Voltage

1212
1212
12
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
1
2
14
13
1
2
9
10
1

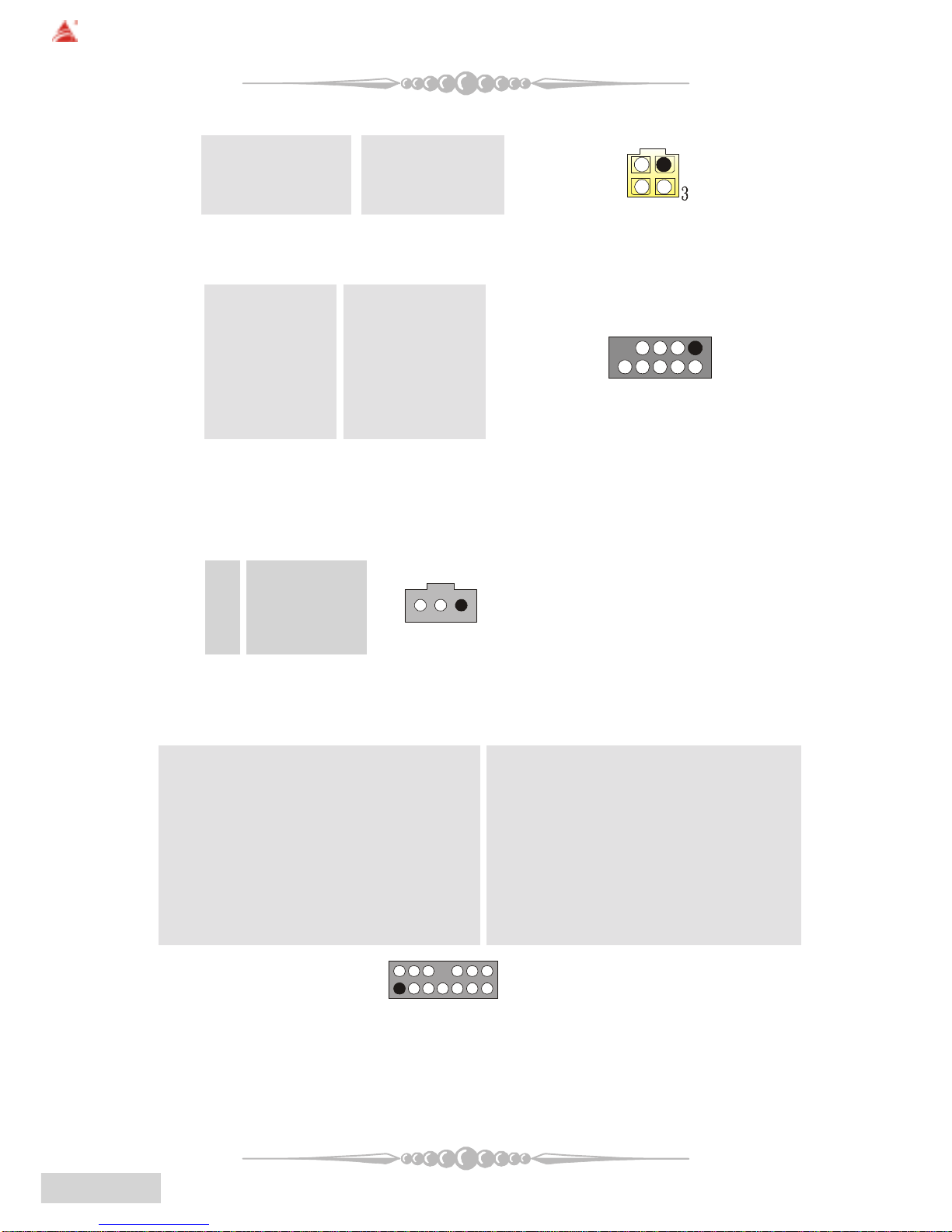

PIN Assignment PIN Assignment
1 +12V 3 Ground
2 +12V 4 Ground
(11) Front 1394 Header: J1394B1
Pin Assignment Pin Assignment
1 A1+ 2 A1-
3 Ground 4 Ground
5 B1+ 6 B1-
7 +12V 8 +12V
9 KEY 10 NA
(12) Digital Audio Connector: SPDIF_OUT
The connector is used to connect SPDIF (Sony & Philips Digital Interconnect
Format) interface for digital audio transmission.
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
(13) Front Panel Audio Header: JAUDIO1
The connector allows you to connect to the front panel audio.
2
4
1
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
Pin Assignment
1 Mic In/ Center
3 Mic Power/ Bass
5 Right Line Out/ Right Speaker Out
7 Reserved
9 Left Line Out/ Left Speaker Out
11 Right Line In/ Right Rear Speaker
13 Left Line In/ Left Rear Speaker
Pin Assignment
2 Ground
4 Audio Power
6 Right Line Out/ Right Speaker Out
8 Key
10 Left Line Out/ Left Speaker Out
12 Right Line In/ Right Rear Speaker
14 Left Line In/ Left Rear Speaker

1313
1313
13 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard

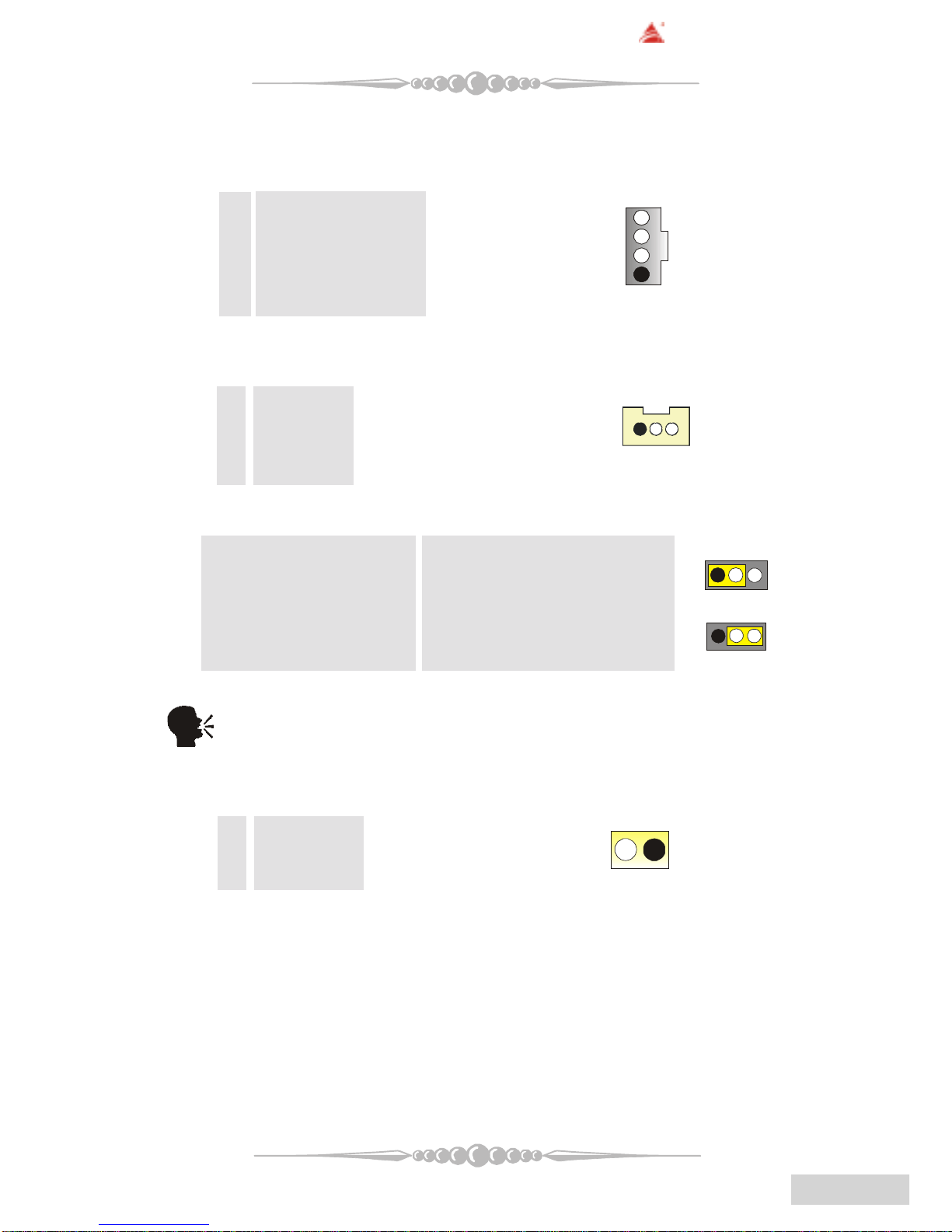

(14) CD-ROM Audio-In Header: JCDIN1
This header allows you to receive stereo audio input from sound sources, such
as CD-ROM, TV Tuner, MPEG card, etc.
(15) Wake On LAN Header: JWOL1
(16) Power Source Selection for Keyboard and Mouse: JKBV1
JWOL1
1
Pin Assignment
1 +5V_SB
2 Ground
3 Wake up
1
1
JKBV1 Assignment Description
Pin 1-2 close +5V 5V for keyboard and mouse
Pin 2-3 close +5V Standby 5V standby for keyboard and
voltage mouse to power on your system
Note: In order to support this function “Power-on the system via keyboard
and mouse”, "JKBV1" jumper cap should be placed on pin 2-3.
Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
4 Right Channel Input
1
4
(17) Case Open Connector: J3
Pin Assignment
1 +5V Standby
2 Ground
1

1414
1414
14
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
(19) Back Panel Connectors
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
(+) (-)
(+) (-)(+)
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep Control Sleep Button
3 NA Speaker 4 Ground
5 NA Connector 6 NA NA
7 Speaker 8 Power LED (+) Power LED
9 HDD LED (+) Hard Drive 10 Power LED (+)
11 HDD LED (+) LED 12 Power LED (-)
13 Ground Reset 14 Power Button Power-on Button
15 Reset Control Button 16 Ground
17 NA 18 KEY
19 NA IrDA 20 KEY IrDA
21 +5V Connector 22 Ground Connector
23 IRTX 24 IRRX
(18) Front Panel Connector: JPANEL1
The connector is for electrical connection to the front panel switches and LEDs.
PS/2
Keyboard
PS/2
Mouse
Parallel
Port
JPRNT1
COM2 COM1USB
MIC
In
Speaker
Out
Line In
LAN
(optional)
1394
USB

1515
1515
15 EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
6 Channel Speakers
Speaker Out/
Front Speaker
(Right & Left)
Line In/
Rear Speaker (Left & Right)
Mic In/ Center & Bass

1616
1616
16
EnglishEnglish
EnglishEnglish
English
BIOSTAR Motherboard
Section 6. Trouble Shooting
PROBABLE
No power to the system at all; power light
doesn't illuminate; fan inside power supply
does not turn on. Indicator light on keyboard
does not turn on.
System inoperative. Keyboard lights are on,
power indicator lights are lit, and hard drive
is spinning.
System does not boot from hard disk drive,
but it can be booted from CD-ROM drive.
System only boots from CD-ROM. Hard
disk can be read and applications can be
used but booting from hard disk is
impossible.
Screen message says "Invalid
Configuration" or "CMOS Failure."
Cannot boot system after installing second
hard drive.
Error message reading "SECTOR NOT
FOUND" or other error messages not
allowing certain data to be retrieved.
SOLUTION
* Make sure power cable is securely
plugged in.* Replace cable.
* Contact technical support.
* Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps back in places.
* Check cable running from disk to disk
controller board. Make sure both ends
are securely plugged in; check the drive
type in the standard CMOS setup.
* Backing up the hard drive is extremely
important. All hard disks are capable
of breaking down at any time.
* Back up data and applications files.
Reformat the hard drive. Re-install
applications and data using backup
disks.
* Review system's equipment. Make sure
correct information is in setup.
* Set master/slave jumpers correctly.
* Run SETUP program and select correct
drive types. Call drive manufacturers
for compatibility with other drives.
* Back up any salvageable data. Then,
low-level format, partition, and high-
level format the hard drive. Re-install
all saved data when completed.
