Dual XGPS160 User manual

XGPS160
OWNER'S MANUAL
Universal GPS Receiver
0 Bluetooth®
Made for
~ iPod ra iPhone D iPad
FCC 10 : GJW-XGPS160
IC 10 : 4038A-XGPS160

XGPS160

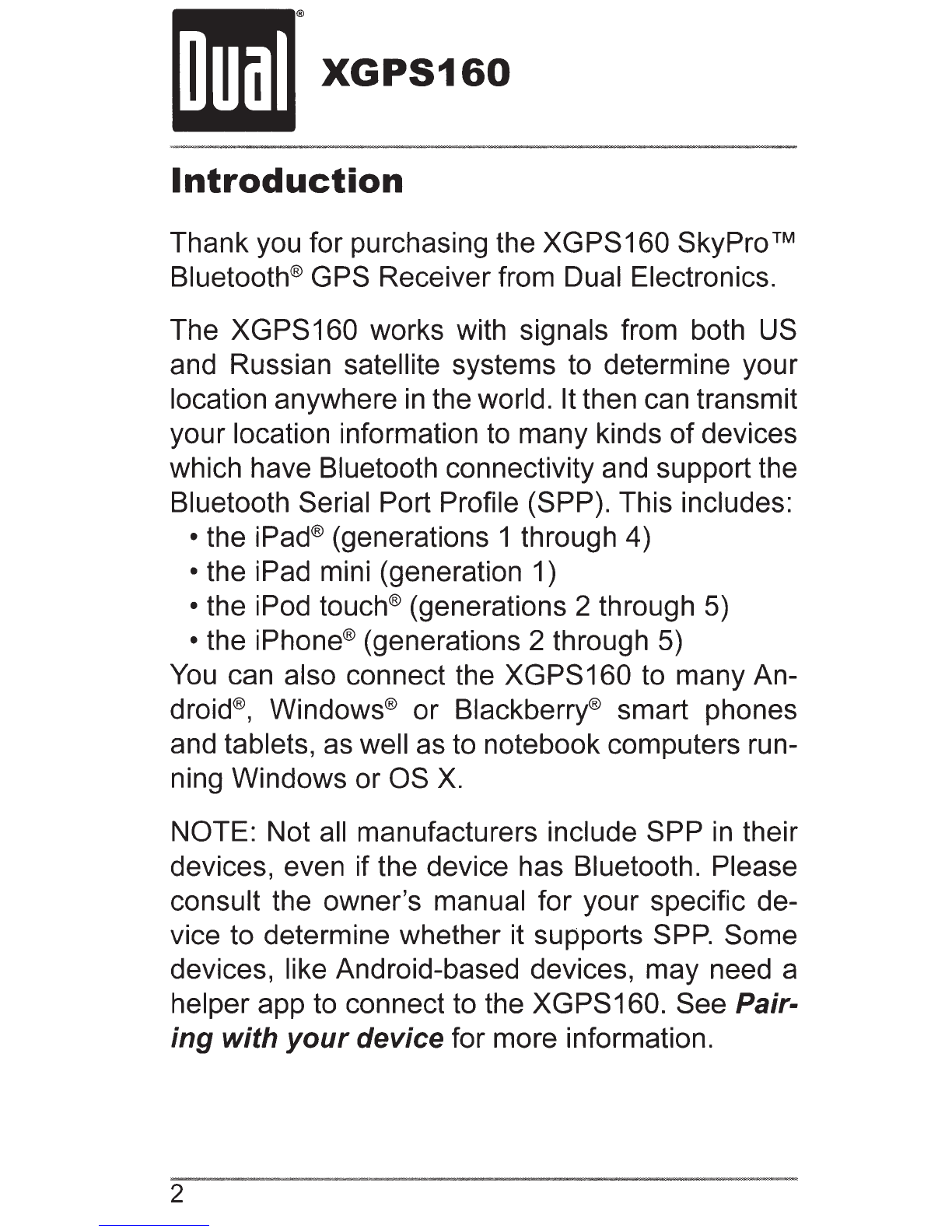

Introduction
Thank you for purchasing the XGPS160 SkyProTM
Bluetooth® GPS Receiver from Dual Electronics.
The XGPS160 works with signals from both US
and Russian satellite systems to determine your
location anywhere
in the world. It then can transmit
your location information to many kinds
of devices
which have Bluetooth connectivity and support the
Bluetooth Serial Port Profile (SPP). This includes:
• the
iPad® (generations 1 through 4)
• the iPad mini (generation 1)
• the iPod touch® (generations 2 through 5)
• the iPhone® (generations 2 through 5)
You can also connect the XGPS160 to many An-
droid®, Windows® or Blackberry® smart phones
and tablets, as well as to notebook computers run-
ning Windows or OS X.
NOTE: Not all manufacturers include SPP in their
devices, even if the device has Bluetooth. Please
consult the owner's manual for your specific de-
vice to determine whether it supports
SPP. Some
devices, like Android-based devices, may need a
helper app to connect to the XGPS160. See Pair-
ing with
your device for more information.
2

'·'
XGPS160
Dual

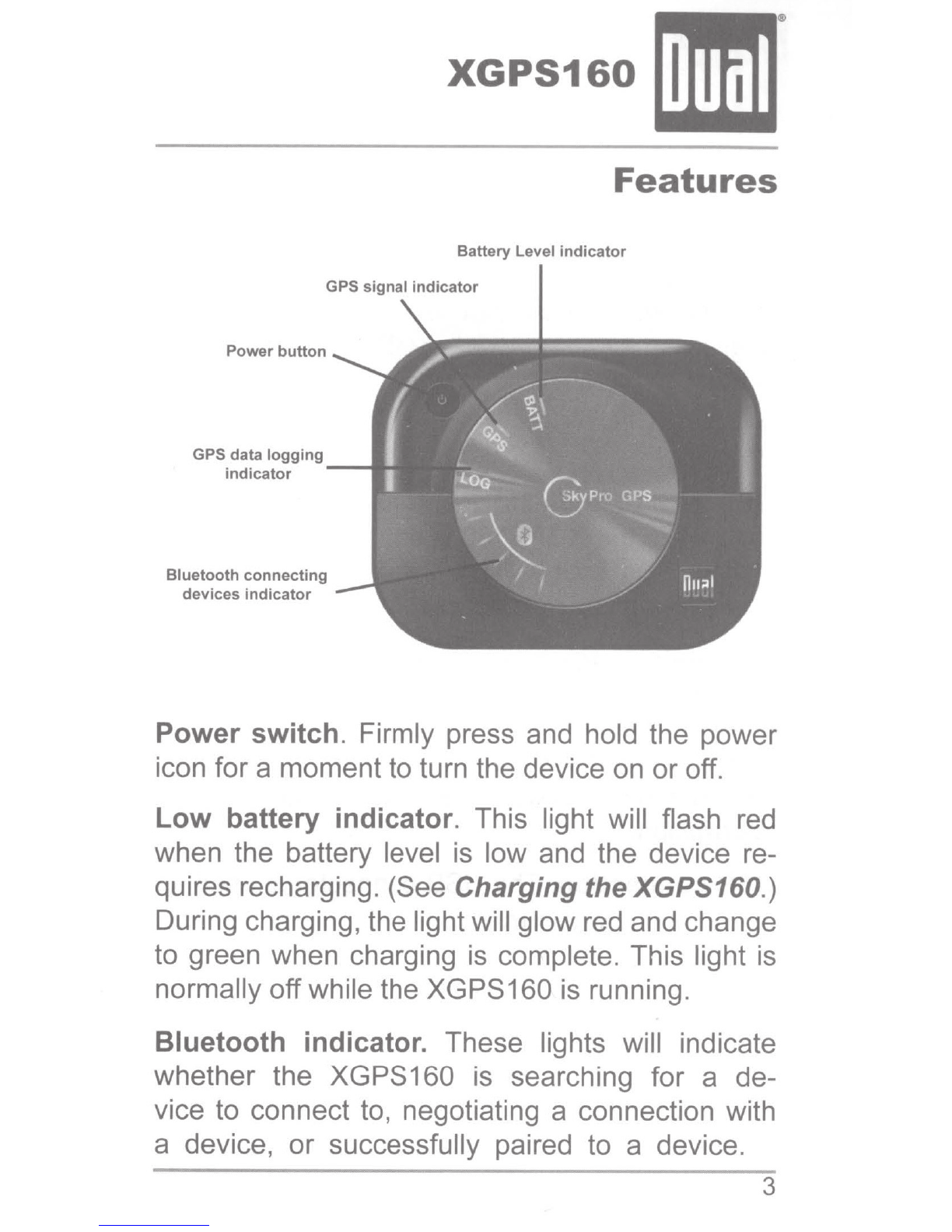

Features
Battery Level
indicator
GPS signal
indicator
Power
button
GPS data
logging
indicator
Bluetooth
connecting
devices
indicator
Power switch. Firmly press and hold the power
icon for a moment to turn the device on or off.
Low battery indicator. This light will flash
red
when the battery level
is
low and the device re-
quires recharging. (See Charging the XGPS160.)
During charging, the light will glow red and change
to green when charging is complete. This light is
normally offwhile the XGPS160 is running.
Bluetooth indicator. These lights will indicate
whether the XGPS160 is searching for a de-
vice to connect to, negotiating a connection with
a device, or successfully paired to a device.
3

Dual
XGPS160

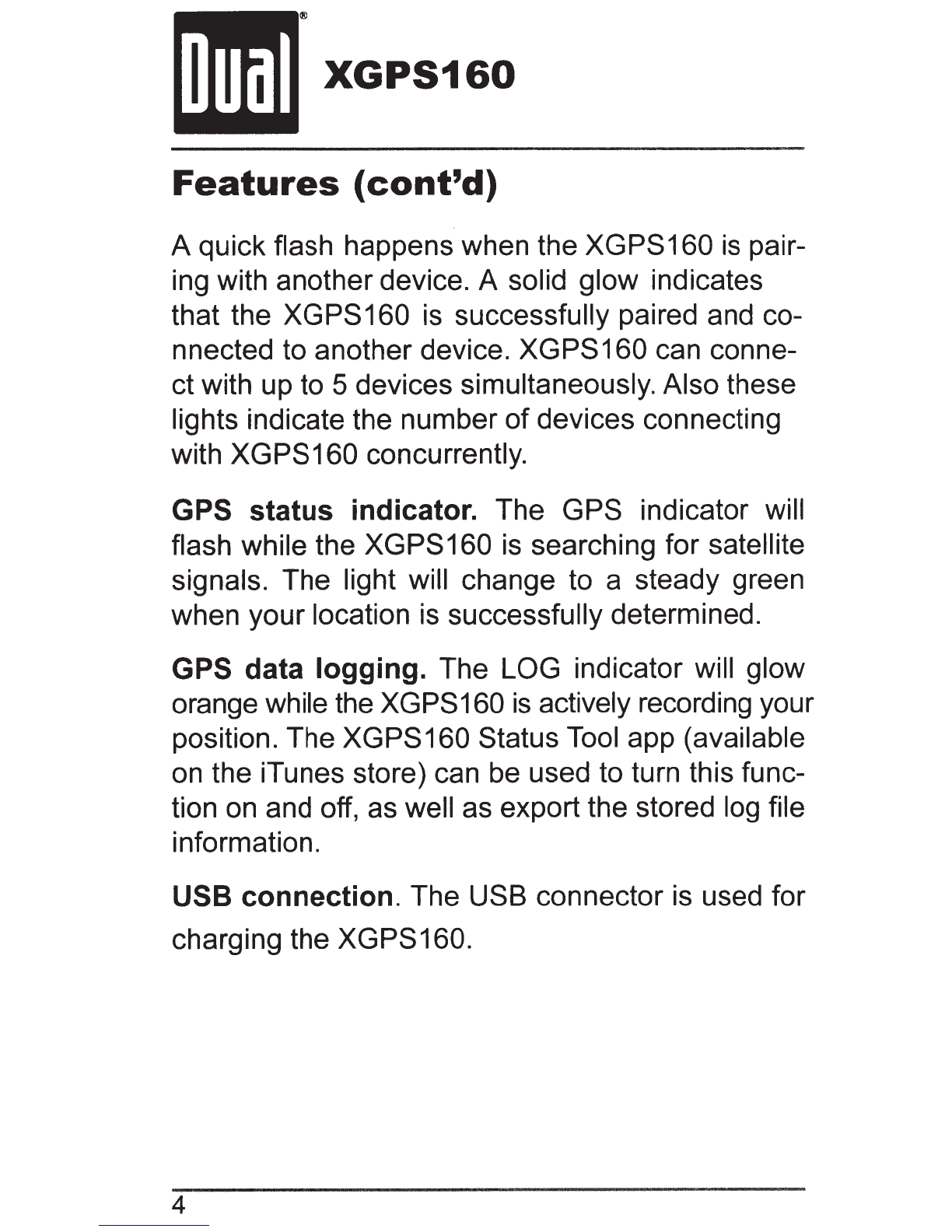

Features ( cont'd)
A quick flash happens when the XGPS 160 is pair-
ing with anotherdevice. A solid
glow indicates
that the
XGPS160 is successfully paired and co-
nnected
to another device. XGPS160 can conne-
ct with up to 5 devices simultaneously. Also these
lights indicate the
number of devices connecting
with
XGPS160 concurrently.
GPS status indicator. The GPS indicator will
flash while the
XGPS 160 is searching for satellite
signals.
The light will change to a steady green
when
your location is successfully determined.
GPS data logging. The LOG indicator will glow
orange while the XGPS160 is actively recording your
position.
The XGPS160 Status Tool app (available
on the iTunes store) can be used to turn this func-
tion on and off, as well as export the stored log file
information.
USB connection. The USB connector is used for
charging the XGPS160.
4

Features (cont'd)
~ · port for chamil&
5

Dual
XGPS160
Setup
The XGPS160 is very simple to use. There is a
one-time setup process to connect it to your iPad,
iPod, smart phone, tablet or laptop computer.
Once this setup process
is completed, simply turn
on the XGPS160 to begin using
it.
To setup the XGPS160 with your device, you will
need to do two things:
·Power on the XGPS160.
• Pair the XGPS160 with the device you will
be
.
USing.
Pairing with your device
Pairing is the process connecting two devices over
Bluetooth and allowing them to communicate.
You
will need to go through the pairing process each
time you use the XGPS160 with a new device, and
the XGPS160 will automatically try to reconnect to
the last device it was paired with.
NOTE: If your device requires a code to connect
during the pairing process, use "0000" or "1234".
Pairing the XGPS160 with the iPod touch, iPad
or iPhone
(NOTE: these instructions were written using iOS
version
6.1 and may be different ifyou are using a
different version
of the iPhone OS.)
6

XGPS160
Dual
Pairing
with
your
device
• On the iPad/iPod touch/iPhone, go to:
Settings->Biuetooth
and turn on Bluetooth. The iOS device will auto-
matically begin looking for the XGPS160.
• Turn
on
the XGPS160. The blue Bluetooth
status light on the XGPS160 will begin
to
blink
slowly (about once per second).
•After a few seconds, the XGPS160 will appear
as
XGPS160-xxxxxx
in
the list
of
devices on
the touch/iPad/iPhone screen. (The last 6 digits
are part
of
the XGPS160 serial number and
will be different for each unit.) The word Mise
may also appear for a few moments before
XGPS160-xxxxxx
appears.
•
Tap
XGPS160-xxxxxx
in
the list
of
devices to
connect to
it.
The words "Not Paired" will disap-
pear and be replaced by the spinning cursor.
• After approximately 10 seconds, the
XGPS160-xxxxxx
name
in
the device list will
change to blue text and the word
Connected
will appear. The blue LED
on
the XGPS160 will
blink rapidly for a few seconds and then stay
illuminated, confirming the two devices have
successfully paired and are communicating.
Pairing the XGPS160 with an Android device
7

Dual
XGPS160
(NOTE: these instructions were written using An-
droid OS version 3.2 and may be different if you
are using a different version of the Android OS.)
8
• Turn
on
the XGPS160. The blue Bluetooth
status light on the XGPS160 will begin to blink
slowly (about once per second).
·On
the Android device go to:
Settings->
Applications->
Development
and enable the option for
Allow
mock
loca-
tions.
This will let the Android device use GPS
information from an external device like the
XGPS160.
• On the Android device go to:
Settings->Wireless
&
networks
and turn on Bluetooth.
• On the Android device go
to
Settings->Wireless
&
networks->
Bluetooth
settings
and select
Scan
for
devices.
•After a few seconds, the word
XGPS160-
xxxxxx
will appear
in
the list
of
devices. (Note:
the last 6 digits are part ofthe XGPS160 serial
number and will vary from device to device.) At
this point, the Android device may say
Paired
but
not
connected
and the blue Bluetooth
indicator XGPS160 will continue to blink slowly.

XGPS160
Dual
• In
order
for
GPS-enabled apps to
use
informa-
tion from an external GPS, you will likely need
to install a helper
app
on yourAndroid device.
This helper app runs
in
the background and will
let apps communicate with the XGPS160. Sev-
eral
helper
apps are available, and
we
recom-
mend using a free
app
on the Google Play store
called Bluetooth GPS Provider
by
MOBILE-J.DE.
Using
the
Bluetooth
GPS
helper
app
with
the
XGPS160
• Please
make
sure you have completed the ste-
ps above in
Pairing
the XGPS160
with
an
An-
droid
device.
• Download and install the
Bluetooth
GPS Pro-
vider
app
from Android Marketplace.
•
Open
the
Bluetooth
GPS
Provider
app and
select the XGPS160 after pressing "Choose GPS
receiver" button
in
the main
window
of
the app.
If
you are needed to enable
"Mock
Locations",
please permit it.
•
Tap
the
Start
button.
Your
Android device will
connect
to
the
XGPS160
and begin streaming
location data to apps on
your
device.
The
blue
Bluetooth indicator on the
XGPS
160 will illumin-
ate without blinking.
If
you
want
to
see
NMEA
data, long-press the sat view.
Pairing
the
XGPS160
with
a
Blackberry
device
9

1:-
Dual
XGPS160

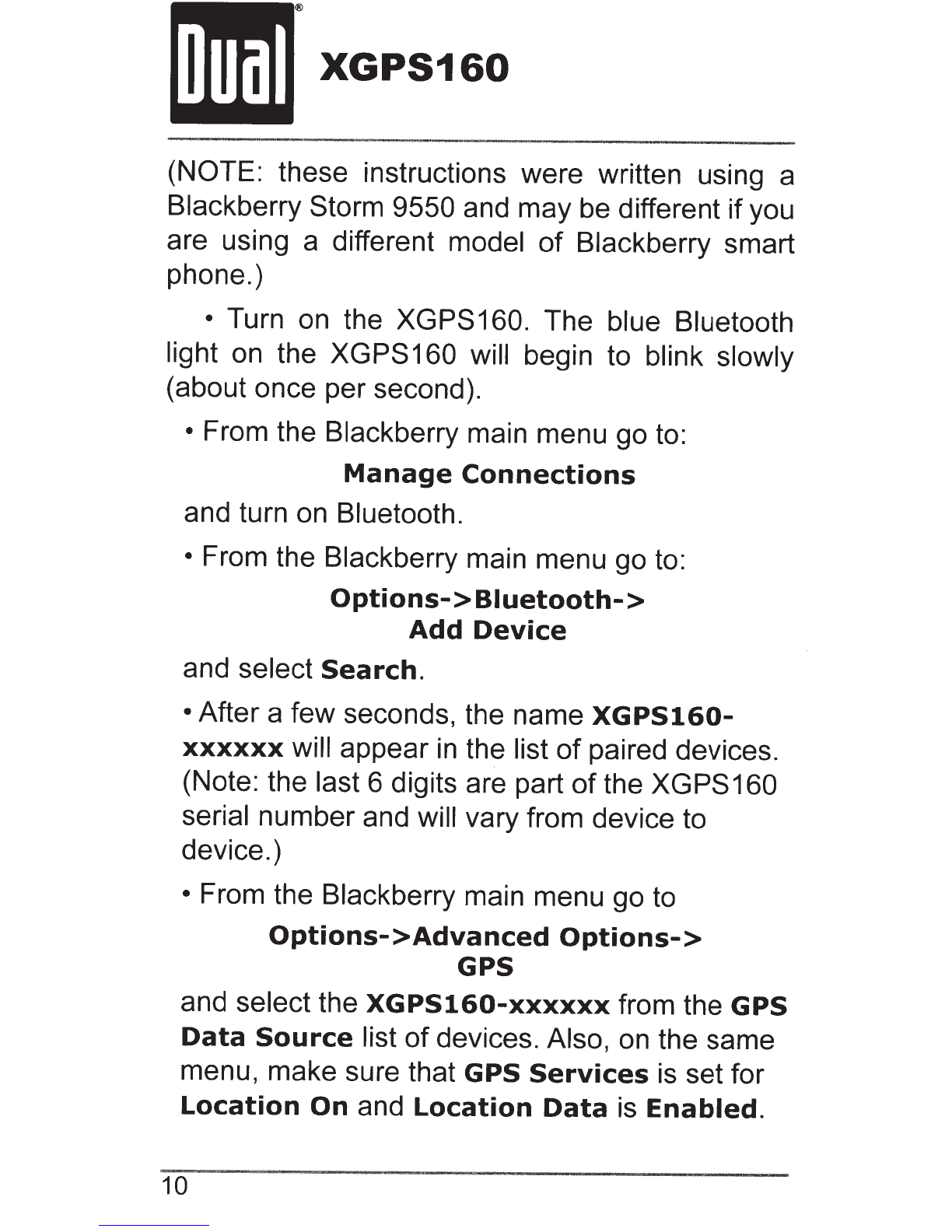

(NOTE: these instructions were written using a
Blackberry Storm 9550 and may be different ifyou
are using a different model
of
Blackberry smart
phone.)
• Turn on the XGPS160. The blue Bluetooth
light on the XGPS160 will begin to blink slowly
(about once per second).
• From the Blackberry main menu go to:
Manage
Connections
and turn on Bluetooth.
• From the Blackberry main menu go to:
Options->
Bl
uetooth-
>
Add
Device
and select
Search.
·After
a few seconds, the name
XGPS160-
xxxxxx
will appear
in
the list
of
paired devices.
(Note: the last 6 digits are part
of
the XG
PS
160
serial number and will vary from device to
device.)
• From the Blackberry main menu go to
Options->Advanced
Options->
GPS
and select the
XGPS160-xxxxxx
from the GPS
Data
Source
list
of
devices. Also, on the same
menu, make sure that GPS
Services
is set for
Location
On
and
Location
Data
is
Enabled.
10

XGPS160
Dual
If
you need additional help connecting the
XGPS160
to yourdevice, please contact customer
service ([email protected]
or
866-382-5476). How-
ever,
due
to
the enormous
number
and variety
of
available devices, you
may
need to contact the
manufacturer
of
your device
for
additional instruc-
tions.
Using
the
XGPS160
Once the
XGPS160
is paired with
your
device, you
can begin using apps that utilize
GPS
information.
The
XGPS160
includes a non-slip pad for use in an
aircraft, in a car
or
on a boat. Slide the
XGPS
160
into the pad to secure it, making sure that the lip
of
the pad seals overthe top edges
of
the XGPS
160.
The
XGPS
160 is not waterproof, but it will with-
stand light splashing when it is seated properly in
the non-slip pad.
Charging
the
XGPS160
The
XGPS160
is charged via the
USB
connector
on the side
of
the device.
To
charge, simply con-
nect
the
XGPS160
to the USB port on any
com-
puter using
the
included USB cable. A
12V
ciga-
rette lighter adapter is also included for charging
the
XGPS160
in a car. It takes approximately 2.5
hours to fully charge the XGPS160.
11

•,l
Dual
XGPS160
Tips
for
best
performance
• Put the XGPS160
in
a location with a clear
view
of
the sky:
on
the glareshield
in
the cockput,
on the dashboard
of
your
car,
on a boat bulkhead,
a mesh pocket
in
a backpack, etc.
• The range
of
the Bluetooth connection will
drop as the battery level drops. If you find that the
wireless connection
is
failing, try recharging the
XGPS160.
12

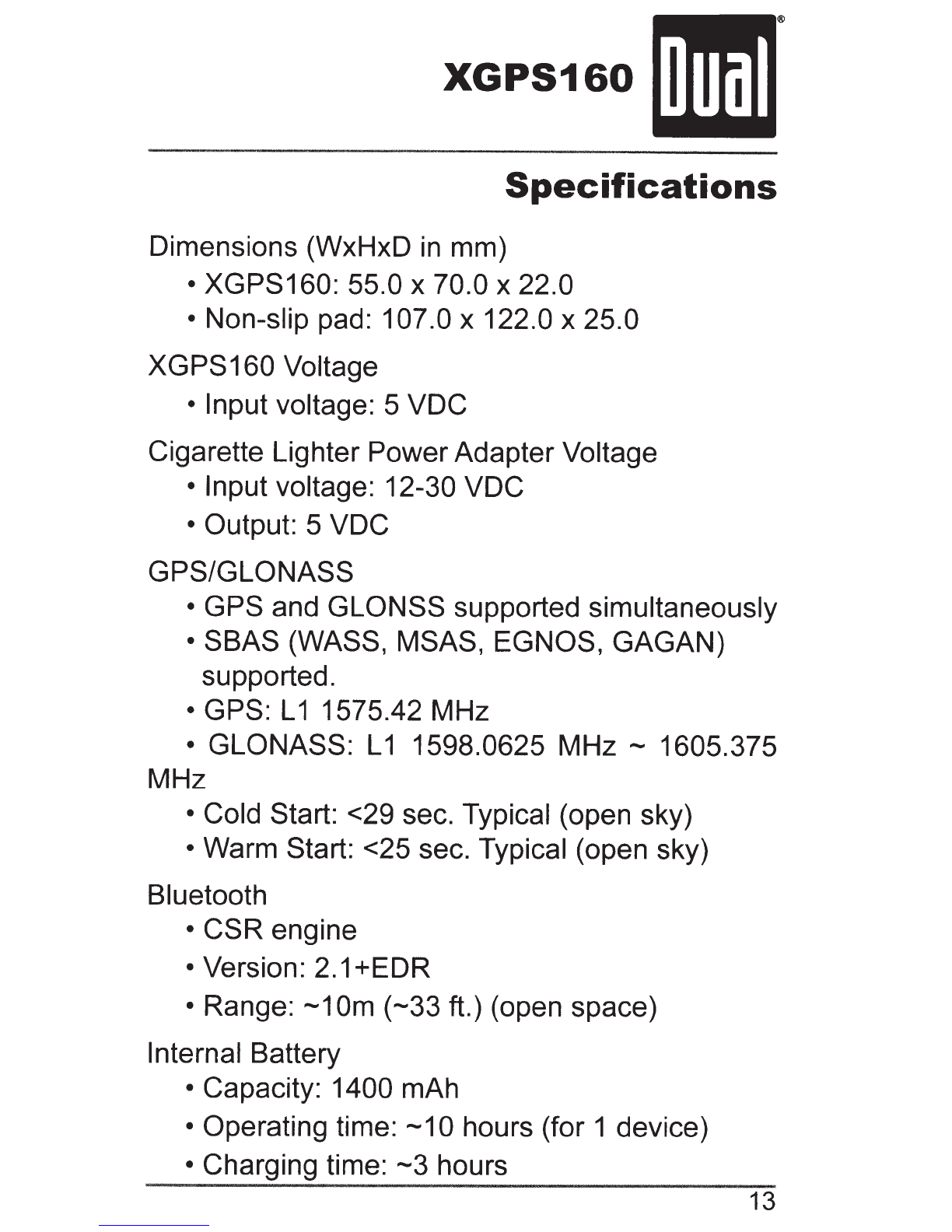

Specifications
Dimensions (WxHxD
in
mm)
• XGPS160: 55.0 X 70.0 X 22.0
• Non-slip pad: 107.0 x 122.0 x 25.0
XGPS160 Voltage
• Input voltage: 5 VDC
Cigarette Lighter PowerAdapter Voltage
• Input voltage: 12-30 VDC
• Output: 5 VDC
GPS/GLONASS
• GPS and GLONSS supported simultaneously
•SBAS(WASS,MSAS,EGNOS,GAGAN)
supported.
• GPS: L
1 1575.42 MHz
• GLONASS: L1 1598.0625 MHz -1605.375
MHz
• Cold Start: <29 sec. Typical (open sky)
• Warm Start: <25 sec. Typical (open sky)
Bluetooth
• CSR engine
·Version:
2.1
+EDR
• Range: -1Om
(-33ft.)
(open space)
Internal Battery
• Capacity: 1400 mAh
• Operating time:
-10
hours (for 1 device)
• Charging time:
-3
hours
13

Dual
XGPS160

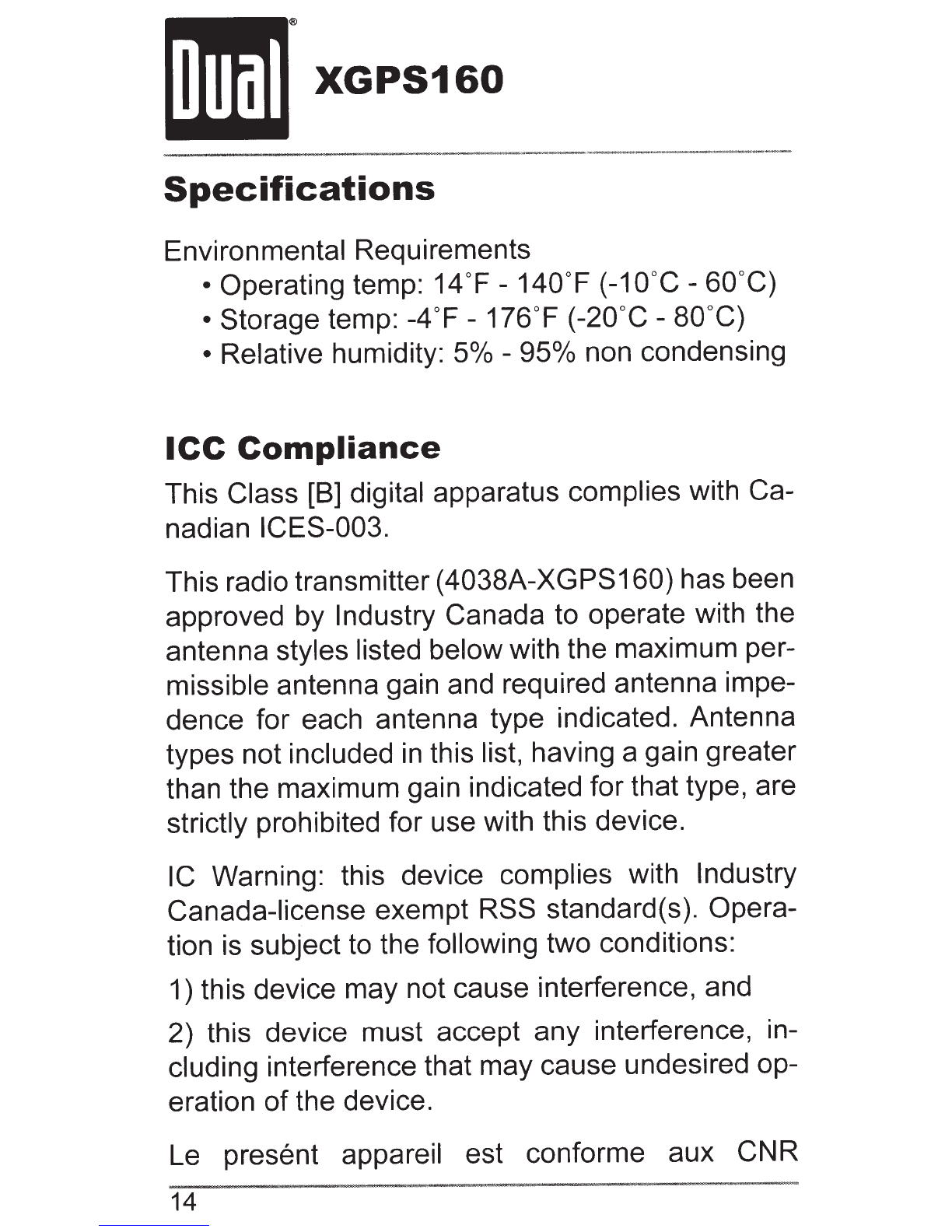

Specifications
Environmental Requirements
·Operating
temp: 14°
F-
140°F (-10°
C-
60°C)
• Storage temp: -4OF - 176°F (
-20°C -80°C)
• Relative humidity: 5°/o-
95°/o
non condensing
ICC
Compliance
This Class [B] digital apparatus complies with Ca-
nadian ICES-003.
This radio transmitter (4038A-XGPS160) has been
approved by Industry Canada to operate with the
antenna styles listed below with the maximum per-
missible antenna gain and required antenna impe-
dence for each antenna type indicated. Antenna
types not included
in
this list, having a gain greater
than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
IC Warning: this device complies with Industry
Canada-license exempt RSS standard(s). Opera-
tion is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, in-
cluding interference that may cause undesired op-
eration
of
the device.
Le present appareil est conforme aux CNR
14

XGPS160
Dual
Compliance
d'lndustrie Canada applicables aux appareils ra-
dio exempts de licence. L'exploitation est autori-
see aux deux conditions suivantes:
1) l'appareil
ne doit pas produire de brouillage, et
2) l'utilisateurde l'appareil doit acceptertout brouil-
lage radioelectrique subi, meme si le brouillage est
susceptible d'encompromettre le fonctionnement.
FCC Compliance
This device complies with Part 15 of the FCC
Rules. Operation
is subject to the following two
conditions:
(1) this device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may cause un-
desired operation.
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to oper-
ate the equipment.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital de-
vice, pursuant to Part 15
of the FCC Rules. These
limits are designed to provide reasonable protec-
tion against harmful interference
in a residential
15

,,
Dual
XGPS160
Compliance
(cont'd)
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not in-
stalled and used
in
accordance with the instruc-
tions, may cause harmful interference to radio
communications. However, there
is
no
guarantee
that interference will not occur
in
a particular in-
stallation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user
is
encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet
on
a circuit
different from that to which the receiver
is
con-
nected.
• Consult the dealer or
an
experienced radio/TV
technician for help.
16

XGPS160
Dual
Limited One-Year Warranty
This warranty gives you specific legal rights. You
may also have other rights which vary from state
to state. Dual Electronics Corp. warrants this prod-
uct to the original purchaser to be free from de-
fects in material and workmanship for a period
of
one year from the date of the original purchase.
Dual Electronics Corp. agrees, at our option, dur-
ing the warranty period, to repair any defect
in ma-
terial or workmanship or to furnish an equal new,
renewed
or comparable product (whichever is
deemed necessary) in exchange without charges,
subject to verification
of the defect or malfunction
and proof
of the date of purchase. Subsequent re-
placement products are warranted for the balance
of the original warranty period.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased
from an authorized Dual dealer and used in the
U.S.A.
What
is covered? This warranty covers all defects
in material and workmanship in this product. The
following are not covered: software, installation/re-
moval costs, damage resulting from accident, mis-
use, abuse, neglect, product modification, improp-
er installation, incorrect line voltage, unauthorized
repair
or failure to follow instructions supplied with
17

Dual
XGPS160
Warranty
(
cont'd)
the product, or damage occurring during return
shipment
of
the product. Specific license condi-
tions and copyright notices for the software can be
found via http://www.dualav.com.
What to do?
1.
Before you call for service, check the trou-
bleshooting guide
in
your owner's manual. A slight
adjustment
of
any custom controls may save you
a service call.
2.
Ifyou require service during the warranty pe-
riod, you must carefully pack the product (prefer-
ably
in
the original package) and ship it by prepaid
transportation with a copy
of
the original receipt
from the retailer to
an
authorized service center.
3.
Please describe your problem
in
writing and
include your name, a return UPS shipping address
(P.O.
Box not acceptable), and a daytime phone
number with your shipment.
4.
For more information and for the location
of
the nearest authorized service center please con-
tact us by one
of
the following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at [email protected]
Exclusion
of
Certain Damages: This warranty is
exclusive and
in
lieu
of
any and all other warran-
18

XGPS160
Dual
Warranty
(
cont'd)
ties, expressed or implied, including without limita-
tion the implied warranties of merchantability and
fitness for a particular purpose and any obligation,
liability, right, claim or remedy
in
contract or tort,
whether or not arising from the company's negli-
gence, actual or imputed. No person or represen-
tative
is
authorized to assume for the company
any other liability
in
connection with the sale ofthis
product.
In
no event shall the company be liable
for indirect, incidental or consequential damages.
19

Dual Electronics Corp.
Toll Free: 1-866-382-5476
www.dualav.com
©2013 Dual Electronics Corp. All rights reserved.
Windows is a registered trademark of Microsoft
Corporation
in the United States and or other coun-
tries. iPod, iPad and iPhone are trademarks
of
Apple Inc., registered in the US and other countries.
"Made for iPod " "Made for iPhone " and "Made for
' '
iPad" mean that an electronic accessory has been
designed to connect specifically to iPod, iPhone, or
iPad, respectively, and has been certified by the devel-
oper to meet Apple performance standards. Apple
is not responsible for the operation
of this device or
its compliance with safety and regulatory standards.
The Bluetooth®word mark and logos are owned by
the Bluetooth SIG, Inc. and any use
of such marks by
Namsung is under license. Other trademarks and trade
names are those
of their respective owners.
NSA 121 O-V01
