Ducati 748 2000 User manual

1
E
DUCATI748/996
Owner’s manual
WWW.PlandeGraissage.ORG

2
E
WWW.PlandeGraissage.ORG

3
E
Hearty welcome among Ducati fans! Please accept our
best compliments for choosing a Ducati motorcycle. We
think you will ride your Ducati motorcycle for long
journeys as well as short daily trips. Ducati Motor s.p.a
wishes you smooth and enjoyable riding.
We are steadily doing our best to improve our “Technical
Assistance” service. For this reason, we recommend you
to strictly follow the indications given in this manual,
especially for motorcycle running-in. In this way, your
Ducati motorbike will surely give you unforgettable
emotions.
For any servicing or suggestions you might need, please
contact our authorized service centres.
Enjoy your ride!
Ducati Motor S.p.A. declines any liability whatsoever for
any mistakes incurred in drawing up this manual. The
information contained herein is valid at the time of going
to print. Ducati Motor S.p.A. reserves the right to make
any changes required by the future development of the
above-mentioned products.
For your safety, as well as to preserve the warranty,
reliability and worth of your motorcycle, use original
Ducati spare parts only.
Warning
This manual forms an integral part of the
motorcycle and - if a transfer of title occurs - must always
be handed over to the new owner.
WWW.PlandeGraissage.ORG

4
E
TABLE OF CONTENTS
General 6
Warranty 6
Symbols 6
Useful information for safe riding 7
Carrying the max load allowed 8
Identification data 9
Controls 10
Position of motorcycle controls 10
Instrument panel 11
Keys 12
Key-operated ignition switch and steering lock 12
Left switch 13
Clutch lever 14
Cold start button 15
Right switch 16
Throttle twistgrip 16
Front brake lever 16
Rear brake pedal 17
Gear change pedal 17
Setting the gear change and rear brake pedals 18
Main components and devices 19
Location 19
Tank filler plug 20
Seat catch and helmet hook 21
Side stand 23
Steering damper 24
Front fork adjusters 24
Shock absorber adjusters (748/748S) 26
Shock absorber adjusters (996) 27
Changing motorcycle track alignement 28
Directions for use 29
Running-in recommendations 29
Pre-ride checks 31
Starting the engine 32
Moving off 34
Braking 34
Stopping the motorcycle 35
Parking 35
Refueling 35
Tool kit and accessories 36
Main maintenance operations 37
Removing the fairing 37
Cleaning and changing air filters 39
Checking the coolant level 40
Checking brake and clutch fluid level 41
Checking brake pads for wear 42
Lubricating cables and joints 43
Throttle cable adjustment 43
Charging the battery 44
WWW.PlandeGraissage.ORG

5
E
Adjusting headstock angle 45
Chain tension inspection 46
Chain lubrication 47
Replacing bulbs 48
Beam setting 50
Tubeless tyres 51
Checking engine oil level 53
Cleaning and replacing the spark plugs 54
Cleaning the motorcycle 55
Storing the bike away 56
Important notes 56
Technical data 57
Overall dimensions 57
Weights 57
Top-ups 58
Engine 59
Timing system 59
Performance data 60
Spark plugs 60
Brakes 60
Transmission 61
Frame 62
Wheels 62
Tyres 62
Suspensions 63
Available colours 63
Available colours 63
Electric system 64
For United States of America version only 69
Routine maintenance record 78
WWW.PlandeGraissage.ORG

6
E
GENERAL
Warranty
In your own interest, and in order to guarantee product
reliability, you are strongly advised to refer to a Ducati
Dealer or Authorized Workshop for any servicing
requiring particular technical expertise. Our highly skilled
staff have access to the implements required to perform
any servicing job at best, using Ducati original spare parts
only as the best guarantee for full interchangeability,
smooth running and long life.
All Ducati motorcycles come with a “Warranty Card”.
However, warranty does not apply to the motorcycles
used in competitions. No motorcycle part may be
tampered with, altered, or replaced with parts other than
original Ducati spare parts during the warranty period, or
the warranty will be automatically invalidated.
Symbols
Ducati Motor S.p.A. advises you to read this manual
carefully so as to become familiar with your motorcycle.
In case of any doubts, please call a Ducati Dealer or
Authorized Workshop. The information contained herein
will prove useful on your trips - and Ducati Motor S.p.A.
wishes you smooth, enjoyable riding - and will help you
keep the performance of your motorcycle unchanged for
a long time.
Warning
Failure to comply with these instructions may put
you at risk and lead to severe injury or death.
Important
Possibility of damaging the motorcycle and/or its
components.
Note
Additional information concerning the job being
carried out.
The terms right and left are referred to the motorcycle
viewed from the riding position.
WWW.PlandeGraissage.ORG

7
E
Useful information for safe riding
Warning
Read this section before riding your motorcycle.
Accidents are frequently due to inexperience. Always
make sure you have your licence with you when riding;
you need a valid licence to be entitled to ride your
motorcycle.
Do not lend your motorcycle to inexperienced riders or
who do not hold a valid licence.
Both rider and pillion passenger must always wear a
safety helmet.
Wear proper clothing, with no loose items or accessories
that may become tangled in the controls or limit your
zone of vision.
Never start or run the engine indoors. Exhaust gases are
poisonous and may lead to loss of consciousness or even
death within a short time.
Both rider and pillion passenger should keep their feet on
the footpegs when the motorcycle is in motion.
Always hold the handlebars firmly with both hands so
you will be ready for sudden changes of direction or in
the road surface. The pillion passenger should always
hold on to the suitable belt on the rear seat with both
hands.
Ride within the law and observe national and local rules.
Always respect speed limits where these are posted.
However, always adjust your speed to the visibility, road
and traffic conditions you are riding in.
Always signal your intention to turn or pull to the next
lane in good time using the suitable turn indicators.
Be sure you are clearly visible and do not ride within the
blind spot of vehicles ahead.
Be very careful when tackling road junctions, or when
riding in the areas near exits from private grounds, car
parks or on slip roads to access motorways.
Always turn off the engine when refueling.
Be extremely careful not to spill gasoline on the engine
or on the exhaust pipe when refueling.
Do not smoke when refueling.
While refueling, you may inhale noxious gasoline vapors.
Should any gasoline drops be spilled on your skin or
clothing, immediately wash with soap and water and
change your clothing.
Always remove the key when you leave your motorcycle
unattended.
The engine, exhaust pipes, and mufflers stay hot for a
long time.
Park your motorcycle where no one is likely to hit it and
use the side stand.
Never park on uneven or soft ground or your motorcycle
may fall over.
WWW.PlandeGraissage.ORG

8
E
Carrying the maximum load allowed
Your motorcycle is designed for long-distance riding,
carrying the maximum load allowed in full safety.
Even weight distribution is critical to preserving safety
features and avoiding trouble when performing sudden
manoeuvres or riding on bumpy roads.
Information about carrying capacity
The total weight of the motorcycle in running order
including rider, pillion passenger, luggage and additional
accessories should not exceed 375 Kg.
Arrange your luggage or heavy accessories in the lowest
possible position and close to motorcycle centre.
Be sure to secure the luggage to the supports provided
on the motorcycle as firmly as possible. Improperly
secured luggage may affect stability.
Never fix bulky or heavy objects to the handlebar or to
the front mud guard as this would affect stability and
cause danger.
Do not insert any objects you may need to carry into the
gaps of the frame as these may foul moving parts.
Make sure the tyres are inflated to the proper pressure
indicated at page 52 and that they are in good condition.
WWW.PlandeGraissage.ORG

9
E
Identification data
All Ducati motorcycles have two identification numbers,
for frame (fig. 1.1) and engine (fig. 1.2).
Frame number
Engine number
Note
These numbers identify the motorcycle model and
are required when ordering spare parts.
fig. 1.2
fig. 1.1
WWW.PlandeGraissage.ORG

10
E
CONTROLS
Warning
This section details the position and function of all
the controls you need to drive your motorcycle. Be sure
to read this information carefully before you use the
controls.

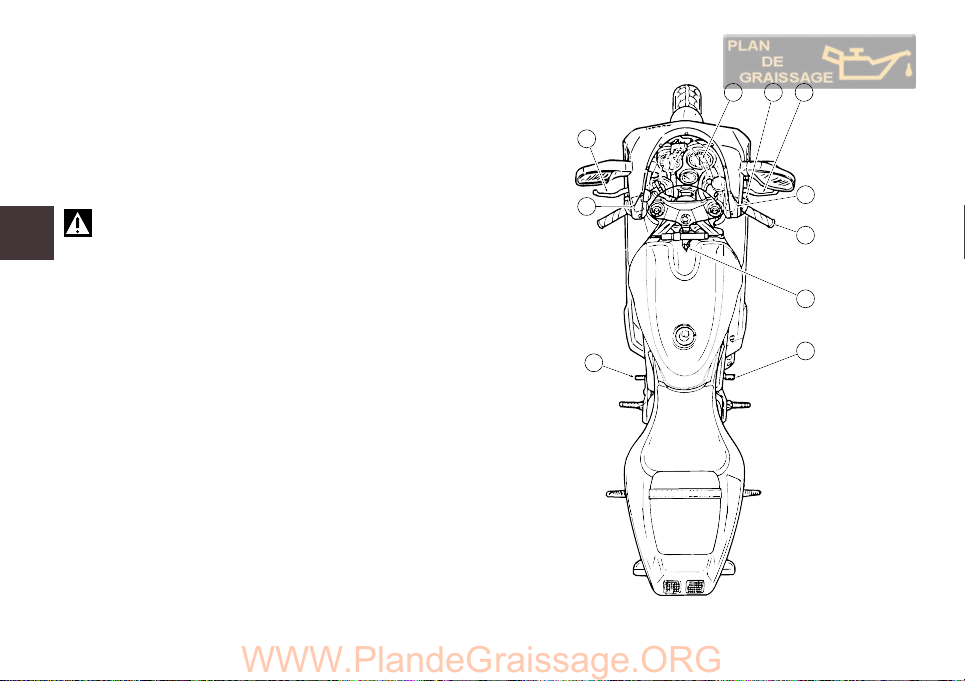

Position of motorcycle controls (fig. 2)
1) Instrument panel.
2) Key-operated ignition switch and steering lock.
3) Left switch.
4) Clutch lever.
5) Cold start button.
6) Right switch.
7) Throttle twistgrip.
8) Front brake lever.
9) Gear change pedal.
10) Rear brake pedal.
fig. 2
9
3
4
1 5 8
6
7
2
10
WWW.PlandeGraissage.ORG

5a
1
c
b
8
3 7 4 2 6
D
U
C
A
T
I
C
O
R
S
E
11
E

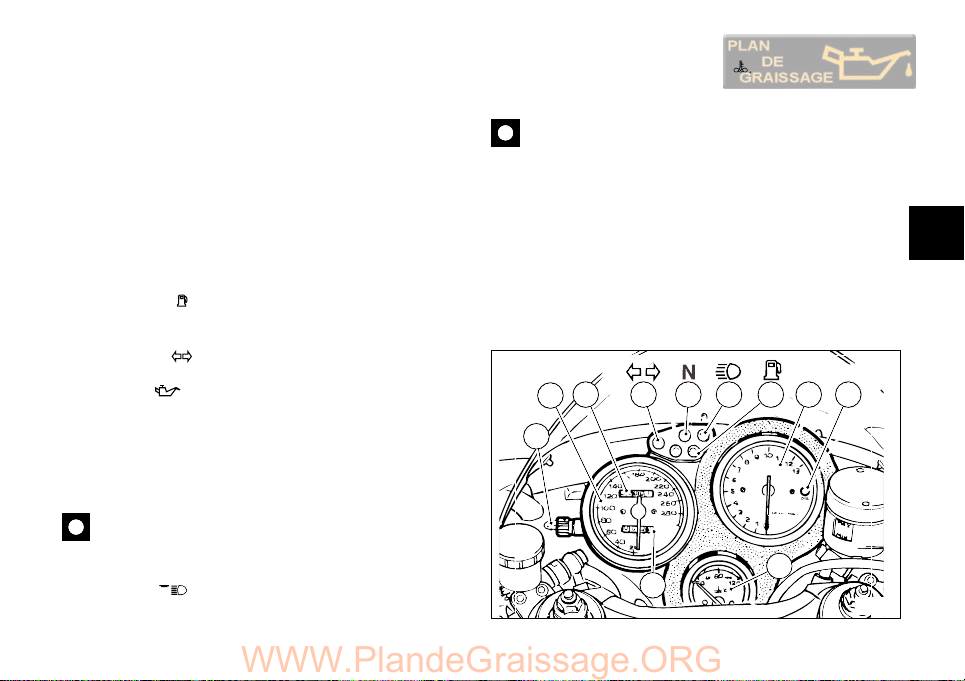

Instrument panel (fig. 3)
1) Speedometer (km/h or mph).
Gives road speed.
a) Odometer (km or miles).
Gives total distance covered.
b) Trip meter (km or miles).
Gives distance covered since last resetting.
c) Trip meter resetting knob.
Turn to reset trip meter to “0000”.
2) Engine revolution meter (rpm)
Indicates engine rpm.
3) Green light N.
Comes on when gearbox is in neutral.
4) Yellow light .
Comes on when there are about 4 liters fuel left in the
tank.
5) Green light .
Comes on and flashes when a turn indicator is on.
6) Red light .
Comes on when engine oil pressure is too low. It comes
on when the ignition is switched to ON and normally
goes out a few seconds after engine starts.
It may shortly come on when the engine is hot, however,
it should go out as the engine revs up.
Important
If this light (6) stays on, stop the engine or it may
suffer severe damage.
7) Blue light .
Comes on when right high beam is on. fig. 3
8) Water temperature indicator .
Indicates engine coolant temperature.
Important
Stop riding if the temperature reaches the max.
value, otherwise the engine might damage.
When parking light is on, the instrument panel is lighted.
WWW.PlandeGraissage.ORG

12
E
Keys (fig. 4)
Your Ducati was delivered with two universal keys for
ignition, steering lock and seat catch and a key
identification plate (1).
Note
Separate the two keys and keep the identification
plate in a safe place.
Key-operated ignition switch and steering lock
(fig. 5)
It is located in front of the fuel tank and has four
positions:
A) ON: lights and engine enabled;
B) OFF: lights and engine disabled;
C) LOCK: steering locked;
D) P: parking light and steering lock.
Note
To move the key to the last two positions, press it
down before turning it. Switching to (B), (C) and (D), you
will be able to take the key out.
A
B
C
D
fig. 4 fig. 5
WWW.PlandeGraissage.ORG

13
E

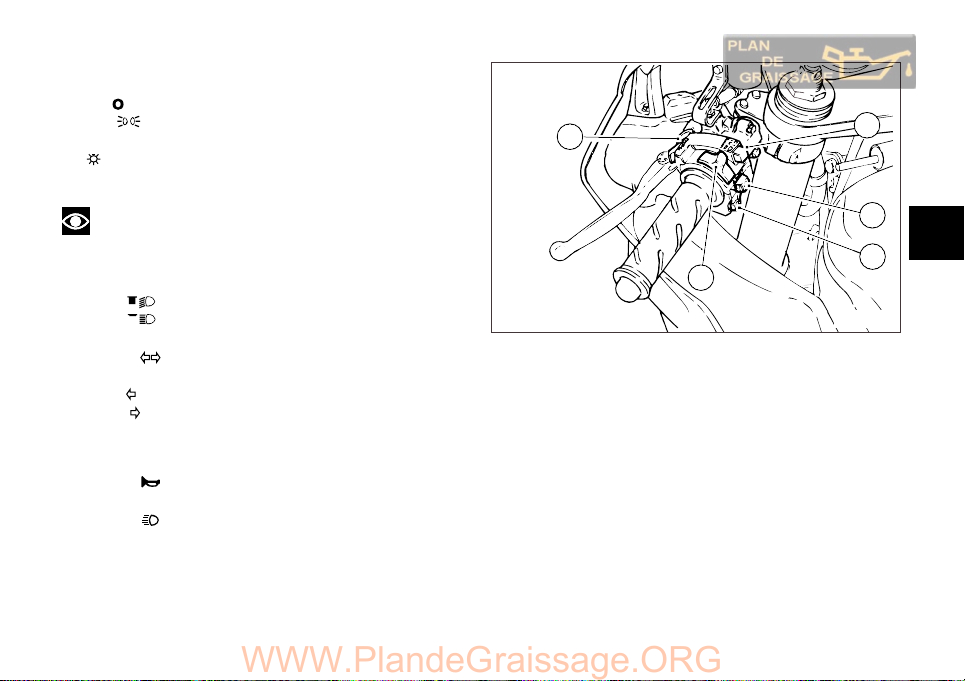

Left switch (fig. 6)
1) Switch, light switch, 3 positions:
Down = light off;
Centre = front and rear parking light, number plate
light and panel lights on;
Up = headlamp, front and rear parking light, number
plate light and panel lights on.
Note
This device is not fitted on the Australia and Japan
versions.
2) Dip switch, light dip switch, two positions:
position = low beam on;
position = high beam on.
3) Switch = 3-position turn indicator:
centre position = off;
position = left turn;
position = right turn.
To cancel turn indicators, return switch to central position
and push in.
4) Button = warning horn.
5) Button = high-beam flasher.
4
2
3
1
5
fig. 6
WWW.PlandeGraissage.ORG

14
E
Clutch lever (fig. 7)
Lever (1) disengages the clutch. It features a dial adjuster
(2) for lever distance from the twistgrip on handlebar.
To set lever distance from twistgrip, push lever (1) fully
forward and turn the dial adjuster (2) to one of its four
positions. Remember that position no. 1 gives maximum
distance between lever and twistgrip, whereas lever and
twistgrip are closest when adjuster is set to position no.
4.
When you pull in the lever (1), you will disengage the
engine from the gearbox and therefore from the driving
wheel. Using the clutch properly is essential to smooth
riding, especially when moving off.
Important
Using the clutch properly will avoid damage to
transmission parts and spare the engine.
1
2
fig. 7
WWW.PlandeGraissage.ORG

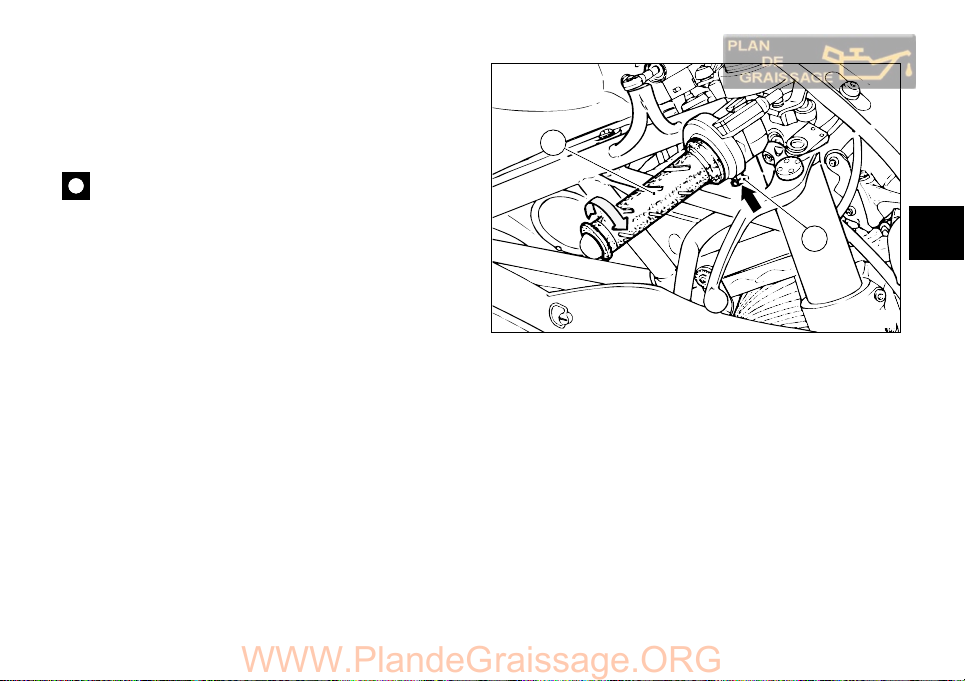

Cold start button (fig. 8)
This device is on throttle control. Push the button (3) to
enable control. In this way, the throttle control (4) will
lightly turn, thus increasing the engine rotation speed.
Use this device to start the engine from cold (page 33).
Important
Move the button (3) back to rest position once the
engine is warm. Turn the throttle twistgrip (4) clockwise
(slow down). Never use this device when the engine is
warm.
15
E
4
3
fig. 8
WWW.PlandeGraissage.ORG

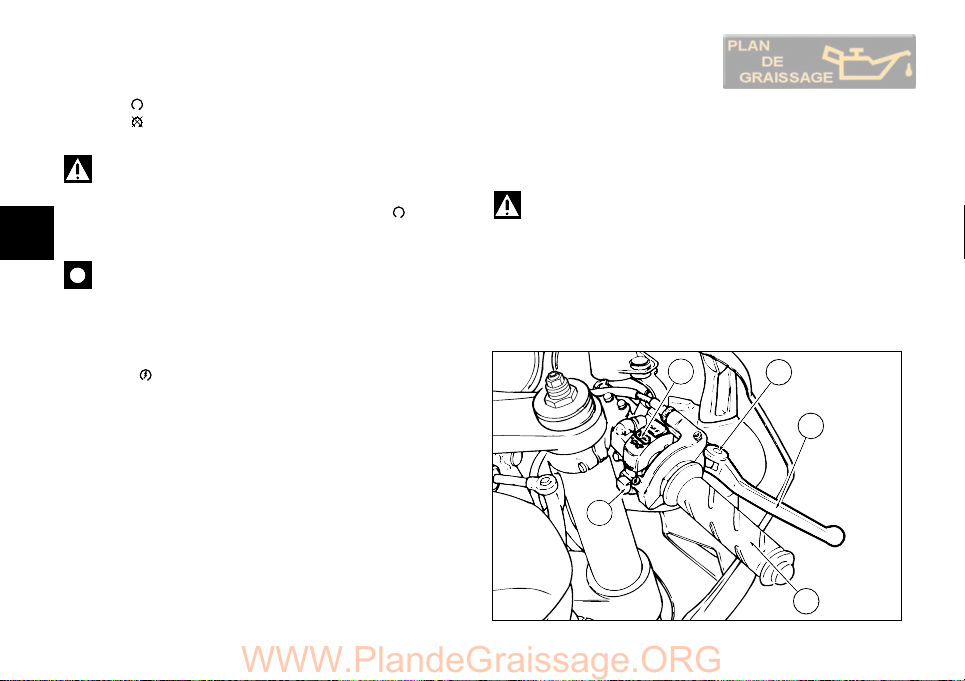

Right switch (fig. 9)
G) Switch for ENGINE STOP, two positions:
position (RUN) = run.
position (OFF) = stop.
Warning
This switch is mainly intended for use in emergency
cases when you need to stop the engine quickly. After
stopping the engine, return the switch to the position
to enable starting.
Important
Stopping the engine using switch (1) after riding
with the lights on and leaving the ignition key in the ON
position, may run the battery flat as the lights will remain
on.
2) Button = engine start
Throttle twistgrip (fig. 9)
The twistgrip (3) on the right handlebar opens the
throttles. When released, it will spring back to the initial
position (idling speed).
16
E
4
3
1
2
5
fig. 9
Front brake lever (fig. 9)
Pull in the lever (4) towards the twistgrip to operate the
front brake. The system is hydraulically operated and you
just need to pull the lever gently.
The brake lever is provided with a dial adjuster (5) for
lever distance adjustment from twistgrip on handlebar.
Warning
Please read the instructions on pages 31 and 32
before using these controls.
WWW.PlandeGraissage.ORG

17
E
Rear brake pedal (fig. 10)
Push down on the pedal (1) with your foot to operate the
rear brake.
The system is hydraulically operated.
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
1
fig. 10
1
N
2
3
4
5
6
Gear change pedal (fig. 11)
The gear change pedal is at rest when in the central
position N, is moved up and down to change gears and
then returns to the central position.
down = push down on the pedal to engage 1st gear and
to shift down. The N light will go out.
up = lift the pedal to engage the 2nd gear and then the
3rd, 4th, 5th and 6th gear. Each time you move the pedal
you will engage the next gear.
fig. 11
WWW.PlandeGraissage.ORG

18
E
fig. 11.2
fig. 11.3

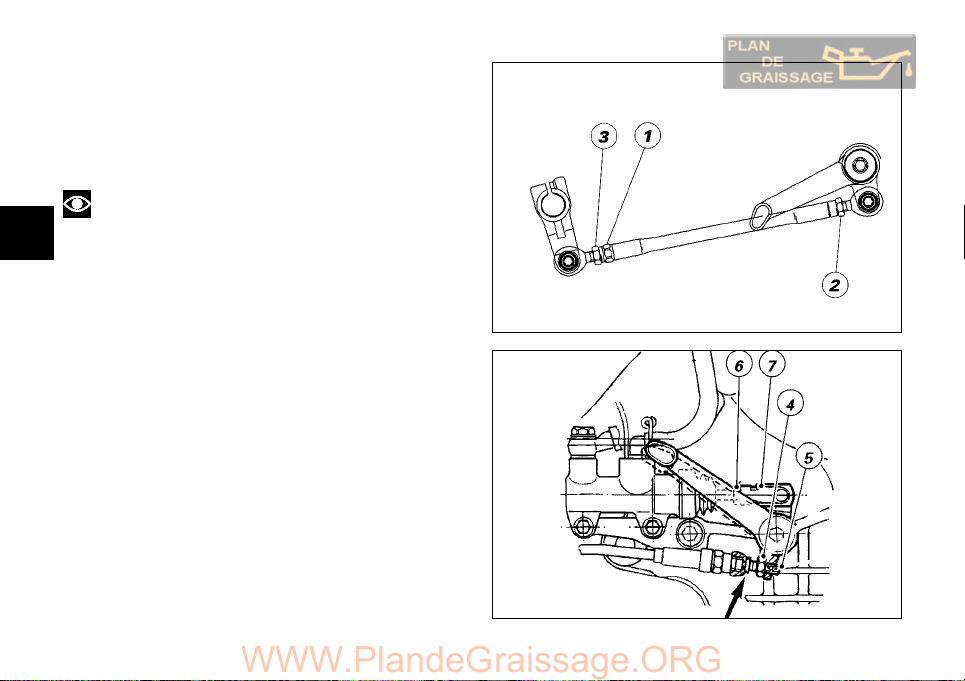

Setting the gear change and rear brake pedals
(fig. 11.2; 11.3)
The gear change and rear brake pedals can be adjusted
to suit the preferred riding position of each rider.
To set the gear change pedal, lock linkage (1) and loosen
the check nuts (2) and (3).
Note
Nut (2) has a left-hand thread.
Fit an open-end wrench to the hexagon portion of linkage
(1). Rotate linkage until setting pedal in the desired
position.
Tighten both check nuts onto linkage.
To set the rear brake pedal,
loosen check nut (4).
Turn pedal travel adjusting screw (5) until pedal is in the
desired position.
Tighten check nut (4).
Work pedal by hand to make sure it has 1.5 - 2 mm free
play before brake begins to bite.
If not so, set the length of cylinder linkage as follows.
Loosen the check nut (6) on cylinder linkage.
Tighten linkage into fork (7) to increase play, or unscrew
linkage to reduce it.
Tighten check nut (6) and check pedal free play again.
WWW.PlandeGraissage.ORG

19
E
Location (fig. 12)
1) Tank filler plug.
2) Seat catch.
3) Side stand.
4) Hook for helmet fastening cable.
5) Steering damper.
6) Rear view mirrors.
7) Front fork adjusters.
8) Rear shock absorber adjusters.
9) Motorcycle track alignment linkage.
fig. 12
MAIN COMPONENTS AND DEVICES
WWW.PlandeGraissage.ORG

20
E
Tank filler plug (fig. 13)
Opening
Lift the protection lid (1) and fit the ignition key into the
lock. Turn the key clockwise 1/4 turn to unlock.
Lift the plug.
Closing
Refit the plug with the key in it and push it down into its
seat. Turn the key anticlockwise to its initial position and
take it out. Close the lock protection lid (1).
Note
The plug can only be closed with the key in. In turn,
the key can only be taken out after the plug has been
closed.
Warning
Always make sure you have properly refitted (see
page 35) and closed the plug after each refueling.
1/4
0
OPEN
1
fig. 13
WWW.PlandeGraissage.ORG
