Duerkopp Adler 888 User manual

888
Spezialnähmaschine
Betriebsanleitung
Instruction manual
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 521 / 9 25-00 • Telefax +49 (0) 521 / 9 25 24 35 • www.duerkopp-adler.com
D
GB
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
09/2010 Rev. index: 04.0 Printed in Federal Republic of Germany 0791 888740

Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright © Dürkopp Adler AG - 2010

Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!

General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.

GB
Contents Page:
Part 2: Installation Instructions Class 888 – Original Instructions
1 Scope of delivery ............................................. 3
2 Transport packing of assembled machine ............................. 4
3 Assembling the stand
3.1 Assemblingthestandcomponents ................................... 4
3.2 Assemblingthetabletop ......................................... 5
3.2.1 Assemblingthetabletopinthemachinewiththemotoronthetabletop ............ 5
3.2.2 Assemblingthetabletopwiththemotoronthemachinehead(directdrive) .......... 6
3.2.3 Mounting the pressure regulator for the sewing foot to the table top ............... 7
3.3 Settingtheworkingheight ........................................ 9
4 Assembling the machine head

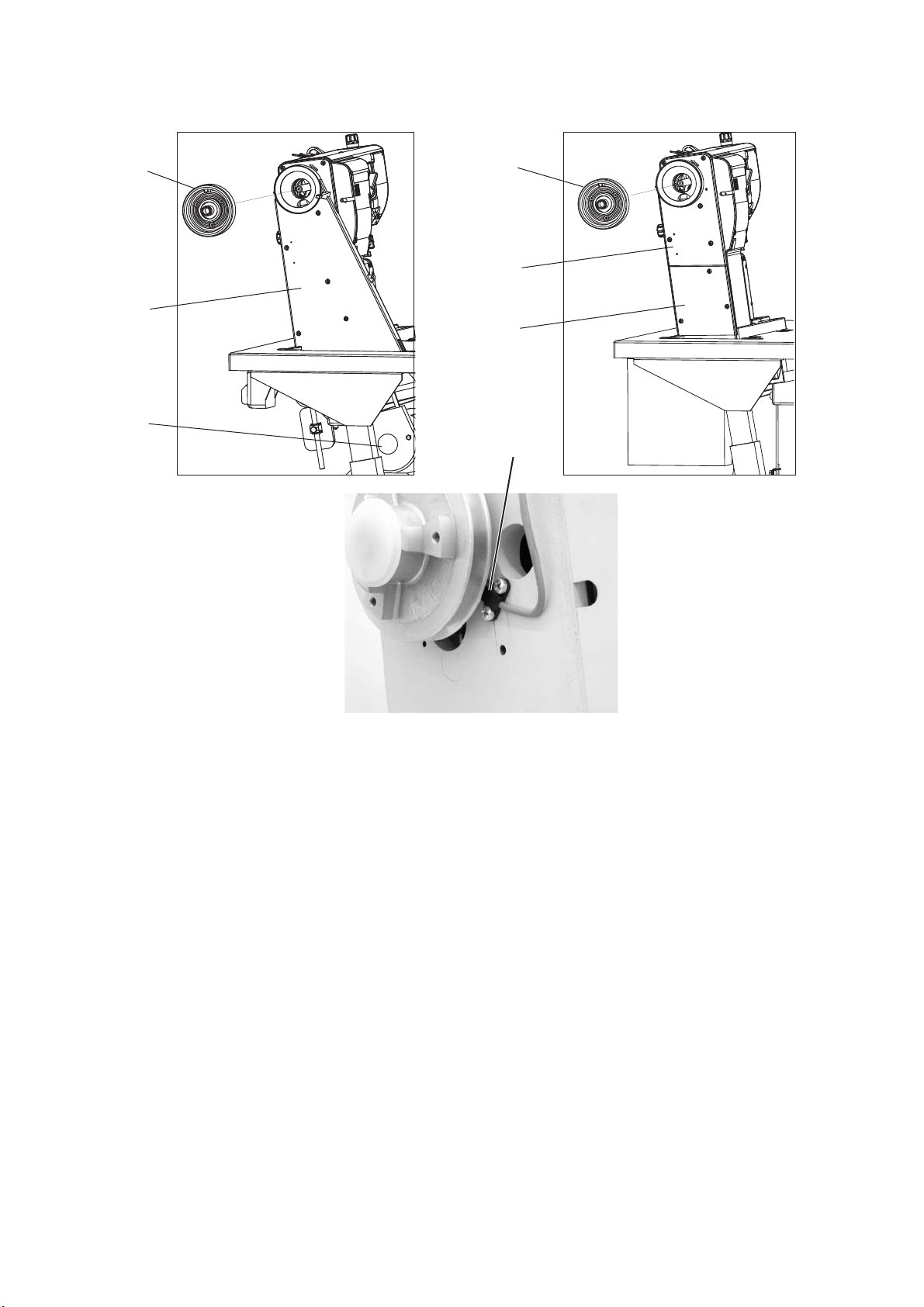

4.1 Fittingthemachinehead ......................................... 10

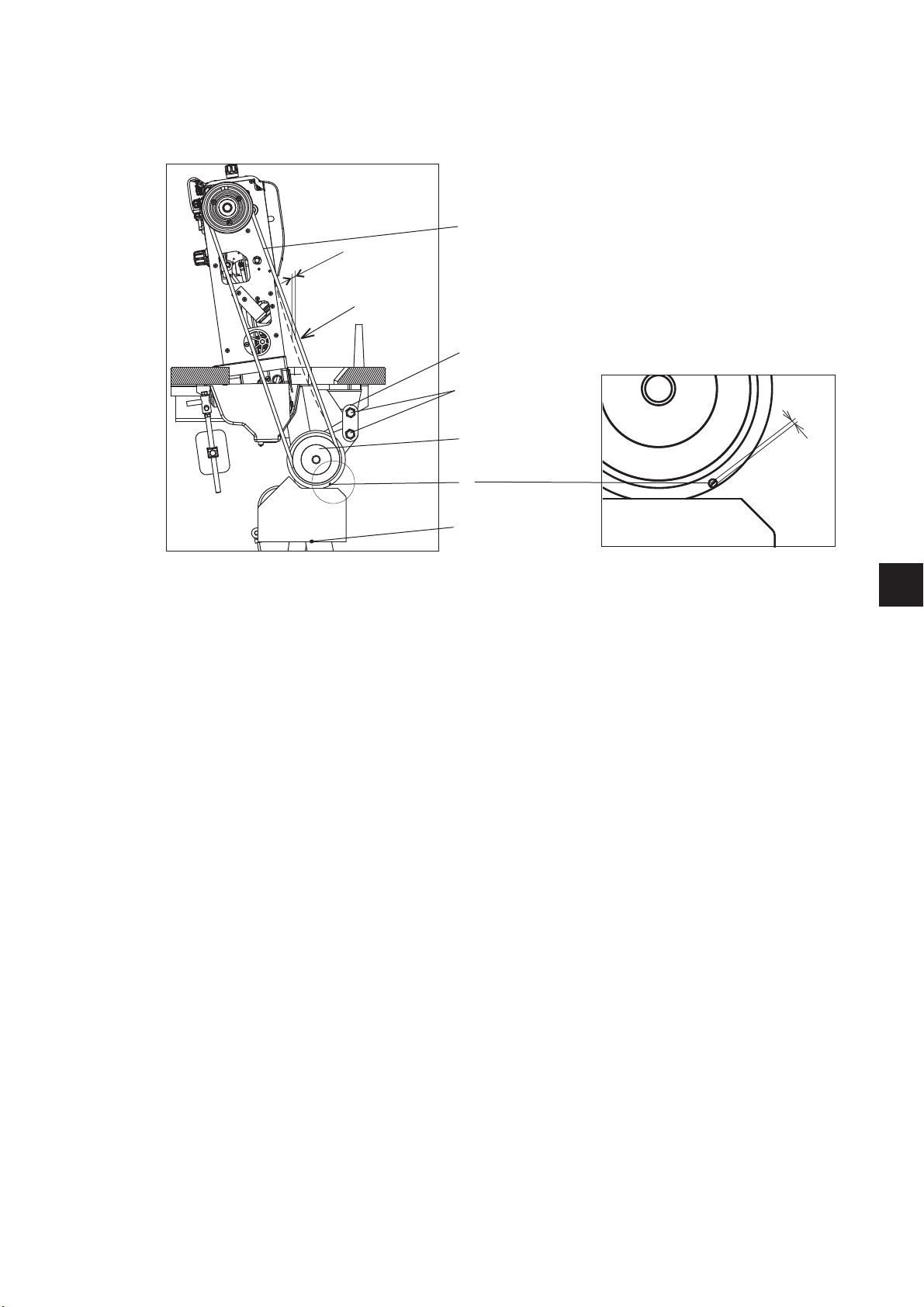

4.2 FittingthemachineheaddrivewithaV-belt.............................. 11
4.3 Fittingthebeltguards ........................................... 12
4.4 Adjustmentofpedalposition....................................... 13
4.5 Fittingthekneeleverandoilpumppipe ................................ 14

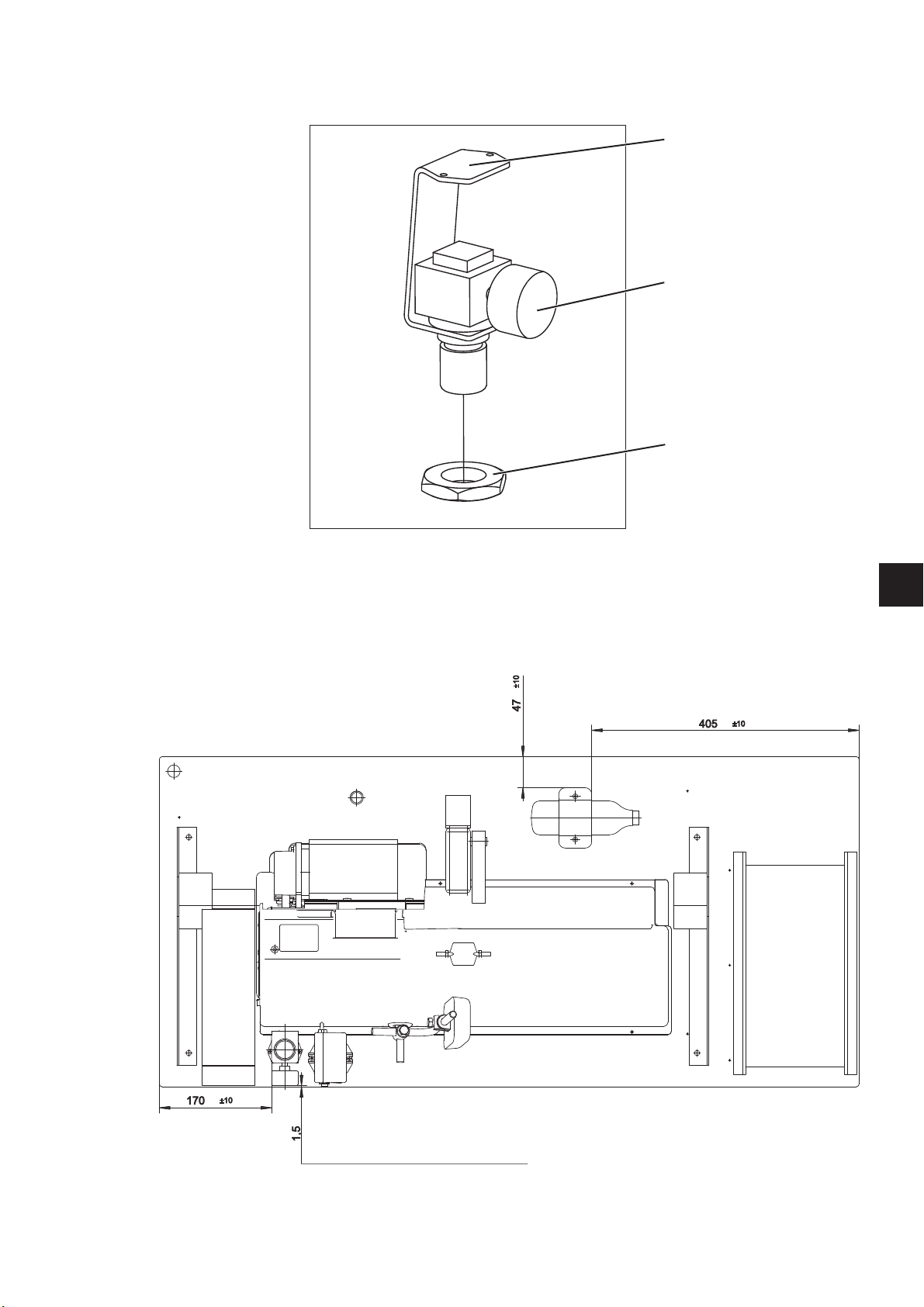

4.6 Fittingtheproximityswitch........................................ 15
4.7 Fitting the connecting cable, control panel
andsewingdiodelamponthemachinehead ............................. 16
5 Electrical connection
5.1 Electricalconnectiontolowvoltagenetwork............................. 17
5.1.1 Sewinglighttransformerconnectiontonetworkvoltage ...................... 18
5.2. Grounding .................................................. 19
5.3 Connection of head to Efka DC1550/DA321G drive ......................... 20
5.4 Mounting the M-Control PCB ....................................... 21
5.5 SettingtheswitchontheM-ControlPCB................................ 22
6 Adjustment of Efka positioning motor (drive)
6.1 Settingofpositioningmotor(drive)parameters............................ 23
6.1.1 Settingofparametersbythe“autoselect”function.......................... 23
6.1.2 SettingofEfkadriveparametersspecificforclass888....................... 23
6.1.3 Valuesofparametersspecificforthisclass888............................ 24
6.2 Settingofmachinepositioning...................................... 24
6.2.1 Positiondefinition.............................................. 24
6.2.2 Setting the machine positioning for DC1550/DA321G drive .................... 24
6.2.3 Checking of set positions ......................................... 25
6.3 Masterreset ................................................. 25
7 Pneumatic connection .......................................... 26
8 Lubrication ................................................. 27

Contents Page:
9 Sewing test ................................................. 27

1 Scope of delivery
The purchaser can order a complete machine, or some components
only. Prior to setting up, please check that all the required parts are
present.
This description refers to a special sewing machine, of which all
individual components can completely be delivered by
Dürkopp Adler AG. A complete supply of the disassembled machine
depends on the selected drive and consists of the following
components:
Machine with the motor (drive) Machine with the direct drive
on the table top on the machine head
Obligatory components:
Machine head (1) Machine head (1)
Accessories (includes oil tank (2), Accessories (includes oil tank (2),
yarn stand (3), tools and other items yarn stand (3), tools and other items
Set of parts for motor (includes belt guard (4), drive Set of parts with motor (includes direct drive (5),
belt pulley and other parts dependent on drive) belt guard (4) and other parts)
Optional components:
Stand (6) Stand (6)
Drive (7) Control panel (8)
Control panel (8) Maintenance unit (9)*
Pneumatic connection package (10)*
*only for subclasses with pneumatics
3
GB
1
3
7
4
8
6
5
2
9
10

2 Transport packing of assembled machine
If the machine is supplied in assembled condition, the following
transport packing must be removed:
–Safety straps and wooden battens on the machine head and
stand.
–Safety blocks and straps on the sewing drive.
3 Assembling the stand
3.1 Assembling the stand components
–Mount the frame according to the picture. Mount the pedal (1)
provisionally. Its position will be adjusted after the whole machine
is complete.
–Adjust the screw (2) so that the stand is stable.
4
1
2
3

3.2 Assembling the table top
3.2.1 Assembling the table top in the machine with the motor on the table top
–Turn the table top (1) upside down.
–Screw the drawer (2).
–Put the oil sump (3) on the recess in the table top and slide it in the
arrow direction (4) till the relevant protrusions of the oil sump are
seated on the recess contour. Screw the oil sump.
–Screw the drive (5).
–Screw the sewing lamp transformer (6) – if there is any.
–Screw the cable clip (7).
–Screw the electric cable channel (8).
–Screw the switch (9).
–Mount electric cables according to the instructions in chapter 5.
–Pre-bore the holes (10). Attach the table plate to the stand with
woodscrews (B8 x 35). Then turn the stand to normal position.
–Insert the yarn stand (11) in the hole in the table plate and secure it with
the nuts and washers. Fit and align the yarn reel and unwinding holders.
–Insert the machine head support pin (12).
–Place the hinge bottoms (13) for the machine head into the cutout
of the table plate (1) and tighten the screws.
–Insert the wedges (14) in the recess corners.
–Insert the rubber cushions (15).
–Remove the blinds from the bushing (16).
–Remove the knee lever (17) and guide through the opening, as
shown in the illustration.
5
GB
328
28
80
140
770
30 50
185
15
96
368 80
15
110 7 69 58 4 3 10
14
2
12
15
11
260
13
16
17

3.2.2 Assembling the table top with the motor on the machine head (direct drive)
–Turn the table top (1) upside down.
–Screw the electric cable channel (2).
–Screw the pedal position sensor (3).
–Screw the electric cable clip (4).
–Put the oil sump on (5) and slide it in the arrow direction (6) till the
relevant protrusions of the oil sump are seated on the recess
contour. Screw the oil sump.
–Screw the drawer (7).
–Pre-bore the holes for wood screws and screw the drive control
box (8).
–Screw the sewing lamp transformer (9) – if there is any.
–Mount electric cables according to the instructions in chapter 5.
–Pre-bore the holes (10). Attach the table plate to the stand with
woodscrews (B8 x 35). Then turn the stand to normal position.
–Insert the yarn stand (11) in the hole in the table plate and secure
it with the nuts and washers. Fit and align the yarn reel and
unwinding holders.
–Insert the machine head support pin (12).
–Place the hinge bottoms (13) for the machine head into the cutout
of the table plate (1) and tighten the screws.
–Insert the wedges (14) in the recess corners.
–Insert the rubber cushions (15).
–Remove the blind from the bushing (16).
–Remove the knee lever (17) and guide through the opening, as
shown in the illustration.
6
328
30
80
770
30 72
185
15
368 80
15
4
10 2 69 58 13 10
14
12
15
11
260
13
16
17
460
180
15
7
50

3.2.3 Mounting the pressure regulator for the sewing foot to the table top
–Put the pressure regulator (1) in the holder (9) and secure it using
the nut (10).
–Mount the components of the pneumatic circuit to the table top as
shown in the illustration below.
Shall not project beyond the edge of the table top
7
GB
9
1
10

Connect the components of the pneumatic circuit according to the
drawing below.
8

3.3 Setting the working height
–The stand height is adjustable between 750 and 900 mm.
–Loosen the screws (1).
–Set the required table top height and make sure that it is identical
on both sides. To do that, use the scale on the stand feet. Set the
stand height so that it corresponds with the operator’s body
proportions.
–Tighten both screws (1).
Caution! Risk of injury!
Failure to adjust the stand height to the operator’s body proportions
can cause damage to the operator’s locomotion system.
9
GB
1

4 Assembling the machine head
4.1 Fitting the machine head
–If the sewing machine is equipped with a motor on the table top,
insert the machine head (1) vertically in the recess in the table top.
–If the sewing machine is equipped with a motor (drive) on the
machine head, tilt the machine head (2) and insert it in the table
top recess.
–After the head insertion, screw the locking plate (3) immediately to
secure the machine head against falling out at its tilting. The
locking plate is part of the machine head accessories.
10
1
3
2

11
GB
4.2 Fitting the machine head drive with a V-belt
This paragraph applies only to the machines with the motor on the
table top.
–Mount the V-belt pulley (1) and the V-belt (2). Both items are
included in the set of parts.
–Loosen the screws (3) and stretch the belt. The connecting
rod (4) should be vertical approximately.
The surface (5) horizontal approximately.
–Check the belt tension by force F = 10 N (~ 1 kg). The belt is
expected to bend by 20 mm approximately.
–Adjust the stop (6) position protecting the belt against falling
out at tilting the machine.
2
5
1
3
4
F=10N
20 mm
6
3

4.3 Fitting the belt guards
–Disassembly the hand wheel (1).
–In the machines with the motor on the table top mount the
guard (2) on the machine head (the guard is included in of the
motor part set) and mount the guard (3) on the motor (the guard is
included in the motor package).
–In the machines with the motor on the sewing head and with
1,55:1 toothed belt driving gear, mount the proximity switch (6). It
is included in the “kit for motor“.
–In all machines with the motor on the machine head mount the
guards (4) and (5) (they are included in of the motor part set).
–Mount the hand wheel (1). Doing this, observe the correct angle
position: if the needle is in the upper dead point, there should be
the 0° value on the hand wheel scale.
12
1
2
3
1
4
5
6

4.4 Adjustment of pedal position
–Adjust the side position of the pedal (1) so that its center lies on
the needle axis.
–Adjust the draw rod (2) so that the foot axis is perpendicular to the
pedal surface.
Caution! Risk of injury!
Failure to keep the determined pedal position can cause damage to
the operator’s locomotion system.
13
GB
2
1
2
90°
3

4.5 Fitting the knee lever and oil pump pipe
–Lift the sewing foot with the hand lever.
–Tilt the machine head (1).
–Slide the shaft (3) in the lever (4).
–Screw the screw (5) with the washer (6) in the shaft (3).
–Attach the pipe (7) with the clips (8) and install the suction
basket (9).
–Tilt the machine head and adjust the knee lever (10) according to
the picture.
–Adjustthekneepad.
14
10°± 5°
10
1
8
9
7
4
6
5
3

4.6 Fitting the proximity switch
–The proximity switch (1) is mounted to certain positioning motors
(drives) only. In that case it is part of the drive supply.
–Slide the proximity switch (1) in the arrow (2) direction on the hand
wheel shaft so that the carrier pin (3) fits in the proximity switch
groove.
–Attach the proximity switch with two screws (4).
–Remove the back cover and pull the proximity switch cable (5)
through according to the picture.
–Attach the cable with a clip (6).
15
GB
2 1 4356

4.7 Fitting the connecting cable, control panel and sewing diode lamp
on the machine head
–The connecting cable (1) is supplied with every machine with the
positioning motor (drive).
–The control panel (2) had to be ordered separately (optional
equipment). When ordering a control panel, a bracket (3) is always
supplied together with it. The sewing lamp LED (5) is an optional
equipment. Two types of brackets are supplied together with it
to enable the installation of the lighting body in two positions.
Position (5) is the basic one. Position (7) should be used if a guide
for sewing material is mounted on the machine.
–Dismantle the upper cover and back cover of the machine head.
–Install the connecting cable with the connector (1) according to
the picture.
–Install the control panel (2) with the bracket (3) and install the
cable (4) according to the picture.
–Mount the sewing lamp (5) and install the cable (6) according to
the picture.
–Push the cables through the table top and attach them with a
self-sticking clip (8).
16
3
7
2
41
8
659
