Instruction Manual
DDUUKKAANNEE
Camera 105
INS-VVDUK105
Information to the User
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Technical Specifications for Du ane Camera 105
Unit Weight 3.8 lbs/ 1.7 kg
Base Dimension 7 in x 7 in x 7 in / 18 cm x 18 cm x 18 cm
Base Material Polycarbonate
Neck ength 20 in/ 50.8 cm
Boxed Weight 7 lbs/ 3.18 kg
Head Type Swivel
ens 6mm
Magnification 30:1 & Greater
Focus Knurled Focus ring - 1 in. (2.54 cm)
to Infinity
Illumination needed 20 ux
Output signal USB 2.0
OperatingVoltage/amperage 5 VDC/180mA
Eyepiece Adapters 1.36 in/34.5 mm built in
1.1 in/28 mm provided adapter
Cable 6 ft/122 cm
Applied Vision Software Version 3.0
Warranty 1 year
DDUUKKAANNEE
Audio Visual
Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
Service Dept 800-676-2487
Fax: [phone]
e-mail : [email protected]

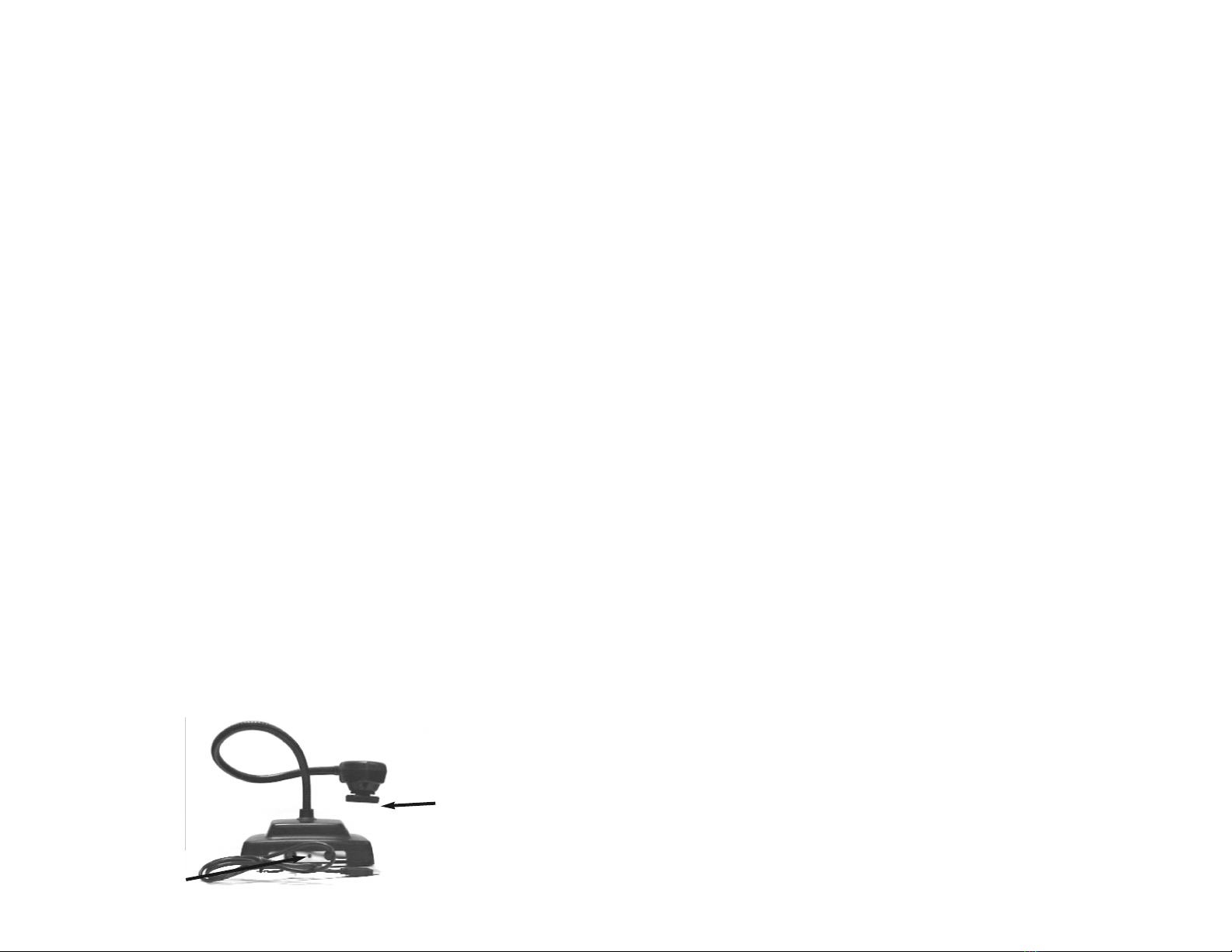

Focusing Directions
The focusing ring, located on the camera head, is similar to that of a 35MM
S R camera. Turn the focusing ring until you have obtained a clear image.
Note: The lens is permanently attached and may NOT be removed. Use
care when reaching the optimal focal distance and avoid forcing the focus
ring to extreme in either direction.
Lighting
The iris of the camera will automatically adjust the light for optimum
viewing conditions, depending upon the available room light. (If ambient
light is too dim, any auxiliary light shone on subject will work).
Never point your Dukane Camera 105 at direct sunlight as it will discolor
the filter over the camera chip and create an adverse picture.
Connecting the Microscope Eyepiece Adapter
The Dukane Camera 105 includes (1) 28 mm microscope eyepiece adapter
that allows your camera to be coupled with microscopes or other
instruments with eyepieces. This 28 mm adapter will fit most standard
microscopes.
1. Gently rotate the lens counter-clock-wise until it is
extended out for maximum magnification.
2. Slide the microscope adapter over the eyepiece of the
microscope.
3. Carefully slide the camera head onto the eyepiece
adapter, aligning the opening of the Dukane Camera 105
lens opening with the lip of the eyepiece adapter.
Warranty
To activate the one year limited warranty on your new Dukane 105 camera,
simply complete the warranty card enclosed and return it to us. The war-
ranty will not apply if your serial number has been removed or if the prod-
uct has been tampered with, disassembled or damaged by misuse,
accident, modification or unauthorized repair.
Thank you for purchasing the Dukane 105 camera
Introduction
The Dukane 105 Camera is a uniquely designed high resolution camera
with a pre-attached USB 2.0 cable. The camera receives its power directly
from your computer’s USB port. This high resolution digital camera
displays a sharp, clear image with 1280 x 940 resolution.
Your Dukane 105 Camera comes standard with the following:
• 28mm Microscope Adapter (the 34.5mm eyepiece adapter
is the actual diameter of the C-mount camera lens – fitting
most dissecting microscopes)
• Pre-attached 4 foot (122 cm) USB Cable
• Dukane 105 Camera Instruction Manual
• Applied Vision™ Disc
• Dukane Applied Vision Software™ Manual
Software Installation
Using the enclosed Applied Vision™ Software disc, install the software on
your computer. Please refer to the Dukane Applied Vision™ Software
Manual for more details and answering any questions that may arise
during installation. (NOTE: the CD must be kept in the CD-ROM for the
initial installation to be completed. Once the drivers are installed, you will
no longer need the CD for future use of the camera on that computer.) For
more details using the software, see the software instruction manual
included with the CD.
Connecting Camera
After installing the software, connect the USB cable of the Dukane
Camera 105 to the USB port in your computer.
Important Note: If it is necessary to use a remote USB hub, it must be a
power adapted hub, to ensure that the camera receives enough voltage.
Thank you for your purchase of a Dukane Camera 105!
IT’S READY TO GO!
Focusing Ring
Power Indicator
