Dune 4WD D3100INVS User manual

INSTRUCTION
MANUAL
04475 06/23
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 475 | N.Z. 0800 474 876
3100W DIGITAL INVERTER
GENERATOR
MODEL NO. D3100INVS

2
3
SUGGESTED APPLICATIONS
These are some suggestions of appliances which could
be powered by this generator. These suggestions cannot
all be run at the same time, please read page 13 for full
details:
• Laptop computers up to 700W
• Televisions up to 150W
• DVD/Video players up to 400W
• TV and DVD/Video player combination up to 800W
• AC/DC Camping fridges up to 150W
• Lighting up to 2700W
• Mobile phone/hand held games charging up to 900W
Never exceed 2500W in total when using multiple
appliances.
WHAT’S IN THE BOX
• 3100W inverter generator
• Earth stake and lead
• Tool Kit
WHAT’S NEEDED
• 4 Stroke semi synthetic or fully synthetic motor oil,
SAE 15W-40 (API SN Category)
• Unleaded petrol about 6L
CONTENTS
Section Page
What’s in the Box 2
Suggested Applications 2
Introduction 3
Warranty 3-4
General Safety Instructions 5-6
Specific Safety Instructions 7
Electrical Information 8
Fuel & Oil Information 8
Components & Controls 9
Operating Instructions 10-16
Maintenance Chart 17
Maintenance 17-19
Fault Chart 20-21
Service Log 22
Specification 23
Please take note of serial number and write here for
ease of reference:
Serial Number: _______________________________ _
Date of Purchase: ____________________________ _
Place of Purchase: ___________________________ _
Receipt Number: _____________________________ _
UNLEADED 91
PETROL ONLY
NO ETHANOL
ELECTRIC SHOCK
HAZARD

2
3
INTRODUCTION
Dear Customer,
Thank you for purchasing this generator which has passed
through our extensive quality assurance processes. Every
care has been taken to ensure that it reaches you in perfect
condition. However, in the unlikely event that you should
experience a problem, or if you require any assistance
please do not hesitate to contact us;
If you have a problem, call customer service do not return
this generator to the place of purchase.
Note: For convenience we suggest taking a photocopy
of your purchase receipt as the original may fade.
Due to continual product development,
the actual product may differ slightly from
the product pictured.
CUSTOMER SERVICE
Australia: 1300 660 475
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT
GENERATORS
You are not required to do anything to register your
generator purchase. Please attach the purchase receipt
to this manual and ensure both are kept safe. We hope
you enjoy your new generator, and if you have any
problems call customer service on the above phone
numbers. Do not return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that this
generator will be free from manufacturing faults or defects
for 12 months from the date of purchase, providing original
purchase receipt is kept and shown when needed and is
subject to the terms and conditions below.
If a warranty fault appears within the warranty period,
SMG reserves the right to replace or repair the product.
In the event that SMG chooses to replace the product,
this original warranty will expire at the original date. If the
product includes various accessories or components,
only the defective accessory or component will be
replaced or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than
being repaired. Refurbished parts may be used to
repair the products.
What is covered
• Manufacturing fault or defect.
How to claim under this warranty
• Call customer service, phone number to the left.
• Ensure you have the following: Original purchase
receipt, Model of generator, Serial number
of generator.
• Discuss the issue.
• Customer service will advise which authorised service
agent to take the generator to provided the issue is a
warranty one.
• Take generator to authorised service agent for repair.
What is not covered
• Commercial use of generator.
• Use of Generator for hire.
• Use of generator in a commercial premises.
• Damage caused by incorrect oil.
• Damage caused by incorrect fuel or use of E10
ethanol fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or
accident or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Generators with serial number defacement,
modification or removal.
• Generators which have been serviced by anyone
other than an authorised SMG service agent.
• Generators with no original purchase receipt.
• Generators which have been on sold, not
original purchaser.
• Damage due non-servicing of generator as is
required by this manual.
• Blockages / damage caused by dust, dirt, spiders
webs or insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading, overworking
the generator.
• Damage to attached equipment or third
party accessories.
• Damage caused by attached equipment
or third party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[e-mail]

4
5
As soon as you have purchased the generator, we
recommend that you check to make sure it is intact and
that you read the operating instructions carefully before
using it. The purchase receipt for this product is to be
retained and must be presented if making a claim under
the terms of the Smart Marketing Group Pty Ltd (SMG)
warranty. Bank account statements are not acceptable for
proof
of purchase.
This warranty does not cover generators intended for
hire or use in commercial applications or in commercial
premises. The warranty will under no circumstances
extend to reimbursement or payment of damages,
whether direct, indirect or consequential. The warranty is
void if there is evidence the generators has been modified
or tampered with in any way or used with unauthorised
accessories without our consent.
SMG declines any responsibility or liability whatsoever
arising from misuse or abuse, negligent handling of the
generators or if the product has not been installed or failure
to comply with the relevant safety, operating, setting and
maintenance instructions (see further in this manual).
The warranty does not extend to installation or
disconnection costs.
Any item sent freight forward/collect for repair will be
refused. Warranty repairs are free of charge, provided
the appliance is delivered to our service department or
authorised service agent. The generator will need to be
returned, adequately protected in a box. SMG will not
be responsible for any in-transit loss or damage.
Assistance under the warranty will only be made
available if the request is made to our customer service
team on the contact numbers listed below and proof of
purchase is provided.
This is a repair only warranty you will need to take the
generator to the authorised service agent after contacting
our customer service centre.
If the product includes various accessories or
components, only the defective accessory or component
will be replaced or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than
being repaired. Refurbished parts may be used to
repair the products.
Damage caused by third party accessories is not
covered under this warranty. Damage caused to attached
equipment or third party accessories will not be covered
under this warranty.
Rust and corrosion are not covered under this warranty.
If a warranty fault is found the freight cost will be credited
to the owner. If no fault is found the product will be
returned and any costs associated with the service will be
charged to the owner.
Blockages caused by spider webs, insects, dirt, or
accumulated dust and incorrect oil are not covered by
warranty. SMG reserves the right to replace or repair the
appliance within the warranty period. Parts found to be
defective due to a manufacturing default will be replaced
free of charge.
In the event of SMG choosing to replace the appliance, the
warranty will expire at the original date of purchase. If no
warranty fault is found the owner will be advised and the
product will be returned and any costs associated with the
service will be charged to the owner.
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. The benefits
of this warranty are in addition to any rights and remedies
imposed by Australian State and Federal legislation that
cannot be excluded.
In New Zealand, this SMG warranty is in addition to the
conditions and guarantees which are mandatory as implied
by the New Zealand Consumer Guarantee Act 1993. For
service, spare parts or product information please contact
customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[e-mail]
COMPLETE WARRANTY STATEMENT – GENERATORS

4
5
LUBRICATION OF ENGINE
Your engine comes with NO oil in the sump. You will need
to add engine oil, refer to pages 8 and 10 for complete
details and images. Failure to do this may result in damage
to the engine, generator and/or injury to the user.
GENERAL SAFETY INSTRUCTIONS
Before attempting to operate this generator the following
basic safety precautions should be taken to reduce
the risk of fire, electric shock and personal injury. It
is important to read the instruction manual and to
understand applications, limitations and potential hazards
associated with this generator. It is important that you
read, understand and follow these instructions very
carefully. They are designed for the safety of yourself and
others ensuring a long and trouble free service life from
your generator. This generator is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a
person responsible for their safety.
OPERATING ENVIRONMENT
NEVER use your generator indoors. Your generator
produces deadly carbon monoxide and this is harmful
and can caused death. Only use your generator in well
ventilated areas like the outdoors. Do not expose your
generator to rain or use in damp or wet locations. Do not
expose your generator to direct sunlight. Keep the work
area well lit. Do not use your generator in areas where there
is a risk of explosion or fire from combustible materials,
flammable liquids, paint, varnish, petrol, etc flammable
gases and dust of an explosive nature. As a precaution it is
recommended that you consult an expert on selecting and
using a suitable fire extinguisher and have it available for
use in an emergency when operating the generator.
GUARD AGAINST ELECTRIC SHOCK
Never touch the generator with wet or damp hands as
electric shock may occur. Always ensure your generator is
connected to ground, i.e. Earthed with the supplied earth
stake, see page 11.
BEWARE OF CHILDREN & PETS
Children and pets should be kept out of the operating
area. Children should not be allowed to touch or operate
generators or touch extension cords. All generators should
be kept out of reach of children. When NOT in use keep
the generator preferably stored or locked in a secure well
ventilated cabinet or room with the fuel tank empty.
SELECT A GENERATOR WITH
A SUFFICIENT RATING
Select the right generator for the job. Do not use a generator
to do a job for which it was not designed. Do not force a
small generator to do the job of a heavy duty generator. Any
damage caused by overloading will void the warranty. Do not
use generators for purposes not intended.
PROTECT POWER LEADS FROM DAMAGE
Always disconnect power cords from a power supply
socket by pulling the plug. Never pull on the cord. Keep the
power lead away from heat, oil, solvents and sharp edges.
If a power lead becomes damaged have it replaced by an
authorised service facility.
FUEL - UNLEADED 91 PETROL - NO ETHANOL
Fuel used in this generator is poisonous. Always wear
approved breathing protection when decanting fuel. If you
get any fuel on your skin or clothes wash the affected area
immediately with soap and water and change your clothes.
If you get fuel in your eyes wash immediately with clean
water and seek medical attention. If any fuel is swallowed
DO NOT induce vomiting, seek immediate medical
attention. Refer to pages 8 and 10 for further details.
HOT COMPONENTS
Beware many of the components will get hot during use.
Never touch any of the metal pipes, pump or motor as
these may burn.
MAINTAIN YOUR GENERATOR WITH CARE
When not using your generator ensure the fuel tap is
‘OFF’. Never leave the fuel tap ‘ON’ as this can damage
the carburettor. Follow the instructions for lubricating and
changing accessories. Keep handles clean, dry and free
from oil and grease. Ensure that ventilation slots are kept
clean and free from dust at all times. Blocked ventilation
slots can cause overheating and damage to the motor.
Ensure that the air and fuel filters are kept clean at all times.
REMOVE ADJUSTING KEYS AND WRENCHES
Form the habit of always checking to see that any adjusting
keys or wrenches have been removed from the generator
before operating.
FIRE PRECAUTIONS
Always contact your fire authority before using the
generator on fire restricted days. It is not recommended
to use your generator when a total fire ban is in force.
Never refuel your generator while it is still running.
Never connect your generator to a commercial or
domestic power outlet. As a precaution it is recommended
that an expert is consulted on obtaining and using a
suitable fire extinguisher.
CLEANING YOUR GENERATOR
Always stop your generator before you commence
cleaning. Always ensure that your generator has cooled,
about one (1) hour, before cleaning and storing. When
cleaning your generator use only a damp soft cloth.
NEVER use liquid or solvents of any type.
All areas can be wiped down

6
7
WARNING
Do not attempt to modify the generator in
any way; this will VOID your warranty.
The use of any attachment or accessory other than
those recommended in this instruction manual could
result in damage to the generator and could cause
injuries to the operator.
This petrol generator complies with Australian /
New Zealand and International standards and safety
requirements. Repairs should only be carried out by
qualified persons using original spare parts. Failure
to do so may result in considerable danger to the
operator.
EXTENSION CORDS & REELS
Inspect extension cords periodically and replace if
damaged. Never use damaged extension cord as these
may cause injury. Always unwind any extension cords fully
before plugging into mains power supply. Protect your
extension cord or reel from sharp objects, excessive heat,
damp conditions or wet locations. Always use a ‘3’ core
extension cord or reel with this generator. Only extension
cords intended for and marked ‘outdoor’ use, which are no
longer than 10m.
GENERATOR ‘EARTHING’
Always ensure that this generator is “Earthed” correctly
before using. “Earthing” stake and wire has been supplied
with this generator ensure it is used to ensure your safety,
see page 11.
CHECK DAMAGED PARTS
Before using the generator it should be carefully checked
to determine that it will operate properly and perform its
intended function.
Check for broken or missing parts and have them replaced
or repaired at an authorised service facility. Check any
other condition that may affect the operation of the
generator. A guard or any other part of the generator that
is damaged should be properly repaired or replaced by an
authorised service facility unless otherwise indicated in
this instruction manual.
Any switch that does not operate correctly must be
replaced by an authorised service facility.
DO NOT use the generator if the ‘ON / OFF’ motor switch
does not turn the generator ‘ON’ and ‘OFF’.
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything that could
get caught in moving machinery. Gloves may be worn
when filling generator with fuel.
Hair
Long hair should be tied back or contained in a
protective covering.
Eye Protection
The use of safety goggles is highly recommended (normal
glasses are not sufficient for eye protection) when using
or refuelling generators. Prescription glasses do not have
safety lenses.
Footwear
Where there is the risk of heavy objects or if there is a risk
of slipping on wet or slippery floors, suitable non–slip,
covered, safety footwear should be worn. Protect your feet
from dropping accidents.
Ear Protection
The use of ear protection is highly recommended when
using generators. The continual noise may damage
your ears.
Respiratory Protection
Always wear approved breathing protection when
decanting fuel. ALWAYS use this generator in well
ventilated area. Never use indoors.
Warning! Do not breathe in exhaust fumes.
Exhaust fumes are poisonous and may cause
drowsiness, unconsciousness and even death.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain
your balance at all times. Avoid using abnormal stances
and awkward body positions.
Stay Alert
Watch what you are doing, use common sense,
and never operate a generator when you are tired,
drinking alcohol, taking drugs or if taking medication
that causes drowsiness.

6
7
SPECIFIC SAFETY INSTRUCTIONS
Warning! Do not use the generator in areas where there
is a risk of explosion or fire from combustible materials.
The sparks possibly caused when using this generator
may ignite combustible materials as well as flammable
liquids, paint, varnish, petrol, flammable gases and dust
of an explosive nature. As a precaution it is recommended
that you consult an expert on a suitable fire extinguisher
and its use. Ensure that the work area is kept clear of
combustible materials.
Warning! Do not use the generator indoors or in confined
spaces where exhaust gases, smoke or fumes could reach
dangerous concentrations.
• Never connect this generator to a second generator.
• Never connect this generator to Commercial or
Domestic power supply.
• Always use the generator in an open well
ventilated area.
• Unit will become hot during use. Please keep
generator at least one metre (1m) away from
buildings, other equipment, pedestrian areas
or flammable materials.
• Never pull the re-coil starter once the generator
engine has started. Any damage caused will not be
covered by warranty.
• Never start or stop the generator with any
appliances attached.
• Ensure the generator has stopped before servicing,
or lubricating etc.
• Do not attempt to modify the generator, guards or the
supplied accessories in any way.
• Do not touch the exhaust. This can become very hot
during operation and can cause serious burns.
• Always check the generator for damaged parts or fuel
leaks, ensure these are fixed before using it.
• Never refuel while smoking or in the vicinity of an
open flame.
• Always wear safety eye wear, ear and breathing
protection when operating or refuelling the generator.
• To avoid a fire if you spill fuel while refuelling, clean up
before starting the generator.
• Never operate or store the generator on its side,
ALWAYS operate or store in an upright manner on
firm, solid ground.
• Your generator is factory set, NEVER attempt to speed
it up as this could endanger the user and damage the
generator and/or attached appliances.
• Never operate the generator in damp, wet or
flooded conditions.
• Before plugging appliances into the generator allow
it to run up to full speed.
• If the generator makes an unfamiliar sound or vibrates
excessively, switch the generator ‘OFF’ immediately.
Investigate the possible cause or consult your
authorised service agent.
• Do not use ANY type of coolant on the generator
as a fatal electric shock could occur.
• Never use coolant in the generator as damage
may occur.
• Do not touch the generator with wet hands as this
may cause electrocution.
• Never use your generator on highly conductive
surfaces. e.g. Steel walk ways, metal roof or metal
bench, as this could cause an electric shock.
• Always operate your generator at least two (2) metres
away from conductive surfaces.
• Locate this generator in a convenient place, avoid
using long extension leads.
• If an extension lead is used, avoid leaving it where it
may be damaged by pedestrian or vehicular traffic or
cause a trip and fall hazard.
• Always observe normal safety precautions with ALL
appliances used with this generator.
• Never transport the generator with fuel in the tank.
ALWAYS empty the fuel tank.
• All loads must be kept within the ratings stated on the
name plate. Overloading the generator will damage
the unit or shorten its life. This will not be covered
under warranty.
• Do not tamper or alter any parts as this may cause
personal injury or damage the generator.
• Always disconnect any loads before starting or
stopping the generator.
• When storing the generator always store in a secure
well ventilated area.
• Always store in an upright position. NEVER store or
lay this generator on its side/s, upside down or its end
(exhaust).
• When using the extendable handle to move the
generator around do not allow the generator go past
about a 30deg angle and NEVER stop and rest it
on its end (exhaust). Damage caused will NOT be
covered by warranty.
• Only extend the handle when generator is level the lift
handle to move around. Please back on the ground
and collapse the handle.

8
9
IMPORTANT
ELECTRICAL DATA
This generator is fitted with a sealed electrical connection socket that is compatible with the generator. If the
electrical connection socket becomes damaged it must be replaced with a complete assembly that is identical to the
original, and this must be replaced by an authorised service agent. Never connect to an external power supply. If in
doubt always consult a qualified electrician.
FUEL
ONLY USE UNLEADED 91 PETROL (ULP-91RON) - NO ETHANOL
Fuel tank capacity – 6 litres (6 L)
Use of incorrect fuel and/or oil may damage the generator and will not be covered under warranty.
Do not use E10 or any type of ethanol fuel as this will damage the generator and will not be covered under warranty.
Do not use high octane fuels (greater than 91%) as this will damage the generator and will not be covered under
warranty.
• Ensure you use clean fresh unleaded 91 petrol (ULP) - no ethanol
• Use a clean approved container to store your unleaded petrol (ULP) in before decanting into the fuel tank.
• If contaminated (dirty) or old (stale) fuel is used any damage caused will not be covered under warranty.
OIL
CHECK DAILY - ONLY USE 4 STROKE FULLY SYNTHETIC MOTOR OIL
To operate, this generator requires oil in the sump, not supplied. If the generator does not have the correct level of oil
in the sump, it will not run, see note below.
Oil capacity – approximately 750ml or 0.75L
Oil type – 4 stroke semi synthetic or fully synthetic motor oil, SAE 15W-40 (API SN Category).
Non-detergent or 2-Stroke engine oils will damage the engine and should not be used.
• Always check oil level before using.
• Always use fresh clean oil.
• Change oil every 12 hours or every 3 months.
• If contaminated (dirty) or old (stale) oil is used any damage caused will not be covered under warranty.
NOTE: This generator is fitted with an oil cut out switch and red warning light. If the oil level is empty or low then the
generator WILL NOT start or run and the low oil light will glow when the recoil is pulled.
Always check the oil level before starting the generator.
Never check or add oil while the generator is running.
EXTENDABLE HANDLE
NOTE: When using the extendable handle to move the
generator around do not allow the generator go past
about a 30˚ Angle and NEVER stop and rest it on its
end (exhaust). Damage caused will NOT be covered by
warranty.
Only extend the handle when generator is level then lift
handle to move around. Place back on the ground and
collapse the handle.
To extend the handle;
1. Push in the button on the handle and pull out handle
2. Release button
To collapse the handle;
1. Push in the button on the handle and push handle in
2. Release button
30˚ ANGLE
Push button in
Pull Handle
Out
Push
Handle In

8
9
COMPONENTS AND CONTROLS
PIC. 1
1. Handle
2. Fuel cap
3. Fuel cap vent
4. Oil container
5. Spark plug socket
6. Screw driver
7. Screw driver handle
8. Spark plug access panel
9. AC socket 1
10. Earth point
11. Low oil level indicator (yellow)
12. Overload indicator (red)
13. Output indicator (green)
14. Economy switch
15. AC restart button
16. DC circuit breaker
17. 12V DC cigarette lighter socket
18. 5V USB socket
19. AC socket 2
20. Fuel tap valve and engine switch
21. Recoil starter handle
22. Access panel (Air filter & oil filler)
23. Extendable Handle
24. Wheels
PIC. 1 12
3
4
5
6
7
22
21
20
13 14 15
16
17
10
199
18
11
12
8
24
23

10
11
OPERATING INSTRUCTIONS
UNPACKING
Carefully unpack your generator. This generator is heavy
(28kg) and may require two (2) people to lift. Dispose of
all packing material in an environmentally responsible
manner.
Open carton, gently lift the generator clear of the carton
and packaging, this may require 2 people. Remove from
plastic bag.
NOTE: Plastic bags can be a danger to young children,
dispose of immediately. Always dispose of packaging in a
responsible manner.
ASSEMBLY
This generator requires no assembly, however the motor
requires oil, 4 stroke semi synthetic or fully synthetic
motor oil, SAE 15W-40 (API SN Category), to be added to
the sump before you can use, refer to page 8 for specific
details.
ACCESS PANEL
This access panel (side) needs to be removed in order to
add/change oil as well as clean/replace air filter.
To Remove
1. Loosen and remove the top screw, Pic. 2.
2. Slide the top of the panel away and un-clip at
the bottom.
To Fit
1. Clip in at the bottom and slide top into place.
2. Secure the top with the screw.
ADDING LUBRICATING OIL
WARNING!
This generator is supplied without oil and must be filled
before first use otherwise it will not start and any damage
will not be covered under warranty.
Always use clean fresh oil as specified on page 8. Incorrect
or old oil can cause the generator to run rough and
damage the motor; this will not be covered by warranty.
1. Ensure that engine is OFF when filling oil.
2. Remove access panel as per above.
3. Use oil as detailed on page 8, 4 stroke semi synthetic or
fully synthetic motor oil, SAE 15W-40
(API SN Category).
4. Ensure generator is level when filling with oil.
DO NOT TIP - USE A FUNNEL (NOT SUPPLIED)
5. Remove oil filler cap, Pic. 3.
6. Only fill oil to the indicated level on the dip stick, Pic. 4.
7. Ensure that the oil filler cap is screwed on tightly.
8. Fit access panel and secure with 4 screws before
attempting to start generator.
WARNING! Over filling the oil can damage the generator,
this damage will not be covered under warranty.
NOTE: Check oil daily and especially before use.
PIC. 2
PIC. 3
PIC. 4
Engine Oil Capacity : 0.75L (750ml)
MAX
MIN
Oil Filler Cap

10
11
Fig.

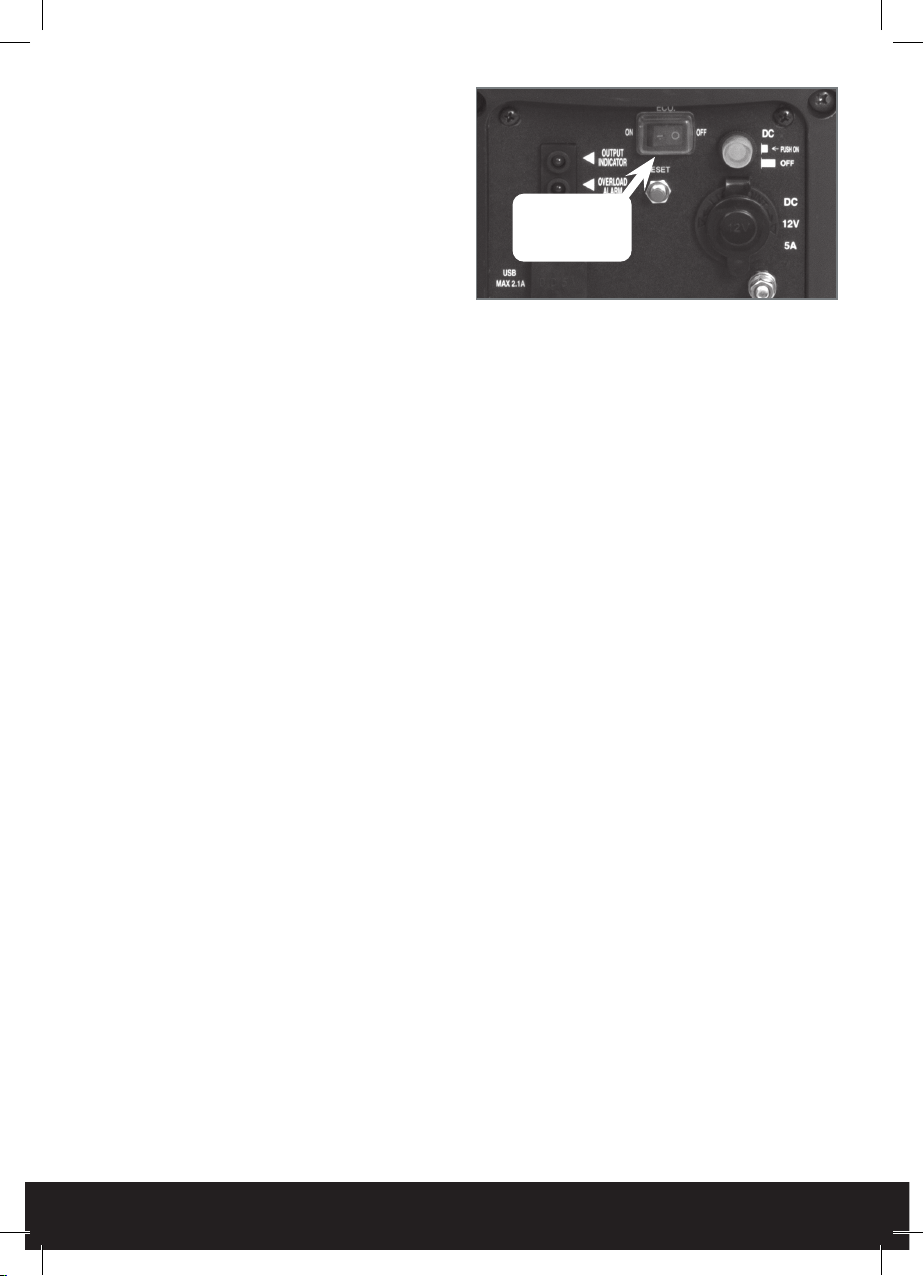

Earth Point
Economy
Switch
FILLING THE FUEL TANK
UNLEADED 91 PETROL - NO ETHANOL
Fuel tank capacity – 4 litres (4 L)
Use of incorrect fuel and/or oil may damage the generator
and will not be covered under warranty.
Do not use E10 or any type of ethanol fuel as this will
damage the generator and will not be covered under
warranty.
Do not use high octane fuels (greater than 91%) as this
will damage the generator and will not be covered under
warranty.
Use a clean approved container to store your unleaded
petrol (ULP) in before decanting into the fuel tank.
WARNING! Never use stale or contaminated petrol or an
oil/petrol mixture. Avoid getting dirt or water in the fuel
tank.
Do not smoke or allow flames or sparks where the
generator is refuelled or where Petrol is stored.
Refuel in a well-ventilated area.
Do not let fuel spill over the generator casing. If there is
some fuel spillage, be sure that it has evaporated before
starting the engine.
Avoid touching gasoline or breathing in gasoline fumes.
1. Remove the fuel cap
2. Fill with unleaded petrol. The fuel tank should not be
filled above the bottom of the fuel filter, Pic. 5.
3. Replace and secure the fuel cap. Petrol is extremely
flammable and explosive under certain conditions.
FUEL CAP BREATHER
This generator is fitted with a sealable fuel cap vent,
Pic. 6.
Seal the fuel cap vent for storage or transport - rotate the
lever to OFF.
For using the generator the fuel needs to breathe - rotate
the lever to ON.
FUEL PUMP PRIMER
If the fuel tank has been totally empty then you may find it
easier to prime the fuel pump rather than pulling the recoil.
To prime;
1. Remove the access panel for more details,
refer page 10.
2. Push priming bulb about 5 times and the bulb should
appear half full. This is now primed and should be
easier to start.
3. Fit access panel and secure with top screw for more
details, refer page 10.
GENERATOR ‘EARTHING’
Always ensure that this generator is “Earthed” BEFORE
starting and using.
Before using this generator it must be prepared correctly
before use. Locate the generator on firm level ground
away from buildings or other structures ensuring that the
exhaust is not obstructed.
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
PIC. 5
PIC. 6
PIC. 7
PIC. 8
Earth Point

12
13
STARTING YOUR GENERATOR
WARNING! Never start your generator without “earth”
stake attached or with electrical appliances or power leads
attached.
1. Ensure the ”Earth” stake and wire are attached, Pic. 8.
2. Turn the fuel cap breather lever clockwise to ON, Pic. 6.
NOTE: If fuel cap breather is not on the generator will not
operate correctly.
3. Turn choke to CLOSED / START by sliding the choke
lever to the right, Pic. 9.
4. Turn the engine/fuel tap anti-clockwise to ON, Pic. 10.
5. Hold down the generator firmly with one hand on the
frame, then pull the recoil starter slowly until engaged,
then pull briskly Pic. 11. This step may need to be
repeated until generator engine starts, this can take up
to about 12 pulls.
WARNING! Never pull the recoil once the engine has
started. Any damage caused will not be covered under
warranty.
6. Allow engine to run up to speed, this usually takes up to
about 10-30 seconds.
7. Turn the choke to OPEN / RUN by sliding to the left,
Pic. 12.
8. Check that the only illuminated light is the green output
power light. The generator will be running and ready
for use.
WARNING! Before connecting any electrical load to
the generator ensure that the load does not exceed the
maximum load as stated on the rating plate and also check
page 13 for extra details.
Ensure that the mains supply lead is long enough to reach
the generator without any strain.
STOPPING YOUR GENERATOR
WARNING! Never stop your generator with electrical
appliances or power leads attached. Always remove power
leads and appliances before stopping your generator.
WARNING! In case of emergency, the easiest way to stop
the generator is to directly turn engine/fuel lever to
OFF position.
Avoid doing so in non-emergency circumstances as it
carries the risk of damaging the generator.
1. Ensure all power leads and appliances have been
switched off and disconnected from the generator
power socket.
2. Allow generator to run for 2-5 minutes, this allows the
generator to cool down.
3. Turn the engine/fuel lever to OFF, Pic. 13.
Fig.
Earth Point
Economy
Switch
PIC. 9
PIC. 10
PIC. 11
PIC. 12
PIC. 13

12
13
USING YOUR GENERATOR
AC OUTLET
Your generator is equipped with a 240V AC power
socket. This will run a range of devices providing they
are with in the limits of the generators output.
NOTE: The peak (surge) power requirements of some
devices e.g. Fridges, Televisions, etc; can be up to
seven (7) times greater than their rated (continuous)
power. Do not over load your generator. The devices
wattage can be found on the data label, Pic.14.
A basic guide is listed below for some common products.
You can use any combination of appliances provided that
you do not exceed the limits of your generator. For this
generator never exceed 2500W in total when combining
multiple different appliances.
NOTE: When using multiple devices only start one device
at a time.Your Generator AC Limits
Rated (continuous) power - 2700W Peak (surge) power - 3100W
NOTE: Long extension leads may reduce the effectiveness
of your generators supply power.To use the 240V AC outlet
TO USE THE 240V AC OUTLET
1. Check that the only illuminated light is the green output power. If not turn to page 15, 20 or 21 and fix the problem
before using the generator.
2. Lift the flap and plug your appliance into the outlet socket on the face plate.
3. Turn the appliance on and use as per the manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect appliance from the generator and the flap should close automatically.
NEVER leave any appliances plugged into your generator, always disconnect when appliance is not in use.
Suggested Device Maximum Wattage Suggested Wattage
Bayonet/Screw in globes (home use) Up to 2700W Maximum of 54 x 50W globes
Florescent tubes Up to 1900W Maximum of 95 x 20W globes
Halogen lights Up to 1950W
Power tools Up to 2100W
Laptop computer Up to 700W
DVD/Video players Up to 450W
Portable television Up to 150W
Portable television & DVD/Video player combination Up to 800W
AC/DC Camping fridge Up to 150W
Cooling fans Up to 500W
Heating Up to 1000W
Radio/CD player Up to 1200W
ipod/MP3 player Up to 1400W
Mobile phone charging Up to 900W
Hand held games charging Up to 900W
You can use any combination of appliances provided that you do not exceed the limits of your generator.
For this generator never exceed 2500W in total when combining multiple different appliances.
PIC. 14
Data Label Data Label

14
15
ECONOMY SWITCH (PIC.15)
When this switch is turned on your generator will use
less fuel, however only switch on when loads of less than
1100W are attached. If a load is higher than 1100W switch
to O FF.
USING THE AC OUTLET
1. Check that the only illuminated light is the green output
power.
2. Lift the flap and plug your appliance into the AC outlet
socket on the face plate.
3. Turn the appliance on and use as per the
manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect appliance from the generator and the flap
should close automatically.
NEVER leave any appliances plugged into your generator,
always disconnect when appliance is not in use.
USING THE DC POWER OUTLET
1. Check that the only illuminated light is the green output
power.
2. Lift the flap and plug your 12V DC cigarette lighter
plug from your appliance into DC outlet socket on the
face plate.
3. Turn the appliance on and use as per the appliance
manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect the appliance from the generator DC
socket and push the flap back into place.
NEVER leave any appliances plugged into your generator,
always disconnect when appliance is not in use.
USING THE USB POWER OUTLET
1. Check that the only illuminated light is the green output
power.
2. Lift the flap and plug your USB plug from your
appliance into USB outlet socket on the face plate.
3. Turn the appliance on and use as per the appliance
manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect the appliance from the generator USB
socket and push the flap back into place.
NEVER leave any appliances plugged into your generator,
always disconnect when appliance is not in use.
OUTPUT INDICATOR LIGHT
Output indicator light (green) will remain ON during
operation. However if it goes out and the red light comes
then you have overloaded the generator, see the following
and page 13.
Economy
Switch
PIC. 15

14
15
SAFETY DEVICES
AC OUTLET CIRCUIT BREAKER (Pic. 16)
Your generator is equipped with an output indicator light,
see above. When this light goes out, and the red light
glows, then the generator will produce NO POWER, but the
engine will keep running.
To restart the power supply;
1. Remove the appliance, check the wattage, page 13.
2. Press the “Power Restart Button”, Pic. 16.
3. This should mean that the green output indicator light
is illuminated again.
3A. If the green output indicator light does not
illuminate you will need to stop your generator,
see page 12.
3B. Wait 2 minutes.
3C. Start your generator, page 12, ensure the
green output indicator light is illuminated.
4. Re - attach the appliance.
5. If the output indicator light goes out and the red light
glows and the output power stops then the attached
appliance is either faulty or the appliance’s required
power is greater than the generator’s output, check the
appliance’s wattage requirements. See page 13.
12V DC OUTLET CIRCUIT BREAKER (Pic. 17)
Your generator is equipped with a DC output circuit
breaker. This circuit breaker will “pop” out if the attached
appliance is either faulty or the appliance’s required power
need is greater than the generator’s DC power output.
To reset the circuit breaker and restart the power supply;
1. Remove the appliance.
2. Stop the generator, see page 12.
3. Wait 2 minutes.
4. Push the circuit breaker back in, it should stay in. If not
the circuit breaker is still over heated, allow to cool
down for another 2 minutes before trying again to push
it in.
5. Start generator, see page 12.
6. Re-attach the appliance.
7. If the circuit breaker “pop’s” out again and the power
stops then the attached appliance is either faulty or the
appliances required power is greater than the
generators output, check the appliances power
requirements.
LOW OIL LEVEL INDICATOR LIGHT
If the oil level in the motor sump drops to a dangerousl low
level then the oil light, yellow, will flicker and the generator
will automatically stop.
If the oil level in the motor sump is dangerously low, then
the generator will not start, however the low oil light, yellow,
will flicker only when the recoil starter is pulled.
If your generator will not start always check the oil level
first.
To add oil or check the oil level, refer page 10.
Power restart
Button
DC Circuit
breaker
PIC. 17
PIC. 16

16
17
GENERAL MAINTENANCE
Keep the generator in a clean and dry environment where it
is not exposed to dust, dirt, moisture, or corrosive vapours.
Do not allow the cooling air slots in the generator to
become clogged with foreign material such as leaves,
snow, etc.
Do not use a garden hose to clean the generator. Water
entering the fuel system or other internal parts of the
unit can cause problems that will decrease the life of the
generator.
To clean the unit:
1. Use a soft bristle brush and/or vacuum cleaner to
loosen and remove dirt and debris.
2. Wipe the exterior surfaces of the generator with a damp
cloth.
SPARK PLUG MAINTENANCE
To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
Loosen and remove the screw then lift the panel away, to
access the spark plug.
Pull the HT lead off the spark plug, Pic 18, and clean any
dirt from around the spark plug base. Using the spark plug
socket supplied remove the spark plug, Pic 19.
Inspect spark plug for damage, and clean with a wire
brush before reinstalling. If insulator is cracked or chipped,
spark plug should be replaced. Make sure electrode gap is
0.60mm-0.80mm.
NOTE: If replacing, use the following recommended spark
plug: A7RTC.
Screw spark plug back by hand, avoid damaging threads
of the cylinder.
Put the spark plug back in position and use the spark plug
wrench to tighten it. If spark plug is new, use 1/2 turn to
compress washer appropriate amount. If reusing old spark
plug, use 1/8 to 1/4 turn for proper washer compression.
Replace spark plug cap.
Slide the panel into place, and secure with the screw.
Warning! Spark plug must be assembled firmly, or it will
become hot and may damage generator.
A loose spark plug can overheat and damage the engine.
CLEANING SPARK ARRESTER
Depending on the type of fuel used, the type and amount
of oil used, your spark arrester on the outside end of the
muffler may become blocked with carbon deposits. If you
notice a power loss with your petrol-powered tool, you may
need to remove these deposits to restore performance.
1. Remove the spark arrester with tools.
2. Brush the excess carbon deposits from the inside of
the spark arrester
3. Refit the spark arrester
Never run your generator without the spark arrester as
sparks may exit the muffler and cause a grass fire.
12V DC Socket
12V DC Socket
PIC. 18
PIC. 19

16
17
CHECKING/CLEANING THE AIR FILTER
For proper performance and long life, keep air filters clean.
1. Remove the access panel for more details,
refer page 10.
2. Loosen the 5pcs air filter screw and remove the air filter
panel Pic. 20.
3. Remove the air filter Pic.21.
4. If the filter element is dirty, clean with warm, soapy
water. Rinse and let dry.
5. Apply a light coat of engine oil to the elements, then
squeeze it out.
6. Replace the element into the air filter box.
7. Replace air filter cover and tighten the 5pcs air filter
screw
8. Fit access panel and secure with top screw for more
details, refer page 10.
NOTE: Do not run the generator without the air filter. Rapid
engine wear will result and this will not be covered under
warranty.
DRAINING ENGINE OIL
WARNING!
Generator is heavy and may require 2 people to lift.
1. Start generator.
2. Run generator, without load for about 2-3 minutes.
3. Stop generator and turn the fuel cap breather to off.
4. Remove the access panel for more details,
refer page 10.
5. Remove oil filler cap.
6. Position oil safe container next to the generator.
7. Lift and tip generator to drain the oil out of the “oil fill”.
8. Once oil sump is empty place generator on its feet,
wipe up any spills.
9. Replace oil filler cap. If changing oil refer to
page 10 for oil filling details.
10. Fit access panel and secure with top screw for more
details, refer page 10.
NOTE: Improper disposal of engine oil can be harmful
to the environment. If you change oil please dispose of
it properly. Put it in a sealed container and take it to a
recycling centre. Do not discard it in household waste,
dump it on the ground or pour it down a drain.
CLEANING THE FUEL TANK FILTER
1. Remove fuel cap.
2. lift out the fuel tank filter.
3. Clean the filter, replace if broken.
4. Dry the filter.
5. Slide back into the fuel tank.
6. Replace fuel cap.
CLEANING THE EXHAUST PORT & MUFFLER
Depending on the type of fuel used, the type and amount
of oil used, and/or your operating conditions, the exhaust
port and muffler may become blocked with carbon
deposits. If you notice a power loss with your petrol-
powered tool, you may need to remove these deposits
to restore performance. We highly recommend that only
qualified service technicians perform this service.
PIC. 20
PIC. 21
5 pcs Screws
Foam Element

18
19
MAINTENANCE CHART
Item Remark Pre-operation
check (daily)
Initial 1 month or
6 hours
Every 3 month
or 12 hours
Every 6 month or
24 hours
Every 12 month
or 48 hours
Spark plug
Check condition
Adjust gap and clean
Replace if required
Engine oil
Check oil level
Replace
Air filter Clean
Replace if required
Fuel Tank
filter
Clean fuel tank filter
Replace if required
Valve
clearance
Check and adjust when
engine is cold
Fuel line
Check fuel hose for
cracks or damage
Replace if required
Exhaust
system
Check for leakage
Tighten or replace
gasket if required
Check exhaust screen
Clean and replace if
required
Carburettor Check choke operation
Fittings/
Fastenings
Check all fittings and
fixtures and tighten if
required
SERVICE
Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest
Authorised Service Centre or other qualified service organisation. Be sure to provide all pertinent facts when you call
or visit.
Call Smart Marketing Group for your closest centre
Aust. 1300 660 457 N.Z. 0800 474 876.

18
19
STORAGE
If the generator is not to be used or is to be stored for more
than one month the following storage procedure should
be carried out. Drain all the fuel from the fuel tank (refer to
page 19) and the carburettor (see below), ensure that all
the fuel has been drained.
Remove the spark plug and pour approximately one
tablespoon full of clean engine oil into the spark plug hole.
With the start turned OFF gently pull on the recoil starter
cord several times.
Re-fit the spark plug and gently pull the recoil starter
cord until the piston is on the compression stroke (when
resistance is felt) then stop pulling.
Store the generator in a dry well ventilated place under a
cover to prevent any dust or debris from accumulating on
the generator
DRAINING THE CARBURETTOR
1. Remove the access panel for more details,
refer page 10.
2. Place a fuel safe container under the fuel drain tube.
3. Loosen the carburettor drain screw at the end of the
tube and allow fuel to drain out, Pic. 23.
4. Once fuel has drained, secure screw.
5. Discard the old fuel responsibly.
6. Fit access panel and secure with top screw for more
details, refer page 10.
DRAINING FUEL TANK
WARNING!
Generator is heavy and may require 2 people to lift.
1. Remove fuel tank cap.
2. Remove the fuel tank filter.
3. Position a fuel safe container next to the generator.
4. Lift and rotate the generator to drain the fuel tank.
5. Once tank is empty place generator on its feet, wipe
up any spills.
6. Replace fuel tank cap.
7. Dispose of fuel in an environmentally responsible
manner, check your local council for disposal
locations.
Storage Time Prior to Storing
Less than 1 month No special preparation is required
1 to 2 months Drain fuel from carburettor 2 months to 1 year
Drain fuel from carburettor
2 months to 1 year Empty fuel from fuel tank
Drain fuel from carburettor
1 year or more Empty fuel from fuel tank
Drain fuel from carburettor
Remove spark plug
Put a tablespoon of engine oil into the cylinder through the spark plug hole. Turn the engine slowly with the recoil
to distribute the oil
Reinstall spark plug
Change engine oil
*Use unleaded fuel stabilisers formulated to extend storage life. For recommendations, contact your nearest authorised service centre.
PIC. 22

20
21
FAULT CHART
Engine won’t start
Low engine output
Engineruns
erratically
Insufficient
compression
Sufficient
compression
Loose spark plug
Loose cylinder
head bolt
Damagedgasket
Tighten plug
Tighten bolt
Replace gasket
FUEL SYSTEM PROBLEMS
No fuel supplied
to combustion
chamber
Insufficient pulling
speed for starting
Foreign matter in
fuel tank
Clogged fuel line
No fuel in tank
Fuel tap not open
ELECTRIC SYSTEM PROBLEMS
Combustion
chamber
supplied
with fuel
Poor spark
Pull recoil quickly
Clean tank
Clean fuel line
Fill with correct fuel,
See page 8
Rotate START switch
to ON
Spark plug dirty
with carbon or
wet with fuel
Clean spark plug
Damaged spark
plug
Replace spark plug
Faulty magneto
Service agent
Improper
adjustment of
carburetor
Good
spark
Insufficient
pulling speed for
starting
Pull recoil quickly
Wrong grade
of fuel used
Check grade of fuel,
Unleaded 91 Petrol,
no ethanol, see
page 8
Overloading
Check the attached
appliances', refer
page 13
EVITCERROCESUACELBABORPNOITIDNOC
ACTION
Fill sump with
correct oil,
See page 8
No oil/ Low oil level
Overloading
