Dunster House SENSOVDOOM DHCBSHED2414 User manual

Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF
Customer Service:
[e-mail]
www.dunsterhouse.co.uk
Important!
All dimensions are approximate and subject to the limitations of the materials used and the methods of
manufacture
Unique Shed Reference Number
_____________________________
SENSOVDOOM 2.4m x 1.4m
DHCBSHED2414
INSTALLATION MANUAL
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41

Important Information
Please retain all documentation with regards to your purchase.
In the unlikely event that you need to contact us, please do so in writing to:
Email: [e-mail]
Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF
Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your
postcode so we can locate your order.
The Nature of Timber
The timber provided for this product is a soft wood which has been kiln dried and is pressure treated for protection against rot and insect
infestation.
Timber is a natural product and inherent properties can include knots, knot holes, imperfections, cracks and warping. Due to the inherent
properties of timber we make no guarantees that the timber you receive for your product will be free from these natural properties. We will
not replace any components for any of the following reasons:
•Timber that contains knots where they do not influence the structural stability of the product
•Cosmetics appearances - colour variations
•Timber that has shakes, cracks, gaps or sap which do not influence the structural strength of the product
•Timber that has been covered or buried underground
•Twisted timber that can be installed
•Queries arising from a neglectful manner during assembly or as a result of incorrect assembly
•Queries due to modifications by the owner causing the timber to deform
Any valid queries will be satisfied by the exchange or replacement of the defective parts only on a supply only basis.
Colour Transfer
This product has been pressure treated with wood preservative and a brown colour additive. Consideration should be given to the propensity
of the material to stain light colour adjacent surfaces, such as paving flags, render or coated timber surfaces. We recommend contact between
the timber and these surfaces is limited, and careful consideration to storing the product prior to assembly should be taken in order to prevent
such discolouration.
Assembly Preparation
This product has been designed for self-assembly and recommend that assembly is carried out by two DIY competent people. It is important
that the assembly instructions are followed carefully and we recommend that the assembly instructions are read through in their entirety prior
to assembly to allow you to familiarise yourself first.
We recommend ensuring that the product is assembled in an appropriate location and on an appropriate base for
the product. It is imperative that the product is installed square, level and plumb.
To assemble your product we recommend that you have the following:
•Stepladder
•Drill
•3mm and 6mm drill bit
•Spirit level
•Tape measure
•Screwdriver
•Gloves - if you wish for extra protection when handling pressure treated timber
•Clear exterior use sealant and caulking gun
•Tack hammer or hammer with a contact head of less than 20mm
All screw holes need to be pre-drilled using a 3mm drill bit (not provided) to avoid timber splitting.
Pressure treated products do not need to be treated immediately or have a timber preservative applied.
Pressure treatment does not mean that the timbers are waterproof, so you may wish to apply a water repellent.
Queries Procedure
Page 2
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/2023 03:41

Although the specialist in-house design and manufacturing teams at Dunster House ensure that all the sheds we sell
are built to last, performing regular maintenance will help prolong the life of your shed and protect your investment.
Here at Dunster House, we recommend that systematic checks are carried out on your wooden shed at least once
a year. Here is a list of the key areas to focus on when performing maintenance.
Base
The timber of a shed that sits on an uneven base will deteriorate, twist and eventually break. If your shed is showing
any of these signs, it is vitally important that you rebuild your shed on an adequate base, to prevent any further
damage.
If laid correctly, a flat, level, resilient base offers the necessary protection against damp and moisture found
in the ground.
Inspecting the roof of your garden shed
Over time, the felt on your shed roof will inevitably suffer damage. You should be looking to check for damage,
at least, annually. If you do find any wear and tear, act on it as soon as possible, as leaving it will cause more damage
to the shed itself and to the contents inside.
Should you discover a rip or tear, the best course of action is to replace it immediately. At Dunster House, we sell
high-grade mineral felt. More information on replacing the shed's roof material can be found here:
http://dunsterhouse/product-maintenance-guide-wooden-sheds
Protecting your shed against damp and moisture
Damp and moisture are the two things that are going to do the most damage to your shed; so going the extra mile,
beyond just making sure that your wooden shed is treated, can really help to protect your investment.
Water repellent treatment
How you customise and decorate your product is up to you, however we would recommend that you use
an appropriate water repellent treatment. This really helps minimise the amount of moisture that the timber can
absorb, therefore minimising the risk of any major movement.
(Please note: water repellent treatment is not the same as pressure treatment, which protects against rot
and insect infestation, and which we guarantee for 10 Years!)
Maintaining your shed's environment
Ensuring that your wooden shed is in the best possible position within your garden can go a long way to protecting
it against damp and moisture. Water which consistently drips from leaves and branches can cause serious damage,
as can a branch that comes into immediate contact with a felt roof. Therefore measures should be taken to regularly
cut back any overhanging trees which may be in close proximity to your shed.
Wooden shed drainage
Ideally, if possible, your wooden shed should be placed at the highest point of your garden as this will aid drainage
naturally. Guttering can also be fitted to redirect water away from your shed, representing an excellent investment
for prolonging the life of your wooden shed.
Sealing your shed windows
Applying silicone where the glass meets the timber will help to seal the window and increase its resistance to water.
Shed Maintenance
Page 3
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41

DHCBSHED2414 SENSOVDOOM 2.4x1.4 Packing list
INSTALL CODE
MATERIAL
QTYLNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
M6x60 A6M6x60 bolt,m6 washer,M6 nutH4 - M6x60 BOLT
H&SL1HASP & STAPLE LOCKHASP & STAPLE
TB502Turn ButtonT.Button 50mm
M6x50 B6M6x50 bolt,m6 washer,M6 nutH4 - M6x50 BOLT
DRAS-R1Door/Panel RgtDOOR ASSM R
DRAS-L
1
Door/Panel leftDOOR ASSM L
SB70 2 Shoot BoltG4 Shoot Bolt Sub Assy-70mm
CBP-2 23701140 CB Panel 2CBPanel1140x370
CBP-1 418451140 CB Panel 1CBPanel1140x1845
WM- 4mABS Plastic
1
Plastic membraneMembrane 4m
LP
Aluminum 6061
1
DH logo PlateDH LOGO
T11
DHSP-PT411402512.5Sofit Board12.5x25x1140.DHSP-PT .T11
T20DHSP-PT13553512.5
trims
12.5x35x355.DHSP-PT .T20
T18DHSP-PT221453512.5
trims
12.5x35x2145.DHSP-PT .T18
T17DHSP-PT318953512.5
trims
12.5x35x1895.DHSP-PT .T17
T19DHSP-PT28155012.5
door trim
12.5x50x815.DHSP-PT .T19
CB1DHSP-PT281140.097.012.5Panel 112.5x97.0x1140.0.DHSP-PT .1
CB8DHSP-PT11055.097.012.5Cheese2 L12.5x97.0x1055.0.DHSP-PT .8
CB9DHSP-PT1640.097.012.5Cheese3 L12.5x97.0x640.0.DHSP-PT .9
CB6DHSP-PT1210.097.012.5Cheese4 R12.5x97.0x210.0.DHSP-PT .6
CB5DHSP-PT
1
640.097.012.5Cheese3 R12.5x97.0x640.0.DHSP-PT .5
CB3DHSP-PT
1
1140.097.012.5Cheese1 R12.5x97.0x1140.0.DHSP-PT .3
CB4DHSP-PT
1
1055.097.012.5Cheese2 R12.5x97.0x1055.0.DHSP-PT .4
CB10DHSP-PT
1
210.097.012.5Cheese4 L12.5x97.0x210.0.DHSP-PT .10
CB7DHSP-PT
1
1140.097.012.5Cheese1 L12.5x97.0x1140.0.DHSP-PT .7
T13DHSP-PT4
1175
9019.0Fascia19.0x90x1175.DHSP-PT .T13
T2DHSP-PT22452535.0Cheese supp135.0x25x245.DHSP-PT .T2
T8DHSP-PT217502535.0Door Base35.0x25x1750.DHSP-PT .T8
T22DHSP-PT81502535.0
Door Noggin
35.0x25x150.DHSP-PT .T22
T3DHSP-PT21502535.0Cheese supp235.0x25x150.DHSP-PT .T3
T10DHSP-PT212803535.0
Fascia side
35.0x35x1280.DHSP-PT .T10
T7DHSP-PT1411903535.0Bearer35.0x35x1190.DHSP-PT .T7
T1DHSP-PT612807035.0roof Purlin35.0x70x1280DHSP-PT.T1
FB 2MFP42403510Floor BoardMFP board 2
FB 1MFP21130111510Floor BoardMFP board 1
FELTShingle/Felt1Felt
N30Steel_Generic20Fixing30mm Nail
RN30Steel_Generic168Fixing30mm Nail.AR
S20Steel_Generic23 Fixing20mm screw
S70Steel_Generic20 Fixing70mm screw
N10Steel_Generic100 FixingClout Nial 10mm
S60Steel_Generic100 Fixing60mm Screw
S35Steel_Generic82 Fixing35mm screw

CBP-1
CB Panel 1
CBP-2
CB Panel 2
DRAS-R
Door/Panel Rgt
DRAS-L
Door/Panel left
CB3
Cheese1 R
CB4
Cheese2 R
CB5
Cheese3 R
CB6
Cheese4 R
CB7
Cheese1 L
CB8
Cheese2 L
CB9
Cheese3 L
CB10
Cheese4 L
T2
Cheese supp1 T3
Cheese supp2
T11
Sofit Board
T13
Fascia
T10
Fascia side
T8
Door Base
T7
Bearer
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
Loose Components
PACK CONTENTS
SEE PACKING LIST FOR QUANTITIES AND DIMENSION
245 150
25
35
25
35
1140 12,5
25
1175
90
19,0
1280 35,0
35
25
35,0
1750
35,0
35
1190
1845
1140
1140
1745 1745
210 210
640 640
1055 1055
1140 1140
1135
1135
370

T19
door trim
T17
trims
T20
trims
SB70
Shoot Bolt 70mm
TB50
Turn Button
HS LOCK
Hasp &staple lock
T1
roof Purlin
CB1
Panel 1
FB 2
Floor Board
FB 1
Floor Board
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
PACK CONTENTS
SEE PACKING LIST FOR QUANTITIES AND DIMENSION
815
50
12,5
12,5
35
1895
355
35
12,5
35
70
1280
1140 12,5
97
35
240
10
1130
1115
10

Assembly Steps
Page 7
FLOOR
a) Ensuring the base is level, space bearers evenly.
The bearer layout consists of double bearers on the ends. Depending on the size you purchased, there will be more
double bearers needed where the floor board(s) will eventually join. Use 60mm screws to secure them as shown in
the image (1.1).
Pre-drill parts before fixing with screws
Joining double bearer (1.1)
Use 60mm screws.
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
IMPORTANT - Continue to check the shed
and bearers are square by measuring
diagonals.
50 mm
Approx
Equal
Equal
Equal
Equal
50 mm
Approx
245245250
250
250
250
A=B
2280
A
B
150150

Assembly Steps
Page 8
PANELS
Pre-drill parts before fixing with screws
a)Start by establishing the layout of your shed.
b)Fix panels onto the bearers, use 60 mm screws. Start with the wall
parallel to the bearers.
c) Fix a secondary panel to make a corner, use 60mm screws fixing
through the side frame. Ensure the the screws are evenly spaced and
vertically aligned to the bearers
d) Place the MFP panel.
Principle of MFP (floor boards) installation
Secure the MFP to the bearers with 35mm screws all equally spaced.
There should be a 70mm space between the ends of the bearer and
the screw. Use same amount of screws per each bearer.
IMPORTANT: Ensure a double bearer is fixed where the MFP boards
join.
e) Fix the wall panel back and the side the first (Perpendicular to
bearers).
NOTE: Continue to check the shed is square by measuring diagonals.
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
FRONT
35mm SCREW
Approx. 70mm
Double
Bearer
End
Double bearer
Screw through the
panel frame into the bearers
Double Bearer
25
S60
CBP-1
CBP-1
35
25
35

Assembly Steps
Pre-drill parts before fixing with screws
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
In this diagram back and side panels are hidden for visibility
a) Fix the bolts to the hinges
b) Use 60mm screws to fix the door panel and make sure they are evenly spaced
Make sure it is flush all the way down the corner
DRAS-L
CBP-1
S60
DRAS-R

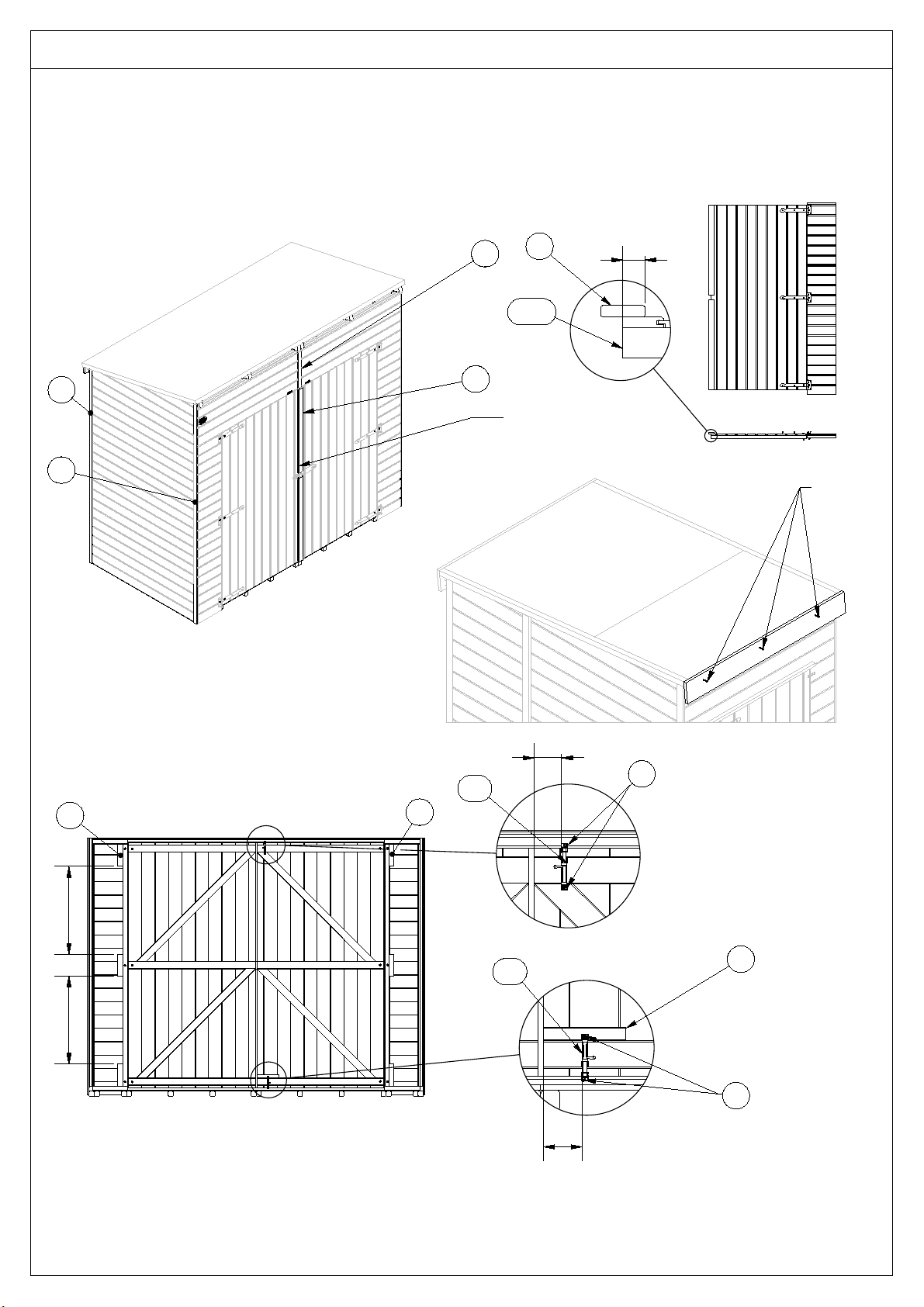

DOOR PANELS
S60
T7
M6x60 A
M6x50 B

DN
Assembly Steps
Pre-drill parts before fixing with screws
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
In this diagram the door assembly has been hidden for visibility
b) The door base is fixed to the panel and each bearer using 60mm screw
a) Fix the upper panel to the front panel as shown using 60mm
screw
Flush
CBP-2
CBP-2
CBP-1
35
25
Side and back panels are
removed for visibility
S60
S60
LINTEL PANELS
35
25
FB 1
S35
T8
T8
T8
T8
FB 2

Assembly Steps
Pre-drill parts before fixing with screws
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
a) Fix the purlins to the panel
using 70mm screws
b) Fix the roof Boards to purlins using 30mm shank nail with a
2mm gap between each panel
T1
518
518518518
20
18
CB1
Inside view
9
2
S70
T1
ROOF
S70
RN30
1140

Assembly Steps
Page 12
SIDE SHIPLAPS
Pre-drill parts before fixing with screws
a) Fix the cheese supp 1 & 2 to the panels and purlins using 60mm screw
b) Fix the shiplaps to the cheese supp and purlins using 35mm screws. Leave a 2mm gap between shiplaps.
EAVES
a) Fix the eaves. Ensure the top is flush with the roof boards and the front is flush with the purlin.
b) Fix the sofit to the underside of the purlin on each side.
c) Fix the the rear facia board.
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
Flush
Sofit
Roof boards were hidden for visibility
T3 T2
S60
CBP-2
S35
S60
CBP-1
S60

Assembly Steps
Page 13
FELT
a) Cover the entire roof with plastic membrane and staple underneath the roof board.
b) Place the Felt layer 1 on the rear side onto the roof boards and ensure there is an
80mm overhang on the sides and a 140mm overhang on the rear.
Secure onto the eaves with 10mm clout nails approximately 70mm apart. Do this all
around the first layer of felt as shown below.
c) Position the Felt layer 2 so it overlaps the felt layer 1 by approximately 200mm.
Secure the felt layer 2 with 10mm clout nails 20mm from the edge of the felt and
70mm spacing between the clout nails.
Pre-drill parts before fixing with screws
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
200mm
Felt
10mm COUT NAIL
(Distance between
nails approx. 70mm)
Principle of felt overlap (1.0)
Approx70mm
Felt Layer 1
Felt Layer 2
140mm
80mm
HASP & STAPLE, TURN BUTTONS
a) Position the hasp, staple and turn buttons to correct position as shown in the diagram (right hand)
b) Fix the hasp, staple and turn buttons into the frame by using 35mm screws.
Principles of Installation
Hasp & staple Installation Front view with fixings Turn button Installation
S35
S35
Hasp
Staple
140mm
80mm
TB50
11

Assembly Steps
Page 14
TRIMS
a) Secure corner trims at each corner of your shed with 30mm nails. Extra trims are provided to cover any joins
between side wall panels. These may need cutting down with a saw
Pre-drill parts before fixing with screws
b) Fix the front fascia boards to purlins
C:\$VaultWorkspace\Designs\SensovdoomShed(2023)\DHCBSHED2414SENSOVDOOM2.4x1.4InstallationManual.idw16/06/202303:41
WE SINCERELY HOPE YOU WILL ENJOY YOUR SHED FOR MANY YEARS
PLEASE SEND WONDERFUL PICTURES OF YOUR SHED TO US
T19
T20
T17
T18
Fix the door trim to the right door
using 20mm screw
SHOOT BOLT 50
SB70
70
25
T19
DRAS-R
S60
S20
S20
SB70
T22
T22
T22
a) Fix the door Noggins using 60mm screws
600
600
