DUOTONE TRUST BAR User manual

TRUST BAR
User Manual

4
DUOTONE TRUST BAR MANUAL
WATCH OUT FOR USEFUL TIPS & TRICKS REGARDING OUR PRODUCTS UNDER
WWW.DUOTONESPORTS.COM
TIPS & TRICKS

5
DUOTONE TRUST BAR MANUAL
ENGLISH
RELEASE OF LIABILITY
1. RELEASE OF LIABILITY
RELEASE OF LIABILITY, CLAIM WAIVER, ASSUMPTION OF RISK
By assembling and/or using this DUOTONE product, you agree that you have read and understand
this short product manual as well as the entire online product manual of the DUOTONE product,
including all instructions and warnings, prior to using the DUOTONE product in any way.
You additionally agree that you will ensure any additional or subsequent user of your DUOTONE
product will read and understand this short product manual as well as the entire online product
manual of the DUOTONE product, including all instructions and warnings, prior to allowing that
person to use your DUOTONE product.
ASSUMPTION OF RISK
Use of the DUOTONE Product and any of its components involve certain inherent risks, dangers, and
hazards that can result in serious personal injury and death to both the user and to nonuser third
parties. In using the DUOTONE Product, you freely agree to assume and accept any and all known
and unknown risks of injury to you and to third parties while using this equipment. The inherent
risks in this sport can be greatly reduced by abiding by the warning guidelines listed in the product
manuals and by using common sense.
RELEASE AND WAIVER OF CLAIMS
IN CONSIDERATION OF THE SALE OF THE DUOTONE PRODUCTTO YOU, YOU HEREBY AGREE TO
THE FULLEST EXTENT PERMITTED BY LAW, AS FOLLOWS:
To waive any and all claims, that you have or may in the future have against Boards & More GmbH and
all related parties resulting from use of the DUOTONE Product and any of its components.

6
DUOTONE TRUST BAR MANUAL
2. SAFETY AND PRECAUTIONS
DUOTONE STRONGLY RECOMMENDS:
If you are not yet able to kite or if you feel insecure, you must attend a licensed Kiteboarding school
to learn the basics of this fantastic sport. Get familiar with the safety precautions, which are
indispensable for safe Kiteboarding.
Kiteboarding creates a heavy strain on your body. You should only go Kiteboarding if you are in good
physical condition and suer from no medical conditions that may prevent you from kiting. Always
act carefully to not endanger yourself or anyone else. Do not endanger the safety of uninvolved third
parties! Be aware of the risks you take and limit them to a minimum level!
Check that your Iron Heart and your safety leash are in good working order before and after using
them each time. To do this, release them as described in section 4, Functions, then reassemble
them.
BEFORE GOING ON THE WATER MAKE SURE YOU ARE FAMILIAR WITH YOUR DUOTONE EQUIPMENT
AND MEMORISE HOW TO USE IT PROPERLY. CORRECT HANDLING CANNOT SIMPLY BE LEARNED IN
AN EMERGENCY.
For your own safety, read the following instructions as well as product descriptions very carefully
2.1. KITEBOARDING SAFETY
- Fly your Kite only over unobstructed water. Never on land!
- Fly this kite only if you are a strong swimmer and are wearing a Coast Guard approved PFD.
- Only use bars with a safety system that you can open in emergency situations.
- Use a quick-release kite leash so that you can unhook your body from the gear in case of
an unforeseeable emergency.
- Avoid power lines, telephone poles, airports, streets, buildings and trees.
- If you use a board that is leashed to your body, wear a helmet!
- Take into account the usual risks associated with water sports such as rocks, waves, sunburn,
hypothermia, jellyfish etc.
SAFETY AND PRECAUTIONS

7
DUOTONE TRUST BAR MANUAL
ENGLISH
2.2. DANGERS FROM THE KITE
WHEN KITEBOARDING YOU MIGHT FACE THE EXTREME FORCES OF THE ELEMENTS.
In rare cases the kite or its lines can cause dangerous situations:
- You can hurt yourself through uncontrolled water take-os caused by gusty conditions, and the
danger of collision with obstacles.
- The incorrect usage of lines creates a high risk of injury for yourself as well as others.
- People who get caught by the lines can suer injuries or burns.
- Uninvolved third parties can get injured through crashing kites.
- Fly your kite only over unobstructed water.
- When kiting, do not fly over people or pets.
- Ensure that a semi-circle extending 100 metre downwind and to each side of your flying position
is clear of people and obstructions.
- Use a kite leash that allows you to keep the kite under control.
- When not in use, inflated kites must be secured with sand or heavy objects.
A kite filled with air can fly away at any time, injuring people and in extreme cases even kill them.
2.3. DANGERS FROM KITE LINES
- Never touch the kite lines when the kite is under wind load as these lines are
dangerously sharp while under tension.
- Never use kite lines damaged with knots, nicks, cuts etc. They must be changed!
- Use only lines that have no knots in them, as knots can weaken lines by as much as 50 %.
- Do not touch the lines of the kite, unless the kite has been secured to the ground. An unsecured
kite can re-launch unexpectedly, putting the line dangerously under tension.
- Never tie lines around your arms or other body parts!
THE LISTED RISKS CANNOT BE COMPLETE.
The basic rules for kiteboarding comply with those of common sense and are valid for all outdoor
sports.
SAFETY AND PRECAUTIONS

8
DUOTONE TRUST BAR MANUAL
SYSTEM
APulley
BVario Cleat
CHopper
DSliding Stopper
EDepower Line
FRed Safety Line
GIntegrated EVA Floater
HFlip Flop Function
ICenter Part Insert
JIntegrated Backline Adjuster
KSticky Bar Grip
LSafety Leash (not included
in the package)
MIron Heart
NChicken Loop
OChicken Stick

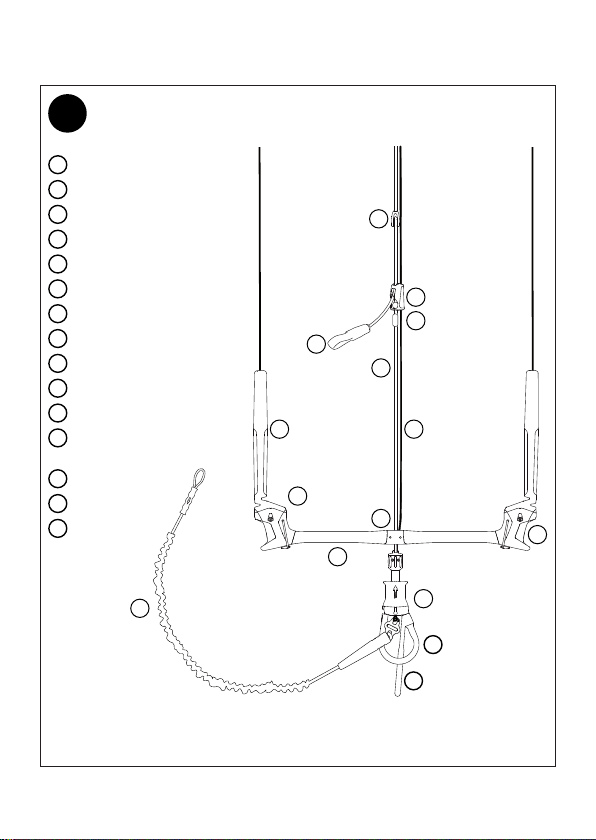

3. SYSTEM
3.1. TRUST BAR
The Trust Bar comes with 4 lines as standard. Choose the 5th Element upgrade kit
(not included in the Trust Bar package) to convert the 4 line Trust Bar into a
5th Element Bar. Find in-detail-videos about the conversion on our website.
IMPORTANT: THE TRUST BAR IS DELIVERED WITHOUT A CHICKEN LOOP OR SAFETY LEASH.
DEPENDING ON THE USE AND NEEDS OF THE RIDER, THREE DIFFERENT IRON HEART KITS ARE
AVAILABLE AND MUST BE ORDERED SEPARATELY IN ORDER TO ENSURE FULL FUNCTIONALITY OF
THE TRUST BAR.
Picture 1page 64
Specifications in accordance with the French norm NFS 52-503
Manufacturer: DUOTONE
Usage: kitesurf / snowkite
Compatible kites: all Kites produced by DUOTONE & North Kiteboarding till 2018
Technology: release grip to be pushed away from the body
Rider’s weight max. / min.: 120 kg / 35 kg

9
DUOTONE TRUST BAR MANUAL
ENGLISH
SYSTEM
Picture 3page 66
Picture 2page 65
3.1.2. TRUST BAR 5TH ELEMENT
3.1.1. TRUST BAR QUAD CONTROL
TO CONVERT THE TRUST BAR QUAD CONTROL INTO A TRUST BAR 5TH ELEMENT, YOU MUST
PURCHASE THE 5TH ELEMENT UPGRADE KIT FIRST.
APigtails
BBack Line
CLeft Front Line (red & blue Safety Line)
DRight Front Line
E9 mm Metal Ring
FStainless Steel Safety Pulley
GRed Safety Line
HStrong Middle Line
IAdjustable Red Safety Line
APigtails
BBack Line
C5th Line (red & blue Safety Line)
DLeft Front Line (Upgrade Kit Line)
ERight Front Line
F9 mm Metal Ring
GStainless Steel Safety Pulley
HRed Safety Line
IStrong Middle Line
JAdjustable Red Safety Line

10
DUOTONE TRUST BAR MANUAL
FUNCTIONS
4. FUNCTIONS
4.1. VARIO CLEAT
The Vario Cleat is a multi-functional depower adjuster. The Vario Cleat allows you to adjust the
power of the kite during the flight. In order to assure optimum access to the Vario Cleat it can be
easily adjusted according to the rider’s body size.
4.1.1. DEPOWERING
1. Pull the black adjuster towards your body until you get the desired depower eect.
2. Let go of the adjuster and the line will be locked between the teeth of the Vario Cleat.
3. To prevent the adjuster from getting tangled, it can be secured to the Vario Cleat with the Velcro.
Pictures 4+ 5+ 6page 67
4.1.2. POWERING UP
1. Pull the black adjuster a short distance towards your body.
2. At the same time, move the adjuster away from the Vario Cleat, so that the teeth of the cleat
release the line.
3. Now let the line slide back until you get the desired power.
4. Move the adjuster back towards the Vario Cleat, so that the teeth of the cleat can lock the line.
Pictures 7+ 8+ 9+ 10 page 67
4.1. KOOK-PROOF LINE ATTACHMENT
One of the most common mistakes in setting up a kite is getting the steering lines and the flying
lines mixed up. In order to avoid this problem, DUOTONE has developed the Trust Bar and the
Kook-Proof-System. The color code and the alternating position of the loops and knots permits only
the right connection.
IMPORTANT: THE KOOK-PROOF-SYSTEM WORKS ONLY IN CONNECTION WITH A NORTH KITEBOAR-
DING KITE TILL 2018 AND ALL DUOTONE KITES.
11a
page 68 Picture
11b
page 68
KITE + TRUST BAR QUAD CONTROL KITE + TRUST BAR 5th ELEMENT

11
DUOTONE TRUST BAR MANUAL
ENGLISH
FUNCTIONS
4.3. RELEASE UNITS
4.3.1. IRON HEART
CAUTION: ALWAYS CHECK THE FUNCTION OF YOUR IRON HEART AND TEST THE QUICK RELEASE
BEORE LAUNCHING. MAKE SURE THAT NO DIRT, SAND OR OTHER RESIDUES ARE INSIDE THE IRON
HEART AS THIS WILL GREATLY AFFECT ITS PERFORMANCE. IF THERE ARE ANY OBSTRUCTIONS
YOU MUST CLEAN THE IRON HEART THOROUGHLY WITH SOME WATER BEFORE LAUNCHING.
4.3.1.1. REASSEMBLING THE IRON HEART
AFTER RELEASE, KEEP THE RED SAFETY LINE PULLED IN DURING ASSEMBLY AND KEEP AN EYE
ON YOUR KITE AT ALL TIMES. MAKE SURE NOT TO GET CAUGHT IN DRIFTING LINES. NEVER WRAP
ANY LINES AROUND YOUR WRIST OR OTHER PARTS OF YOUR BODY.
1. Hold the release grip pulled upwards and make sure that the Release Pin is open.
2. Put the chicken loop ring on the small metal plate below the Release Pin.
3. Close the Release Pin with one finger while you are still pushing the release handle up.
4. Let the release handle slide down to lock the Release Pin in place.
Pictures 14 +15 +16 +17 page 69
4.3.1.2. HOOKING INTO THE HARNESS
4.3.1.2.1. FREERIDE, FREESTYLE AND WAKESTYLE CHICKEN LOOP CONNECTION TO
THE HARNESS
1. Hook the closed chicken loop into the kite’s harness hook.
2. Turn the chicken stick to the right position.
3. Secure the chicken loop in the harness hook using the chicken stick.
Pictures 18 +19 page 69
4.1.1. ATTACHING THE BAR TO THE KITE
1. Lay the line ends of the bar to the corresponding pig tails of the kites.
2. Tie the loops with a lark’s head to the knots at the opposite ends and pull them tight.
Pictures 12 + 13 page 68

12
DUOTONE TRUST BAR MANUAL
FUNCTIONS
4.4.2.2. ROPE HARNESS LOOP CONNECTION TO THE HARNESS
1. Open the chicken loop.
2. Thread the loop around the designated rope at the harness.
3. Now reassemble the Iron Heart as described in section -> 4.3.1.1. REASSEMBLING THE IRON
HEART.
Pictures 20 page 69
4.3.1.3 STANDARD SAFETY MODE
4.3.1.3.1. SETTING UP THE STANDARD SAFETY MODE
1. The metal ring (Suicide Ring) at the Iron Heart is only attached to the red safety line and has no
other connection to any other part of the system. The safety leash is hooked into the small eyelet
of the Suicide Ring.
2. If you let go of the bar and Iron Heart in this mode, it will slide up along the red safety line
towards the kite. The kite comes down safely and depowers on the red safety line.
Picture 21 page 70
4.3.1.3.1.2 RELEASING IN STANDARD SAFETY MODE WHILE HOOKED IN
1. To separate yourself from your kite in an emergency situation while you are hooked in, simply
push the red release grip at the Iron Heart away from your body.
2. This separates the connection between your harness hook and the bar. The bar and Iron Heart
slide along the red safety line towards the kite. The kite comes down safely and depowers on the
red safety line.
Pictures 22 +23 page 70
4.3.1.4. SUICIDE MODE
IMPORTANT: DUOTONE RECOMMENDS USING ONLY THE STANDARD SAFETY MODE BECAUSE IT
PERMITS COMPLETELY DEPOWERING THE KITE. DUOTONE DOES NOT RECOMMEND USING THE
SUICIDE MODE AT ANY TIME SINCE THIS MODE MAKES IT IMPOSSIBLE TO COMPLETELY DEPOWER
THE KITE IN CERTAIN SITUATIONS. THE SUICIDE MODE MAY ONLY BE USED BY VERY EXPERIENCED
RIDERS IF NECESSARY. RIDERS WHO USE THE SUICIDE MODE MUST BE AWARE OF THE CONSE-
QUENCES AND BEAR RESPONSIBILITY FOR ALL RESULTING DAMAGES!

13
DUOTONE TRUST BAR MANUAL
ENGLISH
FUNCTIONS
4.3.1.4.1. SETTING UP THE SUICIDE MODE
1. The metal ring (Suicide Ring) at the Iron Heart is attached to the red safety line, and the safety
leash is hooked into the small loop of the Suicide Ring. Additionally, the Chicken Loop runs stra-
ight down the oval middle loop of the Suicide Ring.
2. If you let go of the bar and Iron Heart in this mode, the bar is unable to slide up along the red
safety line towards the kite. This means that the kite cannot be completely depowered. The kite
will always retain a considerable pull.
IMPORTANT: YOU MUST BE AWARE OF THE FACT THAT IN SUCH A SITUATION, THE IRON HEART IS
OUT OF YOUR REACH AND CAN THEREFORE NOT BE RELEASED.
Pictures 24 page 70
4.3.1.4.2. RELEASING IN SUICIDE MODE WHILE HOOKED IN
1. In order to separate yourself from the kite in an emergency situation while hooked in, simply
push the red release grip at the Iron Heart away from your body.
2. This will separate the connection between your harness hook and the bar. The Suicide Ring
automatically comes o the chicken loop.
3. The bar and Iron Heart will slide along the red safety line towards the kite. The kite comes down
safely and depowers on the red safety line
Pictures 25 +26 page 70
CAUTION: IN THE CASE THAT YOUR SUICIDE RING BECOMES IMPAIRED DUE TO A HARD CRASH OR
SOMETHING SIMILAR, IT MUST BE REPLACED IMMEDIATELY. DO NOT TRY AND BEND IT BACK INTO
SHAPE. A DEFORMED RING CAN CAUSE FAILURE.
THE FRONT PART OF THE SUICIDE RING IS CURVED SLIGHTLY DOWNWARDS. WHEN USING THE
SUICIDE FEATURE, PAY ATTENTION THAT THE CURVE REMAINS POINTING DOWNWARDS AND
THAT THE SAFETY LINE RUNS PROPERLY THROUGH THE SUICIDE RING.
Pictures 27 +28 page 71

14
DUOTONE TRUST BAR MANUAL
FUNCTIONS
4.3.2. SAFETY LEASH
IMPORTANT: THE SAFETY LEASH MUST BE TIED TO THE SUICIDE RING BEFORE YOU LAUNCH
THE KITE. ALWAYS REMEMBER THAT YOUR SAFETY LEASH IS THE LAST CONNECTION BETWEEN
YOU AND YOUR KITE. ONLY RELEASE IT IN A CASE OF EXTREME EMERGENCY AND REMEMBER
THAT AN UNCONTROLLED KITE IS A GREAT DANGER FOR OTHER INDIVIDUALS ON LAND AND ON
THE WATER.
4.3.2.1. ATTACHING THE SAFETY LEASH TO THE HARNESS
DUOTONE RECOMMENDS ONLY ATTACHING THE SAFETY LEASH TO THE HARDNESS AT YOUR
SIDE: DUOTONE RECOMMENDS NEVER ATTACHING THE SAFETY LEASH BEHIND YOUR BACK AS
IN SOME SITUATIONS THIS CAN PREVENT EASY RELEASE. THE SAFETY LEASH SHOULD ONLY BE
HOOKED IN BEHIND YOUR BACK IF YOU ARE A VERY EXPERIENCED RIDER AND IF NECESSARY.
RIDERS WHO ATTACH THE LEASH BEHIND THEIR BACKS MUST BE AWARE OF THE CONSEQUEN-
CES AND BEAR RESPONSIBILITY FOR ALL RESULTIN DAMAGES!
Attachment position behind the back: Picture page 71
Recommended attachment position at the side: Picture page 71
DUOTONE RECOMMENDS FOR RIGHT-HANDED KITERS TO ATTACH THE SAFETY LEASH ON THE
RIGHT SIDE. FOR LEFT-HANDED ON THE LEFT SIDE OF THE HARNESS. THE CHICKEN STICK
SHOULD BE INSTALLED ON THE OPPOSITE SIDE OF THE CHICKEN LOOP.
1. Thread the red line at the release grip through the metal ring of your harness.
2. Pull the loop of the red line over the release pin.
3. Pull the release grip down while you push the release pin down.
4. Let go of the release grip so that the release pin disappears inside the grip.
Pictures 31 +32 +33 +34 pages 72
4.3.2.2. ATTACHING THE SAFETY LEASH TO THE IRON HEART
1. Pull back the neoprene cover and open the carabiner.
2. Hook the carabiner into the small eye of the Suicide Ring at your Iron Heart.
3. Push the neoprene sheath back up in order to safely cover the carabiner.
Picture 35 + 36 + 37 page 72
4.3.2.3 RELEASING THE SAFETY LEASH
1. Grab the release grip with your whole hand and push it away from your body.
29
30

15
DUOTONE TRUST BAR MANUAL
ENGLISH
SERVICE AND MAINTENANCE
2. The release mechanism is triggered by pushing the release grip down.
3. The safety leash is then completely released from your harness.
Pictures 38 + 39 + 40 page 73
5. SERVICE ET MAINTENANCE
CAUTION: IT IS NECESSARY TO RINSE YOUR TRUST BAR AFTER EACH USE.
5.1. RINSING THE IRON HEART
Rinse the Iron Heart with clean water. Be sure to open it right up and clean the inside. Move the Roto
Head back and forth to remove any obstructions or residues from the ball bearing and interspaces.
Use the Suicide Ring to also pull out the red safety line (about 15 cm) and rinse it to remove sand
from the passageway in the Iron Heart.
Picture 41 page 73
5.2. LINES
CAUTION: DEPENDING ON THE USAGE, SIGNS OF WEAR AND TEAR CAN OCCUR ON YOUR TRUST
BAR. BECAUSE OF THIS, WE ADVISE THAT YOU CHECK YOUR LEADER LINES FOR STRESS MARKS
EVERY 100 HOURS AND REPLACE IF NECESSARY. TO REPLACE THE LINES YOU’LL NEED TO REMO-
VE THE END CAPS FIRST. YOU CAN FIND AN IN-DEPTH TUTORIAL ON OUR WEBSITE.
Never expose your Trust Bar to temperatures higher than 70°C. This level of heat can damage
the structure of the lines and cause them to shrink. Carry out checks on a regular basis and see
whether the lines are the same length. If they are not the same length, you can stretch them or
compensate for the dierence by replacing the supplied pigtails. You can find guidance and more
maintenance tips at www.duotonesports.com

16
DUOTONE TRUST BAR MANUAL
APulley
BVario Cleat
CHopper
DSliding Stopper
EDepower Line
FRed Safety Line
GIntegrated EVA Floater
HFlip Flop Function
ICenter Part Insert
JIntegrated Backline Adjuster
KSticky Bar Grip
LSafety Leash (not included
in the Trust Bar package)
MIron Hear
NChIcken Loop
OChicken Stick
1NEW
A
B
C
D
E
FG
H
I
J
K
LM
1
N
O

17
DUOTONE TRUST BAR MANUAL
ENGLISH
APigtails
BBack Line
CLeft Front Line (red & blue Safety Line)
DRight Front Line
E9 mm Metal Ring
FStainless Steel Safety Pulley
GRed Safety Line
HStrong Middle Line
IAdjustable Red Safety Line
2
NEW
2
B
C
D
E
F
G
H
A
I

18
DUOTONE TRUST BAR MANUAL
3
APigtails
BBack Line
C5th Line (red & blue Safety Line)
DLeft Front Line (Upgrade Kit Line)
ERight Front Line
F9 mm Metal Ring
GStainless Steel Safety Pulley
HRed Safety Line
IStrong Middle Line
JAdjustable Red Safety Line
NEW
3
B
C
D
F
G
H
I
J
E
A

19
DUOTONE TRUST BAR MANUAL
ENGLISH
465
798 10

20
DUOTONE TRUST BAR MANUAL
30 31
30 31
11a 11b
12 13
KITE
TRUST BAR 5th ELEMENT
Back Front 5th Line Front Back
red red blue grey grey
Front
Red
Front
Grey
Back
Red
Back
Gray
29a 29b
Front
Red
Front
Grey
Back
Red
Back
Gray
5th Line
Blue
quad control5th element
TRUST BAR QUAD CONTROL
KITE
Back Front Front Back
red red grey grey
Front
Red
Front
Grey
Back
Red
Back
Gray
29a 29b
Front
Red
Front
Grey
Back
Red
Back
Gray
5th Line
Blue
quad control5th element

21
DUOTONE TRUST BAR MANUAL
ENGLISH
14 16
15 17
18 19 20
NEW
18
NEW
19
NEW
20
NEW
21

22
DUOTONE TRUST BAR MANUAL
14
NEW
20 NEW
18 NEW
17
NEW
16 NEW
15 NEW
21 23
26
22
2524
