Dura Faucet DF-NML202 User manual

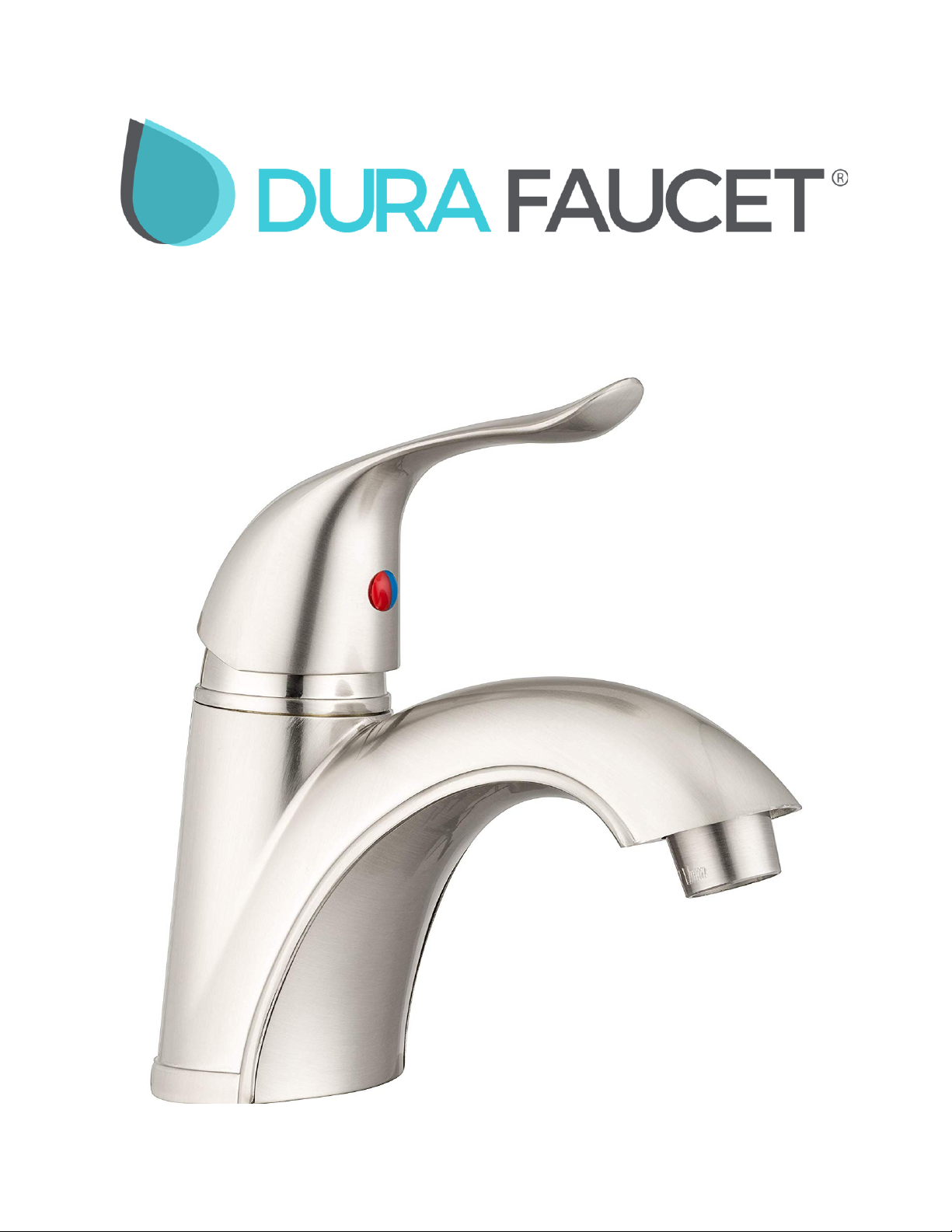

DF-NML202 – Single Lever Arc RV Bathroom Faucet

MAINTENANCE AND CLEANING
Cleaning Tips: The finish on your product is designed to retain its beautiful sheen for
years. To maintain the original look of the finish, a little care and caution should be
used. We recommend the use of mild soap and water to clean the product.
THE USE OF ABRASIVE CLEANERS MAY SCRATCH THE FINISH OR CAUSE OTHER
DAMAGE.
RECOMMENDED TOOLS AND MATERIALS
¨ Plumbers Putty
¨ Silicone Sealant
¨ Adjustable Wrench
¨ Tape Measure
¨ Basin Wrench
¨ Phillips Screwdriver
¨ Pencil
¨ Masking Tape
BEFORE YOU BEGIN
There are a variety of things to do before installing any new plumbing system into your
RV. Before you begin work make sure you:
¨ Shut off the main water supply
¨ Cover your drain to prevent loss of parts
¨ Observed any local plumbing codes
¨ Inspect fixture for damage - Replace as necessary
* Dura Faucet reserves the right to make any revisions in the design of products without
notice.

INSTALLATION OF THE FAUCET
1 New Faucet Installation
Shut off the water supply and remove the old faucet by disconnecting it from the supply
tubes under the sink, and unscrewing the faucet from the countertop by removing
mounting nuts. Clean the sink top surface in preparation for the new faucet. If you are
fastening the deck plate to your faucet apply plumbers putty, or other suitable sealant,
to the bottom edges of the base plate. Once applied, align the base plate and press into
place to firmly attach to sink. When finished, remove any excess plumbers putty and
place deck plate into base plate.
2 Install Faucet on Sink Top
Remove both the locknut and washer provided. Place the faucet on the sink and feed
the hoses down through the center hole in the sink. From below secure the faucet by
reattaching the locknut and washer and screw down until they are tight. Make sure that
you tighten the locknut before the screws.
3 Drain Installation
Remove the stopper from the drain and unscrew the drain from the plastic pipe. Remove
plastic locknut, washer, and rubber seal from the drain. Apply plumbers putty or silicone
sealant to the bottom edges of the drain. Once applied, press firmly into place (Note:
there should be excess plumbers putty pushing out from the edges. This can be removed
later). Attach the rubber seal, washer, and locknut back onto the bottom of the sink.
Once applied, attach the plastic pipe with the retaining nut attached and screw into
place.
4Install Horizontal Pivot Rod
Remove the retaining nut while being sure to leave the plastic ring inside. Next, remove
the metal spring attached to the horizontal pivot rod, ball first, into the pipe, and feed the
retaining nut over the rod and lightly attach without tightening.

5Insert Stopper
Now, with the horizontal pivot rod in place, but not tightened down, insert the stopper
making sure the end of the horizontal pivot rod goes through the loop at the bottom of
the stopper. Once the rod is through the hole, tighten down the retaining nut to secure
the rod in the loop.
6Attach Clevis
Put the spring from the horizontal pivot rod halfway onto the rod. While it is half on attach
the clevis (choosing the hole to match the needed height for your sink or preference).
Next, lock the clevis onto place by completely attaching the spring and sliding it along
the horizontal pivot rod to a desired location.
7Attach Stopper Rod
Loosen the clevis screw until you can insert the stopper rod. Now, from above the sink,
feed the stopped rod down through the faucet opening and through the holes in the
clevis. Tighten down the clevis screw to secure the stopper rod.
8Connect Supplies
Loosen the clevis screw until you can insert the stopper rod. Now, from above the sink,
feed the stopped rod down through the faucet opening and through the holes in the
clevis. Tighten down the clevis screw to secure the stopper rod.
9Flush Lines
Remove the aerator by unscrewing it from the faucet spout. Turn on the hot and cold
water supply lines, and turn the faucet handle to the cold side and lift the handle to the
“on” position. Run the water for 30 to 60 seconds to remove any potential debris. Rotate
the handle to the warn side and run for a minute. During the process watch for any water
leaks in the pipes. Reinstall the aerator and start enjoying your new Dura Faucet.

SPEC DRAWING / PARTS
DF-NML202 – HEAVY DUTY SINGLE LEVER ARC RV
LAVATORY FAUCET
DURA FAUCET LIMITED LIFETIME WARRANTY
Dura Faucet warrants its RV faucets to be leak and drip free during normal use for
as long as the original consumer purchaser owns a Dura Faucet. If the faucet should
leak or drip during normal use, Dura Faucet will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working condition. This
warranty applies only to Dura Faucets installed in the United States of America,
Canada or Mexico (North America). | Dura Faucet also warrants all other aspects
of the faucet or accessories to be free of defects in material and workmanship during
normal usage in a recreational vehicle for as long as the original consumer
purchaser owns his or her Dura Faucet. Plated metal and plated plastic finishes are
warranted for (1) year. If a defect is found during normal use, Dura Faucet will, at
its election, repair, provide a replacement part or product, or make appropriate
adjustment. Damage to a product caused by accident, misuse, or abuse is not
covered by this warranty. Improper care and cleaning will void the warranty. Proof
of purchase (original sales receipt) must be provided to Dura Faucet with all
warranty claims. Dura Faucet is not responsible for labor charges, installation, or
other incidental or consequential costs. In no event shall the liability of Dura Faucet
exceed the purchase price of the faucet. | If you believe that you have a warranty
claim, contact Dura Faucet through our online contact form or send an email to
[e-mail] Please be sure to provide all pertinent
information regarding your claim, including a complete description of the problem,
the product, model number, color, finish, the date the product was purchased and
from whom the product was purchased. Also include your original invoice. If you
don't have an original invoice, a photo of your faucet showing our brand markings is
required. DURA FAUCET AND/OR SELLER DISCLAIM ANY LIABILITY FOR
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states/provinces do not allow limitations of how long an
implied warranty lasts or the exclusion or limitation of such damages,
so these limitations and exclusions may not apply to you. This
warranty gives the consumer specific legal rights. You may also have
other rights that vary from state/province to state/province.
* Never use cleaners containing abrasive cleansers, ammonia, bleach, acids,
waxes, alcohol, solvents or other products not recommended for plated metal
or plastic finishes. This will void the warranty.
Item
Part
Description
01
E0410UA01-CP30
Handle
02
C07400008-CP30
Cap
03
C10300008-ZN39
Adjusting Assembly
04
E031020-54
Ceramic Disk Cartridge
05
D04400008-CP30
Plug
06
C01303701-CP30
Cover
07
E01193711-RZ
Body Assembly
08
E071001-CP30
Aerator
09
C01303702-CP30
Under Cover
10
C10230015-RZ
Mounting Shank
11
E021002-01
Part Assembly
12
C10960072-RZ
Washer
13
C10300004-ZN39
Lock Nut
14
D01950002-RZ
Screw

Dura Faucet Limited Lifetime Warranty
Dura Faucet products have been manufactured under the highest standards of quality
and workmanship. Dura Faucet warrants to the original purchaser for as long as the
original purchaser owns their RV that this product will be leak- and drip-free during
normal use, and that all parts and finishes of this product will be free from defects in
material and manufacturing workmanship. Plated metal and plated plastic finishes are
warranted for (1) year.
If the product should develop a leak or drip during the warranty period, Dura Faucet
will, free of charge, provide the parts necessary to put the product back into good
working condition by you. They may also replace any part or finish that proves
defective in material and manufacturing workmanship, under normal installation, use
and service, free of charge. Proof of purchase (original sales receipt) from the original
purchaser must accompany all warranty claims. Defects or damages caused by the
use of other products or parts is not covered by this warranty. If repair or replacement
is not practical, Dura Faucet may elect to refund the purchase price in exchange for the
return of the product.
This warranty covers replacement of all defective parts and finishes. However, damage
due to product abuse, product misuse, installation error, or the use of cleaners
containing alcohol, abrasives, or other solvents, whether performed by a contractor,
service company, or yourself, will void this warranty. Dura Faucet will not be
responsible for labor charges and/or damages incurred in installation, repair or
replacement, nor any indirect, incidental or consequential damages, losses, or injury
costs of any nature relating to this product. Except as provided by law, this warranty is
in lieu of and excludes all other warranties, conditions and guarantees, whether
expressed or implied, statutory or otherwise, including without restriction those of
merchantability or of fitness for use.
Dura Faucet will advise you on how to proceed in making warranty claims. To begin a
warranty claim, write to Dura Faucet explaining the defect and include proof of
purchase and your name, address and telephone number. Email is
[e-mail].
* Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes,
alcohol, solvents or other products not recommended for plated metal or plastic
finishes. This will void the warranty.
19215 SE 34th St. Ste. 106-382
Camas, WA 98607
