Dura Faucet DF-SA910A User manual

DF-SA910A – RV Shower Faucet and Shower Head

MAINTENANCE AND CLEANING
Cleaning Tips: The finish on your product is designed to retain its beautiful sheen for
years. To maintain the original look of the finish, a little care and caution should be
used. We recommend the use of mild soap and water to clean the product.
THE USE OF ABRASIVE CLEANERS MAY SCRATCH THE FINISH OR CAUSE OTHER
DAMAGE.
RECOMMENDED TOOLS AND MATERIALS
¨ Adjustable Wrench
¨ Plumber’s Tape
¨ Phillips Screwdriver
BEFORE YOU BEGIN
There are a variety of things to do before installing any new plumbing system into your
RV. Before you begin work make sure you:
¨ Shut off the main water supply
¨ Cover your drain to prevent loss of parts
¨ Observed any local plumbing codes
¨ Inspect fixture for damage - Replace as necessary
* Dura Faucet reserves the right to make any revisions in the design of products without
notice.

INSTALLATION

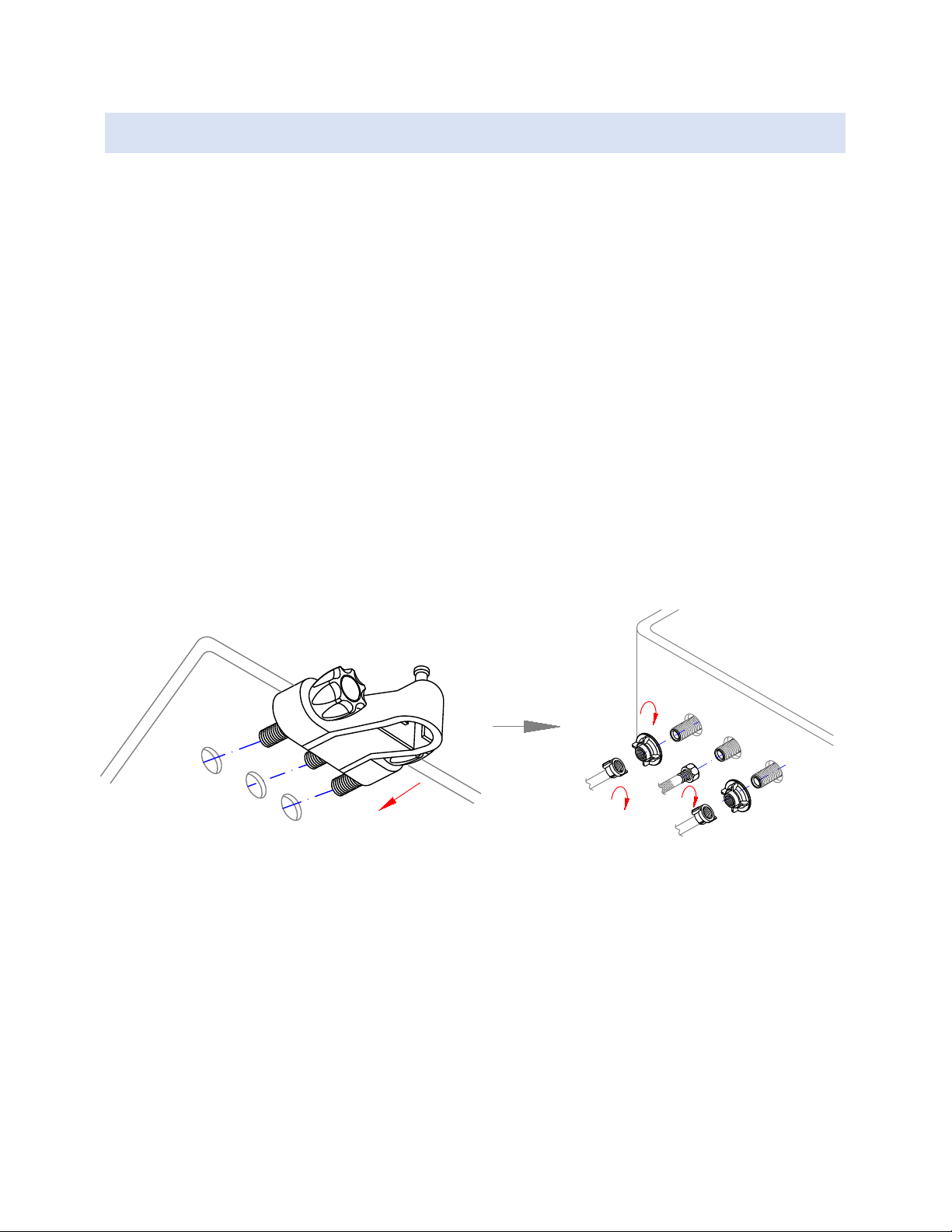

1 New Faucet Preparation
Turn the water to the RV off before installing. Remove the existing fixture. Place the flat
side of the sealing gasket against the wall, and then insert the faucet inlet tubes through
the gasket into the wall. Position the faucet on the wall. You may need to remove an
access panel to access the faucet mounting nuts.
2 Install Faucet
Once inserted, tighten the mounting nuts and washers from behind the wall. Then,
connect the water supply lines from the RV to the inlet tubes of the faucet. As you lace
the faucet, hot water should be on your left, and cold water on your right. Note: Hand
tighten the nuts and then tighten ¼turn with a wrench. Overtightening the nut can cause
leaking.
3Secure the Access Panel (Optional) and Turn on Water
Supply
If you have an access panel, secure it by screwing it back onto the wall using the same
screws used to remove it in step 1. Once secured, turn the water to the RV back on and
check for leaks at the supply line connections. Turn the hot and cold water on for 30 to
60 seconds to remove any potential debris from the lines. You can now enjoy your Dura
Faucet.
奇 流 企 業 股 份 有 限 公 司CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.15 组裝圖
DRAWN DATE DRAWN
DRAWN NO
CL-04228C
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋
H
奇 流 企 業 股 份 有 限 公 司CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.15 组裝圖
DRAWN DATE DRAWN
DRAWN NO
CL-04228C
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋
H
奇 流 企 業 股 份 有 限 公 司CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.15 组裝圖
DRAWN DATE DRAWN
DRAWN NO
H
C
CL-08127
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋

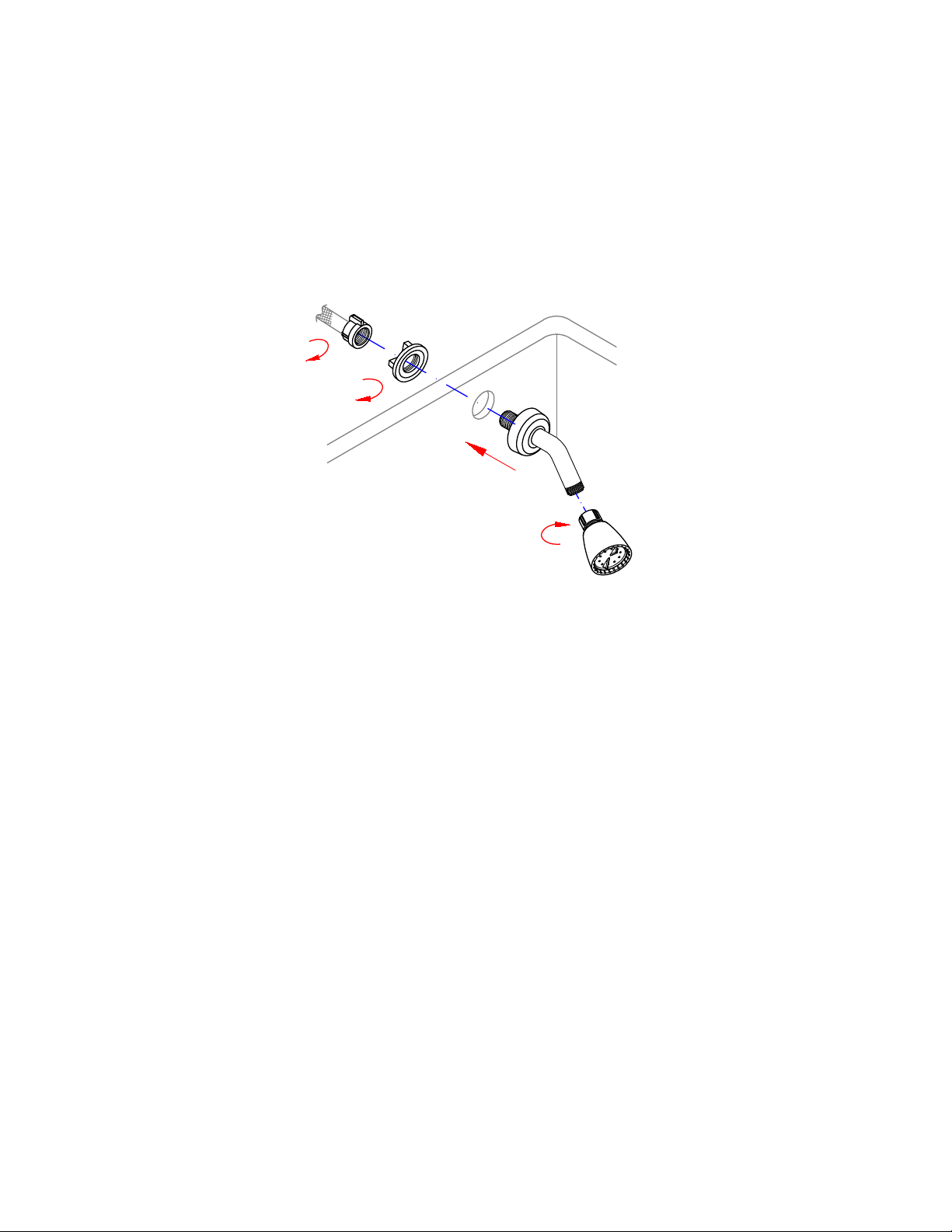

4 Apply Plumber’s Tape and Attach Shower Head
Apply plumber’s tape, also known as thread seal tape, to the outlet side of the shower
arm in a clockwise direction.
Thread shower head by turning it is a clockwise direction. Tighten with an adjustable
wrench. After installing, turn on water supply to check for leaks.
奇 流 企 業 股 份 有 限 公 司CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.15 组裝圖
DRAWN DATE DRAWN
DRAWN NO
H
C
CL-08127
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋

SPEC DRAWING / PARTS
奇 流 企 業 股 份 有 限 公 司 CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.21
CL-04228C
配件圖
DRAWN DATE DRAWN
DRAWN NO
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋
H
C
24
26
27
28
29
32
33
31
30
25
23
22
1S/A
2S/A
3S/A
5S/A
4S/A
6
7
910 11
8
12
13
14
15
17
18
19
20
21
16
ABS Nut (2)
ABS Base (2)
1.
2.
3.
4.
5.
Acrylic/Ai H-Button (1)
Acrylic/Ai C-Button (1)
Stainless Steel Handle Screw (2)
Rubber Activity Plug (1)
11.
10.
9.
8.
7.
6.
Cu Perch (1)
ABS Spout (2)
ABS Pull Rod Head (1)
POM Activity Insert (1)
Rubber O-ring (1)
POM/Rubber/Stainless Steel Cartridge Hot (2)
15.
14.
13.
12
Rubber Washer (2)
Stainless Steel Spring (2)
POM/Rubber Body (1)
16.Rubber O-ring (1)
17.PP Base Plate (1)
ABS Mounting Nut (2)
ABS Coupling (2)
19.
21.
18.Rubber Washer (2)
20.Rubber Washer (2)
Cu Shank (1)
Stainless Cover (1)
22.
23.
Flow Restrictor (1)
31.
29.
28.
27.
26.
25.
Ball Connector (1)
Shower head Cup (1)
POM ring (1)
TPR Set Inside (1)
POM Regular Seat (1)
24.
Rubber O-ring (1)
30.Rubber O-ring (1)
ABS Cover (1)
32.
33.Rubber O-ring (1)
奇 流 企 業 股 份 有 限 公 司 CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.21
CL-04228C
配件圖
DRAWN DATE DRAWN
DRAWN NO
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋
H
C
24
26
27
28
29
32
33
31
30
25
23
22
1S/A
2S/A
3S/A
5S/A
4S/A
6
7
910 11
8
12
13
14
15
17
18
19
20
21
16
ABS Nut (2)
ABS Base (2)
1.
2.
3.
4.
5.
Acrylic/Ai H-Button (1)
Acrylic/Ai C-Button (1)
Stainless Steel Handle Screw (2)
Rubber Activity Plug (1)
11.
10.
9.
8.
7.
6.
Cu Perch (1)
ABS Spout (2)
ABS Pull Rod Head (1)
POM Activity Insert (1)
Rubber O-ring (1)
POM/Rubber/Stainless Steel Cartridge Hot (2)
15.
14.
13.
12
Rubber Washer (2)
Stainless Steel Spring (2)
POM/Rubber Body (1)
16.Rubber O-ring (1)
17.PP Base Plate (1)
ABS Mounting Nut (2)
ABS Coupling (2)
19.
21.
18.Rubber Washer (2)
20.Rubber Washer (2)
Cu Shank (1)
Stainless Cover (1)
22.
23.
Flow Restrictor (1)
31.
29.
28.
27.
26.
25.
Ball Connector (1)
Shower head Cup (1)
POM ring (1)
TPR Set Inside (1)
POM Regular Seat (1)
24.
Rubber O-ring (1)
30.Rubber O-ring (1)
ABS Cover (1)
32.
33.Rubber O-ring (1)
奇 流 企 業 股 份 有 限 公 司 CHI LIU ENTERPRISE CO.,LTD.
繪圖 日期 圖名
圖號
Wang 108.08.21
CL-04228C
配件圖
DRAWN DATE DRAWN
DRAWN NO
+06519A(銅球)
+白鐵彎管
+S/S法蘭蓋
H
C
24
26
27
28
29
32
33
31
30
25
23
22
1S/A
2S/A
3S/A
5S/A
4S/A
6
7
910 11
8
12
13
14
15
17
18
19
20
21
16
ABS Nut (2)
ABS Base (2)
1.
2.
3.
4.
5.
Acrylic/Ai H-Button (1)
Acrylic/Ai C-Button (1)
Stainless Steel Handle Screw (2)
Rubber Activity Plug (1)
11.
10.
9.
8.
7.
6.
Cu Perch (1)
ABS Spout (2)
ABS Pull Rod Head (1)
POM Activity Insert (1)
Rubber O-ring (1)
POM/Rubber/Stainless Steel Cartridge Hot (2)
15.
14.
13.
12
Rubber Washer (2)
Stainless Steel Spring (2)
POM/Rubber Body (1)
16.Rubber O-ring (1)
17.PP Base Plate (1)
ABS Mounting Nut (2)
ABS Coupling (2)
19.
21.
18.Rubber Washer (2)
20.Rubber Washer (2)
Cu Shank (1)
Stainless Cover (1)
22.
23.
Flow Restrictor (1)
31.
29.
28.
27.
26.
25.
Ball Connector (1)
Shower head Cup (1)
POM ring (1)
TPR Set Inside (1)
POM Regular Seat (1)
24.
Rubber O-ring (1)
30.Rubber O-ring (1)
ABS Cover (1)
32.
33.Rubber O-ring (1)
