Durabrand CD-109 User manual

IB-CD109(AD)-WM-E-121302
COMPACT DISC PLAYER
WITH AM/FM RADIO
PLAYS MUSIC COMPACT DISCS
FULLY PROGRAMMABLE CD PLAYER WITH REPEAT PLAY
RECEIVES AM/FM BROADCASTS
POWER LED INDICATOR
2 WAY POWER - AC/DC
REQUIRES 6 SIZE C BATTERIES (not included)
MODEL CD-109
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE USE

IB-CD109(AD)-WM-E-121302
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturers
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquid such as vases shall be placed on the apparatus.
1
WARNING
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
dangerous voltage within
the products enclosure that
may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.

IB-CD109(AD)-WM-E-121302
ADDITIONAL SAFETY INSTRUCTIONS
1. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
2. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.
3. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
4. Servicing - The user should not attempt to service the appliance beyond that described in
the operating instructions. All other servicing should be referred to qualified service personnel.
2
CAUTION
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This compact disc player is classified as CLASS 1 LASER PRODUCT as stated
at the back of the set.
Do not apply oil or petroleum products or solvents to any part of this set.

IB-CD109(AD)-WM-E-121302
1. Use only the type and size of batteries mentioned in the operating instructions
booklet (batteries are not included with this set, please buy the proper batteries).
2. Do not dispose the batteries into a fire. The cells may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
4. Be careful when handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to recharge non-rechargeable batteries. The batteries may leak
corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries identified for use with this product by
heating them. Sudden release of the battery electrolyte may cause burns or
irritation to eyes or skin.
7. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the batteries.
8. When inserting batteries into this product, the proper polarity ( and ) or
direction must be observed. Reverse insertion of some or all of the batteries may
result in battery electrolyte leakage or explosion.
9. Remove the batteries from this product if the product will not be used for a long
period of time (several months or more) since during the period the batteries could
leak, damaging the product.
10. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product. Batteries should be replaced (depending on the product) when
the display gets dim or if the Low Battery Indicator shows or if the sound gets
distorted.
11. Do not store this product in high temperature areas. Batteries that are stored in a
freezer or refrigerator for the purpose of extending shelf life should be protected
from condensation during storage and defrosting. Batteries should be stabilized at
room temperature prior to use after cold storage.
12. If this product does not operate normally, see TROUBLE SHOOTING in this instruction
manual. If you cant resolve the problem, or if the product is damaged, refer to the
LENOXX WARRANTY INFORMATION. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock when
the appliance is subsequently used.
13. If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to touch your skin,
and discard the leaking batteries.
14. Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
15. The use of rechargeable batteries is not recommended for this set because their
voltage and life is lower than standard batteries.
16. Installation of batteries should be done by an adult only.
SAVE THESE INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR
SET, READ AND FOLLOW THESE INSTRUCTIONS.
3
BATTERY SAFETY INSTRUCTIONS

IB-CD109(AD)-WM-E-121302
CHOOSING THE POWER SOURCES
You can use the AC power or batteries as a power source.
1. Connecting the AC power
cord
Insert one end of the supplied AC power cord into
the socket located at the rear of the player, and the
other end to the wall outlet.
2. Using the player on batteries
Insert 6 size C batteries (not supplied) into the
battery compartment.
To use the player on batteries, disconnect and
remove the AC power cord from the player.
4
Insert new batteries as
shown.
Replace the batteries
when the POWER lamp
dims or when the player
stops operating. Replace
all the batteries with new
ones. Before you replace
the batteries, be sure to
take out the CD from the
player and remember to
check the Battery Safety
Instructions on Page 3.
If the CD does not play
on batteries, this means
the batteries are almost
used up. But the radio
may continue to play on
these weak batteries
because it uses less
power than the CD player.

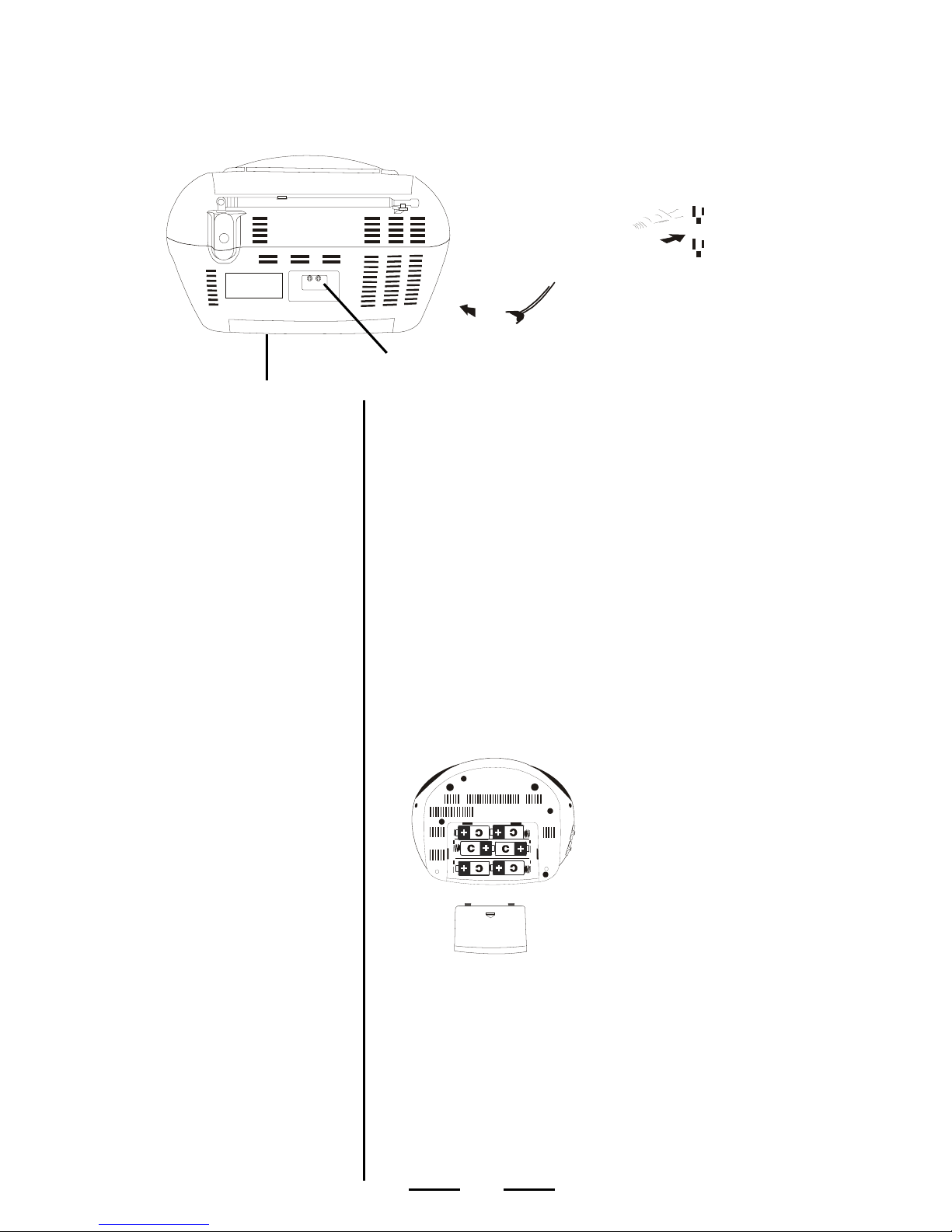

To a wall outlet
AC SOCKET
Battery compartment
NOTE: One blade of the
plug and outlet is wider.

IB-CD109(AD)-WM-E-121302
1Slide the FUNCTION
switch (at the right side of
the set) to CD position,
the POWER lamp will turn
on.
3Close the CD DOOR by
pushing it down. The
display will show the total
tracks of that CD.
4
1
2
Lift the right corner of the
CD DOOR to open it and
place a CD in the CD
compartment. The label
side of the CD should face
upward.
2
Press the CD PLAY
button. The PLAY/
PROGRAM lamp will be
steady on, the player will
play all the tracks in order
once.
4
Connect the supplied AC power cord or batteries (see page 4).
PLAYING A CD
PLAY/PAUSE
5
POWER lamp
TRACK
Track
number
PLAY/PROGRAM
lamp

IB-CD109(AD)-WM-E-121302

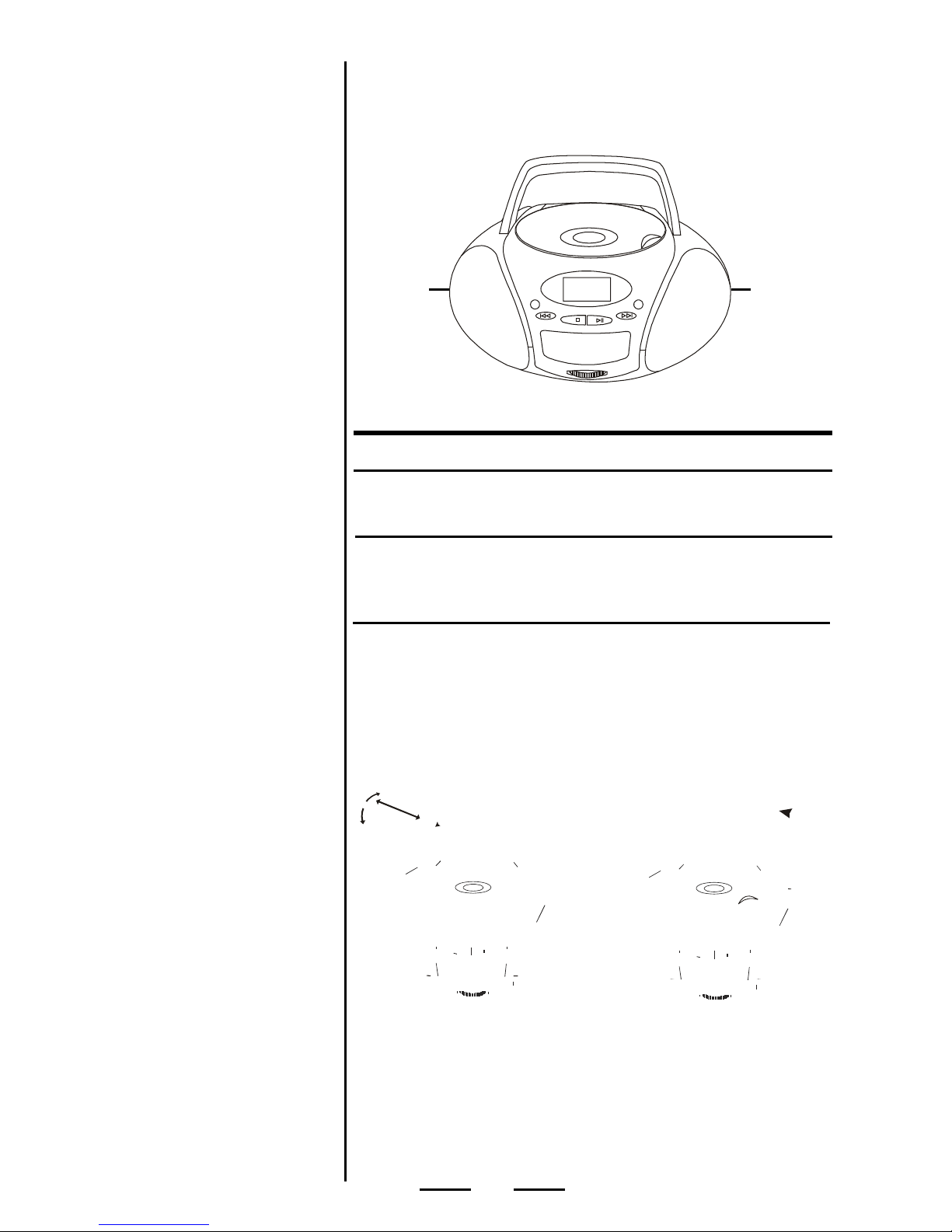

USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Press or Adjust
Adjust the volume VOLUME control
Stop playback
Pause playback The track number will flash
during pause. Press again to
resume play after pause.
Go to the next track
Go back to the previous
track
Locate a point in a song
TIP
Remove the CD Lift the right corner of the CD
DOOR (press STOP first).
VOLUME CONTROL
(at the left side of the set)
FUNCTION SWITCH
(at the right side of the set)
OPEN THE CD DOOR
BY LIFTING HERE
6
If you bump the set
during CD play, the
music will stop or
skip for a few
seconds. This is
normal for this type
of player.
TIP
FORWARDS
BACKWARDS
To enjoy the music
without disturbing others
Insert your headphones (not
included) plug into the
PHONES jack (at the left side
of the set).
PHONES
JACK
STOP PLAY/PAUSE
BACKWARD FORWARD
STOP
PLAY/PAUSE
When CD play is
paused, the track
number will flash
and no music will
play.
To resume play,
press the PAUSE
button again, the
track number will
stop flashing and
music will play.
Turn off the power
Slide the FUNCTION switch
(at the right side of the set)
to OFF position.
BACKWARDS or
FORWARDS , Press
and hold down while playing
until you find the point.

IB-CD109(AD)-WM-E-121302

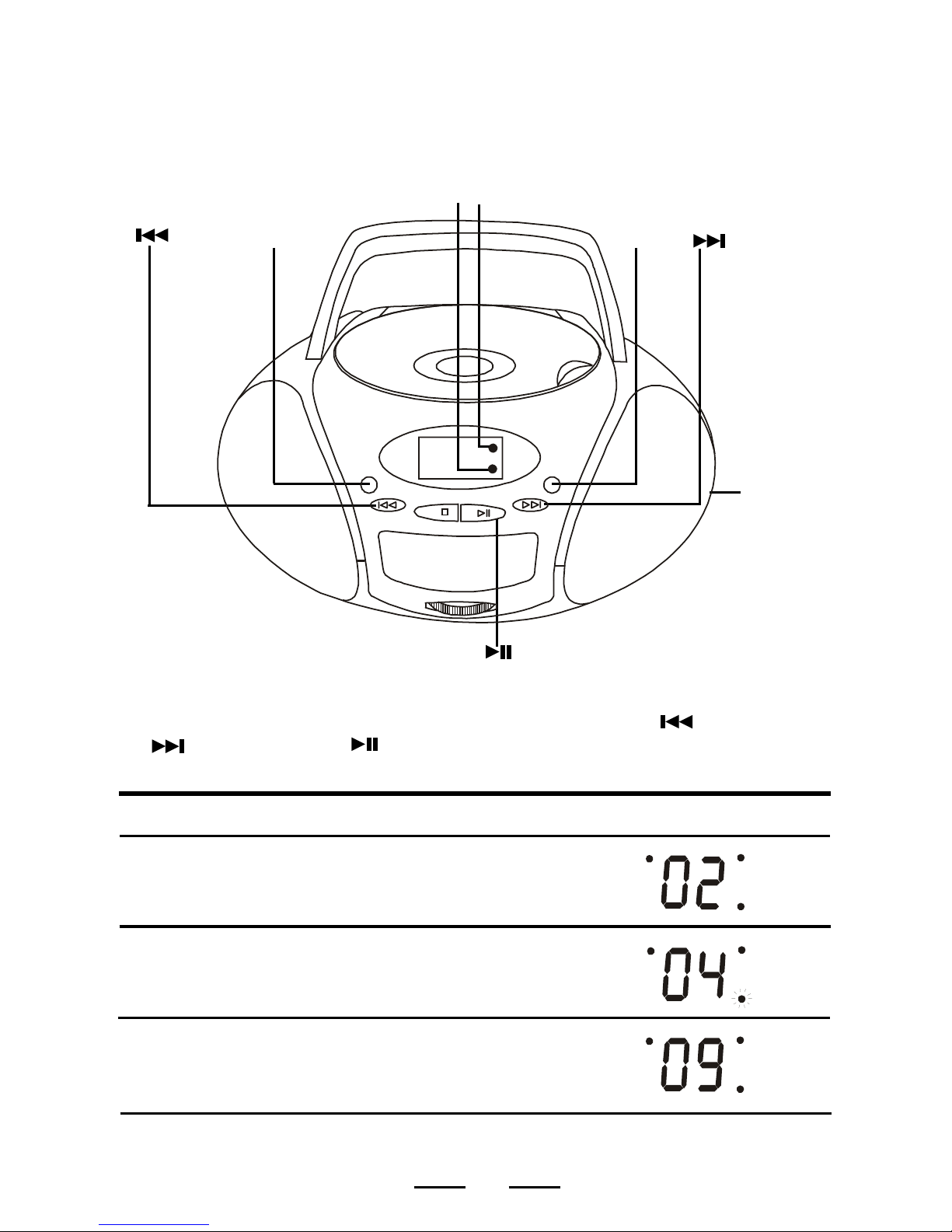

PLAYING CD TRACKS REPEATEDLY
(REPEAT PLAY)
To repeat Press
a single track (song)
all the tracks (all songs)
programmed tracks
FUNCTION
SWITCH
Display shows
PLAY/PROGRAM
LAMP
REPEAT
LAMP
7
RANDOM
BUTTON
BACKWARD FORWARD
PLAY/PAUSE
Press the PROGRAM/REPEAT
button once, the REPEAT lamp
will be steady on.
Press the PROGRAM/REPEAT
button twice, the REPEAT lamp
will be flashing.
PLAY/
PROGRAM
REPEAT
During programmed play, press
the REPEAT button twice, both
the REPEAT and PLAY/
PROGRAM lamps will be flashing.
To cancel Repeat Play
Press the PROGRAM/REPEAT button until the REPEAT lamp goes off.
PROGRAM/REPEAT
BUTTON
PLAY/
PROGRAM
REPEAT
PLAY/
PROGRAM
REPEAT
1. Slide the FUNCTION switch (at the right side of the set) to the CD position.
2. Select the track by pressing SKIP/SEARCH BACKWARD or FORWARD
, and then press .
3. Press the CD PROGRAM/REPEAT button.
You can play CD tracks over and over in normal or programmed play modes (see page 8).

IB-CD109(AD)-WM-E-121302
You can make a program of up to 16 tracks in the order you want them to be played.
PLAY/PROGRAM
LAMP
8
SELECTING YOUR OWN MUSIC PLAYING ORDER
(Programmed Play)
PROGRAM/REPEAT
BUTTON
PLAY/
PROGRAM
REPEAT
1. Slide the FUNCTION switch to CD position.
Make sure the CD is stopped.
2. Press the PROGRAM/REPEAT button. The letters
P0 will show and the PLAY/PROG. lamp will
flash.
3. Press or to select the tracks you want to
program in the order you want.
4. Press the PROGRAM/REPEAT button to confirm.
The letters P1 will show and the PLAY/PROGRAM
lamp will flash.
5. Repeat steps 3 and 4. You can program up to 16
tracks (the display will show Pa, Pb ... Pf
for program#11-16).
6. Press to start programmed play. The PLAY/
PROGRAM lamp will be flash.
To change the current program
Just create a new program following the programming procedure.
To cancel Programmed Play
Slide the FUNCTION switch to OFF position.
Random Play
To play the songs in random order
Press the RANDOM button, and the display will show some moving symbols like
 ... ...  every 5 second.
Press to skip to next random song.
To resume normal play
Press the RANDOM button again.
PLAY/
PROGRAM
REPEAT
PROG./
REPEAT

IB-CD109(AD)-WM-E-121302
LISTENING TO THE RADIO
Connect the supplied AC power cord or batteries (see page 4).
Slide the FUNCTION switch (at the
right side of the set) to RADIO
position, the POWER lamp will turn
on.
3
1&2
1
2
3
Slide the BAND switch (at the right
side of the set) to the proper band
position (AM or FM) that you want.
Tune into the station you prefer
using the TUNING control. Adjust
for the clearest sound.
9

IB-CD109(AD)-WM-E-121302
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Slide or Adjust
Adjust the volume VOLUME control (at the
left side of the set)
TIP
•Next time you want to
listen to the radio, just
slide the FUNCTION
switch to RADIO
position. The player
automatically starts
playing the previously
tuned station.
Turn off the Radio
Slide the FUNCTION switch
(at the right side of the set)
to OFF position
To improve broadcast reception
Change position of the antenna for FM. Move the set
itself for AM.
10
FUNCTION
SWITCH
VOLUME
CONTROL

IB-CD109(AD)-WM-E-121302
PRECAUTIONS
On Safety
As the laser beam used in the CD
player section may be harmful to the
eyes, do not attempt to disassemble
the cabinet. Refer servicing to
qualified personnel only.
Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On Power Sources
For battery operation, use 6 size C
batteries. We recommend alkaline
batteries for longer life.
When the batteries will not be used
for a few weeks or more, remove them
to avoid damage that can be caused
by battery leakage or corrosion.
11
On Operation
If the player is brought directly from a
cold to a warm location, or is placed
in a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate.
On Placement
Do not leave the player in a location
near a heat source, or in a place
subject to direct sunlight, excessive
dust or mechanical shock.
Do not place the player on an inclined
or unstable place.
Do not place anything within 1 inch of
the back of the cabinet. The
ventilation holes must not be covered
for the player to operate properly and
prolong the life of its components.
If the player is left in a car parked in
the sun, be sure to choose a location
in the car where the player will not be
subjected to the direct rays of the
sun.
Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound
watches away from the player to
prevent possible damage from the
magnets.
This CD player is designed to be
played on a stable no vibration
position. If you bump the set during
CD play, the music will stop or skip for
a few seconds. This is normal for this
type of player.

IB-CD109(AD)-WM-E-121302
PRECAUTIONS (continued)
Notes on CDs
Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
12
MAINTENANCE
Cleaning the Lens
Cleaning the Cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzene.
If the lens becomes dirty, it may
cause a skipping of sound during CD
operation. Clean with a commercially
available lens cleaner and blower.
After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause a tracking
error or skipping.
Do not stick paper or stickers on the
CD, nor scratch the CD.
Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature inside
the car.
Do not use solvents such as benzene,
thinner, commercially available cleaners
or anti-static spray intended for vinyl
LPs.

IB-CD109(AD)-WM-E-121302
TROUBLE SHOOTING
Problem Remedy
The power is not on. Connect the AC power cord to a wall
outlet securely.
Make sure the batteries are inserted
correctly and they are fresh.
There is no sound.
Make sure the FUNCTION switch is at
the right position as you want.
Adjust the volume.
Unplug the headphones when listening
through speakers.
 appears in the display
even when a CD is in place. Insert the CD with the label side up.
CD does not play.
Make sure that the CD compartment is
closed.
Place the CD with the label side up.
Clean the CD.
Take out the CD and leave the CD DOOR
open for about an hour to dry moisture
condensation.
Make sure the FUNCTION switch is at CD
position.
Clean the CD, or replace it if the CD is
badly damaged.
Place the player in a location free from
vibration.
Check if your batteries are fresh.
The sound is weak or has
poor quality.
Replace all the batteries with new ones if
they are weak, or bring the set near a
window, or rotate the set.
GeneralCD player
Radio
The sound drops out.
13
CD does not play while radio
may continue to play. It is normal since the radio uses less power
than the CD player.

IB-CD109(AD)-WM-E-121302
SPECIFICATION
General Description
Power source: AC 120V, 60Hz 12Watts
DC 9V (6 size C batteries)
(Alkaline batteries are recommended)
Speakers: 2 - 38 ohm
Output power: 1.5W/channel
Dimensions: Width: 12
Depth: 10
Height: 6
Weight: 3.3LBs (without batteries)
CD Section
Plays disc type: Any normal CD used in portable players
Laser wavelength: 760 - 800 NM
Tracking method: 3 - spot error detection 3.86 mm lens
Radio Section
Frequency range: FM: 88 - 108 MHz
AM: 530 - 1700 kHz
LENOXX reserves the right to make design and specification changes for
product improvement.
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A CLOTH OR OTHER PROTECTIVE MATERIAL BE PLACED
UNDER THE SET WHEN PLACING IT ON SURFACE WITH A NATURAL OR
LACQUER FINISH.
© 2002 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
Frequency response: 50Hz - 15kHz +1/-2dB
14
NOTE: This CD player will only play NORMAL music CDs (or CD-R CDs).
This set will not play CD-RW encoded discs.
