Duracable DM30 User manual

MODEL DM30
MACHINE
MANUAL

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
2
Duracable®Machine Manual
Model DM30
2 Warranty, Parts and Service
3 Safety Labels
4-7  DM30InformationandSpecications

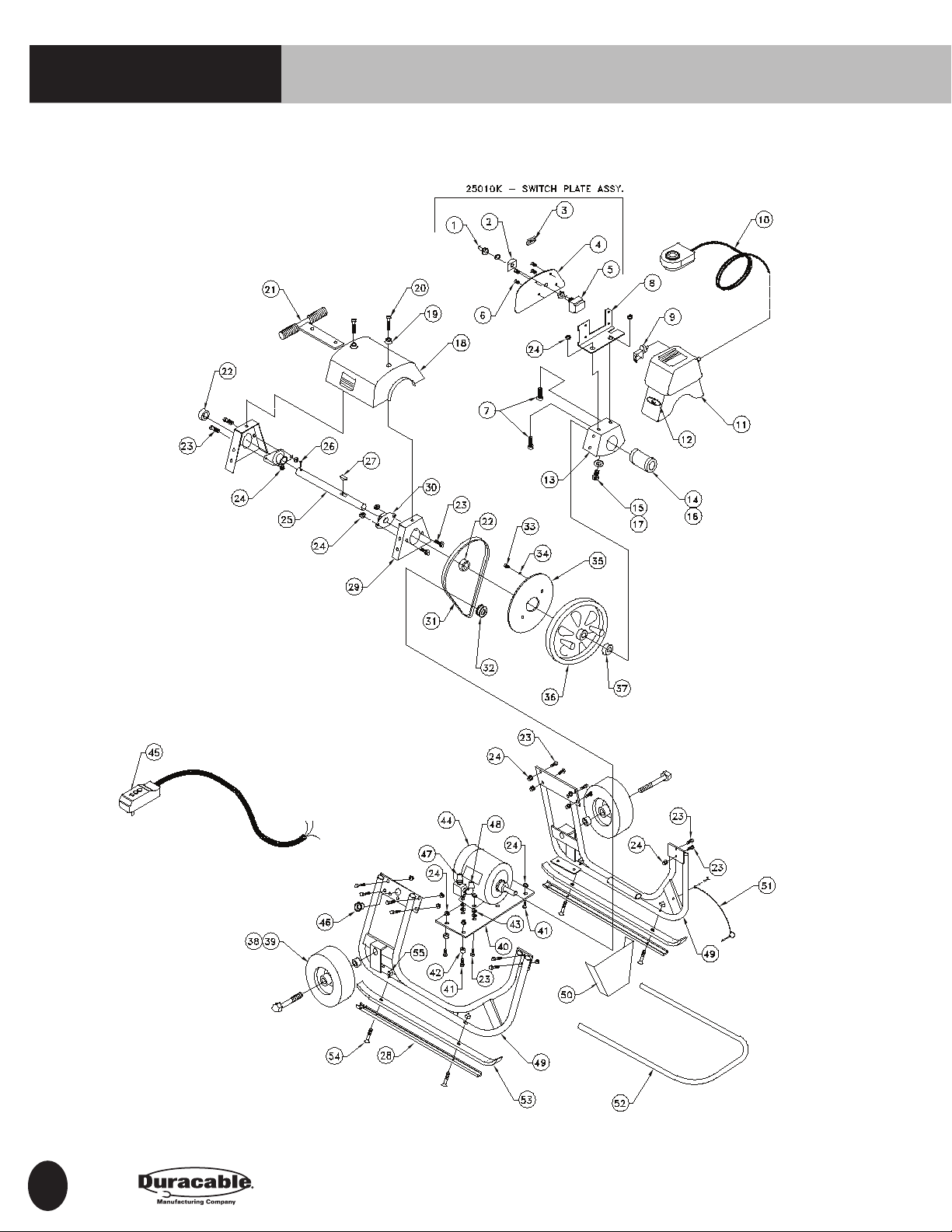

8-12 DM30 Machine Schematics

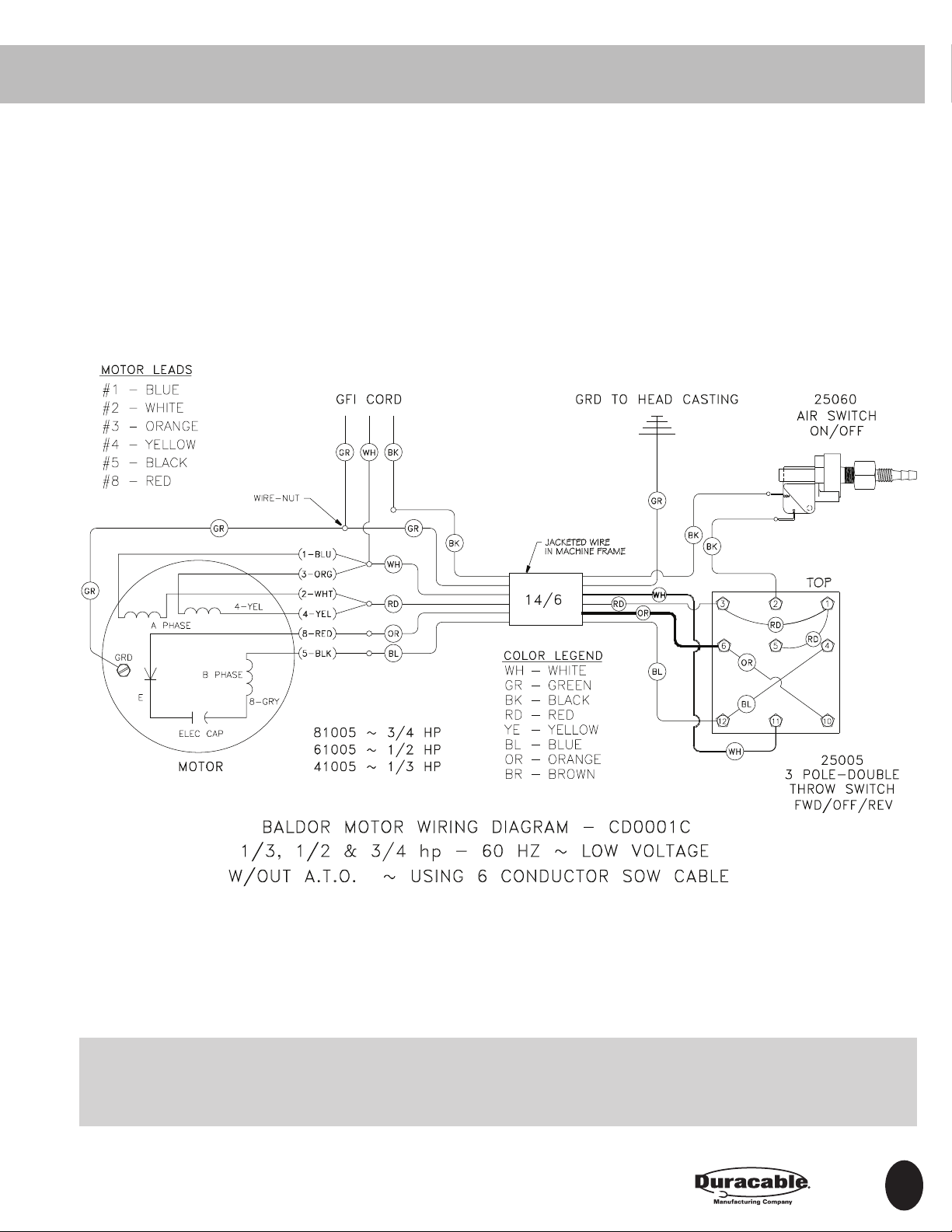

13-14 DM30 Electrical Schematics and Safety Information
15 DM30 Wheel Mounting Instructions

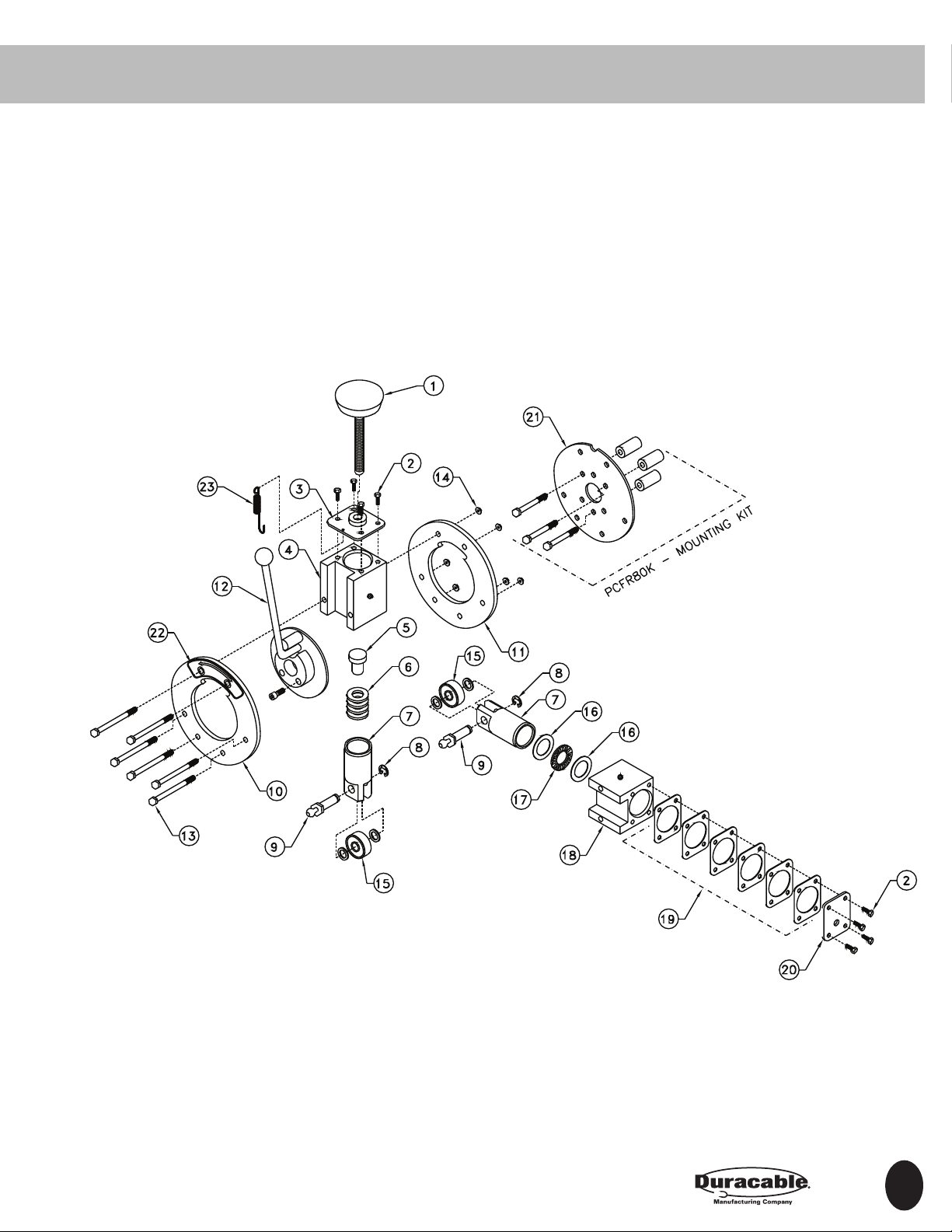

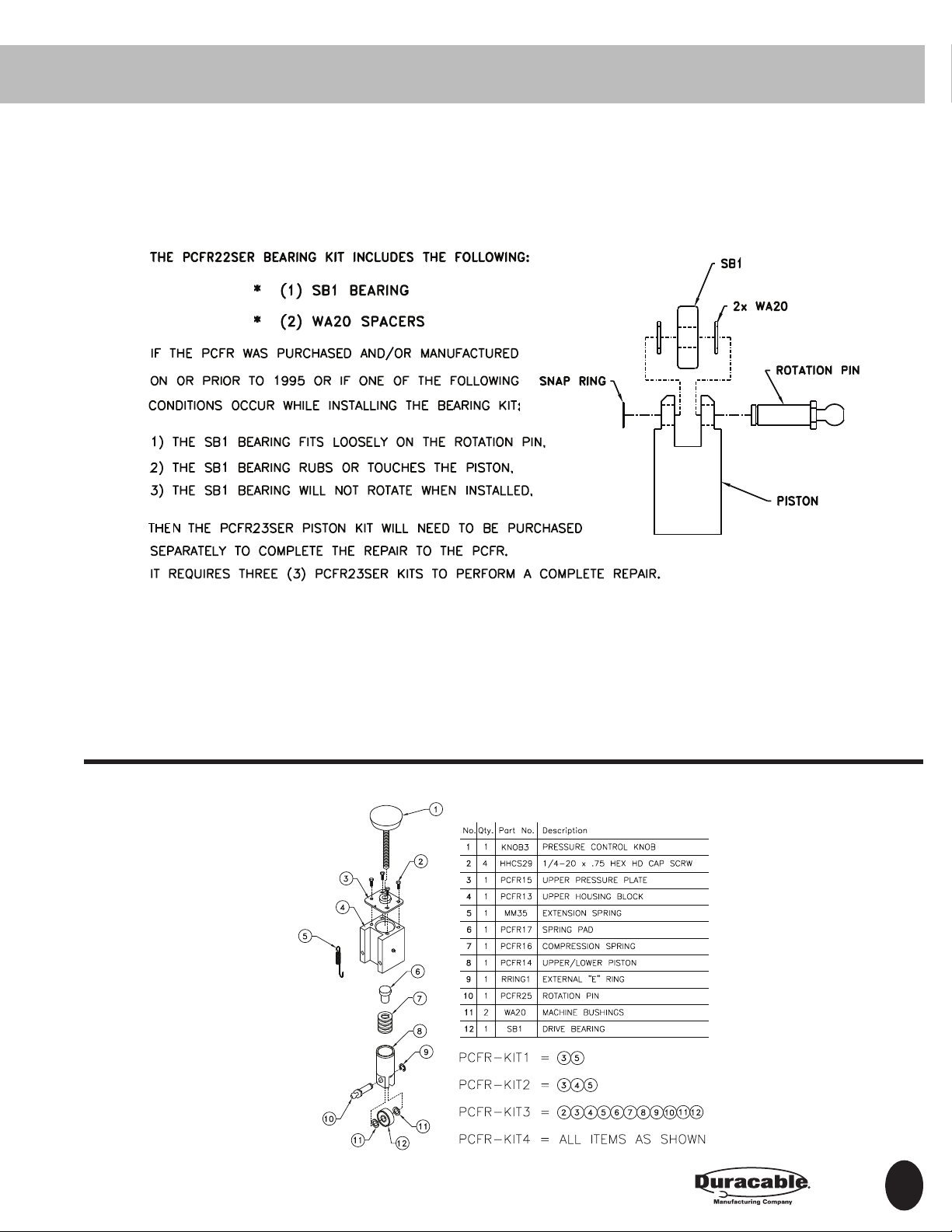

16-20 PCFRInformation,Specications,andSchematics
21 Blade Kit, Tail Pieces, and Leaders
22 How to Splice DuraFlex®Cable and How to Bond End Fittings
WARRANTY
Duracable Manufacturing Company warrants the Model DM30 machine to be free from defects in material and workmanship for a period of two
years from the date of purchase.Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below.
If a defect is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge
for labor or materials (freight is not included).
Warranty of the machine is limited to the original purchaser. Duracable Manufacturing Company assumes no responsibility for damage or
injury from accident, neglect, abuse, misuse or from damage due to repair or alterations by others.This warranty does not cover damage to the
machine from use of parts other than genuine Duracable brand parts.
Duracable Manufacturing Company’s sole obligation and the original purchaser’s sole remedy under this warranty shall be for repair or replacement
as described above. All other warranties, expressed or implied, including but not limited to, implied warranties of merchantability and tness
for a particular purpose, are disclaimed. In no event shall Duracable Manufacturing Company be liable for any incidental or consequential
damages.
PARTS AND SERVICE INSTRUCTIONS
Parts can be purchased from Duracable Manufacturing Company. Service work is also available. Service is performed by trained factory personnel.
Machines sent to the factory for evaluation and repair can be estimated and quoted prior to service work. When sending a machine, be sure to
include the return address and include instructions on how the repair should be handled. Instructions can either be included with the machine,
explained to your account manager over the phone [phone]), or faxed (515-223-4220).
IMPORTANT
Keep this manual in a safe, convenient place for future reference. Important information about this machine, its diagrams and warranty
information are included in this manual.
Serial Number: Date of Purchase:
Duracable Manufacturing Company
300 Ashworth Road, West Des Moines, IA 50265
Table of Contents

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 3
Model DM30
Safety Labels
Duracable Manufacturing Company uses three signal
words on its safety labels and instructions.These words have
the following denitions:
A ‘Danger’ label indicates an imminently hazardous
situation that, if not avoided, will result in death or serious
injury. This signal word is to be limited to the most extreme
situation, typically for machine components that, for functional
purposes, cannot be guarded. The word ‘danger’ will be in
white letters on a red background.
A ‘Caution’ label indicates a potentially hazardous situation
that, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices. The word
‘caution’ will be in black letters on a yellow background.
The safety label format includes the signal word and
symbol, a picture (not required), and the message.
A ‘Warning’ label indicates a potentially hazardous
situation that, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when guards
are removed. It may also be used to alert against unsafe
practices. The word ‘warning’ will be in black letters on an
orange background.
DANGER
WARNING
CAUTION

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
4
Duracable®Machine Manual
Model DM30
Information and Specifications
Safe Machine Operation
Read this machine manual thoroughly before assembling or
operating the machine. Become familiar with its controls and
proper use before operating. Keep this manual in a handy place
for reference and parts replacement referral.This machine is
designed specically for the purpose of opening and cleaning
drains. Use it for this purpose - do not use it for other purposes.
Use gloves to protect your hands. Wear them to feed and
retrieve cable. Use a material that cannot be easily grabbed by
the cable. Most leather gloves and certain rubber gloves work
well. Duracable Manufacturing has each type available through
the Duracable Product Catalog. Also, avoid the use of loose-
tting clothes or jewelry when operating this machine. Keep
guards in place to protect the operator from the electric motor
and electrical wiring.These guards are for safety protection and
must be in place when running the machine.
Each machine is equipped with an air foot pedal. Use of the air
foot pedal to operate the machine is required for safe operation.
This allows the machine operator to turn the machine on or off
with the foot while keeping both hands on the cable. Select a
work area free from obstruction with room to work. Keep the
machine within three feet of the pipe opening, allowing only
enough room to work.This is required to shorten the length
of exposed cable, thus providing maximum control in high-
torque situations.Take a position that is comfortable to the left
or right side of the machine for feeding or retrieving cable. For
high work openings, the machine can be placed on its back as
conditions require.
When performing a job, use the smallest blade rst. Rinse the
pipe after each blade is run through the line in order to clean out
loosened debris.Then follow with the increasing sizes of blades
until the size used is one that actually scrapes the side of the
pipe or sewer. The blades are exible and can be compressed
to enter most cleanout openings. Centrifugal force created by
the spinning cable forces the blades to expand to their natural
diameter or to the walls of the pipe. It is advisable to maintain
a very keen cutting edge on the blades at all times. Place two
hands on the cable between the outlet of your machine and the
cleanout and keep them there at all times during operation.Your
hands placed in the proper position will provide a guide for the
cable.
As the blade makes contact with an obstruction in the line, it
stops the blade from turning and builds torque in the cable. Do
not permit the blade to get hung up in an obstruction for more
than three seconds.Torque buildup can be both helpful and
dangerous. It is helpful when pulled from the obstruction in a
timely manner. When the cable is pulled away, the tension is
released and the blade turns at a high speed. When the blade is
free, feed it back into the obstruction to make use of the built-up
power to clean the line. It is dangerous because excess torque
can cause looping over of the cable. Serious injury to ngers
and hands is possible unless precautions are observed.
When retrieving cable from the line, feed the cable into the
machine until the blade is close to the cleanout opening. Shut
off the machine and hand-feed the remaining cable into the
machine.
Use of a Power Cable Feed and Return (PCFR) will reduce stress
and strain on both the drain cleaning machine and the service
technician. Duracable Manufacturing recommends a PCFR unit
be used on every Model DM30 machine.This unit mounts in
front of the head casting assembly and with movement of a
handle will feed or retrieve cable from a sewer line. Mounting
time for the unit is minimal.
Unpacking Your Machine
The Model DM30 is shipped to you with the following parts:
the base machine, a reel, a revolving arm, a oating ring, and
a oating ring attachment. When it arrives, remove the parts
immediately and inspect for damage. If any of the contents are
damaged, contact your motor freight carrier immediately.
AssemblingYour Machine
• Set the base machine in a down position on its rails.
• Pick up the reel with the cone shape to the front of the machine
(toward the switches), and slide it onto the reel shaft. Be sure
the orange drive lugs slide into the openings in the back of the
reel and engage fully.
• Place the oating ring inside the reel and mount it to the tail
piece or cable using the oating ring attachment. Attach a tail
piece (10’ of cable) to the oating ring attachment.
• Feed the tail piece through the revolving arm until about 1” of
the cable shows.
• Position the revolving arm inside the reel.
• Place the revolving arm with cable extended into the rear side
of the head bearing.
• Position the extension shaft on the revolving arm into the
center of the reel bearing.
• Slide the tail piece through the head bearing. Attach the full
length of cable to the tail piece and feed cable back into the
machine.
MovingYour Machine
Break the machine down into lighter-weight components to
move it to and from the job site.To do this, wrap the GFCI cord
and the air foot pedal cord in a convenient spot on the machine,
remove the revolving arm from its assembled position (leave
the cable inside it and keep it with the reel), and remove the
reel assembly. Various accessories are available from Duracable
Manufacturing to assist and protect the operator during the
moving process.
Lubrication Maintenance
Caution: Do not over oil these points.
• Head Bearing Assembly -The roller bearing, located in the
front assembly, requires monthly lubrication. Use a grease gun
to lubricate the zerk tting with multipurpose grease. A lithium-
base grease is recommended.
• Reel Shaft and Reel Bearings -The reel shaft requires monthly
lubrication. Use a multipurpose grease or heavy oil. Keeping
the shaft lubricated means the reel will slide freely and will not
‘freeze’ to the shaft and need to be repaired.The reel bearings
require some light oil monthly.
• Wheels - A light oil on the axle every month keeps the wheels
rolling freely instead of ‘freezing’ to the axle.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 5
Model DM30
1/2 HP Motor
200 rpm
Belt Drive
21” Reel
5/8” x 100’ Cable
PCFR
2-Year Warranty
Telescoping Handle
Continuous Weld
Frame Construction
USES:
2” to 6” lines,
Residential,
Roof Vents ,
Floor Drains,
Light Commercial
Model DM30
DM30 with 21PRS, 21” Enclosed Polyethylene Reel DM30 with D1J1, 21” Open Metal Spoke Reel
Cable Care Instructions
Take care of your cable for optimum performance.The
recommended care procedure is as follows:
• Break in a new cable.To relieve the stress on new cable that
has been coiled since its manufacture, put it in a clean line and
run it for 10 minutes.
• Oil the cable once a week.
• Rinse the cable immediately after each use with the hottest
water available.This is especially important if the cable was in
acid or alkali during use.
• When one end of the cable begins to show wear, rewind and
use the opposite end. (Tip: order the same kind of end ttings
on both ends of the cable.)
• If the cable kinks, cut out the kink and splice the cable ends
together.
Reel Attachment
The reel you select is set in place and slipped onto the reel shaft.
Drive lugs are mounted on the drive plate and slip through the
opening in the back of the reel.The reel is held in place by the
revolving arm.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
6
Duracable®Machine Manual
Model DM30
As shown above with 21PRS reel, wide wheels, PCFR and a stubbed GFCI
cord. (See options on the next page.)
Frame
The Model DM30 is a powerful machine, constructed of durable
materials and engineered with your safety in mind.The basic frame
is constructed of aluminum alloy.This alloy is structurally as strong
as steel. A double tube frame adds stability, yet the total weight of
the machine, including the 21” reel and revolving arms, is only 75
pounds.
Electrical Wiring
The machine’s electrical wiring is ran through the top of the frame
so normal wear will not expose the wiring.The Ground Fault Circuit
Interrupter (GFCI) is built into the electrical outlet cord for added
safety.The air foot switch is standard on the DM30.This switch allows
the operator to turn the machine on and off with the foot while the
hands stay on the cable.
RPM/Drive
The Model DM30 features a 1/2 HP, 200 rpm Industrial Fractional
Horse Power motor that easily tackles lines up to 6” in diameter with
1/2” or 5/8” cable.
Front Assembly
The front assembly provides the housing for three switches: the on/
off switch, the air foot switch, and the spring loaded on/off/reverse
switch.The front control assembly is covered by a molded one-piece,
high-impact polycarbonate cover. It is custom-tted and bolted to the
frame.
Maneuverability
The Model DM30 has wheels for mobility and ground clearance as
well as a telescoping handle.The wide wheels are standard and there
are also optional narrow wheels.
Cable and Reel Selections
The DM30 was designed to handle several reel sizes. These provide
the operator with exibility of cable size and length.
MachineSpecications(specsareapproximates)
Length
Standard Machine with Wheels..............................40.25”
Width
Standard Machine with Wheels..............................23.75”
Height
Standard Machine with Wheels .............................20”
Weight
Base machine with 25 lb. 1/2 HP motor ................100 lbs.
Narrow wheels ........................................................13 lbs.
Wide wheels ............................................................12 lbs.
PCFR .........................................................................12 lbs.
Line Size ...................................................................2” to 6”
Recommended Use: residential lines, roof vents, and light
commercial.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 7
Model DM30
REELS
* Add CH in front of cable part # for Hollow Core
* Add CI in front of cable part # for Inner Core
* Add CC in front of cable part # for Cable-in-Cable (11/16” x 50’ or 11/16” x 100’ only)
* Add OH in front of cable part # for Oil Tempered Hollow Core (11/16” only)
* Maximum length of cable is not always the recommended length.
* Custom lengths are available.
Reels Reel Attachments
(Optional -
Universal for all
Cable Diameters)
Floating Rings, Attachments &
Tail Sections (Optional)
Revolving
Arm
Cables
Part# Dimen-
sions
Description Part# Rings &Tail
Sections
Ring Attachments Part# Part# Dimensions
D1S 16" dia.,
8" h
Open Metal
Spoke
D3L D2JS
D2JS
D2JS
D2JS
D3E
D3E
D3E
D3E
D8L6
D8L6
D8L6
D8SL6
__25-100
__31-090
__38-090
__50-075
1/4" up to 100'
5/16 up to 90’
3/8” up to 90’
1/2” up to 75’
D1SE 16" dia.,
9" h
Enclosed Metal
Spoke
D3S D2JS
D2JS
D2JS
D2JS
D3E
D3E
D3E
D3E
D8L6
D8L6
D8L6
D8SL6
__25-100
__31-090
__38-090
__50-075
1/4" up to 100'
5/16 up to 90’
3/8” up to 90’
1/2” up to 75’
16PRS 16" dia.,
6.5" h
16" Sled - Poly None None
TS38-004
TS38-004
None
None
None
D8L6
D8L6
D8L6
__25-100
__31-090
__38-090
1/4" up to 100'
5/16 up to 90’
3/8” up to 90’
D1S1 19" dia.,
8" h
Open Metal
Spoke
D3L D2JM
D2JR
D3E
D3R
D8SL6
D8SL6
__50-090
__62-080
1/2" up to 90'
5/8” up to 80’
D1S1E 19" dia.,
9" h
Enclosed Metal
Spoke
D3S D2JM
D2JR
D3E
D3R
D8SL6
D8SL6
__50-090
__62-080
1/2" up to 90'
5/8” up to 80’
19PRS 19" dia.,
6"h
19" Sled - Poly None TS50-004 None D8SL6 __50-090 1/2" up to 90'
D1J1 21" dia.,
8.5"h
Open Metal
Spoke
D3 D2JM
D2JR
D2J1
D3E
D3R
D3RJ
D8K6S
D8K6S
D8K6S
__50-090
__62-080
__69-080
1/2" up to 90'
5/8” up to 80’
11/16” up to 80’
D1J1E 21" dia.,
8.5"h
Enclosed Metal
Spoke
D3S D2JM
D2JR
D2J1
D3E
D3R
D3RJ
D8K6S
D8K6S
D8K6S
__50-090
__62-080
__69-080
1/2" up to 90'
5/8” up to 80’
11/16” up to 80’
21PRS 21" dia.,
9.5"h
21" Sled - Poly None TS62-004
TS69-004
None
None
61RA
61RA
__62-080
__69-080
5/8" up to 80'
11/16” up to 80’
Machine Accessories
Part # Description
61005 1/2 HP Motor
PCFR Power Cable Feed & Return
WWK10 Wide Wheels (10” dia. x 3-1/2” w)
NWK10 Narrow Wheels (10” dia. x 2-1/4” w)
DRC14 Reel Cover for 14” Open Reel
DRC16 Reel Cover for 16” Open Reel
DRC19 Reel Cover for 19” Open Reel
DRC21 Reel Cover for 21” Open Reel

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
8
Duracable®Machine Manual
Model DM30

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 9
Model DM30
Parts Identication
Item# Qty. Part# Description
1 25010K Switch Plate Assembly
1 1 ECT26 Rubber Switch Boot
2 1 25015 Switch Guard
3 1 25065 Decal, Forward/Off/Reverse
4 1 25010 Switch Plate
5 1 25005 Detent Switch, Wired with Jumpers
6 4 PHSC14 #10-24” x 1/2” Pan Head Machine Screw
7 2 SHCS11 5/16”-18 x 1” Socket Head Cap Screw
8 1 25115 Switch Bracket
9 1 25060 Air Foot On/Off Switch
10 1 25073K Foot Pedal Assembly
1 25073 Foot Pedal with 8’Tubing, Metal Housing
1 HCL8 Clamp, Constant Tension
11 1 25020K Switch Housing Assembly with Decals
1 25020 Switch Housing
1 25015 Switch Guard
1 25067 Decal, Foot Switch Danger
12 2 D25000 Decal, Machine Logo
13 1 25100 Head Casting
14 1 25106 Head Bearing, Nylatron Assembly
15 1 SHCS15 3/8”-16 x 3/4” Socket Head Cap Screw
1WA10 3/8” Split Lock Washer
16 1 25105 Head Bearing, Steel
17 1 25110 Grease Fitting
1 CXA Adapter
1 ZERK2 1/4”-28 Straight Grease Zerk
1WA12 13/32” x 13/16” x 1/16” Zinc Flat Washer
18 1 25030K Top Cover with Decals
1 25030 Top Cover
1 25063 Decal, Guard Danger
1 25066 Decal, Step Warning
1 25068 Decal, Electrical Danger
19 2 25130 Bushing,Top Cover
20 2 SHCS11A 5/16”-18 x 1-1/4” Socket Cap Head Screw
21 1 25050 Vertical Support with Grips
2 PH-1G Handle Grip, Black
22 2 25125 Collar, Reel Shaft
NOTE: Quantity column refers to “Total number required for
machine”. Parts can be ordered in single quantities.
NOTE: Part numbers ending with “K” represent a kit.
Each kit is made up of the parts listed below the “K” number.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
10
Duracable®Machine Manual
Model DM30
Parts Identication
Item# Qty. Part# Description
23 20 FLSC1 5/16”-18 x 3/4” Hex Head Flange Screw
24 24 FLNUT3 5/16”-18 Hex Flange Nut, Locking
25 1 25140 Shaft, Reel
26 1 FILHMS1 #10-24 x 3/8” Fillister Machine Screw
27 1 KEY6 1/4” x 1/37” Square Key
1 KEY2 1/4” x 3/4” Woodruff Key (Old Style)
28 2 61052 Stair Glide
29 2 25095 Mounting Plate, Bearing
30 2 SB5 Bearing, Reel Shaft
31 1 61010C Belt, 4L x 44
32 1 25085 Sheave, 4L x 1-3/4” outside diameter
33 6 PHSC12 #10-24 x 3/8” Pan Head Machine Screw
34 6 WA5 #10 ExternalTooth Lock Washer
35 1 61008 Guard, Sheave
36 1 61010B Sheave, 4L x 13-1/4” outside diameter Assembly
2 25090 Drive Lug Assembly
1 25090A Drive Lug
1 MM4 Drive Lug Cap, Red
1WA10 3/8” Split Lock Washer
37 1 25120 Bushing, Reel Shaft
38 1 NWK10 Narrow Wheel Kit
2 JWKN Wheel, 10” Narrow Solid
2 HHCS27 3/4”-10 x 5” Hex Head Cap Screw
2HXNUT17 3/4”-10 Hex Nut
2WA18 Bushing, Narrow Wheel
2 CPSS3 1/4” - 20 x 1/4” Cup Point Set Screw
39 1 WWK10 Wide Wheel Kit
2 JWKW Wheel, 10” Wide Semi-Pneumatic
2 HHCS28 3/4”-10 x 6” Hex Head Cap Screw
2HXNUT17 3/4”-10 Hex Nut
2 25145 Bushing, Wide Wheel
2 CPSS3 1/4” - 20 x 1/4” Cup Point Set Screw
40 1 61030 Mounting Plate, Motor
41 4 FLSC9 5/16” -18 x 1” Hex Head Flange Screw
NOTE: Quantity column refers to “Total number required for
machine”. Parts can be ordered in single quantities.
NOTE: Part numbers ending with “K” represent a kit.
Each kit is made up of the parts listed below the “K” number.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 11
Model DM30
Parts Identication
Item# Qty. Part# Description
42 4 61044 Stand-Off, Motor Plate
43 8 WA15 1/3” x 3/4” x .07” Stainless Steel Flat Washer
44 1 61005 Motor, 1/2 HP
45 1 25165 GFCI Cord
46 1 ECT34 Strain Relief, 90 degree Snap Elbow
1 ELN1 1/2”-14 NPT (National PipeThread) (National Pipe Thread) Lock Nut
47 1 ECT30 1/2” Strain Relief, Straight
1 ELN1 1/2”-14 NPT (National PipeThread) (National Pipe Thread) Lock Nut
48 1 ECT34 1/2” Strain Relief, 90 degree Snap Elbow
1 ELN1 1/2” -14 NPT (National PipeThread) (National Pipe Thread) Lock Nut
49 1 D61015 Frame Set: Right & Left Frame Painted
50 1 61009 Guard, Motor
51 1 MM14 Detent Ring Pin with Lanyard Attached
1WA5 #10 ExternalTooth Lock Washer
1 PHSC14 #10-24 x 1/2” Pan Head Machine Screw
52 1 61025 Handle Assembly
2 RLPIN12 3/8” diameter x 1-3/8” Roll Pin
53 2 61051 Reinforcement Strip (Left and Right)
54 4 FHMS11 5/16”-18 x 1-3/4” Flat Head Machine Screw
55 4 HXNUT9 5/16”-18 Hex Acorn Nut
NOTE: Quantity column refers to “Total number required for
machine”. Parts can be ordered in single quantities.

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
12
Duracable®Machine Manual
Model DM30
Mounting Instructions for Sheave Guard
Mounting Instructions for Sheave Disc

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 13
Model DM30
The wiring diagram for the basic DM30 is shown above. If you experience any electrical difculties in operating your
machine, or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use
of your machine immediately and have a qualied electrician repair it, or return it for repair to Duracable Manufacturing.
Electrical Schematic

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
14
Duracable®Machine Manual
Model DM30
Handle with Care
Most of us take electricity for granted. It has been with us since
the day we were born. We use it every day for light, phone,
home appliances, tools, and other equipment that helps us
maintain our standard of living. Although electricity is one of
the safest energy forms, we tend to forget how powerful and
dangerous it can be if not used properly.
Every year many people are injured or killed by electricity.
Most of these accidents could have been prevented with
simple precautions and careful use of electricity. Following are
some tips to help avoid electrical accidents. Read through this
information. Be sure you understand its importance. If you have
questions or feel you may have a potential electrical hazard, tell
your supervisor or call a qualied electrician immediately.
General Electrical Guidelines
Remember, electricity is always trying to make a circuit. It can
travel through an electric wire, metal pipe, or even your body.
Electrical shock can occur when you come in contact with an
energized electrical unit and a good conductor. Shock can range
from a slight tingle to a severe burn, or death by electrocution.
Electrical accidents happen in everyday situations. Most
electrocutions occur in a wet environment or when an electrical
product is being repaired or installed.Think about, and take
precautions against, potentially dangerous situations.
When disconnecting electrical cords, pull on the plug rather
than the cord to avoid damage. Use rubber gloves and rubber
boots or insulated shoes to protect yourself, especially if you
are in a wet or damp environment.
Before using this machine, make sure a properly grounded,
three-prong, 110-volt outlet is available. Where it is not available,
use a three-prong adapter and connect the grounding lug to a
known ground. Never cut off a grounding prong to t a two-
prong outlet.This eliminates the ground protection.
Electrical Procedures
Do not leave the machine plugged in when not in use. Even with
the switch off, a machine can shock or electrocute its handler.
The DM30 machine must be grounded to protect the operator
from shock.This is accomplished by using the Ground Fault
Circuit Interrupter (GFCI) Cord to ensure proper grounding.
Check electrical cords before each use for signs of damage.
Repair or replace cords which are pinched, cracked, frayed, or
worn. Remember, the GFCI offers no protection against electric
shock for wiring preceding it in the system.Your GFCI is direct-
wired to the machine, plug the GFCI into the power source
receptacle.
Discontinue use and repair immediately any machine that
causes the slightest shock or is damaged in any way. It could
lead to a serious electrical shock or electrocution.
Inspect the machine daily for wear or damage that might expose
live electrical parts.
GroundFaultCircuitInterrupters(GFCI)
A GFCI works by detecting changes in electrical current ow.
It breaks the circuit before serious injury can occur. For your
protection, heed the “DANGER” warning on the machine cover
an use the GFCI cord.The GFCI must be tested before each use.
Use the following procedure:
• Insert the unit into a 110-volt, AC-grounded receptacle;
• Push the “test” button in - the red indicator light should go
off;
• Push the “reset” button in - if the red indicator light goes on,
the unit is ready for use;
• Do not use the unit if the light does not go on when reset;
• Do not use the unit if the indicator light remains on when the
test button is pushed.
Extension Cords
• Use extension cords only when necessary.
• Position cords in use to prevent tripping hazards. Do not
place them in areas where they can be damaged by trafc.
• Avoid coiling extension cords during use to prevent possible
overheating of the cord.
• Discard cracked or damaged cords.
•The following cord sizes and lengths should be observed
according to the National Electrical Code when using this
machine:
• 12 gauge wire - 75’ of cord, including 25’ of GFCI cord.
• 14 gauge wire - 50’ of cord, including 25’ of GFCI cord.
• Cord sizes smaller than 12 gauge should not be used for 3/4
HP motors. Larger gauge cords can be run greater distances,
but are not practical because of their size and weight.
• To protect your motor, observe the guidelines mentioned.
If you have a run more than 75’, use a generator to reduce
your cord length from the power source to a working distance
within these guidelines.
Overhead Power Lines
• When working outdoors, keep clear from overhead power
lines in all directions.
• Check the location of power lines before using a ladder. Use
approved ladders made of non-conductive material.
• Never place a ladder where it can slide into a power line.
• When carrying or moving a ladder or equipment, lower it to
avoid touching a power line.
• Never assume that a wire is safe to touch.
Electrical Safety

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 15
Model DM30
Narrow Wheel Mounting Instructions
NWK10
Narrow Wheels (10” dia. x 2-1/4” w)
NWK10
Narrow Wheels (10” dia. x 3-1/2” w)
WWK10 (left) and NWK10 (right)
Wide Wheel Mounting Instructions

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
16
Duracable®Machine Manual
Model DM30
The Power Cable Feed & Return (PCFR) is designed to help you
run long lengths of cable into and out of lines. It will help you cut
through roots or heavy blockages in any drain line.
The PCFR’s Length is 6”; Width is 9”; Height is 12”; and Weight
is 12 pounds.
The PCFR is standard equipment on Model 6100. Note: The
recommended grease for the housing blocks is Lps®Thermaplex
70614 or Lubri-Plate®630-Aa. Lubricate the rotation pin and
bearing surface with Lps®2 Industrial Lubricant 00216, WD-40®
Lubricant or equivalent.
Adjusting PCFR by Cable Size
3/4” Cable - 6 Sizing Plates per Block
11/16” Cable - 5 Sizing Plates per Block
5/8” Cable - 4 Sizing Plates per Block
1/2” Cable - 2 Sizing Plates per Block
13/32” Cable - 1 Sizing Plate per Block
3/8” Cable - 0 Sizing Plates per Block
Power Cable Feed and Return (PCFR)
POWER CABLE FEED & RETURN PISTON KIT
Kit Part # Description Included Parts # Quantity Description of included Parts
Power Cable Feed & Return Piston Kit PCFR14
PCFR25
RRing1
SB1
WA20
1 PCFR Piston
1 PCFR Rotation Pin
2 11/16” x 1/32” x 11/32” External Retaining Ring
1 PCFR Drive Bearing
2 1/2” x 3/4” x 1/16” Washer
Quantity Description of included Parts
1 PCFR Drive Bearing
2 1/2” x 3/4” x 1/16” Washer
POWER CABLE FEED & RETURN BEARING KIT
Kit Part # Description Included Parts #
Power Cable Feed & Return Bearing Kit SB1
WA20

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 17
Model DM30
Power Cable Feed and Return (PCFR)

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
18
Duracable®Machine Manual
Model DM30
1 1 KNOB3 Knob, Pressure Control
2 12 HHCS29 1/4”-20 x 3/4” Hex Head Cap Screw
3 1 PCFR15 Pressure Plate, Upper
4 1 PCFR13 Housing Block, Upper
5 1 PCFR17 Spring Pad
6 1 PCFR16 Compression Spring
7 3 PCFR14 Piston, Upper and Lower
8 3 RRING1 External “E” Ring
9 3 PCFR25 Rotation Pin
10 1 PCFR10 Mounting Disc, Front
11 1 PCFR11 Mounting Disc, Rear
12 1 PCFR12 Direction Disc Assembly
1 PCFR12E Direction Disc
1 KNOB2 Knob, Black Plastic
1 PCFR33 Wear Ring
2 SHCS6 1/4”-28 x 5/8” Socket Head Cap Screw
13 6 HHCS12 5/16”-18 x 3-1/2” Hex Head Cap Screw
14 6 FLNUT3 5/16”-18 Hex Flange Nut, Locking
15 3 PCFR22SER PCFR Bearing Kit
1 SB1 Drive Bearing
2 WA20 Machine Bushing
16 4 PCFR29 Thrust Washer
17 2 PCFR28 Thrust Bearing
18 2 PCFR18 Housing Block, Lower
19 12 PCFR20 Sizing Plate (Lower Housing Blocks Only)
20 2 PCFR21 Pressure Plate, Lower
21 1 PCFR80K PCFR Mounting Kit
1 PCFR80A Adapter Plate
3 PCFR80B Spacers
3 HHCS11 5/16”-18 x 2” Hex Head Cap Screw
22 1 PCFR9 Decal, Reverse/Neutral/Forward
23 1 MM35 Extension Spring
3 PCFR23SER PCFR Piston Kit (kit includes items #7, #8, #9, and #15)
PARTS IDENTIFICATION
Item # Qty. Part # Description
Power Cable Feed and Return (PCFR)

Order Entry: 800-247-4081 • Answer Line: 877-257-1781 19
Model DM30
Bearing Kit
Piston Kit
Power Cable Feed and Return (PCFR)
1. Remove the six hex ange nuts
(FLNUT3).
2. Remove the rear disk (PCFR11).
3. Slip the upper housing (PCFR13) and
/or the lower housings (PCFR18) from
the hex bolts.
4. Remove the upper piston (PCFR14)
and /or the lower pistons (PCFR19).
5. Remove the spring retainer (PCFR23).
6. Pull out the rotation pin (PCFR25).
7. Remove the spacers (PCFR24) and the
drive bearing (PCFR22).
8. Clean all the parts in kerosene or a
cleaning solvent.
9. Lubricate all moving parts and grease
the housings provided with zerk ttings.
How to Install the PCFR22SER Bearing Kit

Order Entry: 800-247-4081 • Answer Line: 877-257-1781
20
Duracable®Machine Manual
Model DM30
Spring Kit
Mounting Instruction
Power Cable Feed and Return (PCFR)
