Duraflame illuma 64000 User manual

-1-
22” Bio-ethanol Indoor/Outdoor Fireplace
Model # 64000
Distributed by:
Duraame, Inc., Stockton, CA 95201
For questions about Assembly and Operating instructions or Warranty Claims
contact Duraame, Inc. Consumer Affairs
info@duraame.com
1 [phone]
www.duraame.com/illuma
Patents Pending
WARNING: If the information in this manual is not followed exactly, a re or explosion may
result, causing property damage, personal injury, or loss of life.
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IN THE EVENT OF AN ALCOHOL SPILL: DO NOT light the burner. Extinguish any
open ame near the spill. Wipe up the spill, and wait several minutes for the residue to evaporate.
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury
or property damage. Refer to this manual for correct installation and operational procedures.
WARNING: This appliance is designed for installation only in a solid-fuel-burning masonry replace,
a UL127 factory-built replace, or in an ANSI Z21.91 ventless rebox, or on a table or cabinet.
There are no other standards for this type of appliance for other installations, thus be very careful
and follow all directions for such installations.
This appliance may be installed in a replace or rebox approved for aftermarket, permanently
located, manufactured (mobile) homes, where not prohibited by local codes.
This appliance is for use only with duraame®illuma-fuel®or types of fuel indicated on the
rating plate. This appliance is not convertible for use with other fuels, nor should you use
illuma-fuel® with any product other than duraame®illuma® replaces.
Save this manual for future reference.

-2-
TABLE OF CONTENTS
page
I. Safety Information ........................................................................ 3
II. Setup ............................................................................................ 5
III. Minimum Firebox Dimensions ......................................................7
IV. Clearances ....................................................................................7
V. Installing Damper Stop .................................................................7
VI. Installation .................................................................................... 7

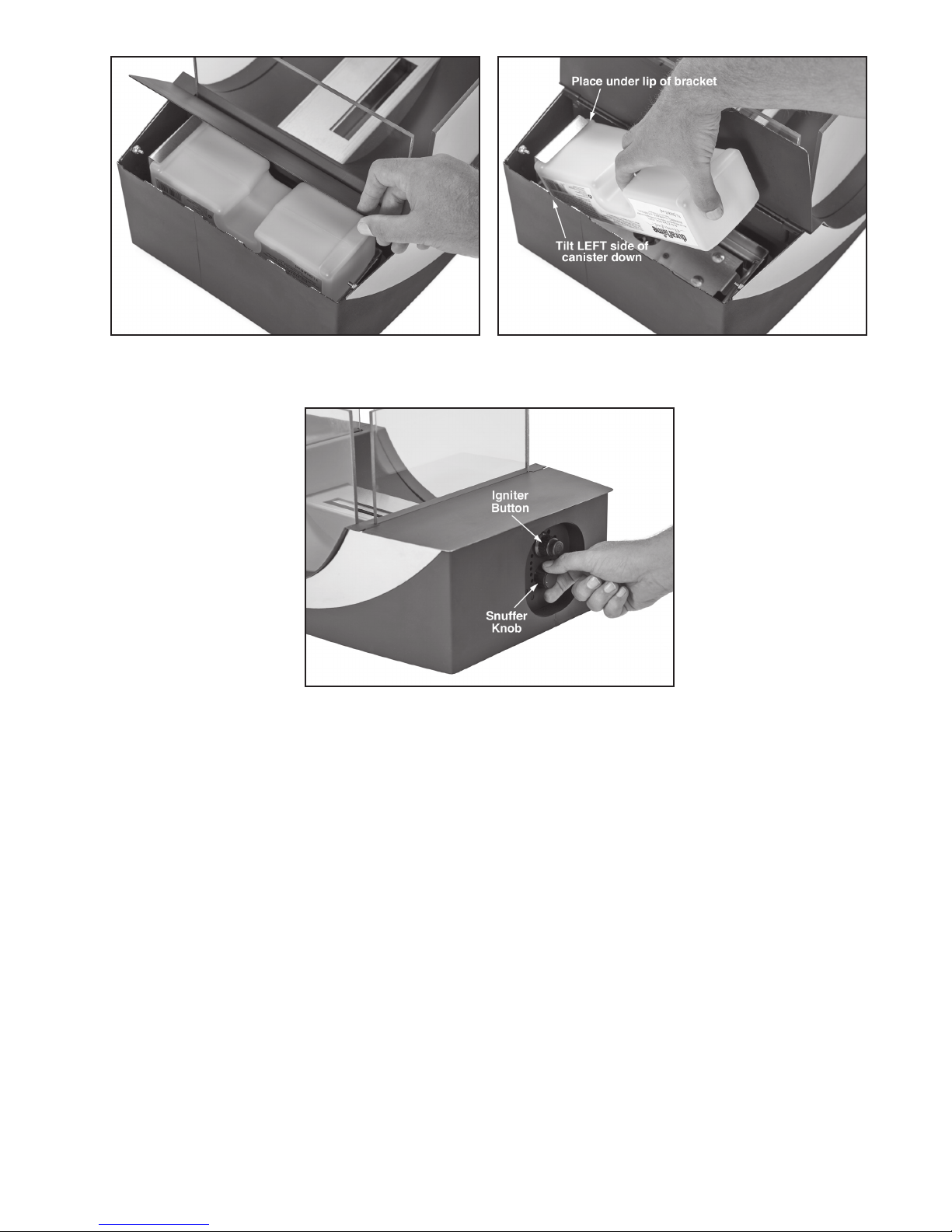

VII. Installing the Fuel Canister ......................................................... 10
VIII. Operation ....................................................................................10
IX. Refueling .....................................................................................12
X. Adjustments ................................................................................13
XI. Maintenance ...............................................................................13
XII. Troubleshooting ..........................................................................15
XIII. Parts List .....................................................................................16
Warranty .....................................................................................17

-3-
I. SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble,
operate, or service this appliance. Improper use of this appliance or failure to comply with the
safety rules can cause serious injury or death from burns, re, explosion, or carbon monoxide
poisoning. Keep this manual. It should be read by all users of the appliance.
DANGER: Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble the u, with
headaches, dizziness, or nausea. If you have these signs, the appliance may not be working
properly, and/or you do not have an adequately vented room. Extinguish the appliance and get
fresh air at once! Some people are more affected by carbon monoxide poisoning than others.
These include pregnant women, people with heart or lung disease or anemia, those under the
inuence of alcohol, and those at high altitudes.
WARNING: This appliance is designed to be placed in a variety of different locations inside
and outside your house. Please follow the following instructions carefully to avoid any spilling
of the fuel especially when the fuel is burning! Spilling burning fuel on our near combustible
surface could cause a re.
a- Do not place the appliance on the ground or oor. The appliance should be located on a
sturdy table or non-combustible piece of furniture, with proper clearances away from other
combustible materials.
b- When placed on a table or any other moveable furniture, make sure the furniture is sturdy
and will not move if bumped by a person or a pet. Also, make sure it is placed away from
curtains, clothing or any other combustible material.
c- When placed inside a replace make sure it is installed per instructions in this manual.
Never move this appliance while it is in operation or when there is still a ame in the burner (no
matter how small the ame is). Moving the appliance while burning may cause spilling of fuel
inside or outside the appliance which could result in a re. Make sure the appliance has cooled
down for at least 30 minutes after the ame is extinguished before moving.
WARNING: Any modications to this appliance or its controls could be dangerous.
WARNING: Do not place this appliance on a combustible surface or on a surface that gets
damaged by any ethanol that may drip out of the canister or this appliance.
WARNING: Do not allow fans to blow directly into the replace or onto this appliance. Avoid
any drafts that alter burner ame patterns. (Ceiling fans could create such drafts.) Altered
ame patterns could cause sooting.
WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved
for use with this appliance.
WARNING: Risk of explosion. Never use any fuel other than the fuels specically identied for
use in the appliance. Never use gasoline. Never use this appliance in areas where ammable
vapors or gas may be present. Never store or transport the fuel in anything other than the
original container that it came in. Store fuel in a cool and dry place away from heat sources.
WARNING: Risk of indoor air pollution. Use this appliance only in well-ventilated areas. People
with breathing problems should consult a physician before using the appliance.
WARNING: Do not use this appliance to heat or boil water or use as a cooking appliance. Do
not burn trash or any other material in or on the appliance.

-4-
Due to high temperatures, this appliance should be installed and used only in an approved
replace or rebox away from ammable objects (curtains, clothing, rugs, furniture, etc.).
Flammable objects should not come into contact with the appliance or the ames. Keep them
at least three feet away. Never place any objects on the appliance or inside the burner.
The appliance becomes very hot when in operation. Keep children and adults (and pets) away
from ames and hot surfaces to avoid burns or clothing ignition. The appliance will remain hot
for a time after shutdown. Allow the appliance to cool for at least 30 minutes before touching
it. Carefully follow instructions for refueling while appliance is in use.
Never leave children unattended and carefully supervise young children when they are in the
room where this appliance is in use.
When installed in a replace, you must operate this appliance with a replace screen in place.
Make sure the replace screen is closed while running the appliance.
Keep the appliance area clear and free from combustible materials, gasoline, and other
ammable vapors and liquids.
This appliance is for decorative purposes only and should not be used as a heater.
Do not store the duraame illuma-fuel® canisters near the appliance. Store illuma-fuel tightly closed in
its original canister in a dry, cool place, out of direct sunlight and away from heat sources, ammable
objects and open res, and out of the reach of children. If swallowed, seek medical attention immediately.
In case of contact with eyes, ush immediately with cool water for 15 minutes and seek medical
attention. For contact with skin, rinse well with cool water. If irritation develops, see your doctor.
Do not remove a duraame illuma-fuel canister from the appliance until the canister is completely empty.
WHAT TO DO IN THE EVENT OF A FUEL SPILL OR FUEL LEAK: DO NOT light the burner.
Extinguish any open ame near the spill. Wipe up the spill, and wait at least 5 minutes for the
residue to evaporate. In addition to the potential for re, spilled duraame illuma-fuel can damage
some surfaces like wood and leather. Wipe up any spills immediately.
Install this appliance in compliance with the laws of your local jurisdiction. This appliance shall
not be installed in a bedroom or bathroom, unless installed as a vented appliance inside a vented
replace. Do not install this appliance in trailers, boats or vehicles.
If a gas line has been run to your replace, all gas connections must be disconnected by a
qualied service technician prior to installing this appliance.
The appliance must be set on a level surface in your replace rebox or table.
This appliance has not been tested for use with replace glass doors. To reduce the risk of re
or injury, do not install or use glass doors with this appliance when installed in a replace. If the
replace has glass doors, never operate the appliance with the glass doors closed. Heat buildup
within the replace could cause the glass doors to break or burst, or cause the release of harmful
combustion products into the living area.
If the replace has vents at the bottom, the vents must be opened before running the appliance.
This appliance is designed to be smokeless. If the unit emits smoke, extinguish the appliance (by
turning the knob on the side – see Section VIII. OPERATION), wait for the appliance to cool down
for at least 30 minutes, and check for any debris that may be causing the smoke. Note: During
initial operation, slight smoking might occur due to the burning off of manufacturing residues. This
is a normal condition.
Do not use cleaning materials or agents such as furniture polish, wax, carpet cleaner, or similar
products in the room where the appliance is located while the appliance is in use. If heated,

-5-
the vapors from these products can create a white powdery residue within the burner box or on
adjacent walls or furniture.
Do not operate this appliance where ammable liquids or vapors are used or stored, or in a dusty
environment.
If water has entered the burner reservoir of the appliance, ensure that the water has been
emptied from the appliance before use. Water can dilute the duraame illuma-fuel and affect the
performance of the appliance.
Do not use the appliance if there is visible damage. If you see damage, contact the store where
purchased or Duraame’s customer service. Do not attempt to repair the appliance yourself. Do
not use your appliance if it has been modied in any way.
Turn off the appliance and let it cool before servicing or repairing it.
An open re is always a potential hazard. You must have a Class B re extinguisher near the
replace in case of re.
Do not dismantle the burner. Do not insert any other fuel canister into the burner.
This appliance must be operated using only authorized accessories and equipment.
Do not move the appliance while it is burning. This could cause burning fuel to spill and result in
injury or a re.
Do not put anything into the ames of the appliance. This could cause sooting and the creation of
harmful combustion products.
Do not put your head over the burner while lighting it. Keep all body parts safely away from the
device while igniting and while the appliance is in use.
Do not leave the appliance burning unattended. Extinguish the ames before you leave the house,
go to bed, or leave the room for an extended period of time. Never leave children unattended near
the appliance while it is in use.
Extinguish the ames by rotating the knob on the side – this will close the burner cover and
extinguish the ames. Do not attempt to blow out the ames. Never use water to extinguish the
ames. This could cause an explosion. The cover will be extremely hot. Do not obstruct the sliding
cover of the snuffer device in any way as this could interfere with your ability to extinguish the ames.
Keep packing materials away from children, as they could be a choking or suffocation hazard.
In case of burns, seek treatment from your doctor or hospital.
Duraame accepts no responsibility for any damage that might result if this appliance is improperly
installed, incorrectly operated, used for purposes other than that for which it is intended, or if it is
repaired by unqualied persons.
II. SETUP
CAUTION: Do not remove the metal data plate (rating plate) that is attached to the inside of the
door of the appliance. It contains important product information.
WARNING: Before installing this appliance in a solid-fuel-burning replace, the chimney ue
and rebox must be cleaned of soot, creosote, ashes, and loose paint by a qualied chimney
cleaner. Creosote will ignite if highly heated. Inspect the chimney ue for damage. If
damaged, operate the appliance with the ue damper closed.

-6-
WARNING: Seal any fresh air vent or ash clean-out doors located on the oor or walls of the
replace. Failure to do so may result in drafts that could cause sooting. Use a heat-resistant
sealant. Do not seal the chimney ue damper.
WARNING: Never install this appliance in a bedroom or bathroom unless installed as a vented
appliance in a recreational vehicle where curtains, furniture, clothing, or other ammable
objects are less than 42 inches from the front, top, or sides of the appliance or in high trafc
areas or in windy or drafty areas.
CAUTION: This appliance creates warm air currents that heat the wall surfaces next to
the appliance. Installing the appliance next to vinyl or cloth wall coverings or furniture, or
operating the appliance where impurities in the air (such as tobacco smoke, aromatic candles,
cleaning uids, oil or kerosene lamps, etc.) exist, may discolor the walls and furniture.
Figure 1
Appliance Overview
Install this appliance in compliance with all local building codes. In the absence of local codes,
use the latest edition of The National Fuel Gas Code (ANSZ223.1, also known as NFPA54),
available from:
American National Standards Institute National Fire Protection Association, Inc.
25 West 43rd Street, 4th oor OR 1 Batterymarch Park
New York, NY 10036 Quincy, Massachusetts USA 02169-7471
This appliance is designed to burn with very low emissions, so that it requires no outside venting
(“ventless” or “vent-free” operation). It can be installed and used in a replace with the ue
damper closed, as long as the room in which it is installed is adequately ventilated (see Section II,
Air for Ventilation and Combustion). State and local codes in some areas prohibit the use of vent-
free heaters. Check the building codes in your jurisdiction before installation. This appliance also
may be operated as a vented decorative product by opening the ue damper of the replace.
IMPORTANT: Vent-free appliances add moisture to the air. Although this is benecial, installing the
appliance in rooms without enough ventilation may cause mildew to form from too much moisture
(see Section II, Air for Ventilation and Combustion).
Burner
Canister Door
Glass Panels
Knob &
Igniter

-7-
III. MINIMUM FIREBOX DIMENSIONS
WARNING: Maintain or exceed the minimum clearances.
IV. CLEARANCES (Vent-free operation only)
Figure 2
Minimum Dimensions of Firebox
WARNING: Maintain or exceed the minimum clearances.
V. INSTALLING DAMPER STOP (Vented operation)
For vented operation of this appliance, a damper stop must be installed in the replace to prevent
full closure of the damper blade. The damper stop must be adjusted to provide a minimum ue
opening of 29 square inches. You can obtain a damper stop at your local hearth products dealer
or hardware store.
WARNING: The replace and burner function as a system. If the replace is spilling combustion
gases into the room (check draft with a match, candle or smoke stick), reposition the damper
clamp to open the damper wider, until a positive draft (i.e. all combustion emissions go up the
chimney) is obtained.
VI. INSTALLATION
1. Carefully remove the contents of the carton. You should nd:
• The burner / base (Figure 1)
• Four (4) tempered glass panes.
• Two (2) appliance base screws and two (2) small pieces of at metal (hold downs) inside
a small bag.
• One (1) AA battery.
If components are missing, contact Duraame Consumer Affairs.
2. Remove all these components from their packaging. Keep packing materials away from
children, as they could be a choking or suffocation hazard.
Firebox Back
Firebox
Side
26”
18”
at least 12”

-8-
3. Check each component for shipping damage. If components are damaged, contact the store
where purchased or Duraame, Inc.
4. a1. If installing this unit in a rebox, check the rebox dimensions to ensure that they are at least
equal to the minimum dimensions shown in Figure 2. The minimum clearances that the appliance
originally required will be adequate for this installation. You will need the two (2) ¼” x 1 ½” masonry
screws and the two hold downs provided for this step. Orient the unit so the door is on the left
and the igniter and shutoff knob are on the right. Remove the two back legs by unscrewing
them. Install the two hold downs on each leg and reinstall the back legs. Place the burner /
base in a solid-fuel-burning masonry replace, a UL127 factory-built replace, or an approved
(to ANSI Z21.92) ventless rebox, centered left to right on a level surface. When it is positioned
properly, mark the screw locations through the screw-down holes in the hold downs. If you
are installing the appliance in a brick-bottomed replace, mark the screw locations in a mortar
joint between the bricks. Remove the appliance, and drill holes at the marked locations using
a 3/16” masonry drill bit. Replace the appliance, and attach it to the replace oor using the
masonry screws. a2. For this appliance to function properly, the burner / base must be stable
and level. If the oor of your replace is uneven or out of level, you must unscrew or screw
down the legs so the unit ends up level and not wobbly. a3. Install the four glass panes in the
slots on the unit (see Figures 3-6). The small panes go on the sides and the large panes go in
the front and back. a4. As an option you can place loose decorative glass or small rocks in the
areas between the front glass (or back glass or both) and the burner. Make sure the top level of
the loose material is not higher (could be lower) than the top of the burner. The material has to
be larger than 3/16” in size and smaller than 1” in size for each piece. These materials could be
purchased from your supplier or at the store you bought the unit from and could be made from
glass or stone as long as they are non combustibe and they can withstand high temperatures.
5. If installing this unit on a table or cabinet, make sure the surface the appliance is placed on is
non combustible and can withstand a temperature of at least 150°F without discoloring. If the
appliance is placed on a table, make sure the table is sturdy and does not move or wobble to
make sure that the ethanol that is burning does not spill if somebody bumps into the table by
mistake. Also make sure the table has at least two feet of surface space between the edge
of the appliance and the edge of the table on all sides. Make sure the unit is installed away
from trafc and that children or pets do not come close to it. The unit gets hot and contains
combustible uid in it that could spill if bumped.
6. Next step is to install the battery into the igniter. The igniter is on the right side of the appliance
in the middle side(see Figure 1). The button and front cover of the igniter twists off (see Figure
1). Twist the front off, install the battery and twist the front back on. Push the button and you
should hear the sparker creating the sparks. If you do not hear or see the sparks, you either
have a dead battery or you did not install the battery properly. If after remedying both issues
the sparker still does not create a spark, contact the installer, the store where you purchased
the product or Duraame, Inc.

-9-
Figure 4
Placement of right glass panel
Figure 3
Placement of rear glass panel
Figure 6
Placement of front glass panel
Figure 5
Placement of left glass panel

-10-
VII. INSTALLING THE FUEL CANISTER
NOTE: Use only 1 liter duraame® illuma-fuel® bio-ethanol canisters with this appliance. The
canisters are recyclable but NOT rellable.
1. Open the door on the left side of the appliance (see Figure 7).
2. Remove the child resistant screw cap from a canister of illuma-fuel (by pushing down on it and
twisting at the same time) to expose the foil seal covering the opening of the canister. DO NOT
REMOVE THE FOIL SEAL.
3. Invert the canister and position it so that the left end ts under the bracket at the back end of
the canister tray (see Figure 8). Lower the canister so that the neck is aligned with the piercer
hole in the tray at the bottom of the fuel canister compartment. Push down rmly on the
canister until the piercer punctures the foil seal and the canister is seated rmly on the tray. To
assist the ow of illuma-fuel from the canister, wiggle the canister back and forth slightly on
the piercer. You might hear a soft gurgling noise as the fuel from the canister begins to ll the
burner—this is normal.
4. After the canister has been installed, leave it in place and close the door. The appliance is now
ready for use. At this point the canister still contains fuel and should not be removed until the
canister is completely empty. The canister automatically feeds more fuel into the burner after
the fuel is ignited and starts burning. This continues until all the fuel is used from the canister.
The burner will continue to burn for a while after the canister is empty. At some point the ame
will move to the right side of the burner to indicate that the fuel is about to run out. You can
refuel the appliance at this time (see Section IX) or let the ame die down.
VIII. OPERATION
WARNING: If you do not follow these instructions exactly, a re may result, causing property
damage, personal injury or loss of life.
NOTE: During initial operation of the new appliance and at the beginning of each burn
season, the appliance may emit a slight odor. This is normal, and the odor will dissipate
after a few hours. Open a window or the replace damper to vent the odor, if you nd it
unpleasant. This will not occur in subsequent use.
NOTE: Before burning the appliance for the rst time, install a canister of duraame®
illuma-fuel® , let the fuel sit in the burner for ve minutes, and check to ensure there aren’t
any leaks below and around the front appliance (see Figure 10).
1. Use the knob (located at the right side of the appliance – Figure 9) to slide the snuffer device
or burner cover to the rear of the burner. Be sure that the cover is slid back far enough to fully
expose the burner slot.
2. Install a canister.
3. Wait a few minutes then push the igniter button located on the right side. The burner should
light. If it does not, hold down the igniter button until it does. You may need to wait a minute
or so to allow the duraame illuma-fuel to drain into the burner reservoir and reach the right
level before you push the sparker button. Initially, the ames might be low with a bluish hue.
The ames should grow in height and become yellow and orange as the fuel heats up. Make
sure that your head and face are not above the appliance when you are lighting it. NOTE: If the
replace is very cold or the temperature of the fuel is very low, the fuel may not ignite by using
the igniter. If this occurs, please use a long match or long butane lighter to ignite the fuel.

-11-
4. To extinguish the ames, grasp the snuffer knob, and turn it towards you to move the burner
cover forward. The slot must be completely covered to extinguish the ames. This appliance
can be relit at any time—even immediately after extinguishing, if desired, using the igniter.
However, if the fuel is hot or even warm the fuel may not ignite using the sparker because the
fuel is evaporating at a higher rate than usual and creates and oxygen free environment around
the sparker. If that happens, either wait for a while for the fuel to cool down or ignite the fuel in
the burner using a long match or a butane igniter. In case you use a match or igniter when the
fuel is hot, be carefull not to have your face near the burner, because the fuel will ignite quickly.
Figure 7
Door on side open
Figure 8
Proper placement of canister
Figure 9
How to operate snuffer

-12-
Figure 10
Check for leaks on the oor of the replace under the areas indicated.
IX. REFUELING
This appliance is designed so that one canister of illuma-fuel® (1 Liter) will provide a continuous
supply of fuel to the burner for about two hours and thirty minutes*. To allow for uninterrupted
burning beyond this time, the burner has been designed so that a few minutes before the fuel is
completely exhausted, the ame will start to shift to the right side of the burner. At this point, you can
replace the empty canister with a full one. This can be done while the appliance is burning—there is
no need to extinguish the ames.
To change the canisters :
1. Open the door on the left side of the appliance. The open door acts as a ame shield. Please note that
even though the area indicated in Figure 11 is cool, areas of the door closer to the ame may be hot.
2. Check the fuel canister and make sure IT IS EMPTY.
3. Grasp the empty canister by the notches provided in the canister body (see Figure 11). Pull it
up and tip it so that it clears the bracket (make sure the back side of the canister is tipped so it
is lower than the frontside) and then lift it straight up to remove it. Keep the canister away from
the ames. Keep canister tilted down on the left side while removing it. This will ensure that
any small amount of fuel that may still be in the canister does not spill out. DO NOT ALLOW
THE CANISTER TO GET CLOSE TO THE FLAMES.
4. Install a new, foil-sealed canister as described above (see INSTALLING THE FUEL CANISTER,
Steps 2 and 3).
5. After the canister has been installed, close the door. The appliance is now ready for continued use.

-13-
6. If the ame is out by this time, use the igniter to start it again.
*NOTE: Burn times will vary depending on conditions such as temperature, draft and how
level the surface is.
X. ADJUSTING BURN TIME
You can extend the burn time and ame height of the re. Experiment with different settings
by slowly moving the snuffer forward as you would when you want to extinguish the ame (see
Section IX Step #4), but do not cover the burner completely, or the re will be extinguished. By
moving the snuffer partially over the burner, the burn time will be extended. For maximum ame
height and minimum burn time, push the snuffer all the way to the back.
XI. MAINTENANCE
WARNING: Extinguish the appliance and let it cool at least 30 minutes before cleaning.
CAUTION: Periodic cleaning is necessary to ensure proper functioning of this appliance. The
appliance might need more frequent cleaning due to excessive lint from carpeting, bedding
material, pet hair, etc.
The only maintenance needed for the continued good performance of this appliance is periodic
cleaning, at least once per year or more depending on frequency of use, and checking for leaks.
Note that after some time, heat might cause the stainless steel burner to discolor slightly. This is
natural. To clean the appliance:
1. Allow the ames to die out naturally by consuming all the fuel in the canister and burner. This
will ensure that there is only residual alcohol in the burner. Also, the burner is quite hot while in
operation. Wait at least 30 minutes after the ames have died out before cleaning the appliance.
2. Metal components of the appliance should be cleaned using a damp cloth and a mild dish
detergent. Never use abrasive cleaners, as they can damage the metal.

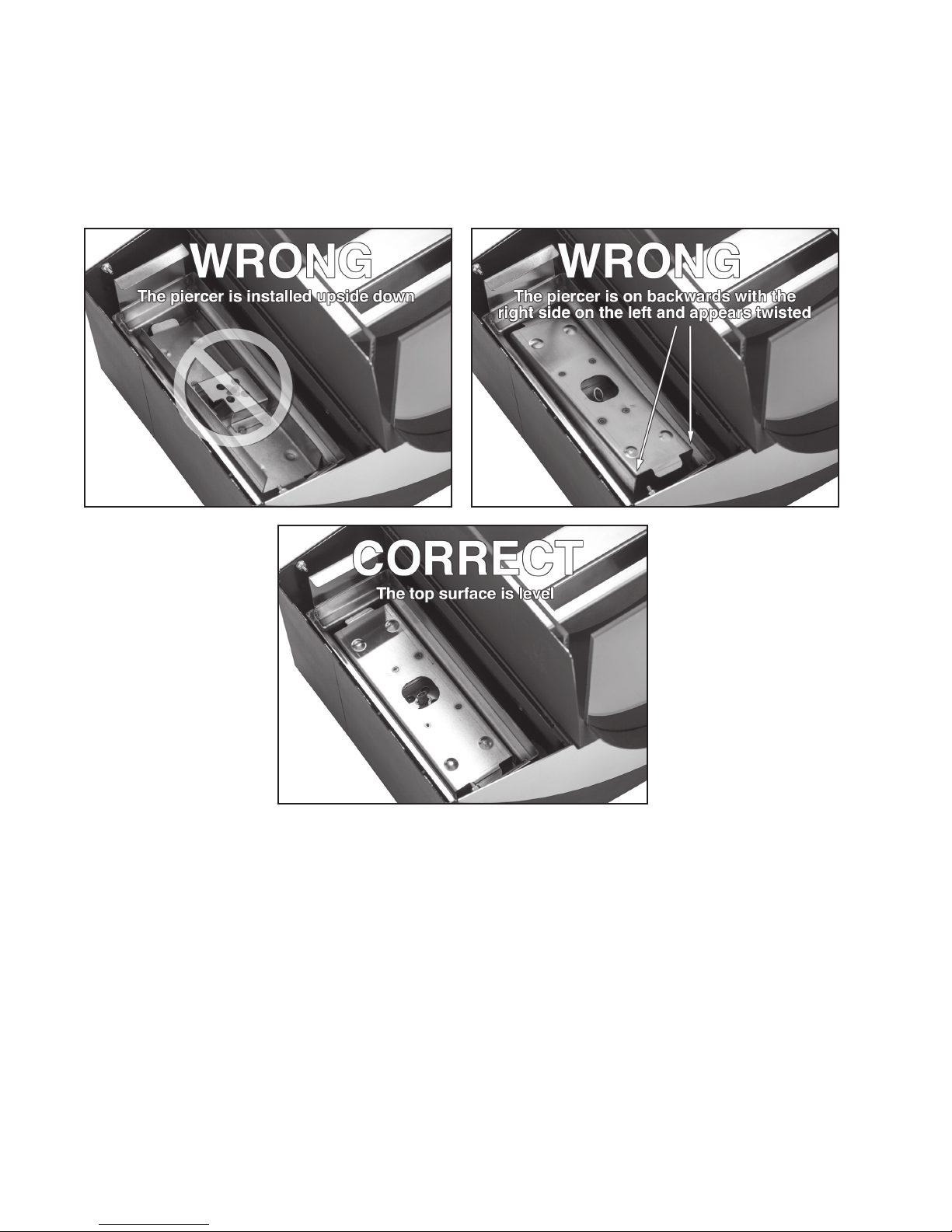

3. Lift out the piercer and clean underneath.
4. Clean the area inside the burner. Be very careful when doing so, because the top edges of the
Figure 11
How to remove canister when re is burning

-14-
burner may be very sharp.
5. Make sure that all parts of the appliance are returned to their proper operating positions by
following assembly instructions. Ensure the piercer is installed properly (see Figure 12). The
top surface of the piercer should be level. If it is higher on the back end or on one side, then
turn it around and place it back in place again.
6. Check for leaks by installing a fuel canister into the appliance and letting it sit for ve minutes.
Check for leaks in the areas shown in Figure 10 before igniting the fuel.
Figure 12
How to install piercer

-15-
SOLUTION
• DO NOT light the burner. Extinguish any open
ame near the spill. Wipe up the spill, and wait
several minutes for the residue to evaporate.
If you see no additional fuel on the ground,
you may light the burner. If you see additional
fuel on the ground, you might have a leak. DO
NOT use this appliance if it leaks fuel.
• The appliance may not be level. Check
to make sure the appliance is level, and
shim under the grate legs or rear support, if
necessary. Shim only with metal washers or
other non-ammable objects.
• A small piece of foil that covers the
opening of the illuma-fuel® canister might
be obstructing the piercer tube. Open the
fuel canister door on the left side of the
appliance. Gently wiggle the fuel canister
left to right and front to rear on the fuel
canister tray to enlarge the opening in the
foil. DO NOT lift the illuma-fuel canister from
the tray, as this could cause a fuel spill.
• The tubes connecting the burner to the fuel
reservoir might be clogged. Starting at the
tube opening in the bottom of the burner, run
a thin, exible wire through the length of the
tube to remove the obstruction.
• The battery in the igniter may be dead.
Replace it with a new battery
• The sparker tip may be out of position. The
tip of the sparker should be about ¼” above
the level of the sparking point. Carefully
bend the wire so that the tip of the sparker
wire is in this position
• The fuel is cold or the appliance is cold.
Use a long match or a long butane lighter to
ignite the fuel.
• If the fuel is hot, the fuel vapors stop oxygen
from being in the vicinity of the spark. Thus
not allowing the fuel to ignite. Wait until the
fuel is cool or relight the appliance using a
long match or a long nosed butane igniter.
PROBLEM
1. You see fuel on the ground near the
appliance.
2. You do not see fuel in the burner prior to
lighting the appliance and after installing a
canister.
3. You push the igniter button but the appliance
does not light.
XII. TROUBLESHOOTING
Use the following guide to solve any problems you might encounter in operating this appliance.

-16-
XIII. PARTS LIST
Part Numbers
64001 Small Glass
64002 Large Glass
61002 Igniter
61007 Canister Tray & Piercer
61010 Masonry Screws
61011 Sparker
64003 Hold Downs

-17-
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model: ________________________________
Serial No.: _____________________________
Date Purchased:________________________
Always specify model and serial numbers when communicating with Duraame, Inc.
We reserve the right to amend the specications of this product at any time without notice. The only
warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY – DURAFLAME ILLUMA®LOG SETS, FIRE PITS & FIREPLACE APPLIANCES
Duraame, Inc. warrants to the original purchaser this product to be free from defects in materials
and workmanship, exclusive of normal manufacturing defects and customary variations not affecting
ordinary performance, under normal home use and service for one (1) year from the date of rst
purchase, provided that the product has been properly installed, operated, and maintained in
accordance with all applicable instructions. To make a claim under this warranty the original
purchase receipt, Bill of Sale, or cancelled check must be presented.
Our obligation under this warranty shall be limited to the repair or exchange of any part(s) which
may be demonstrated to be defective from faulty material or poor workmanship under normal
home use and service within one (1) year from the date of rst purchase and which are required
to restore this product to proper operating condition, along with a reasonable allowance for
labor when provided by a Duraame, Inc. Authorized Service Center. Warranty part(s) MUST be
obtained through authorized dealers of this product and/or Duraame, Inc., which will provide
original factory replacement parts. Failure to use original factory replacement parts voids this
warranty. Correction in the manner provided above shall constitute a fulllment of all liabilities of
Duraame, Inc. with respect to the quality of the product. The product MUST be installed by a
person capable of following all instructions in accordance with all local codes and instructions
furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear
and tear, or parts which have been subject to accident, negligence, alteration, abuse, or misuse,
or which fail or become damaged as a result of lack of proper maintenance, or to defects caused
by improper assembly or installation. We make no warranty whatsoever in respect to accessories
or parts not supplied by us. Travel, diagnostic cost, labor, shipping and handling, and any and all
such other costs related to repairing a product damaged through normal wear and tear, misuse, or
negligence will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF
THE PRODUCT, THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE AND
OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART, AND WE NEITHER ASSUME, NOR
AUTHORIZE ANY OTHER PERSON TO ASSUME FOR US, ANY OTHER LIABILITY IN CONNECTION
WITH THE SALE OF THIS PRODUCT. IN NO EVENT SHALL DURAFLAME, INC. AT ANY TIME BECOME
LIABLE FOR ANY BREACH OF WARRANTY IN AN AMOUNT EXCEEDING THE PURCHASE PRICE
OF THE PRODUCT AND DURAFLAME, INC. SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES
WHATSOEVER INCLUDING INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

-18-
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or
limitation of incidental or consequential damages, so the above limitation on implied warranties, or
exclusion or limitation on damages may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights that vary from
state to state.
For information about this warranty write to:
Attn: Consumer Affairs, Duraame, Inc., 2894 Monte Diablo Ave., Stockton, CA 95203, www.
duraame.com
