DURASTAR DRAW09F1A User manual

DURASTAR.COM1
OWNER'S MANUAL
WALL MOUNTED INDOOR UNIT
SPLIT-STYLE AIR CONDITIONER
DRAW09F1A, DRAW12F1A, DRAW18F1A, DRAW24F1A
Model Number:
Serial Number:
Purchase Date:
Installing Contractor Company Name:
TIP
Capture relevant information about your Durastar mini-split equipment before it is
installed and write it above for future reference.

DURASTAR.COM2
TABLE OF CONTENTS
TABLE OF CONTENTS ....................................................................................................................................2
INTRODUCTION ..................................................................................................................................................3
WARNINGS ............................................................................................................................................................3
IMPORTANT SAFETY PRECAUTIONS....................................................................................................4
PARTS IDENTIFICATION ................................................................................................................................7
INDOOR UNIT........................................................................................................................................................7
OUTDOOR UNIT..................................................................................................................................................7
INCLUDED ACCESSORIES ............................................................................................................................8
OPERATING TEMPERATURES...................................................................................................................9
REMOTE CONTROL.........................................................................................................................................10
OPERATING MODES....................................................................................................................................... 11
ADVANCED FEATURES.................................................................................................................................12
LED DISPLAY INDICATORS.........................................................................................................................15
MANUAL OPERATION (USE WITHOUT REMOTE) .........................................................................15
LOUVERED AIR FLOW ...................................................................................................................................16
CARE AND MAINTENANCE .........................................................................................................................17
TROUBLESHOOTING......................................................................................................................................19
ERROR CODES .................................................................................................................................................. 22
LIMITED WARRANTY - PARTS.................................................................................................................. 23

DURASTAR.COM 3
WARNINGS
The warning symbol indicates cautionary information for the user. Extra care and
precautions should be taken to ensure the user's safety.
The pencil indicates any manufacturer notes relating to surrounding content. These may
include further clarifications or call-outs.
A light bulb symbol indicates suggested manufacturer tips for the user to get the most
out of the Durastar equipment and to accommodate the best user experience.
Symbols Used in This Manual
INTRODUCTION
To better serve you, please do the following before contacting customer service:
• If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
• Read and follow this owner's manual carefully to help you use and maintain your air conditioner.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
• Visit us on the web at www.durastar.com to download product guides and up-to-date
information.
• If you need warranty service, our friendly customer service representatives are available via
email at [email protected] or by telephone at 1-888-320-0706.

DURASTAR.COM4
IMPORTANT SAFETY PRECAUTIONS
Improper handling can cause serious damage or injury. Please read the following safety
information in its entirety.
Operation, Cleaning, and Maintenance Safety Precautions
• Children and people with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, should only use this air conditioner if they are given supervision or
instructions concerning use of the air conditioner in a safe way and understand the hazards
involved.
• Children should not play with the air conditioner.
• Never stick fingers or any other body parts into the air conditioner openings. The internal fan
may be rotating at high speeds, and may result in injury.
• After removing the filter, do not touch the fins in order to avoid injury.
• Maintenance must be performed by qualified professionals. Otherwise, you may experience
personal injury or damage to the air conditioner and surrounding property.
• Do not repair the air conditioner by yourself. It may cause electric shock or damage. Please
contact a qualified service representative when you need to repair the air conditioner.
• Do not block the air outlet or air inlet. This could cause a malfunction.
• Do not spill water on the remote control as this can permanently damage the remote.
• If the below problems occur, please turn off the air conditioner and disconnect power at the
circuit breaker immediately. Then contact your dealer or a qualified professional for service.
• The power cord is overheating or damaged.
• There is an abnormal sound during operation.
• The circuit breaker trips frequently.
• The air conditioner gives off a burning smell.
• The indoor unit is leaking.
• If the air conditioner operates under abnormal conditions, it may cause malfunctions, electric
shock, or fire hazard.
• When turning the unit on or off via the emergency operation switch, press the switch with an
insulated object other than metal.
• Do not step on the top panel of the unit, or put heavy objects on the top panel. This could
cause damage or personal injury.
• Cleaning and user maintenance should not be performed by children without supervision.
• Do not spray water on the indoor unit. This could cause electric shock or a unit malfunction.
• Do not use flammable materials such as hair spray, lacquer, or paint near the air conditioner as
they may catch fire.
• Do not operate the air conditioner in places near combustible gases. Emitted gases may
collect around the air conditioner and cause an explosion.
• Do not use fire or a hair dryer to dry the filter. This could cause a deformation or fire hazard.
• Do not wash the air conditioner with water as this could cause an electric shock.
• Disconnect the power supply by turning it off at the circuit breaker when cleaning the air
conditioner. Otherwise, you could risk electric shock.

DURASTAR.COM 5
Electrical Safety
• Only use the specified power cord. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Keep the power plug clean. Remove any dust or grime that accumulates on or around the
plug. Dirty plugs can cause fire or electric shock.
• Do not pull the power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling
directly on the cord can damage it, which can lead to fire or electric shock.
• Do not connect the air conditioner to a multi-purpose socket. Doing so could cause a fire
hazard.
• Do not modify the length of the power supply cord or use an extension cord to power the unit.
• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or a
similarly qualified person in order to avoid a safety hazard.
• Do not share the electrical outlet with other appliances. Improper or insufficient power supply
can cause fire or electrical shock.
• The product must be properly grounded at the time of installation, or electrical shock may
occur.
• For all electrical work, follow all local and national wiring standards and regulations. Connect
cables tightly, and clamp them securely to prevent external forces from damaging the
terminal. Improper electrical connections can overheat and cause fire, and may also cause
shock. All electrical connections must be made according to the Electrical Connection
Diagram located on the panels of the indoor and outdoor units.
• All wiring must be properly arranged to ensure that the control board cover can close
properly. If the control board cover is not closed properly, it can lead to corrosion and cause
the connection points on the terminal to heat up, catch fire, or cause electrical shock.
• The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board.

DURASTAR.COM6
Installation Safety
• Installation must be performed by an authorized dealer or specialist. Improper installation
can cause water leakage, electrical shock, or fire. (In North America, installation must be
performed in accordance with NEC and CEC requirements by authorized personnel only.)
• Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
• This air conditioner shall be installed in accordance with national and local wiring regulations.
• Contact an authorized service technician for repair or maintenance of this unit.
• Only use the included accessories, parts, and specified parts for installation. Using non-
standard parts can cause water leakage, electrical shock, fire, and can cause the unit to fail.
• Install the unit in a firm location that can support the unit’s weight. If the chosen location
cannot support the unit’s weight, or the installation is not done properly, the unit may fall and
cause serious injury and damage.
• Install drainage piping according to the instructions in the installation manual. Improper
drainage may cause water damage to your home and property.
• For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of
any combustible materials.
• Do not install the unit in a location that may be exposed to combustible gas leaks. If
combustible gas accumulates around the unit, it may cause a fire.
• Do not turn on the power until all work has been completed.
• When moving or relocating the air conditioner, consult experienced service technicians for
disconnection and re-installation of the unit.
Additional Precautions
• Turn off the air conditioner and disconnect the power if you are not going to use it for a long
time.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use this device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows
open, or if the humidity is very high.

DURASTAR.COM 7
PARTS IDENTIFICATION
INDOOR UNIT
FPO
OUTDOOR UNIT
NOTE
Outdoor units will vary in appearance.
Remote Control Remote Control
Holder
Louver
Front Panel
Display Window
Valve Cover
Signal Cable,
Refrigerant Pipes,
and Drain Hose
Wiring Terminal
Air Outlet
Air Inlets

DURASTAR.COM8
INCLUDED ACCESSORIES
The air conditioning system comes with the following accessories.
Accessory Quantity Image Accessory Quantity Image
Manual 1-2 Remote Control 1
Mounting Plate 1 Battery 2
Wall Anchor 5-8
(depending
on model)
Remote Control
Holder
1
Mounting Plate
Screw
5-8
(depending
on model)
Remote
Control Holder
Mounting Screw
2
Copper Nut 2 Installation
Template
1
Drain Joint 1 Carbon Filter 2
Drain Joint Seal 1

DURASTAR.COM 9
OPERATING TEMPERATURES
Your air conditioner is designed to operate in the following indoor and outdoor temperatures.
When your air conditioner is used outside of the following temperature ranges, certain safety
features may activate and turn off the unit to protect it from damage.
TEMPERATURE RANGES
COOL Mode HEAT Mode DRY Mode
Indoor Air
Temperature
62°F - 90°F
(17°C - 32°C)
32°F - 86°F
(0°C - 30°C)
50°F - 90°F
(10°C - 32°C)
Outdoor Air
Temperature
-13°F - 122°F
(-25°C - 50°C)
-13°F - 86°F
(-25°C - 30°C)
32°F - 122°F
(0°C - 50°C)
To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF features.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.
NOTE
Keep the room's relative humidity below 80%. If the air conditioner operates in excess
of this, the surface of the air conditioner may attract condensation. To help prevent
condensation from forming and dripping, set the vertical airflow louver to its maximum
angle (vertically to the floor) and set the fan to HIGH.
NOTE
Your Durastar air conditioner's outdoor unit is equipped with a base pan heater, allowing
it to continue to operate at freezing temperatures as low as -13°F (-25°C). When outdoor
air temperatures are at or below 32°F (0°C), we strongly recommend keeping the unit
plugged in at all times to ensure smooth ongoing performance.

DURASTAR.COM10

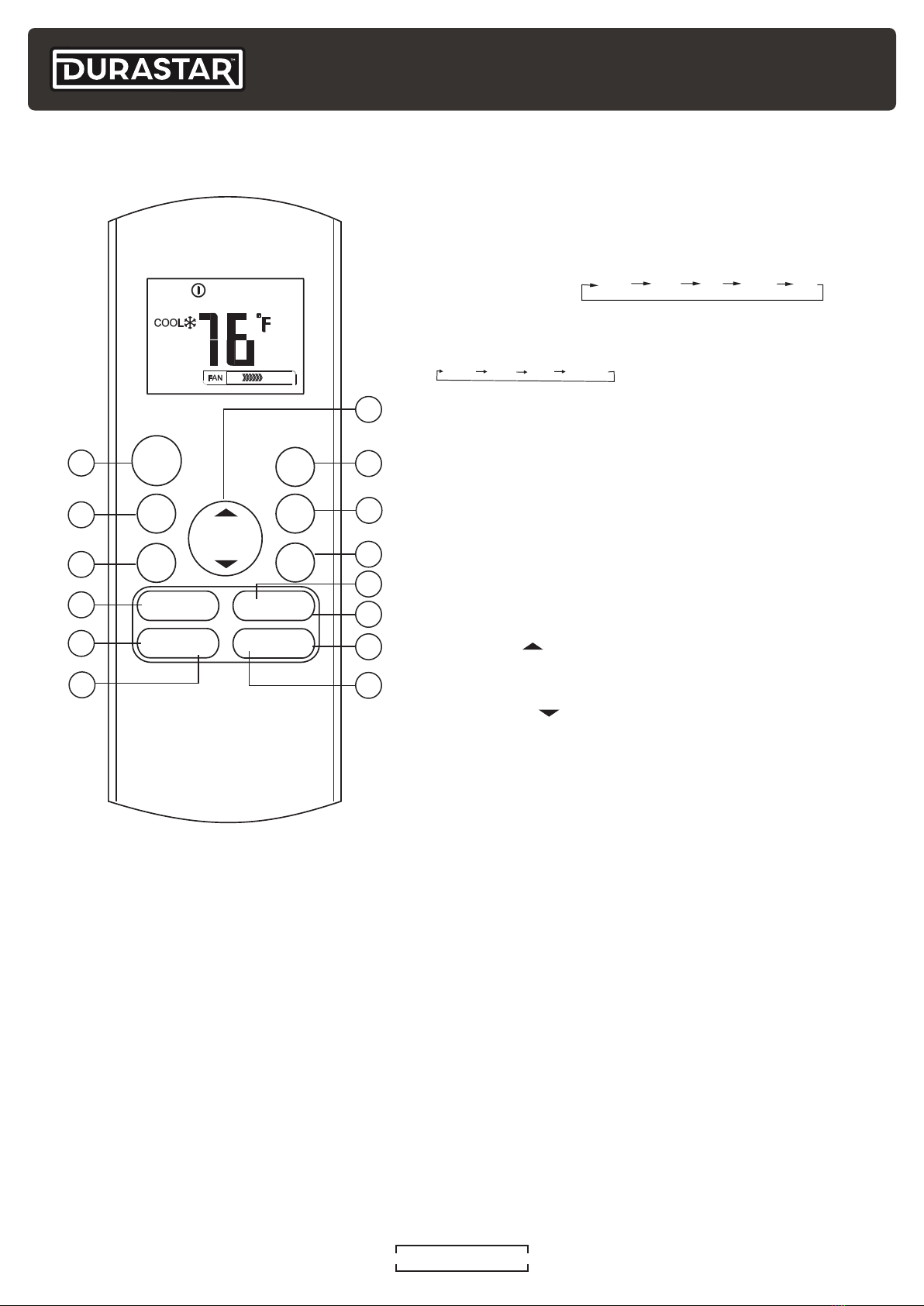

REMOTE CONTROL
MODE
FAN
TEMP
SLEEP
ON/OFF
SILENCE
FP
TIMER
ON
TIMER
OFF
1
2
4
3
8
9
7
5
6
10
12
11
13
14
SWING DIRECT
LED FOLLOW
ME
TURBO SELF
CLEAN
1. ON/OFF Button
Turns the air conditioner ON and OFF.
2. MODE Button
Press to adjust the air conditioner MODE in the
following sequence:
AUTO COOL
DRY
HEAT FAN
3. FAN Button
Press to select the following FAN speeds:
AUTO LOW MED HIGH

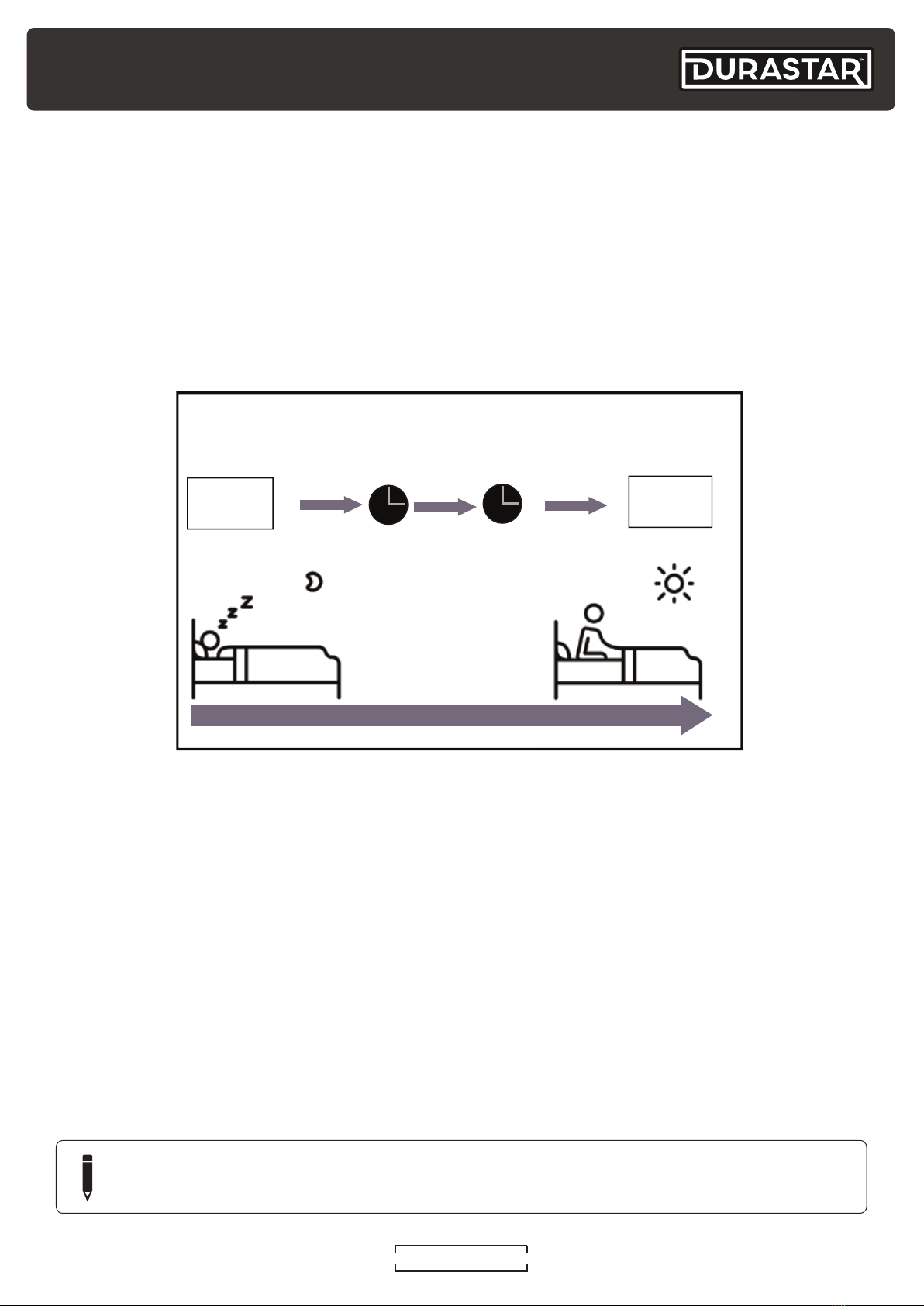

4. SLEEP Button
See the "SLEEP" section under "Advanced Features."
5. TURBO Button
See the "TURBO" section under "Advanced Features."
6. SELF CLEAN Button
See the "SELF CLEAN" section under "Advanced
Features."
7. UP Button
Press to increase the set temperature in 1°F / 1C
increments.
DOWN Button
Press to decrease the set temperature in 1°F / 1C
increments.
8. SILENCE / FP Button
See the "SILENCE" and "FP" sections under
"Advanced Features."

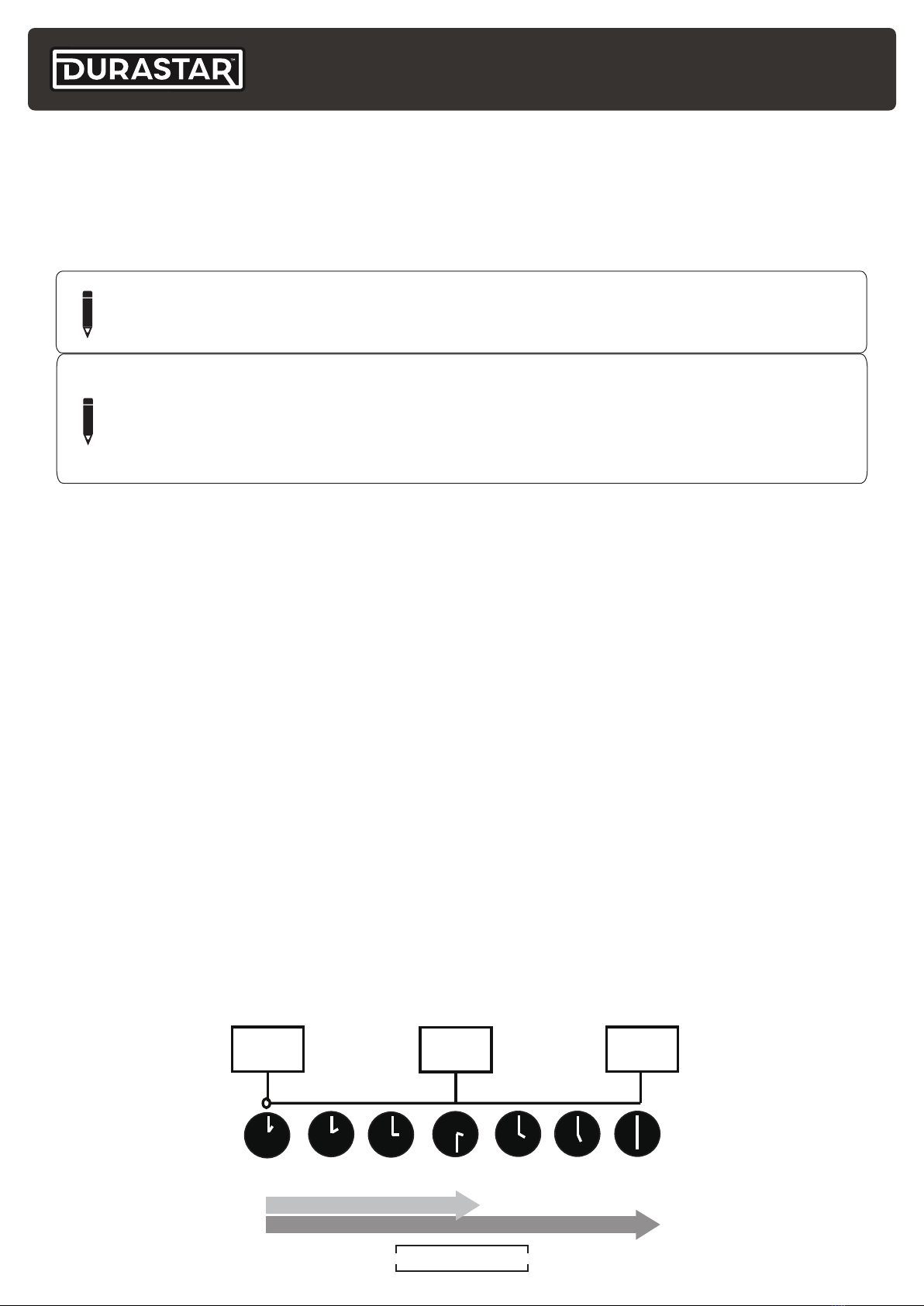

9. TIMER ON Button
Press to initiate the TIMER ON feature. For details see the TIMER feature section of this manual.
10. TIMER OFF Button
Press to initiate the TIMER OFF feature. For details see the TIMER feature section of this manual.
11. SWING Button
Press to start and stop the automatic horizontal louver movement.
12. DIRECT Button
Press to change the horizontal louver angle. Each press will adjust the angle by 6°.
13. FOLLOW ME Button
See the "FOLLOW ME" section under "Advanced Features."
14. LED Button
Press to turn on and off the indoor unit's display screen.
