Duratech LINK Master User manual

DLM-600
Manual
LINK Master

2
Contents
1. Introduction 7
1.1. About the LINK Master 7
1.2. Box content 8
1.3. Keypad 9
1.3.1. Controller keypad 10
1.3.2. Gateway keypad 10
2. LINK Master 11
2.1. Installation 11
2.1.1. Mechanical installation 11
2.1.1.1. Positioning 11
2.1.1.2. Provisions 12
2.1.1.3. Phyisical installation 13
2.1.2. Electrical installation 14
2.1.2.1. Wiring instructions 15
2.1.3. Network installation 16
2.1.4. DMX controller installation 17
2.2. Configuration 18
2.2.1. System start-up 18
2.2.2.1 Account and permissions 18
2.2.2.2. DuraCloud - owner of the pool 18
2.2.3. Configure other devices 20
2.2.4. Configure relays A & B 20
2.2.5. Configure input C as level sensor 21
2.2.6. LINK Touch pairing 21
2.2.7. Configuring smart rules 23
2.2.8. Scheduler 25
2.2.8.1. Schedules 25
2.2.8.1.1 Schedules overview 26
2.2.8.1.2. Create schedules 26
2.2.8.1.3. Schedule detail 27
2.2.8.2. Schedule events 28
2.2.8.2.1. Creating events 28
2.2.8.2.3. Deleting events 29
2.2.8.2. Duratech Schedules 29
2.3. Operation 33
2.3.1. Keypad operation 33
2.3.1.1. Controller keypad 33
2.3.1.2. Gateway keypad 34
2.3.2. Discovery/Pairing mode 35
2.3.3. Automatic mode 36
2.3.4. Manual mode (service mode) 37
2.3.5. Cleaning Mode 39
2.3.6. Direct Wifi 40
2.4. Updating 41
2.4.1. Controller 41

3
2.4.2. Gateway 41
2.5. Safety Conditions 42
3. Pool light 43
3.1. Installation 44
3.1.1. Wiring instructions 44
3.2. Configuration 45
3.2.1. Lamp type selection 45
3.2.2. Pool light synchronisation 46
3.2.3. Manual pool light synchronization 46
3.3. Operation 47
3.3.1. LinkTouch 47
3.3.1.1. Control functions 48
3.3.1.2. Advanced control functions 49
3.3.2. App 50
3.3.3. DMX controller operation 50
3.3.4. RS485 command set 50
3.4. Updating 52
3.5. Safety conditions 52
4. Heat pump 53
4.1. Installation 53
4.1.1. DURAHEAT heat pump 53
4.1.2. Multi-brand heat pump with LINK dongle 54
4.1.3. Multi-brand heat pump without LINK dongle 54
4.2. Configuration 55
4.2.1. Pairing the DURAHEAT heat pump 55
4.3. Operation 55
4.3.1. LINK Touch 55
4.3.2. App 56
4.3.3. RS485 56
4.4 Updating for ‘DURAHEAT’ heat pump 57
4.5. Safety conditions 58
5. Filter pump 59
5.1. Installation 59
5.1.1. DURAFLOW Variable Speed filter pump wiring instructions 59
5.1.2. Multi-Brand Single Speed filter pump wiring instructions 60
5.1.3. Multi-Brand Variable Speed pump wiring instructions 60
5.2. Configuration 62
5.2.1. Pairing the DURAFLOW Variable Speed filter pump 62
5.2.2. Multi-Brand Single Speed filter pump 63
5.2.3. Multi-Brand Variable Speed filter pump 63
5.3. Operation 64
5.3.1. DURAFLOW Variable Speed filter pump 64
5.3.2. Multi-Brand Single Speed filter pump 65
5.4. Updating 66
5.5. Safety conditions 67

4
6. Cover 68
6.1. Installation 68
6.1.1. DURACOVER Cover System wiring instructions 68
6.1.2. Multi-Brand Cover wiring instructions 69
6.1.3. Key Switch installation 70
6.2. Configuration 71
6.2.1. DURACOVER Cover System 71
6.2.1.1. Pairing 71
6.2.1.2. Calibrating 71
6.2.1.3. Configuration of the Dead Man Switch (DMS) 72
6.2.2. Multi-Brand Cover 73
6.2.2.1 Pairing 73
6.3. Operation 74
6.3.1. DURACOVER Cover System 74
6.3.1.1. Controller keypad 74
6.3.1.2. LINK Touch 75
6.3.1.3. DURACloud App 75
6.3.1.4. Key Switch 75
6.3.2. Multi-brand Cover 75
6.3.2.1. Controller keypad 75
6.3.2.2. LINK Touch 75
6.3.2.3. DURACloud App 75
6.3.2.4. Key Switch 75
6.4. Updating 75
6.5. Safety conditions 75
7. DuraCloud 75
7.1. Installation 75
7.2. Configuration 75
7.3. Operation 75
7.3.1. Accessibility 75
7.3.2. Features 75
7.4. Updating 75

5

6

7
LINK MASTER
1. Introduction
1.1. About the LINK Master
Thank you for purchasing this House of DURATECH product. To ensure proper operation,
please read this manual carefully before using the device. After reading this manual, be
sure to keep it for future reference.
The LINK Master is a pre-wired central electrical hub, linking all technical pool-related
devices. It makes complex swimming pool installations easier to install and connect.
Making it possible for different devices to work together without adding dedicated cabling
between these devices.
House of DURATECH devices are automatically recognized and set by default. You also
have the possibility to add and connect Multi-Brand devices.
The LINK Master is equipped with multiple ‘smart’ input and output connections for your
pool devices. Giving you full access to the DuraLinkTM connected range of products.
Connect the LINK Master to the internet and it will automatically connect to the Dura-
Cloud App and Portal for easy configuration and operation of the different devices.
The LINK Master ensures efficient and safe operation of your pool.
Be aware that the LINK Master is an exact and sensitive system that must always be
handled with care. During installation, the regulations and provisions applicable for the
country and site of installation must be respected.

8
1.2. Box content
Check that the following parts are supplied with the product.
- 1 x Cabinet
- 1 x Wall mounting plate
- 2 x Cabinet door triangle keys
- 1 x Quick guide
- 1 x Fixing set (screws, plugs)
- 1 x Antenna
DLM-600

9
1.3. Keypad
High level overview of the LINK Master and the two keypads that are inside.
DLM 600

10
1.3.1. Controller keypad
Manual button Filling button Aux button Cover button
Used for switching between
manual and automatic mode.
Used for enabling/disabling
the filling mode of the pool.
Used for turning Auxiliary port
on or off.
This button will open/close
the pool cover
DuraLink button Heating button Sensors button Relay A button
Used for enabling/disabling
discovery mode.
Used for turning the heat
pump on or off.
Used for turning the sensors
on or off.
(By default this led is on.)
Used for activating your
Relay A function. (→
2.2.3.)
Cleaning button Filtration button Lights button Relay B button
Used for enabling/disabling
cleaning mode for the pool
Used for turning the filtration
pump on or off.
Used for turning the pool lights
on or off.
Used for activating your
Relay B function (→ 2.2.3.)
1.3.2. Gateway keypad
On/Off button Cloud LED
This button will turn on/off the
gateway.
This led will be on if your
LINK Master has an internet
connection.
DuraLink LED Direct Wifi button
This led will blink if it receives
a wireless DuraLink message.
This button will enable
an access point on your
gateway.
Owner button
This button is used to
become owner in the Dura-
Cloud App (→ 2.2.2.2.)

11
LINK MASTER
2. LINK Master
2.1. Installation
2.1.1. Mechanical installation
2.1.1.1. Positioning
Important guidelines to observe when choosing the correct location for installing the LINK
Master.
- The antenna needs to be attached on the top right of the
LINK Master
- The LINK Master cabinet needs to be mounted vertically and
permanently on a solid wall with sufficient bearing capacity.
- Respect a free space around the LINK Master cabinet for
unobstructed airflow. (see drawing below)
300 mm
300 mm
DLM-600

12
- The location where the LINK Master will be installed must be protected from
dust and water in order to ensure that the device functions properly.
- The ambient temperature must be between 0°C and +40°C and must be as
constant as possible.
- The relative humidity at the location of installation must not exceed 90%, no
condensation may occur.
- Direct heat or sun rays on the device must be avoided. The LINK Master is not
suitable for outdoor installation.
- The DuraCloud App and LINK Touch need access to the LINK Master for
configuration of certain settings and calibrations.
- For the DuraCloud App to fully communicate with the LINK Master it needs to
be connected to a ‘router’ device providing wireless (cloud) access. (→2.1.3)
- For the LINK Touch to correctly communicate with the LINK Master it needs to
have an unblocked radio signal.
- Also be aware that for ‘cover operation’ safety reasons the LINK Touch may
only be mounted in a place that allows full visibility of the entire pool.
2.1.1.2. Provisions
Before commencing with the electrical installation, the following supplies need to be avail-
able at the place of installation.
- Power supply 230VAC 32A
- Network cable
Make sure that the cable section (mm²) for the power cable is in accordance with the
cable length and complies with the applicable ‘country’ standards.

13
LINK MASTER
2.1.1.3. Phyisical installation
1. Fix the wall mounting plate to the wall using the included (plugs) and screws.
2. Lift the Link Master up, and position in front of the hooks on the mounting plate. (best
with 2 persons)
3. Lower the Link Master and let the hooks slide into the holes on the back of the cabinet.
Make sure the Link Master is securely attached.
DLM-600

14
2.1.2. Electrical installation
High level overview of the LINK Master and the parts that are inside.
DLM-600 overview
DLM-600 terminal blocks
Antenna
Transformer
Gateway
Circuit
breakers
Terminal
Blocks
Controller

15
LINK MASTER
2.1.2.1. Wiring instructions
Before opening the housing, it is necessary to always de-energize the device electrically.
The electrical connection as well as the work of adjustment and servicing should only be
carried out by an qualified electrician!
- Check the sticker on the inside of the cabinet door for easy installation.
Connect all the devices to the connection terminals at the bottom of the cabinet.
- Refer to each individual chapter (3-6) for device specific installation instructions.
Ensure all connections are stable by tightening the connection terminal
screws firmly.
- Connect the 230VAC power supply cable
- Ensure the correct connection of the grounding (terminal 1)
The DLM-600 may not exceed 500VA and the 42A current.
DLM-600 inside cabinet sticker

16
2.1.3. Network installation
For the DuraCloud App to communicate with the LINK Master it needs to be connected
to a ‘router’ device providing wireless (cloud) access. This access is essential to be able
to fully configure your LINK Master (→ 2.2)
The ‘router’ device cable should be connected in the LAN socket. (drawing below)
DLM-600

17
LINK MASTER
2.1.4. DMX controller installation
The DMX controller can be connected to the LINK Master in the following way.
Connect the DMX controller wires to the connection terminal blocks
29 and 30 on the DLM-600
For more information about how to use the DMX commands please refer to (→3.3.5.)
DLM-600 DMX connection
2.1.5. RS485 controller installation
A controller with RS485 connection can be connected to the LINK Master in the following
way.
Connect the RS485 controller wires to the connection terminal blocks
29 and 30 on the DLM-600
For more information about how to use the RS485 commands please refer to (→4.3.3.)
DLM-600 RS485 connection

18
2.2. Configuration
2.2.1. System start-up
For the initial start-up the LINK Master Controller and Gateway keypads will be used be-
cause the DuraCloud App and LINK Touch are not yet paired with the LINK Master.
Also be aware that the last step in the initial start-up of the Gateway is to search for any
software updates. This process is only possible when a network connection with internet
access has been established. If you have opted for the local ‘network’ connection (→
2.1.3.) this step in the start-up will be skipped.
- Power up the LINK Master by switching on the power supply.
- On the keypad all Led’s will blink once short, to check their functioning.
- On the controller keypad all Led’s of connected devices will stay ON.
- On the gateway keypad the on/off button will start blinking for 30 seconds.
This means it is starting up.
- Two minutes after start-up, the “DuraCloud” LED will show if the LINK Master
has made an internet connection (LED ON) or not (LED OFF).
- When the internet connection is made, The LINK Master will now search for any
software updates.
- During the process of updating, the LINK Master will be fully operational.
2.2.2. DuraCloud app pairing
2.2.2.1 Account and permissions
The DuraCloud App works around roles which have different levels of permission. The
roles have can have ‘local’ and/or ‘cloud’ access to the LINK Master.
Local access = Gateway specific anonymous accounts that require local network access
to be created.
Cloud access = User accounts that are created in the cloud and can be linked to one or
more gateways.
The below table gives an overview of the combinations.
Roles Obtained by Obtainable after Cloud Account Local Account
1Guest
Local request
Connecting to gateway (Automatic) NO
YES
2
Owner
Pressing owner button
YES
3Other owner account - Promotion
- Activating web link
4Installer PPS Certified by PPS NO
2.2.2.2. DuraCloud - owner of the pool
The DuraCloud App will give access to all options available for the configuration of the
pool in a smart and simple way.
Next is for the DuraCloud App to obtain the ‘Owner role’ for the pool.

19
LINK MASTER
- Ensure the smart phone or tablet you are using is connected to the same
network as the LINK Master.
- Open the DuraCloud App on your ‘smart’ device.
- Open the menu on the top left
- Navigate to “Claim Ownership”
- Select the Gateway keypad button “Owner” to obtain authorised access.
- Click on the gateway in the DuraCloud App you want to promote
- When the DuraCloud App shows that it has become owner, the procedure has
successfully been completed.
It is recommended to sign in to the cloud before becoming owner of
your pool. This will allow the most optimal way of ensuring your remote
connection.

20
2.2.3. Configure other devices
Before continuing with the pairing of the LINK Touch (→2.2.6.) it is important that all
installed devices are correctly paired with the LINK Master.
- Pool lights (→3.2.)
- Heat pump (→4.2.)
- Filter pump (→5.2.)
2.2.4. Configure relays A & B
Before continuing with the configuration of the relays, please ensure the DuraCloud App
has established the owner role for the pool. (→2.2.2.2.)
- Ensure the DuraCloud App is connected to the same network as the
LINK Master.
- Open the DuraCloud App on your device
- Select the pool you wish to configure
- When the DuraCloud App has the owner role for this pool, a settings icon will
show in the top right corner.
- Click on the settings icon
- You can now change relays A & B to the preferred mode.
- Relay A
- OFF
- Open multi-brand cover
- Toggle
- Pulse
- FilterpumpBoost
- Relay B
- OFF
- Close multi-brand cover
- Toggle
- Pulse
- Filling
The available options for setting the relays are directly related to the con-
nected devices.
For example; when using the DuraCover both relay A and B remain free, however when
using a Multi-Brand cover both Relay A and B are assigned for the opening and closing of
the cover and cannot be used for any other functionalities.
This manual suits for next models
1
Table of contents
Other Duratech Switch manuals
Popular Switch manuals by other brands

Panasonic
Panasonic PN26161K-NZ installation guide

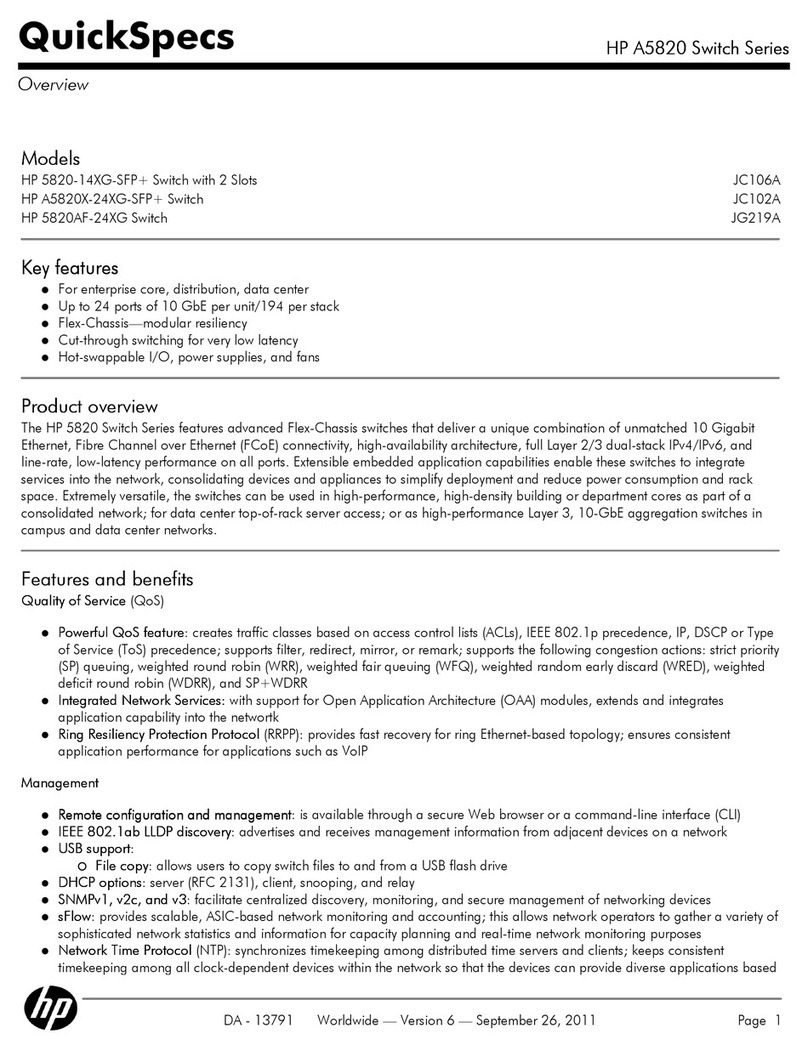

HP
HP A5820X-24XG-SFP+ Quickspecs

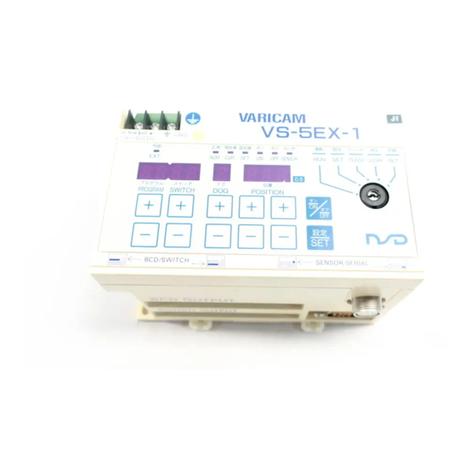

NSD
NSD Varicam VS-5E Series Specifications & Instruction Manual

Digitus
Digitus DN-80212 Quick installation guide

K-TEK
K-TEK KP Installation & operation manual

Rose electronics
Rose electronics ServeView 2X Installation and operation manual

Briggs & Stratton
Briggs & Stratton 695061 Series Operating & installation instructions

Cisco
Cisco MDS 9124V-K9 Hardware installation guide

Key Digital
Key Digital KD-HDMI2X8P Specifications

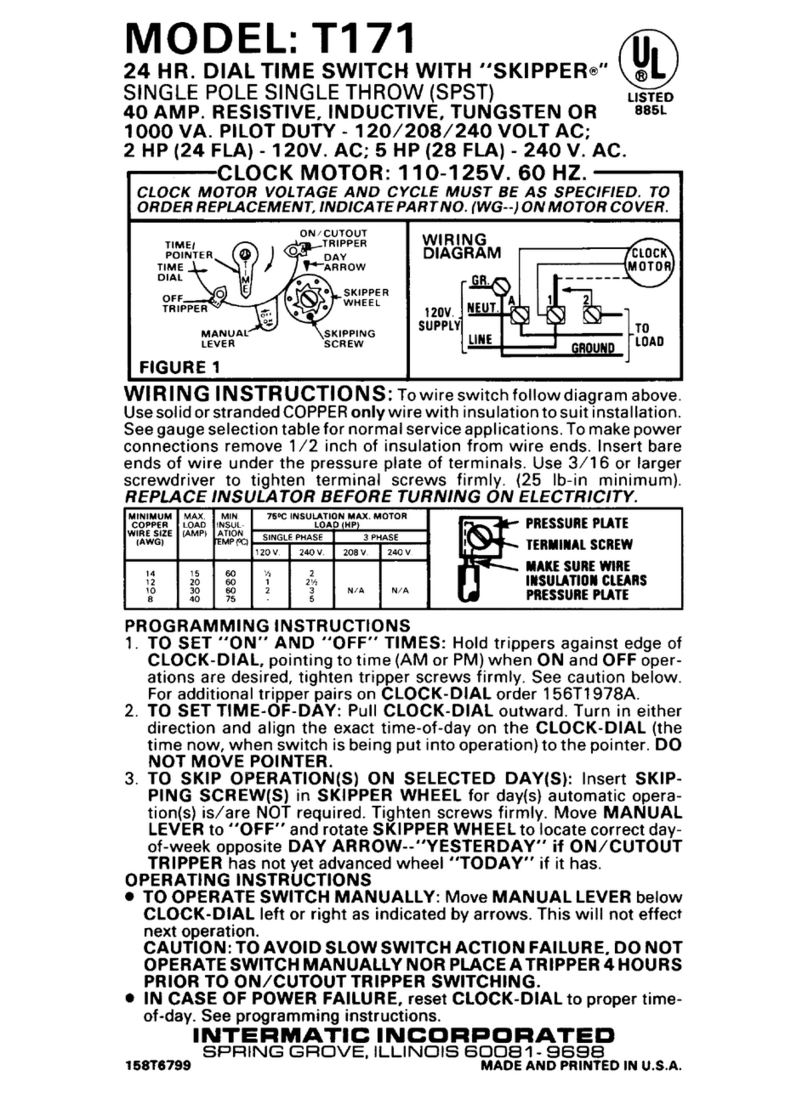

Intermatic
Intermatic T171 supplementary guide

Cisco
Cisco Meraki MS225 Series installation guide

NETGEAR
NETGEAR M4500 Series Hardware installation guide
