Durite 0-775-47 User manual

7" Mirror Monitor Kit
Part 0-775-47
0-775-47-LEAF
www.durite.co.uk
Before using this unit please read these instructions carefully.Take special care to follow
the warnings indicated on the unit itself as well as the safety suggestions listed below.
Keep these instructions for future reference.
PRECAUTIONS
*Power Source -The monitor should be connected to a 12 - 24 volt de power
supply only.
*Water and Moisture -Do not use the monitor where it may be subject to water
ingress or excessive moisture. Do not use outside the vehicle unprotected.
*Heat -Do not install the monitor or camera near a direct heat sources.
*Ventilation -The monitor should be situated to allow free circulation of air.
*Foreign Material -Care should be taken so that objects do not fall onto or into,
and that liquids are not spilled on the monitor.
*Mounting Surface -The monitor should be mounted to a strong secure surface.
*Replacement Parts - Use only manufacturers replacement specied parts. Unau-
thorised substitutions may result in re risk, electric shock or other hazards and
will void the warranty.
*Service -The user should not attempt to service this units beyond that described
in the operating instructions.There are no user-serviceable parts within the unit.
*Isolation -When tting to an isolated earth vehicle the camera and monitor
bracket must also be electrically isolated from the vehicle chassis. If interference
is experienced on earthed chassis vehicles electrically isolating the camera from
the chassis should eliminate the interference.
*Screen Protective Film - Remove the LCD screen protective plastic cover before
use.

- 7" High resolution colourTFT-LCD LED Backlit Monitor.
- DC 11V-32V Input, suitable for all kinds of vehicles and equipments.
- Monitor Brightness 400cd.
- Reverse Polarity Protection.
- LED backlight display With constant voltage constant current circuit protection
design.
- ESD protection circuit design.
- Monitor OSD menu can set each camera image in 4 different modes:NOR/MIR/
UP/DOWN;the priority for each channel.Timer delay 0-30seconds.
- 11 Optional Languages.
- High shock resistance rating:BG.
- Camera designed to protect against camera oxidisation.
Notice:
- Before using product please read this manual carfully rst.
- Monitor is not waterproof please avoid ingress.
- Do not attempt to open camera or monitor for repair as this will void warranty.
- Please do not use caustic chemicals to wipe the camera or monitor
FEATURES
MONITOR SPECIFICATIONS
- Display: 7-inch-high resolution digitalTFT LCD display with touch icon
- Screen resolution: 800XRGBX480
- View angle: L/R:70/70; U/D: 60/70
- Contrast Ratio: 500:1
- Luminance (nits): 400
- Response time(ms): 20
- Audio Output: 0.5W
- A/V input: two channels
- System: CVBS (PAL / NTSC) auto compatible
- Power supply: DC 11-32V
- Power consumption: ≤ 5W
- Working temperature: -20°C-+60°C
- Storage temperature: -30°C-+80°C
- Type: 1/3” Sony CCD 4140
- Voltage: 12VDC
-Sensitivty: 0 LUX with IR on
-S/N Ratio: 48dB
-Current Draw: 200mA
-Electronic Shutter: Auto
-Lens: f 2.8mm
- Video Output: 1 Vpp, 75
Ohm
-IP Rating: IP68
-Auto Gain Control:Yes
CAMERA SPECIFICATIONS
0-775-47-LEAF
www.durite.co.uk

SYSTEM DIAGRAM
- Microphone:Yes
- Weight: 360g

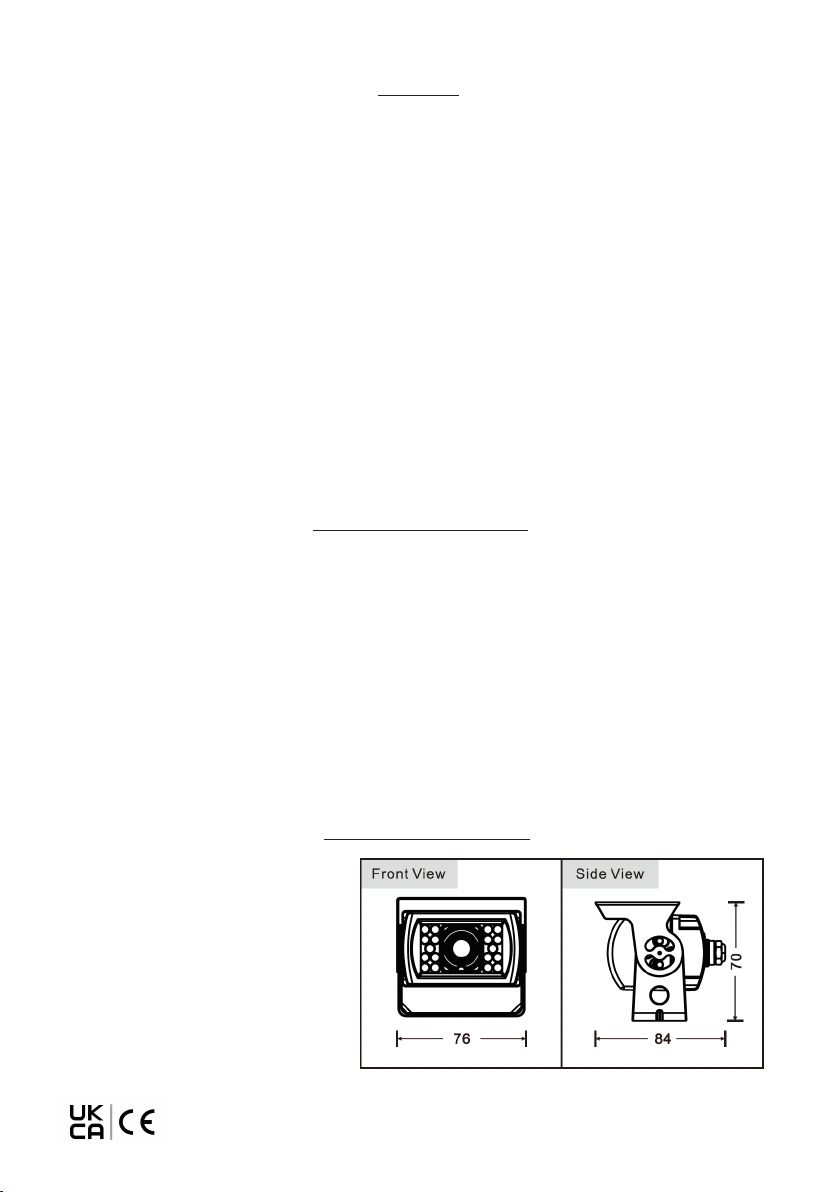

- Dimensions: L 84 x W 76 x H 70mm
- Operating Temperature: -20˚C to +70˚C
- E Marked: ECE R10
0-775-47-LEAF
www.durite.co.uk

MONITOR APPEARANCE, DIMENSIONS AND CONNECTIONS
0-775-47-LEAF
www.durite.co.uk

MONITOR MENU OPERATION
0-775-47-LEAF
www.durite.co.uk

0-775-47-LEAF
www.durite.co.uk
PICTURE: Adjust Brightess, Contrast and Color
VOLUME: Adjust Volume

0-775-47-LEAF
www.durite.co.uk
SYSTEM: Adjust S Color (PAL/NTSC), Reverse Lines ON/OFF, Adjust ACC1/2Time Delay(Seconds)
OPTION: Language Select, Rotate Image, Zoom (Aspect Ratio), V1/V2 Delay, BC2-AV1
CLOCK: Sleep Mode set timer to sleep (10, 20 or 30Mins).
LOCK MODE:
Press and hold Menu for 2- 3 seconds and it will lock the screen and display LOCK
To unlock press and hold Menu for 4 – 6 seconds and it will display UNLOCK, if you release the
button too soon it will display LOCK
