Owner’s Manual
Models: 135D5N, 135D5L,
170D5N, 170D5L
5 Star Gas Hot Water Heater
H3109 3109 Rev. E
Installation Details
Owner’s Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.

Owner’s Manual – Prodigy 5
H3109 3109 Rev. E
Welcome To Dux Hot Water 1
Installation Details 2
Plumbing Connections 3
Specications 6
Gas Connections 7
Commissioning Adjustments 8
Owner’s Information 12
System Maintenance 14
Troubleshooting 15
Warranty 17
Other Information 22
Contents
© Dux Manufacturing Limited 2012. All rights reserved.

Owner’s Manual – Prodigy 5
1
H3109 3109 Rev. E
Welcome To Dux Hot Water
Your decision to purchase a Dux Hot
Water system will reward you for many
years to come.
Since 1915, the Dux range has seen
continuous research and development,
resulting in many breakthroughs in the
efciency, reliability and longevity of hot
water systems.
Dux water heaters are manufactured
in Australia in a state-of-the-art facility,
using a Quality Endorsed Company
production system.
This is your assurance that you have
purchased the highest quality water
heater available, one that will provide
continuous hot water for all your needs
– safely, economically, and for many
years to come.
To be upfront about it, we want Dux to
be your brand of choice. So you can
depend on us to provide more than just
a hot water system.
You can rely on Dux products and
choose them with condence. We’ll
make sure you have the information, the
quality and the innovation you’re looking
for, including the latest energy-saving
alternatives. If you should ever have a
problem – and we’ll bet you won’t –
you’ll nd that we’re easy to get hold of,
friendly to talk to and quick to act. Our
service is all about providing anything
you need as soon as you need it.
Go with Dux and you’ll have a
dependable, economical, efcient hot
water system designed to perform well,
year after year. And that’s a promise.

Owner’s Manual – Prodigy 5
2
H3109 3109 Rev. E
Installation Details
Outdoor Tank Installation
The water heater must be installed
outdoors, with the minimum clearances
as shown in the gure below.
We recommend a plinth be installed
under the water heater where the
water heater is subjected to wet
conditions.
Minimum clearance around the windows
and doors must be maintained – refer to
AS 5601.
Location
The water heater should be located as
close as possible to the most frequently
used hot water outlet. Ensure that the
data label is clearly visible and that there
is adequate access for servicing the unit.
Note: All models are equipped with a
sacricial anode, accessible through the
top cover. Allow 50% of the height of
the water heater for clearance above to
replace the anode.
A properly drained overow tray must
be used where property damage could
occur from water spillage. (See
AS/NZS3500.4 for further details).
Warranty does not cover consequential
damage due to heater leakage.
Safety
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
Children and animals should be
supervised to ensure that they do not
interfere with the appliance.
A = 500mm B=300mm min
For further details, refer to
AS 5601 – Gas Installation Code

Owner’s Manual – Prodigy 5
3
H3109 3109 Rev. E
Plumbing Connections
Installation Requirements
This water heater must be installed
by a licensed tradesperson, and in
accordance with:
• AS/NZS3500.4 “National Plumbing
and Drainage Code Hot Water
Supply Systems – Acceptable
Solutions”.
• AS5601/AG601 “Gas Installations”.
• Local authority regulations.
• Outside Australia and New Zealand,
please refer to local plumbing and
building codes and regulations.
• Notice to Victorian customers
from the Victorian Plumbing
Industry Commission – this water
heater must be installed by a
licensed person as required by the
Victorian Building Act (1993). Only
a licensed person will give you a
compliance certicate, showing
that the work complies with all
the relevant Standards and only a
licensed person will have insurance
protecting their workmanship for 6
years.
Water Supply Pressure
This water heater is designed for direct
connection to water supply pressures of
no greater than:
All Litre Models – 1120kPa
Where the mains pressure can exceed
or uctuate beyond the pressure
shown above a pressure limiting device
(complying with AS1357) must be
tted in the cold water inlet supply.
This device must be installed after
the isolating valve and set below the
pressure shown above. Note during
periods of lower demand water pressure
may increase.
Pool Heating
This water heater must not be used for
pool heating.
Plumbing Connections

Owner’s Manual – Prodigy 5
4
H3109 3109 Rev. E
Plumbing Connections
Pressure & Temperature Relief
Valve
The Pressure & Temperature Relief Valve
is supplied loose with the water heater.
The valve rating is:
All Models – 1400kPa
The PTR valve must be installed directly
into the top socket marked “RELIEF
VALVE”. The drain line from this valve
must run in a continuously downward
direction in a frost-free ambient position
with the discharge end left open to
atmosphere permanently.
The PTR Valve is not intended to enable
connection of the water heater to
supplementary energy sources such as
solar panels or slow combustion stoves
(refer AS/NZS 3500.4 for guidance on
these types of installations).
Open the PTR Valve for approximately
10 seconds by lifting the lever on the
valve to ensure water is relieved to waste
through the relief drain pipe. Lower lever
gently and check that it closes correctly.
Warning: We recommend that you
open the PTR valve at least once every
six (6) months. Failure to do this may
result in problems with the water heater.
The PTR Valve must not be tampered
with or removed. The water heater must
not be operated unless this valve is
tted and in working order.
The PTR Valve should be checked for
adequate performance or replaced at
intervals not exceeding 5 years, or less
in areas where local regulations apply.
Important: The PTR Valve and its
drain outlet pipe must not be sealed or
blocked. It is normal for the PTR valve
to leak a small amount of water during
heating cycles.

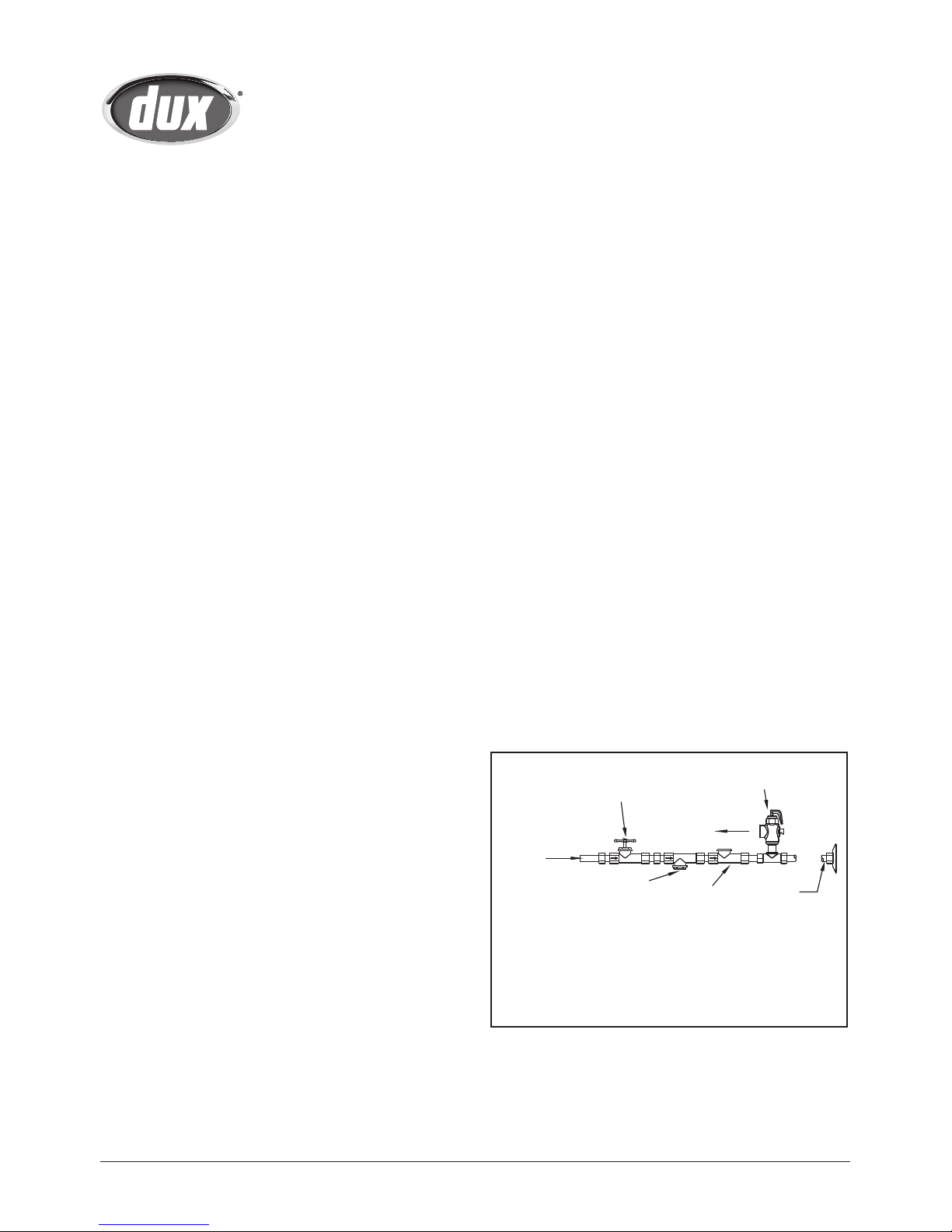

Cold Water Connection
It is mandatory to t the following items
between the supply main and the
RP¾"/20mm socket in the water heater.
• an isolating valve
• a non return valve
• a line strainer
• a union
All ttings must be approved by the
relevant Authority and in accordance to
the plumbing code.
Union
Connection
Non-return
Valve
Line
Strainer
Cold Water
Inlet
Drain
Pressure
Relief Valve
Isolating Valve
(Spindle Vertical)
Note: a combined isolating valve/non-
return valve/line strainer may be used.
Expansion valve only required where local
regulations demand.

Owner’s Manual – Prodigy 5
5
H3109 3109 Rev. E
Plumbing Connections
Note for S.A. and W.A.: It is a state
requirement that a pressure relief valve
be tted on the cold water supply line
between the non return valve and the
water heater.
Hot Water Connection
The hot water line should be connected
to the “OUTLET” socket on the tank.
Insulation of Pipes
All hot water pipes must be insulated
with UV stabilized insulation.
Temperature Protection
All water heaters have the ability to
produce hot water very quickly. To
reduce the risk of scald injury, it is
mandatory under the requirements of
Australian Standard AS/NZS3500.4 that
a suitably approved temperature control
device, such as a tempering valve, be
tted to the hot water supply to outlets
used primarily for personal hygiene.

Owner’s Manual – Prodigy 5
6
H3109 3109 Rev. E
Specifications
System Components
Component Description
1PTR Valve
2Hot Water Outlet To House
3Cold Water Inlet
Tank Specifications
Model Numbers 135D5N,
135D5L
170D5N,
170D5L
Capacity (L) 135 170
Net Weight Empty (kg) 76 88
Relief Valve Pressure (kPA) 1400 1400
Gas Consumption (Propane) 22.5 MJ/h 26 MJ/h
Gas Consumption (NG) 23.5 MJ/h 27 MJ/h
Dimensions (mm)
A – Height 1610 1910
B – Hot Water Outlet 1320 1620
C – Cold Water Inlet 220 220

Owner’s Manual – Prodigy 5
7
H3109 3109 Rev. E
Gas Connections
Refer to the Data Label for correct gas
type. Gas piping should be connected
through the side of the case (see gure
below).
The plastic grommet must be installed
around the pipe and clipped into the
case.
The gas control is tted with a RC½"/15
socket. A union connection should be
used.
Gas pipe sizes should be in accordance
with AS5601/AG601.
Gas
Entry

Owner’s Manual – Prodigy 5
8
H3109 3109 Rev. E
Note: Commissioning adjustments
can be done only by a licensed
tradesperson.
Lighting the Water Heater
The water heater must be lled with
water before lighting. Instructions for
lighting procedure are on the inside of
the access cover and shown below:
1. Turn the knob fully clockwise to the
“•” (off) position.
2. Wait ve (5) minutes so any build-up
of unburnt gas can escape.
3. Turn the knob to the (pilot)
position.
Thermostat and
gas control knob Igniter
4. Depress the knob fully (until
disappears below housing) and after
thirty (30) seconds, whilst keeping
the knob depressed, repeatedly
press the igniter button (for up to 40
seconds) until the pilot ame ignites.
Note: It is not possible to depress
the knob fully if the gas control has
activated its safety shut-off feature.
In this case, wait 60 seconds for the
gas control to reset.
5. Keep the knob depressed for
twenty (20) seconds after the pilot
ame lights. The pilot ame can
be observed if a mirror is placed
directly below the pilot assembly.
6. Release the knob and check if the
pilot is still alight.
7. If pilot has failed to light or has not
remained alight, turn gas control
knob to “•” (off). Wait ve (5)
minutes for the escape of unburnt
gas, then begin again at step 3.
8. When the pilot ame remains alight
with the knob released, turn the
knob anticlockwise to one of the
number settings. A setting of “6” is
recommended and this will give a
water temperature of about 60ºC.
Commissioning Adjustments
