DVDO DVDO-C3-1 User manual

Version: V1.0.2
DVDO-C3-1
PTZ Auto Tracking Camera
User Manual

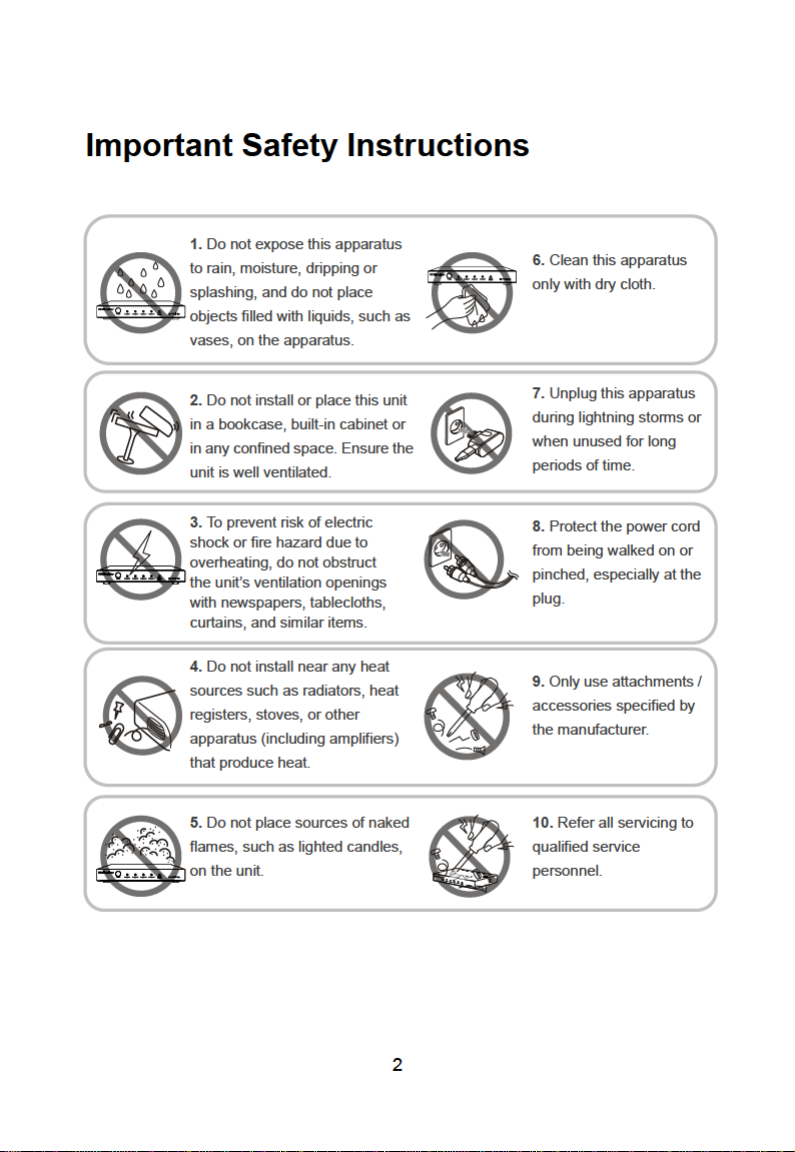

3
FCC Warning
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

4
Table of Contents
Introduction......................................................................................................6
Features ...................................................................................................6
Package Contents ....................................................................................7

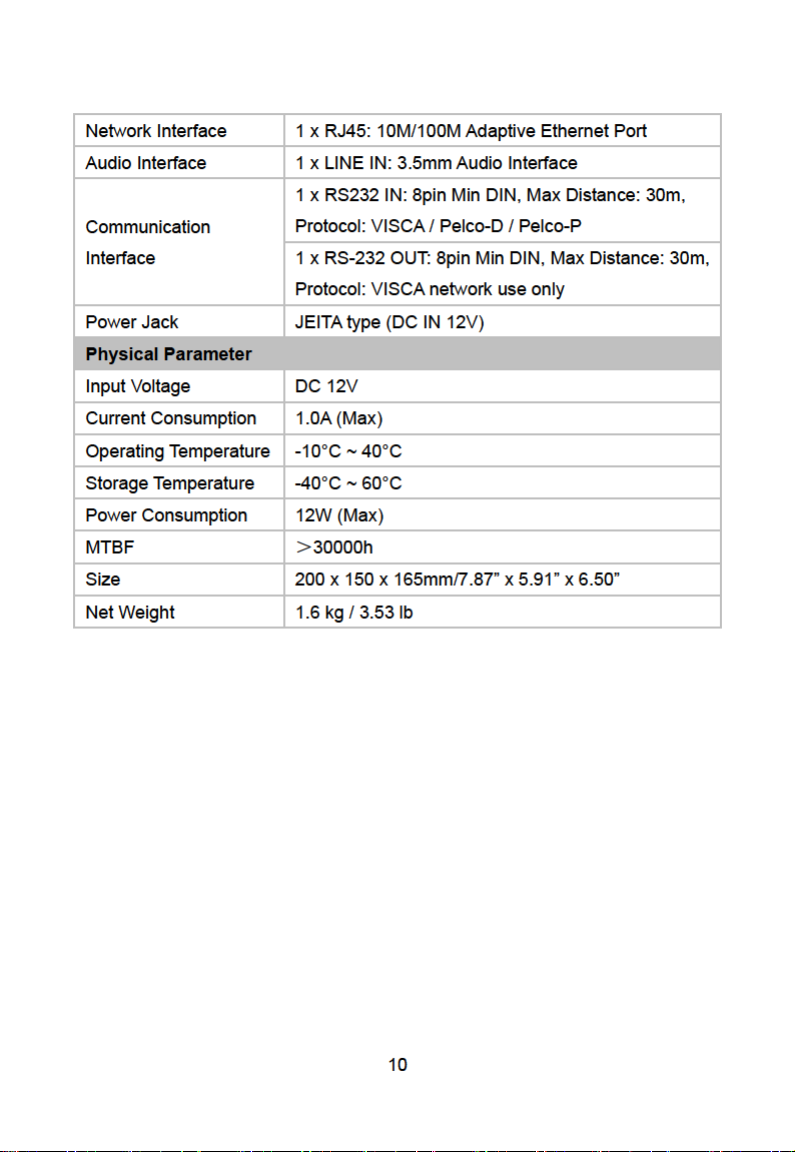

Specifications ...........................................................................................8
Panel Description ................................................................................... 11
Dimensions.............................................................................................12
Installation and Wiring ...................................................................................13

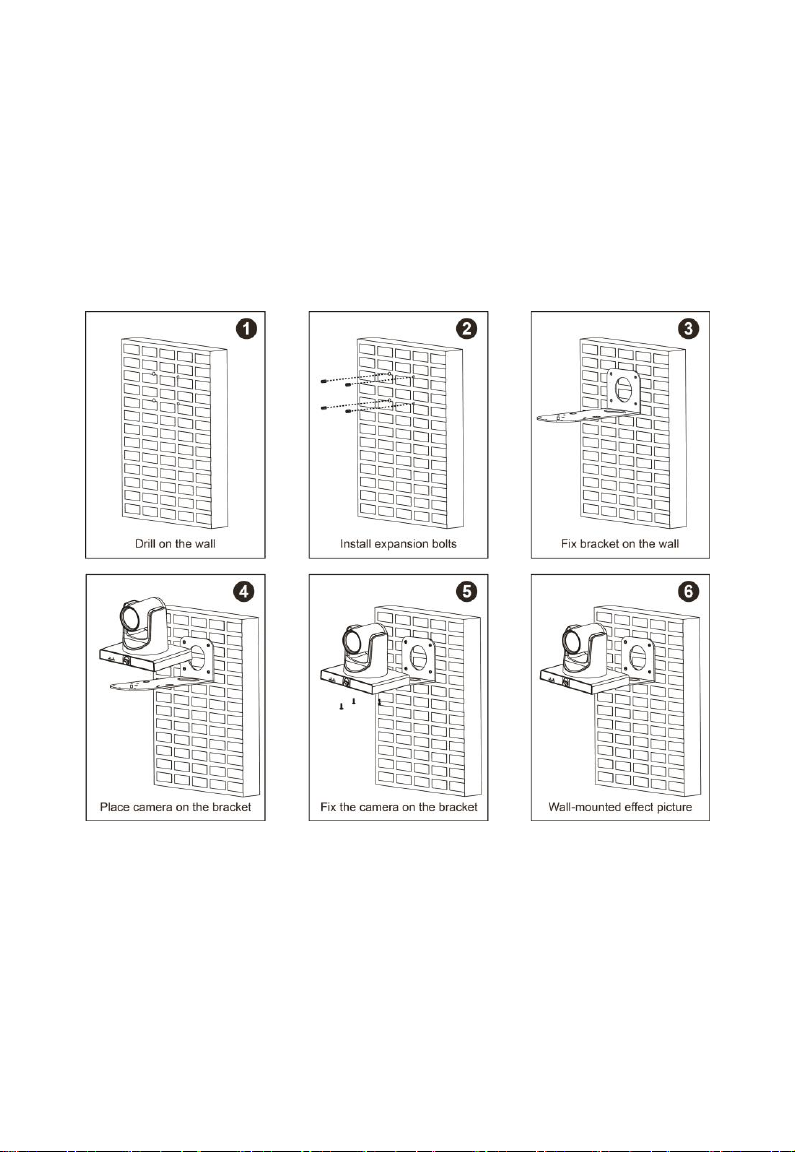

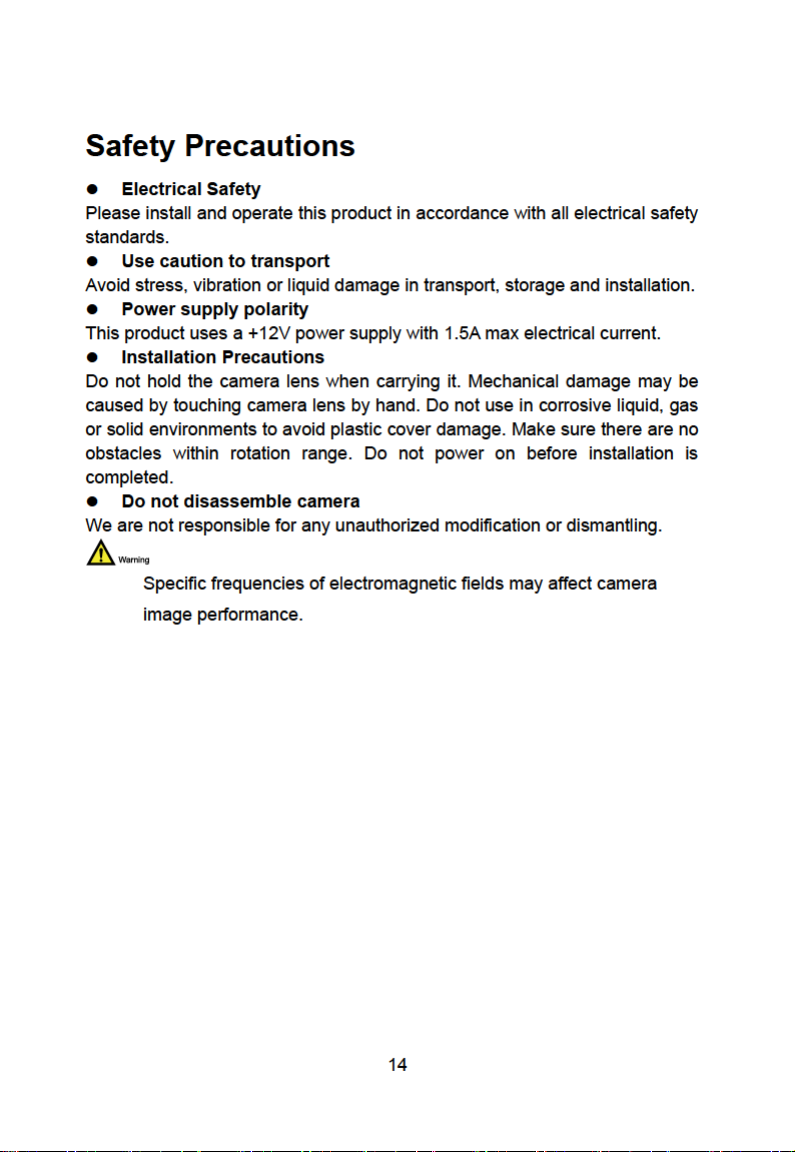

Installation ..............................................................................................13
Wiring .....................................................................................................15

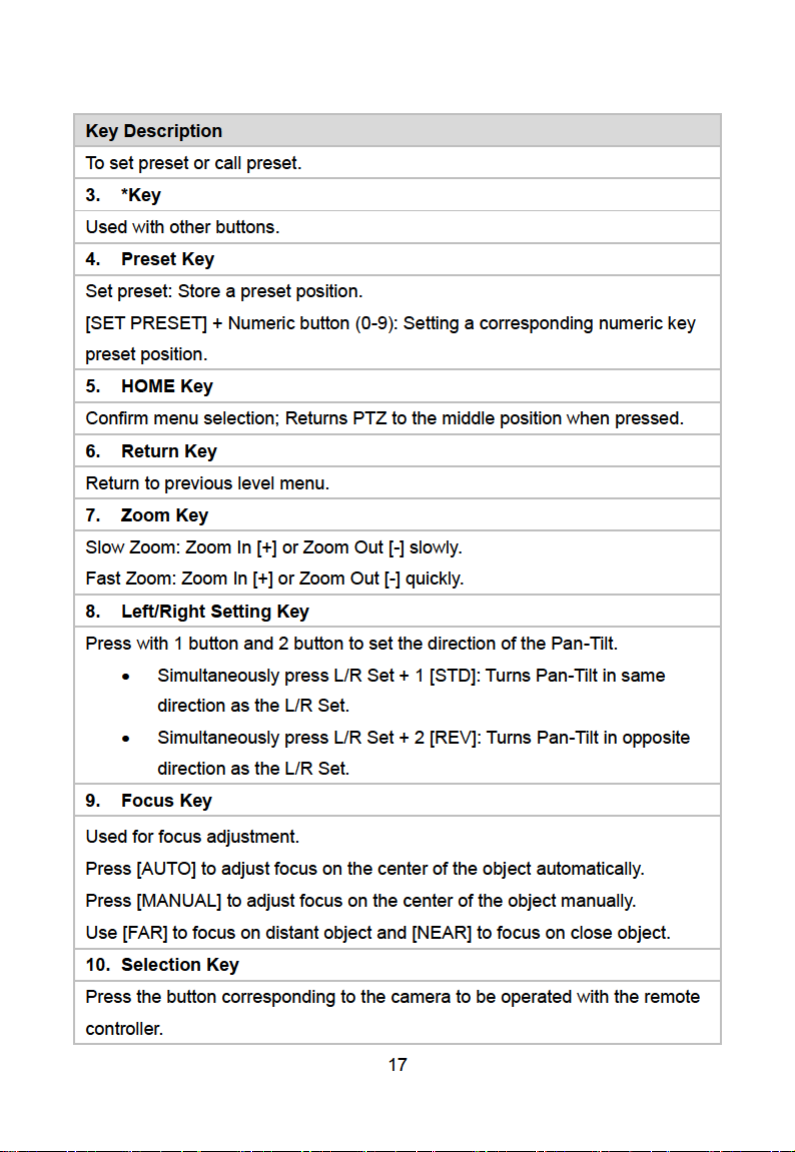

IR Remote Control.........................................................................................16
RS232 Control...............................................................................................20
RS232 Interface......................................................................................20
VISCA Network.......................................................................................22
RS232 Serial Communication Control....................................................22
GUI Settings ..................................................................................................23
MENU.....................................................................................................23
EXPOSURE............................................................................................24
COLOR...................................................................................................25
IMAGE....................................................................................................25
P/T/Z.......................................................................................................26
NOISE REDUCTION..............................................................................27
SETUP....................................................................................................27
COMMUNICATION SETUP....................................................................28
RESTORE DEFAULT .............................................................................28
Network Function...........................................................................................29
Operating Environment...........................................................................29
Equipment Installation ............................................................................29
Internet Connection ................................................................................29

5
Camera Connection to PC and LAN.......................................................30
Camera Tracking Configuration..............................................................30
View Camera / Setup Streaming.............................................................32
Camera Controlled by WAN....................................................................34
Setup IP Controlled by Dynamic DNS.............................................34
Dynamic DNS Visit Camera.............................................................34
VLC Stream Media Player Monitor..................................................35
Camera Parameter Setup.......................................................................36
Homepage Introduction...................................................................36
Video Settings .................................................................................39
Image Settings.................................................................................41
Audio Settings .................................................................................42
System Settings...............................................................................42
Network Settings .............................................................................43
Device Information...........................................................................44
Troubleshooting.............................................................................................45
Warranty Terms and Conditions.....................................................................46

6
Introduction
Features
Integrated Design: Provides panoramic and close-up 4 channel Full HD
1080p video.
Intelligent Tracking for Education: Built-in image recognition and tracking
algorithm smoothly tracks the subject without auxiliary positioning
camera or tracking host. Multiple cameras can be installed to track
teacher and/or students.
Replaceable Lens: The panoramic lens is replaceable and compatible
with M12 interface lenses, making it easy to adapt to different classroom
scenarios.
Adjustable Viewing Angle: The panoramic lens angle can be adjusted up
and down (-15°~0°) to facilitate installation and adjustment.
Consistent Video: The panoramic and close-up images provide
consistent brightness and color.
72.5° Wide-Angle Lens: Close-up camera uses 72.5° wide-angle
high-quality lens and supports 12x optical zoom and 16x digital zoom.
Full HD 1080p: High-precision Panasonic HD CMOS 1/2.7”sensor
provides 2.07 million effective pixels, reaching 1920 x 1080 maximum
resolution with pristine image quality.
Ultra-High Frame Rate: Provides clear, smooth 1080p video in 60fps.
AAC Audio Encoding: Close-up camera supports AAC audio encoding
for superior sound quality and reduced bandwidth requirement.
Low Light Performance: 2D / 3D noise reduction algorithms greatly
reduce image noise to keep images clean and clear even under ultra-low
lighting, with signal-to-noise ratio up to 55dB.
Remote Control: The camera can be controlled remotely through the
RS232 serial port.

7
Package Contents
1 x Camera
1 x AC Power Adaptor
1 x Power Cable
1 x RS232 Cable
1 x Remote
1 x Wall Bracket with Screw Pack
