DWK WHEATON R2P 2.0 User manual

DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021

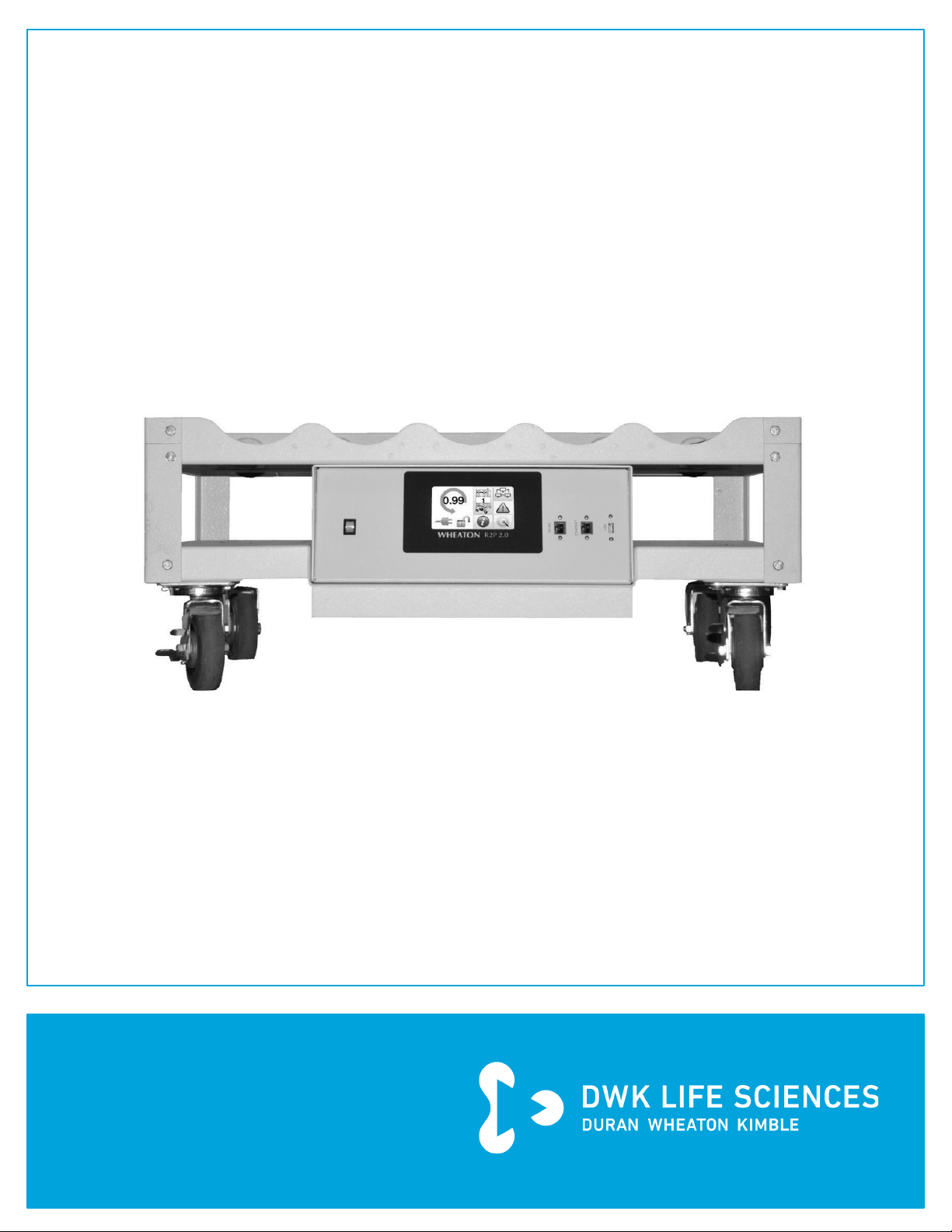

WHEATON® R2P™ 2.0
Bottom Drive Roller Apparatus
INSTRUCTION MANUAL
Catalog Numbers:
WRBXXXXXX-A THROUGH J!

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
2
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
CONTENTS
1 INTRODUCTION ............................................................................................................................... 5
R2P™ 2.0 Bottom Drive Roller Apparatus ................................................................................ 5
Limited Warranty................................................................................................................... 6
Safety Symbols ..................................................................................................................... 8
Specific Safety Considerations ............................................................................................. 10
Specifications – R2P 2.0 Bottom Drive Roller Apparatus ........................................................ 11
Dimensions and Capacities .................................................................................................. 13
Available Options ................................................................................................................. 13
2 INSTALLATION AND INITIAL STARTUP ............................................................................................ 14
Initial Startup and Touch Screen Navigation .......................................................................... 15
First Time Startup ............................................................................................................... 15
Initial Settings ............................................................................................................ 15
Splash Screen............................................................................................................ 15
Screen Saver ............................................................................................................. 16
3 MAIN OPERATION .......................................................................................................................... 17

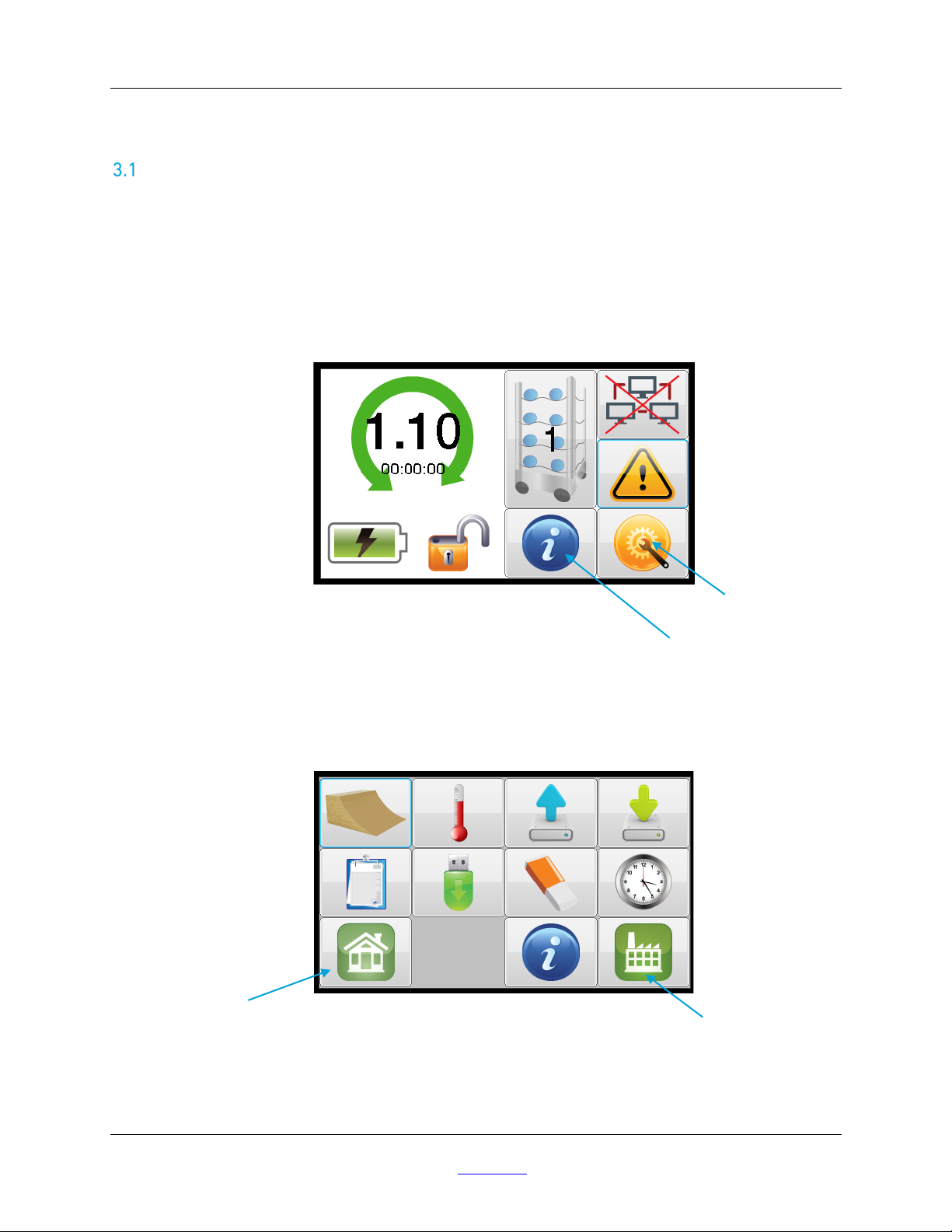

Touch Screen Navigation ..................................................................................................... 17

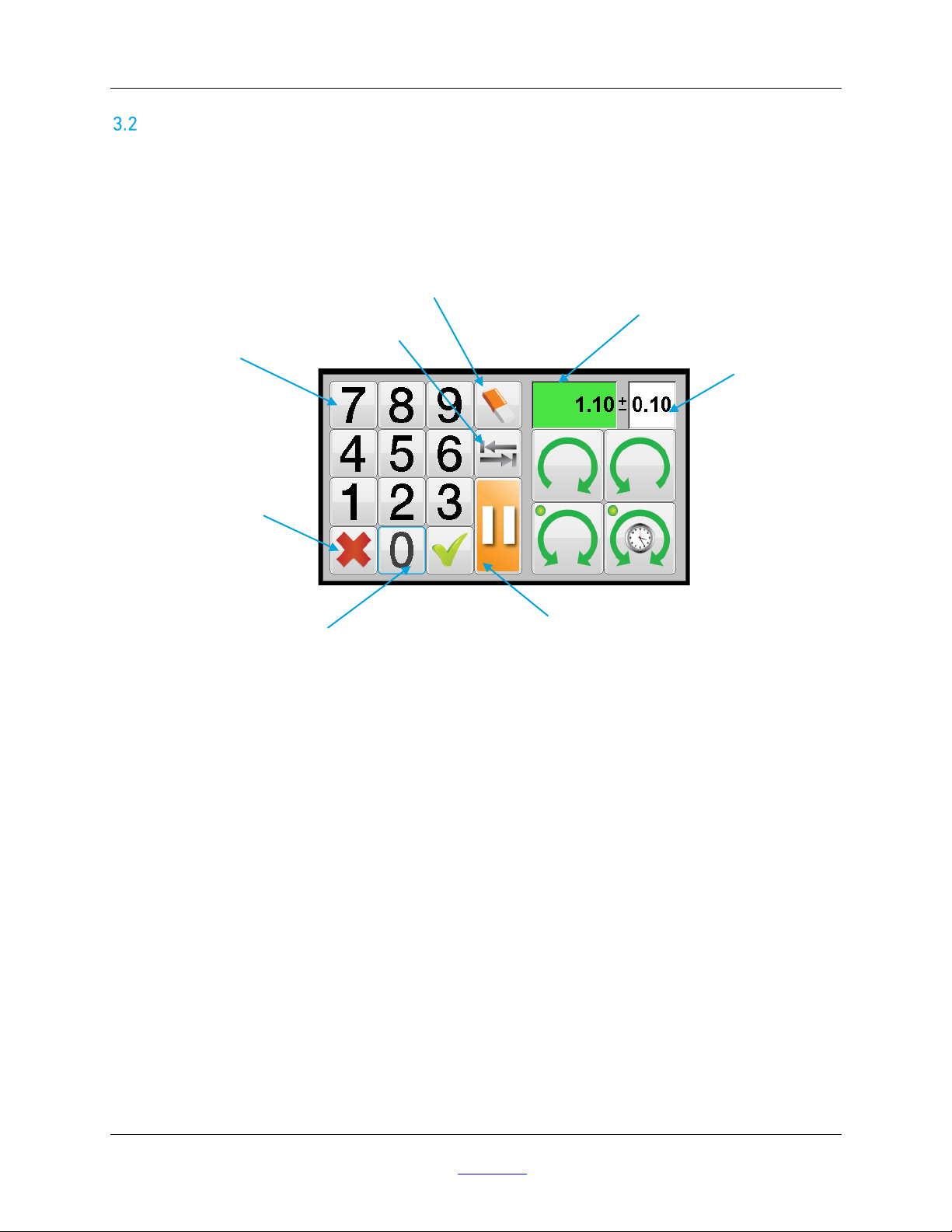

General Guidelines on Numerical Entry................................................................................. 19

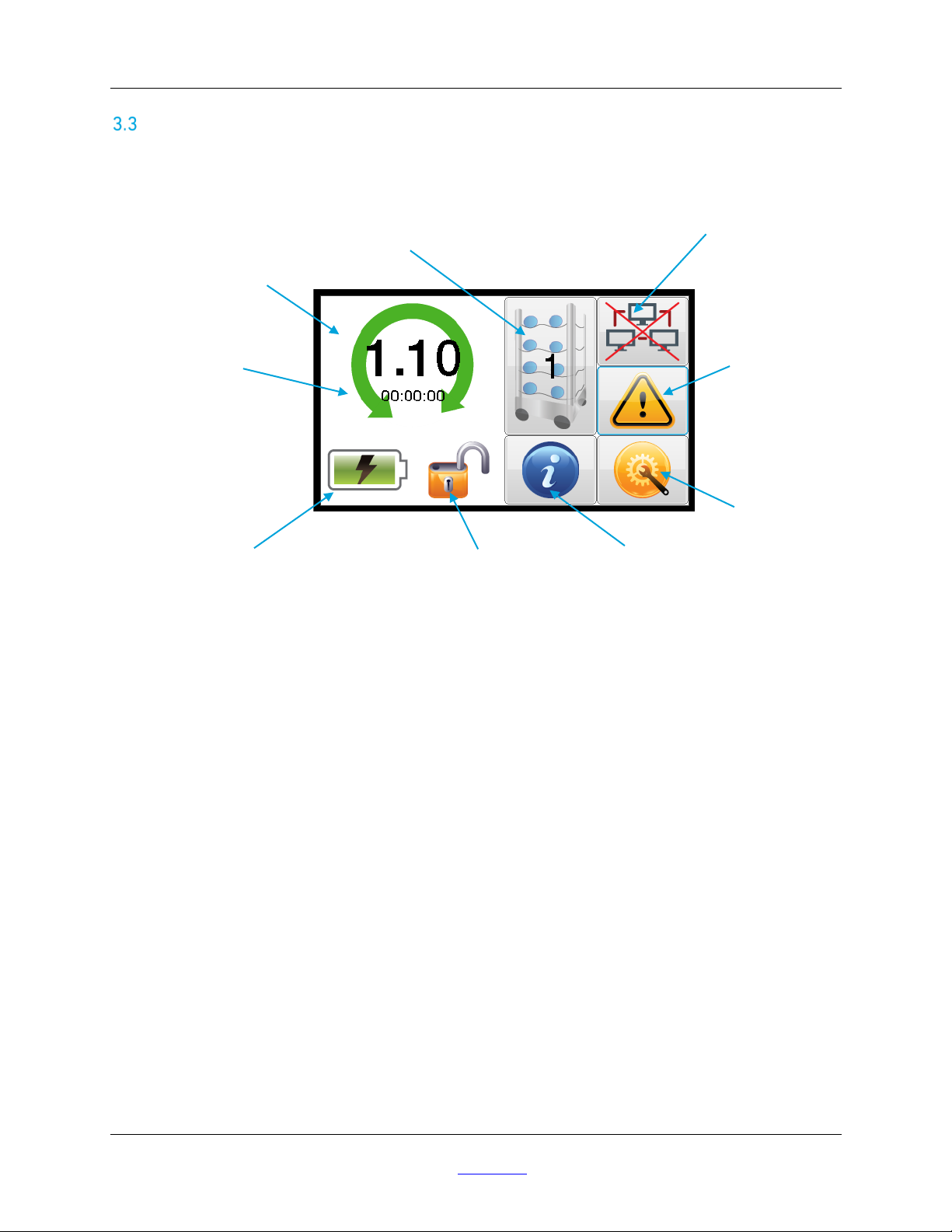

The Home Screen ................................................................................................................ 20
Bottle Speed and Direction Setting .............................................................................. 21
Unit Network ID .......................................................................................................... 22
Network Online/Offline Icon – WSP Protocol Only......................................................... 22
Alarm Notification Screen ........................................................................................... 23
Unit Power Icon .......................................................................................................... 24
Unit Screen Lock Icon ................................................................................................. 24
Information Screen .................................................................................................... 24
User Setup Screen ............................................................................................................... 25
Speed Ramp Time Screen ........................................................................................... 26
Temperature Alarm Screen ........................................................................................ 26
Retrieve Unit Settings Screen ..................................................................................... 27
Save Unit Settings Icon ............................................................................................... 28
Internal Event Log Recording Icon ............................................................................... 29
Download Event Log File Icon ..................................................................................... 29
Erase Event Log File Icon ............................................................................................ 29
Set System Date/Time Screen .................................................................................... 29
Factory Screen .................................................................................................................... 31
Change Bottle Diameter Screen .................................................................................. 32
Temperature Sensor Calibration Screen ...................................................................... 33
Change Motor Gear Ratio Screen ................................................................................. 34
Restore Factory Defaults Icon ..................................................................................... 35
Defaults that are restored after unit is powered down and powered back up ................. 35

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
3
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Network Protocol Screen ............................................................................................ 36
Alarm Sound Icon ....................................................................................................... 36
Calibrate Screen Icon ................................................................................................. 36
Firmware Update Icon ................................................................................................ 37
4 NETWORK OPERATION .................................................................................................................. 38
Introduction......................................................................................................................... 38
Network Ports and Cabling ................................................................................................... 38
Cabling Guidelines ..................................................................................................... 39
Network Selection ............................................................................................................... 40
RS-422/485 Network ................................................................................................. 40
Ethernet (TCP/IP) Network .......................................................................................... 41
WSP Protocol ............................................................................................................. 43
Modbus Protocol ........................................................................................................ 43
5 ADVANCED OPERATION ................................................................................................................. 45
Enable / Disable Internal Event Log Recording ...................................................................... 46
Download Event File ............................................................................................................ 46
Sample File ............................................................................................................... 47
File Sorting ................................................................................................................ 47
Delete Event File.................................................................................................................. 48
6 MAINTENANCE – FOR QUALIFIED SERVICE PERSONNEL ONLY ......................................................... 49
Instrument Inspection .......................................................................................................... 49
Instrument Maintenance Schedule........................................................................................ 49
7 TROUBLESHOOTING ...................................................................................................................... 50
Troubleshooting Check List .................................................................................................. 50
Motor Replacement ............................................................................................................. 52
Fuse Replacement ............................................................................................................... 52
8 OPTIONAL BATTERY BACKUP TECHNICAL INFORMATION ................................................................ 53
Operation with Battery Backup ............................................................................................. 53
Replacement Batteries ........................................................................................................ 53
Declaration of Conformity ............................................................................................................. 78

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
4
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
PARTS LISTS AND ILLUSTRATIONS
FIGURE A – MAIN ASSEMBLY - WRBXR5XX0-A-B
FIGURE B – MAIN ASSEMBLY - WRBXR5XX0-A-B
FIGURE C – MAIN ASSEMBLY - WRBXR5XX0-C-J
FIGURE D – MAIN ASSEMBLY - WRBXR5XX1-C-J
FIGURE E – BASE ASSEMBLY WITH UPRIGHTS - WL055618
FIGURE F AND G – DRIVE UNIT - WL058604, WL058639, WL058620, WL058640
FIGURE H – FRONT RAIL ASSEMBLY - WL055613
FIGURE I – REAR RAIL ASSEMBLY - WL055612
FIGURE J – ROLLER ASSEMBLY - WL055614
FIGURE K – DRIVE PULLEY & SENSORS - WL058613, WL058614
FIGURE L – MAINS FUSE REPLACEMENT
FIGURE M – BOTTLE SPEED VALIDATION
EMI DECLARATION AND WEEE NOTICE

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
5
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
1 INTRODUCTION
R2P™ 2.0 Bottom Drive Roller Apparatus
The WHEATON® R2P 2.0 Bottom Drive Roller Apparatus is a major step forward from the basic roller
apparatus of the past. Just about every aspect of roller bottle culture can be controlled and
documented. The microprocessor controller, color touch screen display and powerful brushless DC
motor, allows smooth and precise control of bottle rotation speed. Easy, user defined soft start and
soft stop and user defined reversal of rotation, if desired, round out the bottle control. A rotation
alarm is standard and will warn of a belt or motor failure.
An optional battery backup allows 18 hours of normal operation if main power is lost. Optional
resistance temperature detector (RTD) sensors are available to measure ambient conditions. The
roller apparatus can be used as a stand-alone unit or quickly and inexpensively connected to a
TCP/IP or RS-422/485 network. A menu-selectable Modbus protocol option allows quick connection
to established plant networks and control systems.
The WHEATON® R2P 2.0 Bottom Drive Roller Apparatus is designed to roll partially filled roller bottles
at specified speeds. Requirements beyond catalog offerings can be considered. Consult DWK Life
Sciences Technical Service staff for specific roller apparatus needs.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
6
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Limited Warranty
DWK Life Sciences warrants this product to be free from defects in materials and workmanship for a
period of two (2) years from the date of shipment. This warranty is limited to, at our discretion, repair
or replacement of any defective part(s) which fails during the warranty period. This warranty does
not cover the vertical timing belts or horizontal stretch belts, which become worn during normal use.
This warranty shall not apply to any equipment or parts which have been damaged as a result of an
accident, misuse, neglect, or non-factory modifications. In addition, DWK Life Sciences, shall not be
responsible for bodily or property loss, damages, or injuries of any kind or nature through either
direct or indirect use of the product.
IMPORTANT: The WHEATON® Production Roller Apparatus was designed for the purpose of growing
anchorage-dependent cell lines in roller culture bottles, with a maximum weight limit per deck of 30
pounds. Use of this equipment for other than its intended purpose shall void this warranty. This
product is not intended for use in adverse environments outside the environmental conditions listed
in this manual. It is also not intended for use with corrosive or explosive solutions.
This warranty is made expressly in lieu of any and all other warranties, expressed or implied, or
statutory as to the merchantability, fitness for purpose sold, description, quality, productiveness or
any other matter. All other such warranties are specifically excluded.
Should warranty service be necessary, please contact the DWK Life Sciences Technical Services
Department (+1.856.825.1100 option 4) for authorization and instructions. It will be necessary to
remove the roller unit’s control housing in order to ship it to DWK Life Sciences. Please contact the
DWK Life Sciences Repair Department for information.
Items returned for repair or adjustment should be packed very carefully to prevent damage in transit
and also should be insured for your protection. Should damage occur in transit, all claims should be
made against the carrier.
DWK Life Sciences will repair or adjust out-of-warranty products at a nominal charge.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
7
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Damage in Shipment
Should this product arrive damaged as a result of transit, a claim should be made against the carrier.
All requests for inspection must be made to the carrier within 15 days of receipt of shipment. The
shipping carton should not be discarded but retained until inspection by a representative of the
carrier is made. DWK Life Sciences takes no responsibility for damage to merchandise in transit. All
such claims must be submitted to the carrier.
DWK Life Sciences makes no other express or implied warranty, statutory or otherwise, concerning
materials or goods supplied, including without limitation, ANY WARRANTY of fitness for a particular
purpose or any warranty of merchantability. The warranties given are exclusive of all other
warranties expressed or implied. DWK Life Sciences shall not be liable for consequential, special or
incidental damages.
To expedite any technical or service request, please have the following information available.
Thank you.
Model:
Serial #:
Catalog #:

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
8
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Safety Symbols
The following safety symbols can be found within this manual and applied as decals to the unit. Their
definitions are below:
WARNING. READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions
listed below may result in electrical shock, fire and / or serious personal injury.
An ELECTRICAL DANGER symbol indicates attention to an operation which could cause
electrocution or severe injury.
A Pinch and Crush danger symbol indicates attention to an operation which could cause
severe injury due to hands or fingers being caught in rotating parts or machinery.
This product may use optional rechargeable lead-acid batteries. Carefully
follow the included instructions for battery specifications and replacement
instructions. Fitting a battery of the wrong type, such as a non-rechargeable
battery, can cause an explosion or fire hazard.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
9
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
General Safety Rules
WARNING. READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed
below may result in electrical shock, fire and / or serious personal injury.
SAVE THESE INSTRUCTIONS
Know your instrument – Read the operating manual carefully. Learn the equipment's application and
limitations.
Ground all equipment – This instrument is equipped with a grounding type plug. The green/yellow
conductor in the cord is the grounding wire and should never be connected to a live terminal.
Avoid dangerous environment – Electrical instruments designed to process liquids must be operated
with extreme caution. If liquid comes in contact with internal electrical components or wires, fire or
electrical shock may occur. Adequate surrounding workspace should be provided during use. Do not
operate electrical instrumentation in a combustible atmosphere.
Work surface – Keep well lighted. Be certain the work surface is clean, level and sturdy enough to
support the weight of the unit, particularly if it is to be filled with liquid.
Wear proper apparel – Do not wear loose clothing, neckties or jewelry that might get caught in moving
parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.
Wear safety goggles – Wear safety goggles at all times. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.
Don’t Overreach – Keep proper footing and balance at all times.
Maintain instrument with care – Keep screws tight and unit clean. Check periodically for worn or
damaged parts. Inspect the plug and cord before each use. Do not operate this instrument if there are
signs of damage.
Avoid accidental start up – Always make sure the switch is in the "OFF" position before plugging
instrument into outlet.
Disconnect Instrument – Always disconnect the instrument from the power source before servicing.
Do not block cooling vents if provided.
Do not operate this equipment in any manner not specified in this manual.
It is recommended that a fire extinguisher always be located in areas where electrical instruments
are being used.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
10
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Specific Safety Considerations
WARNING! IMPROPER GROUNDING CAN RESULT IN ELECTRICAL SHOCK. IN THE EVENT OF A
SHORT CIRCUIT, GROUNDING REDUCES THE RISK OF SHOCK. THIS INSTRUMENT MUST BE
GROUNDED.
AVERTISSEMENT : UNE MISE À LA TERRE INADÉQUATE PEUT ENTRAÎNER UN RISQUE DE CHOC
ÉLECTRIQUE. EN CAS DE COURT CIRCUIT ÉLECTRIQUE, LA MISE À LA TERRE RÉDUIRA LE RISQUE
DE CHOC ÉLECTRIQUE. L'ÉQUIPEMENT DOIT ÊTRE RELIÉ À LA TERRE.
This instrument is equipped with a cord having a grounding wire and an appropriate grounding plug.
The plug must be used with an outlet that has been installed and grounded in accordance with all
local codes and ordinances. The outlet must have the same configuration as the plug. DO NOT USE
AN ADAPTER.
Do not modify the line cord that has been provided. If it does not fit the available outlet, contact your
nearest DWK Life Sciences distributor for the proper line cord for your geographic area.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
11
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Specifications – R2P 2.0 Bottom Drive Roller Apparatus
Operating Voltage:Nominal 100-240 VAC 50/60 Hz
Power Consumption: 35 watts
Fuse(s): (1) 1.0 A 5X20 mm 250 V – (110-120 V)
(2) 0.63 A 5x20 mm 250 V – (220-240 V)
Bottle Size Range: 110 – 121 mm diameter and up to 550 mm in length
Bottle Speed:0.25 to 8.00 rotations per minute (RPM) using 110 mm
diameter bottles
0.22 to 7.54 RPM using 117 mm diameter bottles
Installation Category: Class II
IP Code (Control Head Only): 42
Environmental: Operating temperature: 5°C to 40°C
Humidity: 80% up to 31°C / 50% at 40°C
Altitude limit: 2000 meters
Store and Recall Registers: 1 – 100 Registers
Log Event Limit: 14,366 events. Wrap around will delete 1,024 oldest records.
Network Communication: RS-422/485 Full Duplex– Proprietary– 9600 8-N-1
(9600 baud, 8 data bits, no parity, 1 stop bit)
RS-422/485 Full Duplex – Modbus – 9600 8-N-1
Ethernet TCP/IP – Modbus.
Motor: 24 VDC – Brushless Gear motor
Battery Backup (option): (2) Sealed Lead Acid batteries for approximately 18 hours full
operation.
Temperature Sensors (option): (2) 100 Ohm RTD sensors

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
12
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Alarms: Belt – Alarms within two expected revolutions of the roller shaft pulley.
Temperature – Upper and lower threshold set points.
Speed Deviation – +/- 0.01 RPM – 1.00 RPM beyond speed setpoint.
Low Battery – Visual and audio alarm indicators if battery voltage falls below 21.7
volts. Unit will attempt to continue to run regardless of voltage.
Visual Alarms – Indicator on main screen plus blinking light on mains power switch.
Signal Alarms – Dry contact relay output is energized on normal condition and de-
energized on alarm condition – common to all alarm conditions.
Audio Alarm – Internal audio alarm sounds on alarm condition, common to all
alarms. Can be disabled independent of the signal alarm.
Dry Contacts: Dry contact alarm relay available through the RS-422/485 port. See section 4.3.1 for
dry contact pin-outs. Contact Ratings: 125 VAC, 60 VDC, 1 A.
Construction: Frame – Aluminum with Epoxy Paint Coating
Wheels – Thermoplastic Rubber with Zinc Plated Steel Frame
Roller Bearings – Delrin with stainless steel ball bearings
Rollers – EPDM rubber with aluminum shafts
Vertical Drive Belts – Neoprene rubber
Horizontal Drive Belts – Urethane Rubber

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
13
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Dimensions and Capacities
CAT.#
DESCRIPTION
NO. POS
H X W X D
WEIGHT
WRBPM501X-X
Bottom Drive R2P 2.0
1 Single Deck
5
12.9 X 31.0 X 25.5 inches
32.8 X 78.4 X 64.8 cm
52 lbs
23.6 kg
WRBPF511X-X
Bottom Drive R2P 2.0
11 Fixed Decks
52
72.7 X 31.0 X 25.5 inches
184.7 X 78.4 X 64.8 cm
210 lbs
95.3 kg
WRBPF811X-X
Bottom Drive R2P 2.0
11 Fixed Decks
88
72.7 X 47.0 X 25.5 inches
184.7 X 119.4 X 64.8 cm
360 lbs
163.6 kg
W3488893V2
Battery Back-up and
Temperature
Sensor Option
N/A
N/A
10.0 lbs
4.6 kg
Available Options
CAT.#
DESCRIPTION
W3488893V2
Battery Backup (18 hour) and 2-sensor temperature monitor cable
W348887*
5 Position Add-on Deck Kit – Modular Spacing (7.106 in. deck-to-deck)
W348889*
5 Position Add-on Deck Kit – Production Spacing (6 in. deck-to-deck)
*These are kits designed for customer installation.
Bottom Drive
DECK HEIGHT CHART (ABOVE FLOOR)
# Decks
Production Spaced
Modular Spaced
Fixed and Removable
Fixed
Removable
(6 in. Between Decks)
(7.125 in. Between Decks)
(7.106 in. Between Decks)
inches
cm
inches
cm
inches
cm
1
12.7
32.2
12.7
32.2
13.9
35.4
2
18.7
47.5
19.8
50.3
21.0
53.4
3
24.7
62.7
26.9
68.4
28.1
71.5
4
30.7
77.9
34.1
86.5
35.3
89.5
5
36.7
93.2
41.2
104.6
42.4
107.6
6
42.7
108.4
48.3
122.7
49.5
125.6
7
48.7
123.7
55.4
140.8
56.6
143.7
8
54.7
138.9
62.6
158.9
63.7
161.7
9
60.7
154.1
69.7
177.0
70.8
179.8
10
66.7
169.4
Will Not Fit Into Incubator
11
72.7
184.6

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
14
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
2 INSTALLATION AND INITIAL STARTUP
Install the unit where there will be adequate room for the unit to operate. Provide enough clearance
around the unit to keep items away from the rotating belts and pulleys.
Initial Inspection
When you receive your roller apparatus, inspect it for any obvious damage that may have occurred
during shipment. If any damage is found, notify the carrier at once. Warranty information is shown in
the front of this manual. Check to confirm that there are no broken switches, displays or pulleys and
that the unit is not dented or scratched.
Input Power Requirements
This equipment is designed to operate from a nominal 100 - 240V single-phase AC power source at
47 to 63 Hz. The line voltage / fuse label located on the lower rear of the unit shows the input voltage
and fuses set for the unit at the factory.
Power Cord Set
This unit has been shipped from the factory with a power line cord that has a plug appropriate for
your area. If the wrong power cord has been shipped for your particular application, contact your
nearest DWK Life Sciences dealer for the proper cord. The Bottom Drive R2P 2.0 Roller Apparatus
has been equipped with a 3-wire grounding type power cord. The unit is only grounded when it is
plugged into an appropriate receptacle.
DANGER! Do not operate the unit without adequate grounding protection.

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
15
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Initial Startup and Touch Screen Navigation
CAUTION: Keep hands and fingers away from rotating parts of the machine. Do not remove any
safety guards or operate the machine without the safety guards.
IMPORTANT: This apparatus was designed to run partially filled bottles for standard cell
culture applications. Consult DWK Life Sciences Technical Service staff for specific roller
apparatus needs.
First Time Startup
The first time the unit is ever powered on, the unit will be operating under stored factory default
settings. After a user inputs and saves new settings, the unit power can be cycled and the last saved
user settings will be retrieved when the power is turned back on. Saved user settings are bottle
speed, bottle rotation direction and time if in rocker mode, bottle speed tolerance, profile
identification number, ramp time, bottle diameter, motor gear ratio, and temperature low and high
alarm thresholds.
Initial Settings
Upon first time startup, the user should enter the bottle speed settings screen and pause the motor.
This will make sure the motor does not run at undesirable default values. Second, the user should set
the system date and time. Third, the user should input their desired values for the bottle diameter,
ramp time, temperature thresholds (optional), and profile identification number (optional). Fourth, the
user should run any necessary temperature calibrations (optional). Lastly, the user should un-pause
the motor.
If the unit has been started previously, users will not have to change any settings. Users can then
alter bottle speed settings as desired and monitor system power and alarms from the home screen.
Splash Screen
This screen is only displayed on power-up of the device and displays the software version.
FIGURE 1 – SPLASH SCREEN

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
16
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Screen Saver
This screen activates when the set screen saver timer expires. See section 3.5.8 for setting the
screen saver time. The screen saver depicts a moving icon with the current bottle speed, direction,
and rock interval if available as well as the temperature of any connected temperature sensors. The
screen saver is the only location that displays the calibrated temperature values. See section 3.10 for
more information on the optional temperature sensors.
FIGURE 2 – SCREEN SAVER
Bottle Rotation
Direction
Temperature
sensor #2
Temperature
sensor #1
Bottle Rotation
Speed

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
17
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
3 MAIN OPERATION
Touch Screen Navigation
All functions of the R2P 2.0 Roller Apparatus can be controlled through the front panel color
touchscreen. Functions are divided into three main screens e.g. the Home screen,Setup screen and
Factory screen. Navigating between the three main screens is done through their respective icons
found in the lower corners of each screen. From the Home screen, press the Setup icon to go to the
Setup screen.
FIGURE 3 – HOME SCREEN
The Setup screen has icons on both lower corners to navigate back to the Home screen or forward to
the Factory screen.
FIGURE 4 – SETUP SCREEN
Setup icon
Information icon
Factory Icon
Home Icon

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
18
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
The Factory screen has icons on both lower corners to navigate back to either the Home screen or to
the Setup screen.
FIGURE 5 – FACTORY SCREEN
Home Icon
Setup Icon

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
19
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
General Guidelines on Numerical Entry
Many settings of parameters for the R2P 2.0 require one or more numerical entries. As icons are
pressed for parameter entries, a common keypad may appear for the user to enter values or data.
The function of the numerical keypad is similar to all entries. Below is an example of the keypad used
for entering bottle speed and common functions.
FIGURE 6 – KEYPAD EXAMPLE - BOTTLE SPEED
Numeric Entry – Allows the user to enter values using a numeric keypad.
Clear Entry – Will clear a numeric entry and restore the previous value.
Tab Between Number Fields – If a parameter requires multiple entries (in this case, bottle speed and
tolerance) the Tab button will toggle between fields. The active field will normally show GREEN. If a
value is entered that is outside the range for that specific field, the field will turn RED.
Pause Motor – will toggle between running and stopping the motor.
Save Entry and Exit – Will save the user entry in a number field and exit the respective keypad
screen.
Exit (no save) – Will discard any entries made to the number fields, restore previous entries and exit
the respective keypad screen.
Bottle Speed
Tolerance Field
Bottle Speed Field
(Active)
Clear Entry
Tab between
number fields
Pause Motor
Save Entry and Exit
Exit (no save)
Numeric
Entry

WHEATON® R2P™2.0 Bottom Drive Roller Apparatus
20
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
The Home Screen
Monitoring of the unit performance, changing of bottle speeds, and general network operations (if
used) are performed from the Home Screen.
FIGURE 7 – 'HOME' SCREEN
The following is a description of the icons found on the ‘Home’ Screen:
Bottle Speed
and Direction
Unit Network ID
Number
Set unit on/off
network
Alarm
Notification
Setup Icon
Information
Icon
Unit Power Status
Unit Screen
Locked Status
Time Left Between
Direction Changes
HH:MM:SS
