Dyna-Glo Dyna-Glo Series User manual





USER’S MANUAL AND OPERATING INSTRUCTIONS
C US
PROPANE
CONSTRUCTION HEATER
GENERAL HAZARD WARNING








CONSUMER:
CSA 2.14a-2007, ANSI Z83.7a-2007
50-10-104     PrintedinChina Rev.0/10
GHP Group, Inc


8280 Austin Avenue
Morton Grove, IL.
60053-3207
Tel: ( 847 ) 324 - 5900
Fax: ( 847 ) 324 - 5901
Toll Free (877) GHP Group
( 8 7 7 ) 4 4 7 - 4 7 6 8
www.ghpgroupinc.com
GHP
RMC-FA40/DG/DGD (40,000 BTU/HR, FORCED - AIR)
RMC-FA50/A/DG/DGD (30,000/50,000 BTU/HR, FORCED - AIR)
RMC-FA60/DGD (30,000/60,000 BTU/HR, FORCED - AIR)
RMC-FA100/A/DG/DGD (70,000/100,000 BTU/HR, FORCED - AIR)
RMC-FA125/DGD (70,000/125,000 BTU/HR, FORCED - AIR)
RMC-FA150/A/DG/DGD (120,000/150,000 BTU/HR, FORCED - AIR)
RMC-FA40/DGP/DGP-01 (40,000 BTU/HR, FORCED - AIR)
RMC-FA50/DGP/DGP-01 (30,000/50,000 BTU/HR, FORCED - AIR)
RMC-FA60/DGP/DGP-01 (30,000/60,000 BTU/HR, FORCED - AIR)
RMC-FA100/DGP/DGP-01 (70,000/100,000 BTU/HR, FORCED - AIR)
RMC-FA125/DGP/DGP-01 (70,000/125,000 BTU/HR, FORCED - AIR)
RMC-FA150/DGP/DGP-01 (120,000/150,000 BTU/HR, FORCED - AIR)
Dyna-Glo™
MODELS:
Dyna-Glo™Professional
MODELS:

                                                
                                                
                       

                                             
                                             
                                                 
                                               
                                                
                                                  








                                 

TABLE OF CONTENTS
WARNING:
WARNING
: 





           2
PROPANE CONSTRUCTION HEATER
GHP Group, Inc


8280 Austin Avenue
Morton Grove, IL.
60053-3207
Tel: ( 847 ) 324 - 5900
Fax: ( 847 ) 324 - 5901
Toll Free (877) GHP Group
( 8 7 7 ) 4 4 7 - 4 7 6 8
www.ghpgroupinc.com
GHP
CALIFORNIA PROPOSITION 65 WARNING: 

 


CHECK WITH YOUR LOCAL
FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.








PROPANE CONSTRUCTION HEATER
3          4


IMPORTANT:



WARNING
: 




























     
     
     
     
 









     
       















     
     


















 

























































PROPANE CONSTRUCTION HEATER
3          4

    
     
   
   



WARNING
: 


5 6
PROPANE CONSTRUCTION HEATER






Assembly Components and Instructions for RMC-FA100 DGD and RMC-FA125 DGD























RMC-FA100 DGP/DGP-01
RMC-FA125 DGP/DGP-01
5 6
PROPANE CONSTRUCTION HEATER


































7 8
PROPANE CONSTRUCTION HEATER





The propane (LP) gas tank must also be equipped with the following:






The propane (LP) gas pressure regulator and hose assembly supplied with
this heater must be used without alteration.






  
 
  
  
  
  
  
  







7 8
PROPANE CONSTRUCTION HEATER

IMPORTANT: 


ALL NEW CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.








WARNING
: 






IMPORTANT


















FIGURE 1
FIGURE 2



9 10
PROPANE CONSTRUCTION HEATER












THE DISCONNECTED TANK MUST NEVER BE STORED IN A BUILDING, GARAGE
OR ANY OTHER ENCLOSED AREA.
























WARNING
: 


9 10
PROPANE CONSTRUCTION HEATER


WARNING
: 






















Always be sure to follow proper maintenance procedures, by cleaning the heater once per
month during regular usage, and check spark gap at least once per season.
1. Fan does not turn when 1. No electric power to heater. 1. Check current to electric outlet. If voltage is correct,
electrical connection is made. check power cord and extension cord for
cuts and breaks.
2. Fan blade contacts inside of heater housing. 2. Be sure that housing is not damaged. Make sure
there are no obstructions to the fan.
3. Fan blade(s) bent 3. Straighten blade(s) to match others.
4. Fan motor defective. 4. Replace motor.
2. Heater will not fire. 1. No spark at ignitor. 1. Check ignitor wire. Re-attach or tighten if loose.
Check Spark module. Replace if necessary.
2. Improper spark gap. 2. Set gap (See specifications for gap).
3. Bad electrode. 3. Replace Spark Plug.
3. Heater quits while 1. Internal temperature too high causing limit 1. If the heaters output is restricted, internal temperature
running. switch to shut down operation. becomes too high. Move heater away from
any obstructions.
2. Damaged Control Valve. 2. Replace Control Valve.
3. Dust or debris build-up inside of heater. 3. Clean inside of heater.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

11 12

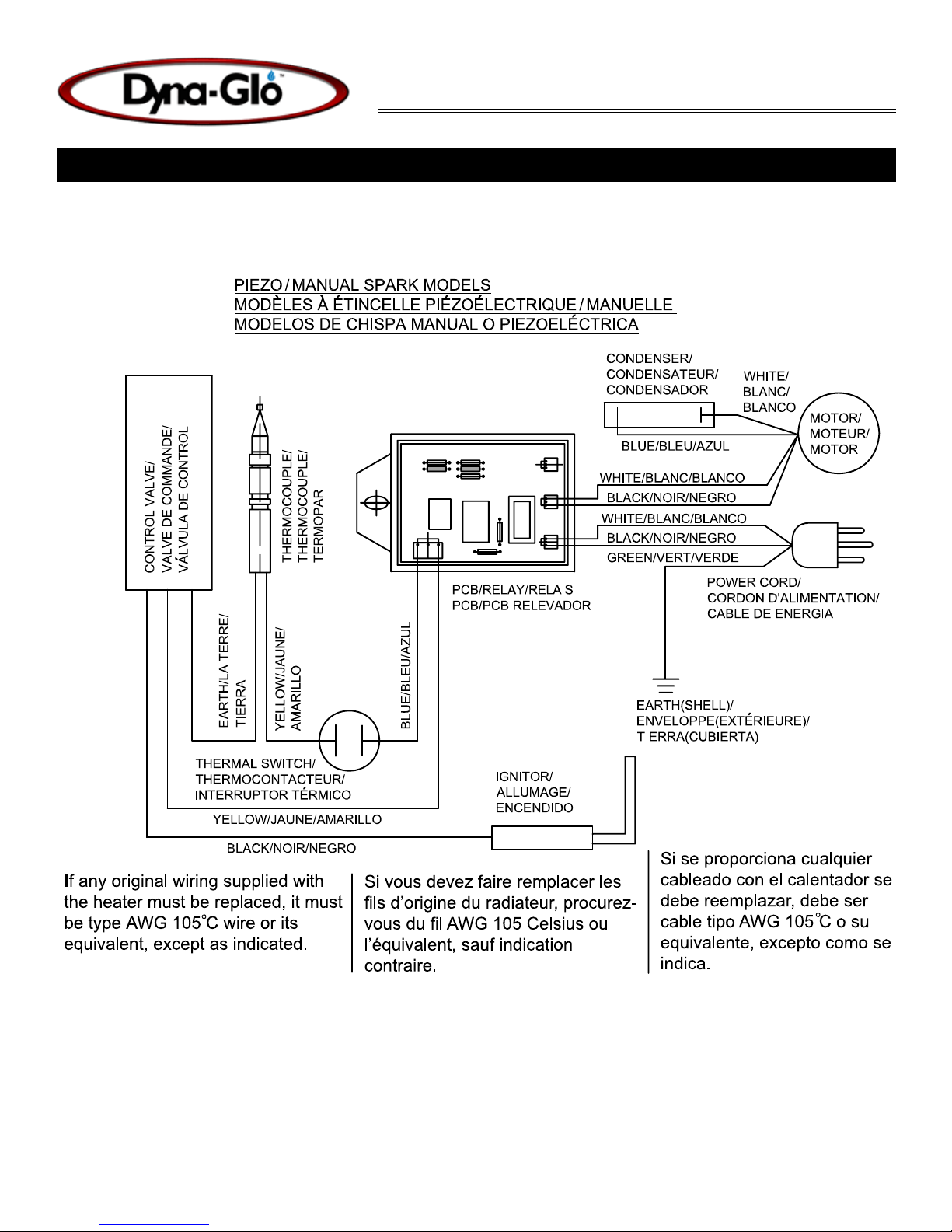

PROPANE CONSTRUCTION HEATER


11 12
PROPANE CONSTRUCTION HEATER PROPANE CONSTRUCTION HEATER

*
*100K,125K & 150K Models only
*100K,125K & 150KSólo modelos
*100K,125K & 150K Les modèles Seulement
*
*

ITEM
No.
DESCRIPTION
QTY 40 SERIES 50 SERIES 60 SERIES
1INNER SHELL ASS' Y 1 2304818 2304818 2304818
2NOZZLE 1 2304829 2304942 2325121
3FLAME HOLDER CAP 1 2304819 2304819 2325120
4THERMAL SWITCH BRKT. 1 2304826 2304826 2304826
5THERMAL SWITCH 1 2201373 2201563 2201599
6NOZZLE NUT 1 2304578 2304578 2304578
7SPARK PLUG ASSY 1 2201375 2201375 2206033
8THERMOCOUPLE ASSY (1130/1474-425L) 1 2304885 2304885 2304885
9GAS TUBING ASS' Y 1 2304830 2304830 2304830
10 OUTER SHELL - ORANGE 1 2305403 2305403 2305403
OUTER SHELL - BLACK 1 2315915 2315915 2315915
OUTER SHELL - GRAY 1 2315956 2315956 2315956
OUTER SHELL - BLUE 1 2315312 2315312 2315312
11 CORD WRAP (some models only) 2 N/A N/A N/A
12 HANDLE ASSY - BLACK 1 2101447 2101447 2101447
HANDLE ASSY - GRAY 1 2305426 2305426 2305426
12.1 SCREW - HANDLE FRONT 1 2001355 2001355 2001355
12.2 SCREW - HANDLE FRONT 1 2001077 2001077 2001077
12.3 NUT - HANDLE REAR 1 2000384 2000384 2000384
13 MOTOR SUPPORT 1 2304823 2304823 2304823
13.1 BOLT-MOTOR MOUNTING 2 2001332 2001332 2001332
13.2 SLEEVE 1 2304949 2304949 2304949
14 MOTOR ASS' Y 1 2305909 2305447 2304547
14.1 MOTOR - FAN 1 2304821 2304821 2304821
15 GUARD FAN - BLACK 1 2304828 2304828 2304828
GUARD FAN - GRAY 1 2305411 2305411 2305411
16 MOTOR BRKT 1 2304937 2304937 2304937
17 VALVE - GAS 1
5050200
(CK-890SL-A1(A))
5050510
(K-890D-A6)
5051033
(K-890D-A6)
18 PRESSURE SWITCH 1N/A N/A N/A
19 VALVE BRKT 1 2304624 2304624 2304624
20 BASE ASSY - BLACK 1 2304923 2304923 2304923
BASE ASSY - GREY 1 2305405 2305405 2305405
21 POWER CORD ASS' Y 1 2201368 2101670 2101670
22 GAS CONNECTOR INLET 1 2304831 2304831 2304831
23 CAPACITOR 1 2201372 2201372 2201372
24 BASE LOWER -BLACK 1 2304925 2304925 2304925
BASE LOWER - GREY 1 2305407 2305407 2305407
25 KNOB GAS VALVE - BLACK 1 2101451 2101451 2101451
KNOB GAS VALVE - ORANGE 1 2305466 2305466 2305466
26 HEIGHT CONTROLLER - BLACK 1 2304927 2304927 2304927
HEIGHT CONTROLLER - GREY 1 2305409 2305409 2305409
27 HEIGHT CONTROL SCREW - BLACK 1 2304510 2304510 2304510
HEIGHT CONTROL SCREW - ORANGE 1 2305467 2305467 2305467
28 LEAD WIRE ASSY 1 2201371 2201371 2201371
29 SPARK MODULE 1 N/A 2201391 2201391
30 PCB ASSEMBLY 1 2201369 2201369 2201369
31 REG & HOSE ASSY - 10FT (3M) 1 5002199 5002614 5002614
REG & HOSE ASSY - 10FT (3M) w/HANDWHEEL 1 5002540 5055533 5055533
REG & HOSE ASSY -15FT (4.6M) 1 5055297 5055298 5055298
REG & HOSE ASSY -15FT (4.6M) w/HAND WHEEL 1 5055414 5055415 5055415
PART NUMBER
13 14
PROPANE CONSTRUCTION HEATER


MODELS: RMC-FA40/DG/DGD/DGP/DGP-01
RMC-FA50/DG/DGD/DGP/DGP-01
RMC-FA60/DGD/DGP/DGP-01
13 14
PROPANE CONSTRUCTION HEATER


ITEM
No.
DESCRIPTION
QTY
100 SERIES
(EX. C/L/DGP)
125 SERIES
(EX. C/L/DGP)
150 SERIES
1INNER SHELL ASS' Y 1 2304929 2304929 2304929
2NOZZLE 1 2304943 5030077 2304944
3FLAME HOLDER CAP 1 2304930 2325122 2304931
4THERMAL SWITCH BRKT. 1 2304826 2315515 2001355
5THERMAL SWITCH 1 2201373 2201373 2201373
6NOZZLE NUT 1 2304578 2304945 2304945
7SPARK PLUG ASSY 1 2201392 2206034 2201393
8THERMOCOUPLE ASSY (1130/1474-425L) 1 2304885 2304885 2304885
9GAS TUBING ASS' Y 1 2304946 2325138 2304947
10 OUTER SHELL - ORANGE 1 2304922 2304922 2304922
OUTER SHELL - BLACK 1 N/A N/A N/A
OUTER SHELL - GRAY 1 2315916 2315916 2315916
OUTER SHELL - BLUE 1 N/A N/A N/A
11 CORD WRAP (some models only) 2 2101423 2101423 2101423
12 HANDLE ASSY - BLACK 1 2101447 2101447 2101447
HANDLE ASSY - GRAY 1 2305426 2305426 2305426
12.1 SCREW - HANDLE FRONT 1 2001355 2001355 2001355
12.2 SCREW - HANDLE FRONT 1 2001077 2001077 2001077
12.3 NUT - HANDLE REAR 1 2000384 2000384 2000384
13 MOTOR SUPPORT 1 2304823 2304823 2304823
13.1 BOLT-MOTOR MOUNTING 2 2001332 2001332 2001332
13.2 SLEEVE 1 2304949 2304949 2304949
14 MOTOR ASS' Y 1 2304548 2304548 2304548
14.1 MOTOR - FAN 1 2304936 2304936 2304936
15 GUARD FAN - BLACK 1 2304939 2304939 2304939
GUARD FAN - GRAY 1 2305412 2305412 2305412
16 MOTOR BRKT 1 2304938 2304938 2304938
17 VALVE - GAS 1
5050474
(K-890SL-A6(A))
5051036
(K-890D-A6 (A))
5050475
(K-890D-A6(B))
18 PRESSURE SWITCH 12305976 2305976 2305976
19 VALVE BRKT 1 2304624 2304624 2304624
20 BASE ASSY - BLACK 1 2304924 2304924 2304924
BASE ASSY - GREY 1 N/A N/A N/A
21 POWER CORD ASS' Y 1 2101673 2101673 2101673
22 GAS CONNECTOR INLET 1 2304831 2304831 2304831
23 CAPACITOR 1 2301390 2301390 2301390
24 BASE LOWER -BLACK 1 2304926 2304926 2304926
BASE LOWER - GREY 1 N/A N/A N/A
25 KNOB GAS VALVE - BLACK 1 2101451 2101451 2101451
KNOB GAS VALVE - ORANGE 1 N/A N/A N/A
26 HEIGHT CONTROLLER - BLACK 1 2304928 2304928 2304928
HEIGHT CONTROLLER - GREY 1 N/A N/A N/A
27 HEIGHT CONTROL SCREW - BLACK 1 2304510 2304510 2304510
HEIGHT CONTROL SCREW - ORANGE 1 N/A N/A N/A
28 LEAD WIRE ASSY 1 2201371 2201371 2201371
29 SPARK MODULE 1 2201391 2201391 2201391
30 PCB ASSEMBLY 1 2201369 2201369 2201369
31 REG & HOSE ASSY - 10FT (3M) 1 5002758+5002721 5055539+5002721 5002758+5002721
REG & HOSE ASSY - 10FT (3M) w/HANDWHEEL 1 5002769+5002721 5055540+5002721 N/A
REG & HOSE ASSY -15FT (4.6M) 1 5002758+5055301 5055539+5055301 5002758/5055301
REG & HOSE ASSY -15FT (4.6M) w/HAND WHEEL 1 5002769+5055301 5055540+5055301 N/A
PART NUMBER
15 16
PROPANE CONSTRUCTION HEATER


MODELS: RMC-FA100/DG/DGD/DGP/DGP-01
RMC-FA125/DGD/DGP/DGP-01
RMC-FA150/DG/DGD/DGP/DGP-01
15 16
PROPANE CONSTRUCTION HEATER


17 18
PROPANE CONSTRUCTION HEATER

ITEM
No.
DESCRIPTION
QTY
FA100DGP FA125DGP
1 INNERSHELLASS'Y 1 2304929 2304929
2 NOZZLE 1 2304943 5030077
3 FLAMEHOLDERCAP 1 2304930 2325122
4 THERMALSWITCHBRKT. 1 2304826 2315515
5 THERMALSWITCH 1 2201373 2201373
6 NOZZLENUT 1 2304578 2304945
7 SPARKPLUGASSY 1 2201392 2206034
8 THERMOCOUPLEASSY(1130/1474425L) 1 2304885 2304885
9 GASTUBINGASS'Y 1 2305975 2325137
10 OUTERSHELLORANGE 1 2305971 2305971
11 CORDWRAP 2 2101423 2101423
12 MOTORSUPPORT 1 2304823 2304823
13 MOTORASSY 1 2304548 2304548
13.1 MOTOR 1 2304936 2304936
14 GUARDFANGRAY 1 2305412 2305412
15 MOTORBRKT 1 2304938 2304938
16 BASERIGHTSIDE 1 2306000 2306000
17 LEGHOLDER 2 2315002 2315002
18 CAPACITOR 1 2301390 2301390
19 PRESSURESWITCH 1 2305976 2305976
20 POWERCORDASS'Y 1 2101673 2101673
21 GASCONNECTORINLET 1 2304831 2304831
22 BASEBOTTOM 1 2315001 2315001
23 VALVEBRKT 1 2305973 2305973
24 VALVEGAS 1
5050474
(K890SLA6(A))
5051036
(K890DA6(A))
25 BASELEFTSIDE 1 2305999 2305999
26 KNOBGASVALVEORANGE 1 2101588 2101588
27 HEIGHTCONTROLSCREWORANGE 2 2315003 2315003
28 REGULATOR&HOSEASSY10FT(3M) 1 5002769/5002721 5002769/5002721
REGULATOR&HOSEASSY15FT(4.6M) 1 5002769/5055301 5002769/5055301
29 LEG 1 2305972 2305972
30 LEADWIREASSY 1 2201371 2201371
31 SPARKMODULE 1 2201391 2201391
32 PCBASSEMBLY 1 2201369 2201369
PARTNUMBER

17 18
PROPANE CONSTRUCTION HEATER

MODELS: RMC-FA100/DGP/DGP-01
RMC-FA125/DGP/DGP-01

19 20
THISPAGEINTENTIONALLYLEFTBLANK
