Dynalabs DYN-PM-440 User manual

Model DYN-PM-440
440 N PM Shaker
Product Manual

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
2
Product Support
If at any time you have questions or problems with the DYN-PM-440 Shaker,
please contact a Dynalabs engineer at:
Phone: [phone] (9 a.m. to 5 p.m., UTC +3)
e-mail: [e-mail]
Warranty
Our products are warranted against defective materials and workmanship for one
year. Defects arising from user errors are not covered by the warranty.
Copyright
All copyrights of this manual belonging to Dynalabs products are reserved. It
cannot be reproduced without written consent.
Disclaimer
Dynalabs Ltd. provides this publication "as is" without warranty of any kind,
express or implied, including but not limited to, the implied warranties of
merchantability or fitness for a particular purpose. This document is subject to
change without notice, and should not be construed as a commitment or
representation by Dynalabs Ltd.
This publication may contain inaccuracies or typographical errors. Dynalabs Ltd.
will periodically update the material for inclusion in new editions. Changes and
improvements to the product described in this manual may be made at any time.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
3
Table of Contents
1) Introduction..........................................................................................................................................4
2) General Information.............................................................................................................................4
2.1) Unpacking and Inspection.............................................................................................................4
2.2) System Components......................................................................................................................4
2.3) Theory of Operation......................................................................................................................4
2.4) Specifications................................................................................................................................6
2.5) Outline Drawing............................................................................................................................7
3) Operation and Installation....................................................................................................................8
3.1) General..........................................................................................................................................8
3.2) Amplifier.......................................................................................................................................9
3.2.1) Amplifier General ..................................................................................................................9
3.2.2) Amplifier Internal Signal .....................................................................................................10
3.2.3) Amplifier External Signal....................................................................................................10
3.2.4) Amplifier Maintenance and Troubleshooting......................................................................10
3.3) Mounting Interface......................................................................................................................11
3.4) Shaker Mounting.........................................................................................................................11
3.5) Cooling........................................................................................................................................12
3.6) Frequency Response and Resonance ..........................................................................................12
4) Maintenance and Troubleshooting.....................................................................................................13
5) Safety .................................................................................................................................................13
6) Declaration of Conformity.................................................................................................................14

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
4
1) Introduction
The DYN-PM-440 is designed to provide dynamic force excitation for
modal testing of mechanical structures.
The DYN-PM-440 is a compact, lightweight and powerful general purpose
electrodynamic shaker providing up to 440 N peak sine force.
2) General Information
2.1) Unpacking and Inspection
Dynalabs products provide adequate protection for undamaged products to be
transported. Document the damages that occur indirectly during the transport
and contact the customer representative. Check all components of the shaker.
If there is a defect, please contact us.
2.2) System Components
The DYN-PM-440 has the following components:
- Electrodynamic Shaker
- Amplifier (DYN-SA-1100)
- Cooling Unit (Blower + Hose + Hose connection adapter + R 1/2 Pneumatic
union)
- Power Cables (For Shaker + For Amplifier)
- Signal Cable
- M6X10 Stainless Bolt
- Fuse
- User Manual
2.3) Theory of Operation
DYN-PM-440 is an electro-magnetic actuator. Electro-magnetic actuators
are basically voice coils consisting of a permanent magnet and coil. The
moving element can be the coil or the magnet depending on the design
requirements. The moving element is usually suspended by an elastic
membrane.
DYN-PM-440 has a moving coil (driving coil) whose current is controlled
for vibration generation. The stationary magnetic field is produced by a
permanent magnet.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
5
Item
Description
1
Amplifier Input
2
Cooling Port
3
Trunnion Handle

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
6
2.4) Specifications
Parameters
Specifications
Output Force (Sinus)
440 N
Output Force (Shock)
880 N
Frequency
0-5 kHz
Payload (Vertical)
2.5 kg
Displacement (Peak to Peak)
25 mm
Suspension
Carbon Fiber
Maximum Acceleration
100 g
Shaker Weight
11.8 kg
Cooling System
Forced Convection
Operation Temperature Range
5-35 °C
Maximum Input Current
10A (RMS)
Amplifier
External
DYN-SA-1100
Operation Voltage
110/220 VAC
Sine Freq. Generator
Activated by pulling switch up
Sine Freq. Range
0-15 kHz
External Signal Voltage Level
10 VAC (PEAK)
Amplifier Weight
4.7 kg
DYN-BLW-511 Monofaze Blower
Frequency
50 Hz
Rated Power
0.8 kW
Input Voltage
230 V
Input Current
5.2 A
Blower Weight
15 kg

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
7
2.5) Outline Drawing
The dimensional properties of DYN-PM-440 shakers are given below. All
dimensions are in mm.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
8
3) Operation and Installation
3.1) General

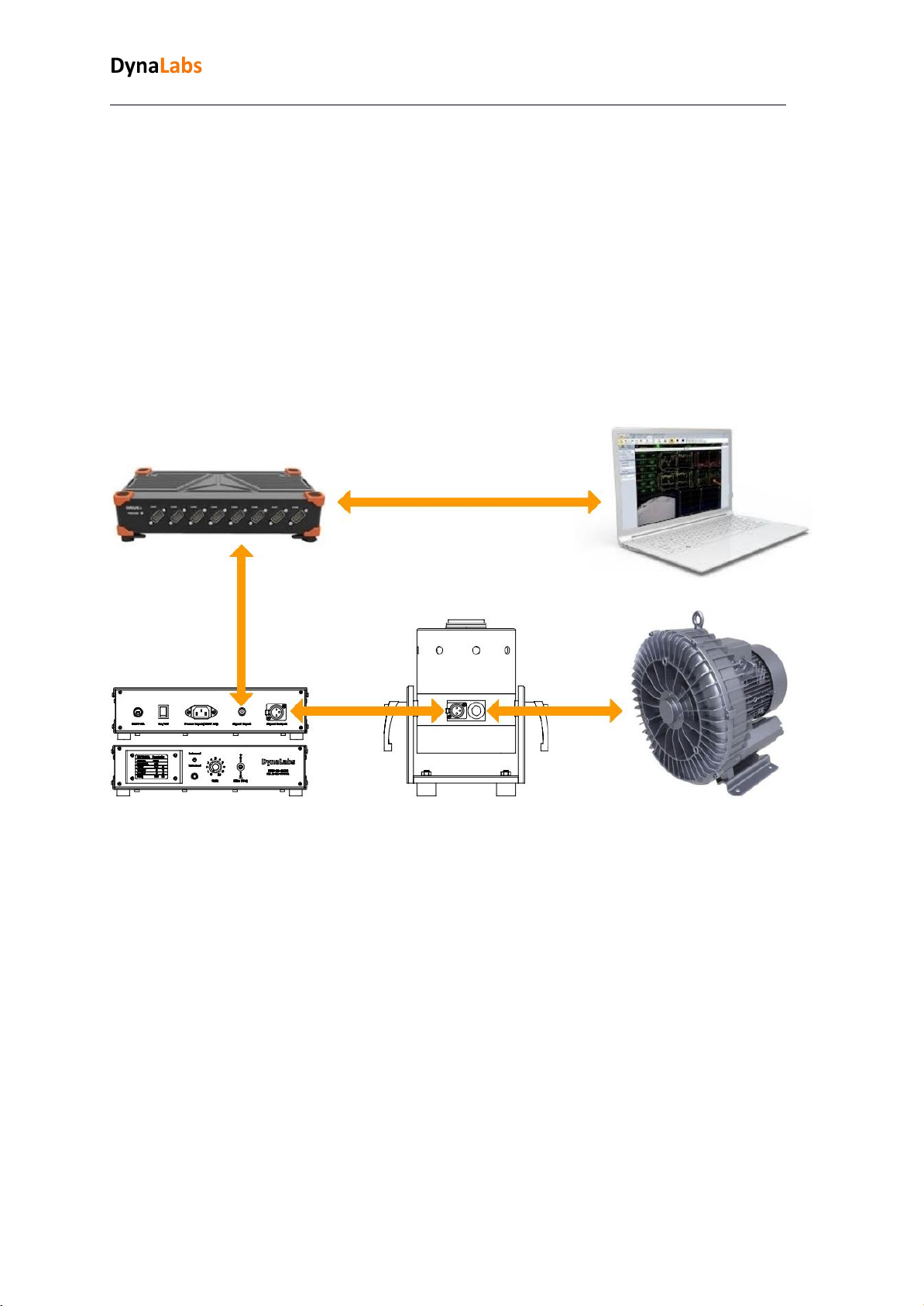

Refer to the figure below that shows the shaker connector configuration. Connect
the shaker/amplifier cable to the shaker and amplifier. Connect the drive signal
cable to the signal generator and connect the power cable of the amplifier. Then
turn on the amplifier by pushing the on/off button. To increase gain up, turn the
gain knob in clockwise direction. The user must turn off the gain button in order
to power down the shaker.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
9
3.2) Amplifier
DYN-PM-440 uses an external power amplifier for drive signal
amplification. Please note the wiring of the power amplifier given below.
3.2.1) Amplifier General

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
10
3.2.2) Amplifier Internal Signal
The amplifier can generate sine signal from 1Hz to 15kHz with 1 Hz
increments that the user can adjust with the Sine Frequency Generator
Switch. Connect DC power source and drive signal to shaker power input.
Activated by pulling switch up. Raise or lower the Sine Frequency Generator
Switch to the desired Sine frequency. Adjust the Gain of the amplifier by
turning the Gain Knob clockwise. The frequency of the generated sine signal
will be visible on the LCD Screen.
3.2.3) Amplifier External Signal
Start the external signal source. Activated by pulling switch down. Adjust the
Gain of the amplifier by turning the Gain Knob clockwise.
3.2.4) Amplifier Maintenance and Troubleshooting
The only user replaceable part is the fuse placed inside the shaker.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
11
3.3) Mounting Interface
The shaker has 9XM6 threads are for test unit connection.
3.4) Shaker Mounting
The shaker is designed to rest on its rubber isolators. However, these
isolators can be removed for rigid or semi-rigid mounting. If it is not
possible to bolt down the shaker, hot glue is also a good mounting option.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
12

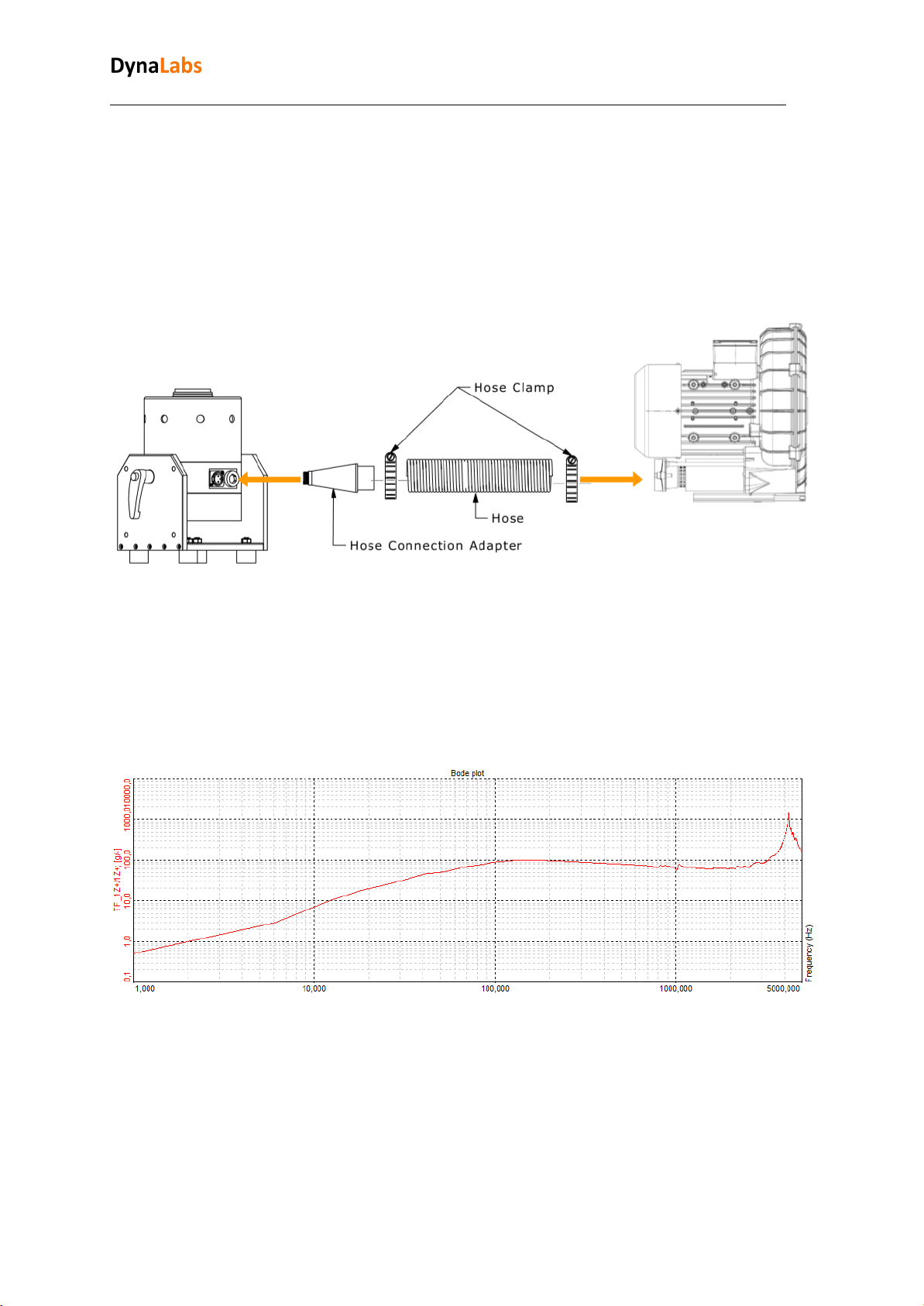

3.5) Cooling
DYN-PM-440 does not require forced cooling up to 220N operation. In order
to achieve full performance level of 440N use the cooling unit supplied with
the shaker. The cooling unit must be used in vacuum mode for best
performance. The connections of the cooling unit are given as below.
3.6) Frequency Response and Resonance
The following figure shows the acceleration levels/Input voltage versus
frequency of the shaker.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
13
4) Maintenance and Troubleshooting
The DYN-PM-440 shaker is a sealed device requiring no maintenance if the
operating instructions described in this manual are followed. Repair of
damage to the coil, exciter body or magnet core should not be attempted.

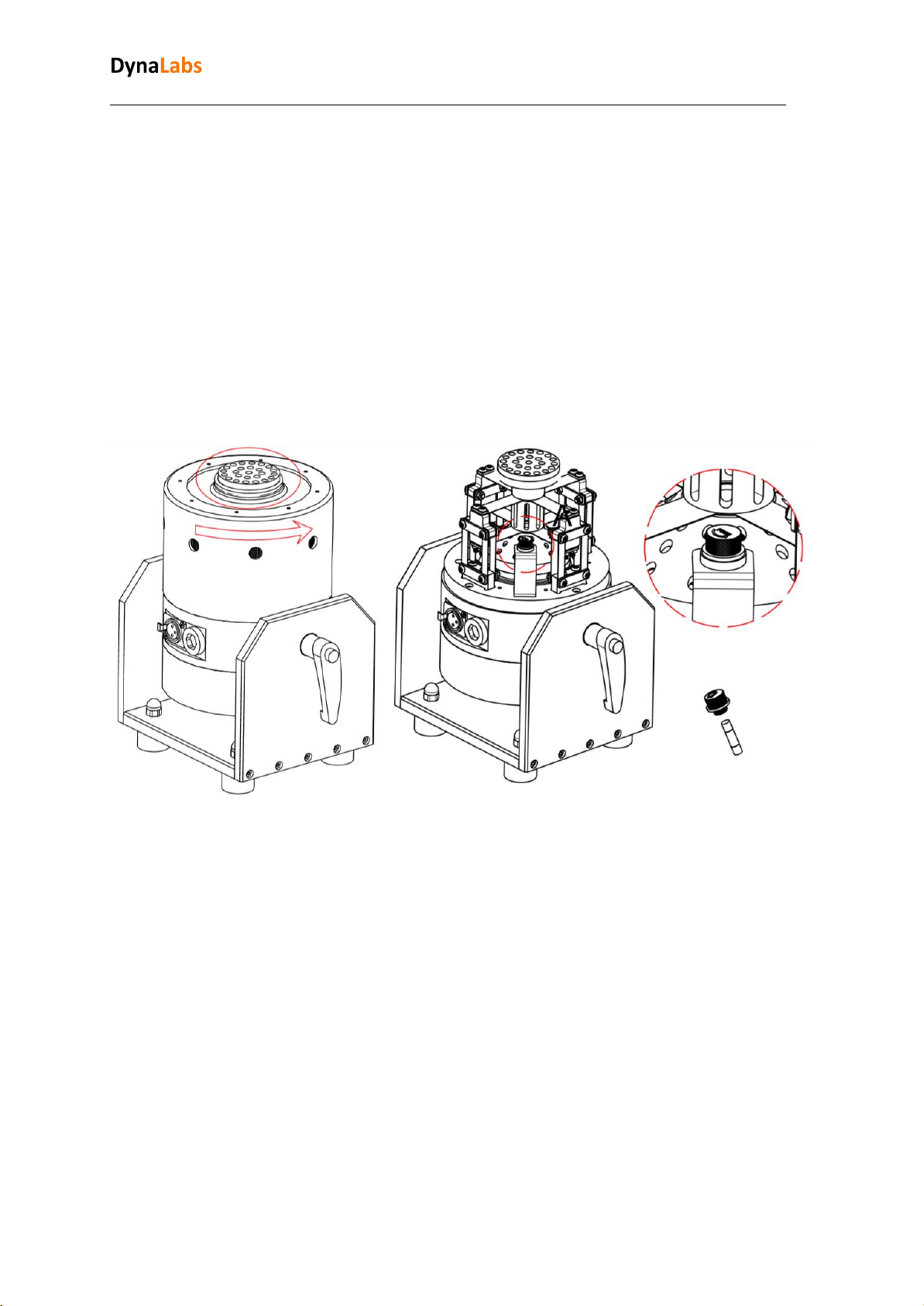

The only user replaceable part is the fuse placed inside the shaker. In order
to replace the fuse unplug all cables from the shaker and remove the O-ring
as shown below. Then turn the cover in counter clockwise direction as
shown. Then replace the fuse and close the cover. For any other problem,
please return the shaker to Dynalabs for proper repair.
5) Safety
Please ensure that this manual section is reviewed and understood prior to
installation, operation or maintenance of the equipment. The danger of
electrical shock or fire always exists in electrical equipment.
The DYN-PM-440 Shaker is designed for safe operation. Safety features
such as electrical insulation on outer surfaces are provided for the safe
operation of the shaker system.

All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors.
14
6) Declaration of Conformity
This declaration of conformity is issued under the sole responsibility of the manufacturer.
The product(s) are developed, produced and tested according to following EC- directives:
•2014/35/EU –Low Voltage Directive (LVD)
•2006/42/EU –Machinery Safety Directive
•2015/863/EU –RoHS Directive
Applied standards:
• EN 61010-1:2010
• EN ISO 12100:2010
• MIL-STD-810-H-2019 (Test Methods: 501.7 - High Temperature, 502.7 - Low
Temperature, 514.8 - Vibration, 516.8 –Shock)
DYNALABS MÜHENDİSLİK SANAYİ TİCARET LİMİTED ŞİRKETİ declares
that above mentioned products meet all the requirements of the above mentioned
standards and regulations.
Canan Karadeniz, General Manager
Ankara, 15.07.2021
