Dyon LIVE User manual

EN
DYON LIVE
V1.1.0
Content
1Important Safety Instructions ................................................................2
2Conformity............................................................................................7
3Mounting – dismantling.........................................................................8
3.1 Stand mounting........................................................................................... 8
3.2 Wall mounting ............................................................................................. 9
4Front and Rear Panel Illustration .........................................................10
4.1 Keyboard................................................................................................... 10
4.2 Rear connection board ............................................................................. 11
4.3 CI/CI+ Slot ................................................................................................ 13
4.4 Remote Key Function ............................................................................... 15
4.5 Connecting to TV-Signal Input................................................................. 18
5First Time Setup .................................................................................19
6OSD Settings (Main Operations).........................................................20
6.1.1 CHANNEL MENU .............................................................................. 20
6.1.2 PICTURE MENU................................................................................ 26
6.1.3 Sound Menu....................................................................................... 29
6.1.4 Time Menu ......................................................................................... 31
6.1.5 Lock Menu.......................................................................................... 34
6.1.6 Setup Menu........................................................................................ 38
6.1.7 Screen Menu...................................................................................... 42
6.2 Trouble shooting ....................................................................................... 43
6.3 CI Information ........................................................................................... 44
7TELETEXT Function Keys ..................................................................45
8Input Source Selection........................................................................46
8.1 Connecting a USB Devices for playing media files .................................. 47
8.2 Photo Menu .............................................................................................. 48
8.3 Music Menu............................................................................................... 49
8.4 Movie Menu .............................................................................................. 50
8.5 Text Menu ................................................................................................. 51
9Troubleshooting..................................................................................52
10 Specifications .....................................................................................53
11 Glossary.............................................................................................54
12 Warranty condition..............................................................................55

EN
DYON LIVE
2

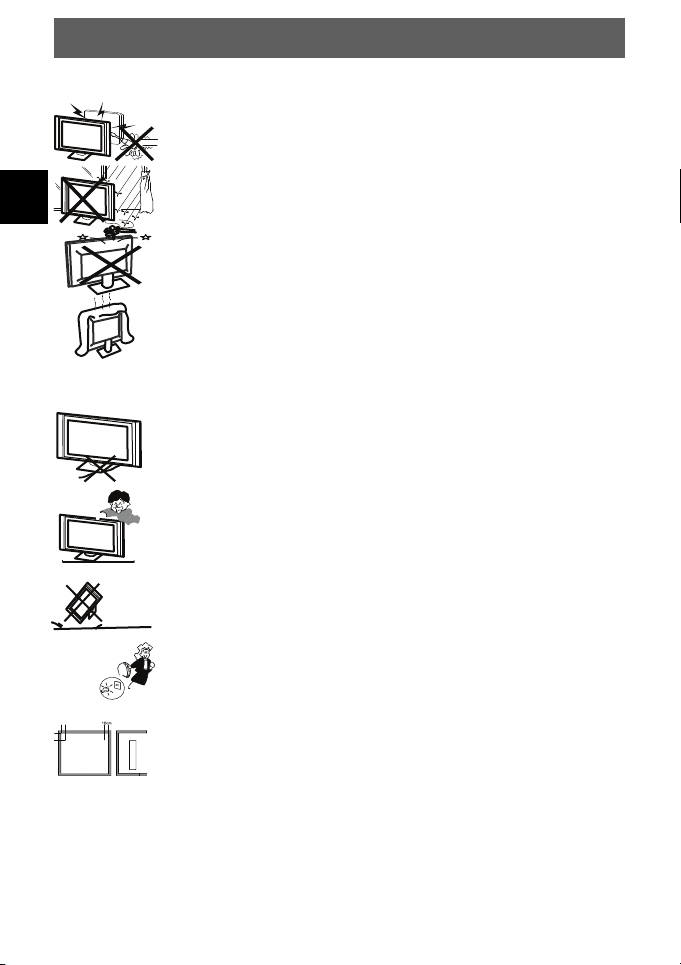

1 Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily
operable.
15) The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.

EN
DYON LIVE
3
The symbol indicates that dangerous voltages constituting a risk of electric
shock are present within this unit.
The symbol indicates that there are important operating and maintenance
instructions in the literature accompanying this unit.
The symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts. When
servicing use only identical replacement parts.

EN
DYON LIVE
4
Warning
High voltages are used in the operation of this television receiver. Do
not remove the cabinet back from your set. Refer servicing to qualified
service personnel.
To prevent fire or electrical shock hazard, do not expose the television
receiver to rain or moisture
Do not drop or push objects into the television cabinet slots or openings.
Never spill any kind of liquid on the television receiver.
Do not block the ventilation holes in the back cover. Adequate
ventilation is essential to prevent failure of electrical components.
Caution
Do not trap the power supply cord under the television receiver.
Never stand on, lean on, or suddenly push the television or its
stand. You should pay special attention to children. Serious injury
may result if it should fall.
Do not place your television on an unstable cart, stand, shelf or
table. Serious injury to an individual , and damage to the television,
may result if it should fall.
When the television receiver is not used for an extended period of
time, it is advisable to disconnect the AC power cord from the AC
outlet.
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat build-
up can reduce the service life of your television, and can also be
dangerous.

EN
DYON LIVE
5
Tips regarding environmental protection
At the end of its operating life, this product may not be disposed of by way of
your normal household waste. Instead it must be delivered to a collection point
for recycling electrical and electronic equipment. The icon on the product, in the
operating instructions or on the packaging, indicates this.
The materials used in manufacturing this product are recyclable, depending on
their identifying markings. By recycling this equipment, by recycling its
components, or through other procedures of re-using outdated equipment, you
are making an important contribution to protection our environment. Please ask
you local municipal administration for the location of the corresponding recycling
point.
Battery Recycling
In order to ensure the environmentally friendly disposal of batteries, please do
NOT dispose of used batteries through normal household waste. Please take the
batteries to your local retail or community collection point for recycling.
The following may be an indication of a discharged battery: The device cannot
be switched on. The device switches off automatically and "Battery Empty" is
shown in the display. The device and or battery do not function properly.
Support
URL: http://www.dyon.eu
See our website for the latest information on this engine, on other products by our
company and on our company itself. If you have questions or problems, please read the
FAQs on our website or contact our customer support service [e-mail].
Manufacturer
Axdia International GmbH
Formerweg 9
D-47877 Willich (Germany)
Tel: [phone] / 8826-0
Fax: [phone]
Support-Hotline: [phone]
Web: www.dyon.eu
E-Mail: [e-mail]

EN
DYON LIVE
6
Appropriate use
The device is designed for receiving and watching unencrypted DVB-T and analogue
Cable TV channels (free-to-air) for private use. It is exclusively meant for this purpose and
must only be used for the same. This also includes paying attention to all information
contained in this operating manual, especially in the safety instructions. Any other usage is
considered to be improper and may lead to material damages and even personal injuries.
Moreover, it will result in the immediate loss of guarantee. The manufacturer does not bear
any liability for damages caused due to improper use.
Caution
The device turns off after 3 hours without pressing any key.
Please note that this is NOT a defect. The device is designed like this.
Please use the system settings to turn off this function if necessary.
Please use the Pain Power key to turn the device off and on again for further use.

EN
DYON LIVE
7
2 Conformity
We, Axdia International GmbH, hereby declare that this device
corresponds to the basic requirements and relevant regulations
outlined in guidelines 2004/108/EC, 2006/95/EC and 2009/125/EC.
The CE declaration of conformity for this product may be found on
the following link:
www.dyon.eu – Service – Downloads
(http://www.dyon.eu/web/page_mp_2_ump_20.html)

EN
DYON LIVE
8
3 Mounting – dismantling
3.1 Stand mounting

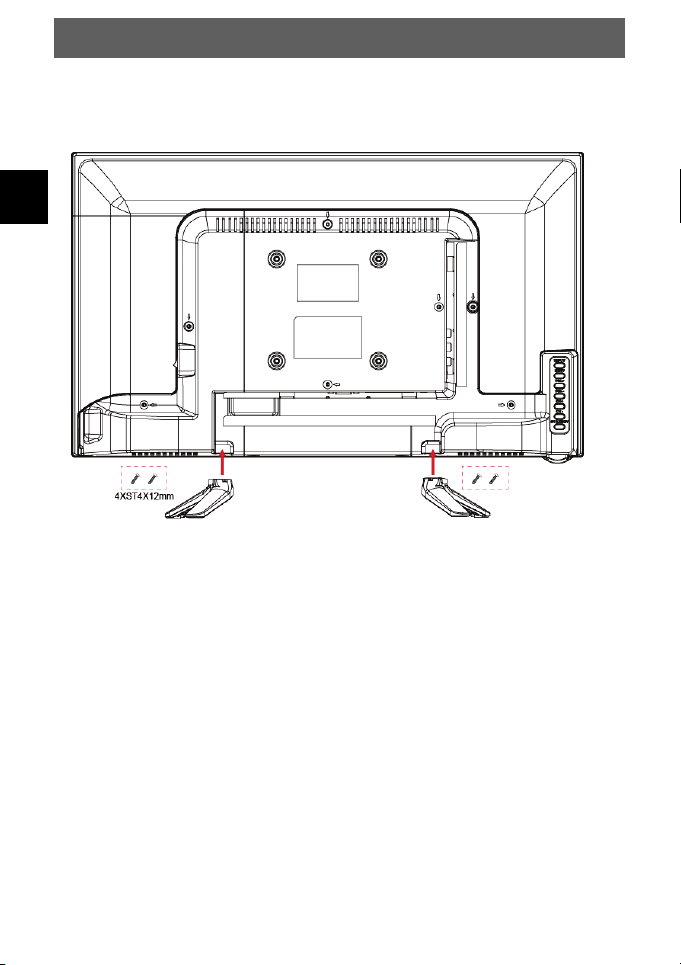

Use the screws to fix the stand.

EN
DYON LIVE
9
3.2 Wall mounting
Use the four thread on the back to connect the tv with your wall retainer.

EN
DYON LIVE
10
4 Front and Rear Panel Illustration

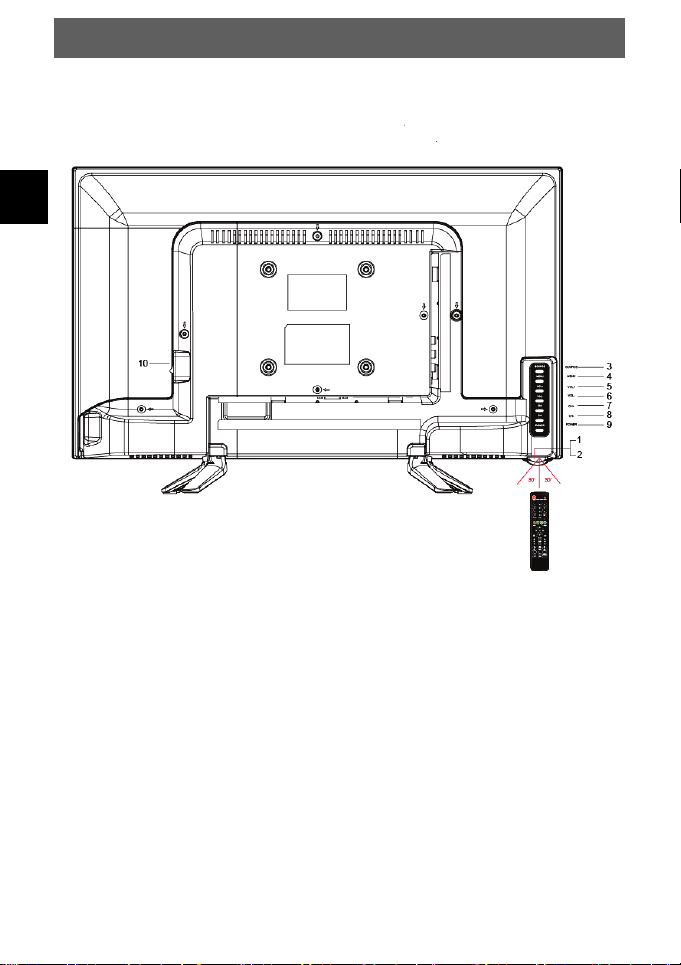

4.1 Keyboard
1. Status indicator Green = Power on
Red = Standby
2. Sensor Remote control sensor
3. SOURCE Display the input source menu you selected
4. MENU
Display main menu
5. VOL+ Increase sound level
Move to the left in menu
6. VOL- Decrease sound level
Move to the right in menu
7. CH+ In TV mode channel up
Move up in menu
8. CH- In TV mode channel down
Move down in menu
9. POWER Switch from or to Standby

EN
DYON LIVE
11
4.2 Rear connection board
Backside bottom:
1. HEADPHONE OUT
2. VGA
3. SCART
4. PC AUDIO IN VGA
5. LNB IN
6. RF(C/T2)
7. COAXIAL

EN
DYON LIVE
12

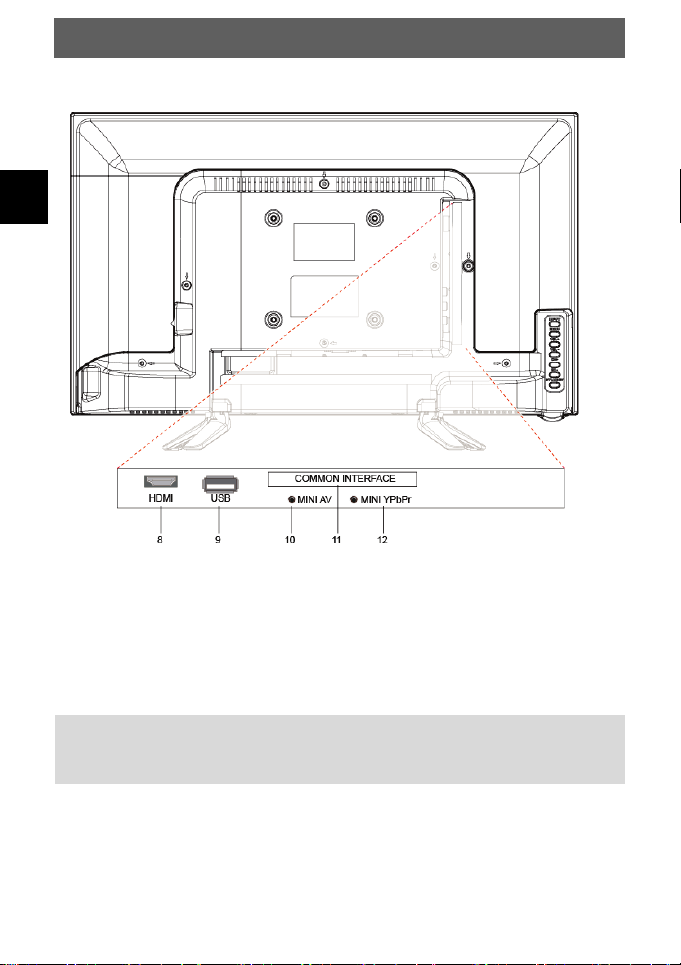

Backside right:
Note:
According the CI Slot:
Please take care to insert the CI-Module (CAM) in the correct way.
The top side of the module must face against the wall behind.
8. HDMI
9. USB
10. MINI AV
11. COMMON INTERFACE
12. MINI Ypbpr

EN
DYON LIVE
13
4.3 CI/CI+ Slot

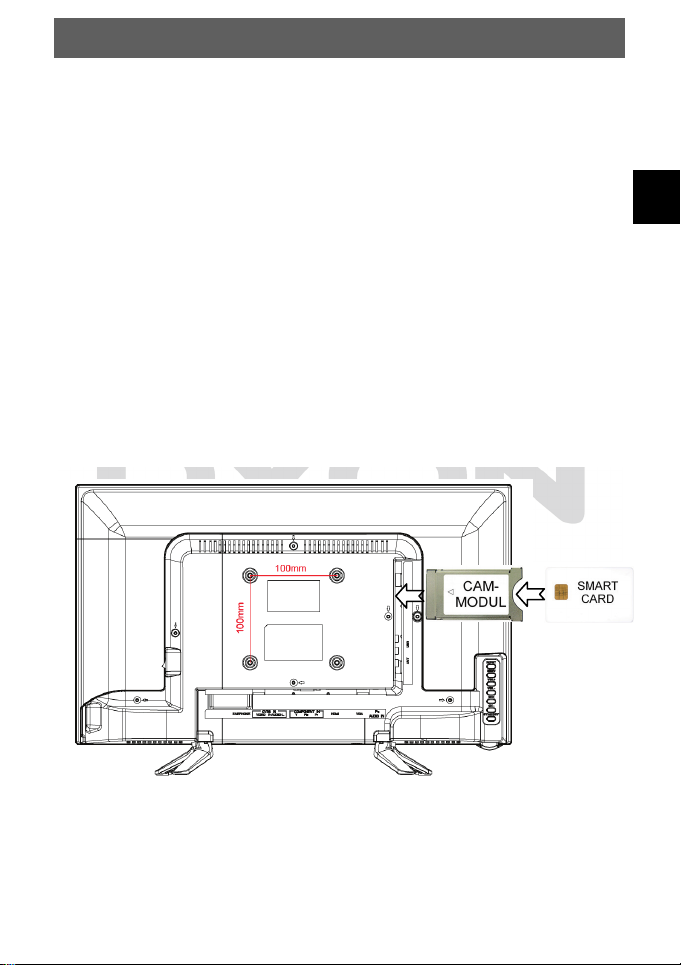

This device is equipped with a CI+ slot for use with cam modules and smart cards which
allow for the viewing of encrypted Pay-TV channels.
The corresponding modules may be purchased from the Pay-TV provider or specialized
dealer.
Installation
1. Disconnect the TV set from power.
2. Before inserting the module into the device, insure that the smart card has been
properly installed into the module (). Pay close attention to the direction when
inserting.
The printing on the module and the chip of the smart card must be on top.
3. Insert the Module with inserted smart card with the printing of the module facing
backwards ().
Insert the module carefully into the slot of the device until a little resistance is felt.
Using a little pressure, carefully press the module into the slot until it sits firmly.
4. Reconnect the power source.
Remove the module
1. Disconnect the TV set from power.
2. To take the module out carefully.



EN
DYON LIVE
14
Notice
Module and smart card are not including in the packaging.
Install the CI+ module after the channel scan has been accomplished and all other settings
have been set.
The activation of the card may take several minutes for the first time it is used. When
necessary, the device will check the module every time the device is switched on.
Pay close attention to the manual of the CI+ module and smart card.
Notice to CI+
Please note that the recording and time shift function may be limited on some channels.
Recorded files of channels, which are encrypted by the CI+ card, are only workable on this
device.
These limitation are determined by the broadcaster. The manufacturer takes no
responsibility.

EN
DYON LIVE
15

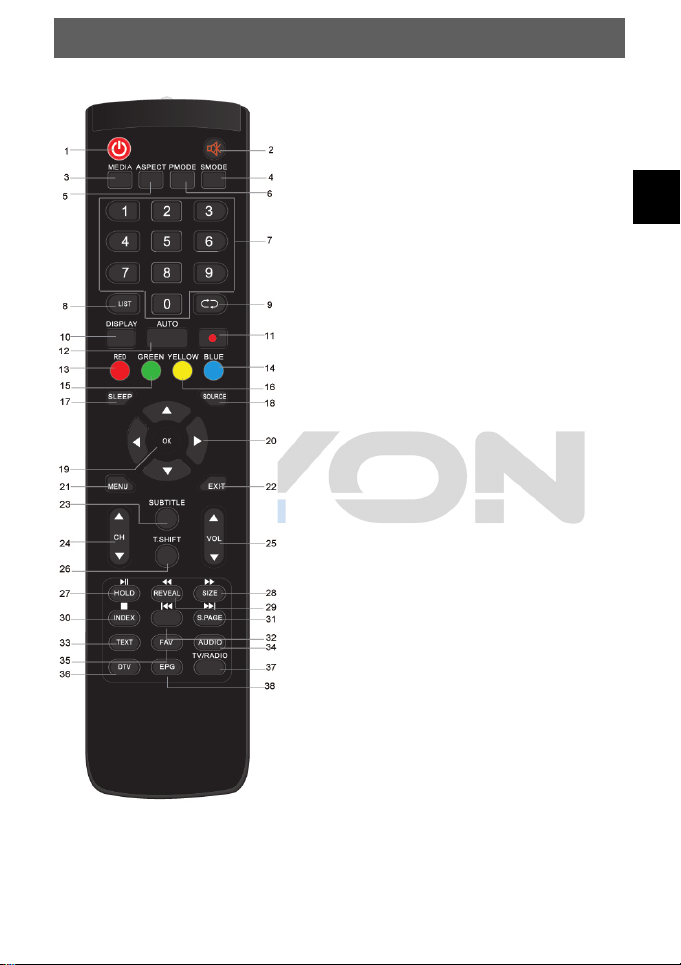

4.4 Remote Key Function
1. POWER: to switch the set device to on or
standby.
2. MUTE: To disable or enable the sound
output.
3. MEDIA: Open Media Playback (USB)
4. SMODE: To change the sound setting
5. ASPECT: to switch the aspect ration
6. PMODE: Change image setting
7. NUMBER KEYS: used to select channel
numbers or input numbers in menus.
8. LIST: Shows the channel list
9. RECALL: To show the last viewed channel
10. Display: Used to display information about
the channel being viewed or further
information about the program when in
DTV mode.
11. REC: Start recording
12. AUTO: Auto adjust in PC mode
13. RED Colour key:
In Menu: Menu function as displayed
In TV mode: Teletext functions
14. BLUE Colour key
In Menu: Menu function as displayed
In TV mode: Teletext functions
15. GREEN Colour key
In Menu: Menu function as displayed
In TV mode: Teletext functions
16. YELLOW Colour key
In Menu: Menu function as displayed
In TV mode: Teletext functions
17. SLEEP: Set timer to turn off the TV.
18. SOURCE: Select input source
19. OK: Used to confirm a selection within a
menu.
20. ARROW KEYS: Move within the menus.
21. MENU: Open the menu of the current title.
22. EXIT:
In menu: Used to return to the previous
screen or menu.
23. SUBTITLE: Used to switch among
different subtitles that are broadcasted in
DTV mode.

EN
DYON LIVE
16
24. CH+/-: Channel selection
25. VOL+/-: Adjust the volume level.
26. T.SHIFT: Start / Stop time shift recording.
27. HOLD/ PLAY:
TV mode: picture freeze
USB mode: Play the media player
28.SIZE /
TV Teletext mode: To change the view
USB mode: Forward file playback
29. REVEAL /:
TV Teletext mode: to show hidden information if
existing.
USB mode: Fast rewind for USB file playback
30. INDEX / STOP:
TV Teletext mode: To open the Index page
TV mode: To open the record settings
USB mode: Stop for USB file playback
31. S.PAGE /

:
TV Teletext mode: To open a subpage if
existing.
USB mode: go to the next file
32. :
USB mode: go to the previous file
33. TEXT:
TV mode: to open teletext if teletext available in
the broadcasted stream.
34. AUDIO: To change the audio track
35. FAV MENU:
TV mode: Used to access your favorite
channels.
36. DTV: Switch to TV input directly
37. TV/RADIO: It is used to switch between
digital TV channels and radio stations if existing.
38. EPG:
TV mode: To display information about the
program being viewed and what's on next.

EN
DYON LIVE
17
Notes on batteries
If the remote control is not used for a long period of time, please remove the
battery from the compartment.
Do not heat batteries or dispose of them in fires.
Do not dismantle, deform or modify batteries.

EN
DYON LIVE
18
4.5 Connecting to TV-Signal Input
Connect the TV signal cable (the antenna cable, for example) to the Antenna Input Jack on
the back of the unit so that you can receive television programmes.
After connection, turn on the power of the unit. Then press the SOURCE button to select
TV or DTV mode and conduct program selection.
Note
Whether and how many DVB-T channels can be received by this device, is
strongly depending on the operational place, and the DVB-T signal strength in
this Area.
DVB-T radio in particular is very limited and not available in most locations.
Please note that for using of DVB-T after each larger local changes, a new
channel search should be accomplished. Since the frequency of the channels
may vary from region to region.

EN
DYON LIVE
19
5 First Time Setup
You can choose language and country, auto turning programs. Go to Start Button and the
channels will be searched. And after turning the screen will skip to the first DTV program.
( 1): Select the OSD menu language and press OK to confirm.
( 2): Select the country for DTV reception and press OK to confirm.
The channel search starts now with DTV channel search.
- Press “Exit” to exit the channel search.
Note:
The channel search can take a moment please be patient.

EN
DYON LIVE
20
6 OSD Settings (Main Operations)
Press ◄/►to select the page. Press ▲/▼to select the setting.
6.1.1 CHANNEL MENU
The first item of the MENU is channel menu (for TV or DTV source only).
You can search channels and edit programs here.
Press MENU button to display the main menu.
Press ◄/►button to select CHANNEL in the main menu.
Press ▲/▼ button to select the option that you want to adjust in the CHANNEL
menu.
Press Enter button to adjust.
After finishing your adjustment, press Enter button to save and return to the
previous menu.
