E-TRAVELLER PURSUIT User manual

1
Owner’s Manual
Proudly brought to you by:

2
Intended Use: The intended use of the E-Traveller Pursuit is to provide mobility to persons limited to a seated
position that is capable of operating an electric scooter.
Table of Contents
TABLE OF CONTENTS
.................................................................................................................................................................................................................................................. 2
1. INTRODUCTION
.......................................................................................................................................................................................................................................................... 4
1.1 FEATURES AND BENEFITS............................................................................................................................................................................................................................................... 4
1.2 SAFETY GUIDELINES
.............................................................................................................................................................................................................................................. 5
2. SAFETY
........................................................................................................................................................................................................................................................................ 8
2.1 B EFORE G ETTING ON YOUR Pursuit
..........................................................................................................................................................................................................................8
2.2 E NTERING Y OUR Pursuit
......................................................................................................................................................................................................................................... 8
2.3 G ETTING OFF YOUR Pursuit
.....................................................................................................................................................................................................................................8
2.4 M AXIMUM W EIGHT
....................................................................................................................................................................................................................................................8
2.5 D RIVING ON INCLINES
..................................................................................................................................................................................................................................................9
2.6 D RIVING ON A DECLINE
................................................................................................................................................................................................................................................9
2.7 MOTOR BRAKING SYSTEM
................................................................................................................................................................................................................................. 10
2.8 M EDICATION
............................................................................................................................................................................................................................................................ 11
2.9 RULES FOR USE AND OTHER SAFETY CONSIDERATIONS
............................................................................................................................................................................................... 11
4.
YOUR E-TRAVELLER Pursuit
...........................................................................................................................................................................................................................13
5. OPERATION
............................................................................................................................................................................................................................................................... 16
5.1 C ONTROL P ANEL
.................................................................................................................................................................................................................................................. 16
5.2 TILLER ADJUSTMENTS
.............................................................................................................................................................................................................................................. 17
5.3 SEATING
..................................................................................................................................................................................................................................................................18
5.4 F REEWHEEL M ODE
................................................................................................................................................................................................................................................ 19
6.
RIDING YOUR Pursuit
......................................................................................................................................................................................................................................20
6.1 M OUNTING
.............................................................................................................................................................................................................................................................. 20
6.2 B EFORE GETTING ON YOUR E-T RAVELLER Pursuit
....................................................................................................................................................................................................
20
6.3 G ETTING ON YOU Pursuit
..................................................................................................................................................................................................................................... 20
6.4 B ASIC D RIVING
......................................................................................................................................................................................................................................................... 21
6.5 S TEERING
............................................................................................................................................................................................................................................................ 21
6. RIDING YOUR PURSUIT - CONTINUED
.............................................................................................................................................................................................................. 22
6.6 CONTROL THROUGH TIGHT SPOTS
............................................................................................................................................................................................................................ 22
7. DISASSEMBLY
............................................................................................................................................................................................................................................................23
8. ASSEMBLY
..................................................................................................................................................................................................................................................................25
9. TRANSPORTING YOUR E-TRAVELLER CARRY ON
............................................................................................................................................................................................... 28
10. CARE AND MAINTENANCE
.................................................................................................................................................................................................................................29
10.1 R OUTINE M AINTENANCE
......................................................................................................................................................................................................................................... 29
10.2 CLEANING YOUR Pursuit
...................................................................................................................................................................................................................................29
10.3 CAUTIONS & WARNINGS........................................................................................................................................................................................................................................... 30
10.4 B ATTERY P ACK AND C HARGING
................................................................................................................................................................................................................................ 30
10.5 IF YOUR P URSUIT DOESN ’ T OPERATE
......................................................................................................................................................................................................................... 31
10.6 D IAGNOSTICS
..................................................................................................................................................................................................................................................... 32
10.7 F USES
................................................................................................................................................................................................................................................................34

3
DISCLAIMER
We ask that you read this manual completely before operating your new is not and cannot be held responsible for any
damage or injury incurred due to improper or unsafe use of the E-Traveller Pursuit scooter. Motobility Wholesale.
specifically disclaims
responsibility for any bodily injury or property damage that may occur during any use that does not
comply with applicable federal, state, or local laws or ordinances.
Congratulations on the purchase of your new E-Traveller Pursuit scooter. The Pursuit combines cutting edge technology with an
attractive, highly functional design. We at Motobility Wholesale know that you have chosen a scooter that will give you years of
dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active
daily lifestyle.
Even though your new Pursuit is both user-friendly and designed for maximum maneuverability in even the tightest spaces,
we ask that you please read, understand and follow all of the instructions
and suggestions in this manual before you
operate your Scooter for the first time. The safe use of your new Scooter is very important to us.
If you feel that you do not understand the instructions and suggestions presented in this owner manual, or if, for any reason,
you do not feel capable of performing the activities necessary to assemble, disassemble, operate, or maintain your Pursuit,
please contact your local Motobility Wholesale dealer. A list of current dealers can be found on our website.
www.motobilitywholesale.com.au
Motobility Wholesale cannot be held responsible for personal injury or property damage resulting from the unsafe or the
improper use of any of our personal mobility products. Also, Motobility Wholesale cannot be held responsible for personal injury
or property damage resulting from attempts to follow instructions, suggestions, and guidelines presented in this ownermanual.
Our Research and Development Department, our Quality Control Department, and our Engineering Department have used
the latest product specifications and the latest product design information to manufacture your Pursuit. Motobility Wholesale
reserves the right to implement changes into our product lines when those changes become desirable or necessary. If
changes are implemented into our product line, there may be minor differences between the product you purchased and the
illustrations and instructions in this owner manual.

4
1. INTRODUCTION
1.1 Features and Benefits
Your Pursuit scooter has been designed with your comfort in mind. It has also been
designed to be a safe method of transportation when safety and operating
instructions are followed.
Hand Grips:
Rubber coated forward grips for
comfort and non-slip controllevers for
easy right or left-hand use.
Tiller:
Easy to use tiller offers
infinite adjustment
to find your most
comfortable driving
position. The yellow tiller
angle adjustment lever is
located on the right side
of the tiller and locks
automatically in place
when released. A battery
charging port, USB
charging port, and
charger fuse holder are
conveniently located
in the center of the tiller
under the control panel.
Water Bottle Holder:
Control Panel:
Easy to read display features:
Oversized speed control knob; LED battery gauge;
key switch to turn the unit on and off; light switch to
turn the headlights and tail light on and off; and the
red horn button.
Seat:
The armrest can be
tilted back to make
transfers easier, and
the seat back and
armrest fold forward
for easy compact
storage when
removing the seat.
Also, standard are a
seat pocket and flag
holder sewn into the
backrest.
Seat Frame :
Theself-locking seat
frame folds forward
for a
compact profile
making storage easy.
The Pursuit comes standard with a tiller mounted water
bottle holder that can be fitted on either side of the
tiller.
Main Body:
Features:Compact profile;
headlights and taillight; front
and side handles for easy
transport; and top-mounted
freewheel switch for easy
access.
Easy Access Lithium-Ion Battery Pack:
Located under the floorboard, the battery pack has a wireless
connector system for easy disassembly and reassembly. The
battery pack can be removed and brought indoors for
charging with its off-board charger. In addition, the 6.5 AH
battery pack can be removed and taken as a Pursuit while
travelling by air, sea, or train.

5
1.2 Safety Guidelines
The symbols below are used in the owner's manual and/or on the product to identify warnings
and to notify you of important safety information. Make sure you read and understand them
completely.
WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in
death or serious injury. This icon is represented as a black symbol on a yellow triangle
with a black border.
MANDATORY! Failure to perform mandatory act10ns can cause personal 1n jury
and/or equipment damage. This icon is represented as a white symbol on a blue
dot with a white border.
PROHIBITED! Indicate(s) an action(s) that should not be performed under any
circumstance. Failure to adhere can cause personal injury and/ or equipment
damage. This icon is represented as a black symbol with a red circle and red slash.
The symbols below identify warnings, mandatory actions, and prohibited actions. They can be
found in the owner manual and/ or on the product. Make sure you understand
all safety labels before operating the product. Do not remove safety labels from the product.
Read and follow the
owner manual!
Use only Lithium-Ion
battery Pack!
Pinch/ Crush Hazard!
Explosive conditions
exist!
Avoid transmitters!
Do not place into the trash!
Indoor use only!
Hot surface!
Electrical hazard!
Corrosive chemicals
inside battery!
Recycle Do not use personal
electronic devices!
7

8
2. Safety
Your E-Traveller
Pursuit is a battery-operated personal mobility scooter. Please exercise caution
and consideration when you are operating it. Driving your Pursuit carefully and thoughtfully will help
ensure your personal safety and the safety of other people.
Before learning to operate your Pursuit, have your authorized Motobility Wholesale dealer determine
if it is advisable for you to practice getting on and off your Scooter and operating it in the presence of
an attendant.
MANDATORY! Read completely and understand this owner’s manual before
assembling, operating, transporting, or disassembling your Pursuit scooter.
2.1 Before Getting on your E-Traveller Pursuit

Always ensure your Scooter is turned off. See section 5 "Operation” in this manual. This
will eliminate the possibility of accidentally activating the paddle controls and causing injury
to yourself and/ or others.

Check to be certain that your Pursuit freewheel switch is in the engaged position. See
section 5 operation in this manual.
 Flip-up the armrest(s).
When getting on or off your E-Traveller Pursuit, keep your weight toward
the middle of the deck. Putting most or all of your weight on the edge of the deck may
cause an unstable condition.
2.2 Entering Your E-Traveller Pursuit
 Ensure that the seat is facing forward. See Section 5 "Operation."
 Return tiller to the full upright position if necessary, this will give you additional room to maneuver
 Carefully place one foot on the approximate center of the deck and seat yourself
comfortably and securely on the seat.
 Flip down the armrest(s).
2.3 Getting off your E-Traveller Pursuit

Make certain that the power is turned off and the key is removed.

Return tiller to the full upright position

Flip-up the armrest(s).
 Carefully place one foot on the ground, transfer your weight to that leg, and slowly come to
a standing position.

Step away from the Scooter.

2.4 Maximum Weight
Your Pursuit has been rated to a maximum weight capacity (operator and anything else being
carried onboard) of 300 pounds / 136kg. Exceeding the maximum weight rating will void the
warranty and increase risk of injury and damage to the product.
Exceeding the maximum weight rating may result in injury to yourself
and/or others.

9
2.5 Driving on inclines
• For maximum stability, lean forward in your E-Traveller Pursuit seat while
proceeding up ramps, inclines, curbs, or any low rise. See figure 2.
• Drive with caution when attempting to negotiate any incline, even
handicap access ramps.
• Always climb or descend an incline by driving straight up or straight
down the face of the slope. See figure 2.
• Do not traverse or drive across the face of an incline in any direction. See figure 3.
• Do not attempt to negotiate an incline that is covered with snow, ice, salt,
cut or wet grass, leaves, or any other potentially hazardous material.
• Do not drive your Scooter in reverse down an incline.
• Try to keep your Pursuit moving when climbing an incline. If you do
come to a stop, restart and accelerate slowly and carefully.
• Do not try to descend or climb a slope whose gradient is greater than recommended.
*Pursuit maximum recommended incline is 6 degrees
Figure 2. Going Up an Incline Figure 3. Traversing an Incline
If, while you are driving down a slope, your Scooter starts
to move faster than you feel is safe, release the throttle
control lever and allow your Carry Onto come to a stop.
When you feel that you again have control of your Scooter,
push the throttle control lever forward and continue safely
down the remainder of the slope.
2.6 Driving on a decline
 Lower the speed setting.

Whenever it is safely possible, drive forward down any ramp, low rise, or incline.
Motobility Wholesale does not recommend that you drive your Scooter in reverse
down an incline, ramp, curb, or low rise. Backing down any slope may create a
very hazardous situation. If it is necessary to back down a slope, follow one of
two procedures on the next page (page 10).

10
When using either of the following procedures to back down a slope, Motobility
Wholesale. Strongly advises that you have the assistance of another person.
Procedure 1 - Under Power
1. Set the key switch to the off position. See section 5 Operation
2. Turn the speed control dial fully clockwise to its slowest setting.
3. Dismount your E-Traveller Pursuit.
4. Set the key switch to the on position. See section 5 Operation
5. While standing alongside your Scooter, carefully operate the controls at the lowest
speed setting. See section 5 Operation
6. Slowly and carefully back your Scooter down the incline.
7. Carefully remount your Pursuit and resume normal operation.
When your Scooter is in freewheel mode, the parking brake is released.
If the battery pack is dead or removed, the motor braking system will not
release. The weight of the Scooter on a slope may cause you to lose
control of the Scooter. If you do not feel capable of manually controlling
your Scooter down the slope, request assistance or do not attempt to
use this procedure.
Procedure 2 - Emergency (No Power)
1. Set the key switch to the off position. See section 5 Operation.
2. Dismount your E-Traveller Pursuit.
3. Set the freewheel switch to disengaged
4. While standing alongside the Scooter, carefully manually maneuver it down the slope.
5. When you have reached a level surface at the bottom of the slope, position the
freewheel lever in the engaged position. See section 5. Operation
6. Carefully remount your Pursuit, and set the key switch to the on position to restore
power.
2.7 Motor Braking System
Your Scooter is equipped with a system that uses the motor to aid in braking. This motor brake
system is designed to work when the key is in either in the on position or the off position.
When the key switch is in the on position, the freewheel is in the engaged position, and the Scooter
is under power, the motor will help slow down the Scooter as soon as you take your hand off of the
throttle lever.
When the key switch is in the off position, and the freewheel switch is in the disengaged position,
the motor brake system will keep you from pushing the Scooter too fast (i.e. down a slope).
You may notice this when pushing the Scooter. The Scooter will move freely until you reach a
certain speed. You will then encounter some resistance as the motor brake system is activated.

11
2.8 Medication
Always check with your physician to determine if any of the medications you are taking may affect your
judgment and/or your ability to operate your Pursuit. Also, check with your physician concerning your
physical ability to operate a scooter.
Do not connect or allow anyone except an authorized Motobility Wholesale provider to
connect any electrical or mechanical device to your Pursuit. Unauthorized accessories
will void the warranty and may cause injury.
Please remember that while on your E-Traveller Pursuit, you are a motorized pedestrian.
You must observe and obey all pedestrian rules and regulations for the locale in which you
are riding.
Please use your E-Traveller Pursuit scooter often and allow it to expand the horizons of your daily life. The more
mobility your E-Traveller Pursuit brings to you, the happier you will be, and the more satisfied we at Motobility
Wholesale will be! But as with all things, especially motor-operated vehicles, observing a few rules and safety
considerations will help ensure safe scooter operation. So please follow the rules below.
2.9 Rules for use and other safety considerations
Read completely and understand this owner's manual before
operating, transporting, or disassembling your Pursuit. use caution when bending and
lifting. Refer to the specifications section in this manual for individual component weights.
Always operate your Pursuit with thought, care, and safety.
• Do not attempt to use your Pursuit, on an escalator. Always use an elevator.
• Do not carry passengers under any circumstances.
• Do not mount or dismount your Pursuit unless the brake is engaged.
• Always make sure that the key switch is set to "Off'before mounting or dismounting your Scooter.
• Do not back your Pursuit down an incline or across an uneven surface.
• Do not turn your Scooter suddenly at full speed.
• Always make sure the seat is locked in the forward-facing position before operating your Pursuit.
• Always come to a full stop before changing direction from forward to reverse or from reverse to forward.
• Do not operate your Pursuit where you could not safely or legally walk.
• Do not climb ramps or curbs that exceed your Scooter's capacity.
• Always approach curbs and inclines straight on.
• Always be aware of and careful near mechanical pinch points, especially when assembling and
disassembling your Scooter.
• Never sit on your Pursuit when it is being transported.
• Always fasten down your Pursuit securely with an approved tie-down system while transporting your
Scooter.
• Never operate your Scooter if it is not functioning properly.

12
2.9 Rules for use and other safety considerations - continued
Always use caution when driving on soft or uneven surfaces such as
grass or gravel. Also, use caution on decks where there is no railing.
Never drive on the roadway, except when you must cross the street.
Always cross streets at intersections and use crosswalks or the most
direct route, making sure that your path is clear and that you are visible
to motor traffic.
Never drive your Pursuit up or down a step or curb that is higher
than the ground clearance listed on the specifications chart (see
page 14).
Never back up or down a step or curb.
Do not drive your Pursuit in icy or salted conditions.
Never operate your Pursuit while you are under the influence of
alcohol. Do not operate or store your Pursuit where it will be
exposed to rain, snow,
mist, and below-freezing temperatures.
Should you encounter a problem with the operation of your mobility
device, such as a mechanical or electrical problem immediately, stop
using the product. Remove the battery pack then contact the provider
from whom you purchased your mobility device for evaluation of the
problem and repair if needed.

13
4. Your E-traveller Pursuit
Control Panel
Tiller Lever
Hand Grip Throttle
Lever
Seat Assembly
Water Bottle Holder
Seat Pins Seat Lever
Power Module Cover
Freewheel Switch Handle
Handle

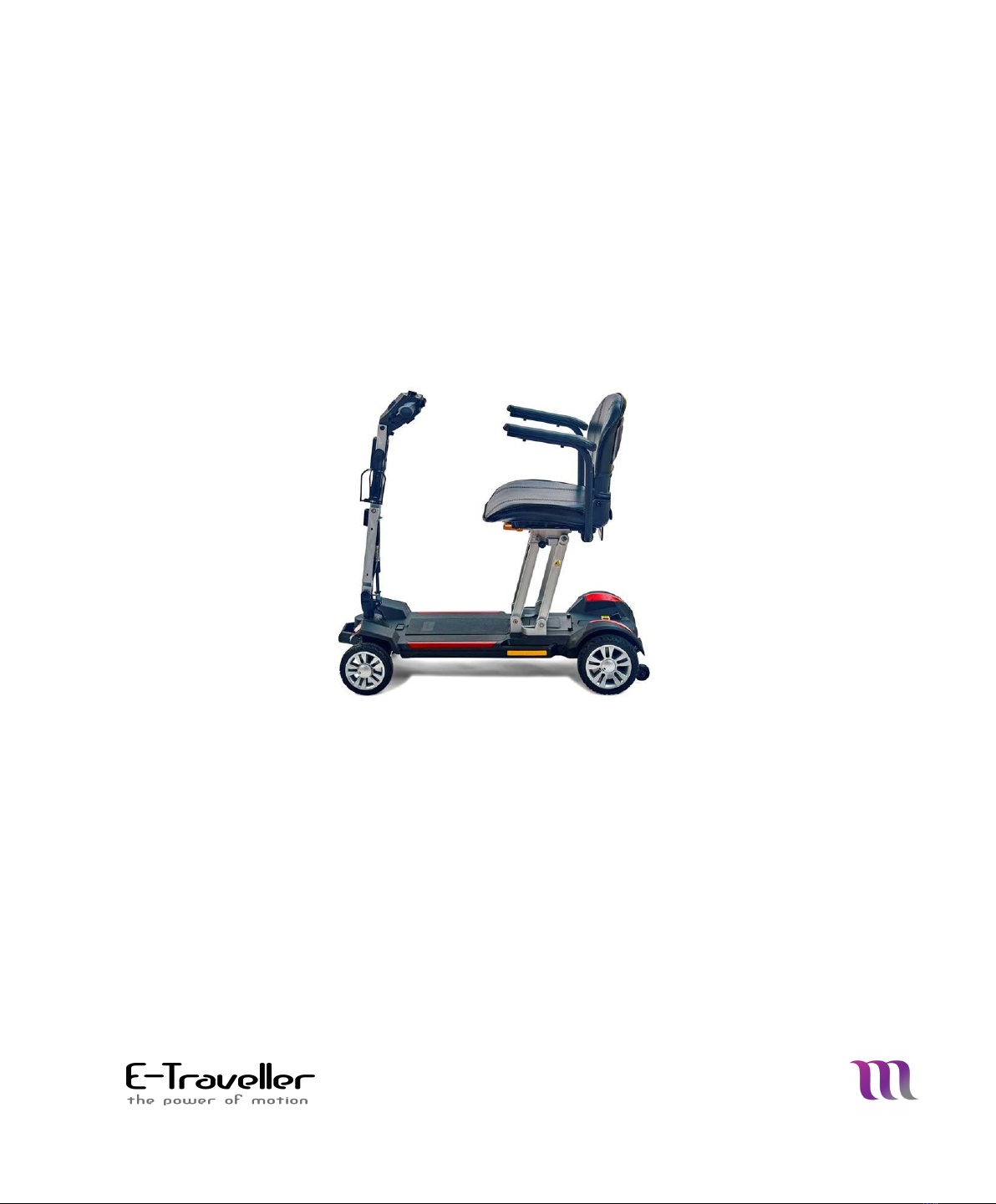

Figure 4. Your E-traveller Pursuit
FOR YOUR RECORDS
Please fill in your Pursuit information below. This information will be useful in the event that you
ever need to contact E-traveller Technologies, concerning your Scooter.
Model Serial Number
Date of Purchase Body Color
Provider Name
Company
Address
City State Postcode
Please remember to fill in and return your warranty registration card in the back of this
manual.

14
4. Your E-Traveller Pursuit - continued
Specifications PS3500
Weight Capacity
300 lbs. / 136kg
Drive Wheels
Rear
Maximum Speed 3.6 mph / 5.8kmh
Operating Range
6.5AH Battery: 7.4 miles / 12km
10AH Battery: 15.5 miles / 25km
Ground Clearance Under Deck
4.1in / 105mm
Ground Clearance to Transaxle/Motor
1.5in / 38mm
Turning Radius 48.75in / 1238mm
Type Batteries (Lithium Ion)
Standard – 6.5 AH, Optional - 15 AH
Freewheel Mode
Yes
Electronic Speed Control
Yes
Electro-Mechanical Brakes
Yes
Charger
Off-board
Controller
50Amp
Length
38in / 965mm
Width
19.5in / 495mm
Height (ground to the top seat back)
34.5in / 876mm
Ground to Top of Seat
22.75in / 578mm
Ground to Top of Deck
6in / 152mm
Deck to Top of Seat
19.5in / 495mm
Front Axle to Rear Axle
28.7in / 729mm
Weight of Unit: (assembled) 65.5 lbs / 29.7kg
Main Body
47.5 lbs / 21.55kg
Seat with Arms
12 lbs / 5.4kg
Battery Pack
6.5 AH - 3.8 lbs / 1.7kg – 156WH (suitable for air travel)
15 AH - 6.0 lbs / 2.7kg – 360WH (not suitable for air travel)
Maximum Height (folded without seat)
12in / 305mm
Tires:
Solid, low profile
Front
6in / 152mm
Rear
7in/ 178mm
Rear Anti-Tip Wheels 2in / 50mm
Standard Seat:
Stadium Style
Seat Back Height (no headrest)
13.25in / 337mm
Width x Depth 15in x 13.75in / 381mm x 349mm
Warranty:
12 Months
Battery range at 200 lbs / 91kg, and will vary due to rider weight, drive surface, terrain, and battery type.

16
5. Operation
Water Bottle
Holder
Horn
Button
Tiller Adjustment Lever
Light
Switch
Key Switch
Throttle Control
Lever
Speed Adjustment
Knob
Throttle Control Lever
LED Battery Meter
Figure 5. Pursuit Tiller Control Panel
5.1 Control Panel
Speed Adjustment Dial
• The speed adjustment knob allows you to preselect the maximum top speed of your e-
traveller. See figure 5.
• Turn the knob counterclockwise to operate your Scooter at the lowest speed level.
• Turn the knob clockwise to increase the operational speed of your Scooter.
• We recommend that you select a speed setting at which you feel comfortable, safe, and
in control of your Pursuit.
Key Switch
This switch turns the power on and off to your Pursuit. See figure 5.
 Insert the key into the key switch.
 Turn the key 90 degrees clockwise to turn on your Scooter's power. The LEDs on the
battery meter will light up, indicating that power is on.
 Turn the key back to the vertical position to turn off your Scooter's power.
Always make certain that the key is removed from the key switch before
getting on or off your E-traveller Pursuit or before lowering the tiller completely.
Light Switch
Press the switch to (-) position to turn on the headlight and taillight. See figure 5. Press the
switch to (o) position to turn off the headlight and taillight. See figure 5.
Horn Button
Press this red button to sound the horn. See figure 5.

17
DC Battery Voltage Meter
This meter (see figure 5) shows the amount of voltage in your Pursuit battery pack.

Green indicates a full charge on the battery pack.

Yellow indicates caution and approximately a one-half charge of the battery pack.

Red indicates that the battery pack has less than one-half of a charge remaining.
See section 10 Care and Maintenance for instruction concerning charging the battery
pack.
Throttle Control Lever
This lever operates both the speed and the direction of the Pursuit. This self-centering lever
system controls your Pursuit speed (up to the maximum speed set by the speed adjustment dial)
and its forward and reverses direction. See figure 5.
To drive forward:
Use your right-hand fingers to pull back on the right side of the throttle control lever.
Always bring your Pursuit to a full stop before changing direction from forward
to reverse, or from reverse to forward.
To drive in reverse use either of the following:
 Use your left-hand fingers to pull back on the left side of the throttle control lever.
When the throttle control lever is completely released, it automatically returns to the centre
top position and engages your scooter brakes, bringing you to a complete stop. You will
hear a click when the parking brake engages.
Control Options
Motobility Wholesale has made provision for the individual needs and abilities of the operators of the
E-Traveller Pursuit.
Your authorized Motobility Wholesale provider can reverse the throttle control lever controls so that
when you pull on the left side of the lever, your Scooter will move in the forward direction, and when
you pull on the right side of the lever, your Scooter will move in the reverse direction.
5.2 Tiller Adjustments
The tiller on your Pursuit scooter employs an adjustment lever to provide you with infinite tiller
angle settings. To set the tiller to your liking, follow these directions.
1. Use one hand to grasp a handgrip.
2. Use your other hand to squeeze the tiller adjustment lever. See figure 4 on page 14.
3. While squeezing the lever, position the tiller to a comfortable driving position.
4. Release the tiller adjustment lever.

18
5. Operation - continued
USB Disclaimer: The supplied USB charging port is only
intended to be used with appropriate smart devices such as
phones or tablets. Please refer to device manufacturer
charging requirements before using. Motobility Wholesale
excludes liability for any damages or data loss
regarding the charging device on a computer or other
electronic device connected to the USB port.
Figure 6. 1 AMP USB Charging Port
5.3 Seating
Figure 7. Flip-up Armrests Figure 8. Folding Armrests
Flip-up Armrests
Pull up on the end of either armrest to flip it up for easy transfer on and off your E-Traveller
Pursuit. See figure 7.
Do not push with excess force on the arm or use the armrests as an aide
to support your weight while trying to transfer out of the Scooter.
Folding Armrests
To fold the armrest(s).
1. Pull the armrest (away from the seat) outward.
2. Push the armrest forward. See figure
• Do not sit in or attempt to drive your Pursuit unless the seat frame is locked in the up position
and the seat is locked securely to the seat frame. Accidental folding of the seat frame or
separation of the seat from the frame may occur and cause injury or damage.
｀

19
5.4 Freewheel Mode
Your Pursuit is equipped with a freewheel lever that can set your Scooter in or out of freewheel
mode.
Figure 9: Freewheel Switch (Drive Position)
To disengage the parking brake and put your Scooter in freewheel mode:
Press the (1) symbol on the freewheel switch. See figure 9.
To engage the brake and take your Scooter out of freewheel mode: Press
the (0) symbol on the freewheel switch. See figure 9.
Pushing the Scooter too quickly in freewheel will cause the motor to act as a
generator causing the Scooter to become difficult to push. Freewheel slowly.
Never sit on your Pursuit in freewheel mode.
Never disengage the park brake while you are operating your
Pursuit.
Always make certain that your scooter park brake is engaged before
inserting the key into the key switch and turning it to the on position.

20
6. Riding Your Pursuit
6.1 Mounting
When getting on or off your Pursuit, keep your weight toward the middle of the deck. Putting
most or all of your weight on the edge of the deck may cause an unstable condition. Or your
first driving session, make certain that your Pursuit starts out on a level surface and that you will
continue driving on a level surface.
6.2 Before getting on your E-Traveller Pursuit
1.
Check to be certain that the key has been removed from the key switch.See section V.
"Operation" in this manual. This will eliminate the possibility of accidentally activating the paddle
controls and causing injury to yourself and/ or others.
2.
Check to be certain that your Pursuit freewheel switch is in the engaged position. See section 5
operation in this manual.
3.
Flip-up the armrest(s ).
6.3 Getting on you E-Traveller Pursuit
1. Position the seat for safe and easy mounting. Ensure that the seat is facing forward. See
Section V. "Operation."
2.
Return tiller to the full upright position if necessary.
3.
Carefully place one foot on the approximate centre of the deck and seat yourself comfortably
and securely on the seat.
4. Flip down the armrest(s).
5.
Place the key into the keyswitch.
6. Rotate the key clockwise to the on position. See figures 10 and 11.
Figure 10. Key Switch (OJJJ Figure 11. Key Switch (On)

21
6.4 Basic Driving
1. Make certain that you are seated safely and properly on your E-Traveller Pursuit.
2. Turn the speed control dial fully clockwise to its slowest setting.
3. Insert the key into the key switch if you have not already done so.
4. Turn the key clockwise to the on position. See figure 11 on page 20.
5. Place your hands on the handgrips.
• If you wish to drive forward, pull back on the right side of the throttle control lever.
• If you wish to drive in reverse, pull back the left side of the throttle control lever.
6. Pull-on, the throttle control lever, to gently accelerate your Pursuit.
7. Release the throttle control lever to allow your Pursuit to come gently to a full stop.
8. Practice these two basic functions until you feel that you have control of your Scooter.
6.5 Steering
Steering your E-Traveller Pursuit is easy and logical.
1. With both hands on the handgrips of the tiller (see figure 4 on page 13), turn the tiller to the
right to travel to the right.
2. With both hands on the handgrips of the tiller (see figure 4 on page 13), turn the tiller to the left
to travel to the left.
3. Make certain to maintain sufficient clearance when turning your Scooter so that the rear
wheels will clear any obstacle.
Turning your Scooter too sharply at too high a speed may create a
situation where one of the rear wheels will leave the ground. This
may increase the possibility of tipping the Scooter. Avoid this danger
at all times bydecelerating and steering a wide arc around corners
andobstacles.
Steering in a Tight Spot
If you must steer in a tight spot, such as entering a doorway or when turning around:
1. Bring your Pursuit to a full stop.
2. Set the speed at the lowest setting.
3. Turn the tiller to the direction in which you wish to drive.
For more information on dealing with obstacles and tight spots, see control Through Tight
Spots on the next page.
Steering in Reverse
Backing up your Pursuit requires attention to what you are doing.

Use extreme caution when operating your Scooter in reverse.

Plan your route to avoid getting into a difficult situation.
 Make sure your proposed route is clear of people, pets, and obstacles.
1.
Use your left fingers to pull back on the throttle control lever. See figure 5 on page 16.
2. Turn the tiller to the left to drive in reverse to the left.
3. Turn the tiller to the right to drive in reverse to the right.
Your Pursuit speed in reverse is fifty per cent of the speed set at the speed
control dial.

22
6. Riding your Pursuit - continued
6.6 Control through tight spots
As you use your E-Travller Carry Onto greatly increase your mobility, you will undoubtedly
encounter some obstacles that will require practice to negotiate smoothly and safely. Below are
some common obstacles that you may meet during the daily use of your Scooter. Listed with
those obstacles are some driving tips that should help you conquer those obstacles. Learn and
follow those tips, and with surprising ease, you will soon be in control of your Pursuit as you
maneuver it through doors, up and down ramps, up and
over curbs, through grass and gravel, and up and down inclines. Ramps
When proceeding up any ramp, curb, or incline:
• Lean forward in your seat to move your centre of gravity forward for maximum stability
and safety.
• If the ramp has a switchback, the good cornering ability is required.
• Maneuver your Pursuit so that the front wheels take wide swings around the corners of the
ramp.
• Doing this will allow your Scooter's back wheels to follow a wide arc around the corner,
staying clear of obstacles.
If you must stop your Pursuit while driving up a ramp:

Starting up again simply requires that you apply gentle and steady forward power
pressure to the throttle control lever.
 Accelerate gently after stopping on an incline.
Driving down a ramp:
 Keep your Pursuit speed control dial set fully clockwise at the slowest speed setting.

If you must come to a stop, release the throttle control lever slowly and smoothly.
Prevent injury! Do not drive down an incline in reverse.
Curbs

Always use caution when negotiating any curb.
 Go up or down a curb head-on at a direct 90-degree angle.

Approach and negotiate the curb so that both back wheels of your Scooter go over the
curb at the same time.

Never negotiate inclines or curbs by traversing them. Doing so may cause the Scooter to
tip over.

Go down a curb slowly to avoid a jarring bump. Use as little power as possible.
Grass and Gravel
Your E-Traveller Pursuit performs admirably on grass, gravel, and hills, but you must follow the
operational parameters presented in this manual. Refer to the Safety section.
If you are unsure about any situation, avoid it. Common sense is your best protection.
• Feel free to use your E-Traveller Pursuit on lawns or in park areas.
• Avoid wet, long or high grass, which may wrap around your Scooter's
axles.
• Avoid loose gravel.

23
7. Disassembly
Your Pursuit scooter is designed to be disassembled/folded easily in order to be transported.
When disassembling your Scooter, please be sure to follow these simple instructions.
1. Remove the Seat
2.
Place your Scooter on a level surface.
Remove the key from the key switch before you begin to disassemble/fold
your Pursuit.
Never pull on the arms or use them as a handle to move the Scooter as
they could inadvertently fold, causing injury.
3. (Optional) Fold the seatback down and pull each arm assembly outward and fold them down.
See figure 12.
4. Lift the (yellow handle) seat release lever under the front of the seat. See figure 12.
5.
While holding the lever up, grip the seat opposite the lever and with a firm grip; pull the seat
straight up. See figure 12.
Figure 12. Removing Seat Figure 13. Removing Battery Pack
6. (Optional) Required for air travel.
7.
Push the battery release button. See figure 13.
8.
Lift the battery pack of the Scooter. See figure 13.
