EW-700 Electric Scooter
Owner’s Manual
PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR A HELMET AND OBEY ALL LAWS!
ELECTRIC WHEELS

Page2
BATTERY MAINTENANCE and
CHARGING INSTRUCTIONS
1. You MUST charge completely prior to initial use. (Follow
charging instructions in your Product Handbook)
2. Charge immediately after each use.
3. Charge before storage. You must charge every 30 days if not
in use.
4. Charge the unit for 6-8 hours after the light on the charger turns
green.
5. DO NOT allow this unit to deep discharge the battery.
6. For safety purposes, DO NOT charge for over 24 hours.
7. Turn the unit OFF when not in use.
This PRODUCT IS NOT INTENDED FOR
OFF-ROAD Use! Please take care of your EW-700
DO NOT JUMP or ABUSE THIS PRODUCT!
DO NOT RIDE IN WET/ICY CONDITIONS!
Failure to follow these instructions will
VOID YOUR WARRANTY!
IMPORTANT
Failure to follow these INSTRUCTIONS will
VOID YOUR WARRANTY!

Page3
WARNING
This product does not conform to Federal Motor Vehicle Standards and is not
intended for operation on public streets, roads or highways. Serious injury can
result from the unsafe operations of this product. Operator can minimize these
risks by using certain safety equipment such as: safety helmet, goggles, gloves,
elbow and kneepads and appropriate footwear.
DO NOT operate this product in traffic, on wet, frozen, oily or unpaved surfaces or
under the influence of drugs and/or alcohol. Avoid uneven surfaces, potholes,
surface cracks and obstacles.
DO NOT use a water hose to clean this product. See Product Handbook for more
information.
This product is recommended for riders 10 YEARS OF AGE and older.
SAFETY
Persons without excellent vision, balance, coordination, reflex, muscle and
bone strength and good decision-making capabilities should not use this
product.
Minors without adult supervision should not use this product.
Persons unwilling or unable to take responsibility for their own actions should
not use this product.
The user of this produ
ct assumes ALL risks associated with its use. To
minimize these RISKS, the user must wear safety helmet, goggles, gloves,
elbow and kneepads and appropriate footwear.
This product is ELECTRIC! DO NOT ride this product in wet conditions,
puddles or rainy weather.
IMPORTANT
PLEASE READ THIS BEFORE USING THIS PRODUCT
READ THIS FIRST!

Page4
SAFETY GUIDE
•The minimum recommended age for riding this scooter is 10 years old.
•To avoid damage to the motor and footplate, do not overload the scooter.
•Never ride with more than one person.
•Inspect your scooter thoroughly before each use for loose or missing parts.
•Avoid unintentional starts by turning the scooter off while not in use.
•To avoid the risk of a short circuit in the electrical parts, do not use your EW-700
scooter in the rain and never spray or wash off your scooter with water.
•Do not place the battery near fire or heat.
•To avoid damage to the battery, do not use the charger if it has been damaged
in any way.
•Keep hands, face, feet and hair away from all moving parts.
•Do not touch the motor or wheels while they are rotating.
•Brakes are designed to control speed as well as stop the scooter. Practice
braking for proper slowing down and smooth stops.
•Maintain your EW-700 as recommended in this Product Handbook.
•Use only quality replacement parts as recommended by the manufacturer.
•Inspect the entire scooter prior to each use. Replace any part that is cracked,
chipped or damaged before use.
*NEVER ALLOW CHILDREN TO OPERATE THE SCOOTER WITHOUT ADULT
SUPERVISION.
*NEVER ATTEMPT TO OPERATE THE SCOOTER WHILE UNDER THE
INFLUENCE OF ALCOHOL.
If a situation arises that is not covered in the manual,
proceed with caution and use good judgment.
Contact your dealer or EWHEELS ([e-mail])
if you need further assistance
QUICK REFERENCE
SAFETY GUIDE

Page5
TABLE OF CONTENTS
IMPORTANT INFORMATION…………………………………….…2-3
QUICK REFERENCE…………………………………………………4
TABLE OF CONTENTS……………………………….……………...5
GETTING TO KNOW YOUR EW-700………..……………………..6
PACKING CONTENTS……………………………………………….7
GETTING STARTED………………..……………………………..…7
ASSEMBLY………………………………………………………..7
CHARGING………………………………………………………..8
RIDING……………………………………………………………..8
STOPPING/BRAKING……………………………………………9
BRAKING SYSTEM………….…………………………………..9
TIRES………………………………..…………………..………..10
MAINTENANCE………………………………………………………10
RECOMMENDED TOOLS……………………………………...10
ADJUSTING THE CHAIN……..…………………………….….10
MAINTENANCE SCHEDULE……………………………………….11
TROUBLESHOOTING GUIDE…..…………………………………..12
ADDITIONAL INFORMATION………………………………………..13
GENERAL INFORMATION/TECH SUPPORT……………………..14

Page6
GETTING TO KNOW YOUR EW-700

Page7
PACKAGE CONTENTS
Your EW-700 comes with the following items in the box. Please locate all of the
following:
1. The EW-700 Scooter
2. 36V Battery Charger
3. Tool Kit
4. Seat & Seat Post
5. Front Wheel & Axle
6. Trunk with Keys & mounting hardware
7. Trunk Rack & mounting nuts/bolts
8. Spare Fuse(s)
9. Product Handbook
10. Footplate nuts/bolts & washers
11. 1 Handlebar clamp & 1 seat post/trunk rack clamp
12. Footpad Decals
GETTING STARTED
Please read and understand these instructions and the OPERATING
PROCEDURES section, prior to starting or riding your EW-700
Fig. 1
Fig. 2
Fig. 3

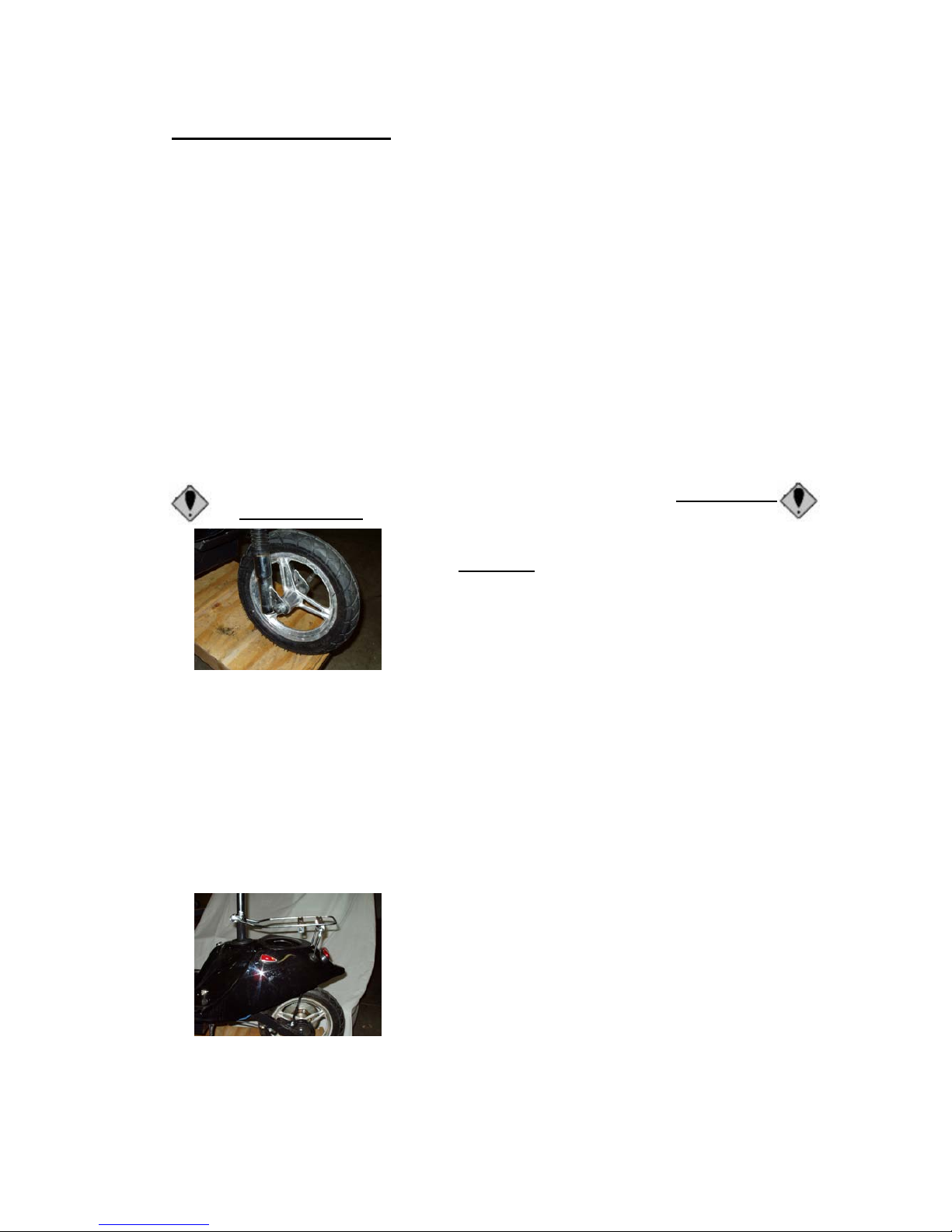

Assembly
1. Carefully remove the EW-700 from the box.
2. Install the front wheel and axle. (Fig. 1)
3. Attach the T-handlebar to front fork/wheel
and tighten clamp securely at the base.
Insert both left and right handlebars by
inserting and then tightening the black bolt.
(Fig. 2)
4. Secure the footplate to the frame using the
4 enclosed footplate nuts, bolts and rubber
washers then apply footplate decals.
5. Insert the seat post and seat into the seat
post receiver, and then install the trunk rack
to the rear of the scooter. Tighten the seat
post clamp securely. (Fig. 3)
6. Optionally, attach the trunk to the trunk rack
using the enclosed trunk hardware.

Page8
Charging
Your scooter comes charged out of the carton. We still recommend charging
the unit for 6-8 hours prior to it’s first use. We also recommend charging your
scooter after each use and prior to storage.
Master Power/Kill Switch
Located on the dash, near the ignition is a master power/kill switch. This
switch must be on to operate the scooter and on during charging. This switch
will cut all power to the motor.
WARNING: Do not allow your scooter to go into deep discharge, as this will
damage the batteries.
Fig. 4
Fig. 5
Riding
1. Make sure that all of the exposed bolts and screws are tightened.
2. Raise the kickstand to its upright position.
3. Turn the master power/kill switch to the ON position.
4. Turn the Ignition key to the on position.
5. Gently rotate the THROTTLE GRIP, on the right side of the handlebars.
The EW-700 will begin to move on its own power. Your scooter has a
variable speed hand throttle. You can control the speed of your scooter by
the amount of pressure you use when rotating the hand throttle. The more
you rotate, the faster you will go.
1. Locate the master kill switch next to
the ignition on the dash. Turn to
the on position. Note the master
kill switch must be in the on
position for the scooter to accept
a charge.
2.
Open the charging socket cover
located on the left side of the
scooter body. (Fig. 4)
3. Locate your Battery Charger. (Fig.
5) Find the charger socket end
that has a three-prong socket and
plug it into the scooter.
4. Next, plug the AC plug into a wall
outlet.
When first plugged in, the charger has two
red lights that will illuminate at the same
time, indicating that the charging process
has started. Once the light on the charger
turns green, you may remove the charger
and close the safety cap.

Page9
Stopping/Braking
To brake, release the THROTTLE GRIP and depress the BRAKE LEVER on
the left side of the handlebar. Depressing the brake will disengage power to
the motor. When the unit feels like it is loosing power or not accelerating to
full speed, the scooter is ready to be re-charged.
BRAKING SYSTEM
The EW-700 uses a hub brake system on the rear wheel of the scooter
activated by a hand brake lever on the left side of the handlebar. Squeezing
the hand brake lever with your left hand activates the rear brake. Make sure
to release the HAND THROTTLE GRIP when engaging the brake.
Practice braking on a smooth, dry surface to get used to the feel of the braking
system. Braking distance is affected by wet conditions and loose and uneven
riding surfaces.

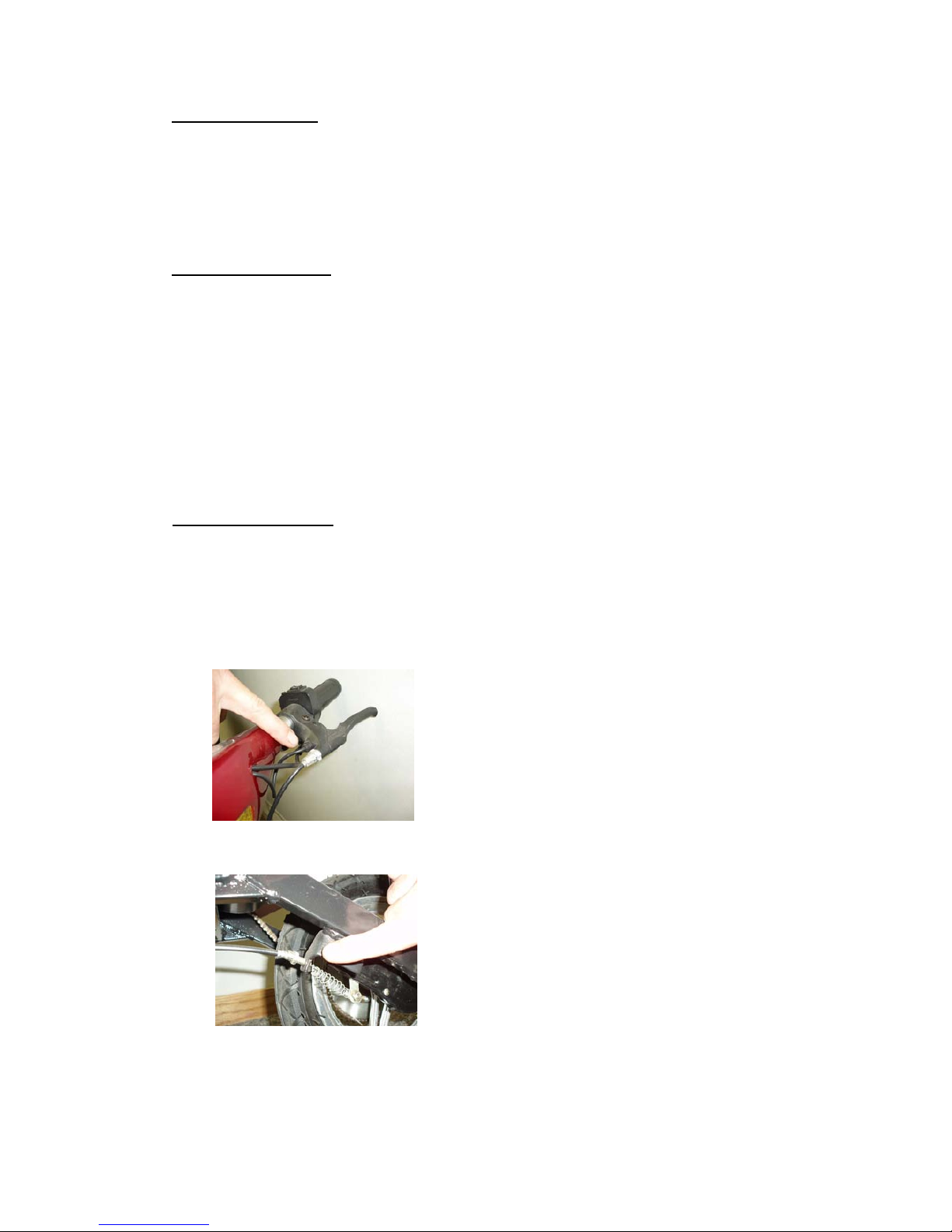

Adjusting the Brakes
The Brakes on the EW-700 should come fully adjusted from the factory.
However, it may be necessary to adjust the brakes from time to time.
Fig. 6
Fig. 7
To adjust the rear brakes::
For brakes that are adjusted too tight:
1. Loosen the tension screw on the
left hand brake lever by rotating it
counter-
clockwise until the wheel
spins freely. (Fig. 6)
For brakes that are adjusted too loose:
1.
Tighten the tension screw on the
left hand brake lever by rotating it
clock
wise until the wheel has a
slight drag. (Fig. 6)
For further adjustment, Locate the
adjustment screw on the rear brake hub
located on the rear wheel.
For brakes that are adjusted too tight:
1. Loosen the tension screw on the
rear brake hub by rotating it
clockwise until the wheel spins
freely. (Fig. 7)
For brakes that are adjusted too loose:
1.
Tighten the tension screw on the
rear brake hub by rotating it
counter-
clockwise until the wheel
has a slight drag. (Fig. 7)

Page10
Squeaky Brakes
The brakes may squeak before they are broken in. This is normal and will not
affect the function or performance of the brakes. With continued use the
squeak should go away.
TIRES
The EW-700 uses an identical tire on the front and rear wheels, which means
that the tires can be rotated. Tire wear will differ based on rider weight, riding
conditions and care. Replacement tires can be obtained at your local
ELECTRIC WHEELS dealer, through motorcycle shops, or from the
ELECTRICWHEELSTORE.COM
Tire Pressure
The tires must be inflated to a maximum of 36 P.S.I. It is also recommended to
use a tube additive like Slime, available from any motorcycle shop, to avoid
inconvenient punctures.
MAINTENANCE
RECOMMENDED TOOLS
To adjust and service the EW-700 you will need the following tools:
Allen Wrenches: 3/4/5/6 mm
Wrenches: 10/13/13 mm Open end wrench
Large Adjustable Crescent Wrench
Philips Head Screwdrivers
Oil, Grease or Lubricant
ADJUSTING THE CHAIN
The chain will come adjusted from the factory. However, it may be necessary
to adjust the chain from time to time. The chain must be well aligned onto the
sprockets in order to avoid uneven wear. This will result in shortened chain
life.
How tight should the chain be?
If the chain is skipping or jumping on the sprockets, this is too
loose and may be harmful.

Page11
If the chain is making a humming sound when the wheel is
turning, this is too tight and may cause the chain to snap.
The correct tension is achieved by adjusting the chain from its
loose position to when it becomes lightly tense.
Fig. 8
Fig. 9
MAINTENANCE SCHEDULE
Proper care of your EW-700 will insure optimal performance and longer life
span. The following are a few maintenance suggestions that will keep your
EW-700 running in top condition:
Daily Maintenance
Perform each time you ride your EW-700
Clean the exterior of the unit with a soft, damp rag. DO NOT
USE WATER TO CLEAN YOUR EW-700
Check that all nuts and bolts are securely tightened.
Lubricate the chain with any silicone spray, 3&1 oil or any good
clean motor oil.
Check battery charger for any frayed/cut wires.
To tighten the chains:
Slightly loosen the two axle bolts on both
sides of the rear wheel. (Fig.8). Then slowly
adjust the two adjusting screws on each side
of the rear tire (Fig.9) until chain reaches the
proper tension.
Rotate the rear wheel to make sure the chain
is aligned.
Finally, lock and tighten the rear axle bolts
prior to riding.

Page12
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
SOLUTION
Motor Does Not Start Batteries not connected Connect batteries
Power switch is off
Turn on power/key
Batteries are drained Charge batteries
Electrical Fault
Check all fuses
Master power/kill
Turn on master power
Rear wheel does not
Brake too tight Adjust brakes
Motor Trouble
Replace motor
Motor shuts off
Fuse is blown
Replace fuse
Electrical fault
Check all connections
Low Performance
Batteries not fully
Charge batteries
Low tire pressure Inflate tire to 36psi
Popping sound
Adjust chain drive
WARNING
This vehicle DOES NOT conform to federal safety standards and is not intended for
operation on public streets, roads or highways. Serious injuries can result from the
unsafe operation of this vehicle.
TO MINIMIZE RISK, the user of this vehicle must wear appropriate safety gear such as
helmet, gloves and knee and elbow pads.
DO NOT OPERATE THIE VEHCLE IN TRAFFIC, ON WET OR FROZEN SURFACES OR
OILY UNPAVED SURFACES.
Avoid uneven surfaces with potholes, cracks or obstacles.
THIS ELECTRIC SCOOTER IS DESIGNED FOR AGES 10 AND UP. THE
MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OR INJURY
THAT OCCURS WHILE RIDING.

Page13
ADDITIONAL INFORMATION
Scooter Specifications
Model EW-700
Frame Alloy
Batteries 12 volt, 12amp X 3
Motor 36 volt, 350 watt
Drive Chain, rear drive
Net Weight 69lbs
Charging Time 4-6 hours
Distance per Charge 22 miles
Maximum Speed 20mph **
Climbing 6-10”
Capacity 300lbs
Assembled Dimensions 46(L) X 24(W) X 40(H)
Folded Dimensions 46(L) X 24 (W) X 20(H)
Carton Dimensions 46(L) X 14 (W) X 25(H)
**20mph speed is not always obtainable but can be reached when riding on a slope. Maximum speed depends on
terrain, the weight of the rider, tire pressure, battery power and weather conditions.
Warranty
30-day LIMITED manufacturers warranty on all scooters and accessories. This warranty covers factory defects and
defaults only. It does not cover misuse or damage caused by the user or by any other event. Please contact the
manufacturer for a complete warranty listing. The manufacturer will cover shipping costs on the first warranted part
only. Shipping on any additional warranted parts that are needed after the first free shipment, will be the responsibility of
the customer. The manufacturer offers a full 6-month even trade warranty on defective batteries. If any battery should
become faulty within 6 months from the purchase date, the manufacturer will replace the battery free of charge. The
manufacturer may require that old batteries be returned to for exchange. If you have questions about our warranty,
please contact your dealer.
ELECTRIC WHEELS is not responsible for the proper or improper use of merchandise sold. We care about our
customers and urge you to exercise caution and take necessary safety measures to protect yourself while engaging in
cycling. ELECTRIC WHEELS Scooters encourages, begs, and asks that you wear a helmet and use appropriate
lighting while riding at night regardless of the legal requirements in your particular state. Potential customers, you
should check with your local law enforcement agency before purchasing about age requirements for riding electric
scooters. Some states may have laws restricting the use of scooters on public streets. Generally all states allow
them on private property such as campgrounds, parks etc....but many states have age requirements and most states
require helmets and protective equipment to be worn by certain age children. Please always scoot safely and know
your laws before you go riding. The manufacturer will not take back a scooter if you find your laws do not permit the
ridings of this scooter so please, check first.

Page14
For General Information or Parts Visit
ELECTRICWHEELSTORE.COM
