SAY YEAH 2000W Knock Out User manual

SAY YEAH 2000W Knock Out Electric Scooter
Not for under 16 year old
Read this manual completely before riding your electric trike

Contents
1. Introduction
2. Main Technical Parameters
3. Scooter Structure
4. Fast Installation
5. Safety
6. Maintenance
7. Operation Tips
8. Warm Remind

1. Introduction
Dear users, in order to ensure good performance of this scooter and for your
safety and others safety, please read this manual carefully before using.
This scooter is for people above 13 years old, people under this age is not
allowed to use in case of safety.
Do wear helmet and other protective clothing to protect yourself.
Routine maintenance, scooter operation knowledge are provided in this manual,
please carefully read it over to have a better understanding on how to handle the
scooter, any improper operation may damage to your scooter and risk users’
safety.
Product will continue to be updated and improved on technical and performance.
1). Please carefully check all parts and make sure they are all in good condition
before riding to guarantee your ride safety, please contact your dealer
immediately if you see any problem.
2). Please observe urban traffic laws, not allowed to bring people; should slow
down and increase braking distance when you brake to ensure safety on lots of
rain and snow and slippery roads .
3).The scooter is water resistant and ok for rain and snow, but cannot be
immersed into water, when water flooded electric parts, the vehicle will cause a
short circuit and damage the internal electronics. Please take attention on this.
4). The battery was used as a safe source of energy, but the battery compartment
of the two metal contacts cannot be touched with wet hands and can not be in
contact with the metal, otherwise it will have a greater short-circuit current and
cause accidents. Please note.
5). Do not disassemble parts for replacement, please purchase standard parts from
distributor.
6). For the safety of others and prevent your scooter from unnecessary damage,
please do not lend your scooter to other people not know how to operation.
7). Do not use high-pressure water or strong water current to wash.

2. Main Technical Parameters
Motor: 60 Volt 2000Watt
Battery: 18A 60V lithium battery(2pcs)
Top Speed: 40KM/H (weight dependent)
Speed: 2 choices
Super Bike Size:190*38*116cm
Seat Height: 71cm
Recommended Age: 16+
Max Rider Weight: 200kgs
Frame: Steel
Tires size both: 225/55-8
Brakes: hydraulic brake
Throttle: Variable twist-grip
Seat: Padded seat (two rider)
Handlebars: Angle Adjustable Not Height
Battery Meter: Yes
Key: Yes
Charging Time: 6-10H
Charger Included: Yes
Box Size: 203.5x43.5x99cm
Box Weight: 91kg

3.Scooter Structure
1. Front Light 9.Rear Wheel
2. Power Display 10.Rear Light
3. Handlebar 11.Backrest
4. Front Shock Absorber 12.Foot support
5. Rear Shock Absorber 13.Padded Seat
6. Front Fender
7. Rear Fender
8. Front Wheel

4. Fast Installation
(1)Check handlebar screws, and make them tightly.
(2)Install Foot support.Across the bolt and screw it.

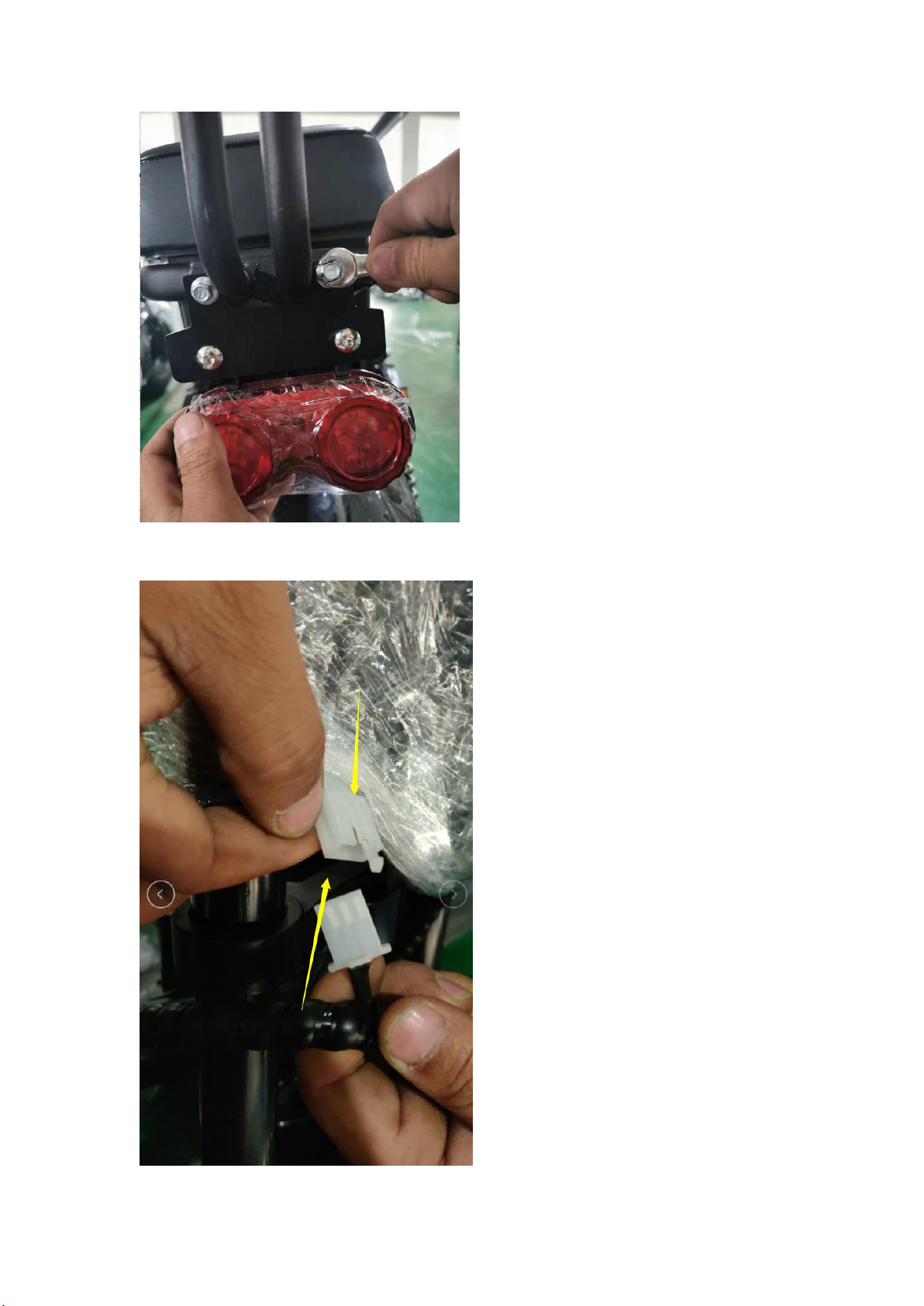

(3)Inset backrest and rear light.First inset backrest,then
put real light, last tight screws.

(4)Pls connect the front light part.

Note:Pls check the battery, there are two lithium
battery on this scooter. And charger and using socket
are different for each battery.You can choose the
battery by yourself. As follow:
(1) If you want to use battery①,you need connect with
port①.
(2) If you want to use battery②,you need connect with
port②.
5.Safety
1). Attention on Electric Scooter
a). Put it in a safe place where children cannot reach when charging

b).Do not drive it if power not full as it is of no enough energy to
support loading and easy to fall and get hurt, and also harm to battery life
c). It is dangerous to use non-original charger or battery maybe
damaged and do not use our charger to charge other types of
batteries.
d). Do not disassemble the charger because the charger contains
high-voltage circuit
e). Prevent liquid and metal particles penetrate inside the charger when
using and store, beware of falling and impact to avoid damage
f). Please use the charger in dry, ventilated environments and do not
affix anything on the charger while charging
g). Please stop charging immediately and sent charger and battery to
the dealership for repair if there is smell odor or the temperature is too
high in the process of charging
2).Safety Checks Before Riding
a). check the battery's voltage and be sure it is in normal condition
b). check the front wheel and rear wheel, the handle bar, the fold bar
to make use all parts are tightened and all bolts are in tight condition
c). check the reliability of the brake system
3). Safety Parking

a). Please turn the power off when you get off the scooter to walk
by to prevent unintentional touch on the dynamic acceleration in
case the scooter suddenly goes forwarder and lead accident
happened
b). Please turn off the power when you stop riding and please make
regular maintenance and cleaning to keep your scooter in top
condition
c). Please store your scooter away from the raining
6.Maintenance
1. A periodic self-test project
a).Front and rear wheel's nuts in the correct position and tightly
b).The tire tread whether badly worn, whether cracking. Various parts of
the connection whether ok, brake lines zipper whether be used in
lubrication condition .
c).Electrical system is in good condition
d).Suspension fork's screws in the correct position
2. Cleaning Instructions
a) Prohibit rinse by water to avoid accidents because of internal
electronic components and circuit caused by wetting
b) Use a mild detergent; wipe the surface with a rag at the dirt, then wipe

with cadres.
c) Prohibit to the oiling the rear brake and tire
3. Maintenance and Adjustment
a) Always check the handlebar if get loose.
b) Always check the performance of the brakes whether good and timely
adjustments.
7. Operation Tips
1). Knowledge of Battery
a) It is Lead-acid battery, there is no depth of discharge problems
b) The reason insufficient to charge: not timely charge after use,
charging hard in cold condition, there is no delay charging, bad
electrical connections
c) If do not use the scooter for long time, the lead-acid battery
should be fully charged to storage, full charge and discharge
once every two weeks.
d) Excessive charging cause: did not follow the charging

instruction causes the battery excessive water loss and dry
e) The driving distance will be reduced 0.4kms when
temperatures drop every 1 ℃(at 25 ℃basis) in winter, so
please pay attention to adjust the drive distance and the
charging time.
2).Tips to Have a Longer Driving Distance
For the reasons of scooter with short mileage are summarized as
follows:
a) Operation reason, the tightness of the scooter's brake system
leads to inappropriate short mileage.
b) Too heavy load or over load with cargo, please note max
loading is 200kgs, over loading even cause burning of motor
c) Drive on different road conditions, frequent braking and speed
up fast
d) Cold weather cause the battery capacity decreased, resulting in
shorter mileage.
e) Excessive speed of the scooter caused current increase, so
lower mechanical efficiency resulting in mileage shortened.
In view of the above reasons, we advice
a few of the following suggestions:
a) In accordance with standard debugging brake system, enables

the brake system to work with best state. Normal load shall not
exceed 200Kg
b) Under the premise of ensuring safety, should minimize the
frequent braking, starting, instant acceleration what caused by
electricity waste on the driving way. Save energy to achieve the
purpose of improving mileage.
c) When the speed of the scooter in the 35-40Km / h, the mileage
can reach 30-35kms in the winter, the mileage can reach 40kms
in the summer.
8. Warm Remind
1) Have a good habit of daily timely charge, battery should be
charged to precede the minimum allowable voltage to make
it more durable. So have a daily habit of timely charge is
very important. Have your scooter recharged when the
battery is in lower power and before storage.
2) Almost all types of batteries will be affected by the
environment. In general, the better performance of the
battery discharge is in a higher temperature, battery power
may drop by a third when the temperature drops to 0 ℃.
So It is normal that the mileage reduces per charge when
winter comes or in cold areas. When the temperature roses to

above 20 ℃, it recovers to its normal capacity naturally.
3) Do not insert metal objects (such as wires, keys, etc.) into or
come into the battery 's contactor on the positive and
negative outputs when you remove the battery to avoid
causing a short circuit sparks
4) The scooter is rain and snow resistant, but cannot be immersed
into water. If water goes to battery and other electric parts, it
will cause a short circuit and damage the internal electronics.
Please be attention.
5) Do not disassemble parts for replacement. You may lose your
warranty and bear the loss if you disassemble parts for
replacement with none unauthorized parts. Especially on
electric parts, if not match together, it is very dangerous and
risk your safety.
Please contact your local dealer or authorized service center if
there is any problem
6) Prohibit using the chargers and other accessories not from our
company.
Our Company will not be responsible for such accident
occurred
7) Minors, the old and pregnant women is not allowed to drive
this scooter

8) Disassemble or modified the scooter with none unauthorized
people will lead your scooter unsafe hazards, danger
9) Check and make sure the brakes, handlebar locking, fold bar,
wheels reliability and in good condition before riding to
avoid accidents.
10) Do not hang things on the handlebars when driving in case
loose gravity and cause accident.
11) Prohibit to put battery near the fire, avoid closing to
flammable and corrosive gases
12) Do not disassemble the battery box to avoid damage to the
internal parts. Do not damage the label on the battery box
or make you lose your warranty.
13) The scooter single person riding, over loading may cause
burning of motor and also risk safety
14) Do not insert metal objects (such as wires, keys, etc.) into or
come into the battery 's contactor on the positive and
negative outputs to avoid causing the damage of the battery
and danger
DO NOT RETURN TO STORE

For service, Create Online, Trouble Ticket
http://www.hpusscooters.com/support/
