EcoMotion TOUR eROAD XS User manual
!
!
EcoMotion Bikes
2
Table of Contents
Warnings
3
Definitions & Parts locations
6
Assembly instructions
Handlebar & Display
6
Headlight & Front fender
8
Front wheel
8
Saddle
10
Pedals
11
Brake - sets adjustment
11
Handlebar height adjustment
12
Mounting & dismounting of battery
13
Inspection prior riding
14
Operating of the electric system
15
The battery & charger
16
Charging of battery
17
Preserving of battery’s lifespan
18
Tips for proper use
20
Bike maintenance
20
More info & contact us
21
Malfunctions & solutions
22
Warnings!
EcoMotion Bikes
3

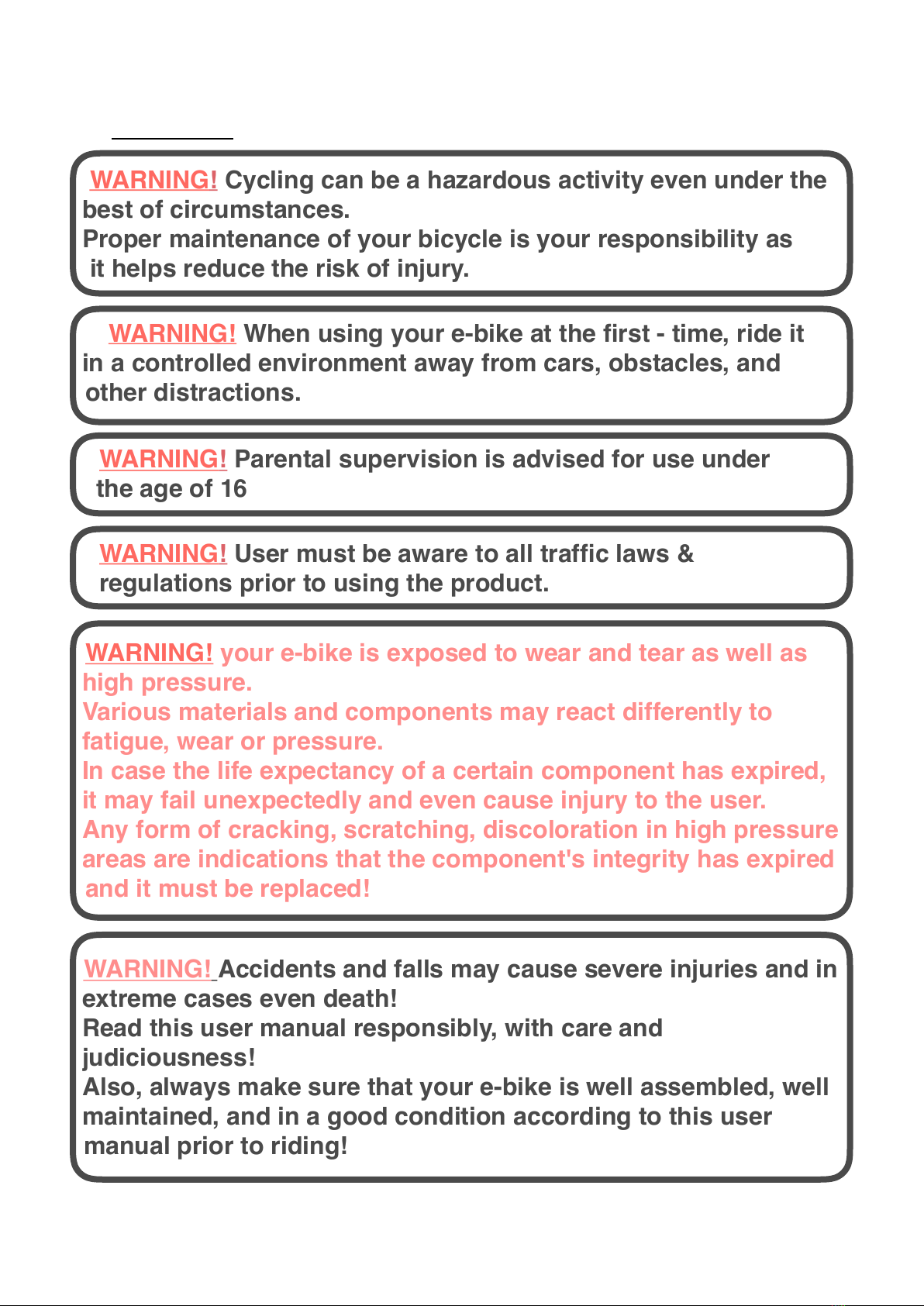

WARNING! When using your e-bike at the first - time, ride it
in a controlled environment away from cars, obstacles, and
other distractions.
WARNING! Cycling can be a hazardous activity even under the
best of circumstances. !
Proper maintenance of your bicycle is your responsibility as !
it helps reduce the risk of injury.
WARNING! Parental supervision is advised for use under
the age of 16
WARNING! User must be aware to all traffic laws &
regulations prior to using the product.
WARNING! your e-bike is exposed to wear and tear as well as
high pressure. !
Various materials and components may react differently to
fatigue, wear or pressure.!
In case the life expectancy of a certain component has expired,
it may fail unexpectedly and even cause injury to the user. !
Any form of cracking, scratching, discoloration in high pressure
areas are indications that the component's integrity has expired
and it must be replaced!
WARNING! Accidents and falls may cause severe injuries and in
extreme cases even death!!
Read this user manual responsibly, with care and
judiciousness!!
Also, always make sure that your e-bike is well assembled, well
maintained, and in a good condition according to this user
manual prior to riding!
EcoMotion Bikes
4
WARNING! Make sure that your e-bike's brakes are well tuned
and perfectly work before each ride.!
Check the brakes' pads before each ride.!
Brakes' tuning and maintaining must be performed in a bike
store, by qualified mechanic.
WARNING!This model is equipped with motor shut-off system
which controlled by the brakes.!
Make sure that the system is well operating before each ride.!
In case the system failed, do not use the e-bike and have it fixed
at a certified bike store.!
WARNING! Cycling can be a hazardous activity even under !
the best of circumstances.!
Always use protective gear such as a helmet and other !
shields as well as closed shoes, even for a short ride!
WARNING! Avoid Storing the battery in extreme hot / cold
temperature.!
Extremely low temperature may cause corrosion and !
extremely high temperature may cause battery swell, !
which will make the battery dangerous, and even can cause
battery explosion!!
The recommended storage temperature for the battery is
between 50°-80°F.
WARNING! Do not leave the battery unattended in a closed
vehicle!!
The vehicle may warm up by the sun and reach extremely high
temperature!
WARNING!Braking distance is influenced by the road / trail
condition as well as weather condition, speed of riding & weight
of rider.
!
!
!
EcoMotion Bikes
5

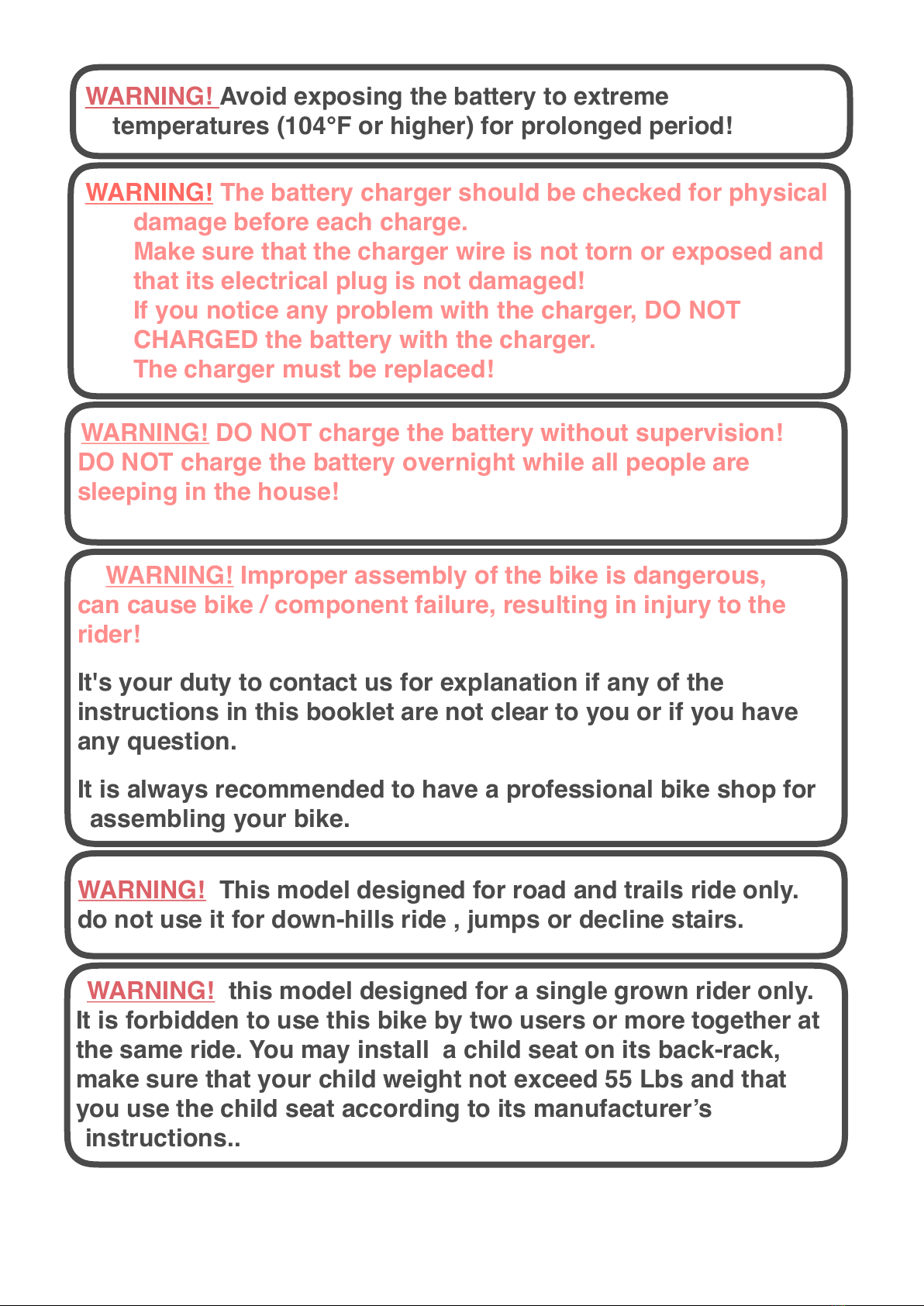

WARNING! Avoid exposing the battery to extreme !
temperatures (104°F or higher) for prolonged period!
WARNING! The battery charger should be checked for physical
damage before each charge.!
Make sure that the charger wire is not torn or exposed and
that its electrical plug is not damaged!!
If you notice any problem with the charger, DO NOT
CHARGED the battery with the charger.!
The charger must be replaced!!
WARNING! DO NOT charge the battery without supervision!!
DO NOT charge the battery overnight while all people are !
sleeping in the house!!
WARNING! Improper assembly of the bike is dangerous,
can cause bike / component failure, resulting in injury to the
rider!
It's your duty to contact us for explanation if any of the
instructions in this booklet are not clear to you or if you have
any question.
It is always recommended to have a professional bike shop for
assembling your bike.
WARNING! This model designed for road and trails ride only.
do not use it for down-hills ride , jumps or decline stairs.
WARNING! this model designed for a single grown rider only.
It is forbidden to use this bike by two users or more together at
the same ride. You may install a child seat on its back-rack,
make sure that your child weight not exceed 55 Lbs and that
you use the child seat according to its manufacturer’s
instructions..
!
Definitions:
PAS - Pedal Assist Support - a sensor that is located on the
bottom bracket, recognizes the pedals movement and
operates the motor accordingly to the PAS level which set on
the display .
TAG - Twist And Go - a throttle that located on the handlebar
activate the motor while it twisted.
Parts location:
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Assembly instructions:
1. Handlebar & Display:
•Take-off the stem’s base cover by opening its 4 screws.!
!
!
!
!
!
!
EcoMotion Bikes
6
WARNING! Do not use the bike carrying over 240 lbs. in total
weight (rider & belongings).

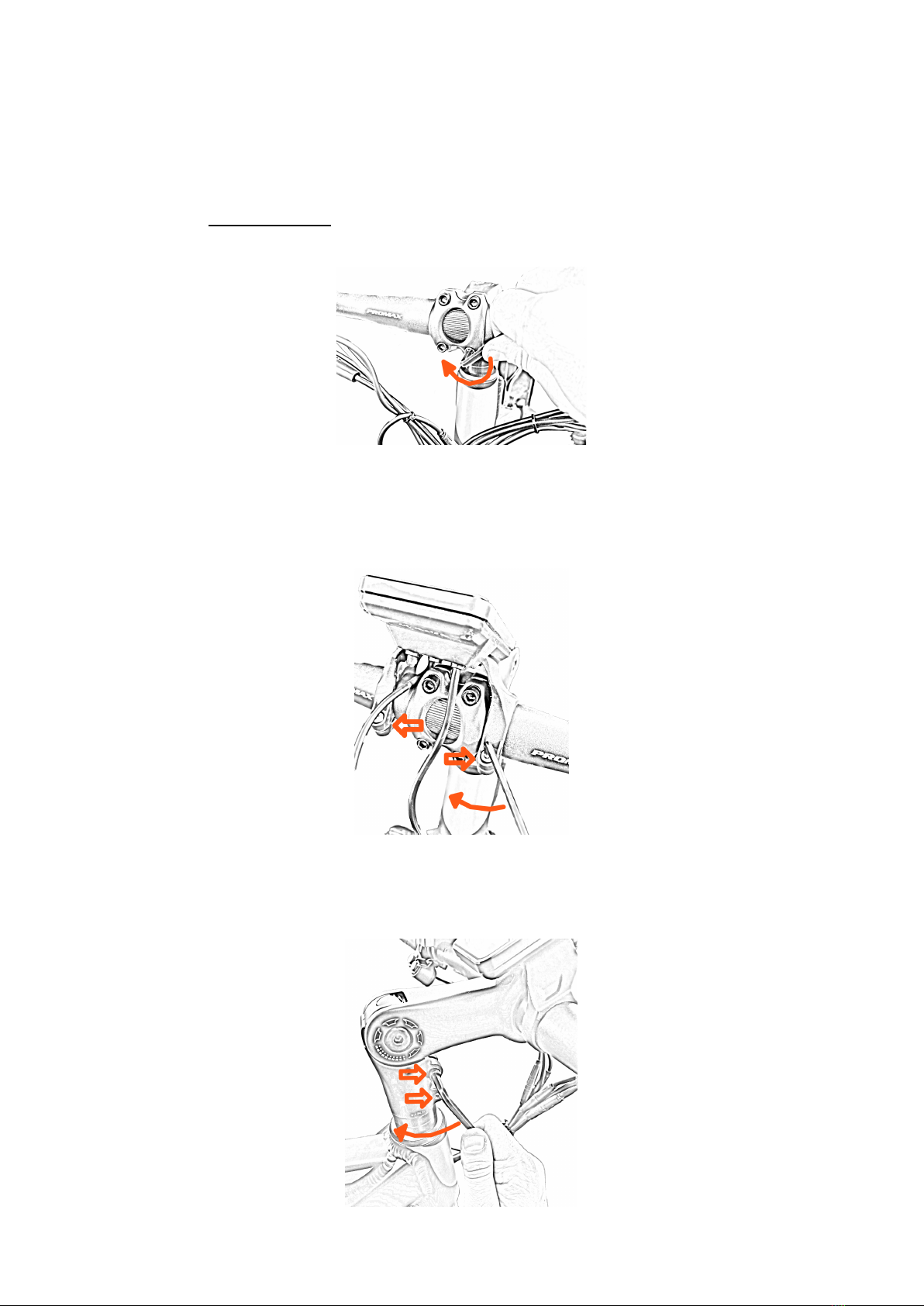

•Insert the handlebar into the stem's base, so the handlebar
is centered onto the base, and screw - back the 4
screws back into their place.!
Important- tighten the screws in the force so the
handlebar will not move sideways or spins under
pressure
•assembled the display in the center of the handlebar by
tightening both of its screws
•Adjust the handlebar so it will be aligned with the bike’s
fork, then tighten both of the stem's sides screws to
lock it into its place.
!
!
EcoMotion Bikes
7
2. Headlight & Front fender:
•Assemble the headlight and the top hook of the fender to
the forks bow.
!
!
•Assemble the fender’s support pipes into the bottom of the
fork (from both sides).!
3. Front wheel:
•Unscrew the fork support rod from the bottom of the fork,
and pull out the plastic spacer from the brake caliper.
!
!
EcoMotion Bikes
8

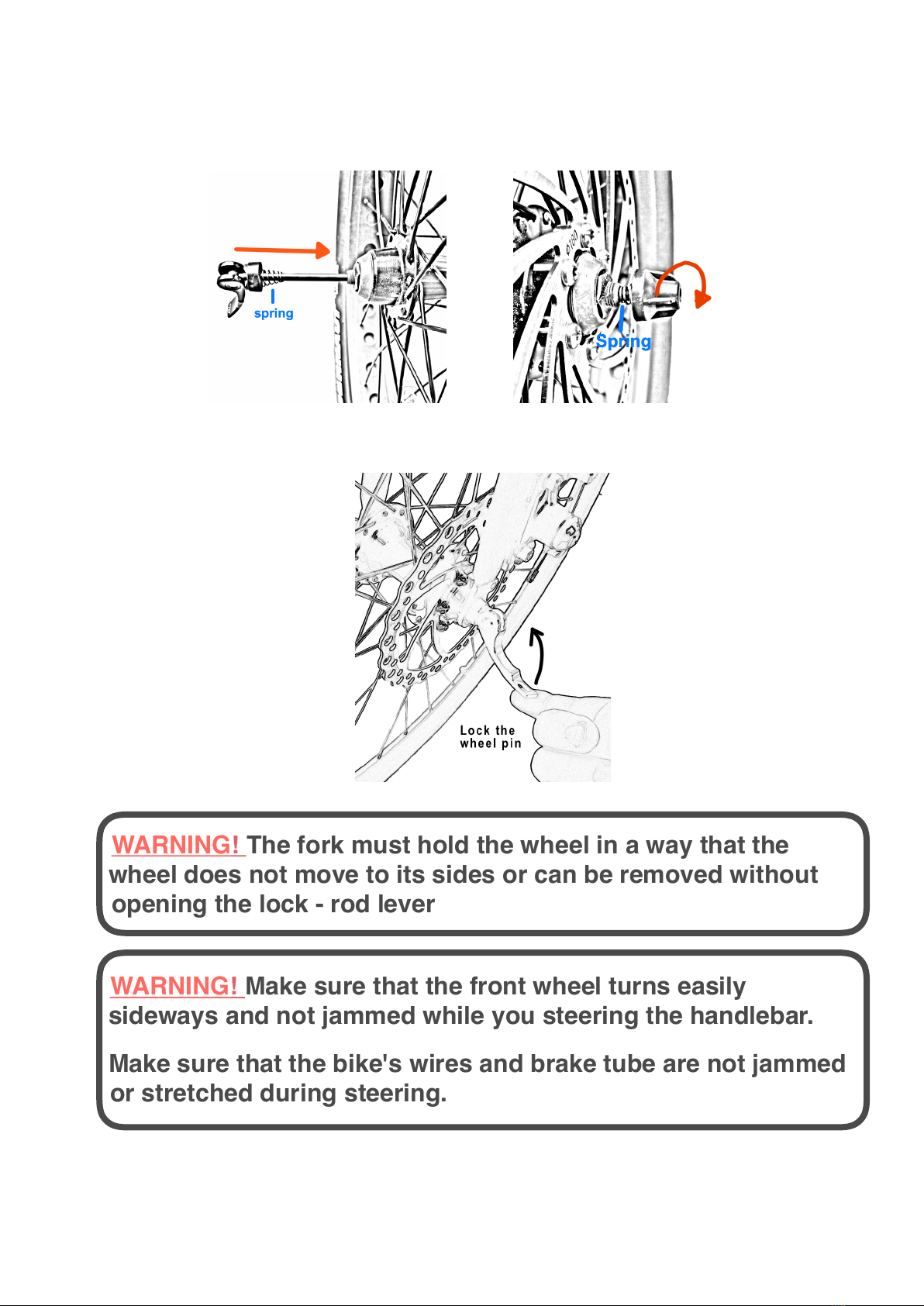

•Slide in the lock rod of the wheel into its place in the hub,
and close it with its screw nut from the other side.!
!
!
!
•Insert and lock the wheel into its place in the fork by closing
the lock rod lever.!
!
!
!
!
!
!
!
EcoMotion Bikes
9
WARNING! Make sure that the front wheel turns easily
sideways and not jammed while you steering the handlebar.
Make sure that the bike's wires and brake tube are not jammed
or stretched during steering.
WARNING! The fork must hold the wheel in a way that the
wheel does not move to its sides or can be removed without
opening the lock - rod lever
4. Saddle:
•Open the saddle's hoop that located on the bike's frame,
slide-in the saddle into its place in the frame, and lock-
back the hoop.!
Make sure that the saddle can not turn to the sides or
move up & down after you locking it into the frame.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
EcoMotion Bikes
10
WARNING! In order to avoid damage to frame that can lead for
frame sudden breaking, always make sure that the safety line
that marked on the saddle's tube is hidden from the eye while
locking the saddle into its place.
NOTICE! For safe and comfortable riding, there should be
clearance of no less than 1-2 inches between the rider and the
top tube of the bicycle frame, while the rider straddles the
bicycle with both feet on the ground.
5. Pedals:
•Assemble both pedals to the bike by screwing them to the
Crank & pedals leg.!
!
!
!
!
!
!
!
!
!
Brake-sets adjustment
Make sure that the brake pads are not rubbing or locking the
front / rear disc, while you're not pressing the brake-levers.
•In case in which the disc rubs / locked into the brake pads.
Release a bit both of the caliper screws (the screws that
connect the caliper to the fork), tightly press on the
brake - lever and re-screw back the screws into their
place while continuously pressing on the lever. !
!
!
!
!
!
!
!
!
!
EcoMotion Bikes
11

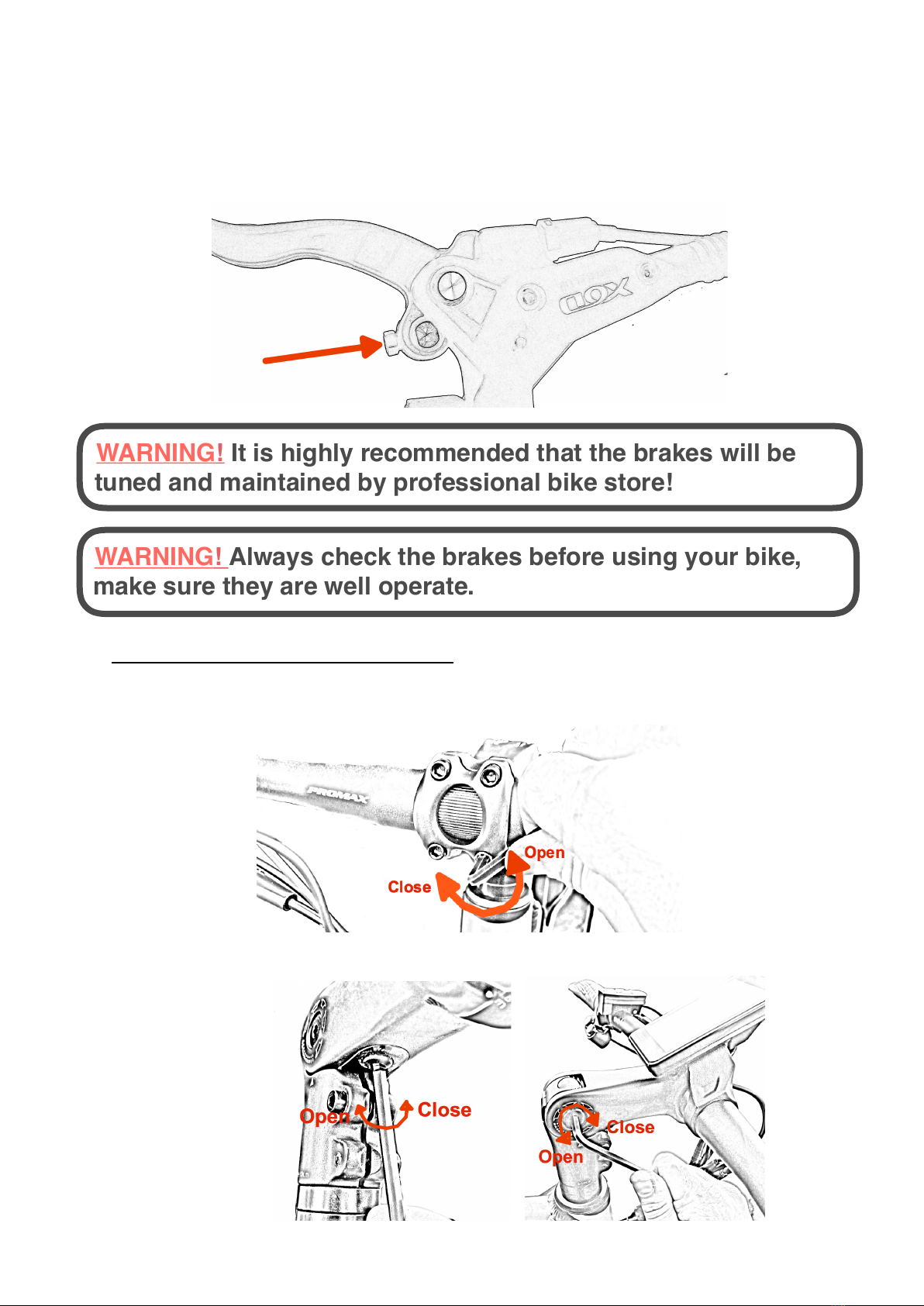

•you can tune the braking power by tightening / releasing of
the small Helen screw which located between the brake
lever and the handlebar.
Handlebar height adjustment
•Release a bit the stem’s base cover by opening its 4 screws.
•Release a bit the stem's bottom screw and one of its sides
screws.
!
EcoMotion Bikes
12
WARNING! Always check the brakes before using your bike,
make sure they are well operate.
WARNING!It is highly recommended that the brakes will be
tuned and maintained by professional bike store!
•Adjust the height of the handlebar to the desired position and
change the angle of it to the needed one according to
the new position.Screw back all the screws and re - lock
the handlebar.

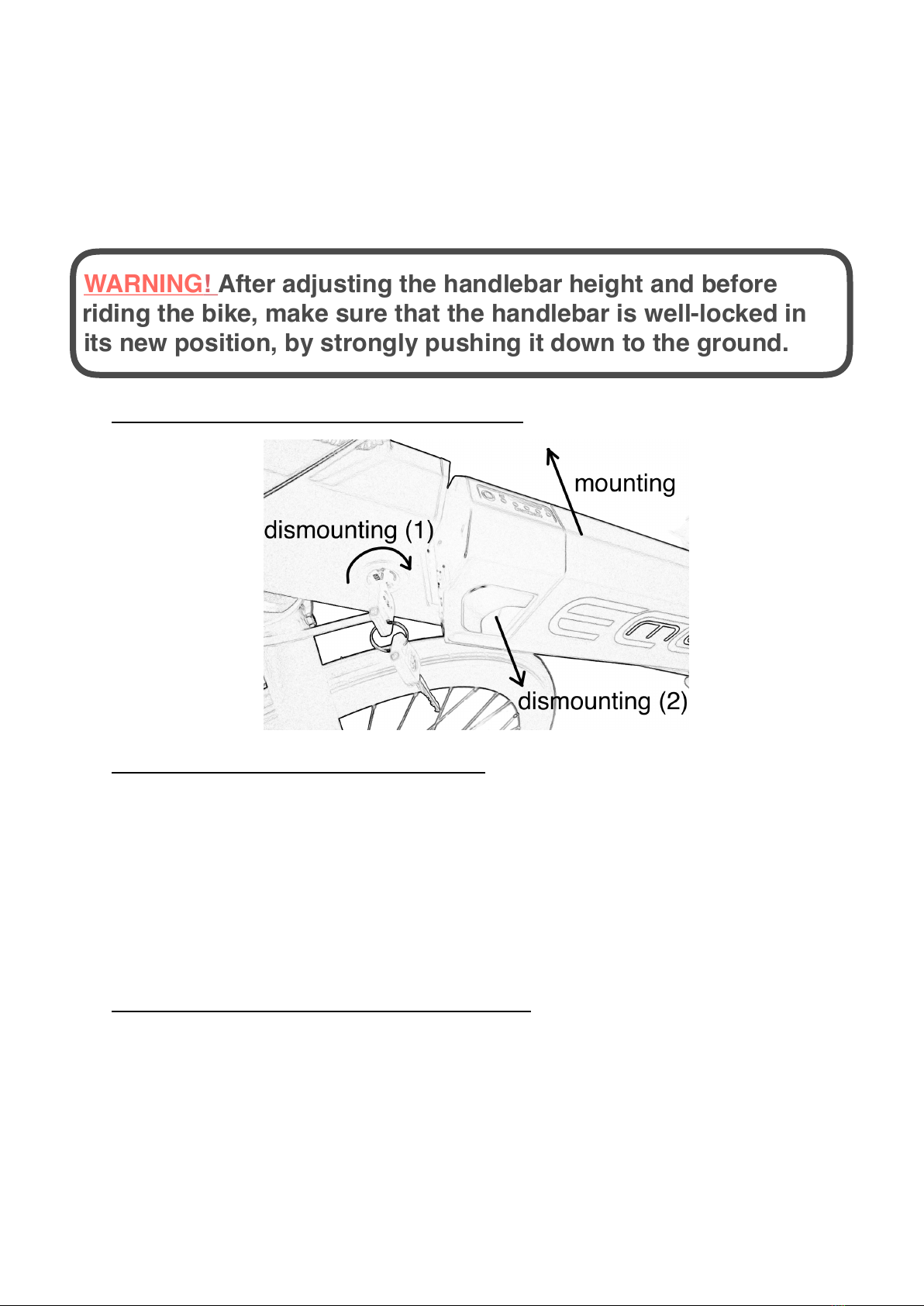

Mounting & dismounting of battery
Mounting the battery into the bike:
•Place the battery in its bottom base in the bike, while it is
aligned with the the bike frame, and its top part is in
angle of 20 degrees out from the frame.
•Push in the battery into its place in the frame and lock it
with its key.
Dismounting the battery from the bike:
•Turn the battery key clockwise and pull the battery out from
its lever.
EcoMotion Bikes
13
WARNING! After adjusting the handlebar height and before
riding the bike, make sure that the handlebar is well-locked in
its new position, by strongly pushing it down to the ground.
Inspections prior riding:
•Check that the wheels are well connected to the frame / fork,
and that they are rotated freely.
•Check that the handlebar aligned with the front wheel, and all
the screws are tight.
•Check that there are no loose or missing spokes in the
wheels.
•Check that all the bearings of the bike are rotating freely and
not damaged
•Check that the brakes are properly functioning, and that their
pads are not overly worn.
•Check that tires' air-pressure is same as the one that written
on them
•Check that the tires are not overly worn, Worn tires will have
no proper road grip
•Check that the wheel rims are not broken or cracked.
•Check that the lights & horn systems are well functioning.
•Check that all components of the bike are well set in their
place.
•Check that there are no pressure marks / cracks /
discoloration marks on the bike frame and on the front fork.
•Check that there is no visual damage on the bike’s battery.
•check that the battery is properly mounted, and that it locked
in the bike's frame.
•Check that the TAG / PAS systems are properly functioning.
EcoMotion Bikes
14
Operating of the electric system:!
!
!
!
!
!
•Turn on the bike by short press on the Power button.!
The bike is ready for use
•You can switch PAS speed levels by pressing on the PAS
Control buttons (+/-). !
PAS level "0" - without support , PAS level "5"- strongest
support.
•You can use the TAG system any time the display is on.
•By pressing on the SET button you can view the following
info: trip duration , trip 1 mileage , trip 2 mileage & total
mileage of the bike .
•At any given time, the display will show the following info:
battery voltage, battery capacity, current ride speed & current
power usage.
•The front light, rear-light & the horn, controlled from the Horn
& Lights buttons which located at the left side of the
handlebar .
•Turn off the bike by long press on the Power button.!
EcoMotion Bikes
15

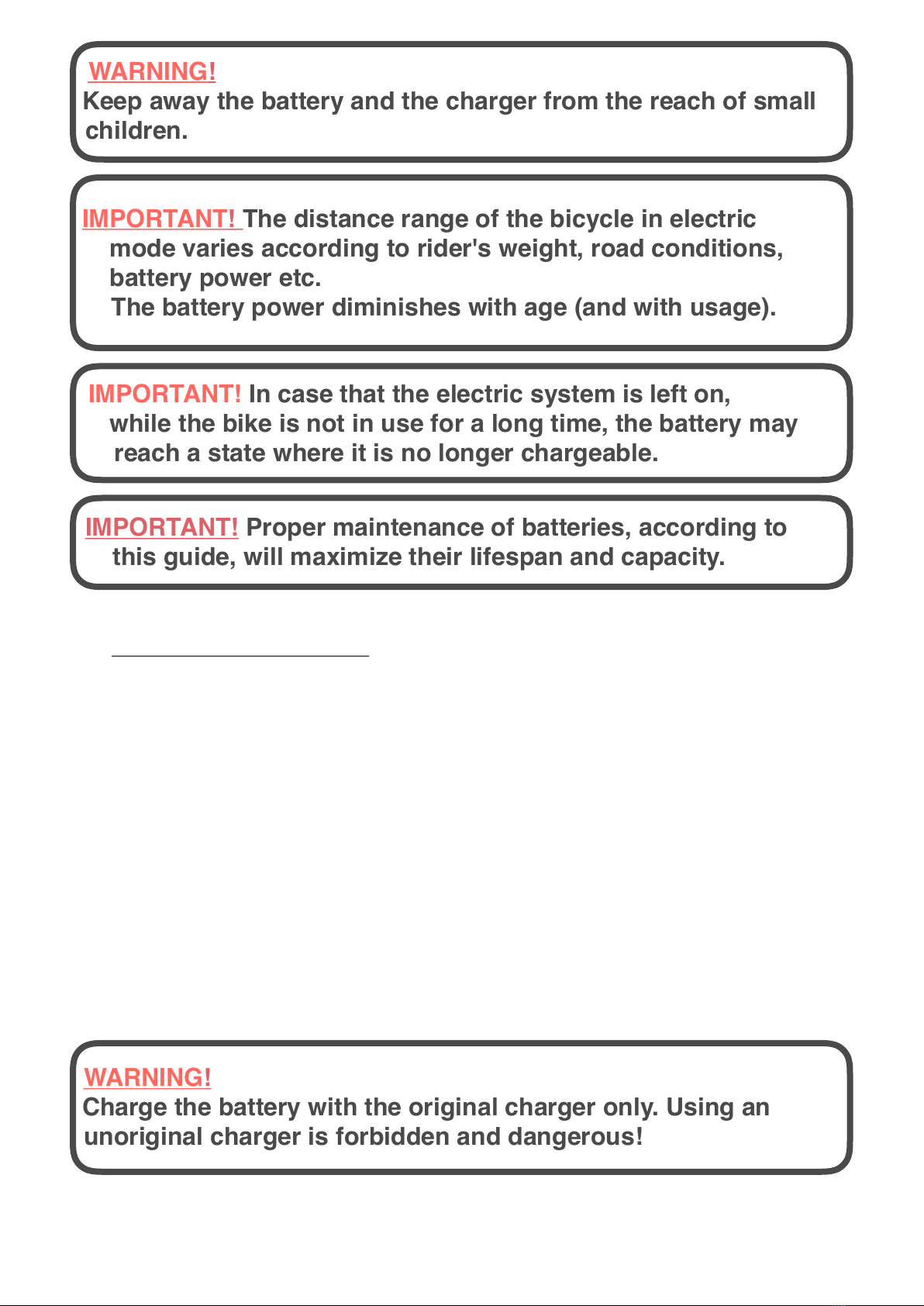

The battery & charger
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
EcoMotion Bikes
16
Type
Li-ion
Cells
SAMSUNG SDI
Voltage
48V
Amperage
10.4Ah
WARNING!
•Do not perforated or dropped the battery;
•Do not placed the battery near to fire or another heat
dispersing element;
•Do not soaked the battery in water;
•Do not placed / use the battery at the vicinity of strong
electromagnetic or electrostatic fields;
•Do not crushed or disassembled the battery.
WARNING! !
Use the battery for its intended purpose. Do not use it for other
purposes, such use might be dangerous! Do not crushed or
disassembled the battery.
!
!
Charging of battery
•Plug the charger to the outlet first and then plug it to the
battery.
•While charging the battery when it’s connected to the bike,
make sure the bike's display is off.
•The charger red indicator light shows that the battery is in
charging process. When the red light turns into green, the
battery is fully charged.
•In order to disconnect the charger from the battery, unplug
the charger from the outlet first, and then unplug it from the
battery itself.
EcoMotion Bikes
17
IMPORTANT! In case that the electric system is left on, !
while the bike is not in use for a long time, the battery may !
reach a state where it is no longer chargeable.
IMPORTANT! The distance range of the bicycle in electric !
mode varies according to rider's weight, road conditions, !
battery power etc.!
The battery power diminishes with age (and with usage).
IMPORTANT! Proper maintenance of batteries, according to !
this guide, will maximize their lifespan and capacity.
WARNING! !
Keep away the battery and the charger from the reach of small
children.
WARNING! !
Charge the battery with the original charger only. Using an
unoriginal charger is forbidden and dangerous!
!
!
Preserving of battery's lifespan:
•make sure you charge the battery in full at least once in
every 20 charging cycles
•Do not leave the battery uncharged for more than 24 hours.
Battery that was left uncharged for a long time, may reach a
state in which it won’t be chargeable
•In case in which the battery won't be in use for a significant
time, there is need to disassemble it from the bike and store
it in a cool & dry location. Make sure that the storage period
won’t exceed 45 days without recharging the battery again.
EcoMotion Bikes
18

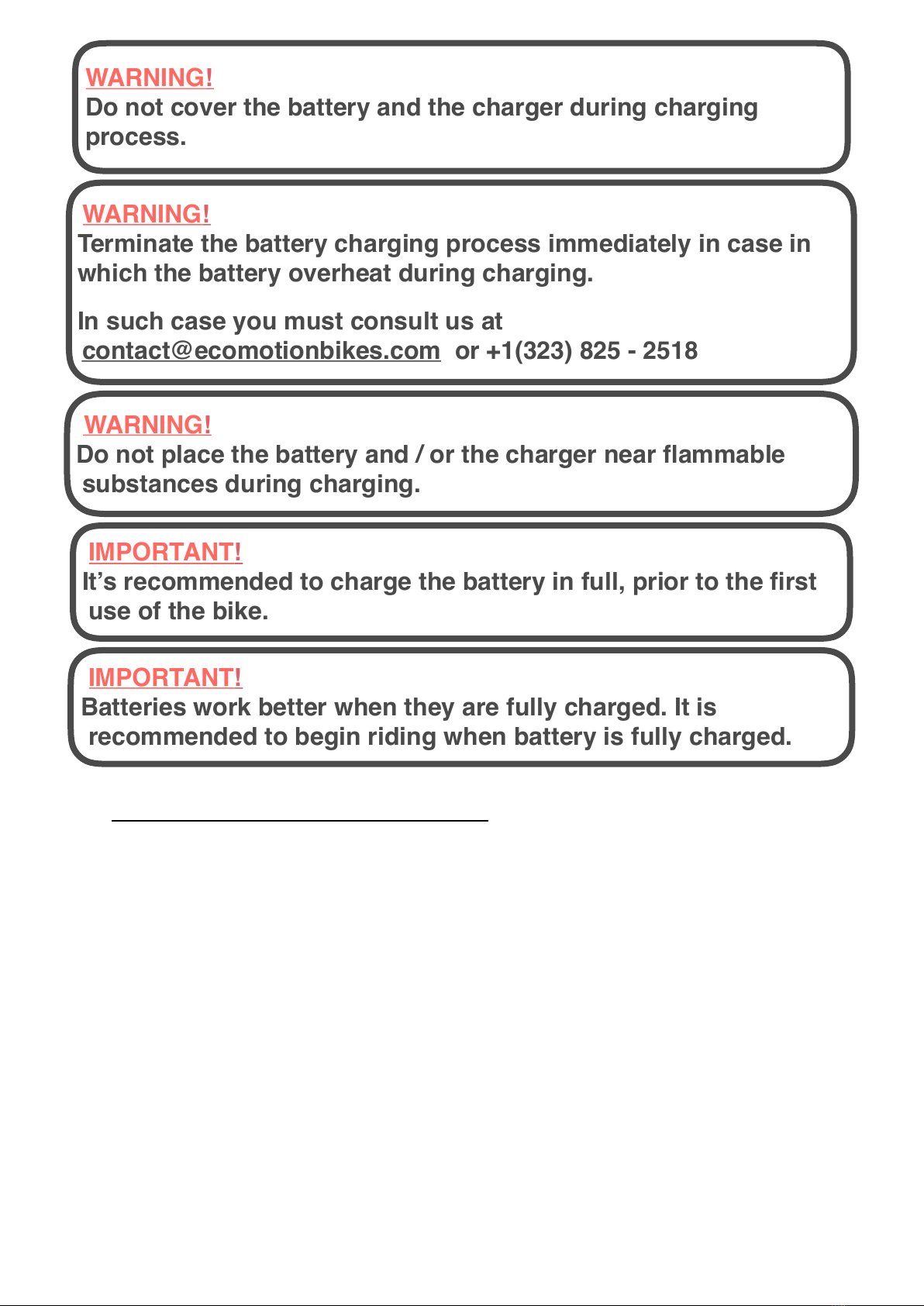

WARNING! !
Do not cover the battery and the charger during charging
process.
IMPORTANT! !
It’s recommended to charge the battery in full, prior to the first
use of the bike.
WARNING! !
Terminate the battery charging process immediately in case in
which the battery overheat during charging.
In such case you must consult us at
contact@ecomotionbikes.com or +1(323) 825 - 2518
WARNING!!
Do not place the battery and / or the charger near flammable
substances during charging.
IMPORTANT! !
Batteries work better when they are fully charged. It is
recommended to begin riding when battery is fully charged.
•Average battery lifespan depends on its use and on its
conditions. Even with proper care, rechargeable batteries do
not last forever. This battery model will last between
700-1000 charging cycles. !
A partial charge/discharge counts fractionally against those
numbers. Running the battery down halfway and then
recharging it completely, uses up to one half of a charge
cycle.
!
EcoMotion Bikes
19
IMPORTANT! The battery cells are discharged autonomously,!
once the battery is left unused for a prolonged period.!
In cases battery cells are left low charged for a long period
of time, their charge cycles and capacity will diminish, and
the quality of the battery will be damaged.!
The battery should be left fully charged if it is not to be
used for a prolonged period. !
PLEASE! Be friendly to the environment! Batteries contain
toxic materials, be sure to recycle your old batteries at a
local battery-recycling center. !
Do not throw them into the garbage. !
IMPORTANT! !
Turn off the bike’s electric system when you're not riding the
bike.
Tips for proper use:
•Be aware that the right brake lever controls the rear brake,
while the left brake lever controls the front brake.
•Avoid braking using front brake only, as doing so may cause
the rider to be thrown forward from the bike. Always use both
of the brakes when you’re braking.
•Be aware that the brake range of the bicycle may prolong
under certain circumstances (e.g. wet/moist surface, sand,
etc.)
•Do not ride your bike in water ,puddles, rain, streams, etc.,
never immerse the bike in water, as the electrical system may
get damaged.
•Learn all relevant state laws as well all traffic regulations prior
to riding your bike and comply them.
•Always start your ride by pedaling and in low PAS level. In
this way you’ll control better the bike.
•Assist the motor by pedaling in uphill climbs
!
Bike maintenance:
•Do not oiled the battery or the motor.
•Oil the bike chain and the metal parts (which are not
aluminum) on a regular basis. The frequency of oiling your
bike parts should be more frequent in a humid / wet areas.
•Use only original parts. Do not use substitutes parts unless
they permitted by Ecomotion Bike. please consult with us
Using substitutes parts without consulting may void warranty.
EcoMotion Bikes
20
Table of contents
Other EcoMotion Scooter manuals
