Cautions
Electric scooter is a recreational personal transpoer. Before mastering riding
skills, you need to practice. You will be responsible for any injuries or damage
caused by a rider’s inexperience or failure to follow the instructions in this
manual.
Please understand that you can reduce the risk by following all the
instructions or warnings in this manual, but you cannot eliminate all the risks.
Please following the local trac laws or restrictions when riding into public
areas.
Please always wear a helmet properly when riding to protect your head, as well
as other necessa protectors, such as elbow pads, kneecap.
Please slow down the riding speed when riding on crossing, going across the
crowd, making a turn, climbing or downing a hill, passing a school and other
place that high speed may bring damage to people.
Please do not allow kids of age below 12 to use the scooter on public area.
Riders under the age of 18 years old should ride under adult supeision.
Please do not use the scooter in dangerous environments, to avoid scooter
malfunction or may cause damage to body or propey.
Please do not use other chargers to charge E-scooter, Only use e-way supplied

charger.
Please do not charge E-scooter, if the charger or power outlet is wet.
Please do not disassemble the scooter or make other modications without
professional guidance from the producer.
Please do not allow others to ride your e-scooter unless he/she has carefully
read and follow the instructions in this manual.
Respect pedestrians’ Right of Way. T not to stale them while driving,
especially children. When you ride from behind pedestrians, ring your bell to
give them a heads-up and slow your scooter to pass from their left. Do not
pass people on the sidewalk faster than 6 km/h.
Check the scooter before eve use. When you note loose pas, low batte
ales, excessive wear, strange sounds, malfunctions and other abnormal
conditions, stop riding and contact the seice center.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, senso or mental capabilities or lack of
experience and knowledge if they have been given supeision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supeision.

Warning against using non-rechargeable batteries:
This appliance contains batteries that are only replaceable by skilled persons.
Lithium ion batte
Red cable on plug is positive, black cable on plug is negative.
The method of replacing batteries: Dismount the screw on bottom plastic.
cover, and unplug the connectors, then replace with a new batte.
Details regarding safe disposal of used batteries: Follow the batte directive
2006/66/EC
Discard the batte following the batte directive 2006/66/EC
Cautions
1. Device and accessories------------------------------------------------01
2. Features-------------------------------------------------------------05
3. Control panel---------------------------------------------------------05
4. Before riding- Assembly and app---------------------------------------07
5. Batte---------------------------------------------------------------15
6. Cleaning and Maintenance---------------------------------------------16
7. Aftersales------------------------------------------------------------17
8. Adjusting the disc brake-----------------------------------------------17
9. Adjust the handlebar--------------------------------------------------18
10. Error description-----------------------------------------------------19

1. The Device & Accessories
E-Way E-2540 / E-5045
Accessories
--------------------------------------------------------------------------
Screws Hex Wrench Charging Adapter
01

1.2 Functions
Clamp
Control panel
Brake handle
Fender
Brake lights
Brake disc
Stand
Wheel motor
Folding
mechanism
Charging port
Headlight
Speed lever
02

1.3 Specications
User Height
Brake Light
Headlight
Po
Motor
Charging Time
Charger
Max Load
Storage Condition
Running Condition
Batte Capacity
Maximum Slope Angle
Mileage
Top Speed
Size
Model No
120-200cm
LED
1.5W
Charge Po *1
Input: 100-240V; Output: 42V/2A
125kg
-10 °C/ +40 °C
-10 °C/ +40 °C
20-25 km/h
8.5 inch Inner Honeycomb Tyre
500W
Around 25%
25-45km
E-5045
250W
Around 6-7hrs.
37V, 12.2Ah
Around 22%
25-40km
E-2540
03

Packing List(pcs)
Net Weight
Dimension(Folded)
Dimension(Unfold)
Batte Display
Display
Brake
Accelerator
Warning Signal
Cruise Control
Parking Mode
User Manual*1, Charger*1,
Screws *4, Hex Wrench*1
15.1kg
1130*430*480mm
1130*430*1180mm
5 Bars in monitor
LED
EABS+Rear Disc Brake
Throttle Button
Mechanical Bell
App controlled
Kick-stand
04

2. Features
● Superior Aviation Aluminum Alloy.
● IP 54 Ingress Protection.
● Real-time Temperature Monitoring, Sho Circuit / Low Voltage / Overcurrent
/ Overcharging Protection.
● Digital Speedometer Display, Easy to Read Speed.
● Real-time 5 Bars Batte Display.
● 1~3 Speed Gear, Press Button to Switch.
● Multi information Display.
3. Control panel
● Power ON/OFF: Long press the button for 3 seconds, all icons are
lighting, showing speed & batte.
● Headlight ON/OFF: Click the button once when unit is on (Headlight ON: )
88 8
Km/hV A ..
00 0
Km/h
V
A
.
00 0
Km/h
V
A
05

● Click the button for two times to change the speed gear from 1 to 3 levels,
LED display P1 / P2 / P3. Max speed is increasing from P1 to P3.
● Click the button three times to switch display showing speedometer Km/h /
voltage V / current A.
p3
Km/h
V
A
.
00 0
Km/h
V
A
.
49 8
Km/h
V
A
.
00 0
Km/h
V
A.
00 0
Km/h
V
A
06

4. Before riding - Assembly
Lift the stem up and close with the locking mechanism. Connect the cables
between the handlebar and the stem with the quick connectors in plastic to
eachother. Make sure you connect it in the right direction. Gently push the
excess cable length into the stem tube. Make sure the cords are not squeezed
or damaged. You may pull gently the cord next to the folding mechanism to pull
excess cable away from the stem to ease the connection. Attach the handlebar
to the stem.
88
8
Km/hV A
.
Inse screws on both sides
half way and then tighten
screws rmly.
Push power button to see that
evething works.
07

Folding and Caring
Make sure that the scooter’s turned o. To fold, unlock the folding mechanism
and bend the handlebar stem to hook the buckle on the rear mudguard. To
open, press the bell trigger to remove from the buckle, erect the handlebar
and lock the folding structure.
Hold the handlebar stem with either one hand or both hands to car. Fold
and car carefully not to harm any pas of the scooter.
Carry
Fold Open
08

4.1 APP
Android iOS
Make sure Bluetooth is turned on on the phone. Open the Eway scooter app,
click the corresponding model in device list to connect. You can nd the app
under EWAY SCOOTER name in App store or Google shop or by scanning the
corresponding QR code. The E-scooter will beep when APP is connected with
E-scooter. The scooter is working without using the app, but using the app will
give you access to changing various settings. The app is also updated regularly.
Please check regularly and update app accordingly. The phone needs to be
close to the scooters display during update. If you disrupt the process
during update, the rmware and app might be damaged and might lead to
the scooter not working. The app may not be suitable for all mobile phones or
operating systems. For more details on functionality, see www.wilfa.com/eway.
4.2 Before rst ride
Step 1: Check that the E-scooter has no loose screws, or that anything feels
abnormal. This should be done eve time you want to ride the scooter. Check
that wheels turn easily and that brakes work properly. if necessa, please
adjust brakes. See maintainance section for more info. Please charge the
batte completely before each ride.
!
09

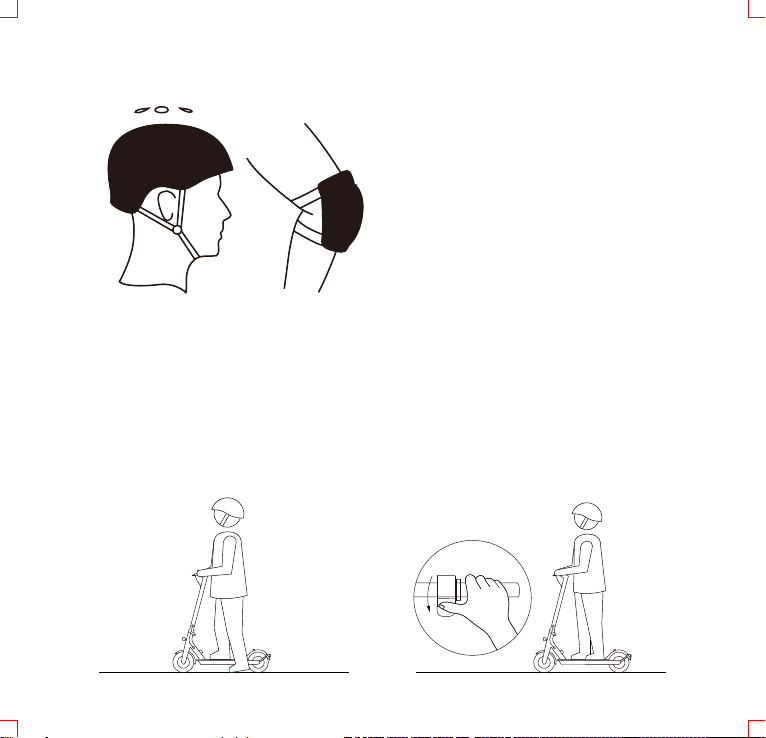

Step 2: Wear protective equipment.
Step 3: Push with one leg to move
forward.
Step 4: Touch the throttle slightly
and t to put two legs on the
deck. Note that the speed must
exceed 3 km/h before speed
throttle works. Make sure both
wheels have contact with the
ground before pressing the throttle
to avoid damage to the wheel.
10

● Do not ride in rain or cross puddles.
Exposure to water can damage the
scooter. If exposed to water, please
d o the scooter with a cloth and
store in a d place.
● Wear protective equipment.
4.2 Before rst ride
Step 6: T to use the headlight. This
is done by pushing the power button
once when the unit is on.
Step 5: During riding, t to release
the throttle and pull the brake lever.
11

● Do not tread the back of the
fender. The fender may be broken.
● Make sure both feet are on the
deck when riding for maximum
stability. Do not put your feet on the
fender when driving as it can cause
damage to the fender.
● Ride slowly in special cases. Do
not jumb with the scooter or drive
fast over bumps to avoid damage on
the scooter.
● Do not load over 125kg. Only 1
person at a time is allowed on the
scooter simultaneously.
