e-way E-600 User manual

E-600
Electric
Scooter

EN - User Manual
NO - Bruksanvisning
SE - Bruksanvisning
DA -Brugervejledning
FI - Käyttöohje

E-600
User
Manual
This instruction manual
and more info can be
found at www.wilfa.com

Cautions
Electric scooter is a recreational personal transporter. Before mastering riding
skills, you need to practice. You will be responsible for any injuries or damage
caused by a rider’s inexperience or failure to follow the instructions in this
manual.
Please understand that you can reduce the risk by following all the
instructions or warnings in this manual, but you cannot eliminate all the risks.
Please following the local tra󰀩c laws or restrictions when riding into public
areas.
Please always wear a helmet properly when riding to protect your head, as
well as other necessary protectors, such as elbow pads, kneecap.
Please slow down the riding speed when riding on crossing, going across the
crowd, making a turn, climbing or downing a hill, passing a school and other
place that high speed may bring damage to people.
Please do not allow kids of age below 12 to use the scooter on public area.
Riders under the age of 18 years old should ride under adult supervision.
Please do not use the scooter in dangerous environments, to avoid scooter
malfunction or may cause damage to body or property.
Please do not use other chargers to charge E-scooter, Only use e-way
supplied charger.

Please do not charge E-scooter, if the charger or power outlet is wet.
Please do not disassemble the scooter or make other modications without
professional guidance from the producer.
Please do not allow others to ride your e-scooter unless he/she has carefully
read and follow the instructions in this manual.
Respect pedestrians’ Right of Way. Try not to startle them while driving,
especially children. When you ride from behind pedestrians, ring your bell to
give them a heads-up and slow your scooter to pass from their left.
Check the scooter before every use. When you note loose parts, low battery
alerts, excessive wear, strange sounds, malfunctions and other abnormal
conditions, stop riding and contact the service center.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.

Contents
1. Device and accessories_____________________________________________________________________ 01
2. Features __________________________________________________________________________________________ 05
3. Control panel____________________________________________________________________________________ 05
4. Before riding- Assembly and app ________________________________________________________ 07
5. Battery ____________________________________________________________________________________________ 18
6. Cleaning and Maintenance ________________________________________________________________ 19
7. Aftersales_________________________________________________________________________________________ 21
8. Adjusting the scooters handlebar________________________________________________________ 22
Warning against using non-rechargeable batteries:
This appliance contains batteries that are only replaceable by skilled persons.
Lithium ion battery
Red cable on plug is positive, black cable on plug is negative.
The method of replacing batteries: Dismount the screw on bottom plastic.
cover, and unplug the connectors, then replace with a new battery.
Details regarding safe disposal of used batteries: Follow the battery directive
2006/66/EC
Discard the battery following the battery directive 2006/66/EC
AS Wilfa is the importer of this product. This is the original instruction manual.

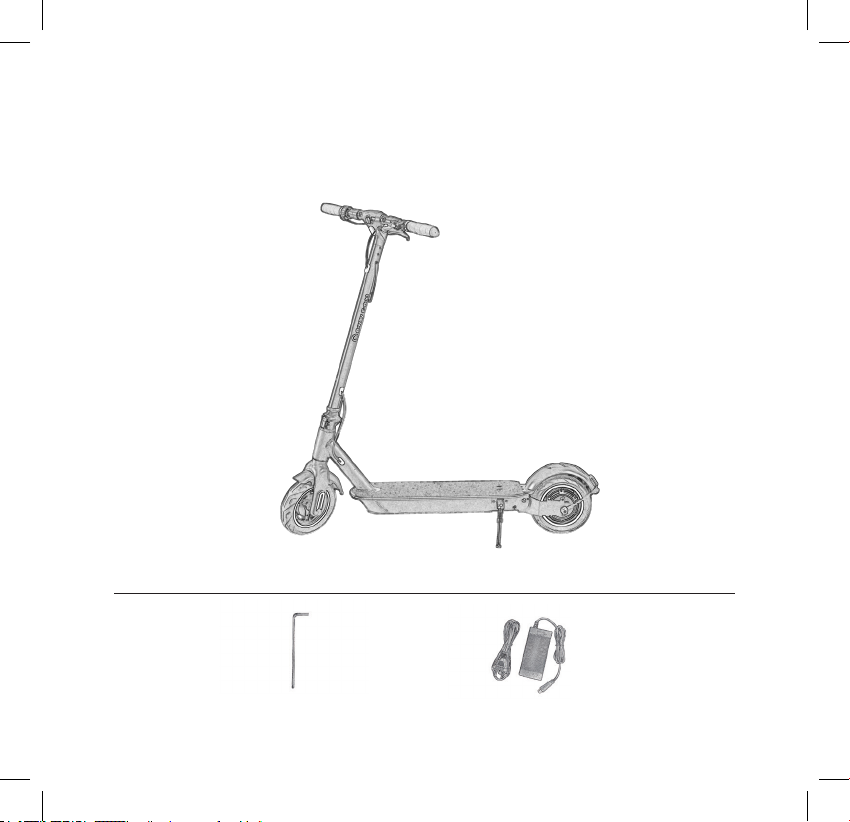

1. The Device & Accessories
E-Way E-600
Accessories
Hex Wrench Charging Adapter

1.2 Functions
Speed lever Control panel
Brake handle
Hand bar lock
Rear dual
suspension
Fender
Break lights
Wheel motor
Stand
Headlight
Charging port
Folding
mechanism
Drum brake

1.3 Specications
Model No E-600
Size 10 inch Inner Honeycomb Tyre
Top Speed 20-25 km/h
Mileage Around 45km
Maximum slope angle Around 25°
Battery Capacity 48 V, 9,6 Ah
Running Condition -10 °C/ +40 °C; 0-90% Humidity
Storage Condition -10 °C/ +40 °C; 0-90% Humidity
Max Load 125kg
Charger Input: 100-240V; Output: 42V/2A
Charging Time Around 5hrs.
Motor 600W
Port Charge Port *1
Headlight 4W
Brake Light LED
User height 120-200cm

Parking Mode Kick-stand
Cruise Control App controlled
Warning signal Mechanical Bell
Accelerator Throttle Button
Brake EABS + Drum brake
Display LED
Battery Display 5 Bars in monitor
Dimension(Unfold) 1260*620*1200mm
Dimension(Folded) 1260*200*530mm
Net Weight 16,5kg
Packing List(pcs) User Manual*1, Charger*1, Hex
Wrench*1

2. Features
• Superior Aviation Aluminum Alloy.
• IP 56 Ingress Protection.
• Real-time Temperature Monitoring, Short Circuit / Low Voltage /
Overcurrent / Overcharging Protection.
• Digital Speedometer Display, Easy to Read Speed.
• Real-time 5 Bars Battery Display.
• 1~3 Speed Gear, Press Button to Switch.
• Multi information Display.
3. Control panel
• Power ON/OFF: Long press the button for 3 seconds, all icons are
lighting, showing speed & battery.
• Headlight ON/OFF: Click the button once when unit is on (Headlight ON:
)
V
88
A
.8
Km/h V
00.0
Km/hA
V
00.0
Km/hA

• Click the button for two times to change the speed gear from 1 to 3
levels, LED display P1 / P2 / P3. Max speed is increasing from P1 to P3.
• Click the button three times to switch display showing speedometer
Km/h / voltage V / current A.
p3
Km/hVA V
00 0
Km/hA
Km/hA
49 8
V Km/hV
00 0
A V
00 0
Km/hA

4. Before riding - Assembly
1. Straighten the stem and fasten the folding mechanism by lifting the handle
upwards.
2. Lift the handlebar grips upwards, and ensure they are locked in place.
3. Push power button to
see that everything works.

Carry

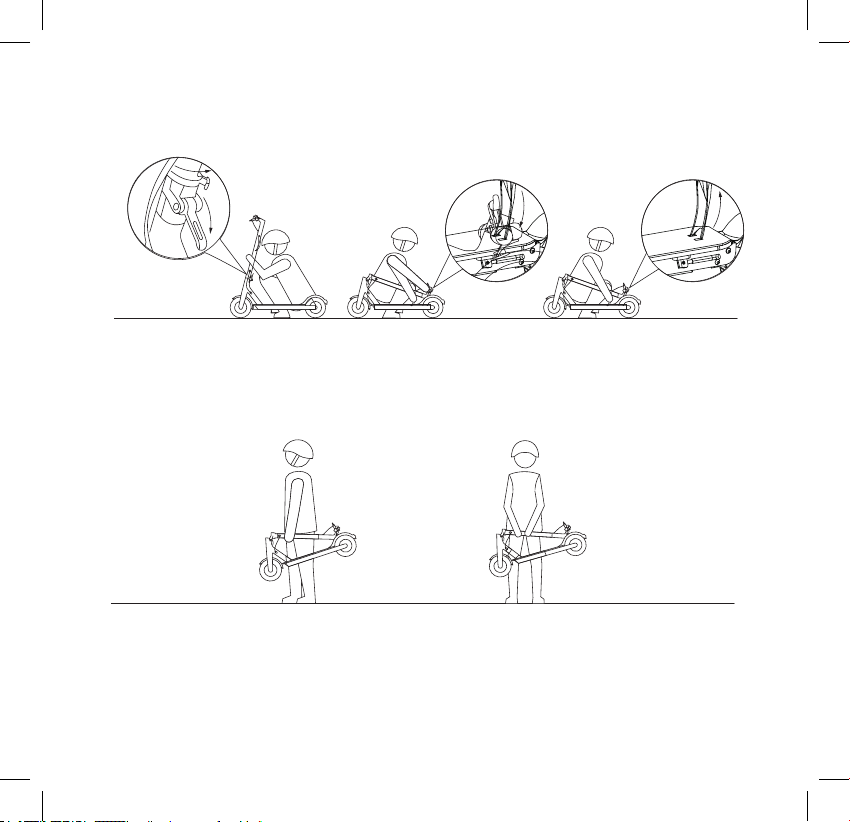

Folding and Carrying
Make sure that the scooter’s turned o󰀨. To fold, unlock the folding mechanism,
and bend the handlebar stem to hook the hanging hole on the pedal. To open,
remove the hook from the hanging hole on the pedal, erect the handlebar and
lock the folding structure.
Hold the handlebar stem with either one hand or both hands to carry.
Fold
Carry
Open

4.1 APP
Make sure Bluetooth is on on the phone. Open the Eway scooter app, click
the corresponding model in device list to connect. You can nd the app under
EWAY SCOOTER name in App store or Google shop or by scanning the
corresponding QR code. The E-scooter will beep when APP is connected with
E-scooter. For more details on functionality, see www.wilfa.com/eway.
4.2 Before rst ride
Step 1: Check that the E-scooter has no loose screws, or that anything feels
abnormal. This should be done every time you want to ride the scooter. Check
that wheels turn easily and that brakes work properly.
!
!
Android iOS

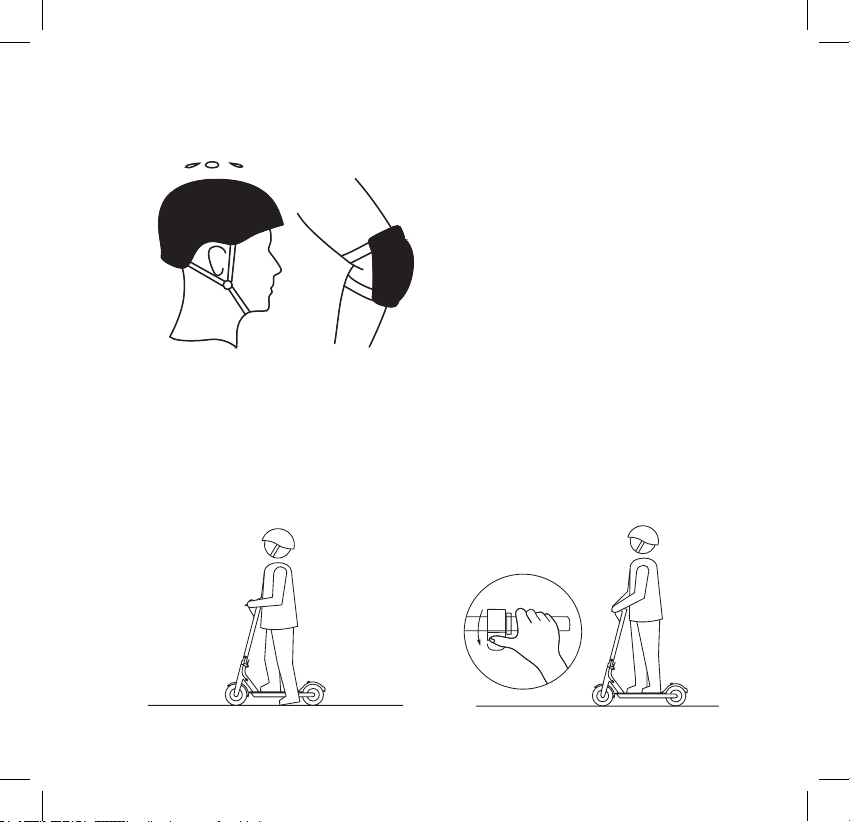

Step 2: Wear protective equipment.
Step 3: Push with one leg to move
forward.
Step 4: Touch the throttle slightly
and try to put two legs on the
deck.

Step 5: During riding, try to
release the throttle and pull
the brake lever.
4.3 Warnings
• Wear protective equipment.
Step 6: Try to use the headlight. This
is done by pushing the power button
once when the unit is on.
• Do not ride in rain or cross puddles.
Excessive exposure to water can
damage the scooter.

• Do not load over 125kg. • Ride slowly in special cases.
• Make sure both feet are on the
deck when riding for maximum
stability.
• Do not tread the back of the
fender.
