Instruction Booklet
Information of European Representative :
EMERGO EUROPE
Molenstraat 15
2513 BH, The Hague
The Netherlands
ST-1
Thank you and congratulation on purchasing your new 'ULYH Medical Ltd. Mobility
Scooter. It is designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure
your complete satisfaction. We sincerely hope you enjoy your new Mobility Scooter.
Please read and observe all warning and instruction provided in owner's manual before
you operate with various convenient function of this scooter. Also, please retain this booklet
for future reference.
If you have any question, you can contact :
or your local dealer:
INTRODUCTION
1

Instruction BookletST-1
IMPORTANT PRECAUTIONS
2
•This scooter is designed for single person use only at any one time.
•Maximum load is 115 kg / 253 lbs.
•Turn key off before getting on or off.
•Always drive carefully and be aware of others using the same area.
•Always use pedestrian crossings wherever possible. Take extreme care when crossing
roads.
•
Do not drive on slope exceeding 6 degree, and take extreme care when turning on slope.
•Do not use full power when turning to sharp corner.
•Take great care and drive in low speed when backing up, riding downhill or on uneven
surface, and climbing curb.
•Please use the lowest speed when driving through the descending road or uneven terrain.
If speed is too fast, leave your hand off the handle bar, let the scooter stop. Make sure
safety and start again.

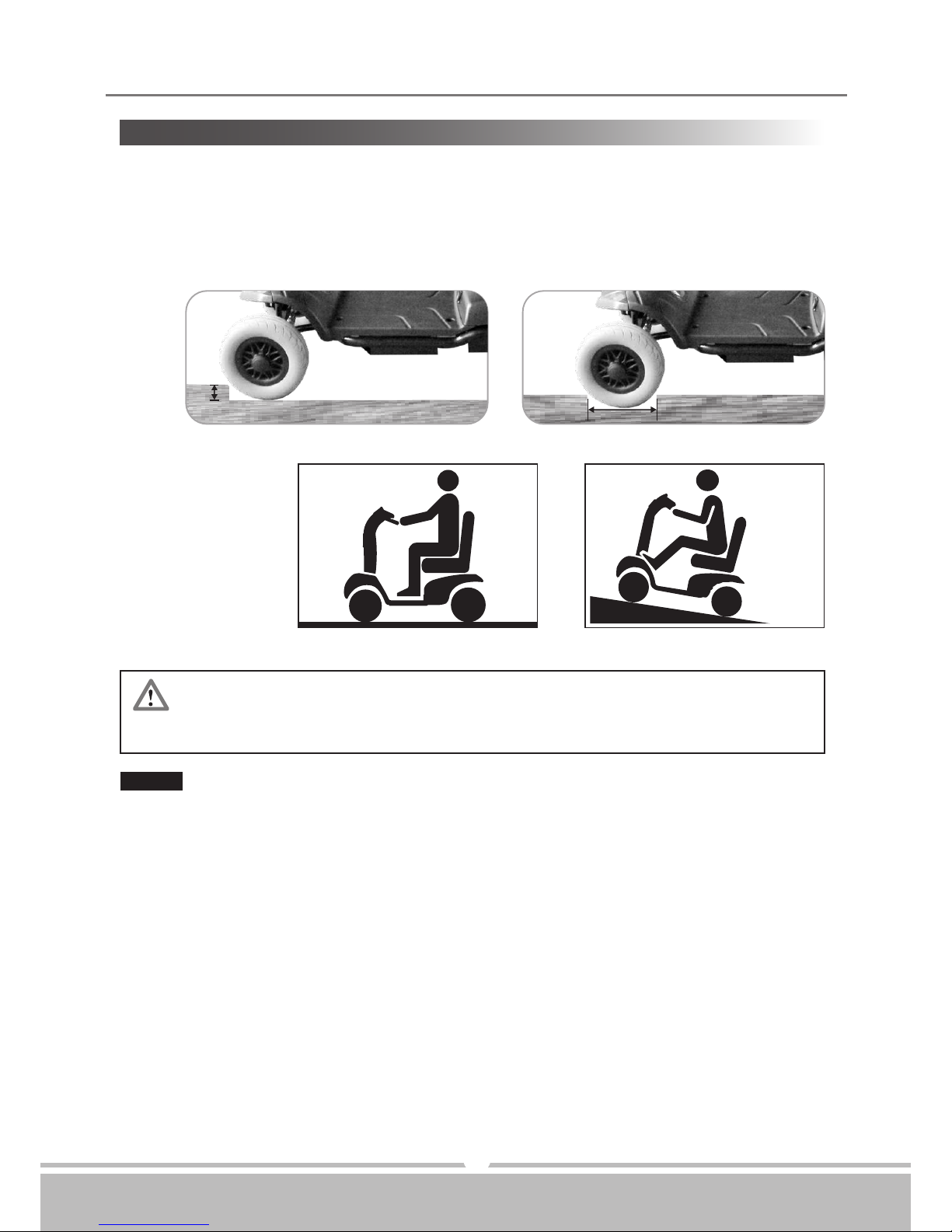

•A slow speed must always be used when ascending, descending or traversing aslope
or incline and also on uneven terrain, ramps and soft or loose surfaces, such as gravel
or grass.
•To prevent any danger, do not turn around at high speed on ascending, descending ramp.
•Scooter may not operate well in high humidity.
•Do not leave the powered scooter in a rain storm of any kind.
•Do not use the powered scooter in a shower.
•Direct exposure to rain or dampness will cause the scooter to malfunction electrically
and mechanically; may cause the powered scooter to prematurely rust.
•Never put scooter in neutral when staying on slopes.
•Follow traffic laws when riding outside.
•When scooter on moving transport vehicles, do not sit or stay on scooter.

Instruction BookletST-1
3
ELECTROMAGNETIC INTERFERENCE
AND WARNINGS
CAUTION : It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your motorized scooter.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios,
and cellular phones. The interference (from radio wave sources) can cause the motorized
scooter to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the motorized scooter control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each motorized scooter can resist
EMI up to certain intensity. This is called its "immunity level." The higher the immunity
level, the greater the protection. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. This immunity level of this motorized scooter model
is 30 V/m.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not apparent
and exposure is unavoidable. However, we believe that by following the warnings listed
below, your risk to EMI will be minimized.
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie
talkie," security, fire, and police transceivers, cellular telephones, and other personal
communication devices;
2.Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of the
vehicle; and
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
The sources of radiated EMI can be broadly classified into three types :
Some cellular telephones and similar devices transmit signals while they
are ON, even when not being used.
Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players,
and small appliances, such as electric shavers and hair dryers, so far
as we know, are not likely to cause EMI problems to your motorized
scooter.

Instruction BookletST-1
There is no easy way to evaluate their effect on the overall immunity
of the motorized scooter.
4
Motorized Scooter Electromagnetic Interference :
Because EM energy rapidly becomes more intense as one move closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of
special concern. It is possible to unintentionally bring high levels of EM energy very close
to the motorized scooter control system while using these devices. This can affect motorized
scooter movement and braking. Therefore, the warnings listed below are recommended to
prevent possible interference with the control system of the motorized scooter.
Warnings :
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters.
Following the warnings listed below should reduce the chance of unintended brake release
or motorized scooter movement which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as cellular phones, while
the motorized scooter is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the motorized scooter OFF as
soon as it is safe;
4.Be aware that adding accessories or components, or modifying the motorized scooter,
may make it more susceptible to EMI; and
Important Information :
1.20 volts per meter (V/m) is a generally achievable and useful immunity level against
EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is 30 V/m.
5.Report all incidents of unintended movement or brake release to the distributor listed
on the inside front cover of this manual. Note whether there is a source of EMI nearby.

Instruction BookletST-1

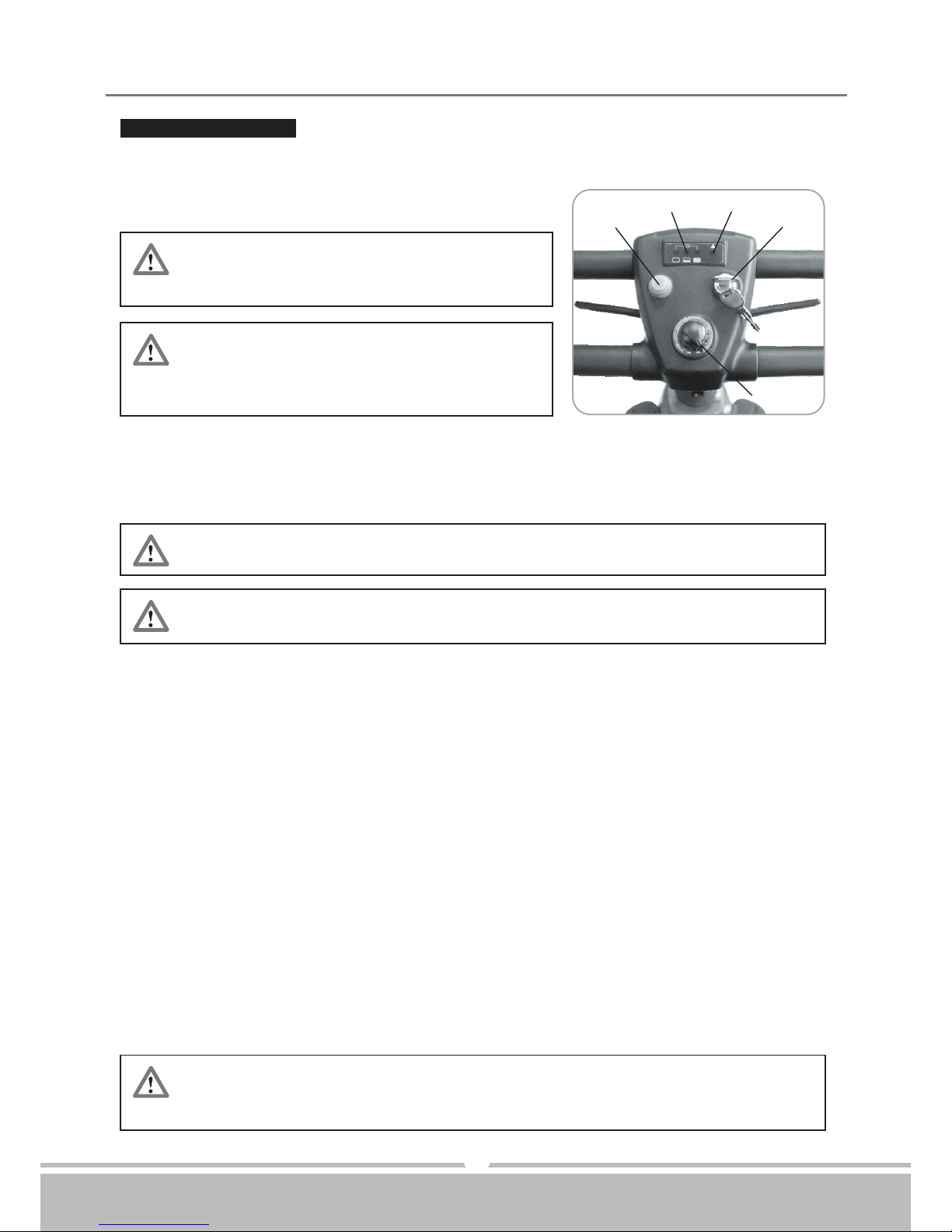

Figure 2 - ST1 Top Control Panel Figure 3 - ST1D Back View
IDENTIFICATION OF PARTS
5
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls, and how to operate them.
Figure 1 - ST1D Front View
ST1 Front View
Easy-To-Operate control
panel and thumb lever.
Flip-Up Armrests
Front Basket
Padded Foldable Seat
Solid Tires
Tiller Angle
Adjustment
Tiller Angle
Adjustment Circuit
Breaker Seat Rotation
Lever
Release
Lever
Battery Pack Pin
Charging Socket
Horn Button
Thumb Lever Speed Dial Knob
Battery Gauge
Self-Diagnostic
Warning Light
Main Key Switch
Reflectors
Anti-Tip Wheels
Free-
Wheeling
Lever

Instruction BookletST-1
Always ensure that the scooter is switched
off before getting on or off the scooter and
before removing any items of the scooter.
The ON/OFF key switch must only operated,
when in motion, in an emergency. Turning
the scooter OFF whilst driving will bring the
scooter to an abrupt stop.
6
FUNCTION OF PARTS：
Main Key Switch (A)
1.Turn the key to the right - Turn the scooter on
2.Turn the key to the left - Turn the scooter off
Before driving the scooter, set the speed to low speed by turning the
knob towards turtle image,
Drive in high speed when encounter an up slope, and drive in slow speed
when encounter a down slope.
Releasing the thumb lever engages the automatic brake, but will taxi for
a short buffering distance, please keep safe distance when stopping to
prevent any danger.
Speed Dial Knob (B)
The image of rabbit means fast or high speed. The image of turtle means slow or low speed.
By turning this knob towards chosen image you can control overall speed of the scooter.
Horn Button (C)
Press horn button once to sound warning tone when necessary.
Battery Gauge (D)
The meter gives an approximation of battery strength. Three green lights indicate that the
batteries are fully charged. Green lights will go out as the batteries are used. When the
red light turns on, the batteries need to be charged immediately.
Self Diagnostic Warning Light (E)
Flashing light indicates there is a problem within scooter. See page 12 for more information.
Thumb Lever (F) (F1)
Pulling right thumb lever moves scooter forward. (F) Pulling left thumb lever moves the
scooter backward. (F1) (This can be reversed if required by local dealer.) Releasing both,
engages automatic brake. These are also your accelerator. The further you depress
them, the faster you go. (Subject to the position of the Rabbit/Turtle control).
Figure 4Figure 4 (B)
(F)
(F1)
(C) (A)
(D) (E)

Instruction BookletST-1
1.Lift lever G, G1 upward to disengage pin.
2.Simultaneously, rotate seat (or lift up to disassemble the seat) to the most comfortable
angle. Release lever (H) and ensure the pin is fully engaged to lock the seat in position.
If scooter's circuit system malfunctions or over loaded, the circuit system will automatic
shut down the power to ensure driver's safety. After the power is off, press button (J) to
regain power.
To push scooter for short distances, put it in freewheel mode by pushing forward on free-
wheel lever to N. This disables the drive system and brake system. To take the scooter
out of freewheel mode, pull the free-wheel lever backward to D to re-engage the drive and
brake system. (J1)
7
Tiller Angle Adjustment :
Seat Rotation Adjustment :
Figure 6Figure 6 (H) Figure 5Figure 5
(G1)(G)
Circuit Breaker :
Free-Wheel Lever :
Figure 8Figure 8
(J1)
Figure 7Figure 7
(J)
ST1 - 1.Lift up the lever (G) to disengage the pin.
2.Simultaneously, adjust the steering fore-aft to the most comfortable angle. Release
lever (G) and ensure the pin is fully engaged to lock the steering column in position.
ST1D - Rotate Hand Wheel Tiller Angle Adjustment (G1) counterclockwise to adjust tiller
down. Rotate Wheel clockwise to lock tiller.
ST1 ST1D

Instruction BookletST-1
Accessories :

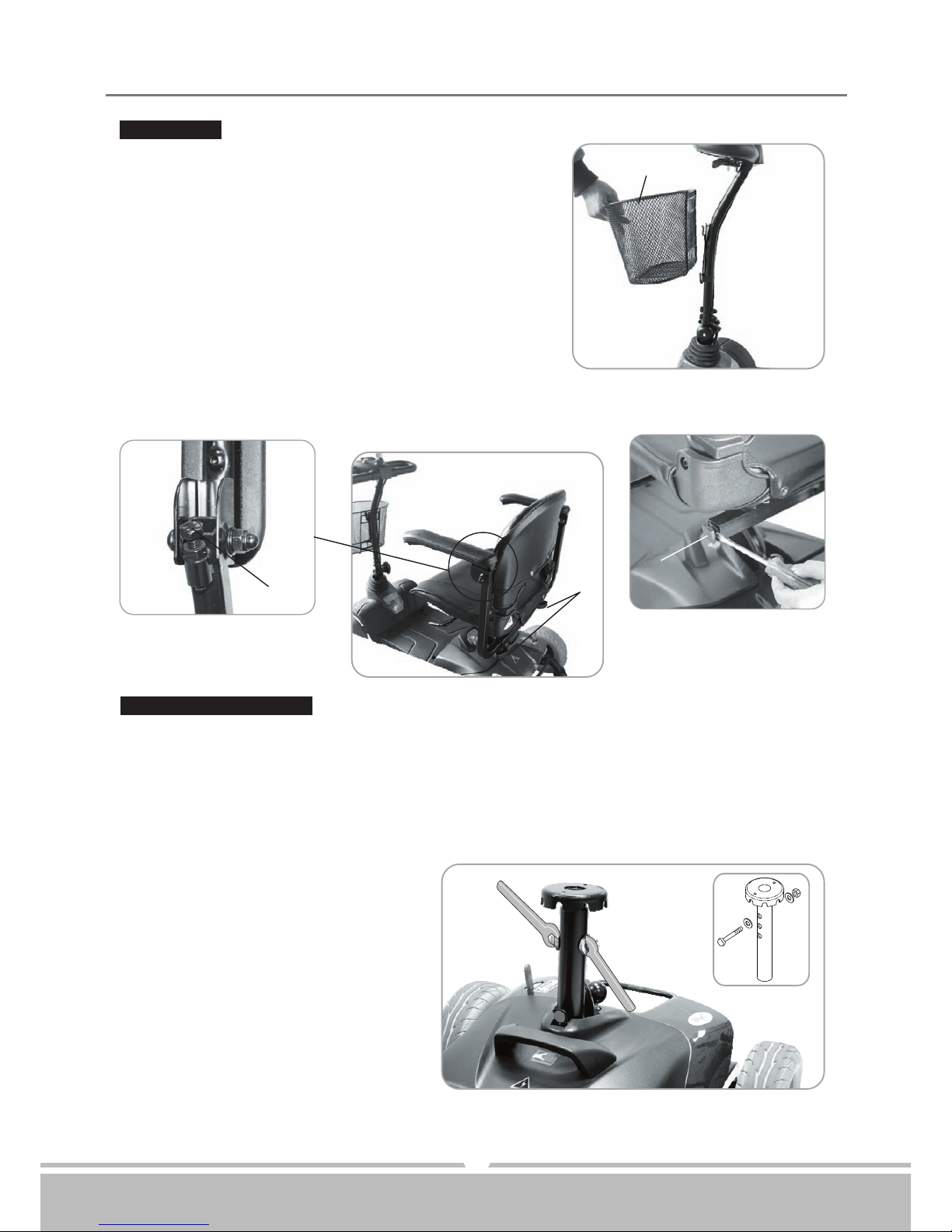

Basket assembling and disassembling :
Remove the Front Basket (J2) and place it off to the
side.
Armrest assembling and angle adjustment :
1.Remove plugs (J3) at both sides.
2.Assembling armrests.
3.Adjust armrest to most comfortable angle, then lock
with knob (J4).
4.Adjust screw's (J5) height, to control armrest's angle.
Seat Height adjustment :
1.Remove the seat, and then remove screw, nut and washer from seat post.
2.Adjust seat post to desired height, then attached tightly with screw, nut and washers.
3.Assemble the seat back to its original position.
4.520mm / 540mm / 560mm measured from ground.
370mm / 390mm / 410mm measured from foot panel on scooter.
Figure 10Figure 10
(J4) (J3)
(J5)
Figure 9Figure 9
(J2)
Figure 11Figure 11
8

Instruction BookletST-1
The time needed to recharge will vary depending on the depletion of the
batteries. Charging for longer than necessary will not harm the batteries.
They can not be overcharged.
9
CHARGING THE BATTERIES
Your ST1D scooter is equipped with two sealed, maintanence free 12V. 12Ah. rechargeable
batteries and one 24V/1.8A charger. Batteries must be charged before using scooter for
first time and should be recharged after each day's use. Be sure power switch is in OFF
position and free-wheeling lever is not in freewheel mode.
1.Insert battery charger cord into Charging Socket (K) on battery pack.
2.Plug other end of power cable into a standard electrical wall outlet. (K1)
3.The charging indicator will normally be red or yellow at this point.
4.Allow batteries to charge until charging indicator turns green.
5.After indicator turns green, unplug battery charger from scooter and wall outlet.
6.If at any time battery charger light flashes green over 40 minutes, this indicates abnormal
charging occurred. You should check the following:
•Charger plug is correctly positioned
•Scooter is turned off
•If none of these are the problems, contact your local authorized dealer.
Figure 12Figure 12
(K)
(K1)

Instruction BookletST-1
When assembling battery pack (M), make sure to aim for the battery terminal
connection for proper electricity conductivity.
Remove seat by pulling up Seat Rotation Lever (H). Then lift up away from scooter.
As indication, Push Release Lever (L) backward and pull Battery Pack Handle (M) to
remove batteries from scooter. Caution: batteries are heavy. When lifting please use
correct lifting posture to avoid injury. Ask for assistance if necessary.
To prevent shroud damage, do not lean disassembled rear
frame forward.
When assembling front & rear frame, align left and right
sides' stickers and push in to complete the assembly.
Lift up front & rear frame's fixation pin (N); and hold and pull rear frame as arrow indicates
direction to disassembling front and rear frame.
10
DISASSEMBLING YOUR SCOOTER
I. Seat Disassembling :
II. Battery Pack Disassembling :
Figure 14Figure 14
(L)
(M)
Figure 13Figure 13
(H)
(I)
III. Front & Rear Frame Disassembling :
Figure 15Figure 15
(N)
(O)
(O1)

Instruction BookletST-1
Re-assembling your scooter by vise versa above disassembling procedures.
Replace with same power fuse is required.
After replacement, vise versa assembling procedure to original condition.

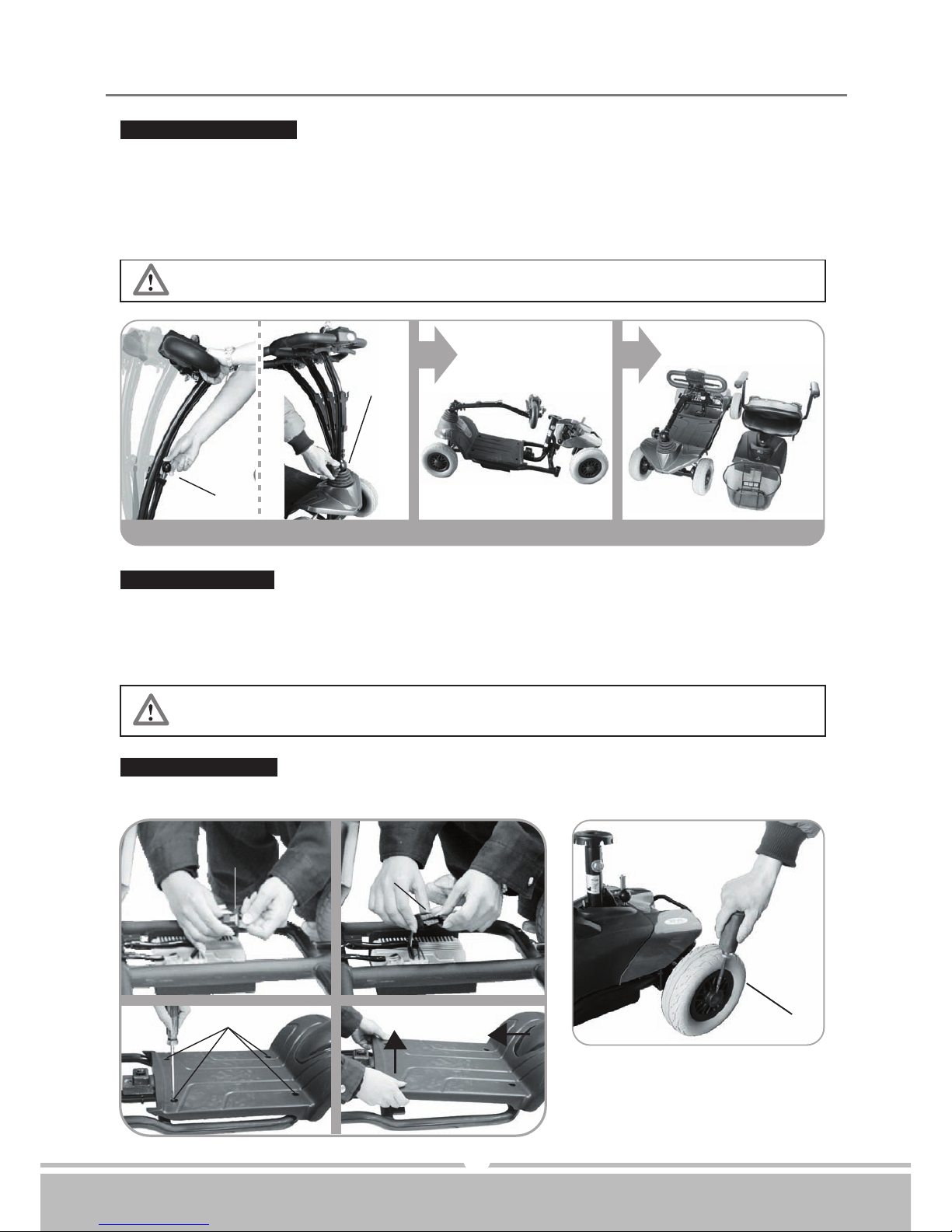

1.Remove front shroud's 5 screws (be careful screws' size are different); lift up front shroud
(P) as arrow indicates direction.
2.Open fuse box (P1) and replace with backup fuse (P2).
1.By using a screw driver, to lift up rim (Q).
11
Steering Fold Method :
Fuse Replacement :
Rim Disassembling :
Figure 18Figure 18 (Q)
Figure 17Figure 17
(P1)
(P) (P)
(P2)
Figure 16Figure 16
12
(G1)
(G)
ST1 ST1D
ST1 - Lift up the lever (G) to bend down the steering to the lowest hole position and fold
down the steering column as shown in Figure 16.
ST1D - Rotate Hand Wheel Tiller Angle Adjustment (G1) counterclockwise to adjust tiller
down. Rotate Wheel clockwise to lock tiller.(See Fig. 16)

Instruction BookletST-1
Flash Description Meaning
1Battery Low The batteries are running low.
•Recharge the batteries
2Low Battery Fault The batteries have run out of charge.
•Recharge the batteries.
3High Battery Fault Battery voltage is too high. This may occur if
overcharged &/or traveling down a long slope.
•If traveling down a slope, reduce your
speed to minimize the amount of
regenerative charging.
•Check the battery and associated
connections and wiring.
4Current Limit Time-out The motor has been exceeding its maximum
current rating for too long. This may be due
to a faulty motor.
•Check the motor and associated
connections and wiring.
•Turn the controller off, leave for a few
minutes and turn back on again.
5Park Brake Fault Either a park brake release switch is active
or the park brake is faulty.
•Check the park brake and associated
connections and wiring.
•Ensure any associated switches are in their
correct positions.
6Throttle OONAPU The Throttle is out of neutral when turning the
controller on.
•Ensure the throttle is in neutral when turning
the controller on.
•The Throttle may require re-calibration.
7Speed Pot Fault The throttle, speed limit pot or their associated
wiring may be faulty.
•Check the throttle and speed pot and
associated connections and wiring.
8Motor Voltage Fault The motor or its associated wiring is faulty.
•Check the motor and associated
connections and wiring.
9Other error The controller may have an internal fault.
•Check all connections & wiring.
12
TROUBLESHOOTING

Instruction BookletST-1
In unlikely event of a panel display error, you need to re-set the display
system by cycling the on/off main switch. The display circuitry is independent
of the motor control system. A display console error does not affect scooter
speed control.
1.Obstacle Climbing :
Your scooter can climb obstacles and curbs of up to 35mm in height. Never attempt to
overcome an obstacle when on an uphill or downhill gradient! Always approach obstacles
straight on! Ensure that the front wheels and rear wheels move over the obstacle in one
stroke, do not stop halfway!
2.The maximum gap the scooter can drive over is 10cm.
1.Charge the batteries after each trip. If the scooter is not used for some time, batteries
may lose their charge. Batteries should be charged at least once a month.
2.Check the battery gauge before driving to prevent power depletion.
3.Batteries will have an aging phenomenon, where the storage capacity will gradually
decrease. If batteries are damaged, please wrap them in a plastic bag and contact your
local dealer for proper disposal.
4.Do not disassemble battery and open sealed parts by yourself to prevent electric shock
and burns from acid leakage,
5.Adjust speed to a slow speed when starting off to prevent sudden acceleration.
6.Never attempt to drive downhill backwards.
7.Try not to drive scooter at night or in rain or bad weather.
8.If storing your scooter for a long time (1 month or more), make sure that battery are
fully charged, then disconnect the two batteries plugs, and the store scooter in a dry
location.
9. Front basket, weight capacity 3kgs.
13
CAUTION
OTHER
•When driving scooter on ramp, adjust body center of gravity to keep scooter more safety.
General driving posture On ramp, forward your body will
let scooter more safety.

Instruction BookletST-1
4 mph.PK
115 kg / 253 lbs
6 degree
1270 mm / 50"
N/A
Electro-Mechanical
Padded Foldable
425 mm / 17"
250W, 4700 r.p.m.
(2) 12V. 12Ah
8.2 kg / 18 lbs
10 km / 6.2 Miles
1.8A Off Board
On / Off Key Switch, Battery Level Indicator,
Speed Control Knob
SPECIFICATIONS
Overall Length
Overall Width
Overall Height
Wheels: Front
Wheels: Rear
Weight w/ Batteries
Max. Speed
Maximum Weight Capacity
Ground Clearance
Maximum Safe Slope
Kerb Climbing
Turning Radius
Suspension
Brake
Seat Type
Seat Width
Seat Height adjustment
Motor Size
Battery
Weight of Batteries
Travel Range
Battery Charger
Electronics
ST1
1000 mm / 39.4"
510 mm / 20"
890 mm / 35"
195 mm / 8"
195 mm / 8"
40 kg / 88 lbs
35 mm / 1.4"
35 mm / 1.4"
ST1D
1010 mm / 39.8"
540 mm / 21"
920 mm / 36.2"
210 mm / 8.3"
210 mm / 8.3"
41 kg / 91 lbs
45 mm / 1.8"
30 mm / 1.2"
TECHNICAL SPECIFICATIONS
14
*Subject to change without notice.
measured from foot
panel on scooter
520 mm / 540 mm / 560 mm
370 mm / 390 mm / 410 mm
measured
from ground

ST-1 Instruction Booklet
INSPECTION CHECKS
The following table lists inspection checks that should be performed by the user and their
intervals. If the mobility device fails to pass one of the inspection checks, please contact
your authorised 'ULYHdealer.
15
When
Delivered
Weekly
Monthly
X
X X
X
X
X
X
X
X
Before every trip
Seat and backrest padding:
- Check for perfect condition.
Tyres:
- Have tyres checked for specified air pressure (2,5 bar).
Front wheels:
- Front wheels must spin smoothly.
- If wheels wobble or do not spin easily, adjust steering pivot pin
or front wheel bearing.
Rear wheels:
- Test wheel for firm seat on the axle drive shaft.
- Rear wheels must spin without wobbling
Electronics / Electrical System:
- Check all plug connections for condition and firm connection.
- Have batteries been fully charged before the daily operation?
- Are all holders, screws firmly fixed, tight and safe?
- Are all electric bulbs of the lighting system (if applicable) in
working order?
Cleaning:
- Clean all parts carefully.
Before each trip
When necessary
Maintenance Jobs

Warranty Information
Drive Medical ST1 and ST1D Scooters are warranted for 12months (24 months frame) from the
date of purchase on side frames and crossbars. (NB Baeries are warranted for 12 months.)
»During the warranty period any parts that have become defective due to
faulty workmanship or material will be repaired or replaced without charge
by Drive Medical supplier/dealer
»The warranty excludes tyres, punctures and items that become worn due to
normal wear and tear such as upholstery and armrest pads
»The warranty excludes all items that have been subject to undue
wear and tear and misuse
» Unauthorised changes or modications will forfeit your warranty
»If a defect or fault is discovered, the Drive Medical supplier/dealer
from whom the Wheelchair was purchased should be notied immediately
Limitation of Liability
The warranty does not extend to the consequential costs resulting from fault clearance, in
particular freight and travel costs, loss of earnings, expenses, etc. The manufacturer will not
accept responsibility for any damage or injury caused by misuse or non-observance of the
instructions set out in this user manual.
Dealer Stamp
Drive Medical Ltd
North Road,
Bridgend Industrial Estate
Bridgend, CF31 3TP
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.drivemedical.co.uk
