E-Z Anchor Puller EZ-0411 User manual

Email Questions to [e-mail]
The purpose of this manual is to clarify the controls on the wireless remote key fob and address common
troubleshooting questions. For additional support, contact E-Z Anchor Puller Mfg. Co. at the phone number
listed in the footer or email [e-mail]. The long range wireless remote control comes with
two (2) key fobs (batteries included) and the Wireless Receiver Unit that will be connected to your anchor
winch solenoid. We have two wireless remote control options available: the DC12v for anchor winches with a
12v motor, and the DC24v for upgraded Rebel anchor winches that are powered by 24v motors.
Part 1 - Technical Index and Pairing Instructions for your 12v or 24v Wireless Remote:
Voltage
DC12v or DC24v
Working Temperature
-40℉ to 176℉
Frequency
433MHz
Static Current
≤9mA
Flexibility
-105dBm
Output
DC12V / 24V 3A**min. current required for 12v
output
Controller Capacity
30
Size
84×59×33mm
Part 2 - Wireless Receiver Unit Wiring Diagram:
www.ezanchorpuller.com 1.800.800.1640 1

Email Questions to [e-mail]
Part 3 - Upkeep and Use Instructions for your Wireless Remote Control:
After following the diagram above and successfully connecting the wireless receiver to your drum anchor winch
solenoid, slide down the protective cover on your wireless remote key fob and hold the “On/Off” button for three
seconds to begin operation.
△ = Up
▽ = Down
▢ = On / Off
🔒 = Factory Lock
The factory lock button ( 🔒 ) is used for manufacturing purposes only.
To ensure the longevity of your wireless remote key fob, turn off your remote key fob by pressing and holding
the “On/Off” button (▢) for three seconds after each daily use.
When deploying or retrieving, the up and down line of the wireless receiver outputs 12V / 24V DC. See the
below instructions for direct drive units and free-fall unit operation:
Direct Drive Anchor Winch Remote Operation:
For direct drive winches, hold the Retrieval “Up” (△) and Deployment “Down” (▽) button during the entirety of deployment
and retrieval.
Free-Fall Anchor Winch Remote Operation:
Free-fall series anchor winches can be controlled by holding the Deployment
“Down” button (▽) for two seconds. For retrieving the anchor rode, hold the
Retrieval “Up” button (△) for the entirety of retrieval.
Replacing Your Battery:
If you need to replace your battery, the compatible replacement battery
number is LR27A 12V L828. Please follow instructions below if you
need to re-pair the Wireless Receiver Unit to the key fobs. Keep in
mind that when replacing your battery, the key fob and receiver unit
may become unpaired. Simply follow the above instructions to
recalibrate.
www.ezanchorpuller.com 1.800.800.1640 2

Email Questions to [e-mail]
COMMON TROUBLESHOOTING QUESTIONS:
Issue
Possible Cause(s)
Solution(s) *numbers correlate to each other
Up (△) deploys anchor; Down (▽) retrieves
Wiring
Switch the green and yellow solenoid coils on the
the Wireless Receiver Unit attached to the solenoid
Remote does not power the anchor winch; winch
and rocker switch still work
1. Wiring
2. Dead Battery
3. Pairing Issue
4. Bad Remote
1.Refer to the diagram on page 2 to ensure wiring is
correct.
2.Open the back of the remote key fob and replace
the batteries.
3.Refer to the instructions in this manual to
successfully recalibrate the Wireless Receiver Unit
with the key fobs.
4.Please contact manufacturing company
Remote control won’t pair with receiver
1. Pairing Issue
2. Bad Remote
1.Press the “Learning” button for more than 8
seconds until the LED light goes out. This will
eliminate bad connections so you can begin to
Pair the wireless and receiver again. Repeat
the calibration process.
2.If the problem persists, please contact
manufacturing company
**NOTICE: FOLLOW THE BELOW INSTRUCTIONS ONLY IF THE WIRELESS RECEIVER
SYSTEM BECOMES UNPAIRED TO THE KEY FOB / ANCHOR WINCH SYSTEM**
This section explains how to calibrate the wireless remote control key fobs to the Wireless Receiver Unit:
Step 1: Remove the cover of the Wireless Receiver Unit and locate the black
button across from the exposed wires. Have your wireless remote key fobs
nearby.

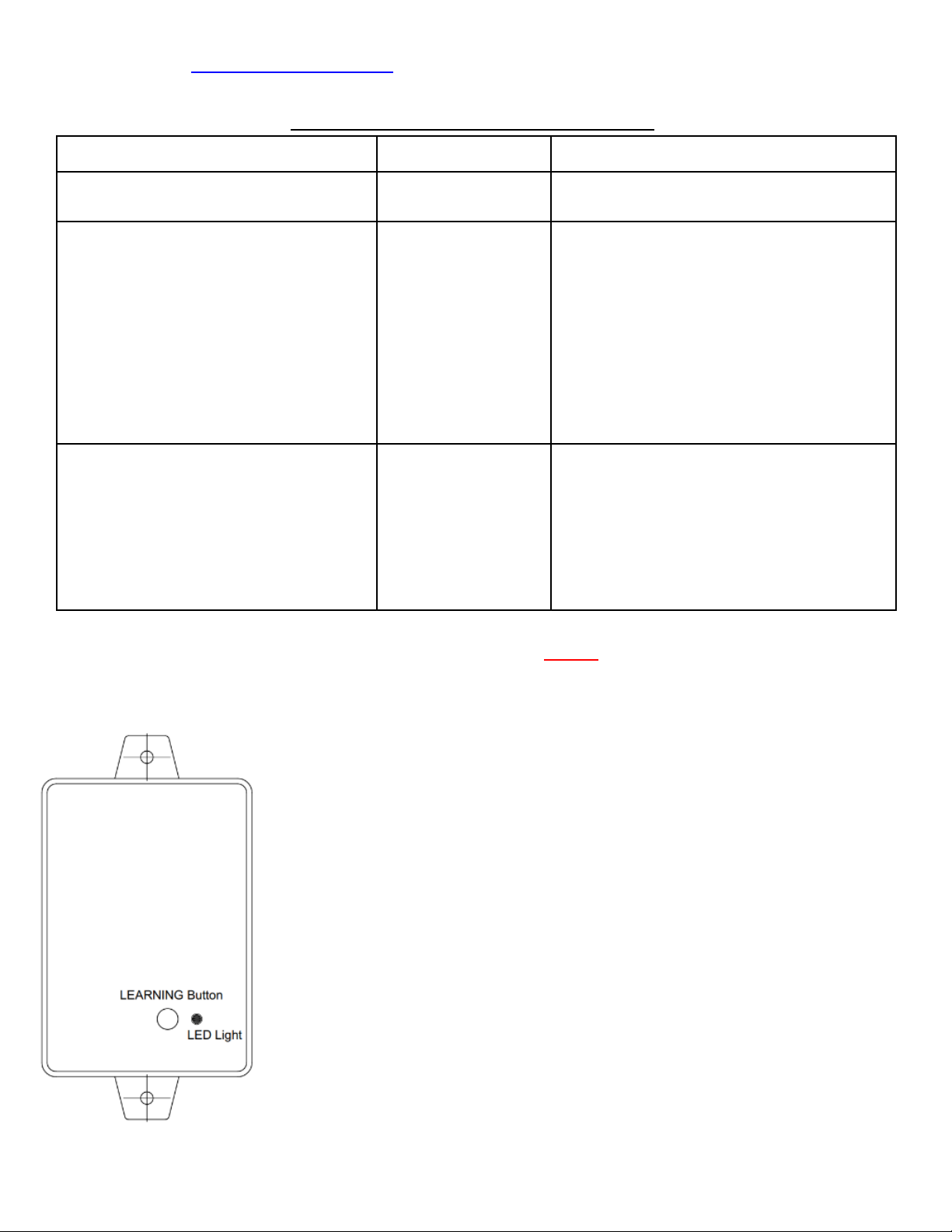

Step 2: Press the "Learning" button on the Receiver, indicated in the drawing to
the right, until the red LED light flickers. This means the receiver is in learning
status. The LED light will then go out, and your wireless receiver is ready to be
paired with your two (2) included key fobs.
Step 3: Next, press any key on your Remote key fob (RF) and monitor your
Wireless Receiver. When the LED on Wireless Receiver flickers 5 times and
then goes out , it indicates the learning phase is complete and your wireless
remote is paired. Repeat this step with your second RF. Paring is now complete.
Test the remote and call the manufacturing company if the wireless remote
system is still not working correctly.
