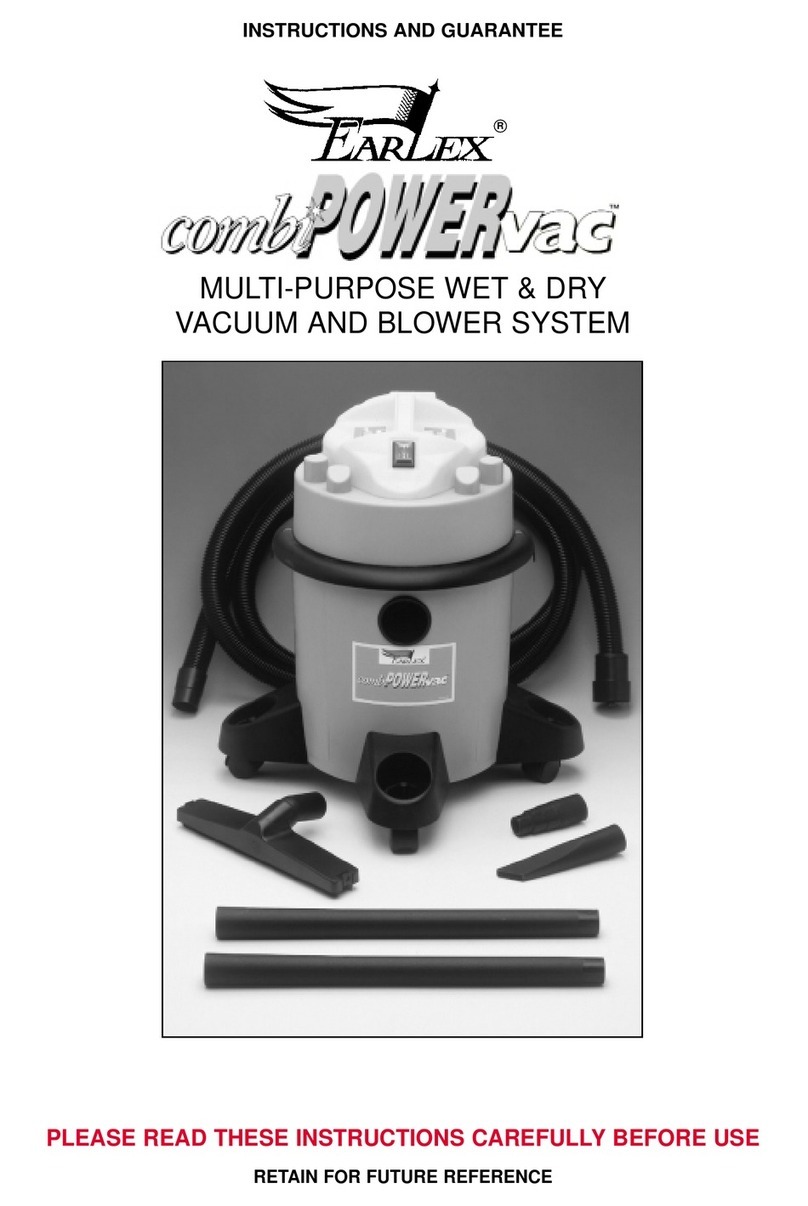

Earlex COMBIPOWERVAC User manual

INSTRUCTI NS AND GUARANTEE
MULTI-PURPOSE WET & DRY
VACUUM AND BLOWER SYSTEM
WITH POWER TOOL TA E-OFF
PLEASE READ THESE INSTRUCTI NS CAREFULLY BEF RE USE
RETAIN F R FUTURE REFERENCE
Earlex Ltd will accept no responsibility for the use of this product if used for any other purposes
than those detailed herein.
REGISTER Y UR PURCHASE NLINE AT WWW.EARLEX.C .UK/REGISTER
F R A CHANCE T WIN AN EARLEX PR DUCT F Y UR CH ICE.

2
GDo not leave appliance unattended when
plugged in. Unplug from outlet when not
in use and before servicing and cleaning.
GTo avoid electric shock, do not expose to
rain. Store Indoors.
GNever pick up inflammable or
combustible liquids such as petrol or
other volatile substances. Do not vacuum
boat bilges since flammable liquids or
fumes may be present.
GNever use in the presence of explosive
liquids, vapours or explosive dust - such
as coal or grain.
GNever pick up asbestos or asbestos dust.
GDo not pick up anything that is burning
or smouldering - such as cigarette ends,
hot coals, matches or similar.
GDo not allow the cleaner to be used by
children.
Gnly use the product as detailed in these
instructions.
GUse only manufacturers recommended
attachments and consumables.
GNever modify the cleaner in any way -
this is dangerous and will invalidate the
guarantee.
GDo not use cleaner without the filter in
place.
GIf motor sound becomes higher pitched
always check for the following:
1) Blocked hose or accessory.
2) Blocked filter.
3) Full container.
GNever try to move the cleaner by pulling
with the mains lead.
GAlways check that the filter is clear and
not blocked. Keep all openings clear of
any blockages.
GWhen lifting the unit always lift it with
the handle or under rim of bucket.
GBeware of excess weight.
Always switch the unit off before
changing between vacuum and blower
functions.
GAlways disconnect equipment from the
CombiPowerVac when not in use.
GThis appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
GNever use power tools rated at more than
1800W in the power take off socket.
GAlways be aware of the direction of the
blow outlet or deflector elbow when using
the unit.
GUse only genuine Earlex replacement
parts.
INTR DUCTI N
Thank you for purchasing an Earlex CombiPowerVacTM. The uses for this product around the home,
garage, workshop and garden are numerous and we hope you will find the product is in constant
use. This cleaner can be used for picking up all kinds of dry material such as dust, brick dust, nails,
broken glass, leaves, litter, wood shavings etc. In wet mode it can pick up various types of liquid
spills and help to unblock sinks. In blow mode it can be used for jobs such as collecting leaves into
piles, dusting out the garage or workshop. With the Power Take Off used in conjunction with power
tools it becomes a dust extraction unit.
Due to the heavy duty nature of a wet & dry cleaner the motor may sound louder than your normal
cleaner. In order to be able to pick up liquids, a special by-pass motor is fitted so that the liquid can
be deposited into the recovery tank without going through the motor.
Before leaving our factory each unit has been checked to ensure that it meets our high safety,
quality and performance standards.
SAFETY RULES
PLEASE READ BEF RE USE
IF Y U HAVE ANY PR BLEMS R IF Y U BELIEVE A PART IS MISSING, D N T RETURN
T ST RE. PLEASE C NTACT EARLEX LTD N 01483 454666.

C MP NENTS

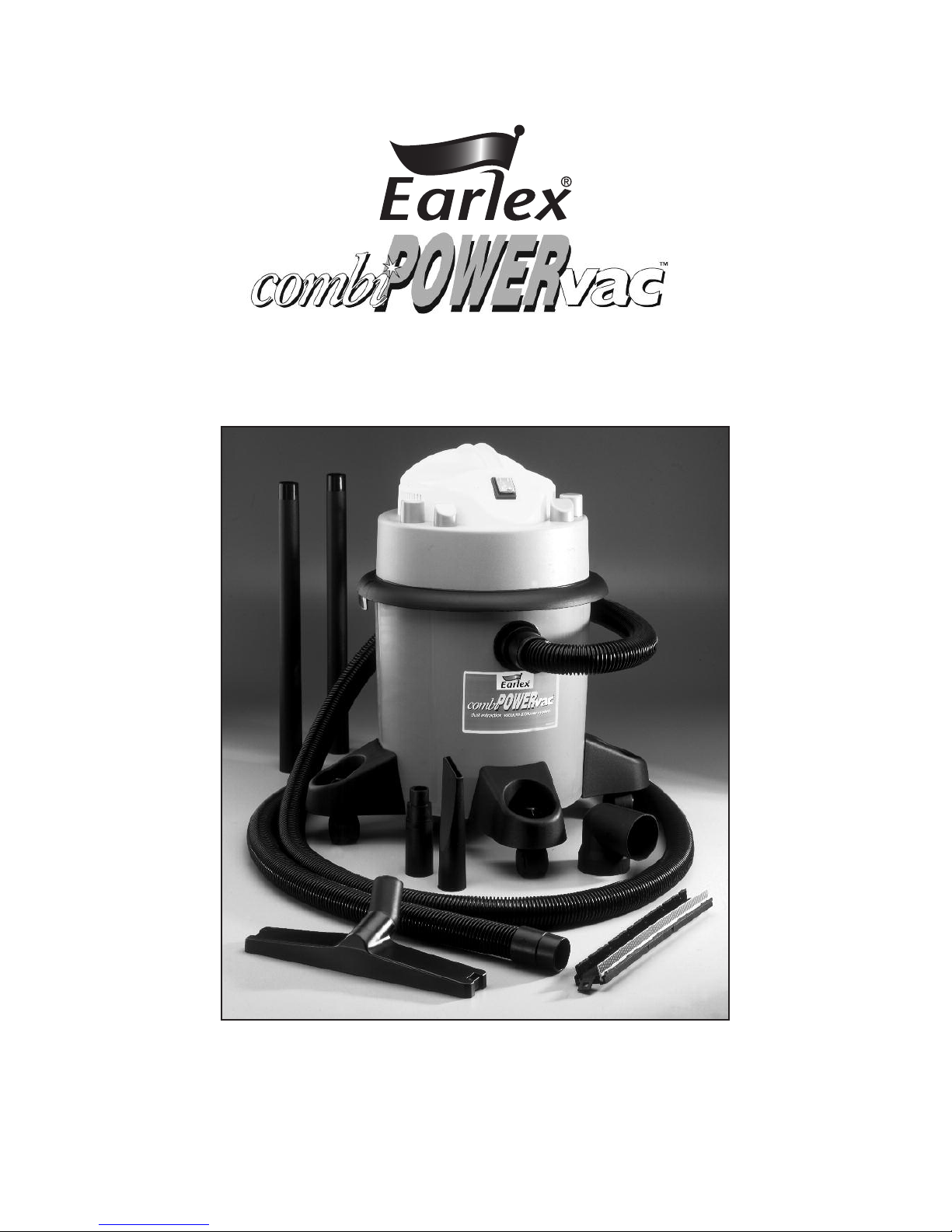

The following components are included in the kit (as illustrated below)
WD0001 Recovery Tank WD0182 Floor Head Brush/Squeegee Attachment
WD0026 Extension Tubes x 2 WD0083 Floor Head Body
WD0035 Hose Inlet WD0188 Dust Collection Bag
WD0036 Crevice Tool WD0183 Outrigger x 4
WD0045 Castors x 4 WD0181 Power Tool Adaptor
WD0050 Hose WD0147 Outlet Elbow
WD0178 Cartridge Filter WD0217 Motor Housing Assembly
UNPACKING AND SETTING UP
1) Remove all packing materials and accessories and lift unit out of the box.
2) Release the two tank clips and lift the motor housing off from the recovery tank.
3) Remove all components from inside the tank.
4) Fit the castors to the outriggers. These should be pushed in hard until they stop. Turn the recovery tank
upside down and fit the outriggers to the tank. Once fitted these can remain in place permanently.
5) Push the Hose Inlet into the hole in the side of the Recovery Tank. The Hose Inlet must be pushed in
from the outside of the Recovery Tank ensuring that the lug on the side of the Hose Inlet is lined up
with the slot in the hole in the Recovery Tank. Grasp the Hose Inlet from inside the Recovery Tank and
pull with an up and down motion to engage. Make sure that the clips on the top and bottom of the
Hose Inlet are fixed into place inside the Recovery Tank. Once installed the Hose Inlet can remain in
place permanently.
6) Fit the outlet elbow to the outlet on the motor housing. The outlet elbow can be used to deflect airflow
from the motor away from the work area.
3

4
FILTER INSTALLATI N
WARNING
DISCONNECT POWER SUPPLY BEFORE OPENING
CAUTI N
NEVER OPERATE THIS CLEANER WITHOUT THE CORRECT FILTER FITTED
Failure to do this will invalidate the guarantee. A clean filter is essential for this cleaner to operate
efficiently. If the filter becomes clogged or damaged or fails to operate you must fit an Earlex
replacement. Details are supplied with the cleaner.
FILTER SYSTEM
The cleaner is supplied with a combined wet and dry cartridge filter. To
fit the filter slide it down over the float cage until it touches the top then
push the pin part of the fastener through the centre of the filter to hold it
in place - see illustration. To remove the filter from the unit, pull the pin from
the centre of the unit and then pull the filter from the unit.
For dry pick up always ensure that the filter is completely dry before
use. When using the filter for wet pick up ensure that it is not left
submerged for longer than necessary. Empty the waste container
immediately after use.
The combined filter supplied is for light duty wet pick up. If you are reguarly picking up wet deposits we
recommend that you purchase a Heavy Duty Combined Filter - Part no. WDACC13
CLEANING THE FILTER
Remove the filter from the float cage. If the filter is covered with dry dirt or debris use a brush to remove the
dirt from the outside of the filter. If the filter is covered with wet or damp dirt/debris then immerse it in a bucket
of warm soapy water, the filter may have to be left to soak. Once the dirt has been removed rinse the filter
under a running tap allowing the water to pass from the inside to the outside of the filter. For dry applications
the filter must then be allowed to dry thoroughly before being used again.
DUST C LLECTI N BAG
The cleaner is also supplied with a dust collection bag to allow fine dust and dirt to be collected. To fit the
dust collection bag place it inside the recovery tank with the card sleeve by the inlet stub. Push the card
sleeve over the inlet stub so that the rubber seal holds the dust collection bag in place inside the recovery
tank. Be careful not to tear the dust collection bag whilst fitting it. Ensure the cartridge filter is also fitted after
positioning the dust collection bag.
ASSEMBLING THE H SE
The hose has a swivel connector fitted to one end and an extension tube
connector to the other. When using the vacuum facility fit the swivel connector
into the inlet in the side of the recovery tank (see illustration).
Fit one of the extension tubes into the other end of the hose, making sure you
slide this on as far as possible. If required the second extension tube can now
be added and either the floor head or the crevice tool fitted into the end. The
cleaner can be used without either of these tools if required.
PERATI N
1) Ensure that the motor housing has been clipped onto the base in the correct position, with the air
outlet opposite the vacuum inlet hose. Failure to observe this will allow the
filter to foul the internal inlet pipe.
2) Unwind the mains lead fully and connect to the mains or extension lead.

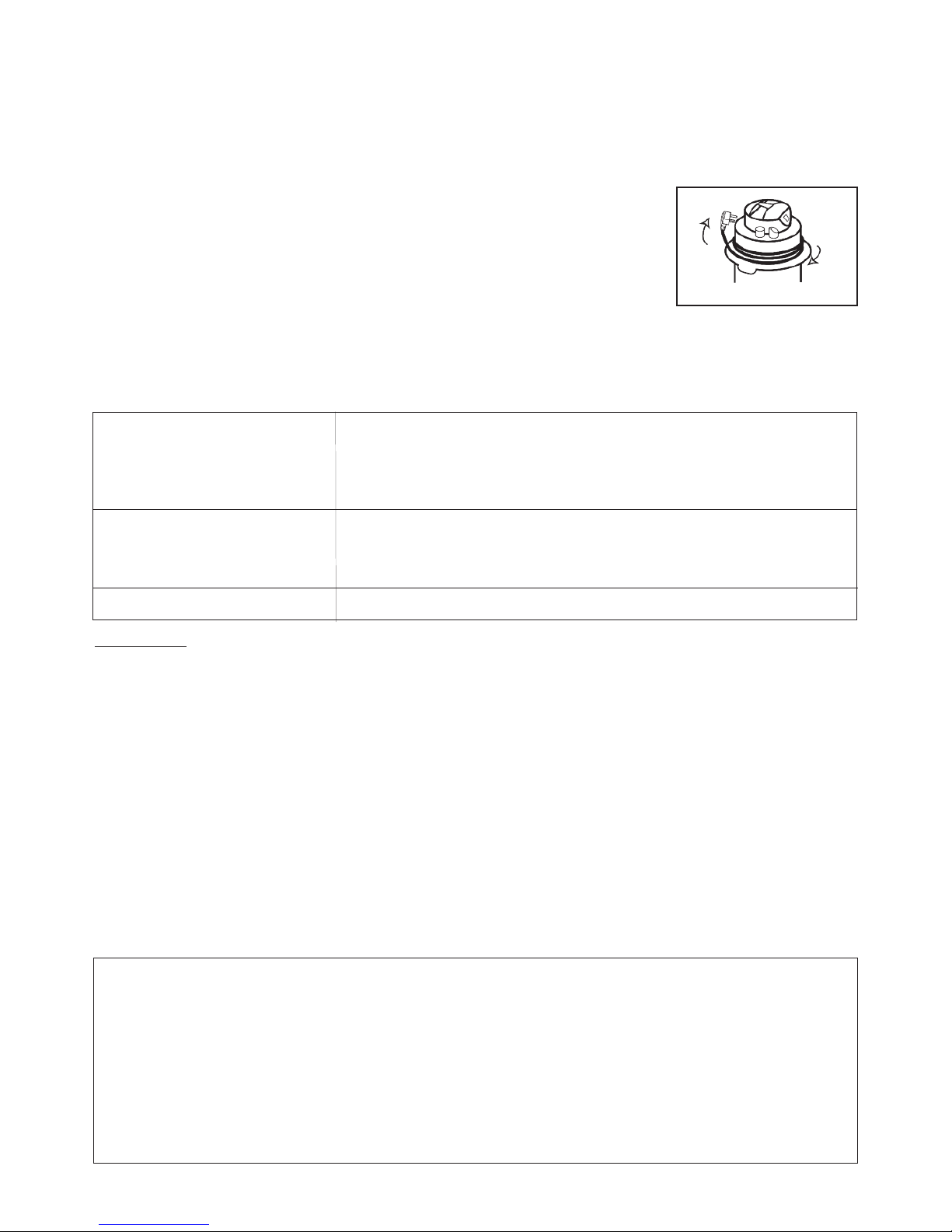

3) The unit has two operating modes - continuous and power take off mode.
With the switch set to position I (continuous mode) the vacuum motor will
operate all the time that the switch is on. SWITCH P SITI NS
4

With the switch in position II (power take off mode) the operation of the vacuum motor is controlled by a
power tool plugged into the socket on the back of the unit. When the power tool is switched on there is a
delay of approximately 5 seconds before the vacuum motor switches on. When the power tool is
switched off there is a delay of approximately 7 seconds before the vacuum motor switches off.
FL AT SHUT FF
The cleaner is protected by an automatic shut-off float valve when it becomes full of liquid. This will
become apparent to you as the motor will start to make a high pitched noise. If this happens:
1) Switch the unit off.
2) Disconnect from the mains.
3) Lift the hose up to drain any excess liquid back into the container.
4) Empty the contents of the tank.
5) Try to keep the hose raised whilst emptying out the liquid, this can help eliminate any spills.
WARNING - BE CAREFUL WHEN EMPTYING THE TAN - IT MAY BE HEAVIER THAN YOU THIN .
Important
The float valve is a safety device, do not attempt to remove this or modify it, it is there for your safety.
Should the cleaner overturn during use, switch the unit off immediately, return to the upright position and
wait until the float valve has repositioned itself.
If collecting soapy water you will need to regularly check whether the unit requires emptying as the lather
can bypass the float system and there can be a discharge of foam! Should this occur switch off the unit,
wash out any foam in the filter and tip away any water around the outlet on the motor housing, before
restarting.
EMPTYING TANK
WARNING - TA E CARE, THE TAN MAY BE HEAVIER THAN YOU THIN .
1) Switch off the unit and unplug from the socket.
2) Unclip the motor housing from the recovery tank.
3) Empty tank of all contents - making sure that you are protected against any sharp objects. Beware of
excess weight.
4) Clean filter.
5) Check and clean any blockages within the unit.
6) Replace motor housing, plug in and continue as before.
BL WER FUNCTI N
1) The CombiPowerVacTM can be used as a powerful blower by inserting the hose into the outlet on the
motor housing.
2) Always ensure that the hose, tank and accessories have been cleaned of any debris before operating
the blower function.
3) You should always protect your eyes with safety goggles when using this function and ensure that
no one else is in close proximity.
4) Uses include: blowing leaves into piles, blowing out dust from difficult to get to areas, faster drying of
paint. The blower function is also used to power the Combispray Gun which is available as an optional
extra. Part no. WDACC18
Note - Always switch the unit off before changing between vacuum and blower functions.
FL R HEAD ASSEMBLY
To assemble the floor head, offer the brush/squeegee head up to the body and when securely in place, clip
the securing lock tabs into place with a firm finger pressure. To release, unclip by applying a firm finger
pressure in an outwards direction. Do not under any circumstances use tools such as pliers or a screwdriver
as you may damage the product. If required, the brush/squeegee head can be cleaned with warm soapy
water.
5

GUARANTEE
This product is guaranteed for a period of two (2) years against faulty materials and workmanship.The
guarantee specifically excludes the use for hire or rental purposes.
Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working
order, Earlex cannot under any circumstances accept liability for problems or damage caused by their
subsequent use. Any unit that has been modified in any way or used on incorrect voltage will not be
covered by guarantee. Consumables such as filters are not covered by guarantee. This guarantee does not
affect your statutory rights. In the event of a fault occuring please contact our helpline before returning the
unit to our Service Department at the address below together with a copy of your purchase receipt. All
repairs will be dealt with speedily.
P WER T L ADAPT R
The unit is supplied with a stepped power tool adaptor to fit the exhaust port of many sanders, planers and
jigsaws. To use the power tool adaptor fit the large end into the end of the hose and the smaller end into the
exhaust port of the power tool. Depending on the size of the power exhaust port it may be necessary to cut
the smaller sections from the power tool adaptor.
ST RAGE
1) Clean out the container and wipe the surface of the unit over with a damp
cloth.
2) Wrap the mains lead around the upper moulding as shown in illustration and
clip plug to lead.
3) The extension tubes, crevice tool and floor head can be stored either in the
outriggers or on the posts on either side of the top of the unit.
TR UBLE SH TING
IF A PROBLEM OCCURS ALWAYS SWITCH THE UNIT OFF IMMEDIATELY
Motor does not operate. Check unit is plugged in and switched on.
Check fuse in plug - replace only with a fuse of the same rating -
13amps.
If using extension lead check the fuse in this lead.
Check the switch is in position l for use in continuous mode.
Motor operates but cleaner fails Check if the cleaner needs emptying.
to pick up. Check and clear any blockages within the system.
Check that filters are clean and not damaged.
Check hose is in correct outlet.
Motor makes high pitched noise. Check if cleaner needs emptying and the float valve has operated.
Maintenance
After wet pick up empty, rinse and dry the recovery tank, hose and accessories. If sticky spills, clean the
tank and accessories with warm, soapy water.
Periodically clean the cartridge filter, this will improve its performance. Thoroughly dry before using for dry
pick up.
Do not oil the motor. It is lubricated for life.
There are no serviceable parts inside the cleaner apart from the filters.
AFTER SALES SERVICE
A range of accessories together with all spare parts are available from our service department who will
furnish details for you.
IF Y U REQUIRE FURTHER ASSISTANCE THEN PLEASE C NTACT UR HELPLINE N
Tel: [phone] Fax: [phone] email:[email protected]
pening Hours: Monday- Friday 08.30-17.30 (excluding Bank Holidays)
6

ACCESS RIES AND SPARE PARTS
A range of spare parts are available for the CombiPowerVacTM . To order please contact our helpline on
01483 454666. Opening Hours: Monday-Friday 08.30-17.30 (excluding Bank Holidays)
WDACC13 - Combined Wet and Dry Heavy Duty Filter
WDACC14 - Wide Bore Tool Kit for larger debris such as rubble and leaves.
WDACC16 - Sink Deblocker - clears blockages from sinks, baths and showers.
WDACC18 - Combispray - Multipurpose spray gun
WDACC19 - Replacement Dust Collection Bags
WDACC20 - Replacement Cellulose Cartridge Filter
MAINS C NNECTI N
This unit is supplied with a mains lead fitted with a fused plug. This is identified by the fuse holder in the
base of the plug. If the supply cord is damaged, it must be replaced by a special assembly available from
Earlex Limited or our appointed agents.
Please read the following safety instructions before use.
1. If the fitted plug is cut off from the mains lead then the plug must be disposed of safely.
NEVER under any circumstances insert such a plug into a 13 amp socket.
2. NEVER under any circumstances use the appliance or mains lead without the fuse cover fitted.
This is the little cover fixed into the base of the plug to hold the fuse in place.
3. If you lose the fuse cover then please contact any electrical dealer for a replacement or ring our
helpline.
4. A replacement fuse must be rated at 13 amp. These must be manufactured and approved to BS 1362.
5. IF IN ANY D UBT C NTACT AN ELECTRICIAN.
If you need to fit a plug to the mains lead, this should be fitted in accordance with the wiring
instructions below, and will need to be used with a 13 amp fuse. If in doubt consult an electrician.
WARNING - THIS APPLIANCE MUST BE EARTHED. If you are using an extension lead it must be
rated at a minimum of 13 amps and fully unwound. Do not operate with a lead rated at less than 13
amps as this will cause premature failure of the unit which is not covered by the guarantee.
As the colours of the wires in the mains lead of the application may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol, or coloured green and/or yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
7
EC Declaration of Conformity
We declare that the unit: WD1200P conforms to: 73/23/EEC, EN60335-1 & 2-2 & 89/336/EEC,
EN55014 - 1, EN55014 - 2 EN61000-3-2, 3-3, 4-2, 4-4, 4-5, 4-6, 4-11
Tim Hopper Technical Director

THER PR DUCTS FR M EARLEX
Earlex also manufacture a wide range of steam wallpaper strippers and other decorative power tools to help in your
DIY efforts.
STEAM WALLPAPER STRIPPERS
Designed to remove all types of wallpaper, multi-layered painted papers and even Artex.
SC165 -Combi-Steam 1500W 4.5ltr combines the versatility of the steam wallpaper stripper with a selected range of
accessories providing you with a complete steam cleaning kit and wallpaper stripper.
steam cleaning kit, includes: floor cleaner, window/tile cleaner, jet nozzle cleaner, upholstery cleaner/ small steam
plate, large wallpaper stripping plate.
PR9 Autofeed Cordless Painting System -Portable battery operated paint rolling system. It has a 3 litre paint
reservoir and 23cm (9”) roller and automatically feeds paint to the roller head. Easy to use the PR9 provides enough
capacity to apply one coat to a 3.6m x 2.7m (12’ x 9’) room without having to refill.
PRA1 1.4m Extension Pole -Used in conjunction with the PR9 the PRA1 allows you to paint ceilings and high areas
without the use of step ladders or having to move furniture.
Spray Station - HVLP (High Volume Low Pressure) Complete paint spraying system - Ideal for spraying large
or detailed jobs with equal ease. Fast and easy, provides a quality finish with no unsightly brush marks. The Spray
Station can spray many types of paint, such as stains, varnishes, emulsion, glazes, wood treatments and many
more.
ASG55 Super Sprayer - Sprays a 6ʼx6ʼ fence panel, on average in 3 inutes!
55W Electric Airless Spray Gun, ideal for spraying wood preservatives, shed & fence treatments, water and solvent
based paints. Ideal for sheds, fences and trellis. It has a 1 litre capacity, easy-grip handle that provides good balance
and control. Hardened steel cylinder and stainless steel piston for longer life. it includes 0.6mm & 1mm nozzles & 3
In One® oil. Check the Earlex website for up to date information on what you can spray.
HG1600K - Heat Gun Kit - The Earlex Heat Gun it offers a 1600 Watt heat gun in a strong carry case and includes
a range of useful accessories. With two heat settings the heat gun can be set at 350˚C or 520˚C. It is provided with a
selection of four nozzles, three shavehooks and a scraper to suit different tasks and it all stores away conveniently in
the carry case.
R
8
Earlex Limited, Opus Park Moorfield Road,Guildford, Surrey. GU1 1SZ, U
Tel: [phone] Fax: [phone]
email: [email protected] website: www.earlex.co.uk
© 2007 Earlex Limited. WD0180 01/07
INF RMATI N N THE DISP SAL F WASTE ELECTRICAL AND ELECTR NIC EQUIPMENT
KN WN AS WEEE
Your attention is brought to new directives applicable to the disposal of this electrical equipment, where
in accordance with the legislation this product must not be disposed of in your normal household waste.
Instead it is your responsibility to dispose of this type of waste by handing it over to special designated
collection points for recovery and recycling. This product is marked with a ‘Wheelie bin’ symbol with a
cross on it to remind you of this action. The objective of this directive is to help conserve resources and ensure that it
is recycled in a manner that protects human health and the environment. For more information about where you can
drop off your waste please contact your local authority, take back facilities are free of charge.
