Earlex Combivac User manual

PLEASE READ THESE INSTRUCTI NS CAREFULLY BEF RE USE
RETAIN F R FUTURE REFERENCE
EARLEX LTD. W LL ACCEPT NO RESPONS B L TY FOR THE USE OF TH S PRODUCT F USED FOR
ANY OTHER PURPOSES THAN THOSE DETA LED HERE N.
Wet ‘n’ Dry Vacuum & Blower
COMB VAC®
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 1

2
PLEASE READ BEF RE USE
GDo not leave appliance unattended when
plugged in. Unplug from outlet when not
in use and before servicing and cleaning.
GTo avoid electric shock, do not expose to
rain. Store Indoors.
GNever pick up inflammable or
combustible liquids such as petrol or
other volatile substances. Do not vacuum
boat bilges since flammable liquids or
fumes may be present.
GNever use in the presence of explosive
liquids, vapours or explosive dust - such
as coal or grain.
GNever pick up asbestos or asbestos dust.
GDo not pick up anything that is burning
or smouldering - such as cigarette ends,
hot coals, matches or similar.
GDo not allow the cleaner to be used by
children.
Gnly use the product as detailed in these
instructions.
GUse only manufacturers recommended
attachments and consumables.
GNever modify the cleaner in any way -
this is dangerous and will invalidate the
guarantee.
GDo not use cleaner without the filter in
place.
GIf motor sound becomes higher pitched
always check for the following:
1) Blocked hose or accessory.
2) Blocked filter.
3) Full container.
GNever try to move the cleaner by pulling
with the mains lead.
GAlways check that the filter is clear and
not blocked. Keep all openings clear of
any blockages.
GThis appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
GIf the motor sound becomes a higher
pitched noise then the container needs to
be emptied immediately.
GWhen lifting the unit always hold it with
both hands under the rim of the
container. Beware of excess weight.
GAlways switch the unit off before
changing between vacuum and
blower functions
INTR DUCTI N
Thank you for purchasing an Earlex CombiVac®. The uses for this product around the home,
garage, workshop and garden are numerous and we hope you will find the product is in constant
use. This cleaner can be used for picking up all kinds of dry material such as dust, brick dust
nails, broken glass, leaves, litter, wood shavings etc. n wet mode it can pick up various types of
liquid spills and help to unblock sinks. n blow mode it can be used for jobs such as collecting
leaves into piles, dusting out the garage or workshop.
Due to the heavy duty nature of a wet & dry cleaner the motor may sound louder than your
normal cleaner. n order to be able to pick up liquids, a special by-pass motor is fitted so that the
liquid can be deposited into the recovery tank without going through the motor.
Before leaving our factory each unit has been checked to ensure that it meets our high safety,
quality and performance standards.
N TE
The standard floor head supplied with the CombiVac®is designed as a general purpose tool and
does not give the same performance as a conventional vacuum cleaner when used on carpets.
For improved performance when using the CombiVac®to clean carpets we recommend the use of
the Deluxe Floor Head accessory (WDACC2). This includes a brush attachment for use on
carpets.
SAFETY RULES
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 2

UNPACKING AND SETTING UP
1) Remove all packing materials and accessories and lift unit out of the box.
2) Release the two tank clips and lift the motor housing off from the recovery tank.
3) Remove all components from inside the tank.
4) Turn the tank upside down and insert the 4 castors. These should be pushed in hard until they stop.
Once installed these remain in place permanently.
5) Push the Hose nlet into the hole in the side of the Recovery Tank. The Hose nlet must be pushed in
from the outside of the Recovery Tank ensuring that the lug on the side of the Hose nlet is lined up
with the slot in the hole in the Recovery Tank. Grasp the Hose nlet from inside the Recovery Tank and
pull with an up and down motion to engage. Make sure that the clips on the top and bottom of the
Hose nlet are fixed into place inside the Recovery Tank. Once installed the Hose nlet can remain in
place permanently.
6) Fit the outlet elbow to the outlet on the motor housing. The outlet elbow can be used to deflect airflow
from the motor away from the work area.
3
CMP NENTS

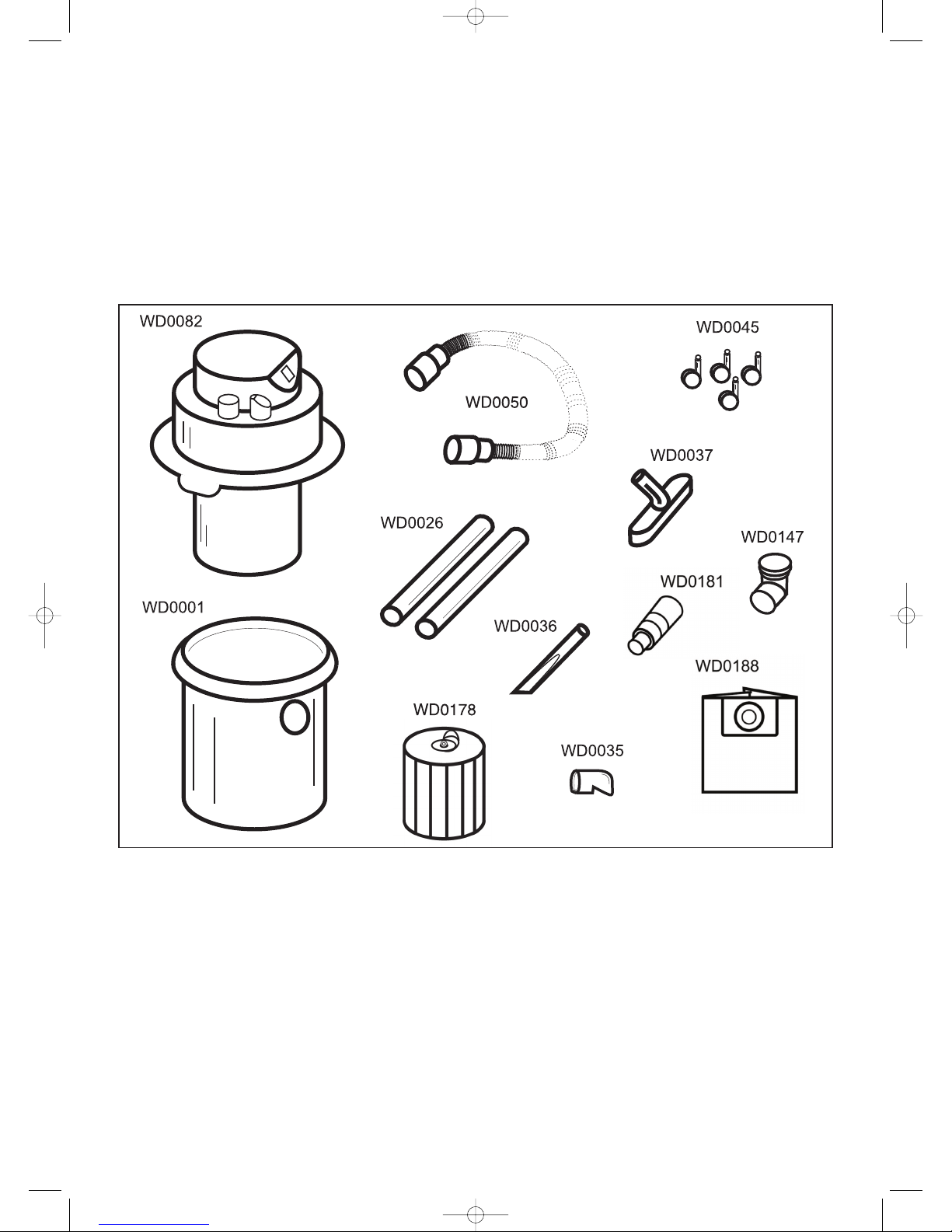

The following components are included in the kit (as illustrated below)
WD0001 Recovery Tank
WD0036 Crevice Tool
WD0026 Extension Tubes x 2
WD0037 Floor Head
WD0045 Castors x 4
WD0050 Hose
WD0082 Motor Housing Assembly
WD0035 Hose nlet
WD0147 Outlet Elbow
WD0178 Combined Filter
WD0188 Dust Collection Bag
WD0181 Power Tool Adaptor
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 3

4
FILTER INSTALLATI N
WARNING
D SCONNECT POWER SUPPLY BEFORE OPEN NG
CAUTI N
NEVER OPERATE TH S CLEANER W THOUT THE CORRECT F LTER F TTED
Failure to do this will invalidate the guarantee. A clean filter is essential for this cleaner to operate
efficiently. f the filter becomes clogged or damaged or fails to operate you must fit an Earlex
replacement. Details are supplied with the cleaner.
FILTER SYSTEM

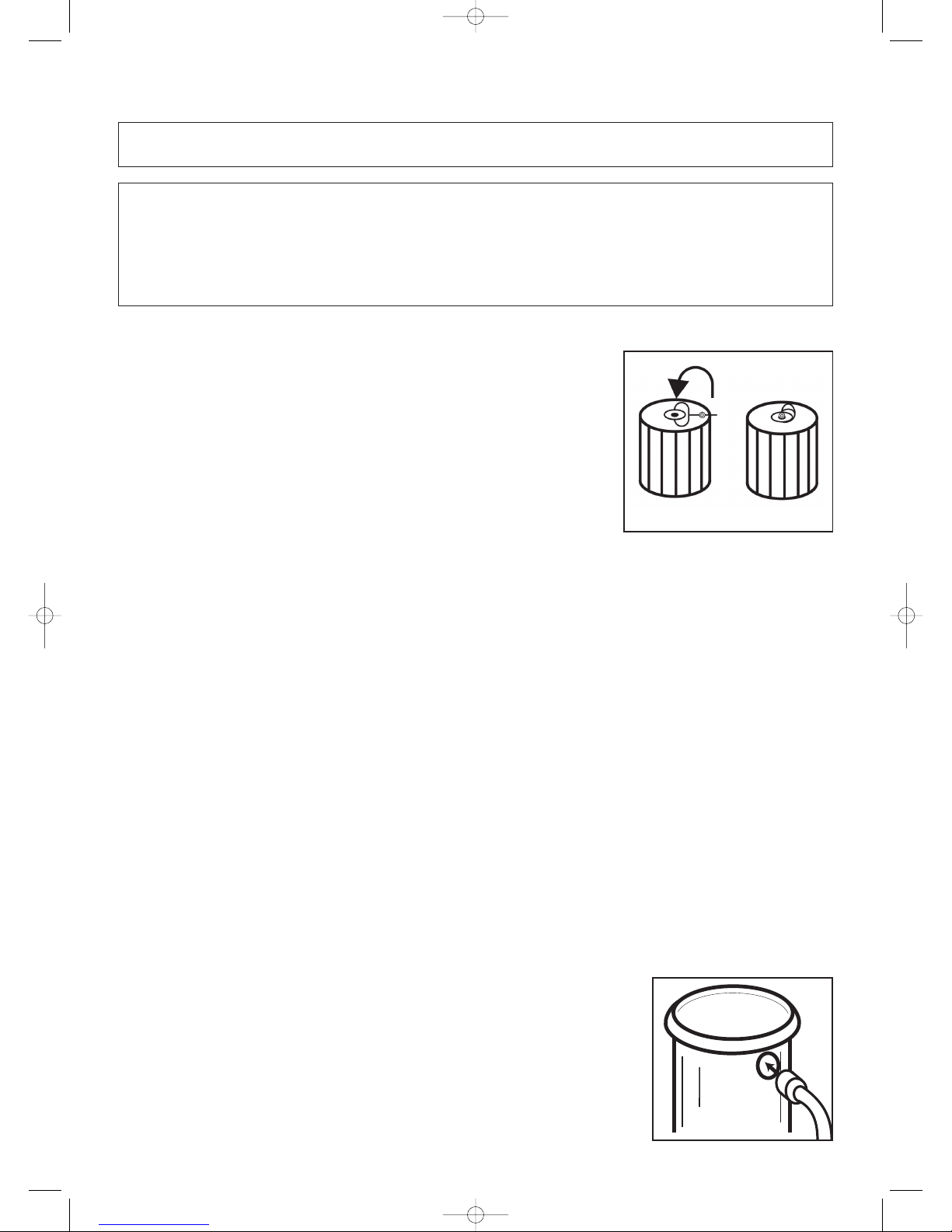

The cleaner is supplied with a combined wet and dry cartridge filter. To fit
the filter slide it down over the float cage until it touches the top then push
the pin part of the fastener through the centre of the filter to hold it in place
- see illustration. To remove the filter from the unit, pull the pin from the
centre of the unit and then pull the filter from the unit.
For dry pick up always ensure that the filter is completely dry before use.
When using the filter for wet pick up ensure that it is not left submerged for
longer than necessary. Empty the waste container immediately after use.
The combined filter supplied is for light duty wet pick up. f you are regularly
picking up wet deposits we recommend that you purchase a Heavy Duty
Combined Filter - Part no. WDACC13
CLEANING THE FILTER
Remove the filter from the float cage. f the filter is covered with dry dirt or debris use a brush to remove the
dirt from the outside of the filter. f the filter is covered with wet or damp dirt/debris then immerse it in a bucket
of warm soapy water, the filter may have to be left to soak. Once the dirt has been removed rinse the filter
under a running tap allowing the water to pass from the inside to the outside of the filter. For dry applications
the filter must then be allowed to dry thoroughly before being used again.
DUST C LLECTI N BAG
The cleaner is also supplied with a dust collection bag to allow fine dust and dirt to be collected. To fit the
dust collection bag place it inside the recovery tank with the card sleeve by the inlet stub. Push the card
sleeve over the inlet stub so that the rubber seal holds the dust collection bag in place inside the recovery
tank. Be careful not to tear the dust collection bag whilst fitting it. Ensure the cartridge filter is also fitted after
positioning the dust collection bag.
P WER T L ADAPT R
The unit is supplied with a stepped power tool adaptor to fit the exhaust port of many sanders, planers and
jigsaws. To use the power tool adaptor fit the large end into the end of the hose and the smaller end into the
exhaust port of the power tool. Depending on the size of the power exhaust port it may be necessary to cut
the smaller sections from the power tool adaptor.
ASSEMBLING THE H SE
The hose has a swivel connector fitted to one end and an extension tube
connector to the other. When using the vacuum facility fit the swivel connector
into the inlet in the side of the recovery tank (see illustration).
Fit one of the extension tubes into the other end of the hose, making sure you
slide this on as far as possible. f required the second extension tube can now
be added and either the floor head or the crevice tool fitted into the end. The
cleaner can be used without either of these tools if required.
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 4

PERATI N
1) Ensure that the motor housing has been clipped onto the base in the correct position, with the air
outlet opposite the vacuum inlet hose. Failure to observe this will allow the filter to foul the internal
inlet pipe.
2) Unwind the mains lead fully and connect to the mains or extension lead.
3) Switch unit on.
4) Operate as required.
Beware of discharged air from the outlet on the motor housing.
FL AT SHUT FF
The cleaner is protected by an automatic shut-off float valve when the recovery tank becomes full of
liquid. This will become apparent to you as the motor will start to make a high pitched noise. f this
happens:
1) Switch the unit off.
2) Disconnect from the mains.
3) Lift the hose up to drain any excess liquid back into the container.
4) Empty the contents of the tank.
5) Try to keep the hose raised whilst emptying out the liquid, this can help eliminate any spills.
WARN NG - BE CAREFUL WHEN EMPTY NG THE TANK - T MAY BE HEAV ER THAN YOU TH NK.
mportant
The float valve is a safety device, do not attempt to remove this or modify it, it is there for your safety.
Should the cleaner overturn during use, switch the unit off immediately, return to the upright position and
wait until the float valve has repositioned itself.
f collecting soapy water you will need to regularly check whether the unit requires emptying as the lather
can bypass the float system and there can be a discharge of foam! Should this occur switch off the unit,
wash out any foam in the filter and tip away any water around the outlet on the motor housing, before
restarting.
EMPTYING TANK
WARN NG - TAKE CARE, THE TANK MAY BE HEAV ER THAN YOU TH NK.
1) Switch off the unit and unplug from the socket.
2) Unclip the motor housing from the recovery tank.
3) Empty tank of all contents - making sure that you are protected against any sharp objects. Beware of
excess weight.
4) Clean filters (change if necessary).
5) Check and clean any blockages within the unit.
6) Replace motor housing, plug in and continue as before.
BL WER FUNCTI N
1) The CombiVacTM can be used as a powerful blower by inserting the hose into the outlet on the motor
housing.
2) Always ensure that the hose, tank and accessories have been cleaned of any debris before operating
the blower function.
3) You should always protect your eyes with safety goggles when using this function and ensure that
no one else is in close proximity.
4) The paper bag filter is not required when using the blower.
5) Uses include: blowing leaves into piles, blowing out dust from difficult to get to areas, faster drying of
paint.
Note - Always switch the unit off before changing between vacuum and blower functions.

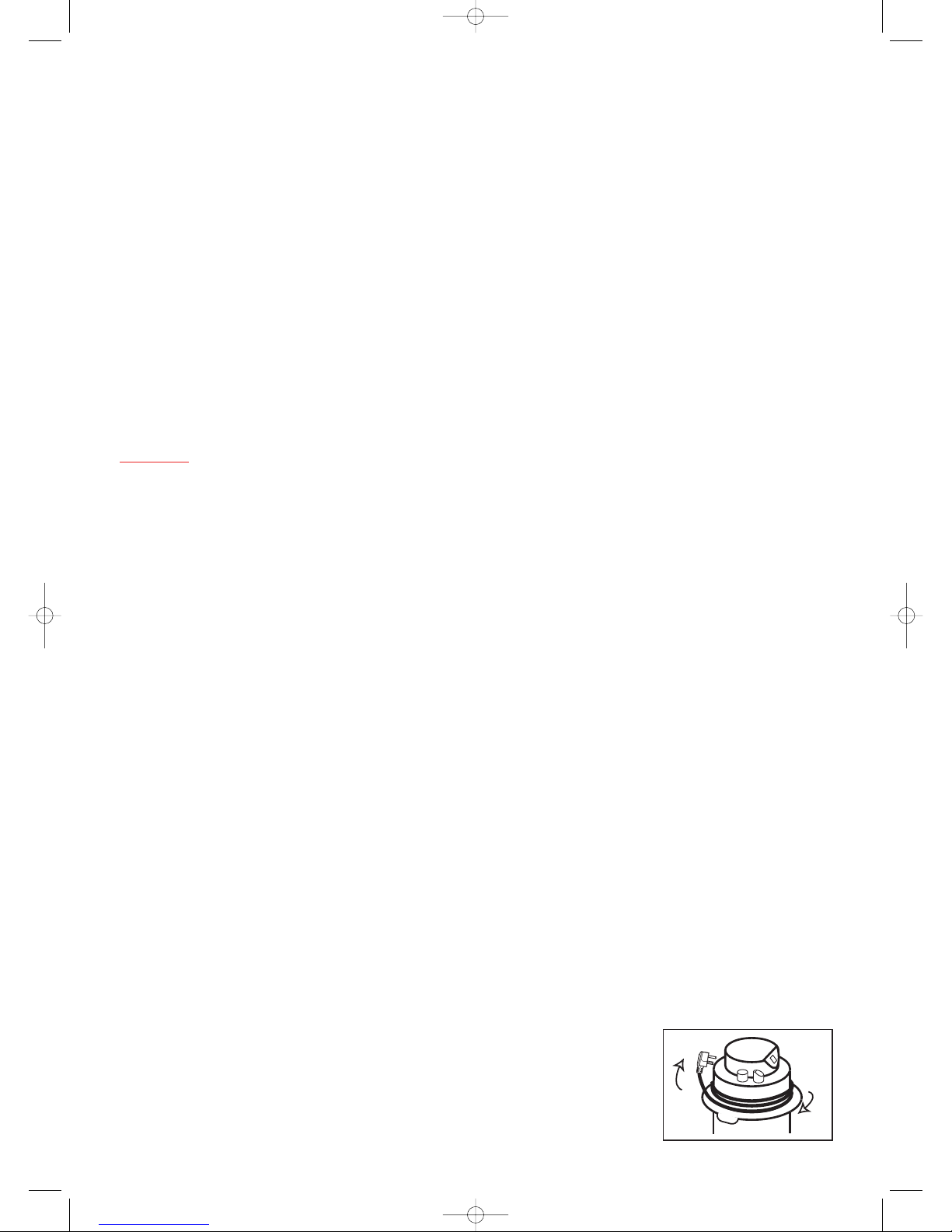

ST RAGE
1) Clean out the container and wipe the surface of the unit over with a damp
cloth.
2) Wrap the mains lead around the upper moulding as shown in illustration and
clip plug to lead.
3) Locate the 2 extension tubes onto the taller posts on the cleaner top with the
nozzle tool and floor head on the lower angled posts.
5
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 5

––
6
TR UBLE SH TING
IF A PROBLEM OCCURS ALWAYS SWITCH THE UNIT OFF IMMEDIATELY
Motor does not operate. Check unit is plugged in and switched on.
Check fuse in plug - replace only with a fuse of the same rating -
13 amps and marked BS1362.
f using extension lead check the fuse in this lead.
Motor operates but cleaner fails Check if the cleaner needs emptying.
to pick up. Check and clear any blockages within the system.
Check that the combined filter is not damaged.
Motor makes high pitched noise. Check if cleaner needs emptying and the float valve has operated.
Dust/grit blowing from outlet. Check filter is correctly fitted, if heavy duty filter is used check that it is
fully pushed into position.
Maintenance
After wet pick up empty, rinse and dry the recovery tank, hose and accessories. f vacuuming/collecting
sticky spills, clean the tank and accessories with warm, soapy water.
Periodically replace the Dust Collection Bag.
Do not oil the motor. t is lubricated for life.
There are no serviceable parts inside the cleaner apart from the filters.
AFTER SALES SERVICE
A range of accessories together with all spare parts are available from our service department who will
furnish details for you.
IF Y U REQUIRE FURTHER ASSISTANCE THEN PLEASE C NTACT UR HELPLINE N
Tel: [phone] Fax: [phone] email:[email protected]
pening Hours: Monday-Friday 08.30-17.00 (excluding Bank Holidays)
GUARANTEE
This product is guaranteed for a period of two (2) years against faulty materials and workmanship. The
guarantee specifically excludes the use for hire or rental purposes.
Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working
order, Earlex cannot under any circumstances accept liability for problems or damage caused by use of
such products not in adherence to the instructions enclosed. Any unit that has been modified in any way or
used on incorrect voltage will not be covered by guarantee. Consumables such as filters are not covered
by guarantee.
This guarantee does not affect your statutory rights. n the event of a fault occurring please contact our
helpline before returning the unit to our Service Department at the address below together with a copy of
your purchase receipt. All repairs will be dealt with speedily.
EC Declaration of Conformity
We declare that units: WD1000, WD1100 and WD1400 conforms to: 2006/95/EC, EN60335-2-2 &
2004/108/EC, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EMF EN62233
Tim Hopper Technical Director
Copyright Reserved © 2011
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 6

ACCESS RIES AND SPARE PARTS
Arange of spare parts are available for the CombiVacTM .To order please contact our helpline on
01483 454666. Opening Hours: Monday-Friday 08.30-17.00 (excluding Bank Holidays).
WDACC2 - Deluxe Floor Head with hard floor, brush and squeegee attachments. Wider head for greater
coverage, suitable for carpets and faster pickup of debris and spills.
WDACC10 - Pack of three spare foam filters.
WDACC11 - Pack of three spare paper filters.
WDACC12 - Power Tool Adaptor.
WDACC13 - Combined Wet & Dry Filter no need for foam filter or paper filter and no need to change
between filters for dry or wet pickup.
WDACC14 - Wide Bore Tool Kit for larger debris such as rubble and leaves.
WDACC15 - Mini Cleaning Set - ideal for cleaning/blowing computers, video recorders, air vents in cars.
WDACC16 - Sink Deblocker - clears blockages from sinks, baths and showers.
WDACC18 - Combispray - Multipurpose spray gun
WDACC19 - Dust Collection bags - Dust bags suitable for collecting fine dust.
WDACC20 - Cellulose Cartridge Filter - Wet ʻn Dry vacuum filter, not recommended for prolonged wet use.
MAINS C NNECTI N
This unit is a Class appliance which means it is double insulated for your protection, no earthing wire is
necessary.
f the supply cord is damaged, the whole appliance must be referred to a qualified Earlex engineer or
appointed agent.
Your unit has been supplied with a mains lead with a fitted plug. This is identified by the fuse holder in the
base of the plug. Please read the following safety instructions before use.
1. f the fitted plug is cut off from the mains lead then the plug must be disposed of safely.
NEVER under any circumstances insert such a plug into a 13 amp socket.
2. NEVER under any circumstances use the appliance or mains lead without the fuse cover fitted.
This is the little cover fixed into the base of the plug to hold the fuse in place.
3. f you lose the fuse cover do not operate until a cover is fitted or ring our helpline.
4. A replacement fuse must be rated at 13 amp. These must be manufactured and approved to BS 1362.
5. IF IN ANY D UBT C NTACT A QUALIFIED ELECTRICIAN.
f you need to fit a plug to the mains lead, this should be fitted in accordance with the wiring
instructions below, and will need to be used with a BS1362 approved 13A fuse. f in doubt consult a
qualified electrician.
f you are using an extension lead it must be rated at a minimum of 6 amps and fully unwound. Do not
operate with a lead rated at less than 6 amps as this will cause premature failure of the motor which
is not covered by the guarantee.

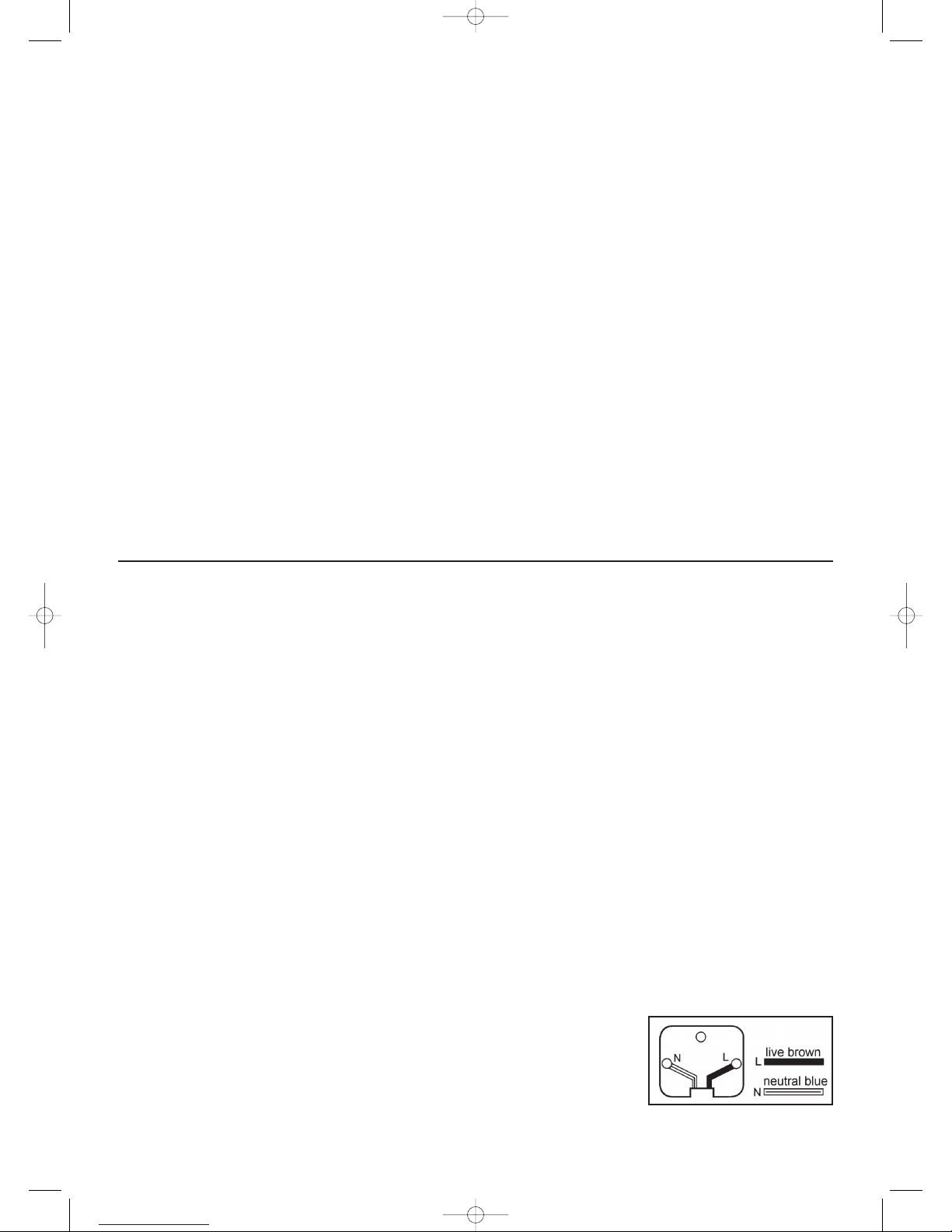

As the colours of the wires in the mains lead of the application may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured blue or black must be connected to the terminal
which is marked with the letter N.
The wire which is coloured brown or red must be connected to the terminal
which is marked with the letter L.
7
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 7

THER PR DUCTS FR M EARLEX
Earlex also manufacture a wide range of steam wallpaper strippers and other decorating power tools to
help in your D Y efforts.
STEAM WALLPAPER STRIPPERS
Designed to remove all types of wallpaper, multi-layered painted papers and Artex®.
STEAM CLEANING KIT
Steam cleaning kit, including floor cleaner, window/tile cleaner, jet nozzle cleaner, upholstery cleaner,
small steam plate, large wallpaper stripping plate.
SprayStation®- HVLP (High Volume Low Pressure) Complete paint spraying system - deal for
spraying large or detailed jobs with equal ease. Fast and easy, provides a quality finish with no unsightly
brush marks. The SprayStation®can spray many types of paint, such as stains, varnishes, emulsion,
glazes, wood treatments and many more.
HG2000K - Heat Gun Kit. The Earlex Heat Gun Kit offers a 2000 Watt heat gun in a strong carry case
and includes a range of useful accessories. With two heat settings the heat gun can be set at 350oC or
600oC. t is provided with a selection of four nozzles, three shavehooks and a scraper to suit different
tasks and it all stores away conveniently in the carry case.
Earlex Ltd., Opus Park, Moorfield Road, Guildford, Surrey, GU1 1SZ, United Kingdom.
Tel: [phone]. Fax: [phone].
email: [email protected]
www.earlex.com
©2011 Earlex Ltd. WD0327 06/11
Information on the disposal of waste electrical & electronic equipment known
as WEEE:
Your attention is brought to new directives applicable to the disposal of this electrical
equipment, where in accordance with the legislation this product must not be disposed of in
your normal household waste. nstead it is your responsibility to dispose of this type of
waste by handing it over to special designated collection points for recovery and recycling.
This product is marked with a ʻWheelieʼ symbol with a cross on it to remind you of this
action. The objective of this directive is to help conserve resources and ensure that it is
recycled in a manner that protects human health and the environment. For more information
about where you can drop off your waste please contact your local authority, take back facilities are free of
charge.
WD0327-06-11.qxd:WD0046-03/05.qxd 9/6/11 09:19 Page 8
