Earlex CombiVac WD1000 User manual

INSTRUCTIONS AND GUARANTEE
COMBIVACTM
MULTI-PURPOSE WET & DRY
VACUUM AND BLOWER SYSTEM
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE
RETAIN FOR FUTURE REFERENCE
R

PLEASE READ BEFORE USE
· Do not leave appliance unattended when
plugged in. Unplug from outlet when not
in use and before servicing and cleaning.
· To avoid electric shock, do not expose to
rain. Store Indoors.
· Never pick up inflammable or
combustible liquids such as petrol or
other volatile substances. Do not vacuum
boat bilges since flammable liquids or
fumes may be present.
· Never use in the presence of explosive
liquids, vapours or explosive dust - such
as coal or grain.
· Never pick up asbestos or asbestos dust.
· Do not pick up anything that is burning
or smouldering - such as cigarette ends,
hot coals, matches or similar.
· Do not allow the cleaner to be used by
children.
· Only use the product as detailed in these
instructions.
· Use only manufacturers recommended
attachments and consumables.
· Never modify the cleaner in any way -
this is dangerous and will invalidate the
guarantee.
· Do not use cleaner without the filter in
place.
· If motor sound becomes higher pitched
always check for the following:
1) Blocked hose or accessory.
2) Blocked filter.
3) Full container.
· Never try to move the cleaner by pulling
with the mains lead.
· Always check that the filter is clear and
not blocked. Keep all openings clear of
any blockages.
· If the motor sound becomes a higher
pitched noise then the container needs to
be emptied immediately.
· When lifting the unit always hold it with
both hands under the rim of the
container. Beware of excess weight.
· Always switch the unit off before
changing between vacuum and blower
functions.
2
INTRODUCTION
Thank you for purchasing an Earlex CombiVacTM. The uses for this product around the home,
garage, workshop and garden are numerous and we hope you will find the product is in constant
use. This cleaner can be used for picking up all kinds of dry material such as dust, brick dust
nails, broken glass, leaves, litter, wood shavings etc. In wet mode it can pick up various types of
liquid spills and help to unblock sinks. In blow mode it can be used for jobs such as collecting
leaves into piles, dusting out the garage or workshop.
Due to the heavy duty nature of a wet & dry cleaner the motor may sound louder than your
normal cleaner. In order to be able to pick up liquids, a special by-pass motor is fitted so that the
liquid can be deposited into the recovery tank without going through the motor.
Before leaving our factory each unit has been checked to ensure that it meets our high safety,
quality and performance standards.
SAFETY RULES

COMPONENTS

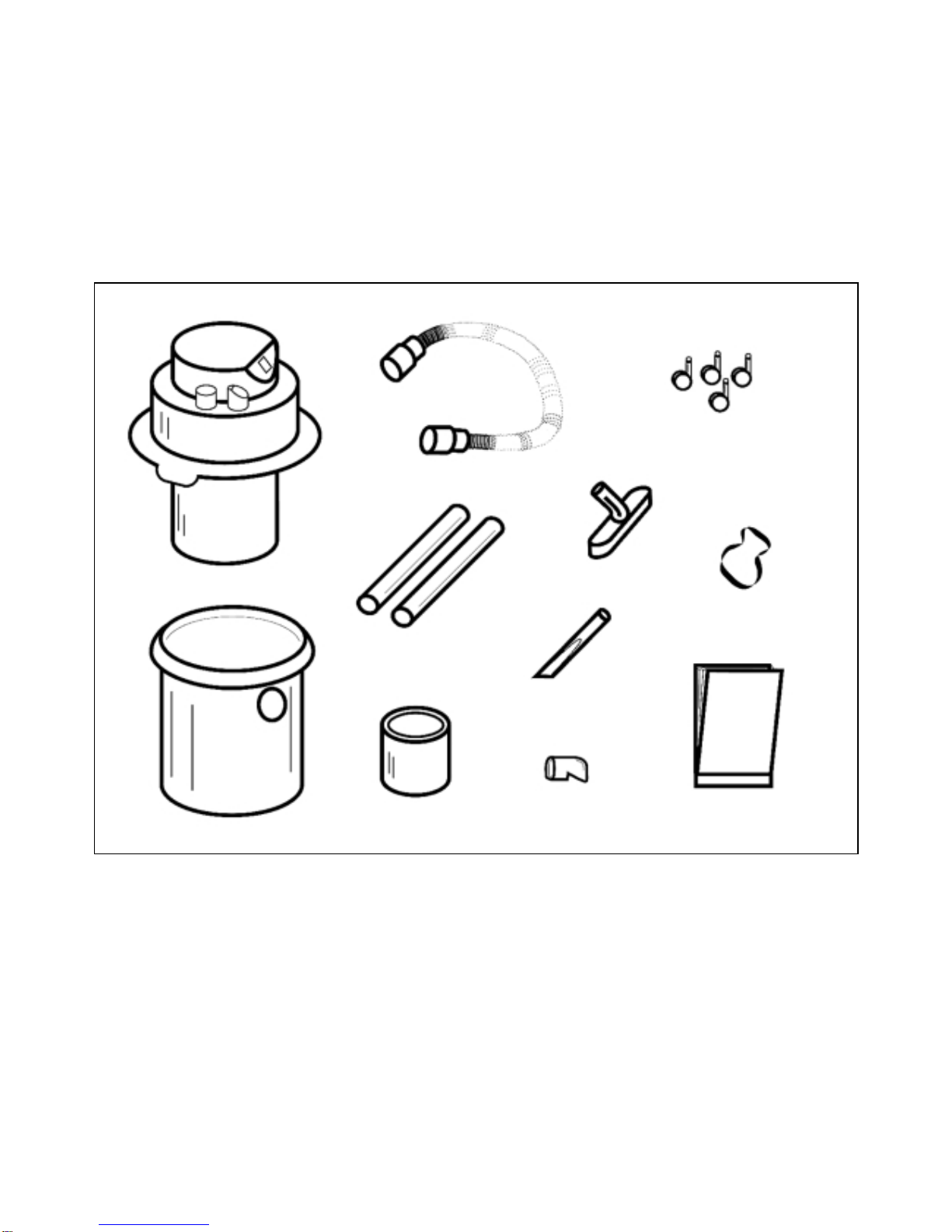

The following components are included in the kit (as illustrated below)
WD0001 Recovery Tank WD0036 Crevice Tool
WD0026 Extension Tubes x 2 WD0037 Floor Head
WD0029 Paper Filter WD0045 Castors x 4
WD0030 Foam Filter WD0048 Hose
WD0032 Rubber Band WD0082 Motor Housing Assembly
WD0035 Hose Inlet
UNPACKING AND SETTING UP
1) Remove all packing materials and accessories and lift unit out of the box.
2) Release the two tank clips and lift the motor housing off from the recovery tank.
3) Remove all components from inside the tank.
4) Turn the tank upside down and insert the 4 castors. These should be pushed in hard until they stop.
Once installed these remain in place permanently.
5) Push the Hose Inlet into the hole in the side of the Recovery Tank. The Hose Inlet must be pushed in
from the outside of the Recovery Tank ensuring that the lug on the side of the Hose Inlet is lined up
with the slot in the hole in the Recovery Tank. Grasp the Hose Inlet from inside the Recovery Tank and
pull with an up and down motion to engage. Make sure that the clips on the top and bottom of the
Hose Inlet are fixed into place inside the Recovery Tank. Once installed the Hose Inlet can remain in
place permanently.
3
WD0082
WD0048
WD0045
WD0001
WD0026
WD0037
WD0032
WD0036
WD0030
WD0035
WD0029

FILTER INSTALLATION
WARNING
DISCONNECT POWER SUPPLY BEFORE OPENING
CAUTION
NEVER OPERATE THIS CLEANER WITHOUT THE CORRECT FILTER FITTED
Failure to do this will invalidate the guarantee. A clean filter is essential for this cleaner to operate
efficiently. If the filter becomes clogged or damaged or fails to operate you must fit an Earlex
replacement. Details are supplied with the cleaner. Dry Filter Part No WD0029, Foam Filter Part
No WD0030.
FILTER SYSTEM
The cleaner is supplied with 2 filters, one is made of foam and the other of paper. It is extremely
important that you use these correctly.
DRY PICK UP

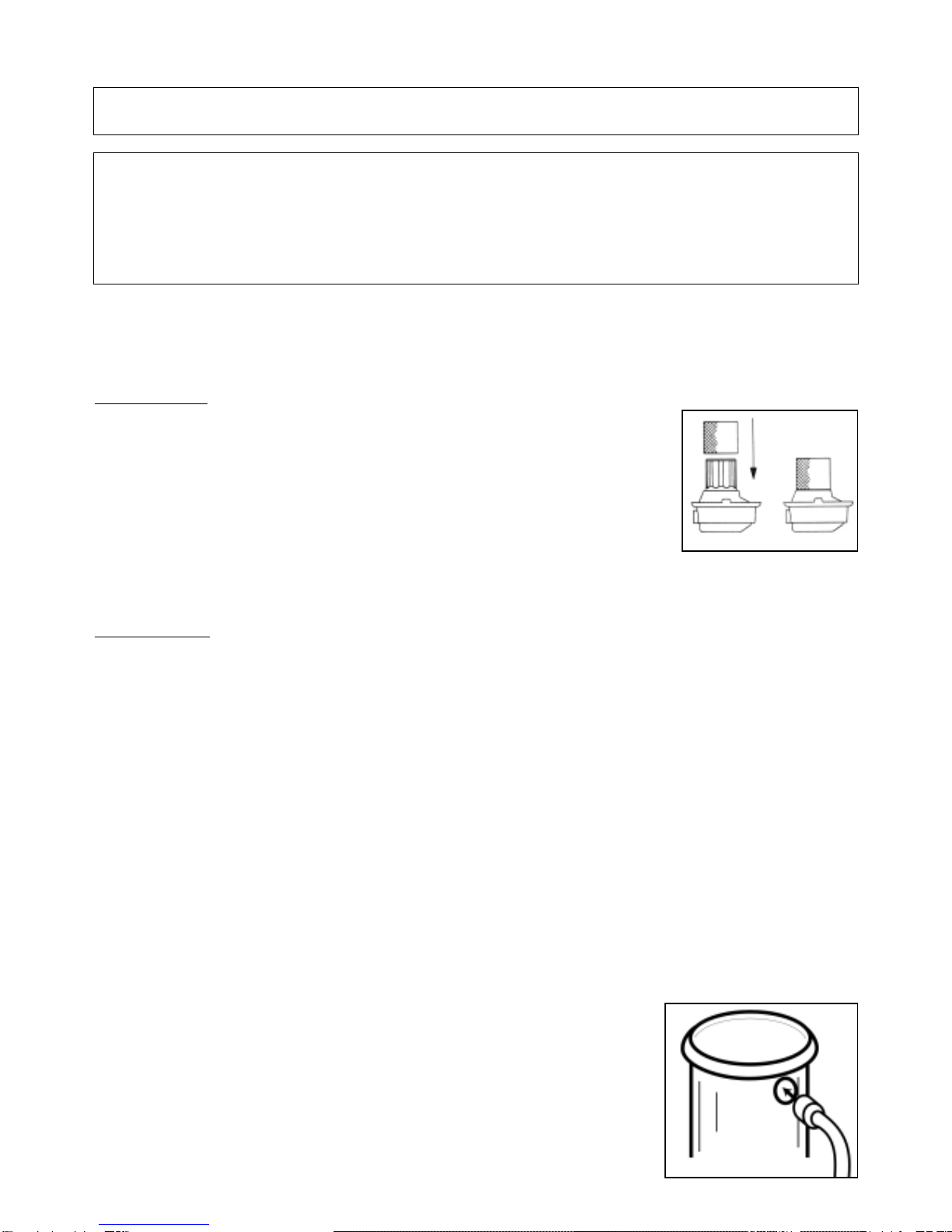

The foam filter requires to be fitted. To install this, slide the foam filter down over
the float cage until it touches the top - see illustration. Treat the filter with care as
you install it. The foam filter must be dry before fitting the paper filter.
Once the foam filter is installed, slide the paper bag filter over the top of the foam
filter. Use the rubber band to secure the paper filter in position, making sure this
fully covers the foam filter, and up to the shoulder of the moulding. A clogged
filter can lead to overheating of the vacuum cleaner, periodically lightly brush
down accumulated dirt build up on the paper surface with a soft brush.
WET PICK UP
For wet pick up you only require the foam filter.
DO NOT USE THE PAPER FILTER FOR WET PICK UP. You will need to gently clean the foam filter from
time to time. This should be gently washed through in warm soapy water until all traces of dirt have been
removed. Then rinse through with cold water and allow to dry.
NOTE - It is essential that the foam filter is thoroughly dried before installing paper filter.
Notes
You will need to periodically replace the paper filter bag. See the leaflet on consumables.
A heavy duty combined wet and dry cartridge filter is available as an optional extra. This can be
permanently fitted and saves having to change filters for different uses.
The cleaner does not collect dry matter into the paper bag filter. This is collected in the main recovery
tank. The paper bag is a filter to stop the dust from entering the motor.
NEVER OPERATE THIS CLEANER WITHOUT THE CORRECT FILTERS IN PLACE.
ASSEMBLING THE HOSE
The hose has a swivel connector fitted to one end and an extension tube
connector to the other. When using the vacuum facility fit the swivel connector
into the inlet in the side of the recovery tank (see illustration).
Fit one of the extension tubes into the other end of the hose, making sure you
slide this on as far as possible. If required the second extension tube can now
be added and either the floor head or the crevice tool fitted into the end. The
cleaner can be used without either of these tools if required.
4

OPERATION
1) Ensure that the motor housing has been clipped onto the base in the correct position, with the air
outlet opposite the vacuum inlet hose. Failure to observe this will allow the filter to foul the internal
inlet pipe.
2) Unwind the mains lead fully and connect to the mains or extension lead.
3) Switch unit on.
4) Operate as required.
Beware of discharged air from the outlet on the motor housing.
FLOAT SHUT OFF
The cleaner is protected by an automatic shut-off float valve when it becomes full of liquid. This will
become apparent to you as the motor will start to make a high pitched noise. If this happens:
1) Switch the unit off.
2) Disconnect from the mains.
3) Lift the hose up to drain any excess liquid back into the container.
4) Empty the contents of the tank.
5) Try to keep the hose raised whilst emptying out the liquid, this can help eliminate any spills.
WARNING - BE CAREFUL WHEN EMPTYING THE TANK - IT MAY BE HEAVIER THAN YOU THINK.
Important
The float valve is a safety device, do not attempt to remove this or modify it, it is there for your safety.
Should the cleaner overturn during use, switch the unit off immediately, return to the upright position and
wait until the float valve has repositioned itself.
If collecting soapy water you will need to regularly check whether the unit requires emptying as the lather
can bypass the float system and there can be a discharge of foam! Should this occur switch off the unit,
wash out any foam in the filter and tip away any water around the outlet on the motor housing, before
restarting.
EMPTYING TANK
WARNING - TAKE CARE, THE TANK MAY BE HEAVIER THAN YOU THINK.
1) Switch off the unit and unplug from the socket.
2) Unclip the motor housing from the recovery tank.
3) Empty tank of all contents - making sure that you are protected against any sharp objects. Beware of
excess weight.
4) Clean filters (change if necessary).
5) Check and clean any blockages within the unit.
6) Replace motor housing, plug in and continue as before.
BLOWER FUNCTION
1) The CombiVacTM can be used as a powerful blower by inserting the hose into the outlet on the motor
housing.
2) Always ensure that the hose, tank and accessories have been cleaned of any debris before operating
the blower function.
3) You should always protect your eyes with safety goggles when using this function and ensure that
no one else is in close proximity.
4) The paper bag filter is not required when using the blower.
5) Uses include: blowing leaves into piles, blowing out dust from difficult to get to areas, faster drying of
paint.
Note - Always switch the unit off before changing between vacuum and blower functions.
STORAGE
1) Clean out the container and wipe the surface of the unit over with a damp
cloth.

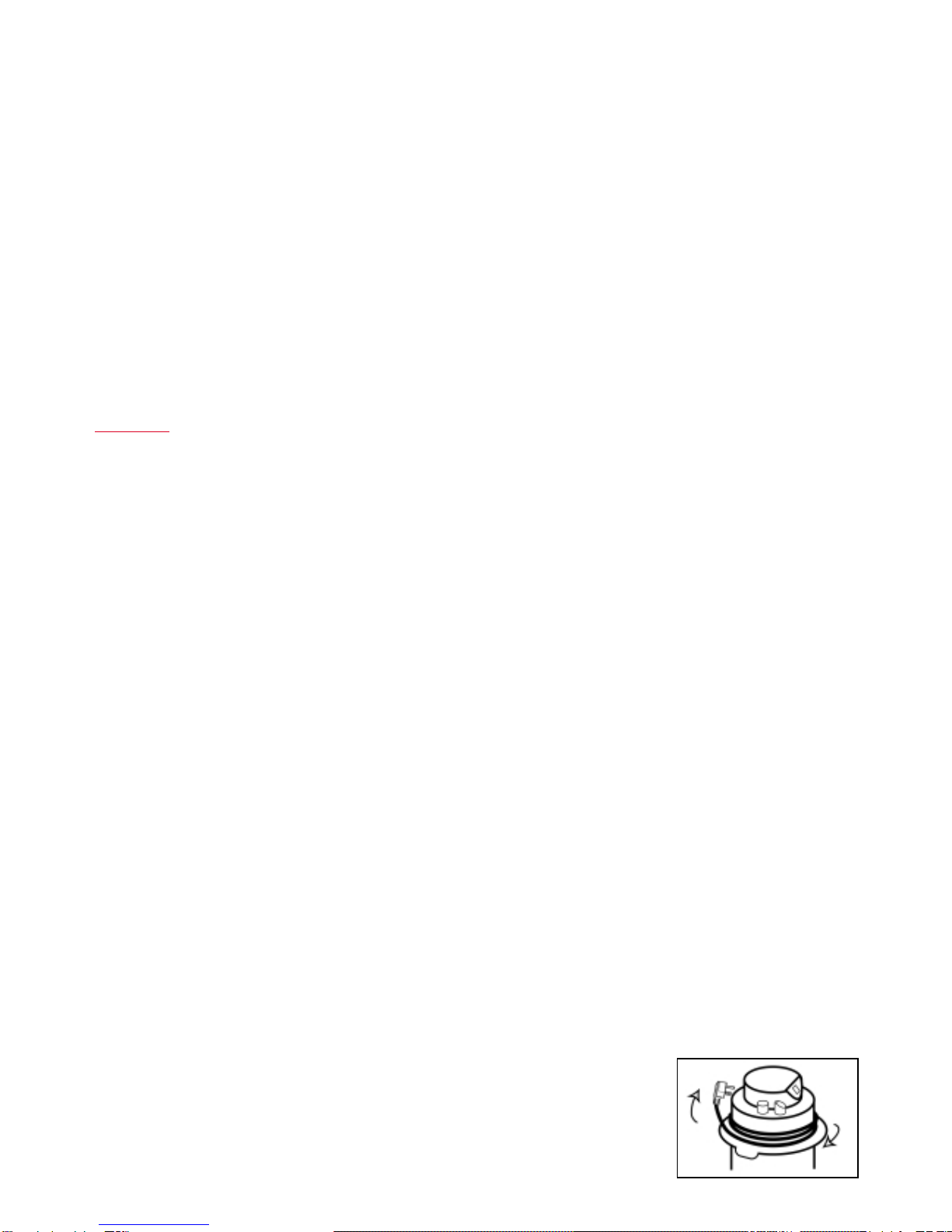

2) Wrap the mains lead around the upper moulding as shown in illustration and
clip plug to lead.
3) Locate the 2 extension tubes onto the taller posts on the cleaner top with the
nozzle tool and floor head on the lower angled posts.
5
