EarthQuake 600050 Series User manual
Operator's Manual
Original Operating
Instructions
Rolling High-Wheel
String Trimmer
600050 Series
P/N 19989
Revised 06/13/11
Get parts online at
www.GetEarthquake.com
INCLUDES MODELS:

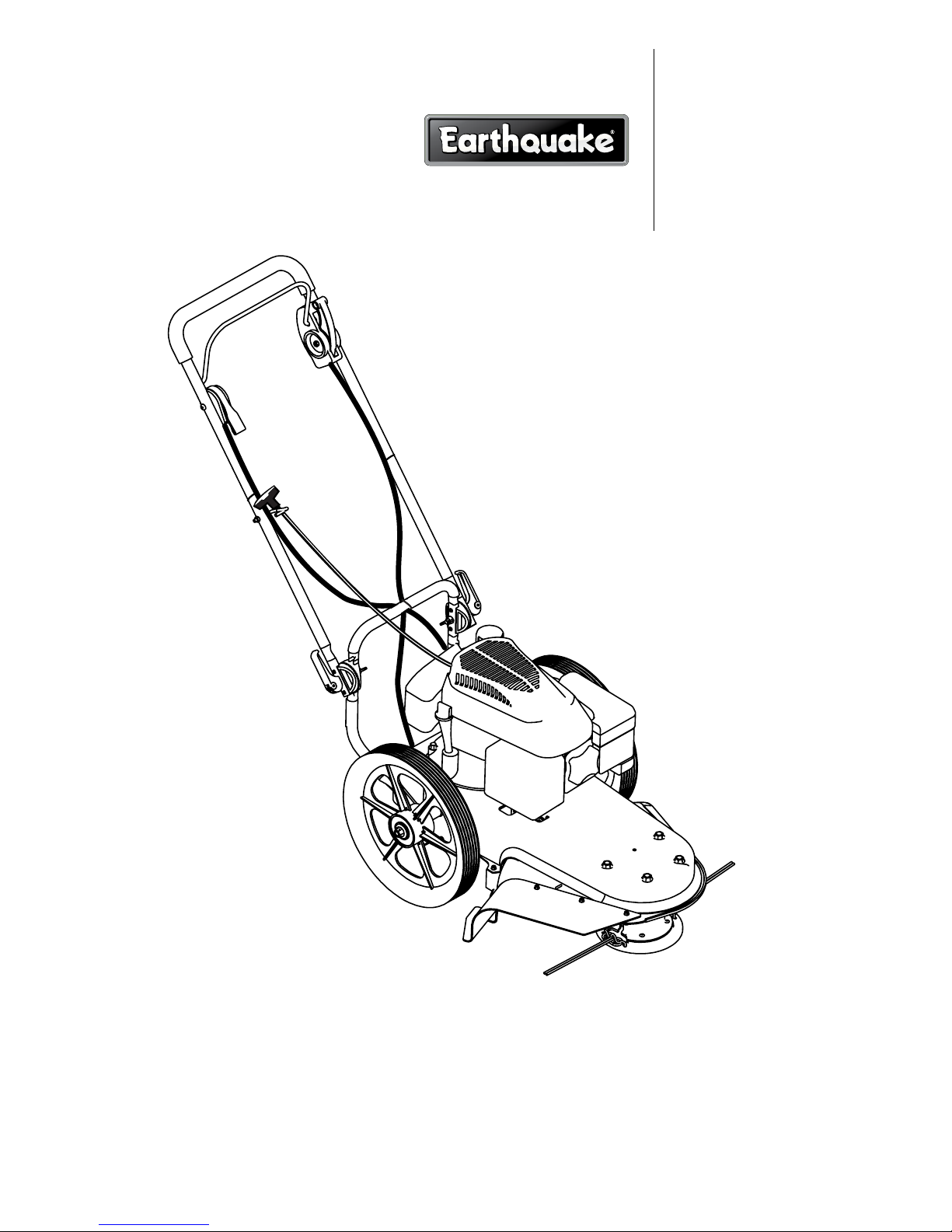

600050V (pictured)
600050B
600050BCE
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-52
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
REGISTRATION, SERVICE AND MAINTENANCE LOG
INTRODUCTION
Congratulations on your investment in quality. Thank you for purchasing an Earthquake String Trimmer from Earthquake. We have
worked to ensure that the string trimmer meets the highest standards for usability and durability. With proper care, your string
trimmer will provide many years of service.
Please read this entire manual before installation and use. Earthquake reserves the right to change, alter or improve the
product and this document at any time without prior notice.
CONTENTS
Introduction/Contents/Registration .........................................................................................................................................................................................2
Warnings and Safety Precautions...........................................................................................................................................................................................3-6

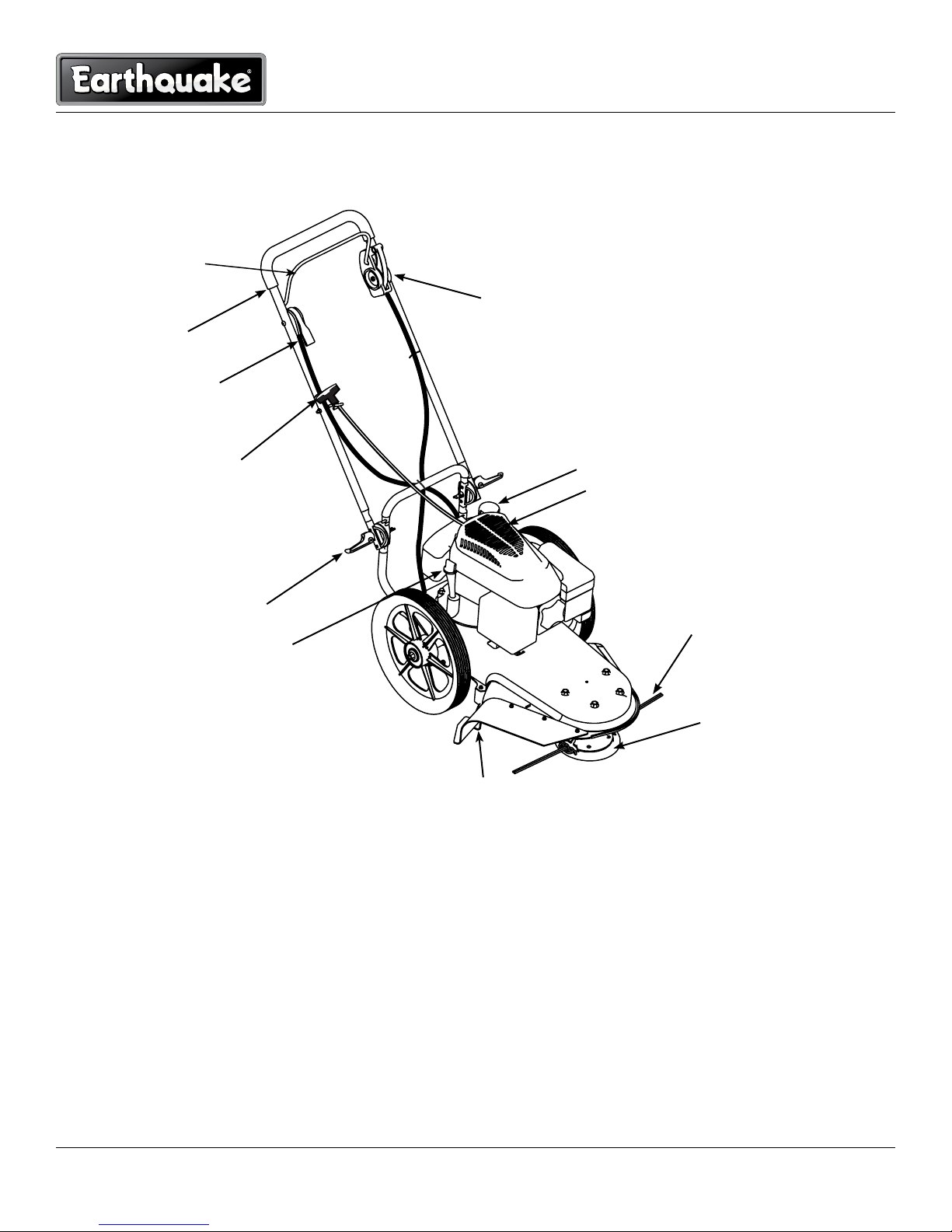

Features ...............................................................................................................................................................................................................................................7
Assembly .........................................................................................................................................................................................................................................8-9
Operation...................................................................................................................................................................................................................................10-11
Maintenance, Service and Storage ...................................................................................................................................................................................12-17
Maintenance................................................................................................................................................................................................................................12
Servicing and Adjustment.................................................................................................................................................................................................13-15
Storage ..........................................................................................................................................................................................................................................16
Troubleshooting .............................................................................................................................................................................................................................17
Slope Guide......................................................................................................................................................................................................................................18

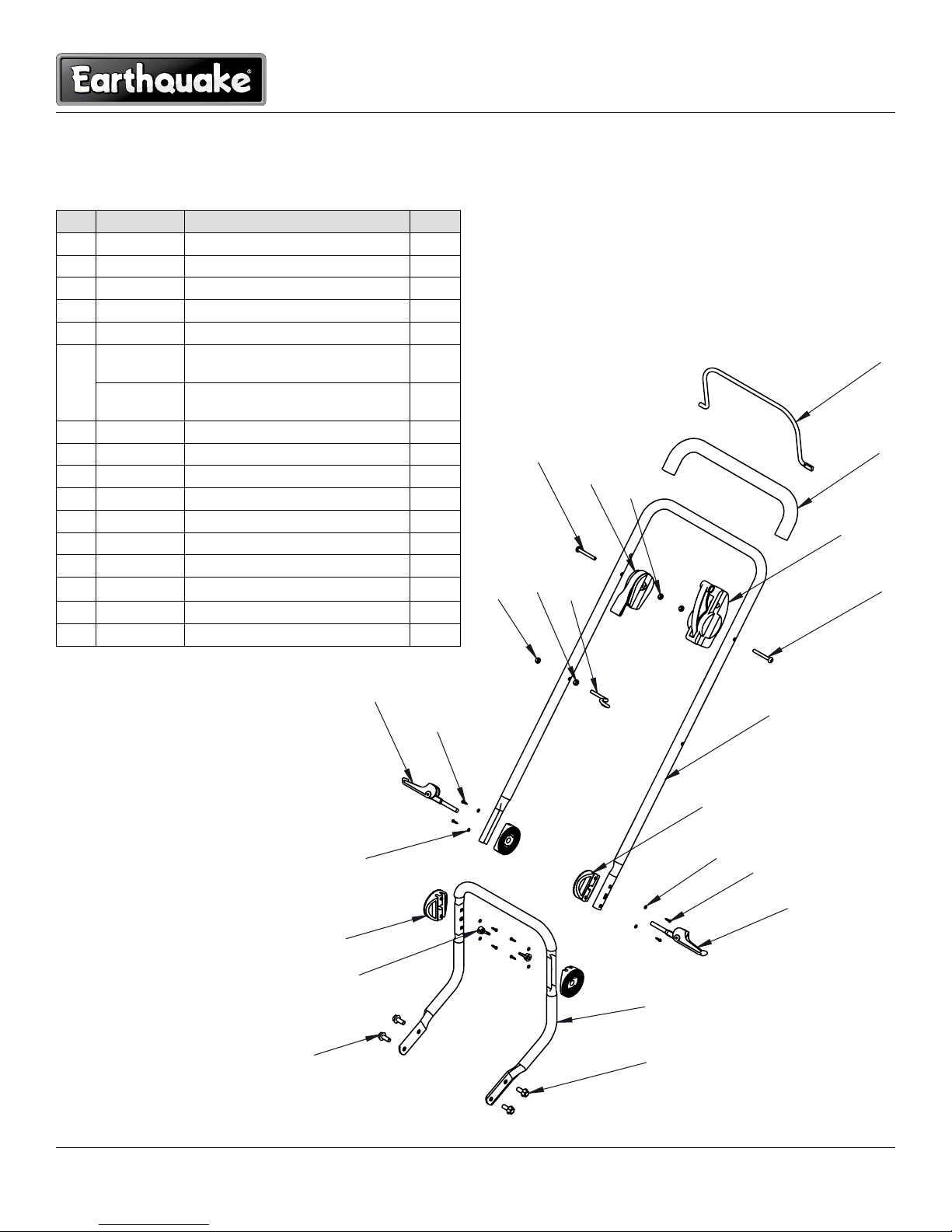

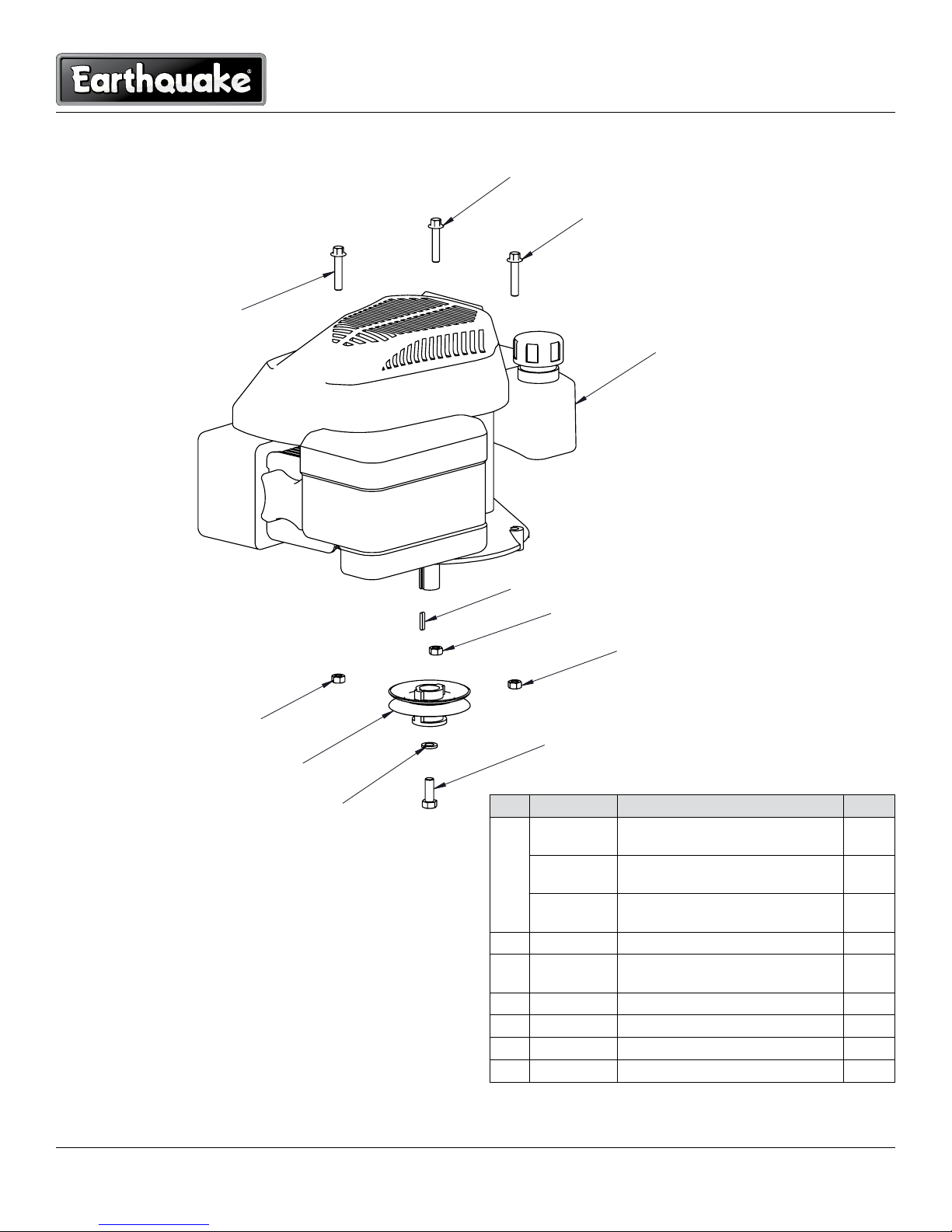

Parts Breakdown...................................................................................................................................................................................................................... 19-22
Warranty ............................................................................................................................................................................................................................................23
CE Declaration of Conformity ....................................................................................................................................................................................................24
This instruction book contains information for several models. Read and keep this book for future reference. This book contains
important information on SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the prod-
uct information is included with the unit. This information includes the INSTRUCTION BOOKS, the REPLACEMENT PARTS and
the WARRANTIES. This information must be included to make sure state laws and other laws are followed.
OWNERSHIP RECORDS
Owner’s Name:
Owner’s Address:
City: State/Province: Zip Code/Postal Code:
Model Number: Serial Number:
Date of Purchase:
Notes:
Record the model number and serial number in the space provided for easy reference. Warranty is valid only if the completed regis-
tration is received by Earthquake within 30 days of purchase. You can register your warranty online by visiting www.getearthquake.
com. If you do not have a computer, call our customer service department at (800) 345-6007 Mondays through Fridays from 8 a.m.
to 5 p.m. CST.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 3
WARNINGS AND SAFETY PRECAUTIONS
OWNER’S RESPONSIBILITY
Accurate assembly and safe and eective use of the string
trimmer is the owner’s responsibility.
schedule included in this Earthquake operator’s manual.
with all controls and safety precautions.
NOTE: All images shown in this manual of your rolling string
trimmer are of 600050V. The 600050B/600050BCE models
have slight variations.
SPECIAL MESSAGES
Your manual contains special messages to bring attention to
potential safety concerns, machine damage as well as helpful
operating and servicing information. Please read all the infor-
mation carefully to avoid injury and machine damage.
NOTE: General information is given throughout the manual
that may help the operator in the operation or service of
the machine.
This symbol points out important safety instruc-
tions which if not followed could endanger your
personal safety. Read and follow all instructions
in this manual before attempting to operate this
equipment.
BEFORE OPERATING ENGINE:
Please read this section carefully. Read entire operating and
maintenance instructions AND the entire engine manual which
accompanies this product. Failure to follow instructions could
result in serious injury or death. Operate the string trimmer
according to the safety instructions outlined here and inserted
throughout the text. Anyone who uses this string trimmer must
read the instructions and be familiar with the controls.
This is a motorized string trimmer that cuts long grasses and
weeds. It is pedestrian-controlled, but not self-propelled. It has
a petrol-fuelled internal combustion engine that powers the
cutting head. It shall not be used for any other purpose.
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS IN
JURY AND/OR PROPERTY DAMAGE.
CAUTION
CAUTION INDICATES YOU CAN BE HURT OR YOUR
EQUIPMENT DAMAGED IF THE SAFETY INSTRUC
TIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT
OBEYED.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER RE
PRODUCTIVE HARM.
WARNING
THIS CUTTING MACHINE IS CAPABLE OF THROWING
OBJECTS.
INTENDED USE / FORESEEABLE MISUSE
WARNING
DEBRIS THROWN FROM THE TRIMMER CAN RESULT IN
FOREIGN OBJECTS BEING THROWN INTO THE EYES,
WHICH CAN CAUSE SEVERE EYE DAMAGE AND INJU
RY. ALWAYS WEAR SAFETY GLASSES OR EYE SHIELDS
WHEN OPERATING THE TRIMMER.
IF YOU WEAR EYE GLASSES, PUT A WIDE VISION SAFE
TY MASK OVER THEM.
IMPORTANT
INDICATES HELPFUL INFORMATION FOR PROPER AS
SEMBLY, OPERATION, OR MAINTENANCE OF YOUR
EQUIPMENT.
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-54
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
GENERAL SAFETY RULES
and in the manual(s). Be thoroughly familiar with the controls
and the proper use of the trimmer before starting.
Familiarize yourself with all of the safety and operating
decals on this equipment and on any of its attachments or
accessories.
instructions, to operate the trimmer.
used and remove all foreign objects. Your equipment can
propel small objects at high speed causing personal injury
or property damage. Stay away from breakable objects, such
as house windows, automobile, greenhouses, etc.
small children, and pets.
jacket. Also wear long trousers or slacks. Do not wear shorts.
in moving parts.
when operating trimmer to protect your eyes from foreign
objects which can be thrown from the unit.
that will improve footing on slippery surfaces. Leather work
shoes or short boots work well for most people. These will
protect the operator’s ankles and shins from small sticks,
splinters, and other debris.
possibility of being struck by small ying particles, or being
struck by low hanging branches, twigs, or other objects which
may be unnoticed by the operator.
safety protective devices in place.
installation of accessories. Only use accessories approved by
the manufacturer.
of alcohol, drugs or other medication which can cause
drowsiness or aect your ability to operate this machine
safely.
cable. Make sure that the cable is free and that the lever is
not damaged. Also check the cable linkage running to the
that the control bail is working properly.
walks, or roads. Wait for the cutting lines to stop rotating.
crossing roads.
before cleaning, repairing or inspecting the unit, be sure
the trimmer head and all moving parts have stopped. Let
the engine cool, disconnect the spark plug wire and move it
away from the spark plug.
engine (motor), disconnect the spark plug wire and prevent it
from touching the spark plug. Check immediately for cause.
Remove the wire from the spark plug. Inspect the trimmer
for damage. If damaged, repair before starting and operating
the trimmer.
running. Remove the wire from the spark plug.
damaged or loose.
pick up or carry the trimmer while the engine is running.
engine powered equipment should be avoided. Take
intermittent breaks and/or wear ear protection from engine
noise as well as heavy work gloves to reduce vibration in the
hands.
machine.
immediately and perform an inspection.
the engine.
flammable and should be handled with care. When
storing extra fuel be sure that it is in an appropriate container
partner.
be no more than 2 boxes wide and 4 boxes high for a total
of 8 boxes on a pallet. A forklift should be used to move the
pallet.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 5
SLOPE OPERATION
Slopes are a major factor related to slip and fall accidents which
can result in severe injury. All slopes require extra caution. If you
feel uneasy on a slope, do not trim it. Do trim across the face of
slopes; never up and down. Do not trim excessively steep slopes
(maximum 15 degrees) or areas where the ground is very rough.

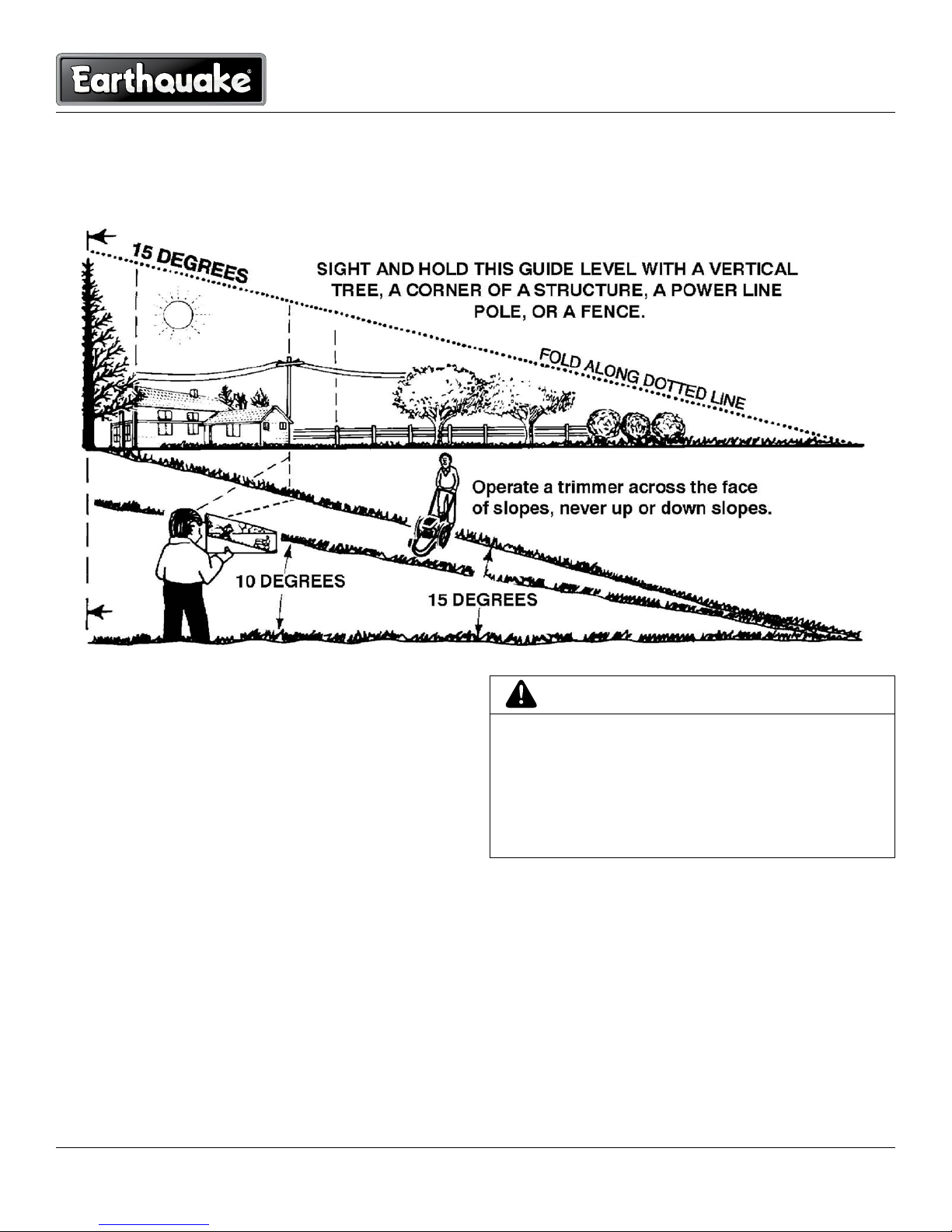

See the “Slope Guide” in the back of this manual to check a slope.
Exercise extreme caution when changing direction on slopes.
Remove objects such as rocks, tree limbs, etc.
Watch for holes, ruts, or bumps. Tall grass can hide ob-
stacles.
Do not trim near drop-offs, ditches, or embankments. The
operator could lose footing or balance.
Do not trim excessively steep slopes.
Do not trim on wet grass. Reduced footing could cause
slipping.
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the trim-
mer and the trimming activity. Never assume that children will
remain where you last saw them.
watchful care of a responsible adult.
Be alert and turn trimmer o if children enter the area.
Before and while moving backwards, look behind and down
for small children.
Never allow children to operate the trimmer.
or other objects that may obscure vision.
SERVICE
ammable and vapors are explosive.
Never remove gas cap or add fuel with the engine running.
Allow engine to cool before refueling. Do not smoke.
indoors or near appliances with pilot lights, heaters, or other
ignition sources. Replace fuel cap securely. If fuel is spilled,
do not start the engine but move product and fuel container
from area. Clean up spilled fuel and allow to evaporate.
Never store the machine or fuel container inside where there
is an open ame (such as a water heater), or other ignition
source.
If the fuel has to be drained, this should be done
outdoors.The drained fuel should be stored in a container
specifically designed for fuel storage or it should be
disposed of carefully.
• Engines give o carbon monoxide, an odorless, colorless,
poison gas. Breathing carbon monoxide can cause
nausea, fainting or death. Always start and run engine
outdoors. Do not start or run engine in an enclosed area,
even if doors or windows are open.
Never make adjustments or repairs with the engine (motor)
running. Disconnect the spark plug wire, and keep the wire
away from the plug to prevent accidental starting (remove
the ignition key if equipped with an electric start). Always
wear eye protection when you make adjustments or repairs.
Check the trimmer head and engine mounting bolts at
frequent intervals for proper tightness.
condition. Check mounting hardware on trimmer head every
time you change trimmer line and prior to each use.
Never tamper with safety devices. Check their proper
operation regularly.
When servicing or repairing the trimmer, do not tip the machine
Service and repair procedures can be done with the trimmer
in an upright position. Some procedures will be easier if the
machine is lifted on a raised platform or working surface.
other debris build-up. Clean up oil or fuel spillage. Allow
trimmer to cool before storing.
Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
Always disconnect spark plug wire before cleaning, repairing,
or adjusting.
Do not change the engine governor setting or over-speed
the engine.
Clean and replace safety and instruction decals as necessary.
To guard against engine over-heating, always have engine
Inspect trimmer before storage.When not in use, disconnect
spark plug lead and store indoors in a dry place locked or
otherwise inaccessible to children.
parts.
Never replace the cutting lines with metal parts.
When storing gasoline or equipment with fuel in the tank,
store away from furnaces, stoves, water heaters or other
appliances that have a pilot light or other ignition source
because they can ignite gasoline vapors.
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-56
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
A: Warning!
B: Read Owner's Manual Before Operating Machine
C: Do Not Operate While Others Are Around
D: Remove Objects that Could Be Thrown By This Machine.
Operate Trimmer Across Slopes
F: Be Aware of Moving and Rotating Parts
G: Wear Ear and Eye Protection At All Times
and Spark Plug Wire is Disconnected.
I: Direction of Rotating Trimmer Lines
L: Fire Hazards.
operation of this machine and seek shelter.
N. Team Lift--For your safety, always have at least two people
when lifting this machine.
O. Never Fit Metal Cutting Parts--Do not attach any metal parts
to the cutting head of this machine.
HAZARD SYMBOLS AND MEANINGS
SAFETY DECALS AND WARNINGS CONTROL AND OPERATING SYMBOLS
Pictured below are control and operating symbols on the unit
or in this manual. Before you operate your unit, learn and
understand the purpose for each symbol.
Pictured below are safety and hazard symbols on the unit or
in this manual. Before you operate your unit, learn and under-
stand the purpose for each symbol.
A
HG
F
DCB E
L
KJ
I
M N O
NAMEPLATE DETAILS
Model 600050BCE
2006/42/EC Operator Ear LPA (dBA) 84
2006/42/EC Sound Power Level
LWA (dBA) 102.3
2006/42/EC Hand/Arm Vibration
Max m/s25.4
2006/42/EC Vibration Time Limit
ARDISAM, INC.
1160 8th Avenue | Cumberland, WI 54829 | USA
Serial No.
Model: 600050BCE Type: Trimmer
Year: 2011 Mass: 30.3 kg
Max. Operating Speed: 3600 rpm
LBLINFO600050BCE
Sound levels tested in accordance with ISO 3744 & ISO 11094-
Grade 2 (Engineering) Method. Readings taken with engine at
SOUND AND VIBRATION LEVELS
SPARE PARTS
Only use approved Earthquake spares.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 7
FEATURES
Read this owner’s manual and safety rules before operating your trimmer. Take time to compare the following illustration with the
trimmer to familiarize yourself with the product and its controls.
Trimmer Head Drive Lever -Engages the rotation of the trimmer
head.
Control Bail - Release to stop the rotation of the trimmer head.
Throttle Control Lever - Controls the speed or stops the engine.
Primer Button - Injects fuel directly into the carburetor manifold
for faster starts (600050B models only )
Recoil Starter Handle - The engine is equipped with an easy pull
recoil starter.
Shield Edge Guard - Protects the shield by automatically cutting
the line to the correct length.
Figure 1 : Your new string trimmer
shield edge guard
trimmer line
trimmer head
dipstick
trimmer head drive lever
handle adjustment cam lever
fuel caprecoil starter handle
throttle control lever
upper handle
drive engage lever
SPECIFICATIONS
debris screen
Trimmer Line Diameter: 0.155 inches
Trimmer Line Length: 21.5 inches
Wheel Diameter: 14"
SOUND AND VIBRATION LEVELS
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-58
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
ASSEMBLY
Tools Required:
1 Wrench to assemble tires

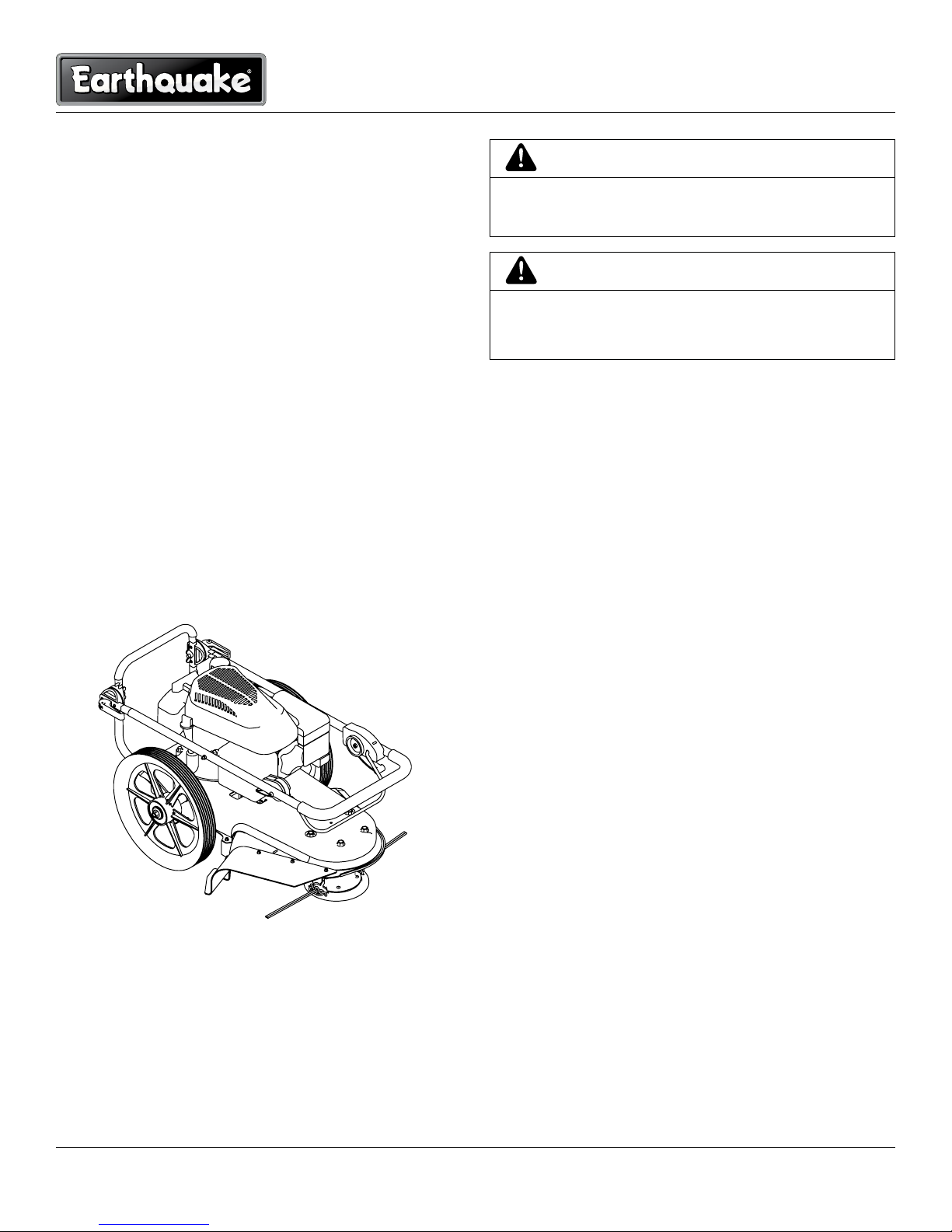

Figure 2: Your new trimmer as it is shipped to you.
To Remove the Trimmer from the Carton
1. Remove any of the loose parts in packaging, including the
parts bags, from the carton.
2. Remove the packing material positioned around the unit.
3 Cut down all four corners of the carton and lay the side panels flat.
4. Pull the trimmer out of the carton.
Contents of Part Bag (PB6000502)
Owner’s manual
Engine manual
Warranty card
Replacement trimmer line
L-handle allen wrench
Safety glasses
WARNING
ALWAYS WEAR SAFETY GLASSES OR EYE SHIELDS
WHILE ASSEMBLING THE TRIMMER.
WARNING
BEFORE DOING ANY ASSEMBLY OR MAINTENANCE TO
THE TRIMMER, REMOVE THE WIRE FROM THE SPARK
PLUG.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 9
ENGINE PREPARATION
See the engine manufacturer’s instructions for the type of gaso-
line and oil to use. Before you use the unit, read the information
on safety, operation, maintenance, and storage.
NOTE: Engine does not contain OIL or GASOLINE.
Fill Crankcase With Oil
1. Remove the oil fill cap/dipstick. SEE FIGURE 4. Fill the
DO NOT
OVERFILL.
2. Install the oil fill cap/dipstick and tighten securely.
Fill Fuel Tank With Gasoline
See the engine manufacturer’s instructions for the type of gaso-
line to use.
How to Raise the Handle
1. Hold the handle with one hand and loosen both handle
adjustment cams until the ratchet teeth are disengaged. Do
not remove the handle adjustment levers.
2. Raise the handle to the operating position.
3. Stand in the operator’s position behind the trimmer. Put the
handle in a comfortable position. Make sure both sides of the
handle are level.
NOTE: Make sure the cables are not caught between the
upper and lower handle.
4. Tighten the handle adjustment levers. Make sure the handle
pivots are locked in place.
NOTE: The handle height is adjustable. See “How To Adjust
The Height Of The Handle” in the Service and Adjustment
section.
5. To attach the recoil start handle to the rope guide, twist the
rope through the rope guide mounted on the right side of
the handle. SEE FIGURE 3.

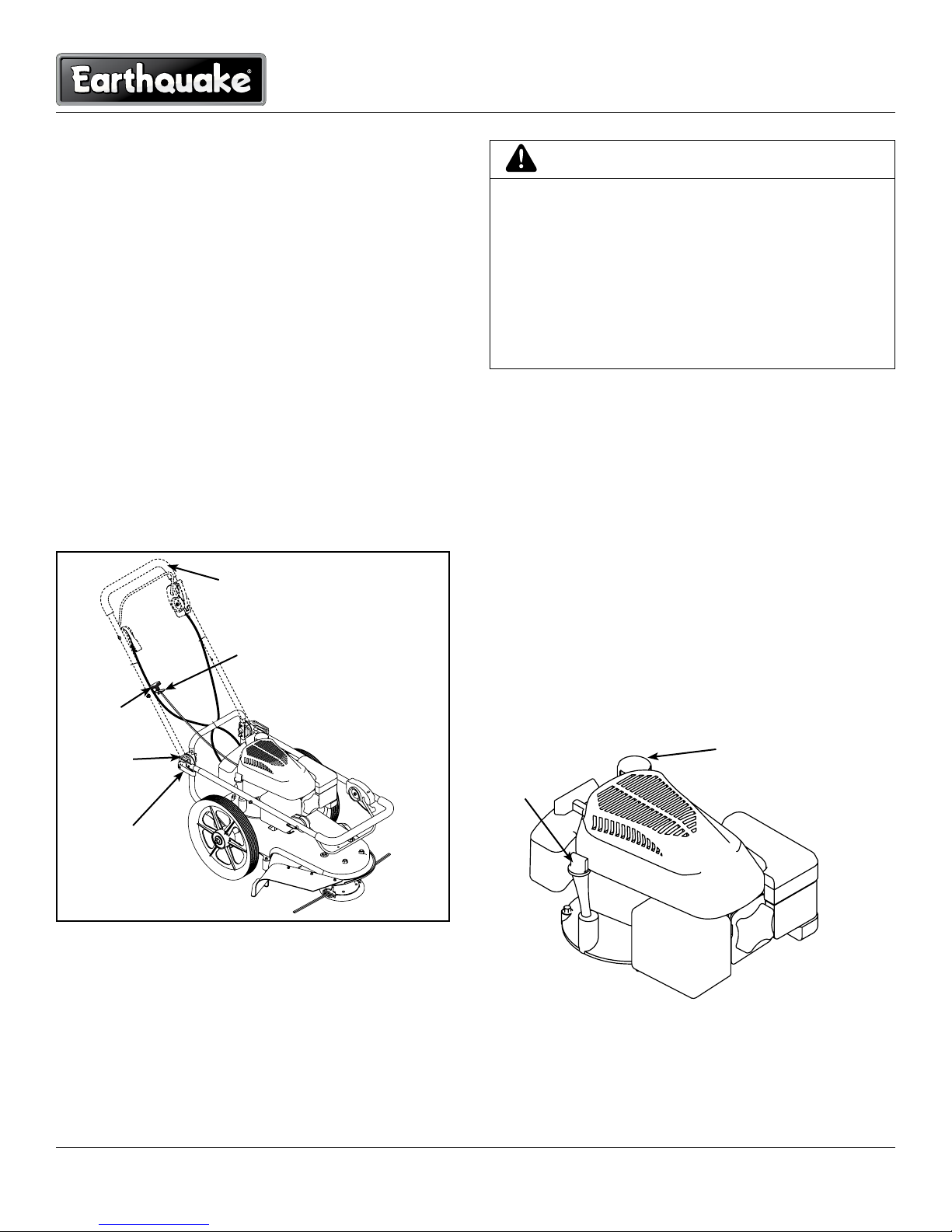

Figure 3: Adjusting the handle bars.
handle
rope
guide
recoil start
handle
handle pivot
Figure 4: Filling the engine with fuel and oil.
fuel cap
dipstick
WARNING
FOLLOW THE ENGINE MANUFACTURER’S INSTRUC
TIONS FOR THE TYPE OF GASOLINE AND OIL TO USE.
ALWAYS USE A SAFETY GASOLINE CONTAINER. DO
NOT SMOKE WHEN ADDING GASOLINE TO THE EN
GINE.
WHEN INSIDE AN ENCLOSURE, DO NOT FILL WITH
GASOLINE. BEFORE YOU ADD GASOLINE, STOP THE
ENGINE. LET THE ENGINE COOL FOR SEVERAL MIN
UTES.
handle adjustment
cam lever
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-510
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
OPERATION
How to Stop the Trimmer Head
Release the control bail. It will return to its open position and
disengage the trimmer head.
How to Stop the Engine
Move the throttle control lever completely back to the STOP
position.
How to Use the Trimmer Head Drive Lever
1. To engage the trimmer head, hold the control bail against
the handle. Move the trimmer head drive lever forward to en-
gage the trimmer head. The faster the engine runs, the faster
the trimmer head will rotate. SEE FIGURE 5.
2. Once the trimmer head is rotating, push the trimmer forward
to trim. How to Use the Throttle Control
1. During normal use, set the throttle control lever in the FAST
position to run the engine at full speed. SEE FIGURE 6.
2. Pull the throttle control lever back to decrease engine speed.
Push the throttle control lever forward to increase engine
speed.
3. To stop the engine, pull the throttle control lever completely
back to the stop position.
How to Use the Primer Button (600050B/600050BCE only)
1. Push the primer button five times. Wait approximately two
seconds between each push.
NOTE: Do not use the primer button to restart a warm en-
gine after a short shutdown.
Figure 5: Using the trimmer head drive lever
control bail handle
trimmer head
drive lever
Figure 6: Using the throttle control
throttle control
lever
WARNING
THE TRIMMER HEAD WILL CONTINUE TO ROTATE FOR
SEVERAL SECONDS AFTERTHE ENGINE HAS STOPPED.
CAUTION
IMPROPER TREATMENT OF THE STRING TRIMMER
CAN DAMAGE IT AND SHORTEN ITS LIFE.
•DONOTaTTempTTOcraNkOrsTarTTheeNgiNe
BEFORE IT HAS BEEN PROPERLY SERVICED WITH
THE RECOMMENDED OIL. THIS MAY RESULT IN AN
ENGINE FAILURE.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 11
How to Start the Engine
NOTE: DO NOT BE ALARMED, your engine will smoke the
first time it is started. It is burning off the protective coating
that is on the internal engine parts.
1. Before each use, remove debris from the debris screen. SEE
FIGURE 1 IN "FEATURES" SECTION. Debris can cause the
engine to overheat. Wipe the debris screen with a cloth or
paper towel.
2. Move the throttle control lever forward to the START or FAST
position.
3. FOR 600050B/600050BCE: To start a cold engine, push the
primer button five times. Wait two seconds between each
push of the primer button.
NOTE: Do not use the primer to start a warm engine.
4. Firmly hold the recoil starter handle with your right hand.
SEE FIGURE 7.
Trimmer Tips
or grass are tall and thick, operate the trimmer at a slower
walking speed.
grass build up. See the "Maintenance, Service and Storage"
section for details.
line to do the cutting. This is easily done by moving slowly
through very thick or heavy weeds.
complete the job. If the trimmer lines are worn to less than
half their original length, change to a new trimmer line. See
more on how to replace the trimmer line in the "Maintenance,
Service and Storage" section.
to stand on, do not trim. Do not trim on slopes when the
ground is slippery or wet. Trim across the face of a slope, not
up and down.
surfaces may create premature wear to the height guide.
5. Pull back sharply on the recoil starter handle. DO NOT allow
the starter rope to snap back. Let the starter rope slowly
rewind as you hold the recoil starter handle.
TIP: On 600050B and
600050BCE models, if
the engine fails to start
after three pulls, push the
primer button two times
and pull the recoil starter
handle again.
Figure 7: Using the recoil starter handle to start the engine.
recoil starter handle
primer
button
Figure 8: Primer Button
WARNING
NEVER LEAVE THE TRIMMER UNATTENDED WHILE
THE ENGINE IS RUNNING. WAIT FOR THE TRIMMER
LINES TO STOP ROTATING.
WARNING
NEVER RUN THE ENGINE INDOORS OR IN A POORLY
VENTILATED AREA. ENGINE EXHAUST CONTAINS CAR
BON MONOXIDE, AN ODORLESS AND DEADLY GAS.
KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING AWAY
FROM THE TRIMMER AND ANY MOVING PARTS ON THE
ENGINE. AVOID TOUCHING THE MUFFLER AND SUR
ROUNDING AREAS. TEMPERATURES MAY EXCEED 150
DEGREES FAHRENHEIT.
WARNING
DEBRIS SUCH AS STICKS, GRAVEL OR ROCKS CAN BE
THROWN WITH SUFFICIENT FORCE TO CAUSE PER
SONAL INJURY OR PROPERTY DAMAGE.
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-512
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Service Records Before Each Use Every 25 Hours As Noted Service Date
Check engine oil level X
Check trimmer lines X 1
Check trimmer head engagement X
Engine/machine cleaning X 2
Check nuts and bolts X
Check spark plug X
Change engine oil* X
X 3
Lubricate jackshaft assembly X
Lubricate wheel bearings X
Good maintenance is essential for safe, economical and trouble-free operation. It will also help reduce air pollution.
MAINTENANCE, SERVICE, AND STORAGE
Note 1 -When old line is half the original length, replace with new line.
Note 2 - Clean daily if used in extremely dusty or dirty conditions.
Note 3 - Change more often if used in extremely dusty or dirty conditions.
* To service the air filter and change the oil in the 600050V model, you must remove the wheels on the string trimmer.
General Recommendations
The warranty on this trimmer does not cover items that have been subjected to operator abuse or negligence. To receive full value
from the warranty, the operator must maintain the trimmer as instructed in this manual.
Some adjustments must be made periodically to properly maintain your trimmer. All adjustments in the "Service and Adjustments"
section of this manual must be checked at least once each season.
Maintenance Schedule
Maintenance, replacement or repair of the emissions control devices and systems may be performed by any non-road en-
gine repair establishment or individuals. However, items must be serviced by an authorized dealer to obtain "no charge"
emissions control service.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 13
How to Change Engine Oil
Change the engine oil when the engine is warm. For the proper
oil capacity, see the engine manufacturer's instructions. SEE
FIGURES 9 and 10.
NOTE: In order to change the oil in the 600050V string
trimmer model, you must remove the wheel.
1. Disconnect spark plug wire from the spark plug.
2. Remove the oil drain plug as shown in Figure 10.
3. Drain all the engine oil into a flat pan.
4. Install the oil drain plug. Make sure the oil drain plug is tight.
5. Remove the dipstick.
6. Fill the engine crankcase. DO NOT OVERFILL. For proper oil
capacity, see the engine manufacturer’s instructions.
7. Connect the spark plug wire to the spark lug.
Figure 10: Oil drain plug on 600050B/600050BCE
Figure 9: Oil drain plug on 600050V
oil drain plug
oil drain plug
SERVICE AND ADJUSTMENT
Figure 13: Check ends of line
Figure 12: Threading trimmer line through center hold.
line
retainer
Figure 11: Threading the new trimmer line.
line
retainer trimmer
line
How to Replace the Trimmer Line
For the best performance, use a heavy gauge (0.155” diameter)
length guide, located on the shield, to make sure the trimmer
line is the correct length.
Do not allow the length of the lines to vary more than one inch.
This is important to make sure the trimmer head is balanced
and does not vibrate.
NOTE: To extend the life of the trimmer line, keep the trim-
mer line moist. If not kept moist, the nylon trimmer line will
become dry and brittle. Keep extra trimmer line in a can of
water. The line will then stay flexible and easy to change. A
flexible line will also last much longer.
1. Stop the engine. Wait for all moving parts to stop.
2. Remove the worn trimmer line from the line retainer.
3. First, thread the ends of the new trimmer line through the
outside loops. SEE FIGURE 11.
4. Next, take the ends of the line, cross over the line retainer, and
thread the ends through the center hold. SEE FIGURE 12.
5. Then, check to make sure that the ends of the line are even.
SEE FIGURE 13.
WARNING
BEFORE YOU INSPECT, CLEAN OR SERVICE THE TRIM
MER, STOP THE ENGINE. MAKE SURE THAT ALL MOV
ING PARTS HAVE STOPPED. DISCONNECT THE WIRE
FROM THE SPARK PLUG.
cap screws cap screws
cap screws
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-514
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
How to Adjust the Height/Angle of the Handle
height of the handle. SEE FIGURE 15.
1. Hold the handle with one hand and open both cam levers un-
til the ratchet teeth are disengaged. Do not remove the nuts.
2. Move the handle up or down to the desired position, then align
the ratchet teeth. Make sure both sides of the handle are level.
3. Tighten (lock) the lever.
How to Set the Height of the Cut
The height of the cut can be set from 1-1/2 inches to three (3)
inches. The recommended cutting height for the average yard
is two (2) inches. SEE FIGURE 16.
NOTE: There are two socket head cap screws.
2. Set the trimmer head at the desired height.
3. Tighten the socket head cap screws.
Figure 15: Adjusting the height of the handle. (Lever shown
in OPEN position)
Figure 16: Setting the height of your cut.
height of cut
positions
height guide L-handle
wrench
trimmer head
socket head
cap screws
WARNING
BEFORE YOU SET THE HEIGHT OF THE CUT, STOP THE
ENGINE. WAIT FOR ALL MOVING PARTS TO STOP. AL
LOW THE ENGINE TO COOL AND DISCONNECT THE
SPARK PLUG WIRE.
handle
cam
lever
ratchet
teeth
open
locked
To Detach the Tires
To detach the tires, loosen the axle nuts and remove the wheel,
spacer and washer. Reverse instructions to reattach tire. SEE
FIGURE 14.
Figure 14: Detaching tires
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 15
How to Replace the Drive Belt
To replace the drive belt, the trimmer head and shield must be
removed as explained below. SEE FIGURES 17 AND 18.
1. Remove the two fasteners that hold the rear of the shield to
the trimmer housing.
2. Remove the four fasteners that hold the front of the shield
and trimmer head to the trimmer housing.
4. Raise the front of the trimmer housing and remove the drive
belt.
* On some models, it is necessary to loosen the mounting bolt
for the drive pulley to remove the drive belt . Do not bend the
belt guides.
NOTE: Use only OEM replacement belts.
5. To assemble the drive belt, reverse the above steps. Make
sure all fasteners are tight. Make sure the mounting bolt for
the drive pulley is tight.
6. Check the routing of the drive belt. Make sure the drive belt
is inside of all belt guides as shown.
Figure 17: Trimmer housing
Figure 18: Routing the drive belt
drive belt
shield
trimmer head
belt guide
drive belt
drive pulley
mounting bolt
belt guide
belt guide
WARNING
BEFORE YOU REMOVE THE DRIVE BELT, DISCONNECT
THE WIRE FROM THE SPARK PLUG.
IMPORTANT
TEST THE DRIVE SYSTEM. START THE ENGINE AND
MOVE THE THROTTLE CONTROL TO THE FAST POSI
TION. ENGAGE AND DISENGAGE THE TRIMMER HEAD
SEVERAL TIMES.WHEN DISENGAGED, MAKE SURETHE
TRIMMER HEAD COMPLETELY STOPS WHEN RESTING
ON THE GROUND. IF THE TRIMMER HEAD CONTINUES
TO ROTATE, TAKE THE TRIMMER TO AN AUTHORIZED
SERVICE CENTER.
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-516
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
STORAGE
When the trimmer is put in storage for thirty days or more, fol-
low the steps below to make sure the trimmer is in good condi-
tion the following season.
Trimmer:
Completely clean the trimmer
Put the trimmer in a building that has good ventilation.
NOTE: A yearly check-up or tune-up at an authorized service
dealer will ensure that the trimmer will provide maximum
performance for the next season.
Engine:
IMPORTANT NOTE: It is important to prevent gum deposits
from forming in fuel system parts such as the carburetor,
fuel filter, fuel hose, and tank during storage. Also, using
alcohol blended fuels (called gasohol, ethanol or methanol)
can attract moisture which leads to separation and forma-
tion of acids during storage. Acidic gas can damage the fuel
system of an engine while in storage.
1. Drain all gasoline from the fuel tank. Let the engine run until
it is out of gasoline. If you do not want to remove gasoline,
add a fuel stabilizer to any gasoline left in the tank. A fuel
stabilizer will minimize the formation of gum deposits and
acids. If the tank is almost empty, mix the fuel stabilizer with
fresh gasoline in a separate container and add the mixture
to the tank. Always follow the instructions on the stabilizer
container. Run the engine at least ten minutes after stabilizer
is added to allow the mixture to reach the carburetor.
2. Drain the oil from a warm engine. Fill the engine crankcase
with new oil.
3. Remove the spark plug from the cylinder. Pour one ounce of
oil into the cylinder. Slowly pull the recoil starter handle so
that the oil will protect the cylinder. Install a new spark plug
in the cylinder.
4. Completely clean the trimmer, including dirt and debris from
the cylinder cooling fins and the engine housing.
5. When not in use, disconnect spark plug lead and store in a
well-ventilated area inaccessible to children.
TROUBLESHOOTING & REPAIR
At Earthquake, we build quality and durability into the design
of our products; but no amount of careful design by us, and
careful maintenance by you, can guarantee a repair-free life for
your Earthquake String Trimmer. Most repairs will be minor, and
guide in this section.
The guide will help you pinpoint the causes of common problems
and identify remedies.
For more complicated repairs, you may want to rely on your
retailer, an authorized service center or Earthquake. A parts
breakdown is located toward the end of this manual.
We will always be glad to answer any questions you have, or help
-
ranty, call or email us using the contact information found below.
ORDERING REPLACEMENT PARTS
Parts can be obtained from the store where the string trimmer
was purchased or direct from the factory. To order parts visit
www.getearthquake.com or call 1-800-345-6007.
For other general questions, you can e-mail us at info@ardisam.
com.
Please include the following information with your order:
1) Part numbers
2) Part description
3) Quantity
4) Model number and serial number
WARNING
DO NOT REMOVE GASOLINE WHILE INSIDE A BUILD
ING, NEAR A FIRE, OR WHILE YOU SMOKE. GASOLINE
FUMES CAN CAUSE AN EXPLOSION OR A FIRE.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 17
TROUBLESHOOTING GUIDE
NOTE: Please see the engine manual for a full troubleshooting guide for any engine issues.
Trouble Cause Correction
Engine does not start Spark plug wire disconnected Connect spark plug wire
Engine not primed Prime engine
Defective or incorrectly gapped spark plug Inspect or replace spark plug
Fuel tank empty Add fuel
Dirty carburetor or fuel line Clean carburetor or fuel line
Dirty air filter Replace air filter
Carburetor out of adjustment For carburetor adjustment, take the unit to an autho-
rized service center
Engine flooded Wait several minutes before starting
Throttle control lever in incorrect position Move throttle lever to FAST or START position
Stale gasoline Drain old gasoline and add fresh gas
Defective throttle control lever or wire Inspect lever and wire. Replace if damaged or defective.
Engine runs poorly Bad spark plug Replace spark plug
Dirty air filter Replace air filter
Carburetor out of adjustment For carburetor adjustment, take the unit to an autho-
rized service center
Stale gasoline Drain old gasoline and add fresh gas
Engine cooling system clogged Clean debris screen and engine cooling fins
Engine overheats Engine cooling system clogged Clean debris screen and engine cooling fins
Carburetor out of adjustment For carburetor adjustment, take the unit to an autho-
rized service center
Oil level is low Add oil
Engine will not stop
running
Defective throttle control lever or wire Inspect and replace damaged parts
Throttle not adjusted properly Move throttle to the full OFF position
Poor trimming perfor-
mance
Trimmer line length is too short Correct line length is 21.5 inches. When the line is less
than 1/2 of this length, replace the line.
Engine not set at FAST speed Move engine throttle lever to FAST position
Trimmer vibrates Socket head cap screws for the trimmer
head are loose
Tighten socket head cap screws with L-handle wrench
Trimmer line lengths are substantially
different
Adjust trimmer line to approximately equal lengths
Loose nuts or bolts Check all bolts and nuts, including engine bolts
Broken trimmer head Replace broken part
Trimmer head does not
retain line
Trimmer line not properly attached Follow instructions on decal or in the "Maintenance,
Service and Storage" section of the owner's manual
Broken line retainer Replace trimmer head assembly
Trimmer line not correct size
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-518
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
degrees.
A 10 degree slope is a hill that increases in height at approxi-
mately 1.76 feet in 10 feet.
A 15 degree slope is a hill that increases in height at approxi-
mately 2.68 feet in 10 feet.
SLOPE GUIDE
WARNING
USE EXTREME CARE AT ALL TIMES AND AVOID SUD
DEN TURNS OR MANEUVERS. FOLLOW OTHER IN
STRUCTIONS IN THIS MANUAL FOR SAFETY IN TRIM
MING ON SLOPES. OPERATE A TRIMMER ACROSS THE
FACE OF SLOPES, NEVER UP OR DOWN SLOPES. USE
EXTRA CARE WHEN OPERATING ON OR NEAR SLOPES
AND OBSTRUCTIONS.
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 19
PARTS BREAKDOWN
Handlebars
8
2
11
7
11
614
14 13 12
1
5
9
10
4
16
3
5
9
10
16
4
15
KEY PART # DESCRIPTION QT Y.
1 19942 1
2 19901 GRIP HANDLEBAR FOAM 1
3 19941 1
4 19912 4
5 19913 2
6
19914 THROTTLE CONTROL CABLE 1.5 IN
1
60005039 THROTTLE CONTROL CABLE B & S
1
7 60005019 CABLE CONTROL LATCHING 1
8 19943 1
9 19911 SCREW M2.9 X 13 PPHAB 8
10 19975 WASHER M3 X 7 X .5 FLAT 8
11 19908 BOLT M6 X 1.0 X 50 PPHMS 2
12 19902 1
13 19939 1
14 3
15 19910 2
16 19945 BOLT M8 X 1.25 X 20 HHFCS GR8.8 ZN 4
Get parts online at www.getearthquake.com or call 800-345-6007 M-F 8-520
Operator's Manual
Rolling High-Wheel String Trimmer 600050 Series
Engine and Pulley Attachment
6
6
1 (GRAPHIC FOR REFERENCE ONLY)
6
7
7
3
5
4
7
2
KEY PART # DESCRIPTION QT Y.
1
60005072
1
60005070
1
60005071
1
2 19971 1
3 19970
1
4 1916965 1
5 53194 BOLT 3/8-24 X 1 HH GR5 ZN F-T 1
6 19922 BOLT M8 X 1.25 X 40 HHFCS GR8.8 ZN 3
7 3
This manual suits for next models
3
Table of contents
Other EarthQuake Trimmer manuals
Popular Trimmer manuals by other brands
Husqvarna
Husqvarna 324HDA55X series Operator's manual
Craftsman
Craftsman WEEDWACKER Incredi-Pull 316.795861 Operator's manual
Flymo
Flymo SAMURAI 1000XT Original instructions
Philips
Philips QC5550 Usage information
Martha Stewart
Martha Stewart MTS-EPHT18 Operator's manual
Black & Decker
Black & Decker GL280 Original instructions
