Easee 90501UK User manual

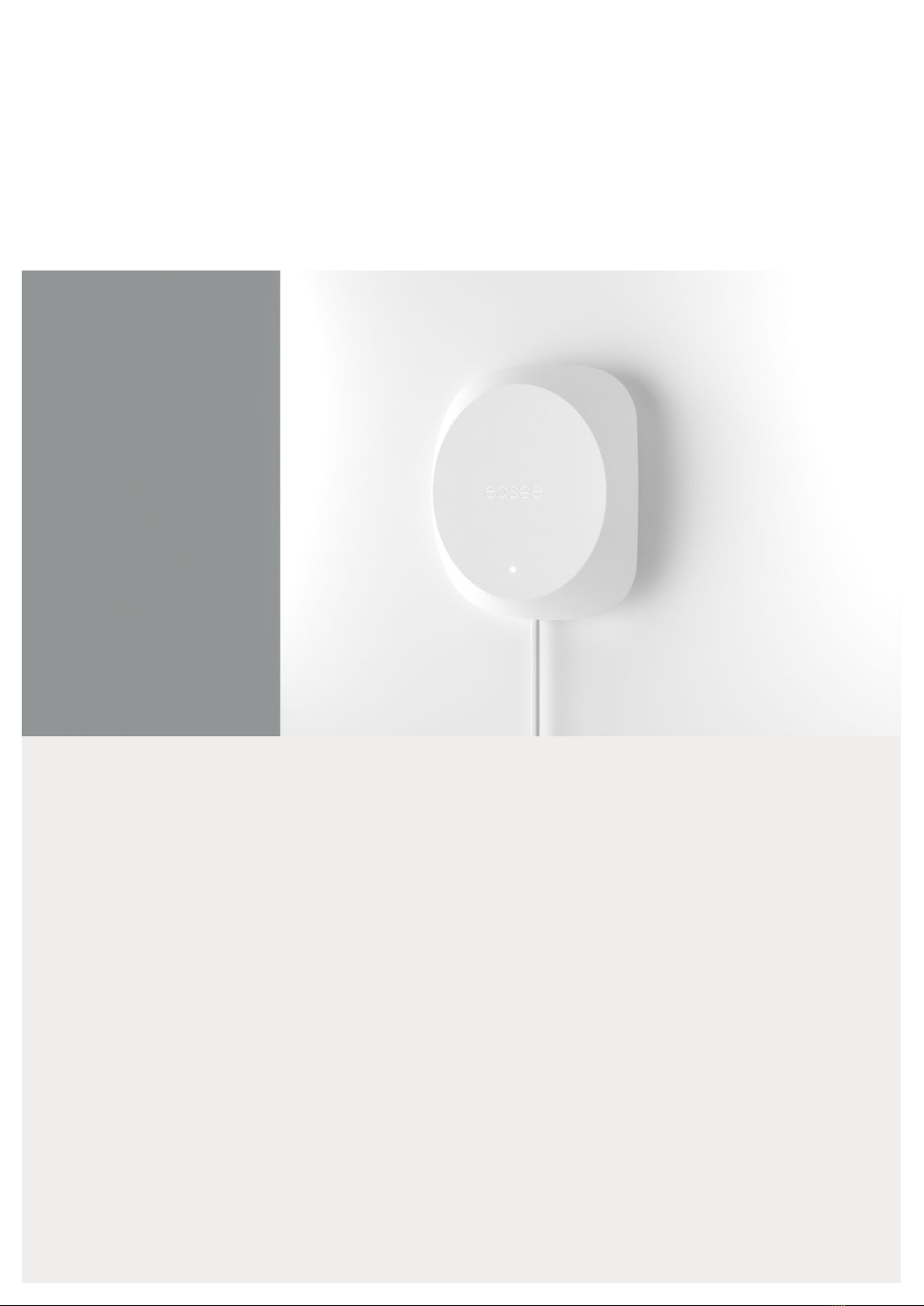

Equalizer The Equalizer measures your energy consumption and the
current load in real time and optimizes your charging.
It prevents the main fuse from turning off due to overload and
allows the user to use all available electricity to charge their
car by communicating with the Easee Charging Robot
via WiFi.
DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.

Charge smarter,
safer and faster
Why choose Easee Equalizer?
Dynamic load balancing between the Charging Robot(s)
and the building
Avoid overload and power interruption while charging
your EV
Charge your EVs faster when the the building’s energy
consumption is lower
Direct communication with Easee chargers through
Easee LinkTM or WiFi*
Monitor the power consumption in your building through
the Easee app
Disclaimer! The installation of the Equalizer home
package must be done according to existing laws
and safety regulations by a certified electrician or
installer. The user is responsible for making sure that the
installation is done correctly.
–
–
–
–
–
Benefits
*When used together with an Easee Charging Robot.
DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.

Measurement
in mm
General
Product (mm): H: 110 x W: 110 x D: 27.5
Packaging (mm): H: 130 x W: 130 x D: 39
Operating temperature: -20 °C to +50 °C
Weight: 95 g
Material: PC/ABS
Colour: White
IP degree: IP40
Power supply: 5-32 V DC 100 mA
RJ12 connector
Integrated magnets for attaching the
product to metal surfaces or to wall
mount plate
Cabling
Cable length: 1.5 m
RJ12 custom made cable¹
Can be extended using an extension cable
up to 15 m
Technical
Specifications
H:110
D:27.5W:110
The product contains
Equalizer Cable
(custom made)
Wall mount plate
Max transmitted power
Radio: 25 mW at 863–870 MHz.
WiFi: 50 mW at 2.4–2.472 GHz.
Connectivity
Easee Link RF™ and Wifi2P1 smart meter
communication
Modbus RTU (RS-485) connection to
energy meter3
Monitor power consumption with
the Easee App
RFID / NFC reader
1 RJ11/RJ12 uses the same connector.
2 WiFi is required for normal operation and for future software
updates. When offline or unstable, it will use Easee Link RFTM as
backup in small installations with one primary charger. Easee
Link RFTM via radio may be limited by walls, concrete or other
obstacles.
3 Only for supported meters.
DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Equalizer Kit contains
Equalizer Kit
Eastron SDM630MCT-RC 3-phase
meter reader
Measurements (mm): H: 94,5 x W: 72 x D: 65
Voltage: 3 x 400V ac / 230V ac
Network frequency: 50/60Hz (± 2%)
Type: 3-phase 400 imp/kWh
IP-classification: IP51
Running temperature: -25°C - 55°C
Primary connection: 2,5mm2
Secondary connection: 2,5mm2
Montage: DIN-rail or alternative wall mount
with screw
Material: Self-extinguishing UI94 V-0
Tufvassons electricity transformer
Measurements (mm): H: 110 x W: 53 x D: 66
Input voltage: 180-264V, 47-63 Hz N - L
Output voltage: 24V dc (± 5%)
Effect: 30VA (1,25A) (electricity limit 2,5A)
MTBP: 50000 h at 70% load at 25°C
IP-classification: IP40
Running temperature: -10°C - 45°C
Double isolation (not to be earthed)
Protected against circuit cut and overload
Primary connection: 2-polig 2,5mm2
Secondary connection: 2-polig 2,5mm2
Mounting: DIN-rail or wall mount with screw
100A Kit
CT Clamps (3 pcs)
Input: Max 100A
Output: 333 mV
Measurements (mm): H: 46 W: 29
Diameter: 15.7 mm
Running temperature: -15°C - +60°C
RJ12 cable
Length: 1.5m
Colour: Black
Pre-cut
Connector plug: RJ12
Lead cable: 6 pin
Kit variant contains
500A Kit
Rogowski Coils (3pcs)
Input: 500A
Output: 85-100 mV | 1KA
Measurements (mm): L: 200
Diameter: 45-60 mm
Running temperature: -30°C - +80°C

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Preparation

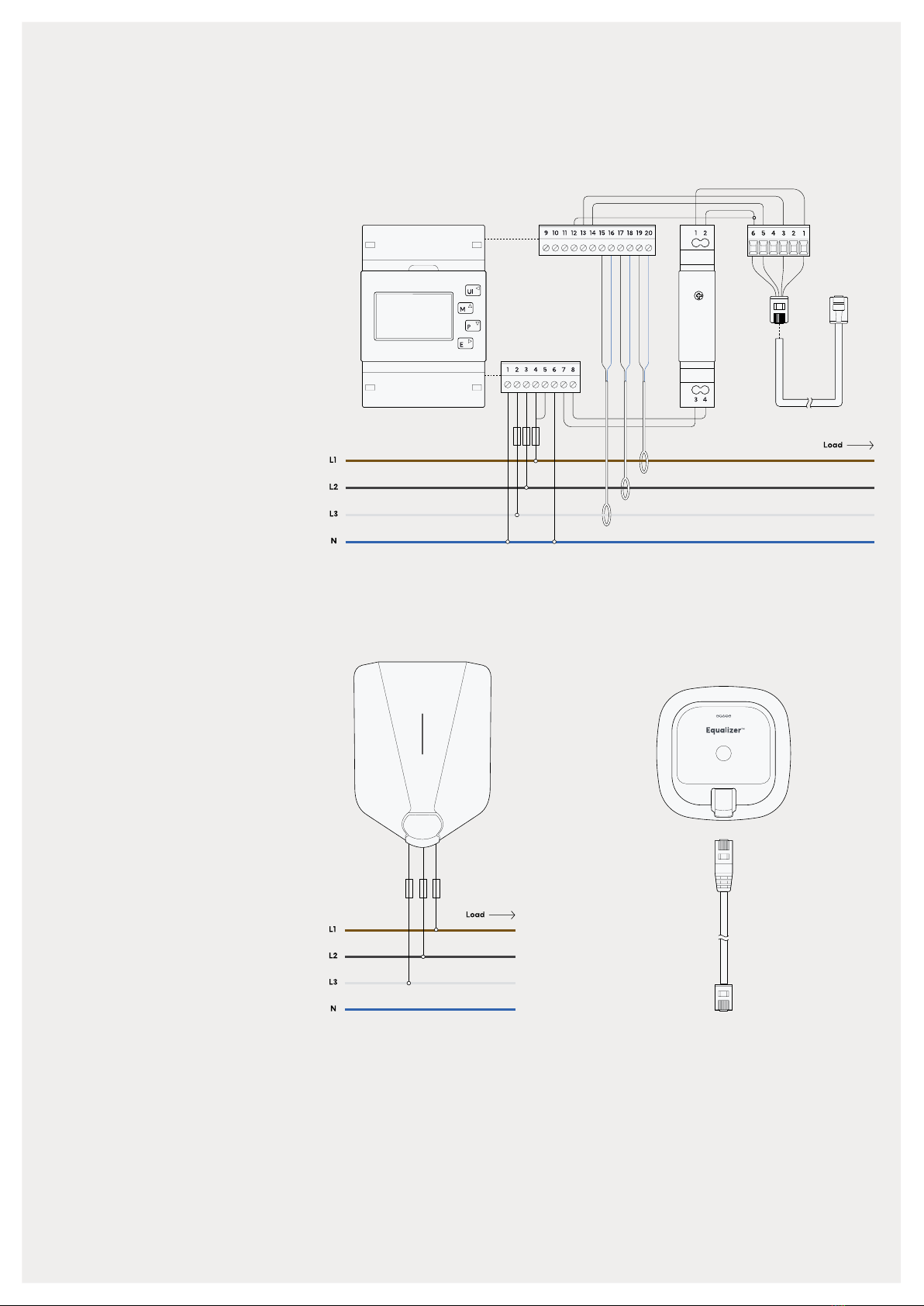

Install the components in the distribution
box according to the wiring diagram at the
end of this document.
Attach the 3 Rogowski Coils or CT Clamps
around the incoming phase cables. The
coils must be installed in the right direction
as per the following arrow →. If the coils are
installed in the wrong direction negative
values might appear on the metre reader.
Configure Eastron 3-phase meter reader:
– Press and hold the "E"-button for 3
seconds
– The metre reader asks for a password.
The password is always "1000" (Press
"Arrow up↑" one time to change)
– Press and hold the "E"-button for 3
seconds (Display shows "Set - Addr -
001")
Connection
Main distribution unit or secondary
distribution unit / facade metre reader unit.
Rogowski Coils must be fitted in the correct
order to read incoming power line.
Accessibility to WiFi to facilitate latest
software updates for the Equalizer.
Fuse 3-pool 10A (not included).
Installation
1.
2.
3.
1.
2.
3.
– Press "Arrow down↓" 5 times (Display
shows "Set - Ct1 - 0,5 kA")
– Press and hold "E"- button for 3 seconds
to select
– Set the Rogowski Coils amperes (500A)
or CT Clamps amperes (100A). Use
arrows →←↑↓ to select which figure you
want to change. (The display will now
show "Set - CT1 - 0,5 kA" when using coils
or “Set - CT1 - 0100” when using CT’s)
– Press and hold the "E"-button for 3
seconds to confirm (Display will show
"Good" to confirm the setting)
– Press "U/I"-button to return to the main
menu and "Arrow down↓"
– Now you are done and able to see the
phase reading on the display
Tips! Prepare installation in a new
encapsulation (not included):
– 4 Modules for Eastron 3-phase meter
reader
– 3 Modules for Tufvasson’s electricity
transformer
– 3 Modules for fuse 10A 3-pool (Eastron
3-phase meter reader)
– 3 Modules for fuse of charge box

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Configure Easee Equalizer Download the Easee Installer App via App
store or Google play
To use the Easee Installer App, you must
have an Easee Cloud account. If you
already have an account, you can log in
immediately
Commission the site by following the steps
below in the Easee Installer App
Commissioning of Equalizer
–
–
–
Create new facility:
Site information
Select Easee as the operator
Main fuse
Circuit fuse
Wi-Fi information
Scan the backplate and complete
the site
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Download the Easee Installer
App by scanning this QR code.
At Site Overview:
Add Equalizer
WiFi information
Scan Equalizer with your phone’s NFC
reader
Connect Equalizer to the metre reader
Update Equalizer to at least v.99
(takes up to 10 min)
Set metre type -> Eastron SDM
Set main fuse limit -> 100%
Set circuits for load balancing ->
Circuit (on)
Restart the device
At Site Overview:
Upload to cloud
Invite new owner by phone number
(you remain the administrator)
Ask the customer to download the
Easee app and create an Easee cloud
account. If an account already exists,
the customer needs to accept the
ownership request which is sent via
email.
Pairing 2 31 Equalizer Transfer ownership

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Is the charging box already installed? If the charger is already installed you will
need to be invited as an administrator to
access it in the Easee Installer App.
Do this by asking the site owner to invite you
as an administrator via the Easee Cloud, or
Add the charger (master) to the users Easee
app with the serial number and pin code
Troubleshooting
–
–
Then you will automatically become an
administrator and will find the site under
"update existing site" in the Easee Installer
App.
Note that you must be logged in with the
same account in the Easee app as for your
Easee Installer App for this step to work.
I can’t connect the Equalizer to the Wi-Fi
via the Easee Installer App
If you are unable to connect the device
to the Wi-Fi, check the following:
Check the name and the password of
the Wi-Fi. Be sure to check lowercase
and uppercase letters as well as special
characters. If you have the option to
rename the Wi-Fi, only use letters and
numbers, avoid special characters and
spaces
The Wi-Fi must have a password, it can’t
be an open Wi-Fi
Connected on 2.4 GHz Wi-Fi (5 GHz does not
work)
Firewalls or login portals blocking internet
access
Make sure that the Equalizer has good
coverage for Wi-Fi. Change location of
the Wi-Fi router and Equalizer. Open
any garage doors and the facade metre
cabinet to get as good coverage during the
connection process as possible. Alternatively,
install a Wi-Fi extender (Mesh)
–
–
–
How to connect the Equalizer via the
charging box
If you do not succeed in connecting the
Equalizer to Wi-Fi via the Easee Installer
App, you can try moving the Equalizer
towards the charging box until the box
displays a green light.
Ensure that the charging box is
connected to the same Wi-Fi that you
want the Equalizer to be connected to.
This is due to the name and password
being copied over when you scan the
devices
If the Wi-Fi is not already available,
connect the charging box via the
Easee Cloud, the Easee app or via the
charging box’s Wi-Fi interface
To set the Wi-Fi up via the charging box’s
Wi-Fi interface:
Turn the fuses on and off to activate the
installer’s interface
Press the button on the charger for 5 seconds
until it lights up green
Log into the charging box’s Wi-Fi interface
(192.168.4.1) and set the Wi-Fi
Scan the Equalizer again when these steps
are completed
–
–
–
–
–
–
–
–

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.

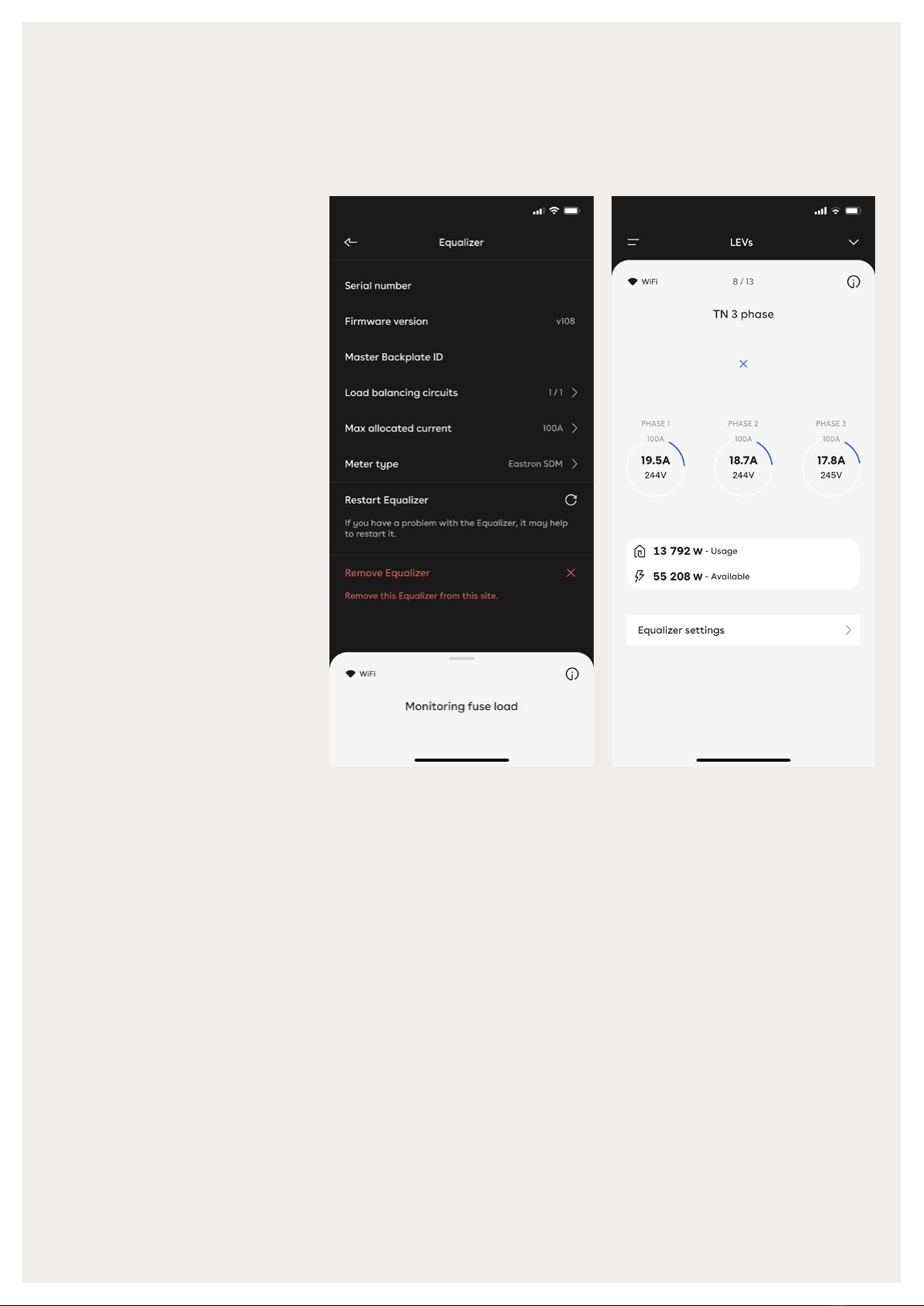

How to make sure the Equalizer is
displaying the correct values?
Via the Easee Installer App, go to Site
Overview -> Site Structure -> Equalizer, you
can click on the product card and get the
same visual image of the Equalizer that the
customer gets via their Easee app.
Control
Here you can confirm that the same ampere
values are displayed as on the Eastron meter.
Ampere values can be found on the Eastron
metre by clicking on [U / I] and scrolling to
ampere values (A).

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
I am receiving negative values on my
metre reader
Check that the arrows on the Rogowski
coils are connected in the right direction
Check the phase sequence control by
measuring on the charging box with a
voltage meter
Check the connection of the respective
colour in the meter (Red&Blue / Black)
Troubleshooting
Check that the connection is correct from
the fuse to the metre reader. Note on the
wiring diagram that the connection on the
meter has the sequence L3, L2, L1 from below
If the site has solar cells, it can show negative
values during production
The metre reader shows abnormal
values or no values
Equalizer is offline Check that the charging box is connected to
Wi-Fi
Disconnect the Equalizer from the metre
reader until it stops flashing
Hold the Equalizer against the charging box
until it lights up green
Reconnect the Equalizer to the metre reader
If the Equalizer does not appear in the
Easee Installer App, the signal is too weak.
Reposition Wi-Fi or Equalizer to get a
stronger signal. If necessary, install a Wi-Fi
extender (Mesh) for portable connection
–
–
–
–
–
Check that the RJ12 cable is connected
in sequence according to the wiring
diagram. If the cable was incorrectly
turned (see picture of RJ12 cable in the
wiring diagram), the Equalizer will receive
power but no data
Check that the metre is set to 0.5KA
or 1KA by following the instructions in
the section Installation - Configure the
Eastron 3-phase meter
Check that the charging box and the metre
reader are installed in the same phase
sequence. If switching has taken place in
the house e.g. L2, L1, L3 the phase sequences
need to be adjusted for the phase angle to
be correct. Please contact Easee Customer
Excellence to adjust the phase sequence
in the Equalizer. Switching on the metre
reader may need to be done, therefore an
installer needs to be in place during this
troubleshooting
––
–
–
–
–
–
–

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Equalizer LED-status White, rapidly flashing - Unit starting
White, slow pulsating every 10 seconds -
Functioning
Red / White, shifting - No WiFi-settings
Red, flashing - No data from the meter
reader
Red, consistent - Fault
Troubleshooting
Do you require assistance? Make sure to have the serial number
available for the Easee Home and Equalizer
to receive more rapid assistance.
Easee Customer Excellence
Telephone: [phone]
Email: [email protected]
Keep your finger pressed on the Easee
logo for 3 seconds to control connection.
You will see two flashes.
1st flash - EaseeLink radio frequency
status
2nd flash - WiFi status
Green - Connected
Red - Not connected

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Wiring scheme
Power meter
Power
supply
24 V DC

DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
Easee is distributed and maintained by a
network of qualified partners and resellers.
Find more information and your local
partner at:
Easee AS
Grenseveien 19
4313 Sandnes
Org.nr: 920 292 046
.easee.com
THIS DOCUMENT CONTAINS INFORMATION THAT IS
SUBJECT TO CHANGE WITHOUT NOTICE.
The latest version of this publication can be
downloaded at http://easee.support
No part of this publication may be reproduced or
transmitted in any form or by any means, electronic
or mechanical, including, but not limited to, copying,
recording, retrieving data, or computer networks
without the written permission of Easee AS.
Easee and all other Easee product names and slogans
are trademarks or registered trademarks of Easee
AS. Easee products can be protected by one or more
patents.
All other products and services mentioned may be
trademarks or service marks of their respective owners.
Illustrations of the product and user interface are
exemplary and may differ from the actual appearance.
July 2022 - Version 1.00
© 2022 by Easee AS. All rights reserved.
