Easy@Home 95986 User manual

ID: #07177
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
C
E
R
T
I
F
I
E
D
User-friendly
Manual
WITH
QUICK
START
GUIDE
CON MANUAL DE
INICIO RÁPIDO
User Manual
Manual
del usuario
STEAM IRON
PLANCHA DE VAPOR
English........06
Español ...... 27
For review R6

Dok./Rev.-Nr. 195774_20171031_US
Contents
Overview .............................................................................3
Use........................................................................................4
Package contents/device parts..........................................6
General information............................................................7
Reading and storing the user manual ..................................7
Explanation of symbols ...........................................................7
Quick Start Guide.................................................................8
Safety................................................................................. 10
Proper use................................................................................10
Safety notes .............................................................................10
First use.............................................................................. 15
Checking the steam iron and package contents............... 15
Basic cleaning..........................................................................16
Preparations for first use.......................................................16
Adding water........................................................................... 16
Operations..........................................................................17
Setting the temperature........................................................ 17
Steam ironing..........................................................................19
Using the steam shot function..............................................19
Using the vertical steam shot function .............................. 20
Dry ironing.............................................................................. 20
Spray function........................................................................ 20
After each use.......................................................................... 21
Additional functions............................................................... 21
Cleaning and maintenance............................................... 22
General cleaning.....................................................................22
Self-cleaning function ...........................................................23
Storage ..............................................................................23
Troubleshooting................................................................23
Technical data ................................................................... 25
Disposal..............................................................................26
Disposing of the packaging ..................................................26
Disposing of the steam iron ..................................................26
For review R6

3
A
15
12
3456
7
8
10
13
12
14
9
11
For review R6

4
B
C
15
1
For review R6

5
DE
2
11
FG
4
3
For review R6

6

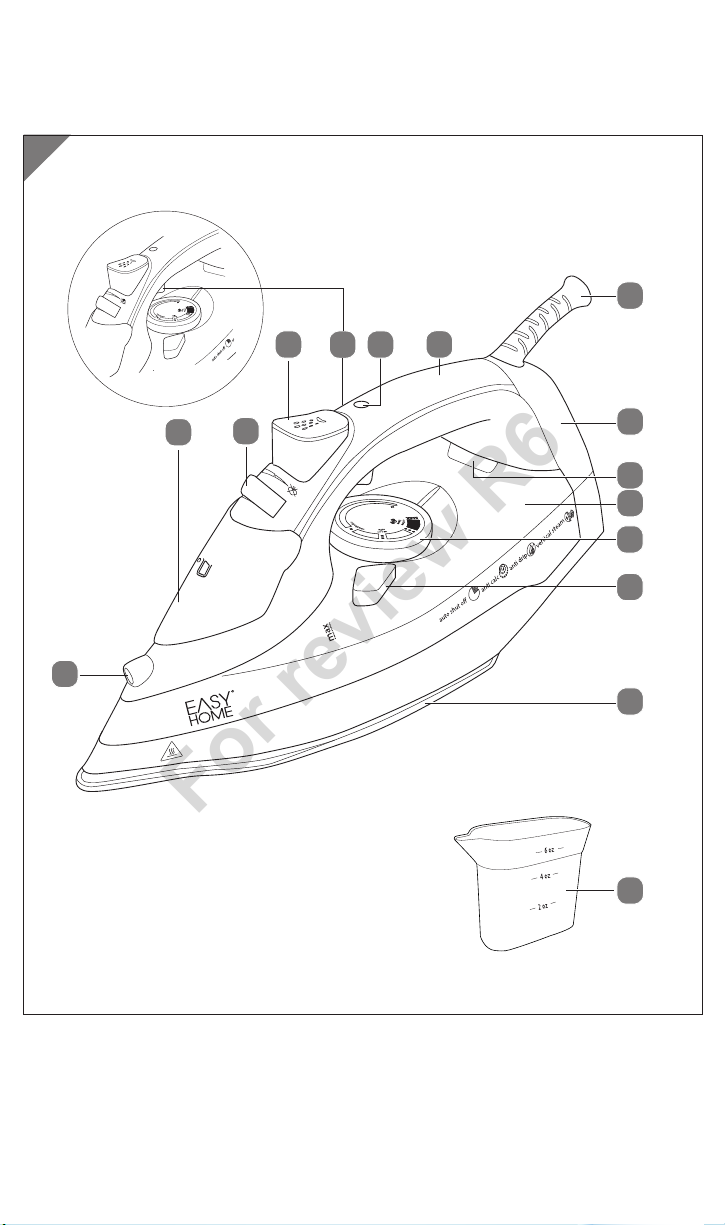

Package contents⁄device parts
1Water tank lid
2Steam control dial
3Spray button
4Steam button
5Power LED
6Handle
7Power cord and plug
8Pedestal
9Operating control light
10 Water tank
11 Temperature control dial
12 Self-clean button
13 Soleplate
14 Spray nozzle
15 Measuring cup
For review R6

General information
7
General information
Reading and storing the user manual
This user manual accompanies this steam iron and contains important
information on setup and handling.
Before using the steam iron, read the user manual carefully. This
particularly applies to the safety notes. Failure to do so may result in
personal injury or damage to the steam iron. The steam iron is not a toy for children.
Store the user manual for further use. Make sure to include this user manual
when passing the steam iron on to third parties.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the
steam iron or on the packaging.
WARNING! This signal symbol/word designates a hazard
with moderate risk, which may result in
death or severe injury if not avoided.
CAUTION! This signal symbol/word designates a hazard
with low risk, which may result in minor or
moderate injury if not avoided.
NOTICE! This signal word warns of possible damage
to property.
This symbol provides you with useful additional information on
handling and use.
Disconnect the steam iron from the power supply. Pull the plug out
of the power outlet and let the steam iron cool off before cleaning it.
Burn hazard! Warning of a hot surface!
ETL Listed Mark
The ETL Listed Mark is proof that your product has been independently
tested and meets the applicable published standard.
For review R6

8

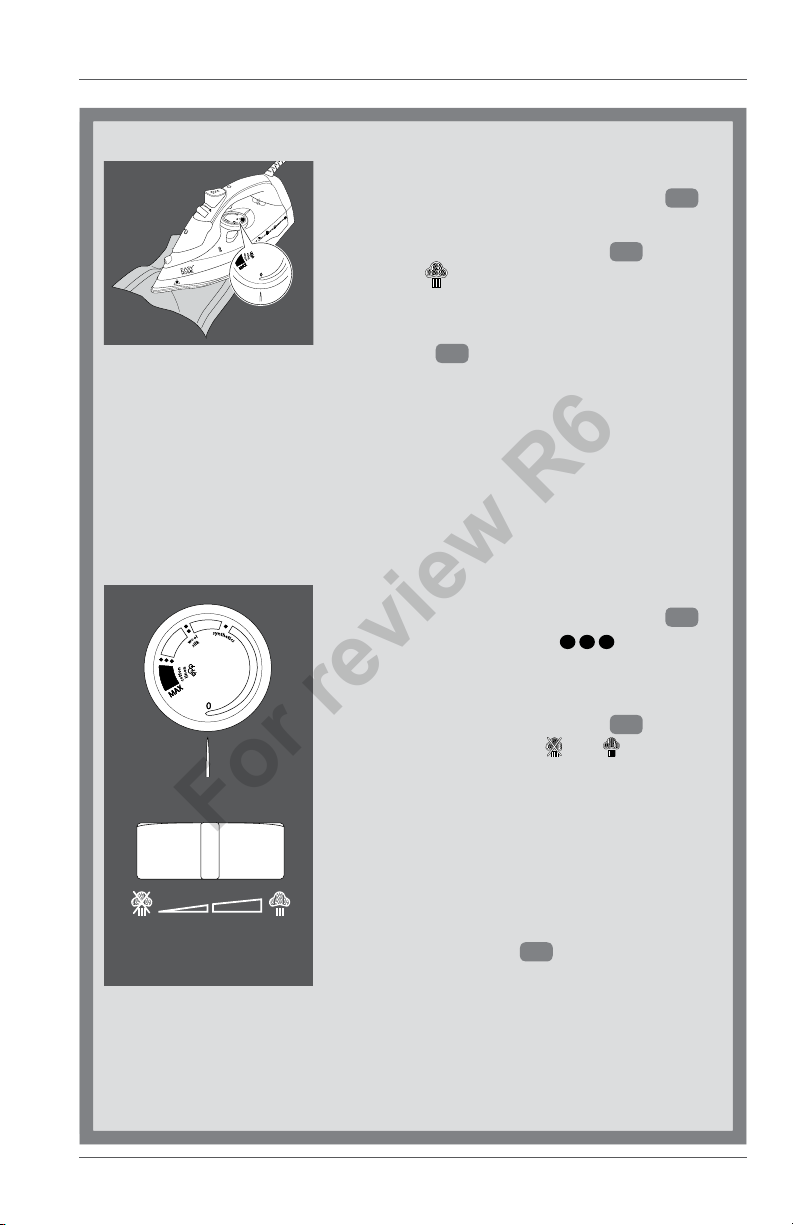

Quick Start Guide
QUICK
START
GUIDE!
Five simple steps for
successful steam ironing
1. Removing the protective cover
• Peel the protective cover off the
soleplate 13 .
• Wipe down the soleplate with a soft,
damp cloth.
2. Adding water
• Hold the steam iron at a slight angle
and lift the water tank lid 1.
• Use the enclosed measuring cup 15 to
fill the water tank 10 with tap water.
• Close the water tank lid. It will “click”
when securely closed.
3. Plugging in the steam iron
• Plug steam iron into a properly installed
power outlet. The power LED 5will
illuminate.
For review R6

9
Quick Start Guide
Read all safety notes in this user manual before use.
It is imperative that you observe all safety notes in the user manual.
4. Heating up the steam iron
• Set the temperature control dial 11
to MAX.
• Set the steam control dial 2to
the position.
• Let the steam iron heat up for about
two minutes. The operating control
light 9will light up while the iron is
heating up. It will go out as soon as the
maximum temperature is reached.
• Iron over an old, clean cloth.
• When heating the steam iron for
the first time, smoke or odor may be
produced as production residue is
burned off.
5. Steam ironing
• Set the temperature control dial 11 to
a position between and MAX.
• Always note the information on the
care label of your garment.
• Set the steam control dial 2to a
position between and depending
on the required temperature and
amount of steam.
• Lay the garment to be ironed on the
ironing board and iron it. Steam will be
emitted as soon as the soleplate is flat
on the fabric.
• As soon as you place the steam iron
on its pedestal 8, the steam iron will
stop steaming.
For review R6

Safety
10
Safety
Proper use
The steam iron is exclusively designed for ironing heat-resistant clothing and
fabric on a heat-proof surface. The clothing and fabric intended for ironing
must be properly labeled. The steam iron is only intended for private use and is
not suitable for commercial purposes.
Only use the steam iron as described in this user manual. Any other use is
considered improper and may result in damage to property. The steam iron is
not a children’s toy.
The manufacturer or vendor cannot be held liable for damages incurred
through improper or incorrect use.
Safety notes
WARNING!
Risk of electric shock!
A faulty electrical installation, excessive line voltage or incorrect
operation may result in an electric shock.
− Only plug in the steam iron if the line voltage of the outlet
corresponds to the data on the steam iron’s plug. Do not
use outlets that do not have sufficient capacitance.
− Only plug the steam iron into an easily accessible outlet so
that you can quickly remove it from the power supply in
the event of a problem.
− Avoid simultaneously connecting other electrical devices
with a high power consumption to the same outlet or
extension board.
− If an extension cord is absolutely necessary, then ensure
it has an ampere rating equal to, or greater than, the
maximum rating of the steam iron. Using an extension
cord with less amperage may result in a risk of fire or
electric shock due to overheating.
− Do not let the power cord hang down to ensure that children
or pets are not able to pull on it or get tangled in it.
− Do not operate the steam iron if it exhibits visible damages
For review R6

Safety
11
or if the power cord or plug is defective.
− If the power cord of the steam iron is damaged, do not use
it. Have the manufacturer, its customer service team or an
authorized professional or authorized specialist workshop
repair it. Contact the manufacturer via the address on the
warranty card.
− Do not open the housing; instead, have an authorized
qualified professional perform repairs. Liability and
warranty claims are waived in the event of repairs
performed by the user, improper connection or incorrect
operation. Contact the manufacturer via the address on the
warranty card.
− Only parts that comply with the original device data may
be used for repairs. This steam iron contains electrical
and mechanical parts which are essential for providing
protection against sources of danger.
− Never insert any object into the housing.
− The steam iron must not be operated with an external
timer or separate remote control system.
− Do not immerse the steam iron, power supply unit or
power cord in water or other liquids.
− Never touch the plug with wet or damp hands.
− Do not pull the plug out of the outlet by the cord; instead,
always pull it out using the plug itself.
− Never move, pull, or carry the steam iron by its power cord.
− Keep the steam iron, the power supply unit and power
cord away from open flames and hot surfaces.
− Lay the power cord so that it does not pose a tripping
hazard.
− Do not kink the power cord and do not lay it over sharp
edges.
− Only use the steam iron indoors. Do not use the steam iron
in damp rooms or in the rain.
− Never store the steam iron such that there is a risk of it
falling into a tub or sink.
For review R6

Safety
12
− Never reach to retrieve an electrical appliance if it has
fallen into water. In such a case, immediately unplug the
appliance.
− Always switch off the steam iron before plugging it into a
power outlet and before unplugging it, and when you are
not using it, when you intend to clean it, when you add or
drain water, in the event of a malfunction, or in the event
of a storm.
WARNING!
Risk of short circuit!
Water that has penetrated the housing may cause a short circuit
and an electric shock. You may injure yourself if you come into
contact with the steam iron.
− Before you fill or empty the water tank, pull the plug out of
the outlet.
− Do not use a steam or high-pressure cleaner to clean the
steam iron.
WARNING!
Danger for children and persons with impaired physical,
sensory or mental capacities (e.g., partially disabled
persons, older persons with reduced physical and mental
capacities) or lack of experience and knowledge (e.g.,
older children).
− If they are supervised or have been instructed in how to
safely use the steam iron and have understood the risks
associated with operating it, this steam iron may be used
by children ages eight and over as well as persons with
impaired physical, sensory or mental capacities or those
lacking experience and knowledge. Children may not play
with the steam iron. Cleaning and user maintenance must
not be performed by unsupervised children.
For review R6

Safety
13
− Keep children under the age of eight away from the steam
iron and power cord at all times.
− Do not leave the steam iron unattended while in operation.
− Make sure that children do not play with the plastic
wrapping. They may get caught in it when playing and
suffocate.
WARNING!
Danger of explosion!
The steam iron becomes very hot when in use and may ignite
flammable liquids and vapors in the immediate vicinity.
− Keep flammable liquids and vapors away from the steam
iron.
WARNING!
Burn/fire hazard!
The soleplate may inflict burns if you come into direct contact
with it.
− Never leave the steam iron unattended when it is
connected to the power outlet.
− Always remain attentive when ironing.
− Make sure that there is no risk of other persons, especially
children, or pets burning themselves on the steam iron.
− Do not iron garments while they are being worn.
− Do not point the steam at another person or at animals.
− Always iron on a solid, stable base to prevent the steam
iron from falling.
− Let the steam iron cool off completely before cleaning or
storing it.
For review R6

Safety
14
WARNING!
Scalding hazard!
If you come into contact with the hot steam, you may scald
yourself.
− Never turn the hot steam iron so that the hot soleplate is
pointing up, otherwise water may leak out of the water
tank.
− Do not use the hot steam for clothing when it is being worn!
− Avoid direct contact with the hot steam.
− If the steam iron is turned upside during or immediately
after use, be very careful as any hot water remaining in
the water tank may leak out of the water tank.
CAUTION!
Health hazard!
The water in the water tank is not suitable for drinking; it may
be contaminated. Drinking the water may make you ill.
− Do not drink the water in the water tank.
NOTICE!
Risk of damage!
If you do not use the steam iron properly, you may damage it.
− Always pull the power plug and not the power cord to
disconnect the steam iron from the power outlet.
− Never use the power cord as a carrying strap.
− When setting the steam iron, do not exceed the ironing
level indicated by the care label on your garment. An
incorrect ironing temperature may damage your clothes.
− Fill the water tank only with water.
− Use an ironing cloth if you use the steam function for
fabrics made of fine synthetic fiber.
For review R6

First use
15
− Do not use any solvent-based, aggressive or abrasive
cleaners or cleaning utensils (e.g., scouring pads or
similar) on the steam iron. They may scratch the surfaces.
− Do not iron metallic objects, such as buttons, zippers, etc.
− Stop using the steam iron if it has fallen over or fallen off
its pedestal or the ironing board, and/or it exhibits visible
damage, e.g., water is leaking although the water tank lid
is firmly closed.
− Place the steam iron on an easily accessible, level, dry,
heat-resistant and stable work surface. Do not place the
steam iron on the edge of the work surface.
− Avoid the build-up of heat by not placing the steam iron
directly up against a wall or under cupboards or similar. The
steam that is emitted can damage furniture and wall decor.
− Never place the steam iron on or near hot surfaces
(e.g., hotplates).
− Ensure the power cord does not come into contact with
heat-generating sources (e.g., hotplates).
− Never expose the steam iron to high temperatures (e.g.,
heaters, etc.) or to the effects of the weather (e.g., rain).
− Stop using the steam iron if its plastic housing and compo-
nents exhibit cracks or breaks or are deformed. Only replace
damaged parts with corresponding original spare parts.
First use
Checking the steam iron and package contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a
sharp knife or other pointed object, you may quickly damage
the steam iron.
− For this reason, be very careful when opening it.
For review R6

First use
16
1. Take the steam iron out of the packaging.
2. Check to make sure all parts are included (see Fig. A).
3. Check whether the steam iron or individual parts are damaged. If this is the
case, do not use the steam iron. Contact the manufacturer via the service
address indicated on the warranty card.
Basic cleaning
• Remove the packaging material and all protective foils.
• Clean all parts of the steam iron before first use as described in the chapter
„Cleaning and maintenance.”
Preparations for first use
When heating up the steam iron for the first time, smoke or odor may
be produced as production residue is burned off. This is normal and
not a cause for concern.
1. Peel off the protective cover from the soleplate 13 and wipe down the
soleplate with a soft, damp cloth.
2. Stand the steam iron on its pedestal 8.
3. Plug the steam iron into a properly installed power outlet and turn the
temperature control dial 11 to MAX.
4. Let the steam iron heat up for approximately two minutes and iron over an
old clean piece of cloth.
5. Remove the power plug from the power outlet and let the steam iron cool
down.
Adding water
WARNING!
Risk of short circuit!
Water that has penetrated the housing may cause a short circuit
and an electric shock. You may injure yourself if you come into
contact with the steam iron.
− Remove the power plug from the power outlet before
filling the water tank with water, and before emptying the
water tank.
For review R6

Operations
17
Do not use any distilled or demineralized water or chemical additives.
These substances will hinder the anti-limescale function.
1. Hold the steam iron at a slight angle and lift the water tank lid 1to open it
(see Fig. B).
2. Use the enclosed measuring cup 15 to fill the water tank 10 with tap
water. Make sure you do not fill the water tank passed the MAX mark
(see Fig. C).
3. Close the water tank lid. It will “click” when it is securely closed.
4. Wipe up any water that has spilled.
Operations
WARNING!
Burn hazard!
Clothing can become very hot during and after ironing, and
may cause burns.
− To avoid risk of burns, do not touch the clothes immediately
after ironing.
Setting the temperature
NOTICE!
Risk of damage!
If you adjust the temperature during use, you may damage
your clothing if you use the iron immediately afterwards.
− Wait approximately two minutes before continuing with
the ironing to avoid damaging your clothing.
The temperature will remain constant while the steam iron is in use.
Refer to the table below for a temperature settings guide for different types
of fabric. Always pay attention to the information on the care label of your
clothing.
For review R6

Operations
18
Fabric type Steam ironing Temperature setting
Synthetics: acetate, acrylic, viscose,
polyamide (nylon), polyester
(rayon)
No
Silk, wool No
Cotton, linen, denim Yes ~ MAX
Velvet, velveteen, cotton velvet Yes ~ MAX
1. Set the steam iron on its pedestal 8.
Turn the temperature control dial 11 to 0 (see Fig. D).
2. Plug in the steam iron. The power LED 5will illuminate.
3. Turn the temperature control dial to the setting that corresponds with
the care label on your clothing. The set temperature will be reached after
approximately two minutes. The operating control light 9will light up
while the iron is heating up.
4. When the operating control light goes out, the steam iron is ready for use.
− Do not overfill the washing machine. Your clothes will be less prone
to wrinkling as a result.
− Iron delicate fabrics while they are still damp.
− Before ironing, sort clothes by fabric type or temperature setting.
− Begin with fabrics that need to be ironed at low temperatures.
This will save time as the iron heats up faster than it cools down, and
will also prevent damage to clothing and burn marks.
− With blended fabrics (e.g., 40 % cotton, 60 % synthetics), always use
the lower temperature for the more delicate fabric.
− If you are unsure of the fabric’s composition, always start by ironing
an inconspicuous area of the garment using a low temperature.
If there is no damage, and if it is necessary, increase the temperature
incrementally.
Use a press cloth if in doubt, and/or also turn your clothes inside out
before ironing.
− Always iron garments with prints, embroidery, lace, sequins, or
similar appliqués inside out and at the lowest temperature.
− Place the garment as flatly as possible on the ironing board. Move
the iron back and forth evenly over the fabric. Do not pause on one
spot for too long to avoid burn marks.
− For velvet and velveteen, steam ironing is suggested. Never iron
completely dry. Hold the steam iron so that it is hovering slightly
above the fabric (see chapter “Vertical steam ironing”).
For review R6

Operations
19
Steam ironing
WARNING!
Scalding hazard!
The steam produced by the steam iron is very hot and may
cause scalding if not avoided.
− Do not point the vapor stream at any person or animal.
− Keep your hands and all parts of the body away from the
garment while using the steam shot function.
NOTICE!
Risk of damage!
Make sure the water tank is filled with water before using the
steam ironing functions, otherwise you may damage the steam
iron.
− Top up the water in the water tank to the MAX mark
before and after each use.
1. If applicable, fill the water tank 10 with water as described in the chapter
“Adding water.”
2. Turn the temperature control dial 11 to a position between and
MAX (see Fig. D).
3. Set the steam control dial 2to a position between and depending on
the selected temperature and required amount of steam.
4. Lay the garment as flatly as possible on the ironing board.
5. Steam will be emitted the moment the steam iron is placed on the fabric.
Move the iron back and forth evenly over the fabric. Do not pause on one
spot for too long to avoid burn marks.
6. When you place the steam iron on its pedestal 8, it will stop emitting steam.
Using the steam shot function
An extra burst of steam can be obtained with the steam shot function. This is
useful for freshening up and smoothing hanging fabrics, e.g., curtains.
The steam shot function is also useful for stubborn creases in stiffer or stubborn
fabrics, e.g., denim and linen.

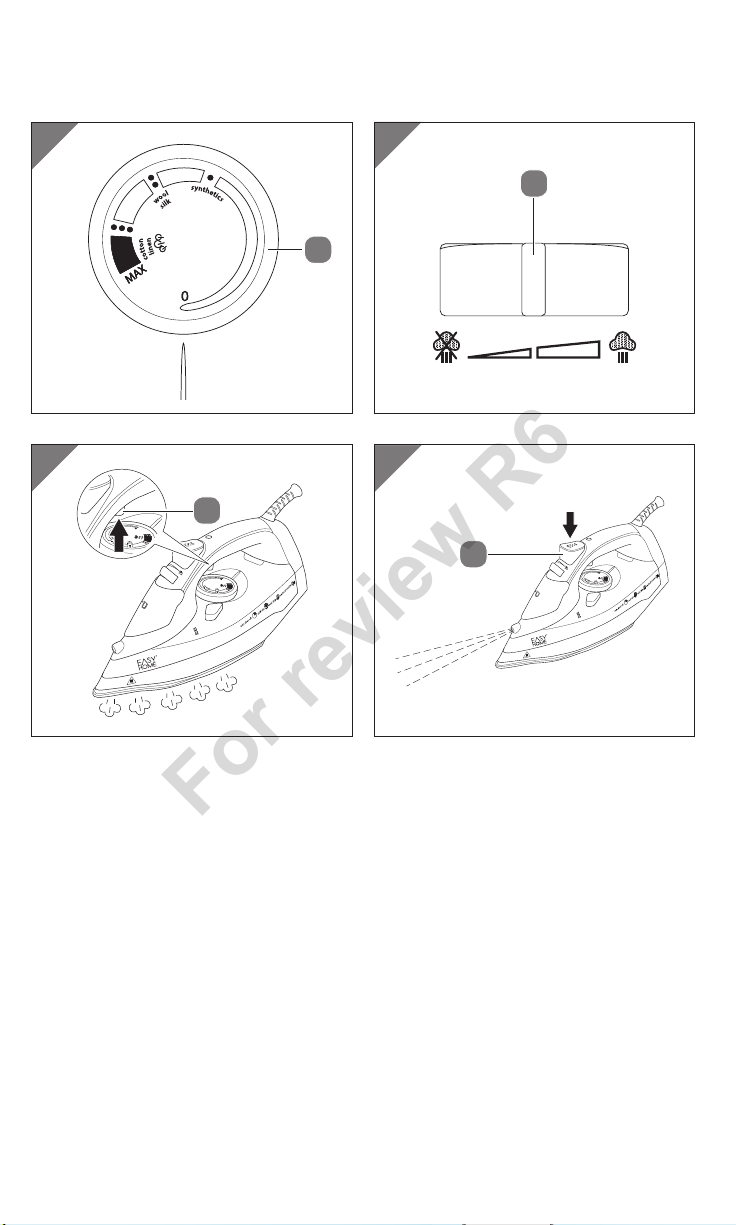

1. Select a high temperature for steam ironing ( up to MAX). Put the iron
on its pedestal 8and wait for the operating control light 9to go out.
For review R6

Operations
20
2. Position the curtains or fabric so that they can be ironed while hanging.
3. Push the steam button 4to release a burst of steam. Steam will be
emitted from the soleplate 13 (see Fig. F).
− Steam can only be produced at the higher temperature settings,
which start from .
− Depending on the fabric blend, thickness and creasing characteristics,
the required amount of steam may vary considerably. More steam is
needed to iron easily-creased fabric, e.g., linen, than for thin cottons.
− Never push the steam button several times in a row. Wait a few
seconds between each press.
Using the vertical steam shot function
The vertical steam shot function is ideal for straightening creased hanging
fabrics, like curtains, and for steam ironing temperamental fabrics on hangers,
like velvet.
1. Operate the steam iron as described in the chapter “Preparations for first use.”
2. Set the temperature control dial 11 to the desired temperature (see Fig. D).
3. Set the steam control dial 2to the position (maximum steam).
4. Hold the steam iron so that it is hovering slightly above the fabric. Glide the
steam iron over the fabric without touching the fabric.
Dry ironing
1. Operate the steam iron as described in the chapter “Preparations for first use.”
2. Set the temperature control dial 11 to the desired temperature (see Fig. D).
3. Set the steam control dial 2to the position (no steam).
4. Iron your clothing or other desired fabrics.
Spray function
You can use the spray function to dampen garments with stubborn creases to
remove them more easily. The spray function can be used during both steam-
ironing and dry-ironing.
1. Iron your clothing, or fabrics, as described in the chapters “Dry ironing” or
“Steam ironing.”
2. Press the spray button 3as needed. Water will spray from the spray
nozzle 14 .
3. Release the spray button to stop using the spray function.
For review R6
