Eaton CAM-EXT-00 User manual

CAM-EXT-00 External IP Camera
Introduction
The CAM-EXT-00 is a 1 / 2.7” Mega-Pixel CMOS
sensor IP camera with a built-in web server. The
user can view real-time video via IE browser. It
supports H.264, and M-JPEG video compression,
providing smooth and high video quality.
Supports Wired Ethernet connections and Wi-Fi
connectivity with a user friendly interface, it is an
easy-to-use IP camera for security applications.
The camera support a web interface that allows
authorised users access the camera menus and
change settings.
The only configuration of the Camera that the
Installer is required to do is set the IP address
and/or Wi-Fi settings and also set up the
image/focus.
The panel will configure all required settings for
visual verification of the camera once the IP
address of the camera has been entered in to the
panel.
Package contents:
1 x External IP camera
1 x 3 axis bracket
1 x screw package
1 x quick installation guide
Note: It is recommended you follow these
instructions and configure the device before
mounting it.
This product must be installed by qualified service
personnel.
Installing the unit
Connector instruction
Connect the power adaptor first, then connect
the IP Camera to PC or network, and set up the
network configurations according to the network
environment.
3-Axis Bracket
Use the 3-Axis bracket to adjust the camera to
appropriate angle, then turn and tighten the
screw to fix it.
Wireless antenna
(Optional)
Plug the Antenna into the connector on the
back of the camera unit while holding the
Antenna bar.
Turn the lock nut to the right until it is totally
locked. Do not bend or try to straighten the
antenna bar.
PoE (Power Over
Ethernet) (Optional)
802.3af, 15.4W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that
integrates power into a standard LAN
infrastructure. It allows providing power to a
network device, such as an IP phone or a
network camera, using the same cable as that
used for network connection. It eliminates the
need for power outlets at the camera locations
and enables easier application of uninterruptible
power supplies (UPS) to ensure an operation of
24 hours a day, 7 days a week.
IP assignment
By default the camera will be configured to
obtain a DHCP IP address when plugged into a
DHCP enabled router.
If the camera does not detect a DHCP
connection then it will switch to a fixed IP
address of 192.168.0.200.
IP address discovery
If DHCP is used to assign an IP address to the
camera then the IP address will not be known to
the installer, there are 2 recommended methods
to discover the IP address.
1. IP motion App
IP motion App - This is an Android or iOS app
which has a LAN search feature which will seek
out and display the IP address of any cameras
on the same network, also with the added ability
to view the live stream of the cameras.
The Android app can be found in the Google
Play store, below is a QR code to easily find it.

The IOS app can be found in the App store,
below is a QR code to easily find it.
1. Open the app and Press on the LAN
Search button for searching IP devices
connected to the LAN network
2. A list of on-line cameras will be
displayed, with the current IP address and
port number
3. If a camera is selected then a detailed
view will be displayed.
4. Pressing test will provide a snapshot in
order to confirm the camera view
5. Pressing save will add the camera to
the app’s camera view
6. Selecting the required camera will
provide a live stream
2. IP Installer
This is a Windows PC application which will
seek out and display the IP address of any
cameras on the same network. It also
provides the ability to change the IP of the
camera. This software is free to download
from www.touchpoint-online.com
1. Run the installation programme IP
InstallerENG.EXE
2. Select ‘Search Device’
Camera will be shown in the device list
3. Select the camera
This will show the default details of the
camera. IP address, Subnet Mask, Gateway
and Mac Address
4. Change name of the camera
5. Change IP information if known
IP address, Subnet Mask, Gateway address
and
DNS
6. Change Static to DHCP
This allow the router to allocate a free
address to the camera
7. Press Submit to save changes
Camera reboots
8. Select Camera
IP address off camera assigned by router
will be displayed
Subnet Mask, Gateway etc. will also be
automatically filled out
9. Change DHCP back to Static
Assigns a static address to the camera.
10. Press Submit to save changes
Camera reboots
Camera set up
Once the IP address is known then the installer
can configure the basic set up of the camera.
To access the camera, the Installer must enter
the IP address of the camera into a web
browser on a PC, Tablet or smartphone such as
Internet Explorer, Firefox, Safari, Chrome etc.
The camera will asked for a user name and
password;
The default username is: admin
The default password is: admin
Once the username and password has been
entered then the installer will be presented with
a live view of the selected camera similar to the
screenshot below.
Please note: to display the live feed then the
Browser will need to support ActiveX.
From the live view screen the Installer can
access the configuration screen by clicking on
the “spanner” icon.
Once in the configuration screens the Installer
can configure various options.
Panel & camera set up
When the IP address and HTTP Port number is
known it can be entered into the control panel.
When a specified event occurs the control unit
will instruct the relevant camera to acquire JPG
images and send them to the control unit,
where these images will be stored on the locally
fitted SD card, if a corresponding email trigger
is set up then the control unit will then attach
these images to an email and send to a
specified recipient(s).
The amount of images that will be attached to
the email will be 15 equivalent to 1 image per
second for 5s pre event 10s post event.
Up to 4 IP cameras can be configured in the
panel. The panel will need to have the address
of the camera and required triggers
programmed into it.
Once the IP address of the camera has been
entered into the panel UI, then the panel will
periodically poll the camera for its presence and
report if there is no response from a camera.
See Engineering guide for details of setting up
the camera in the control panel.
Image Settings
The installer can make various changes the
image settings
1. For security and privacy purposes, there
are three areas that can be set up for privacy.
Click the Area button first, and then drag an area
on the above image. Remember to save your
settings. The masked area will not be shown on
both live view and recording image.

2. Brightness, Contrast, Hue, Saturation,
Sharpness can be adjusted here. The
available values are: -4, -3, -2, -1, 0, 1, 2, 3,
4
3. AGC: The sensitivity of the camera can
be adjusted to the environmental lighting. By
enabling this function the camera will get
brighter images on low light, but the level of
noise may also increase. The available
values are: 16x, 24x, 32x, 48x.
4. Shutter Time: Choose the location of
your camera or a fixed shutter time. The
shorter the shutter time is the less light the
camera receives and the image becomes
darker.
Note: When you select a number in Shutter
Time, the shutter time will vary in a range
and be controlled by camera automatically.

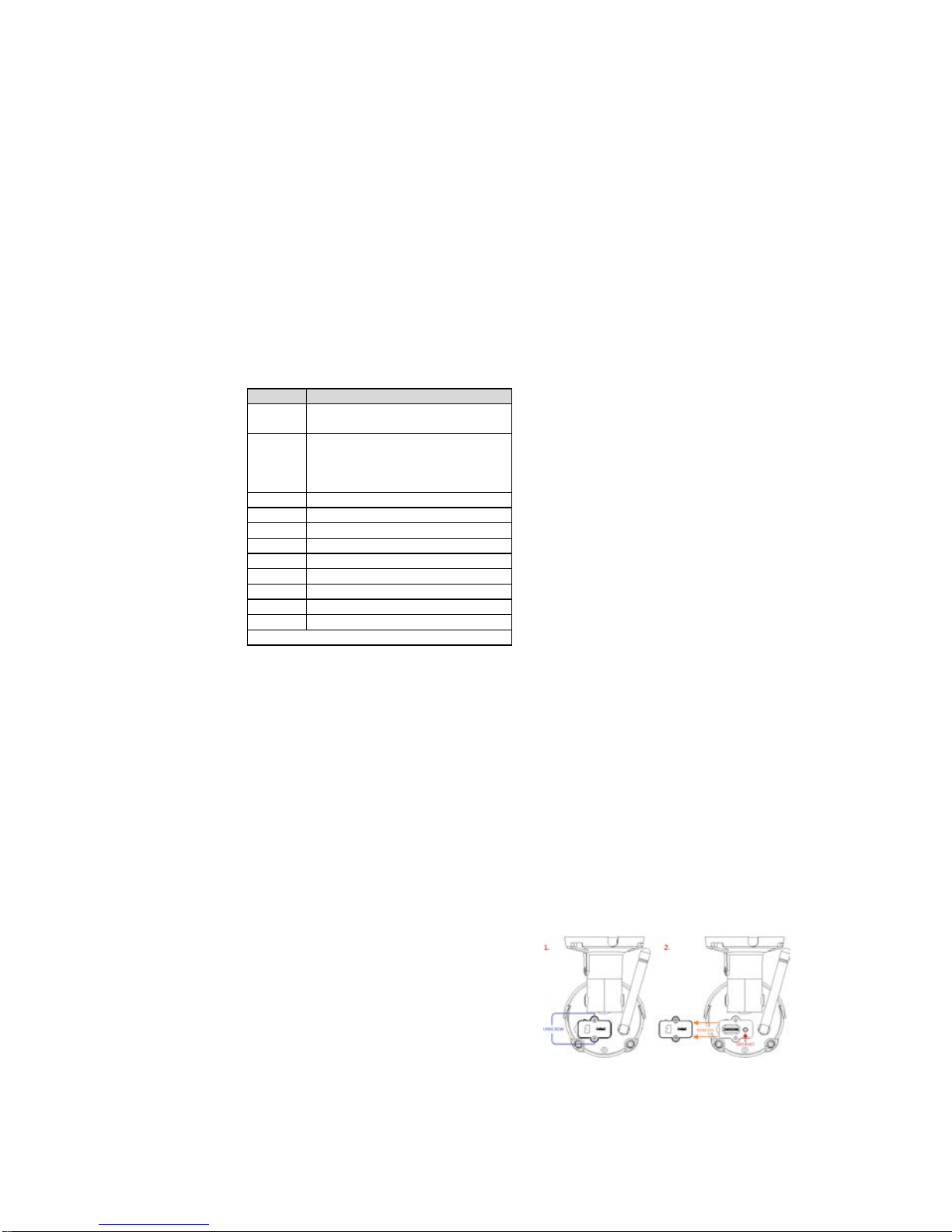

The following table shows the shutter time
options and corresponding range.
5. Sense up: When enabled, provides a
higher sensitivity in low light conditions by
slowing the shutter speed. The available
values are: 1/30, 1/15, 1/10, 1/5.
6. D-WDR: This function enables the
camera to reduce the contrast in the view to
avoid dark zones as a result of over and
under exposure. If the Input resolution is
30fps, the default value is fixed on
ENABLED. The available values are: OFF, 1,
2, 3, 4, 5, 6, 7, 8. If the D-WDR is enabled
the values for bright, dark and contrast can
be adjusted.
7. Anti Fog: Improve the image clarity on
environments presenting high levels of fog or
smoke.
8. Lens Distortion Correction: Straight the
curves in the borders of the image caused by
the lens angles. The available values are:
OFF, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10.
9. Video Orientation: Flip or mirror the
image.
10. Day & Night: The camera can detect
the light level of the environment. If you
choose Light Sensor Mode, the image will be
turned black and white at night in order to
keep a clear image. To set light sensor mode,
appoint a Lux standard of switching D/N. The
current Lux value is provided for reference.
Under Times Mode the switch time of Color /
Black and white will be according to the given
time. You can also control it by choosing Color
or B/W.
11. Red / Blue gain: Set the values for Red /
Blue gain. The available values are: -5, -4, -3, -
2, -1, 0, 1, 2, 3, 4, 5
12. Denoise: This function is able to filter the
noise and blur from the image and show a
clearer view. You can set the values for 2D and
3D filters.
User Management
The installer can change the default username
& password, create and remove users.
Wireless Setting
The installer can change and connect the
camera to a Wi-Fi network, the camera will
display the available networks and their SSID’s
and the required level of security.
IP Setting
The installer can change the IP assignment
mode to and from DHCP or Static. When Static
is selected then the options displayed below
can all be manually edited.
Please Note: It is advised that if the IP address
is assigned via DHCP that the IP assignment
mode is changed to Static to retain the IP
address should there be a loss of power to the
camera or the router.
Log list
The installer can view the system log of the
camera.
Factory Default
If you forget your password, please follow the
steps to revert back to default value.
1. Remove the power and Ethernet cable.
2. Unscrew and remove the lid from covering
the access to the default button. It is
recommended that you use a small piece of
copper wire to reach it inside the hole. Press
and hold the button once it is reached.
Option
Shutter Time Range (sec.)
Outdoor
1/33000 ~ Selected number in
Sense-up
Indoor
NTSC: 1/120 ~ Selected number in
Sense-up
PAL: 1/100 ~ Selected number in
Sense-up
1/30
1/33000 ~ 1/30
1/50
1/33000 ~ 1/50
1/60
1/33000 ~ 1/60
1/100
1/33000 ~ 1/100
1/125
1/33000 ~ 1/125
1/250
1/33000 ~ 1/250
1/500
1/33000 ~ 1/500
1/1000
1/33000 ~ 1/1000
1/33000
1/33000
* Sense-up options: 1/30, 1/15, 1/10

3. Connect the power back to the camera,
and do not release the button for less than
30 seconds to reboot. Release the button
when the camera finishes booting.
4. Re-login the camera with the default IP
(http://192.168.0.200), and username: admin,
password: admin.
Specifications
Hardware
CPU: Multimedia SoC
RAM: 256MB
Flash: 16MB
Image Sensor: 1 / 2.7” Mega-Pixel CMOS
sensor
Sensitivity: Color : 0.1 Lux (AGC ON)
Black & white: 0.05 Lux (AGC ON)
Lens Type: 2.8mm @ F2.0
View Angle: 111.10°(H), 65.10°(V)
ICR: IR cut filter mechanism
Power over Ethernet: Yes
Power Consumption: DC 12V Max: 3.6W
(IR ON); 2.76W (IR Off)
PoE Max: 4.3W (IR ON); 3.3W (IR Off)
Operating Temperature: -10°C ~ 50°C
Dimensions: 68mm (Ø) x 102mm (H)
Weight: 550g
IR LEDs
LEDs: 28 units
IR Distance: 20M
System
Privacy Mask: Yes, 3 different areas
Compression Format: H.264/ M-JPEG
Video Bitrates Adjust: CBR, CVBR
Pre Alarm: 5 images
Post Alarm: 10 images
Security: Password protection, IP address
filtering, HTTPS encrypted data
transmission, 802.1X port-based
authentication for network protection,
QoS/DSCP
Firmware Upgrade: HTTP mode, can be
upgraded remotely
Simultaneous Connection: Up to 10
Web Browsing Requirement
OS: Windows 7, 2000, XP, 2003, Microsoft
IE 6.0 or above, Chrome, Safari, Firefox.
Mobile Support: iOS 4.3 or above, Android
1.6 or above.
Hardware Suggested: Intel Dual Core
2.53G,RAM: 1024MB, Graphic card:128MB
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Eaton Electrical Products Ltd declares that
the radio equipment type CAM-EXT-00 is in
compliance with Directives 2014/53/EU. The full text
of the EU declaration of conformity is available at the
following internet address:
www.touchpoint-online.com
The information, recommendations, descriptions and safety
notations in this document are based on Eaton Corporation’s
(“Eaton”) experience and judgment and may not cover all
contingencies. If further information is required, an Eaton
sales office should be consulted. Sale of the product shown
in this literature is subject to the terms and conditions
outlined in appropriate Eaton selling policies or other
contractual agreement between Eaton and the purchaser.
THERE ARE NO UNDERSTANDINGS, AGREEMENTS,
WARRANTIES,EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE OR MERCHANTABILITY, OTHER THAN
THOSE SPECIFICALLY SET OUT IN ANY EXISTING
CONTRACT BETWEEN THE PARTIES. ANY SUCH
CONTRACT STATES THE ENTIRE OBLIGATION OF
EATON. THE CONTENTS OF THIS DOCUMENT SHALL
NOT BECOME PART OF OR MODIFY ANY CONTRACT
BETWEEN THE PARTIES.
In no event will Eaton be responsible to the purchaser or
user in contract, in tort (including negligence), strict liability
or other-wise for any special, indirect, incidental or
consequential damage or loss whatsoever, including but not
limited to damage or loss of use of equipment, plant or
power system, cost of capital, loss of power, additional
expenses in the use of existing power facilities, or claims
against the purchaser or user by its customers resulting from
the use of the information, recommendations and
descriptions contained herein. The information contained in
this manual is subject to change without notice.
© 2016 Eaton
Eaton, Security House, Vantage Point Business Village,
Mitcheldean,
GL17 0SZ
www.touchpoint-online.com
Product Support (UK) Tel: [phone] available
08:30 to 17:00 Monday to Friday.
email: [e-mail]
Part number 12692248 Issue 1 04/07/16
