D-Link DCS-5000L User manual

User Manual
Pan & Tilt Wi-Fi Day/Night Camera
DCS-5000L
Version 1.00 | 11/13/2015

2D-Link DCS-5000L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and
other countries. App StoreSM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of
Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part,
without prior expressed written permission from D-Link Corporation, Inc.
ErP Power Usage
This device is an Energy Related Product (ErP) designed to be always on. If it is not needed during certain periods of time, it
can be unplugged to save energy.
Revision Date Description
1.00 13 November, 2015 Initial A1 release
Manual Overview

3D-Link DCS-5000L User Manual
Table of Contents
Table of Contents
Product Overview..............................................................5
Package Contents.........................................................................5
System Requirements.................................................................6
Introduction ...................................................................................7
Features............................................................................................8
Hardware Overview...................................................................10
Front View..............................................................................10
Rear View ...............................................................................11
Installation.......................................................................12
Mobile App Setup ......................................................................13
mydlink Lite ..................................................................................14
Zero Conguration Setup........................................................15
Camera Setup Wizard................................................................18
Windows Users ....................................................................18
Mac Users...............................................................................19
Manual Hardware Installation................................................20
Wireless Installation Considerations....................................21
WPS - Push Button Setup.........................................................22
Mounting Instructions..............................................................23
mydlink...........................................................................................25
Conguration...................................................................26
Using the Web Conguration Interface..............................26
Live Video ......................................................................................27
Setup...............................................................................................29
Wizard.....................................................................................29
Internet Connection Setup Wizard........................30
Network Setup.....................................................................32
Wireless Setup......................................................................34
Dynamic DNS (DDNS) .......................................................35
Image Setup .........................................................................36
Video .......................................................................................37
Audio.......................................................................................38
Motion Detection ...............................................................39
Sound Detection.................................................................40
Mail ..........................................................................................41
FTP............................................................................................44
Time and Date......................................................................46
Day/Night Mode .................................................................47
Camera Control ...................................................................48
Maintenance ................................................................................50
Admin .....................................................................................50
System ....................................................................................52
Firmware Upgrade..............................................................53
Status ..............................................................................................54
Device Info ............................................................................54
Active User ............................................................................55
Help .........................................................................................56
Troubleshooting..............................................................57

4D-Link DCS-5000L User Manual
Table of Contents
Technical Specications..................................................60
Regulatory Statements ...................................................62

5D-Link DCS-5000L User Manual
Section 1 - Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for
this product.

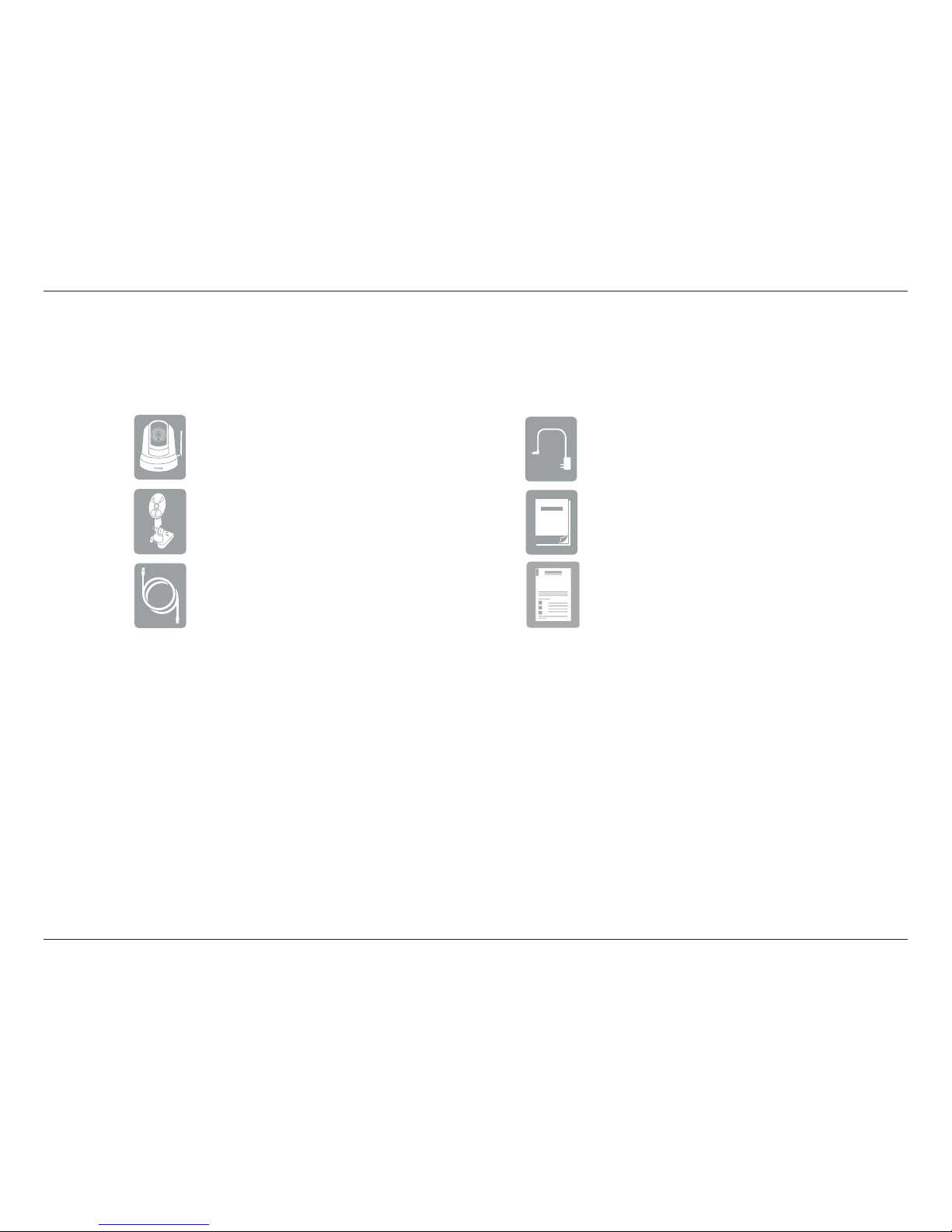

DCS-5000L Pan & Tilt Wi-Fi Day/Night Camera Micro-USB Power Adapter
CAT5 Ethernet Cable
Camera Base and Mounting Kit Quick Install Guide
Quick Install Card

6D-Link DCS-5000L User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• 10/100 Ethernet network or a 802.11n/g wireless network
• An Internet connection
• A router connected to your broadband modem
Setup Wizard Requirements
Computer with the following:
• A PC with a wired connection to your router
• Windows® 10, 8 (32/64-bit), 7 (32/64-bit), Vista® (32/64-bit),
Mac OS®X 10.7 or above
Web-based Conguration Utility
Requirements
Browser Requirements:
• Internet Explorer 8 or higher
• Firefox 12 or higher
• Safari 6 or higher
Note: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
mydlink Website Requirements
• Broadband Internet connection
Computer with:
• Internet Explorer 8 or higher (ActiveX)
• Firefox 12 or higher
• Safari 6 or higher
• Chrome 20 or higher

7D-Link DCS-5000L User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-5000L Pan &TiltWi-Fi Day/Night Camera.The DCS-5000L is a versatile and unique
solution for your home or small oce. Unlike a standard webcam, the DCS-5000L is a complete system with a built-in CPU,
web server, and wireless networking device that transmits high quality video images for security and surveillance. The pan/tilt
function allows the camera to patrol a wide area, while the built-in IR LEDs provide around-the-clock surveillance regardless
of the lighting conditions.
The DCS-5000L can be accessed remotely, and controlled from any PC/laptop over your local network or through the Internet
via a web browser. The simple installation and intuitive web-based interface oer easy integration with your Ethernet/Fast
Ethernet or 802.11 b/g/n wireless network. Wireless N technology gives you the freedom to place the DCS-5000L anywhere
within range of your existing wireless network. The DCS-5000L also comes with remote monitoring and motion detection
features for a customized, cost-eective security solution.
Your DCS-5000L is mydlink-enabled, which means that you can view and manage your camera over the Internet through the
mydlink website, or through the mydlink mobile app for iOS and Android. You can view your live video feed, take snapshots,
and manage the camera’s conguration, all from anywhere you have Internet access.

8D-Link DCS-5000L User Manual
Section 1 - Product Overview
Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-5000L is a standalone surveillance camera that requires no special hardware or software, and can operate independently,
even without a PC. This camera is also mydlink-enabled, which means you can view and manage your camera through the
mydlink website, or through the mydlink mobile app for iOS and Android mobile devices.
Pan/Tilt for Wide Viewing Area
Patrol a large area with one camera thanks to the DCS-5000L’s pan and tilt functions.You can use the web interface to manually
adjust the camera lens position, or set up to 24 pre-dened preset positions, enabling you to quickly move to frequently used
points of interest.
IR LEDs for Day and Night functionality
The built-in infrared LEDs enable night time viewing of up to 8 meters (26 feet), giving you clear images regardless of lighting
conditions.
MJPEG Codec for Smooth, Space-Ecient Video
This camera supports use of the MJPEG video codec, which gives you high-quality video with reduced bandwidth requirements.
This means that you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to
save recordings.
Motion Triggered Notications and Recordings
The DCS-5000L can send email notications with snapshots or video clips whenever motion is detected. You can customize
areas of the video to monitor for motion to keep watch over specic areas of interest, and have the DCS-5000L send you an
email notication or upload images to an FTP server whenever motion is detected.
Features

9D-Link DCS-5000L User Manual
Section 1 - Product Overview
802.11n/g/b Wireless or Ethernet/Fast Ethernet Support
The DCS-5000L oers wireless 802.11n/g/b and Ethernet/Fast Ethernet connectivity, making it easy to integrate into your existing
network environment. The DCS-5000L works with either a 10 Mbps Ethernet-based network or 100 Mbps Fast Ethernet-based
network for traditional wired environments, and works with 802.11n/g/b wireless routers or access points for added exibility.
The Site Survey feature also allows you to view and connect to any available wireless networks within range of the camera.
Micro-USB Powered for Convenience
For added convenience, the DCS-5000L can be powered via any Micro-USB cable, so you don’t have to worry about looking
for a matching power adapter when setting it up for use. Simply use the included or standard Micro-USB cable and plug it into
any USB power adapter or powered USB port and it’ll be powered on and ready for use.
Remote Monitoring with mydlink Lite App
With the mydlink Lite app for mobile devices, you can easily view live streams and manage your camera from anywhere with
an Internet connection.

10D-Link DCS-5000L User Manual
Section 1 - Product Overview
Hardware Overview

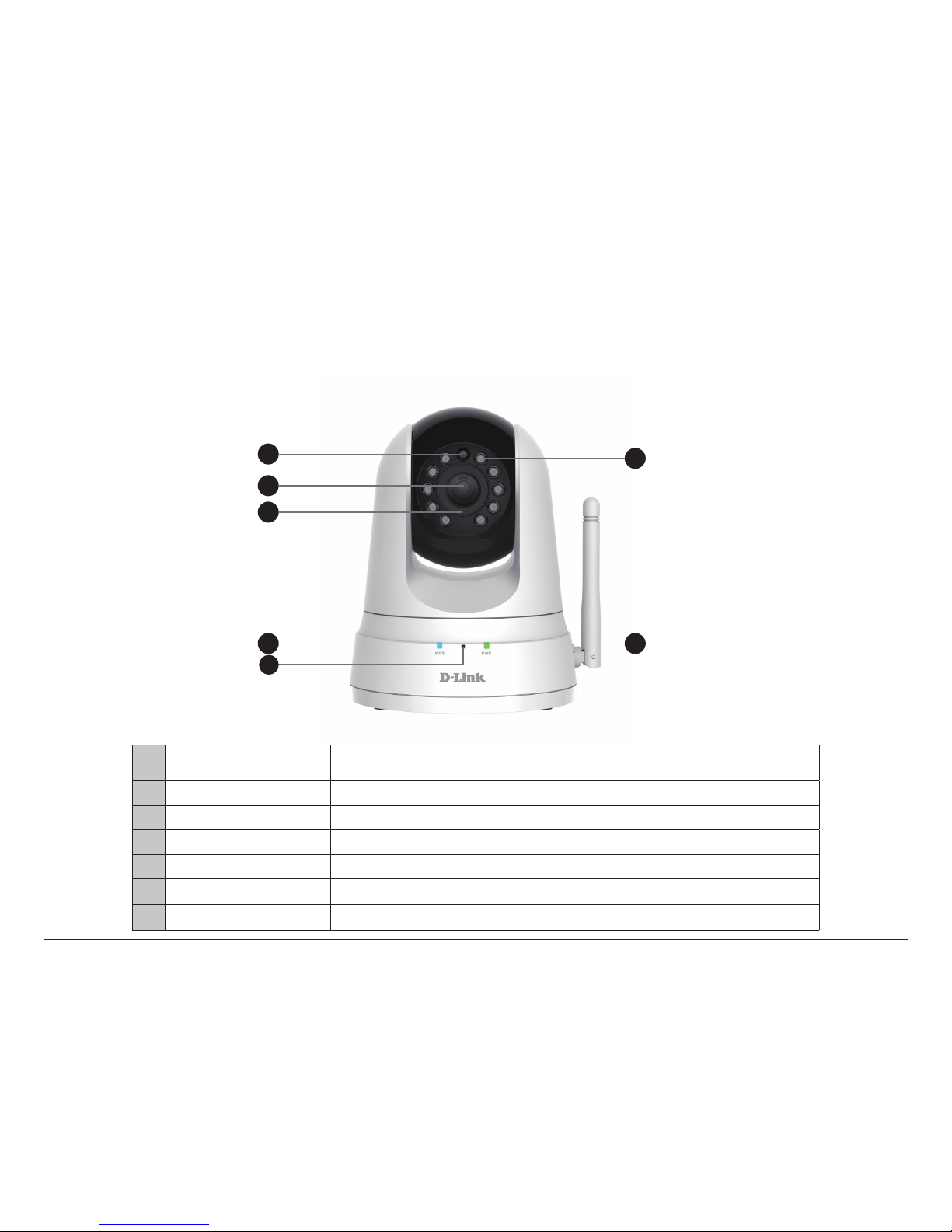

Front View
1 Light Sensor The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
2 Camera Lens Records video of the surrounding area.
3 Manual Focus Bezel Manually adjust the focus of the lens for your required view.
4 WPS LED Indicates the WPS connection status of the camera.
5 Microphone Records audio from the surrounding area.
6 Infrared LEDs Illuminate the camera’s eld of view in low light environments.
7Power and Link LED Indicates the camera’s current status.
4
5
1
2
3
6
7

11D-Link DCS-5000L User Manual
Section 1 - Product Overview
Rear View
123
4
1 WPS Button Press this button, then press the WPS button for 5 seconds on your router to set up
a wireless connection automatically.
2 Reset Button Press and hold this button for 10 seconds to reset the camera.
3 Ethernet Port RJ45 connector for Ethernet.
4 Micro-USB Port Connect a Micro-USB cable here to power on the camera.

12D-Link DCS-5000L User Manual
Section 2 - Installation
There are three ways to set up your camera:
• Mobile App Setup: You can set up your DCS-5000L with the free mydlink Lite app. Refer to Mobile App Setup
on page 13.
• Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way
to set up your camera. Refer to Zero Conguration Setup on page 15.
• Camera InstallationWizard: If you do not have a mydlink-enabled router, use the Camera InstallationWizard to
guide you through setup and initial conguration of your camera. Refer to Camera Setup Wizard on page 18.
• Manual Hardware Installation:This section shows you how to manually set up your camera, however, in order
to use the mydlink features of your camera, you will still need to run the Camera Installation Wizard. Refer to
Manual Hardware Installation on page 20.
Installation

13D-Link DCS-5000L User Manual
Section 2 - Installation
Mobile App Setup

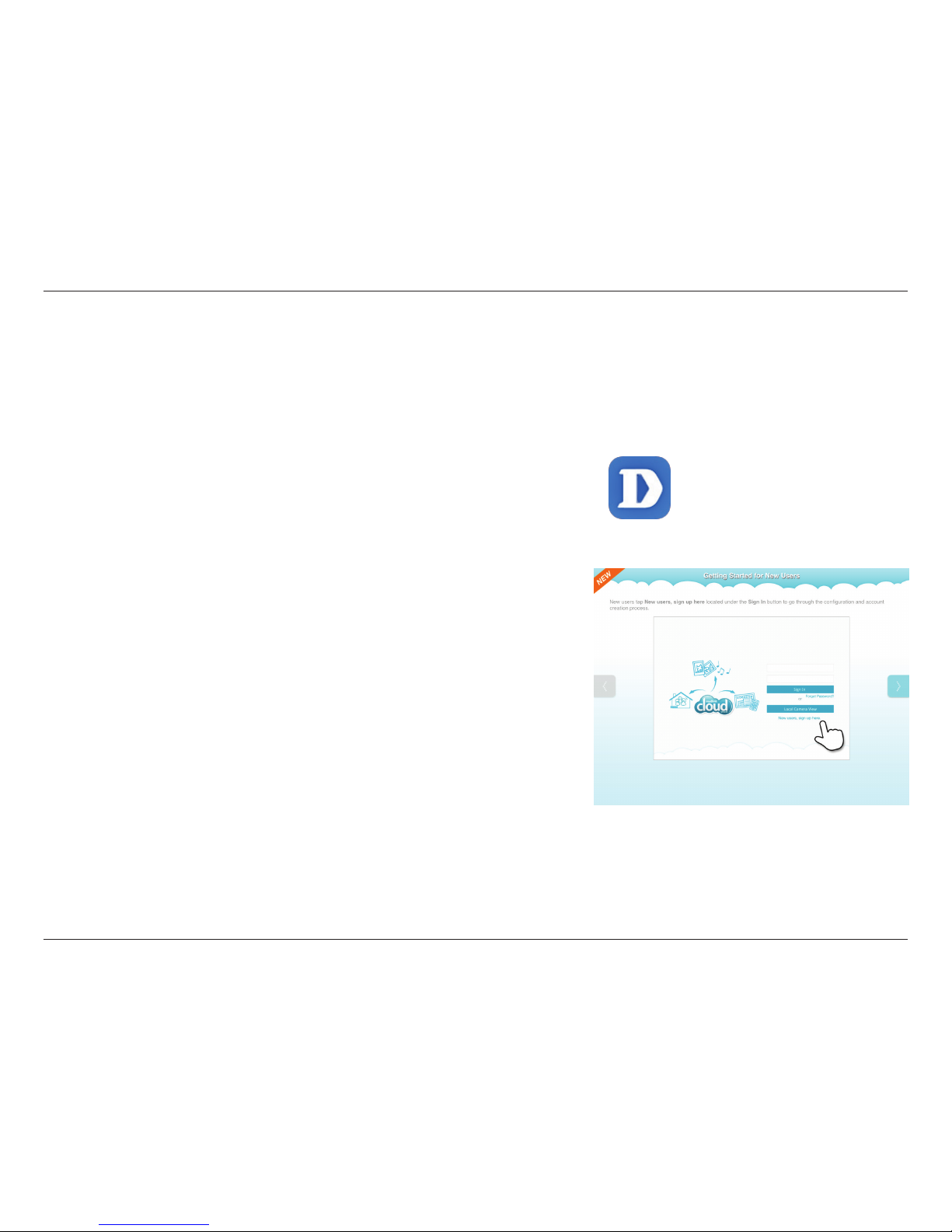

The mydlink Lite app allows you to congure your camera without a PC, and lets your camera work together with other
mydlink Lite compatible devices. Search for the free mydlink Lite app on the App Store or Google Play and download it to
your smartphone or tablet. You can also use a QR code reading app to scan the corresponding code for your device below.

14D-Link DCS-5000L User Manual
Section 2 - Installation
mydlink Lite
1. Using your mobile, connect to the same wireless network as your camera.
2. Download the mydlink Lite app using a QR code in the previous page.
3. On the login page, tap Local. The app will automatically discover any D-Link
cameras in your network.
4. Tap the DCS-5000L icon to begin setup.
5. Enter your camera’s administrator password (it will be on your Quick Install
Card if you haven’t congured it). Tick the Remember Me box and tap OK.
You will be taken to the Live View page of your camera.
You can monitor your camera using the mydlink Lite app either from your local network (same as the camera’s) or remotely
from anywhere with an Internet connection. To use either method, follow the steps below:
1. To enable remote monitoring, you will need to use mydlink services. Start the
mydlink Lite app on your mobile device.
2. If you already have an account, you can tap Sign In. If you don’t have a myd-
link account and want to register for one, you can tap the New users, sign
up here. link to start the registration process.
To view your camera feed remotely:
To view your camera feed on a local network:
mydlink Lite

15D-Link DCS-5000L User Manual
Section 2 - Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration
automatically congures your camera's settings such as Wi-Fi name/password for you, and adds the camera to your mydlink
account automatically. This type of setup allows you to set up your camera by simply plugging it in and connecting it to your
router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-5000L
and add the camera to your mydlink account. After a short period of time, you will be able to remotely access your camera
from the website http://www.mydlink.com to manage and monitor your DCS-5000L.
Zero Conguration Setup
Connect the Ethernet Cable and the Micro-USB Plug
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available port on your D-link Cloud Router. If you wish to use
your camera wirelessly, you will be able to remove the cable after Zero
Conguration Setup is complete. Plug one end of the included Micro-USB
power adapter to the back of the camera.
Plug the Micro-USB Power Adapter to a Wall Outlet
Plug the other end of the Micro-USB power adapter to a wall outlet to power
on your camera.

16D-Link DCS-5000L User Manual
Section 2 - Installation

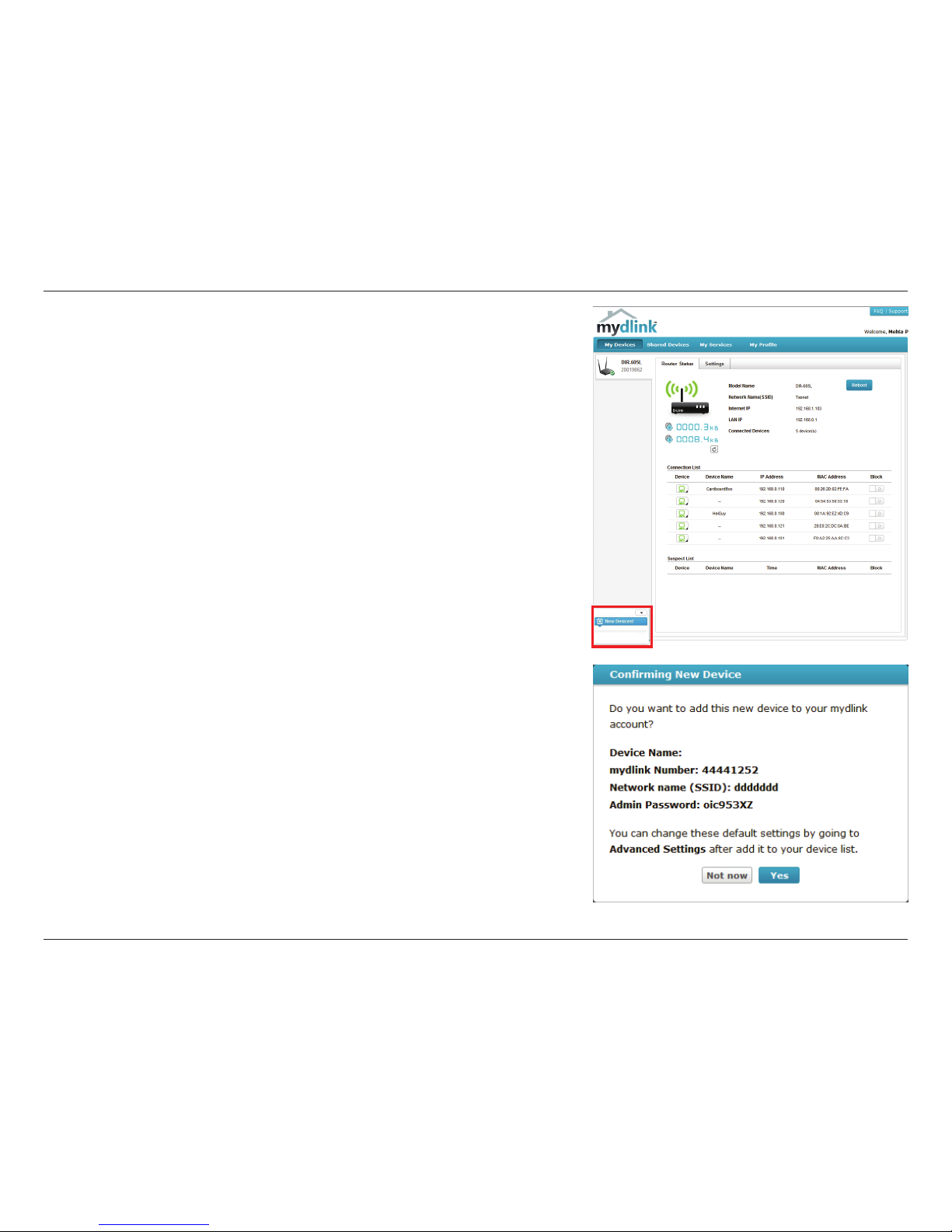

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click Yes to add the camera
to your account.
Check Your mydlink Account
From any computer with an Internet connection, open a web browser and log
in to your mydlink account.The mydlink page will check for new devices and
display a New device Found! pop-up notication in the bottom-left corner.
Click the notication to continue.
DCS-5000L
DCS-5000L

17D-Link DCS-5000L User Manual
Section 2 - Installation

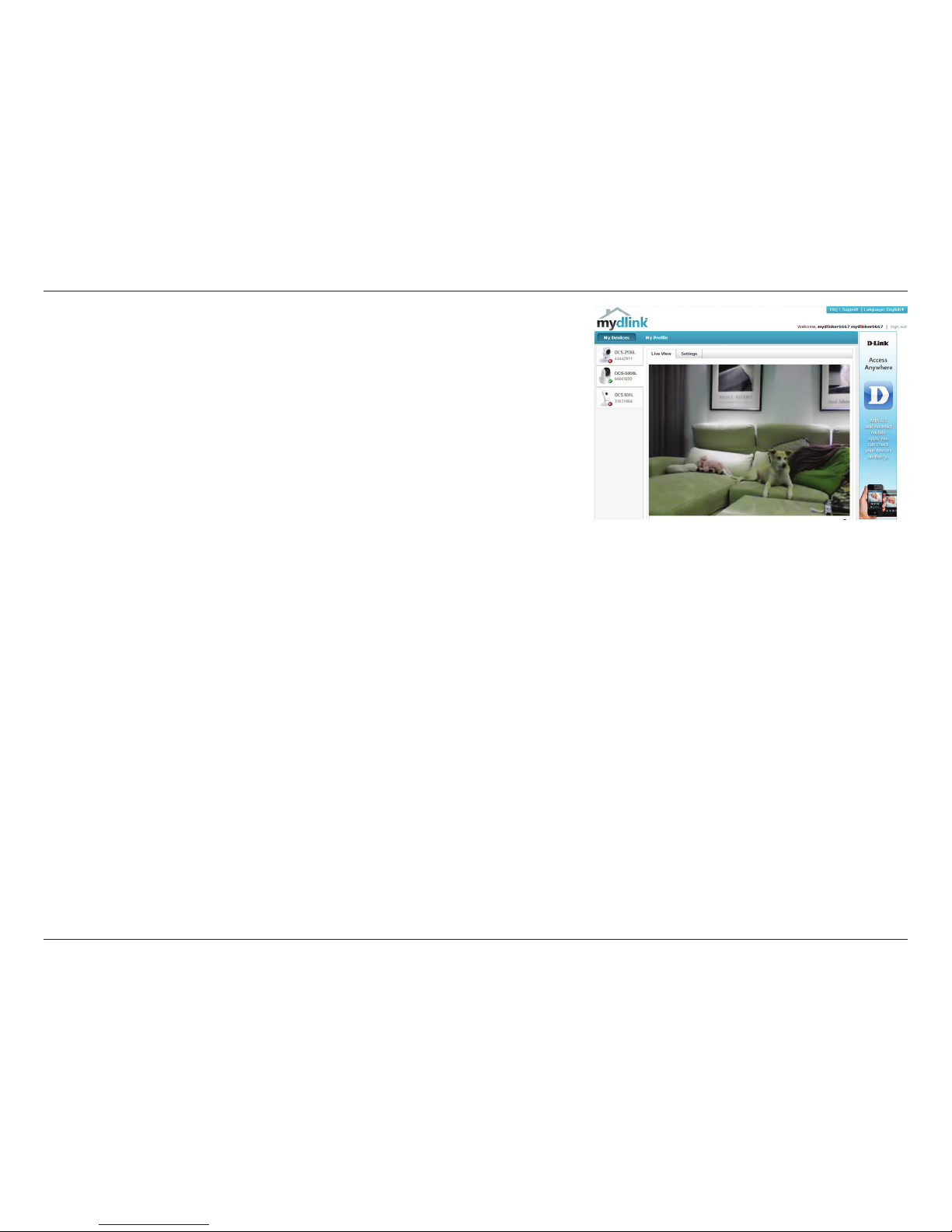

During the Zero Conguration process, you will be directed to the mydlink Live
View tab for your camera where you will see a screen similar to the following.
If you wish to connect your camera to your router wirelessly, you can simply
disconnect the Ethernet cable and move the camera to its intended location;
your router's wireless settings have been automatically transferred to the
camera, and no further conguration is required.
Your camera is now set up, and you can skip to mydlink on page 25 to learn
more about the mydlink features of this camera,or to Conguration on page
26 for advanced conguration of your camera.
Note: If the live image is blurry or out of focus, you can manually adjust the
focus by rotating the manual focus bezel surrounding the camera lens.

18D-Link DCS-5000L User Manual
Section 2 - Installation
Camera Setup Wizard

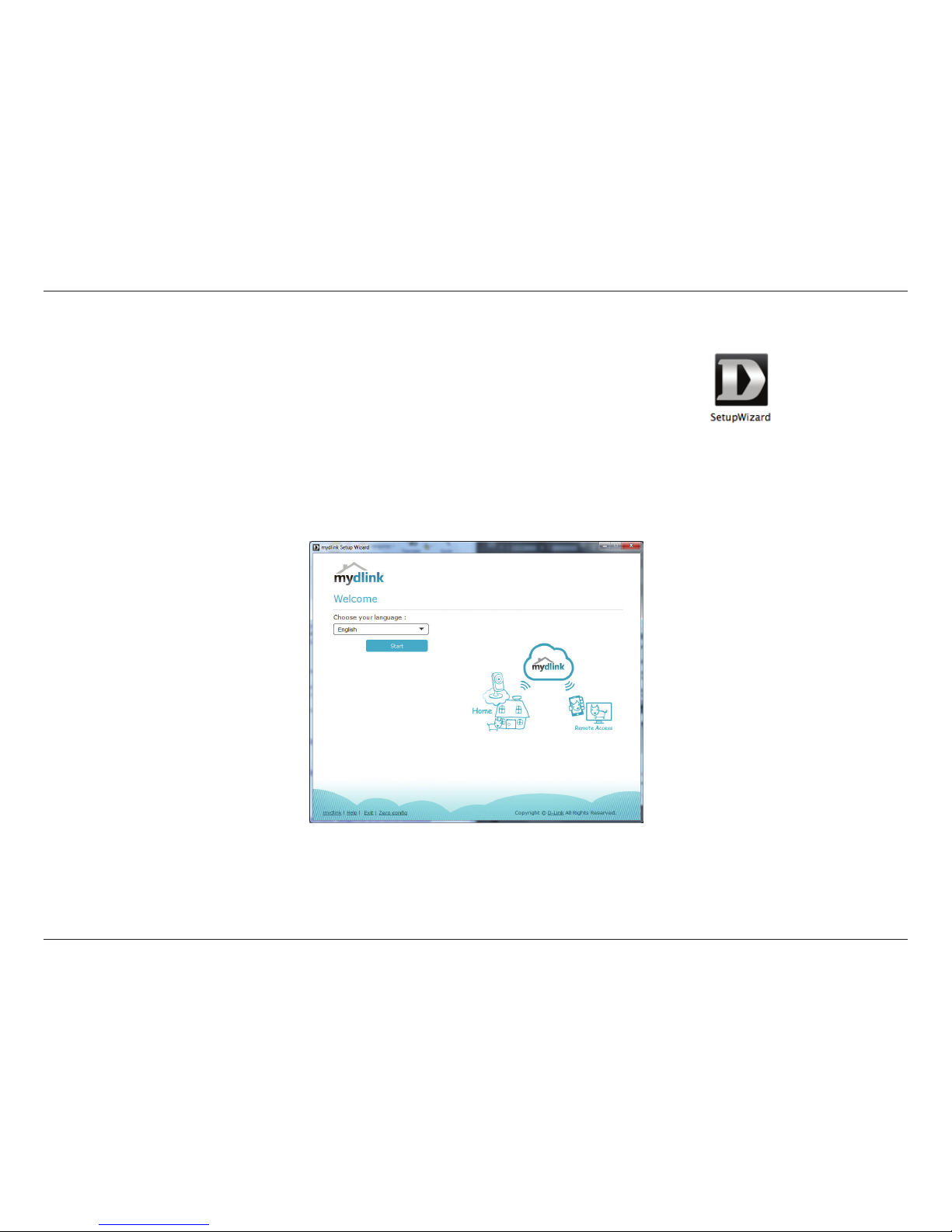

To begin the setup process, please go to http://www.mydlink.com/support to download the Setup Wizard. Once the le has
been downloaded, browse to the folder the le is in and double-click on it to start the wizard. Simply click Set up your Cloud
Camera to go through the Setup Wizard, which will guide you step-by-step through the installation process from connecting
your hardware to conguring your camera and registering it with your mydlink account.
If you do not have a mydlink-enabled cloud router, you can use the Camera SetupWizard to guide you through the process
of adding your camera to the mydlink service.
Windows Users

19D-Link DCS-5000L User Manual
Section 2 - Installation
Mac Users

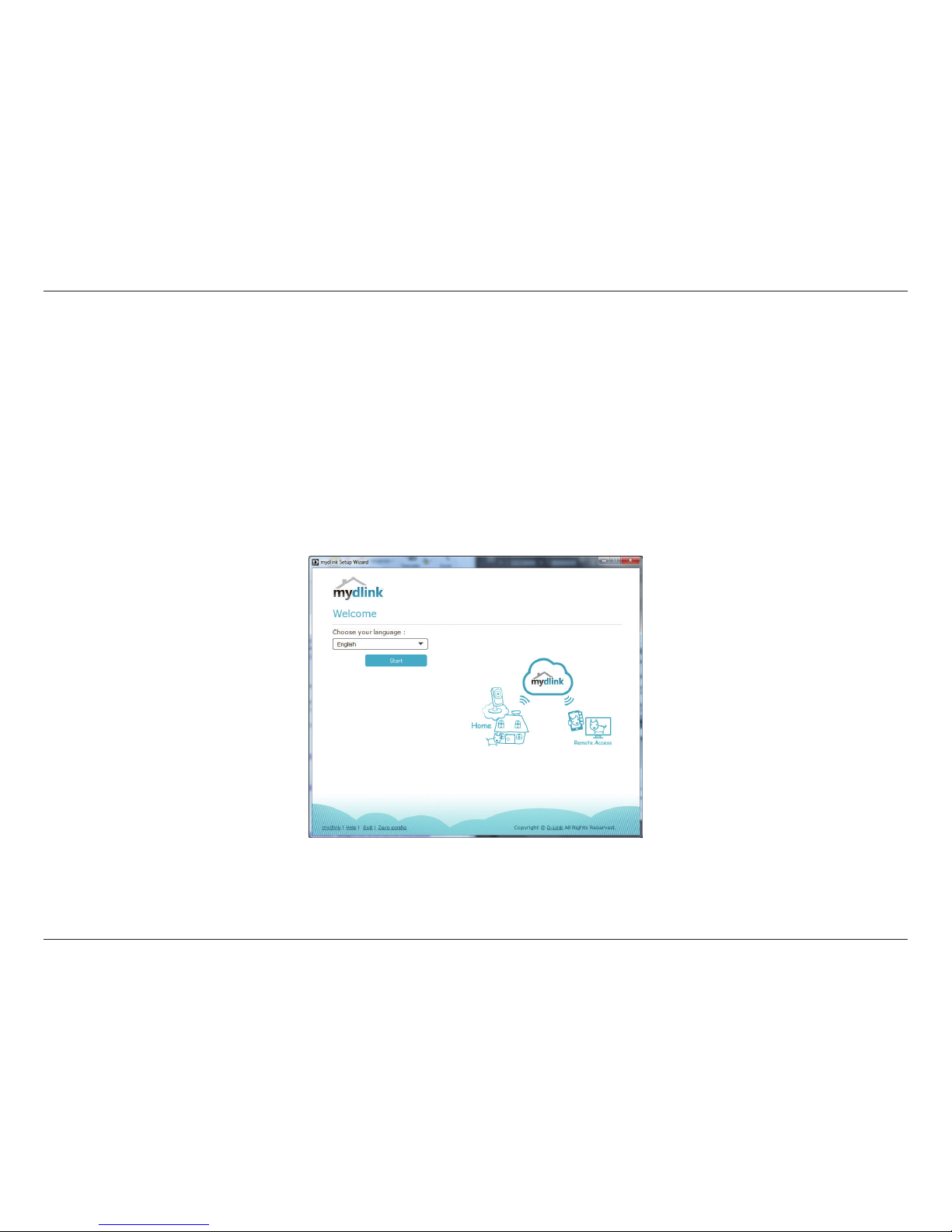

To begin the setup process, please go to http://www.mydlink.com/support to download
the Setup Wizard. Once the le has been downloaded, browse to the folder the le is in and
double-click on the SetupWizard le to start the wizard.
After about 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and registering it with your mydlink account.

20D-Link DCS-5000L User Manual
Section 2 - Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero
Conguration Setup.
Optional: Use WPS to Connect Wirelessly
You can useWPS to connect your camera to your network wirelessly. For more
information, refer to WPS - Push Button Setup on page 22. If your router
does not support WPS, you will still be able to set up your camera’s wireless
settings in the camera’s web interface.

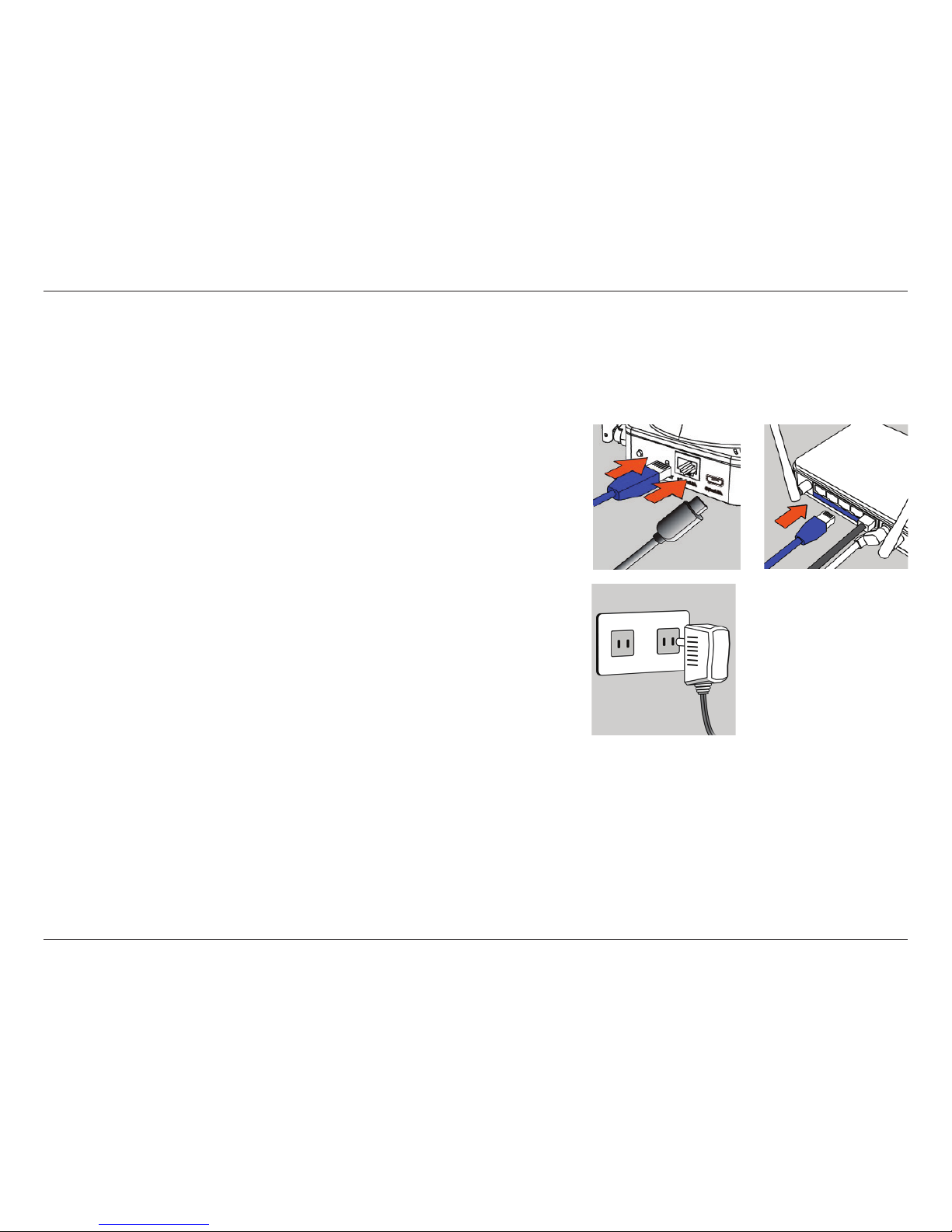

Connect the Ethernet Cable and the Micro-USB Plug
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available LAN port on your router. Plug one end of the included
Micro-USB power adapter to the back of the camera.
Congure Your Camera
Refer to Conguration on page 26 for information on how to congure your
camera.
Plug the Micro-USB Power Adapter to a Wall Outlet
Plug the other end of the Micro-USB power adapter to a wall outlet to power
on your camera.
