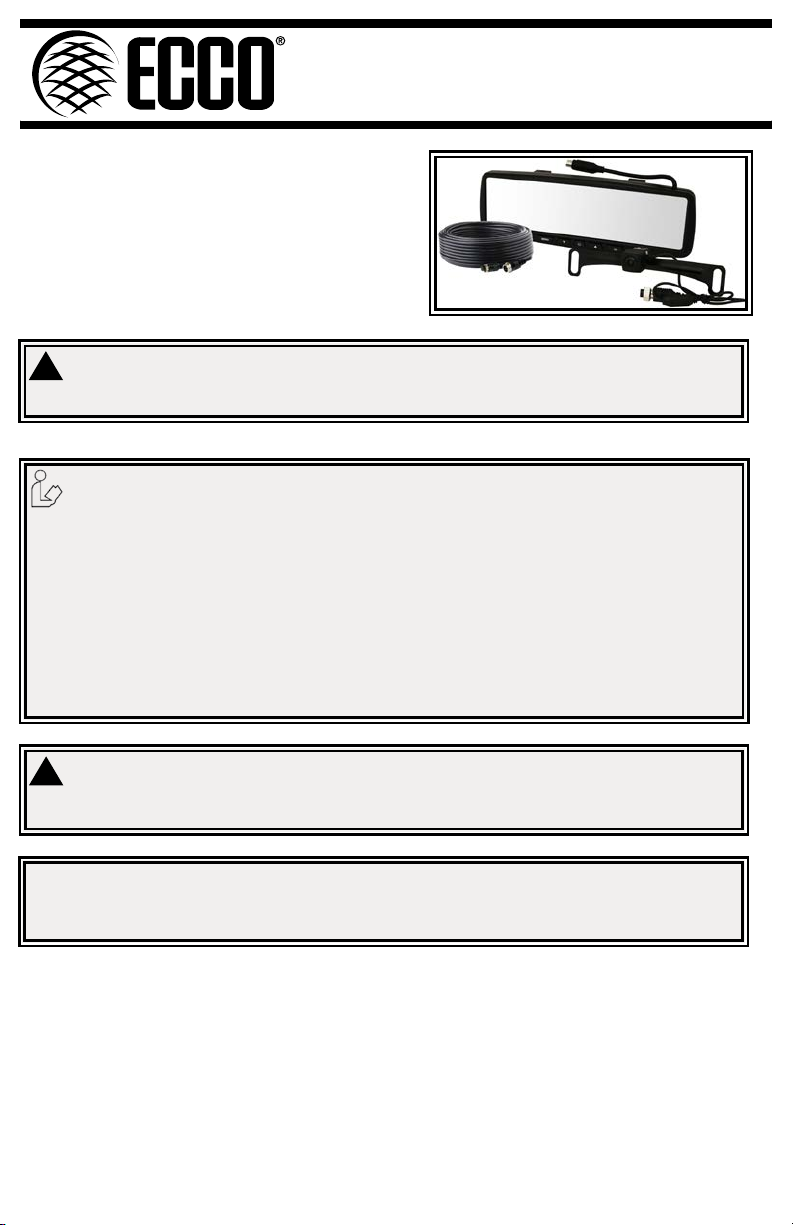

Ecco EC4210B-K Owner's manual

ECCO’s EC4210B-K Reversing Camera System is designed to provide visual
cues to help drivers avoid collisions when backing up. A driver using a properly
installed and maintained rear view system can be alerted to potential safety
hazards and thus take the appropriate action to prevent an accident. This
manual provides information about installation, function, safety, maintenance,
replacement parts, and warranty.
IMPORTANT! Occasionally, a few highlights or dark spots may occur on the LCD screen. This is a very
common phenomenon in active matrix display technology, and doesn’t necessarily indicate any defects or faults. Never try to repair this device
by yourself. In case of any problems, please turn off the display at once and notify our company or authorized dealer. The monitor is a complex
device. Any disassembly or modication may lead to damage and void the warranty.
Failure to install or use this product according to manufacturer’s recommendations may result in property damage, serious injury, and/or death to
those you are trying to protect!
!
WARNING!
1. Proper installation combined with operator training in the use, care, and maintenance of safety products are essential to ensure the safety of
you and those you are seeking to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,
which can cause personal injury and/or severe vehicle damage, including re.
4. Proper placement and installation are vital to the performance of this safety product. Install this product so that output performance of the
system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing
eye contact with the roadway.
5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle opera-
tor should ensure the eld-of-view of the camera/monitor is not blocked by vehicle components (i.e., open trunks or compartment doors),
people, vehicles or other obstructions.
6. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safetly before entering an intersection, driving
against trafc, responding at a high rate of speed, walking on or around trafc lanes.
7. This equipment is intended for the use by authorized personnel only. The user is responsible for understanding and obeying all laws regard-
ing safety products. Therefore, the user should check all applicable city, state and federal laws and regulations. The manufacturer assumes
no liablity for any loss resulting from the use of this safety product.
Do not install and/or operate this safety product unless you have read and understand the safety information
contained in this manual.
1. High voltage is present within the monitor. The opening of the case should be by professionals.
2. Do not watch the video while driving unless you are monitoring the rear view camera display.
!
WARNING!
Installation and Operation Instructions
EC4210B-K Rear-View Mirror
Monitor System

Wiring:
MONITOR EC4210B-M
Image 4.3” digital, 16:9
Resolution Degree 480 (W) x RGB x 272 (H)
Controller Two
Voltage 12 VDC
Power Consumption 2.3 W
Mirror Imaging Yes
Split Screen Feature No
AV Compatible Yes (AV2 with trigger wire for reversing)
DVR Compatible No
Audio No
Contrast/Brightness 850cd/M2
Light Sensor Day/Night No
Camera Selection V1/V2 switchover
Connection, Female 4 PIN Female
Connection, Male 4 PIN Male
Connection, CB N/A
Housing ABS Plastic
Mounting Clip Bracket
Mech. Vibration Yes
Cradle Bracket No
Weight 0.6 lbs.
Dimensions (WxHxD) 10.2” x 3.5” x 1.5”
Operating Temp. -20°C to 65°C
Remote Control Yes
Approvals FCC, CE, RoHS
CAMERA EC2026-C
Image Color CMOS
Effective Pixels 580 x 540/ 580 x 492
Voltage Requirement 12 VDC
Power Consumption 0.5 W
Current Consumption 0.5 W
Lens 1/4”
Lens Angle 170°
Audio No
Light Sensor No
Infrared LEDs No
Pigtail Connection: CAM 4 Pin Female
Housing ABS Plastic
Mech. Vibration Yes
Mounting Rear/Front
Dimensions (WxHxD) 0.89 x 1.10 x 0.89 (in. w/out bracket)
Operating Temp. -30°C to 75°C
IP Rating IP69K
Approvals FCC, CE, RoHS
To prevent accidental shock, DO NOT OPEN THE MONITOR CASE. Opening the monitor case will expose the inside of the monitor to conditions that
could adversely affect performance. Any evidence of tampering with sealed components will void the warranty.
!
WARNING!
Monitor
Fuse 2A
+VDC
-GND (AV2 Input)
(AV1 Input)
Green
(AV2 Trigger wire)
Red
DC12V
Black
Specications:

Accessories:
1. AV and power supply cables.
Appearance and Keystroke Function:
1
1
2
23
3
4
4
5
5
Menu
Power on/off
V1/V2 switchover
Analog decrease
Analog increase
Reversing Display:
1. When the green wire is connected to the positive wire
of the back-up light, the monitor will automatically
switch to the back-up camera.
After power on, a blue screen will appear. Only
power and V1/V2 keystroke will work when there
is no signal. All keystrokes will work once there is
signal input.
Press MENU keystroke, the screen will display
“BRIGHT, CONTRAST, COLOR, HUE, ZOOM,
LANG, SIGNAL INPUT, RESET”
BRIGHTNESS
Press MENU, once BRIGHT is displayed,
increase or decrease the brightness by remote
or keystroke.
CONTRAST
Press MENU, when CONTRAST display
is shown, increase or decrease contrast
by remote or keystroke.
COLOR
Press MENU, when COLOR display is
shown, increase or decrease color by remote
or keystroke.
VOLUME
Press MENU, when VOLUME display is
shown, increase or decrease volume by
remote or keystroke
RESET
Press MENU, after LANGUAGE, the
RESET will display. RESET is only for
BRIGHT, CONTRAST, HUE, ZOOM, COLOR,
LANGUAGE AND SIGNAL INPUT.
Other setting parameters will not change.
BRIGHT 33
CONTRAST 33
COLOR 33
VOLUME 33
Remote Control Function
Menu Operation Instruction
