1. Preface
Thank you for purchasing this cellular phone.
To guarantee your cellular phone works properly, please follow the
instructions in this manual to prevent any possible incidents or
malfunctions.
Follow all safety warnings to avoid injury or property damage.
Screen displays and illustrations in this user’s manual are designed to help
you operate your phone to its optimum performance.
We continuously strive to improve our products. Therefore,
we reserve the rights to revise this user manual or withdraw
it at any time without prior notice

Echo Clamshell User Manual
5
SAR Value:
Your phone is designed not to exceed the limits of emission of
radio waves recommended by international guidelines.
SAR (specific absorption rate) is the measurement of
body-absorbed RF quantity when the phone is in use. SAR value
is ascertained according to the highest RF level generated
during laboratory tests.
The SAR value of the phone may depend on factors such as
proximity to the network tower, use of accessories or other
accessories.
The highest SAR value of the device is xxx W/kg respectively
averaged over 1 gm of human tissue.

Echo Clamshell User Manual
6
ROHS Declaration
Declaration of Conformity with the requirements of the e-waste
Management Rules, 2011 (adopted by Notification S.O.1035 (E) of
Ministry of Environment and Forests)
The Product is in conformity with the requirements of Rule 13 of the e-waste
Rules. The content of hazardous substance with the exemption of the
applications listed in SCHEDULE II of the e-waste Rules:
1. Lead (Pb) –not over 0.1% by weight;
2. Cadmium (Cd) –not over 0.01% by weight;
3. Mercury (Hg) –not over 0.1% by weight;
4. Hexavalent chromium (Cr6+) –not over 0.1% by weight;
5. Polybrominated biphenyls (PBBs) –not over 0.1% by weight;
6. Polybrominated diphenyl ethers (PBDEs) –not over 0.1% by weight.

Echo Clamshell User Manual
7
2. Introduction
3

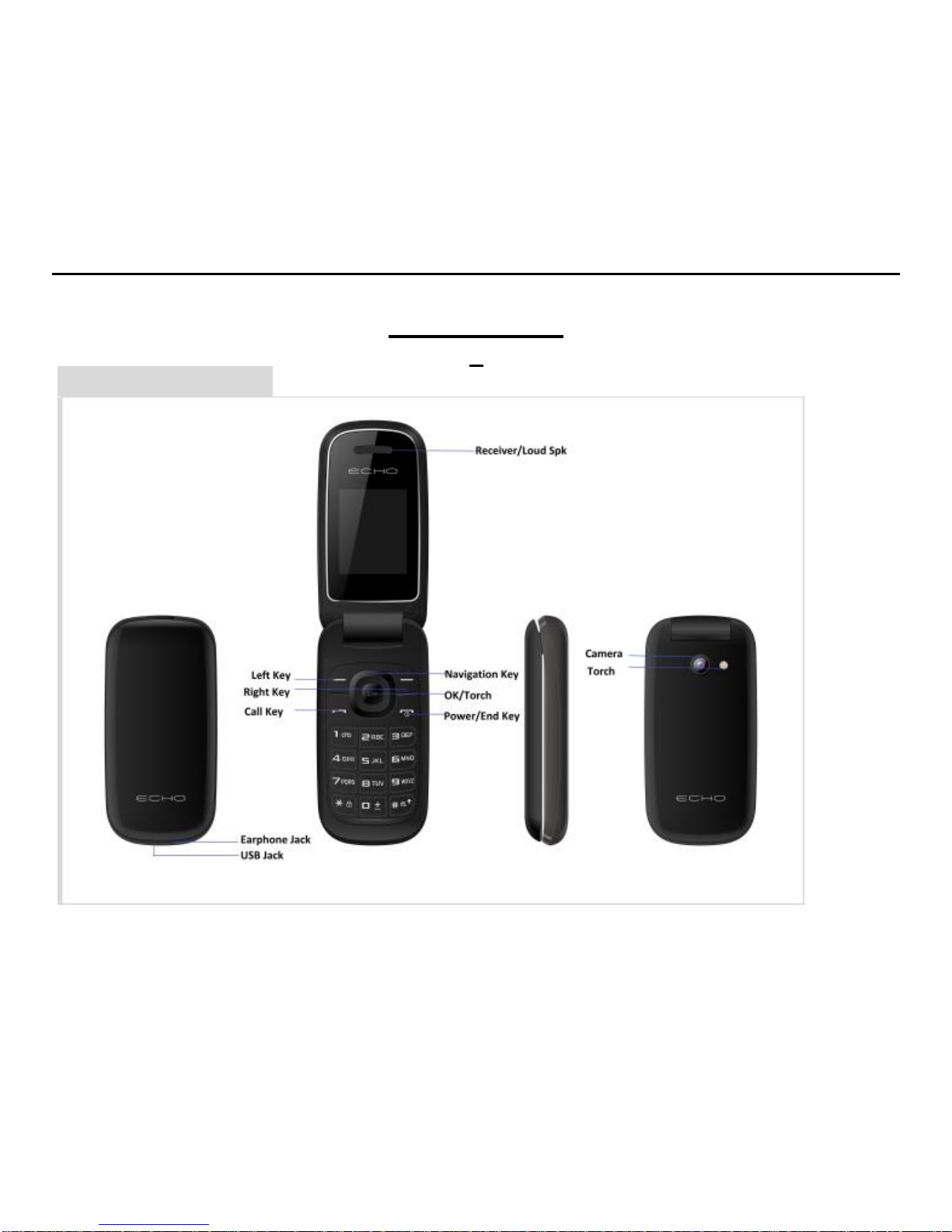

2.1 Phone Display

Echo Clamshell User Manual
8
2.2 Key Function
Key
Function
Call Key
Make or answer a call to Sim1 & Sim2.
View Calls Logs in standby mode.
End/Power
Key
Pressing and holding to turn the phone on/off. End a call
or reject an incoming call.
Return to the idle mode.
Left Soft Key
Menu key and OK key for functions
Right Soft Key
Access the Name list in idle mode.
Return to the previous menu.
OK Key
Press to enter main menu in idle mode.
After inputting numbers, press this key to do options.
Numeric key
Enter numbers, letters or characters.
Select a submenu item labeled with the corresponding
number.
In idle mode, press and hold OK key to turn on/off torch
light.

Echo Clamshell User Manual
9
*
Press to toggle between *, +, (pause character) P, and
(wait character) W.
Press to enter symbol when editing text.
#
Press to switch input modes when entering text.
Press and hold to change sound profiles to Silent Mode
and General mode.
Note: “Press” in this manual, means to press and release
the key; “press and hold” means to press and hold the key
for at least 3 seconds.

Echo Clamshell User Manual
10
3. Getting Started
3.1 Turning the phone on
To turn the phone on, press and hold the Power key. If you have already
enabled the Sim Lock function then enter the PIN code (the 4 to 8 digit
secret code of your SIM card). It is preconfigured and provided to you by
your network operator or retailer. If you enter an incorrect PIN code 3 times
in succession, your SIM card will be locked. To unlock it, you must obtain
the PUK code from your network operator.
3.2 Charging the Battery
Ensure the battery is inserted in the handset. To charge the battery, plug in
the charger connector at the left side of your phone (USB interface) and
then plug the other end into an AC power socket.
The battery symbol indicates the charging status. While charging, the
charge indicators will scroll. When all the scroll bars are steady, the battery
is fully charged. It takes about 4 hours to fully charge the battery.
Disconnect the charger from the phone.
Disconnect the charger from theAC power socket.

Echo Clamshell User Manual
11
Note: If the battery is powerless, the battery icon will
reappear after a few minutes of charging.
3.3 Important Password
Phone lock password is 1122.
3.4 Keypad Lock and Unlock
Go to Settings>Security Setting>Auto Keypad Lock to select the time for
keypad lock.
In standby interface, if the time expires, the keypad will be locked
automatically.
Lock: press LSK then * key in standby interface.
Unlock:press LSK and then press * key in standby interface.
3.5 Making an International Call
Press the ‘*’ Key twice until "+" appears on the screen.
Enter the country code.
Enter the area code (normally without the 0 before it) followed by
the phone number.
Press the Dial Key to call the number

Echo Clamshell User Manual
12
4. Main Menu
All function options about the mobile phone are listed as below with brief
descriptions
Phonebook
Quick
search
Typing the first letters to quick search the contacts
Search
Contact
To search contact
Add number
To add New Contact
Delete
To delete the selected phonebook entry.
caller
groups
Choose an contact number and add to contact group

Echo Clamshell User Manual
13
Settings
To check & change setting from here
Export
Phonebook
Export all contacts into T-flash card
Import
Phonebook
Import contacts from T-flash card
Call History
Check call logs for missed, dial, received calls and perform functions like
save , delete view etc
Organizer
To perform the features including BT, Alarm, Calendar, Calculator, World
Clock, Stopwatch, Tasks, Currency converter, Unit converter, Torch
Multimedia

Echo Clamshell User Manual
14
Camera
To take photo shoot
Videorecorder
To take video shoot
Image viewer
To view the saved image.
Audio Player
To play the music
Video Player
To play the recorded movie.
Sound
recorder
To record the sound.
FM radio
To receive the FM broadcast.
Schedule FM
To record FM as scheduled
File manager
To manage the space of memory card, perform the
corresponding operation on the selected file and folder

Echo Clamshell User Manual
15
Messages
Write message
Create new SMS
Inbox
To view the received messages.
Outbox
To view the messages in sending or sent
unsuccessfully.To view the sent messages.
Drafts
To save the messages that are not ready to send
out in order to further edit, and then send.
Templates
To Templates
SMS Export
To export SMS into T-flash card
SMS Import
To import SMS from T-flash card
SMS Settings
To perform the setting related to SMS
File Manager

Echo Clamshell User Manual
16
To view the files in Phone Memory and T-flash card
Settings
User profiles
To perform the setting related , ringtone settings
General,Outdoor,Indoor,Silent,Headset,Bluetooth,Po
wer saving
Phone settings
To perform the setting related to mobile phone such
asTime and date, Auto power on/off,
Language,Pref.input method,Greeting text on/off,
Display settings
To perform the settings like Wallpaper, Screen
saver,Poweron display,Poweroff display, Show date &
time, Contrast, LCD backlight
Dual SIM
Setting
To enable or disable SIM1 or SIM2

Echo Clamshell User Manual
17
Security
settings
To perform the setting related to security Including
Phone lock, Auto keypad lock,Change Password,
Mobile tracker
Restore factory
settings
Restore all settings as before. Default password:1122
Fun & Games
Games/F1 race
Enter Games
Game Setting
Settings GamesSound
Enjoy the gaming experience with F1 race
Services
Begin to Network To settings（Home Page,Bookkmark,lnput
URL,Settings）Dsta Account,STK

Echo Clamshell User Manual
18
5. Safety Information and Notices
Before using the phone, please read the safety precautions carefully and let
your children know these, so that you can use your phone correctly and
safely.
Do not switch on your phone when phone use is prohibited or when
phone use may cause interference or danger.
Do not use your phone while driving.
Follow the rules or regulations in hospitals and health care facilities.
Switch off your phone near medical equipments
Switch off your phone in an aircraft. The phone may cause interference
to control signals of the aircraft.
Switch off your phone near high-precision electronic devices. The phone
may affect the performance of these devices.
Do not attempt to disassemble your phone or its accessories. Only
qualified personnel are
allowed to service or repair the phone.

Echo Clamshell User Manual
19
Do not place your phone or its accessories in containers with strong
electromagnetic field.
Do not place magnetic storage media near your phone. Radiation from
the phone may delete the information stored on them.
Do not put your phone in a high-temperature place or use it in a place
with flammable gas such as a gas station.
Keep your phone and its accessories away from children. Do not allow
children to use your phone without guidance.
Use approved batteries and chargers only to avoid explosion.

Echo Clamshell User Manual
20
6. Frequently Asked Questions and Troubleshooting
Frequently Asked
Questions
Cause and Solution
Fail to turn on
Press the power on key for over 1 second.
Check if the battery is properly connected. Please
remove and install it again, retry to turn on；
Check if battery is appropriately charged
Fail to connect
network
Weak signal. Please Try and move to a location
with strong signal and try connecting to the network
again；
Please ensure that you are not beyond the network
coverage of service providers；
