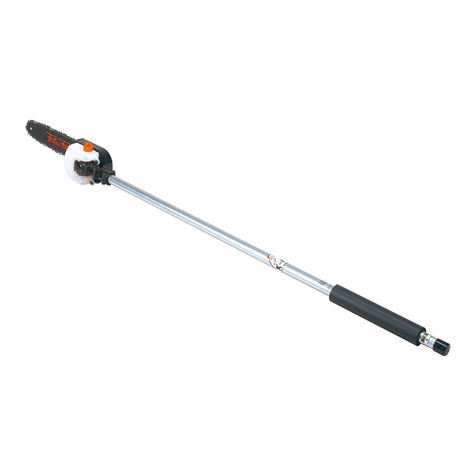

Echo Power Pruner PPT-2100 User manual

POWER PRUNER
OPERATOR'SMANUAL 1
Power Pruner
Operator'sManual
MODELS: PPT-2100 TYPE 1/1E
Serial Number 503550 - 506999
PPT-2400 TYPE 1/1E
Serial Number 505900 - 518599
WARNING DANGER
Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesanOperator'sManual,whichmust
bereadandunderstoodforproperandsafeoperation.Failuretodosocouldresultinserousinjury.
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
89865024661
07/98
X7502301401

2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-
job-dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You
will find both easy to use and full of helpful operating tips and SAFETY messages.
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual.
Both must be read and understood for proper and safe operation.
THE OPERATOR'SMANUAL --
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.
THE SAFETY MANUAL –
explains possible hazards involved with the use of Power PrunerTM and
what measures you should take to make their use safer.
TABLE OF CONTENTS
Introduction ...............................................................2
- The Operator's Manual........................................2
- The Safety Manual .............................................2
ManualSafety Symbols &Important Information .....3
Safety .........................................................................3
- GeneralDescription ............................................3
- Decals .................................................................4
- InternationalSymbols .........................................4
- Equipment ...........................................................4
- Fuel .....................................................................5
- PersonalCondition &Safety Equipment ............6
- SafeOperation ....................................................7
- Kickback .............................................................8
- ExtendedOperation/ExtremeConditions ............9
Description .............................................................. 10
- Contents ........................................................... 10
- EmissionControl............................................... 10
Specifications........................................................... 13
Assembly ................................................................. 14
- Cutting Attachment to Drive Shaft Installation 14
- 3'ExtensionInstallation .................................... 14
- Saw Chain Tension Adjustment ....................... 15
Pre-Operation ........................................................... 16
- Fuel ................................................................... 16
- Lubricating theGuide Barand SawChain ........ 17
- Adjusting AutomaticOiler................................ 18
- EquipmentCheck .............................................. 18
- DetermineOperationArea ................................ 19
Operation ................................................................. 19
-StartingColdEngine .........................................19
-StartingWarmEngine....................................... 20
- Stopping Engine ............................................... 21
-Pruning Techniques ......................................... 21
Maintenance ............................................................ 22
- SkillLevels ........................................................ 22
-Maintenance Intervals ...................................... 22
-AirFilter ............................................................ 23
-FuelFilter .......................................................... 23
-SparkPlug ......................................................... 24
-CoolingSystemCleaning.................................. 24
-ExhaustSystem................................................. 25
-Carburetor Adjustment Emissions ................... 26
-Carburetor Adjustment Non Emissions ............ 27
-GuideBarandSawChainReplacement ............28
-FilingSawChain ...............................................29
Troubleshooting ...................................................... 30
Storage..................................................................... 31
ServicingInformation............................................... 31
-Parts.................................................................. 32
-Service .............................................................. 32
-ECHOConsumerProductSupport.................... 32
-Warranty Card .................................................. 32
-Additional or Replacement Manuals ................ 32
-Manual Ordering Instructions .......................... 32
-Supplement to Operator's Manual ........................... 33
Specifications,descriptions and illustrative materialin
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and
accessories, and may not include all standard
equipment.
CopyRight© 2000 By Echo, Incorporated
All Rights Reserved.

POWER PRUNER
OPERATOR'SMANUAL 3
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
MANUAL SAFETY SYMBOLS & IMPORTANT INFORMATION
IMPORTANT Theenclosedmessage
provides information necessary for the
protection of the unit.
NOTE Thisenclosedmessageprovidestipsfor
use, care and maintenance of the unit.
Throughout this manual and on the product itself, you will find
safety alerts and helpful, information messages preceded by
symbols or key words. The following is an explanation of those
symbols and key words and what they mean to you.
SAFETY
GENERALDESCRIPTION
IMPORTANT
See Description and Specification sections for full description and illustration of model variation in power head,
and handle type.
CUTTING
ATTACHMENT
POWERHEAD
W/DECALS
LOWERSHAFT
TUBEW/POWER
TRANSMISSION
SHAFT
STOPSWITCH/
THROTTLETRIGGER
W/LOCKOUT
UPPERSHAFT
TUBE

4
DECALS
Locate this safety decal on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help you
locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal
cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific
information.
EQUIPMENT
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
• Never adjust the guide bar or saw chain when the engine is operat-
ing.
Engine Cover
INTERNATIONAL SYMBOLS
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjustment
-Idlespeed
Carburetor adjustment
- High speed mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Read and understand
owners manual.
Wear eyes, ears and
head protection
Emergency stop
Fuel and oil mixture
Finger Severing
Carburetor adjustment
-Lowspeed mixture
Safety/Alert
Avoid all power lines.
This unit is not insu-
lated against electri-
cal current.
Do not operate closer
than 15 M (50 ft.)
from electrical
hazards.
Keep bystanders at
least 15 meters
(50 feet) away.
Plan retreat path
from falling
objects.
Wear hand protec-
tion. Use two handed. DONOTsmoke
near fuel.
DONOTallow
flamesorsparks
near fuel.
15 M
Wear slip resistant
foot wear.
15 M
!
Engine choke
control.
Ignition
IOIgnition
ON/OFF
Chain lubrication
ON OFF
Primer bulb

POWER PRUNER
OPERATOR'SMANUAL 5
Guide Bar and Saw Chain
WARNING DANGER
• Serious injury may result from the use of non approved guide bar
and saw chain combinations. Read and comply with all safety
instructions listed in this manual.
• ECHO,INC.willnot be responsible for the failureofcutting
devices or accessories which have not been tested and approved
by ECHO for use with this unit.
• Check that the cutting attachment, guide bar and saw chain is firmly
attached and in safe operating condition.
• Only use ECHO approved guide bar and saw chain.
• Only use one ECHO approved extension on the pruner.
• Do not hit rocks, stones, tree stumps and other foreign objects with
the saw chain.
• Do not cut into the ground with the saw chain.
• If cutting attachment end strikes an obstruction, stop engine immedi-
ately and inspect saw chain for damage.
• Do not operate with a dull, fractured or discolored saw chain.
• Removeallforeignobjectsfromworkarea.
• Always cover the guide bar and saw chain with guide bar cover
during transportation and in storage.
FUEL
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesor sparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuel aunitwhenthe engineisHOT!
• NEVERrefuel a unitwiththeenginerunning.
• DONOTfill fuel tanks indoors.ALWAYSfillfueltanksout
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
After Refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting.
After Use;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
3 M
(10FT.)MINIMUM

6
PERSONAL CONDITION &SAFETY EQUIPMENT
WARNING DANGER
Power Pruner users risk injury to themselves and others if the Power Pruner is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a Power Pruner.
Physical Condition --
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
•if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Eyeprotection that meet ANSIZ87.1 and CErequirements were
included with your Power Pruner. Wear them whenever you operate the
PowerPruner.
Face & Head Protection --
When trimming overhead, always wear head protection meeting ANSI
Z89.1orCE requirements withafull face shield. Head protectionwith
full face shield will help protect you from falling branches and debris.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
power pruner handles. Gloves also reduce the transmission of machine
vibration to your hands. Special vibration reducing gloves such as
Echo's Pro-Comfort are designed to provide additional comfort.
Hearing Protection --
Wear hearing protection. OSHA requires the use of hearing protection
if this unit is used 2 hours per day or more. ECHO recommends wearing
hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARVES,JEWELRY.
Wear sturdy work shoes with non-skid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.

POWER PRUNER
OPERATOR'SMANUAL 7
SAFE OPERATION
WARNING DANGER
All over head electrical conductors and communications wires can
have electricity flow with high voltages. Never touch wires directly
or indirectly when pruning, otherwise serious injury or death may
result.
Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.
Determine Operation Area
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Do not operate this product indoors or in inadequately ventilated
areas.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions. DO NOT operate unit if any wires (power,
telephone, cable, etc.) are closer than 15 M (50 ft.) to any part of the
operator or unit.
• Spectators and fellow workers must be warned, and children and
animalsprevented from coming nearerthan 15 M (50ft.) while the
Power Pruner is in use.
• Avoid all power lines. This unit is not insulated against electrical
current.
Operation
UseProperClothing&Equipment
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always wear head protection with full face shield to help protect
against falling branches and debris.
AvoidHotSurfaces
• During operation, the complete unit, especially the power head,
muffler area and cutting attachment may become very hot, too hot to
touch. Avoid contact during and immediately after operation.
15 M
(50ft.)

8
KeepAFirmGrip
• Grip Power Pruner with both hands with thumbs and fingers tightly
encircling the handle, and lower shaft tube.
KeepASolidStance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not overreach.
• Operate the Power Pruner only from the ground or out of an
approved bucket lift.
• Always evaluate the branches to be pruned for hazards such as loose
dead branches which may fall and strike the operator or helpers.
Remove hazards before pruning.
• Cut branches bounce when striking ground.
• Plan retreat path from falling objects.
• Check that shoulder harness is adjusted for safe, comfortable
operation. See picture at right for proper adjustment.
• Turn the Power Pruner off when moving from tree to tree.
• Avoid any contact with saw chain.
KICKBACK
WARNING DANGER
Kickback can lead to dangerous loss of control of the Power
Pruner and result in serious injury to the operator or any one
standing close by.
Kickback may occur when the moving saw chain at the nose or tip of
the guide bar touches an object, or when the wood closes in and
pinches the saw chain in the cut. In some cases this may cause a
lightning-fast reverse action, kicking the guide bar and saw chain up
and back or down and back towards the operator. Either of these
reactions may cause the operator to lose control of the Power Pruner
which could result in serious personal injury.
With a basic understanding of kickback, you can reduce or eliminate the
element of surprise which contributes to accidents.
Hold the Power Pruner firmly with both hands. Be aware of the down
and outward path the pruner will take after the cut is made.
Avoid contact of the guide bar tip with any object while the saw chain
ismoving.
Cut only wood. Avoid striking concrete, metal, wire, or other obstruc-
tions which could cause kickback or damage to the saw chain.
If the saw chain does strike a foreign object, immediately stop the
engine, inspect and repair the Power Pruner if necessary.

POWER PRUNER
OPERATOR'SMANUAL 9
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommendedbecausethe minimum exposure which mighttriggerthe
ailmentisunknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive
movement.
• Do exercises to strengthen the hand and arm muscles.
• See a doctor if you feel tingling, numbness or pain in the fingers,
hands, wrists or arms. The sooner RSI/CTS is diagnosed, the more
likely permanent nerve and muscle damage can be prevented.

10
DESCRIPTION
Due to packaging restriction the ECHO product you have
purchased requires some assembly.
After opening the carton, check for damage. Immediately
notifyyourretaileror ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
CONTENTS LIST
__ PowerHead
__ Shaft Tube Assembly
__ Cutting Attachment W/ Guide Bar and Saw Chain
__ PlasticBag
__ Operator's Manual
__ How to Prune Manual
__ Warranty Registration Card
__ Warranty Statement
__ PlasticBag
__ T-Wrench (combination screwdriver/spark plug socket)
__ Combination Cross Head / Slotted L-Wrench
__ 3mmhexwrench
__ 8x10mmSpanner
__ Safety Glasses
__ 2-StrokeOilBottle(2.6oz.)
__ Shoulder Harness
__ GuideBarCover
EMISSION CONTROL - Emissions Models
The emission control system for this engine is EM (Engine
Modification).
IMPORTANTENGINEINFORMATION
ENGINEFAMILY:TEH024UB24RA
DISPLACEMENT:23.6cc
THIS ENGINE MEETS U.S. EPA PH1 AND 1995-
1998CALIFORNIAEMISSIONREGULATIONSFOR
ULGEENGINES.REFERTOOWNER'SMANUAL
FOR MAINTENANCE SPECIFICATIONS AND
ADJUSTMENTS.
KIORITZCORP.
EmissionControlLabel (locatedonEngine) (EXAMPLE
ONLY,informationonlabelvariesbyFAMILY).

POWER PRUNER
OPERATOR'SMANUAL 11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

12
1. POWERHEAD-IncludestheEngine,Clutch,FuelSystem,IgnitionSystemandStarter.
2. REARHANDLEASSEMBLY-Sturdyhandlefor righthandplacement.Includes stopswitchandthrottle trigger.
3. THROTTLETRIGGERLOCKOUT-Thislevermustbedepressedbeforethrottletriggercanbeoperated.
4. STOP SWITCH - Mounted on top of handle assembly. Move switch forward to run, back to stop.
5. THROTTLETRIGGER-Springloadedtoreturntoidlewhenreleased. Duringaccelerationpresstriggergraduallyfor
best operating technique.
6. SHOULDER HARNESS - An adjustable strap that suspends the unit from the operator.
7. LOWERSHAFTTUBE-Durablefiberglassmeshhousing.
8. MUFFLER,SPARKARRESTER-Themufflercontrolstheexhaustnoisewhilethesparkarrestorpreventshot,glowing
particles of carbon from leaving the muffler where they could possibly start a fire.
9. RECOILSTARTER- Pull recoilhandle slowly until starterengages, then quicklyand firmly. When enginestarts return
handle slowly. DO NOT let handle snap back or damage will occur.
10. FUELTANK-Containsfuelandfuelfilter.
11. FUELTANKCAP-Coversandsealsfueltankopening.
12. PRIMERBULB-Pumping primer bulbbeforestartingenginedrawsfresh fuel from thefueltankprimingthecarburetor
for starting. Pump the bulb 10 times until fuel is visible in clear fuel return line.
13. AIRCLEANERASSEMBLY-Containsreplaceableairfilterelement.
14. CHOKE - Located above air cleaner housing. Controls operation of choke. Move lever to start position (Close Choke)
and back to run position (Open Choke).
15. SPARKPLUG-Providessparktoignitefuelmixture.
16. ARMREST - Provides arm rest during operation and protects arm from hot engine.
17. AUTOMATICOILERASSEMBLY-Selfoiling.Usehighquality,lowviscosity,non detergentbarandchainoil.
18. SAWCHAIN-90SG 9.53mm(3/8in.)lowprofileOregonsawchain. Runsapproximately609.6m/min.(2000ft/min)at
fullthrottle.
19. GUIDEBAR-254mm(10in.)guidebar(PPT-2100),305mm(12in.)guidebar(PPT-2400).
20. CUTTING SHOE - Used to capture and stabilize branch while cutting. Place cutting shoe against branch, accelerate
and lower saw chain into branch.
21. CUTTINGATTACHMENT-Sealed,gearratiois1.5:1reduction.
22. OPERATORSMANUAL-Read and understandthis manual before operation. Keep manual in asafe location for future
reference, i.e., operation, maintenance, storage and specifications.

POWER PRUNER
OPERATOR'SMANUAL 13
MODEL
PPT-2100
PPT-2400
Length (Standard)
2286 mm (90.0 in.)
2743 mm (108.0 in.)
Length (Extended)
3410 mm (134.25 in.)
3886 mm (153.0 in.)
Width
222 mm (8.75 in.)
222 mm (8.75 in.)
Height
229 mm (9.0 in.)
229 mm (9.0 in.)
Weight (dry)
7.4 kg (16.3 lb.)
7.7 kg (16.9 lb.)
Engine Type
Air cooled, two-stroke, single cylinder gasoline engine
Bore
32.2 mm (1.268 in.)
34.0 mm (1.339 in.)
Stroke
26.0 mm (1.04 in.)
26.0 mm (1.04 in.)
Displacement
21.2 cc (1.29 cu. in.)
23.6 cc (1.44 cu. in.)
Exhaust System
Spark Arrestor Muffler
Carburetor
Diaphragm, w/primer bulb
Ignition System
CDI (capacitor discharge ignition)
Spark Plug
NGK BPM-7A
Gap 0.65 mm (0.026 in.)
NGK BPM-7Y
Gap 0.65 mm (0.026 in.)
Fuel
Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio
50:1 ECHO High Performance, two-stroke air cooled engine oil
Gasoline
89 Octane unleaded. DO NOT use fuel containing methyl alcohol,
more than 10% ethyl alcohol or 15% MTBE.
Oil
50:1 ECHO High Performance, two-stroke air cooled engine oil
Fuel Tank Capacity
0.4 lit. (14.0 US fl. oz.)
Starter System
Automatic Recoil Starter
Clutch
Centrifugal Type
Sprocket Type
6 tooth spur, 9.53 mm (3/8") pitch
Power Transmission Shaft Assembly
Aluminum Extrusion
Gear Case Ratio
1.5:1
Oiling System
Automatic
Saw Chain Oil Capacity
59 ml (2.0 oz.)
Handle
Right hand grip w/throttle trigger and lockout
Shoulder Harness
Standard
Idle Speed (RPM)
2600 - 3100
Wide Open Throttle Speed (RPM)
8000 - 9000
11,000 - 12,000
Guide Bar and Saw Chain (90SG)
254 mm (10 in.) ;
9.53 mm (3/8") pitch
305 mm (12 in.) ;
9.53 mm (3/8") pitch
SPECIFICATIONS
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but
are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all
standard equipment.

14
1. Loosen bolt (A).
2. Match square socket in engine shaft with square power transmis-
sion shaft (B) and slide together until engine rests against the
machine surface of lower shaft tube housing coupler (C).
3. Rotate lower shaft tube housing to align engine and rear handle
assembly in an upright position.
4. Tighten bolt (A) securely so engine will not rotate on lower shaft
tube.
ASSEMBLY
SHAFT TUBE /POWER HEAD
Tools Required: T-wrench,8-10mmWrench, CombinationL-Wrench
Parts Required: Power Head, Shaft Tube Assembly; Cutting Attach-
ment
B
A
C
FANHOUSING
E
DD
CUTTING ATTACHMENT TO SHAFT TUBE INSTALLATION
ALIGN&PUSH
BOTTOM
VIEW
WARNING DANGER
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.
1. Loosen the four (4) screws (D) and locator screw (E) on cutting
attachment.
NOTE
Do not remove locator screw (E) completely from cutting attach-
ment, otherwise inner lock nut will come off and be lost.
A

POWER PRUNER
OPERATOR'SMANUAL 15
2. Loosen center clamp knob (F) turning counter clockwise.
3. Pull upper shaft tube (G) out of fiberglass lower shaft tube 127-152
mm(5-6in.), then slide (G)back into fiberglass lowershafttube
exposing inner power transmission shaft (H). Align and join star
shaped drive end of inner power transmission shaft (H) with cutting
attachment shaft (I).
4. Align ridges on upper shaft tube (G) with seams in cutting attach-
ment.
5. Slide together aligning locating screw (J) in cutting attachment with
locating hole (K) in upper shaft tube.
6. Tighten locator screw (E). Tighten four (4) cutting attachment
screws(D).
7. Extend upper shaft tube to desired length. Tighten center clamp
knob(F)turning clockwise.
G
KJ
H
G
HI
THROTTLE LINKAGEINSTALLATION
D
F
NOTE
The engine is delivered separated from shaft tube. The throttle
linkage and stop switch wires are attached to the rear handle.
1. Loosen outer10mm nut (E)on throttle linkage.
2. Insert throttle linkage in fan cover slot (A).
3. Finger tighten nut (E) and attach the inner linkage to the swivel (B)
on the carburetor throttle plate.
NOTE
It is important that the head of the throttle linkage fits inside the
slotwell of theswivel (B). A
BCD
E

16
B
A
4. Tightenthe10mmlinkagenuts(E).
5. Check throttle for freedom of movement and make sure it returns to
idle position. If the throttle linkage does not allow the carburetor
throttle plate (C) to return to idle against idle screw (D), loosen
linkage nuts; turn throttle linkage nut (E) counter clockwise until
throttle plate (C) rests against idle screw (D). Hold linkage nut (E)
from turning and tighten other linkage nut.
6. Connect ground wire terminal under screw (F) on fan housing.
7. Connect stop switch wire to stop wire (G) on engine.
SAW CHAIN TENSION ADJUSTMENT
WARNING DANGER
Always wear work gloves when handling saw chain, otherwise
serious personal injury may result.
To Adjust Saw Chain Tension.
1. Loosen two (2) 11 mm (7/16 in.) guide bar bolts (A) located on
cutting attachment using the adjustment wrench provided.
2. Turn saw chain tnesioning screw (B) (located next to guide bar in
sprocket cover) clockwise to tighten saw chain on guide bar.
Turning screw counter clockwise will loosen saw chain on guide
bar.
3. Tighten guide bar bolt firmly, but not so much that the head starts
to distort. Move saw chain backwards on guide bar by hand. Saw
chain should move freely on bar if it is in proper mesh with
sprocket.
Keep the saw chain lubricated and properly adjusted and the guide bar
bolts tightened firmly at all times. If saw chain is difficult to rotate or
binds on guide bar, it is too tight.
A
BCD
E
B

POWER PRUNER
OPERATOR'SMANUAL 17
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] gasoline or gasohol known to be good
quality. Gasohol may contain up to 10% Ethyl (grain) alcohol or 15%
MTBE(methyltertiary-butylether).Gasoholcontainingmethanol(wood
alcohol) is NOTapproved.
Two-StrokeOil - Atwo-strokeengineoilmeetingISO-L-EGDStandard
(ISO/CD13738),mustbeused.EchobrandPremium50:1oilmeetsthis
standard. Engine problems due to inadequate lubrication caused by
failuretouseanISO-L-EGDapprovedoil,suchasEchoPremium50:1
Two-strokeOil,willvoidthetwo-strokeenginewarranty.(Emission
related parts only are covered for two years, regardless of two-stroke
oil used, per the statement listed in the EPA Phase I/California Emission
DefectWarrantyExplanation.)
Mixing- Follow directions on the oil container.
R + M
2
Handling Fuel
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesor sparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuel aunitwhenthe engineisHOT!
• NEVERrefuel a unitwiththeenginerunning.
• DONOTfill fuel tanks indoors.ALWAYSfillfueltanksout
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
AfterRefueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting
the engine.
Afteruse;
• DO NOT store a unit with fuel in its tank. Leaks can occur.
Return unused fuel to an approved fuel storage container.
Storage -
Fuel storage laws vary by locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved,
air tight container. Store in a well ventilated, unoccupied building, away
from sparks and flames. Do not store fuel longer than 30 days.
3 M
(10FT.)MINIMUM

18
SMTWTF S
1234567
8 9 10 111213 14
1516 17 181920 21
2223 24 252627 28
2930 31
IMPORTANT
Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.
IMPORTANT
Stored two-stroke fuel may separate. ALWAYS shake fuel con-
tainer thoroughly before each use.
AUTOMATIC OILINGSYSTEM
1. Turn oil fill cap 450counter clockwise and lift to remove.
2. Fill with a quality, low viscosity, guide bar and saw chain oil.
IMPORTANT
To prevent plastic deterioration, do not use synthetics or silicones
based oil.
3. Set rate indicator (A) to center by turning adjustment wheel (B).
4. Adjustforminimumoil rate by turning adjustmentwheel(B). (Very
littlevisible oil onthe saw chain willprovide sufficient lubrication).
NOTE
Proper oiling rate will use one reservoir of oil for each tank of gas.
IMPORTANT
Do not force adjustment wheel after indicator has reached the end
oftravelwindow.
EQUIPMENT CHECK
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Check that the cutting attachment is firmly attached and the saw chain
is correctly tensioned on the guide bar. Dull, loose or damaged saw
chain should not be used. Refer to page 29 for correct Filing Saw
Chain procedures.
• Check that shoulder harness is adjusted for safe, comfortable opera-
tion. See figure at right for proper adjustment.
15 M
(50ft.)
AB

POWER PRUNER
OPERATOR'SMANUAL 19
DETERMINE OPERATION AREA
• Before starting the unit, equip yourself and fellow workers in the 15 M
(50 ft.) safety zone with the required protective equipment and
clothing.
• Review the area to be trimmed. Look for hazards that could
contribute to unsafe conditions such as overhead electrical lines or
dead branches.
• Spectators, children and animals must be prevented from coming
nearer than 15 M (50 ft.) while the pruner is in use.
1. Stop Switch - Start/Run.
Move stop switch button (A) forward away from the STOP
position.
2. ChokeLever-ColdStart.
Move choke (B) to “Cold Start” Position.
3. PrimerBulb-Prime.
Pumpprimerbulb(C)10times.Fuelwillbevisibleandflowfreelyin
the clear fuel tank return line.
STARTING COLD ENGINE
WARNING DANGER
The cutting attachment should not rotate at idle. If cutting
attachment moves, readjust carburetor according to "Carburetor
Adjustment" instructions in this manual or see your ECHO Dealer,
otherwise serious personal injury may result.
15 M
(50ft.)
OPERATION
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always evaluate the area being cut for overhead hazards, such as
dead branches which may fall and strike the operator or helpers.
• Be aware of branches bouncing when striking the ground.
• Larger branches should be removed in sections.
• During operation, the complete unit, especially the shaft tube and the
cutting attachment may become very hot, too hot to touch. Avoid
contact during and immediately after operation.
A
B
CD

20
WARNING DANGER
Inspect starting area for hazards such as rocks, glass, debris etc.
which could be contacted by the cutting attachment when starting.
Keep helpers and bystanders at least 15 M (50 ft.) from starting
area, otherwise serious personal injury may result.
4. Lay the pruner on a flat clear area. Firmly grasp rear handle grip
and throttle lockout with left hand and fully depress throttle trigger
to wide open position. Rapidly pull recoil starter handle/rope (D)
untilengine fires.
5. After engine fires, move choke lever to “Run” position. Hold
throttle trigger and throttle lockout fully depressed and pull recoil
starter handle/rope (D) until engine starts and runs. Release
throttle trigger and allow unit to warm up at idle for several
minutes.
NOTE
If engine does not start with choke in “Run” position after 4 pulls,
repeat instructions 4 and 5.
6. After engine warm up, gradually depress throttle trigger to increase
engine RPM to operating speed.
STARTING WARM ENGINE
WARNING DANGER
The cutting attachment should not rotate at idle. If cutting attach-
ment moves, readjust carburetor according to "Carburetor Adjust-
ment" instructions in this manual or see your ECHO Dealer,
otherwise serious personal injury may result.
1. Stop Switch - Start/Run. Move stop switch button (A) forward
away from the STOP position.
2. Start - Pull Rope. Lay the pruner on a flat clear area and pull
the recoil starter handle (D) until the engine fires.
NOTE
If engine does not start after 4 pulls, use Cold Start Procedure.
B
CD
A
