Power PrunerTM
Operator'sManual
MODELS: PPT-2100 TYPE 1/1E
Serial Number 510493 & Up
PPT-2400 TYPE 1/1E
Serial Number 526263 & Up
WARNING DANGER
Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesanOperator's
ManualandaSafetyManual. Bothmustbereadandunderstoodforproperandsafe
operation.
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
X750001640
03/00
X7502304800

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
3
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key
words and what they mean to you.
IMPORTANT Theenclosedmessage
provides information necessary for the
protection of the unit.
NOTE Thisenclosed message providestipsfor
use, care and maintenance of the unit.
SAFETY
DECALS

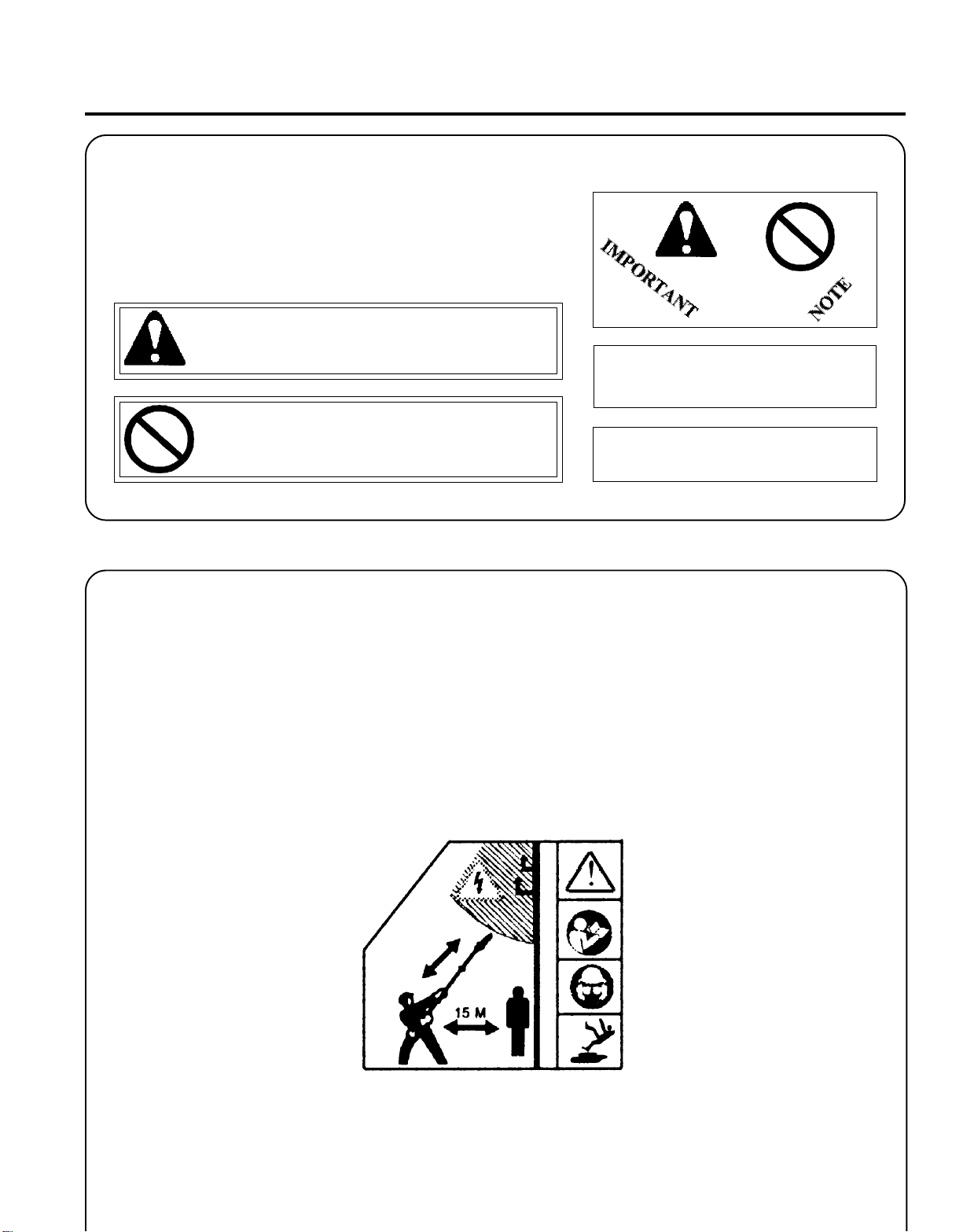

Locate this safety decal on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help you
locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal
cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific
information.
Engine Cover

4
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Emergency stop
Fuel and oil mixture
Finger Severing
Carburetor adjustment
- Low speed mixture
Safety/Alert
Avoid all power
lines. This unit is not
insulated against
electrical current.
Do not operate clos-
er than 15 M (50 ft.)
from electrical
hazards.
Keep bystanders at
least 15 meters
(50 feet) away.
Plan retreat path
from falling
objects.
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
DO NOT allow
flames or sparks
near fuel.
Wear slip resistant
foot wear.
Engine choke
control. Ignition ON/OFF
Chain lubrication
Primer bulb

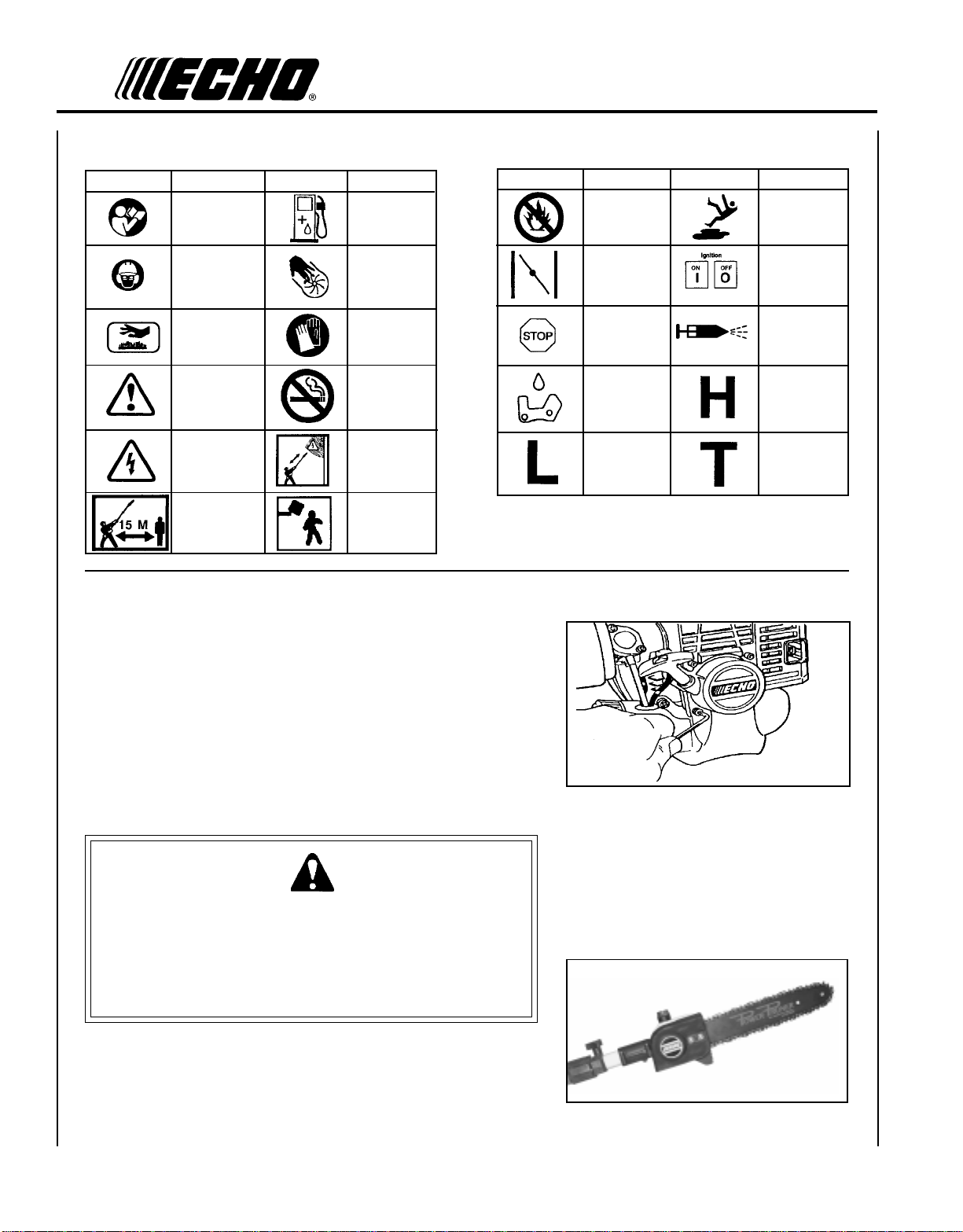

INTERNATIONAL SYMBOLS
EQUIPMENT
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
• Never adjust the guide bar or saw chain when the engine is operat-
ing.
Guide Bar and Saw Chain
WARNING DANGER
• Serious injury may result from the use of non approved guide bar
and saw chain combinations. Read and comply with all safety
instructions listed in this manual.
• ECHO,INC.will not beresponsiblefor the failureofcutting
devices or accessories which have not been tested and ap-
proved by ECHO for use with this unit.
• Check that the cutting attachment, guide bar and saw chain is firmly
attached and in safe operating condition.
• Only use ECHO approved guide bar and saw chain.
• Only use one ECHO approved extension on the pruner.
• Do not hit rocks, stones, tree stumps and other foreign objects with
the saw chain.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
5
• Do not cut into the ground with the saw chain.
• If cutting attachment end strikes an obstruction, stop engine immedi-
ately and inspect saw chain for damage.
• Do not operate with a dull, fractured or discolored saw chain.
• Removeallforeignobjectsfromworkarea.
• Always cover the guide bar and saw chain with guide bar cover
during transportation and in storage.
IMPORTANT
Some tree sap and resins are corrosive. Thoroughly wash the guide
bar and sprocket areas after each use, then coat metal parts with
lightoil.
FUEL
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesorsparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuelaunitwhentheengineisHOT!
• NEVERrefuel aunitwiththeenginerunning.
• DONOT fillfueltanksindoors.ALWAYS fillfueltanks out
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.
After Refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting.
After Use;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
3 M
(10FT.)MINIMUM

6
PERSONAL CONDITION &SAFETY EQUIPMENT
WARNING DANGER
Power PrunerTM users risk injury to themselves and others if the Power PrunerTM is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a Power PrunerTM.
Physical Condition --
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
•ifyouaretakingmedication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Wear eye protection that meets ANSI Z87.1 or CE requirements when-
ever you operate the Power PrunerTM.
Face & Head Protection --
When trimming overhead, always wear head protection meeting ANSI
Z89.1orCErequirements with a fullfaceshield. Headprotection with
full face shield will help protect you from falling branches and debris.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
Power PrunerTM handles. Gloves also reduce the transmission of
machine vibration to your hands.
Hearing Protection --
ECHO recommends wearing hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, durable protective clothing; chain saw safety pants
or chaps are recommended.
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARVES,JEWELRY.
Wear sturdy protective safety shoes or boots with non-skid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
7
Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.
SAFE OPERATION
WARNING DANGER
All over head electrical conductors and communications wires can
have electricity flow with high voltages. Never touch wires directly
or indirectly when pruning, otherwise serious injury or death may
result.
Determine Operation Area
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Do not operate this product indoors or in inadequately ventilated
areas.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions. DO NOT operate unit if any wires (power,
telephone, cable, etc.) are closer than 15 M (50 ft.) to any part of the
operator or unit.

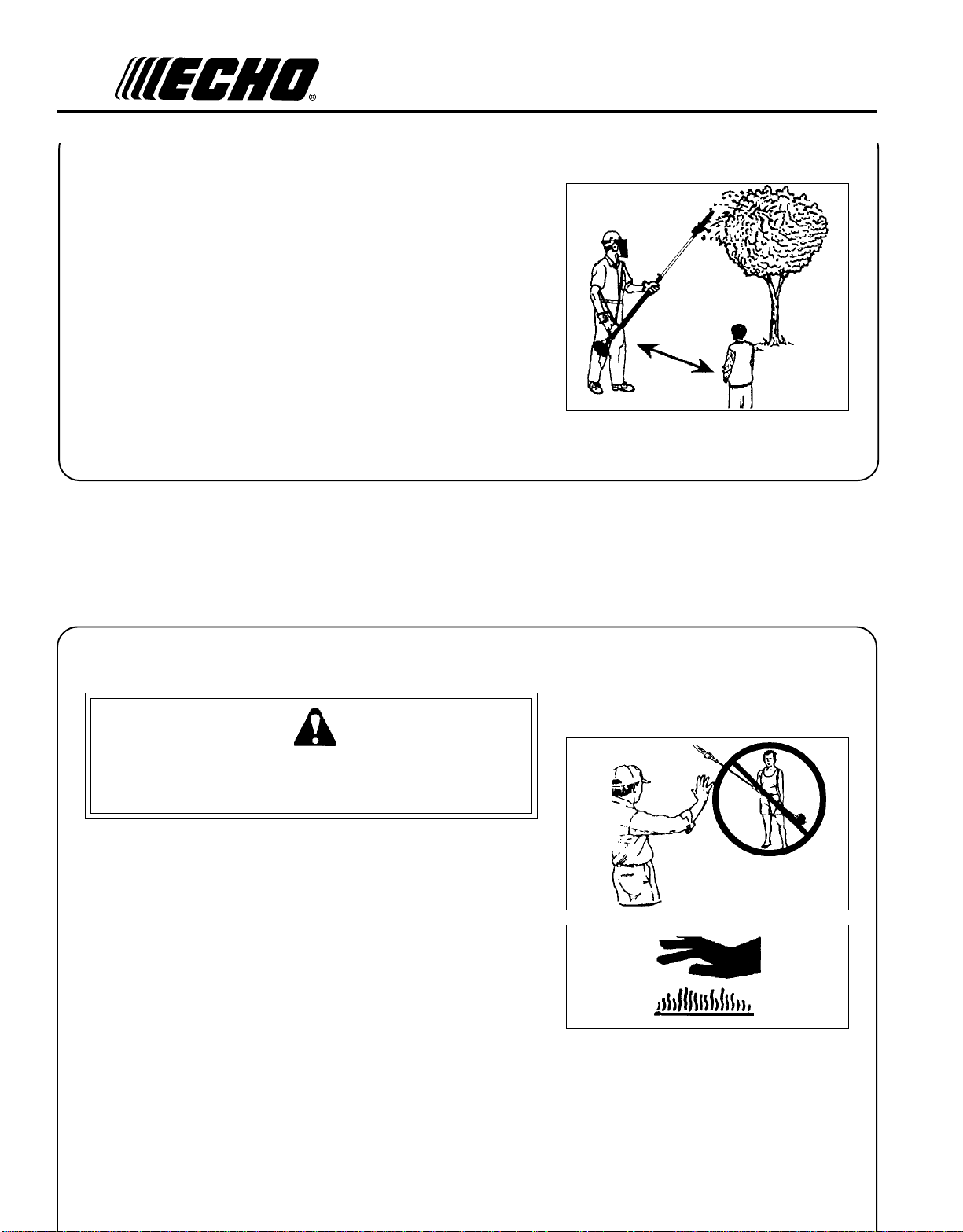

• Spectators and fellow workers must be warned, and children and
animalspreventedfromcoming nearer than 15 M(50ft.)while the
Power PrunerTM is in use.
• Avoid all power lines. This unit is not insulated against electrical
current.
Operation
UseProperClothing&Equipment
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always wear head protection with full face shield to help protect
against falling branches and debris.
AvoidHotSurfaces
• During operation, the complete unit, especially the power head,
muffler area and cutting attachment may become very hot, too hot to
touch. Avoid contact during and immediately after operation.
15 M
(50ft.)

8
KeepAFirmGrip
• Grip Power PrunerTM with both hands with thumbs and fingers
encircling the handle, and lower shaft tube.
KeepASolidStance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not overreach.
• Operate the Power PrunerTM only from the ground or
out of an approved bucket lift.
• Always evaluate the branches to be pruned for hazards such as loose
dead branches which may fall and strike the operator or helpers.
Remove hazards before pruning.
• Cut branches bounce when striking ground.
• Plan retreat path from falling objects.

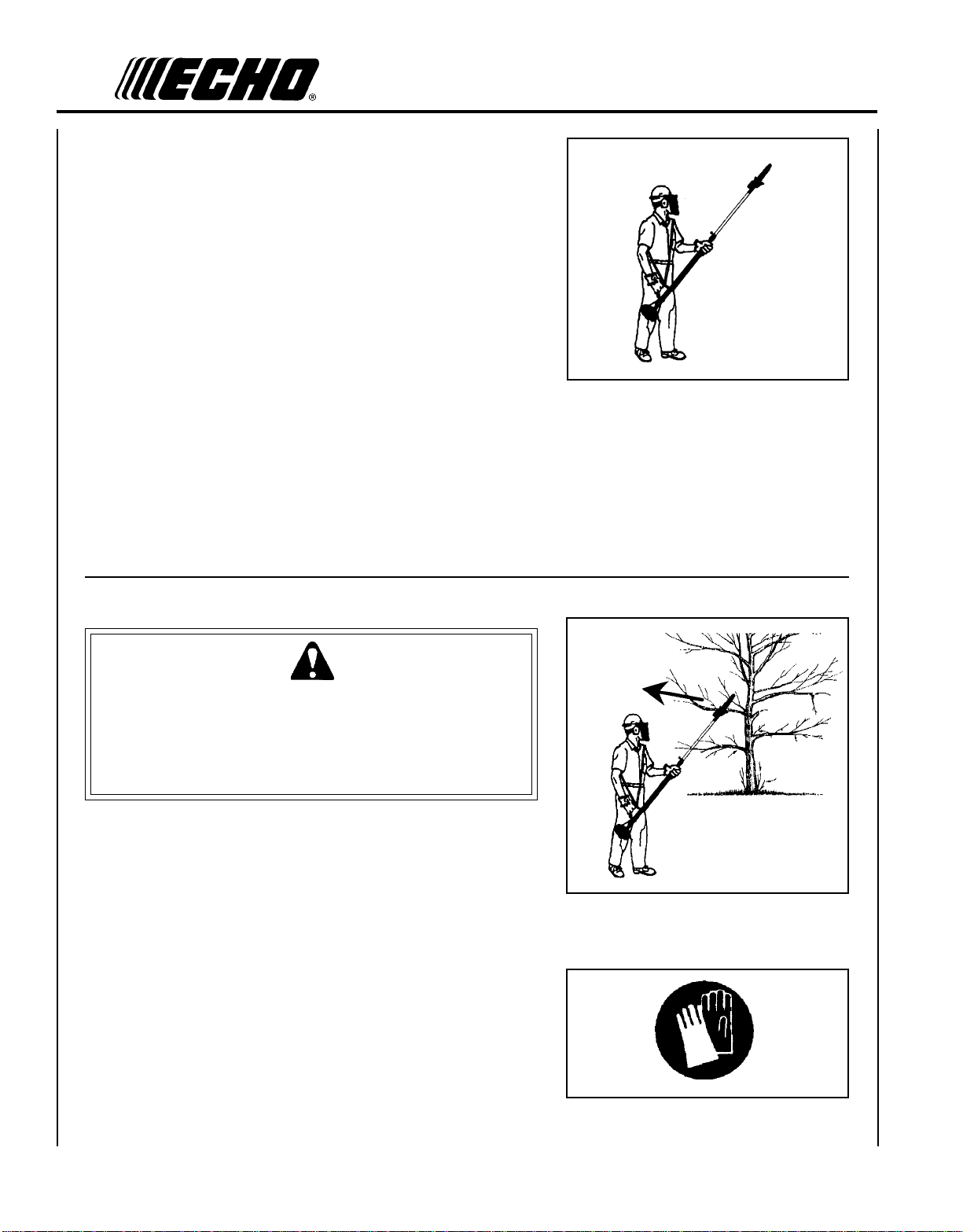

• Check that shoulder harness is adjusted for safe, comfortable
operation. See picture at right for proper adjustment.
• Turn the Power PrunerTM off when moving from tree to tree.
• Avoid any contact with saw chain.
KICKBACK
WARNING DANGER
Kickback can lead to dangerous loss of control of the Power
PrunerTM and result in serious injury to the operator or any one
standing close by. Hold the Power PrunerTM firmly with both hands
with thumbs and fingers encircling the front and rear handles. Be
aware of the down and outward path the pruner will take after the
cut is made.
Kickback may occur when the moving saw chain at the nose or tip of
the guide bar touches an object, or when the wood closes in and
pinches the saw chain in the cut. In some cases this may cause a
lightning-fast reverse action, kicking the guide bar and saw chain up
and back or down and back towards the operator. Either of these
reactions may cause the operator to lose control of the Power PrunerTM
which could result in serious personal injury.
With a basic understanding of kickback, you can reduce or eliminate the
element of surprise which contributes to accidents.
Avoid contact of the guide bar tip with any object while the saw chain
ismoving.
Cut only wood. Avoid striking concrete, metal, wire, or other obstruc-
tions which could cause kickback or damage to the saw chain.
If the saw chain does strike a foreign object, immediately stop the
engine, inspect and repair the Power PrunerTM if necessary.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
9
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommendedbecausethe minimum exposure whichmighttriggerthe
ailmentisunknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive
movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.

10

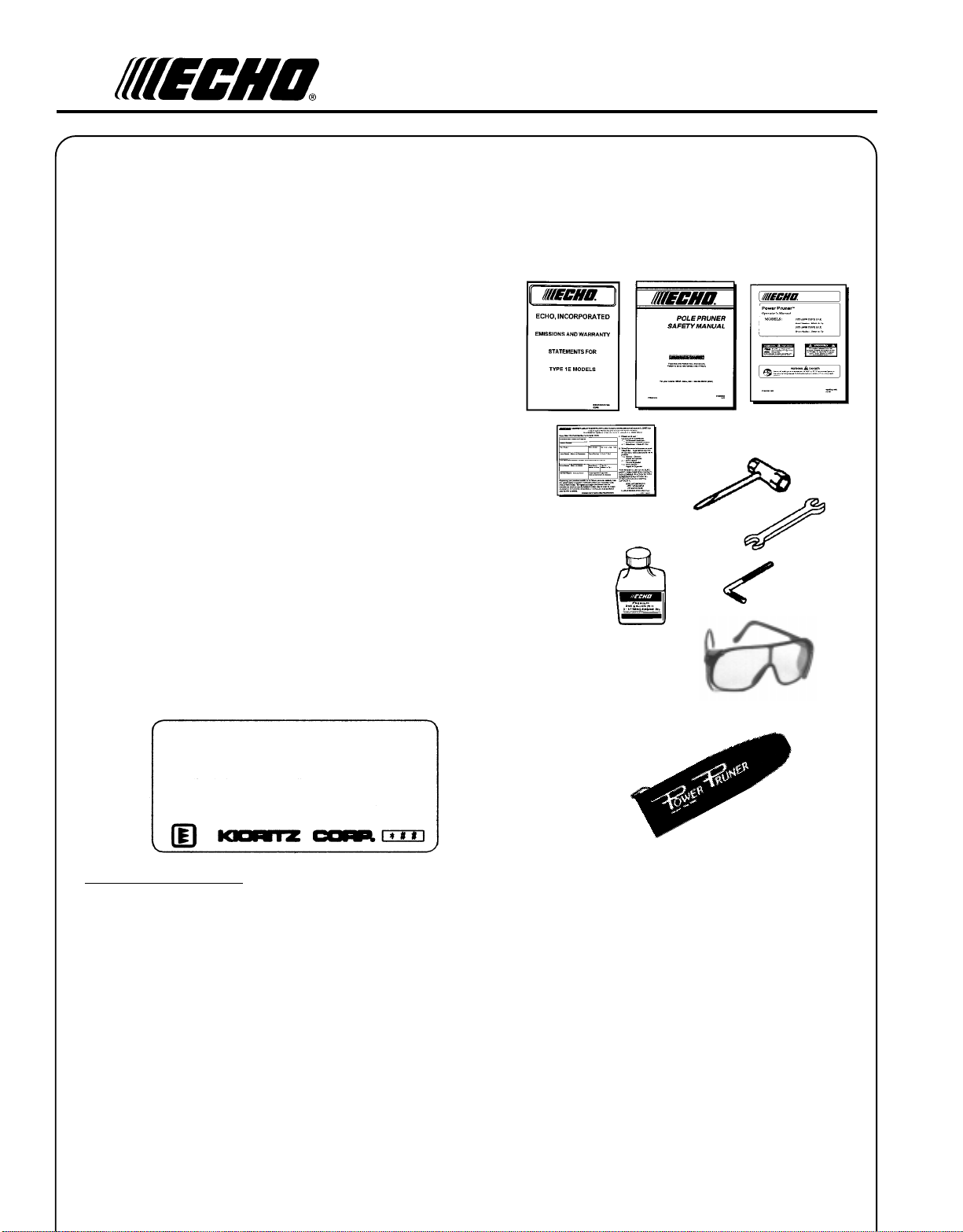

DESCRIPTION
Due to packaging restriction the ECHO product you have purchased requires some assembly.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
CONTENTS
__ PowerHead
__ Shaft Tube Assembly
__ Cutting Attachment W/ Guide Bar and Saw Chain
__ PlasticBag
__ Operator's Manual
__ Safety Manual
__ How to Prune Manual
__ Warranty Registration Card
__ Warranty Statement
__ PlasticBag
__ T-Wrench (combination screwdriver/spark plug socket)
__ 3mmhexwrench
__ 8x10mmSpanner
__ Safety Glasses
__ 2-StrokeOilBottle(2.6oz.)
__ Shoulder Harness
__ GuideBarCover
EMISSION CONTROL - Emissions Models
The emission control system for this engine is EM (Engine Modifica-
tion).
EmissionControlLabel (locatedonEngine) (EXAMPLEONLY,
informationonlabelvariesbyFAMILY).
IMPORTANTENGINEINFORMATION
ENGINE FAMILY: TEH021UB24RA
DISPLACEMENT: 21.2cc
THIS ENGINE MEETS U.S. EPA PH1 EMISSION
REGULATIONS FOR SMALL NON ROAD ENGINES.
REFER TO OWNER'S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENTS.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
11
1
12
11
10
2
3
9
14
15
16
17
18
19
20
21
13
8
7
6
5
4
22
2324

12

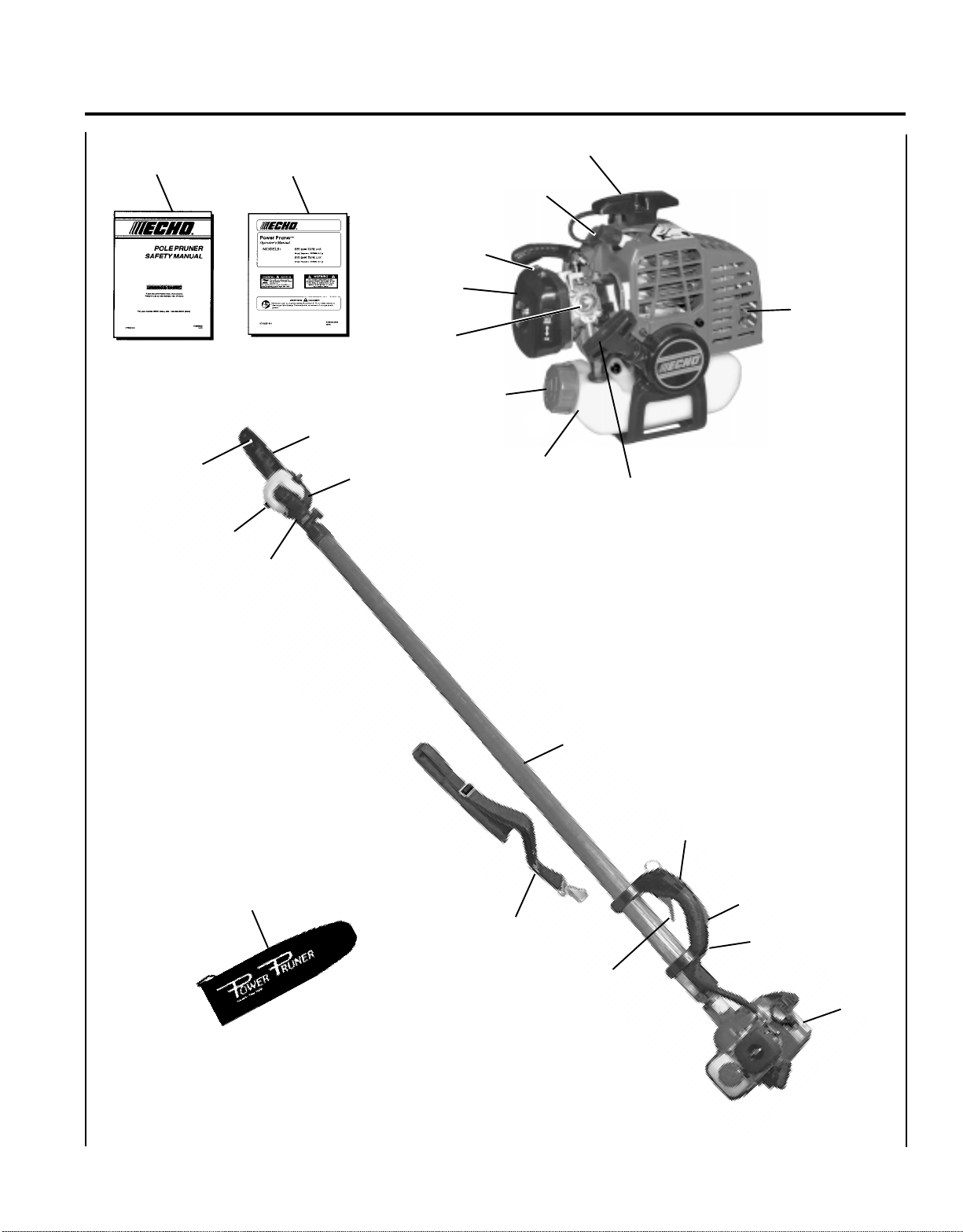

1. POWERHEAD-IncludestheEngine,Clutch,FuelSystem,IgnitionSystemandStarter.
2. THROTTLETRIGGER-Springloadedtoreturntoidlewhenreleased. Duringaccelerationpresstriggergraduallyfor
best operating technique.
3. SHOULDER HARNESS - An adjustable strap that suspends the unit from the operator.
4. CUTTINGATTACHMENT-Sealed,gearratiois1.5:1reduction.
5. CUTTING SHOE - Used to capture and stabilize branch while cutting. Place cutting shoe against branch, accelerate
and lower saw chain into branch.
6. GUIDEBAR-254mm(10in.)guidebar(PPT-2100),305mm(12in.)guidebar(PPT-2400).
7. SAWCHAIN-91VS 9.53mm(3/8in.)lowprofileOregon®sawchain. Runsapproximately609.6m/min.(2000ft/min)at
fullthrottle.
8. AUTOMATICOILERASSEMBLY-Selfoiling.Usehighquality,lowviscosity,non detergentbarandchainoil.
9. LOWERSHAFTTUBE-Durablefiberglassmeshhousing.
10. STOP SWITCH - Mounted on top of handle assembly. Move switch forward to run, back to stop.
11. THROTTLETRIGGERLOCKOUT-Thislevermustbedepressedbeforethrottletriggercanbeoperated.
12. REARHANDLEASSEMBLY-Sturdyhandleforrighthandplacement. Includesstop switchand throttletrigger.
13. ARMREST - Provides arm rest during operation and protects arm from hot engine.
14. MUFFLER,SPARKARRESTER-Themufflercontrolstheexhaustnoisewhilethesparkarrestorpreventshot,glowing
particles of carbon from leaving the muffler where they could possibly start a fire.
15. RECOILSTARTER-Pull recoil handle slowly until starterengages,thenquicklyand firmly. When enginestartsreturn
handle slowly. DO NOT let handle snap back or damage will occur.
16. FUELTANK-Containsfuelandfuelfilter.
17. FUELTANKCAP-Coversandsealsfueltankopening.
18. PRIMERBULB - Pumpingprimerbulbbeforestartingenginedraws freshfuelfromthefueltankpriming thecarburetor
for starting. Pump the bulb 10 times until fuel is visible in clear fuel return line.
19. AIRCLEANERASSEMBLY-Containsreplaceableairfilterelement.
20. CHOKE - Located above air cleaner housing. Controls operation of choke. Move lever to start position (Close Choke)
and back to run position (Open Choke).
21. SPARKPLUG-Providessparktoignitefuelmixture.
22. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove guide bar cover
before using unit.
23. OPERATOR'SMANUAL-Readandunderstandthismanualbefore operation. Keep manual in a safe location for future
reference, i.e., operation, maintenance, storage and specifications.
24. SAFETYMANUAL- Read before operation and keep in a safe place for future reference to learn proper, safe operating
techniques.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
13
SPECIFICATIONS
MODEL PPT-2100 PPT-2400
Length (Standard) 2.26 m (7 ft., 5 in.) 2.74 m (9 ft.)
Length (Extended) 3.41 m (11 ft., 2.25 in.) 3.91 m (12 ft., 9.75 in.)
Length w/extension 5.00 m (16 ft., 5 in.) 5.49 m (18 ft.)
Width 0.22 m (8.75 in.)
Height 0.23 m (9.0 in.)
Weight (dry) 7.41 kg (16.3 lb.) 7.7 kg (16.9 lb.)
Engine Type Air cooled, two-stroke, single cylinder gasoline engine
Bore 32.2 mm (1.268 in.) 34.0 mm (1.339 in.)
Stroke 26.0 mm (1.04 in.) 26.0 mm (1.04 in.)
Displacement 21.2 cc (1.29 cu. in.) 23.6 cc (1.44 cu. in.)
Exhaust System Spark Arrestor Muffler
Carburetor Diaphragm, w/primer bulb
Ignition System CDI (capacitor discharge ignition)
Spark Plug NGK BPM-7A Gap 0.65 mm (0.026 in.) NGK BPM-7Y Gap 0.65 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio 50:1 ECHO High Performance, two-stroke air cooled engine oil
Gasoline 89 Octane unleaded. DO NOT use fuel containing methyl alcohol,
more than 10% ethyl alcohol or 15% MTBE.
Fuel Tank Capacity 0.4 lit. (14.0 US fl. oz.)
Starter System Automatic RecoilStarter
Clutch Centrifugal Type
Sprocket Type 6 tooth spur, 9.53 mm (3/8") pitch
Power Transmission Shaft Assembly Aluminum Extrusion
Gear Case Ratio 1.5:1
Oiling System Automatic
Saw Chain Oil Capacity 225 ml (7.6 oz.)
Handle Right hand grip w/throttle trigger and lockout
Shoulder Harness Standard
Idle Speed (RPM) 2600 - 3100
Wide Open Throttle Speed (RPM) 8000 - 9000 11,000 - 12,000
Guide Bar and Saw Chain (91 VS) 254 mm (10 in.) ;
9.53 mm (3/8") pitch 305 mm (12 in.) ; 9.53 mm (3/8") pitch

14

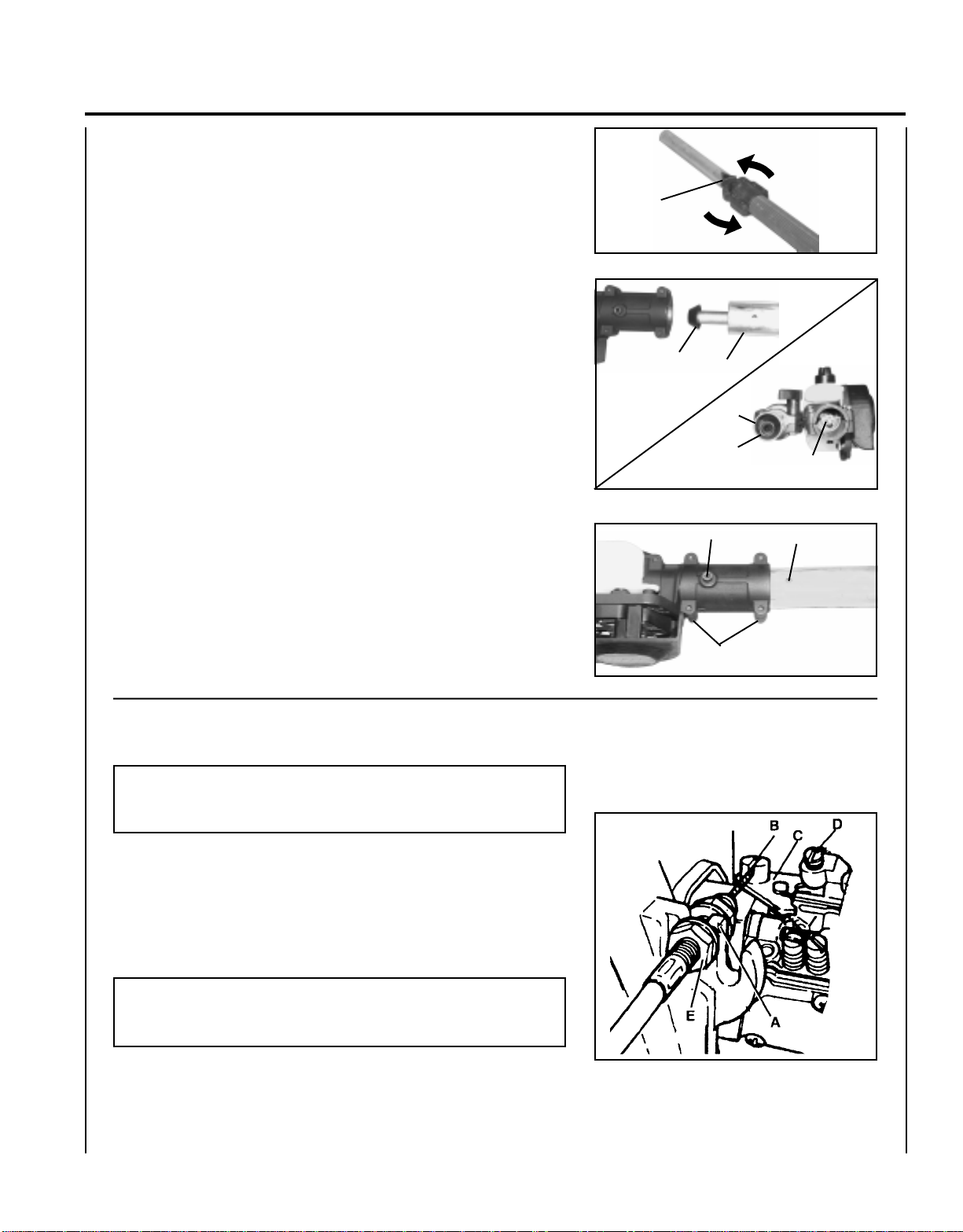

1. Loosen bolt (A).
2. Match square socket in engine shaft with square power transmis-
sion shaft (B) and slide together until engine rests against the
machine surface of lower shaft tube housing coupler (C).
3. Rotate lower shaft tube housing to align engine and rear handle
assembly in an upright position.
4. Tighten bolt (A) securely so engine will not rotate on lower shaft
tube.
ASSEMBLY
SHAFT TUBE /POWER HEAD
Tools Required: 10x19mm(13/32x3/4in)T-wrench,8x10mmWrench,
3mmHex Wrench
Parts Required: Power Head, Shaft Tube Assembly; Cutting Attach-
ment
B
A
C
E
D
CUTTING ATTACHMENT TO SHAFT TUBE INSTALLATION
WARNING DANGER
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.
1. Loosen the four (4) screws (D) and locator screw (E) on cutting
attachment.
A

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
15
2. Loosen center clamp knob (F) turning counter clockwise.
3. Pull upper shaft tube (G) out of fiberglass lower shaft tube 127-152
mm(5-6in.),then slide (G) backintofiberglasslower shaft tube
exposing inner power transmission shaft (H). Align and join star
shaped drive end of inner power transmission shaft (H) with cutting
attachment shaft (I).
4. Align ridges on upper shaft tube (G) with seams in cutting attach-
ment.
5. Slide together aligning locator screw (E) in cutting attachment with
locating hole (J) in upper shaft tube.
6. Tighten locator screw (E). Tighten four (4) cutting attachment
screws(D).
7. Extend upper shaft tube to desired length. Tighten center clamp
knob(F) turningclockwise.
E
THROTTLE LINKAGE INSTALLATION
D
F
NOTE
The engine is delivered separated from shaft tube. The throttle
linkage and stop switch wires are attached to the rear handle.
1. Loosen outer 10mm nut (E)onthrottlelinkage.
2. Insert throttle linkage in fan cover slot (A).
3. Finger tighten nut (E) and attach the inner linkage to the swivel (B)
on the carburetor throttle plate.
NOTE
It is important that the head of the throttle linkage fits inside the
slotwelloftheswivel(B).
G
H
G
HI
J

16
4. Tightenthe10mmlinkagenuts(E).
5. Check throttle for freedom of movement and make sure it returns to
idle position. If the throttle linkage does not allow the carburetor
throttle plate (C) to return to idle against idle screw (D), loosen
linkage nuts; turn throttle linkage nut (E) counter clockwise until
throttle plate (C) rests against idle screw (D). Hold linkage nut (E)
from turning and tighten other linkage nut.
6. Connect ground wire terminal under screw (F) on fan housing.
7. Connect stop switch wire to stop wire (G) on engine.

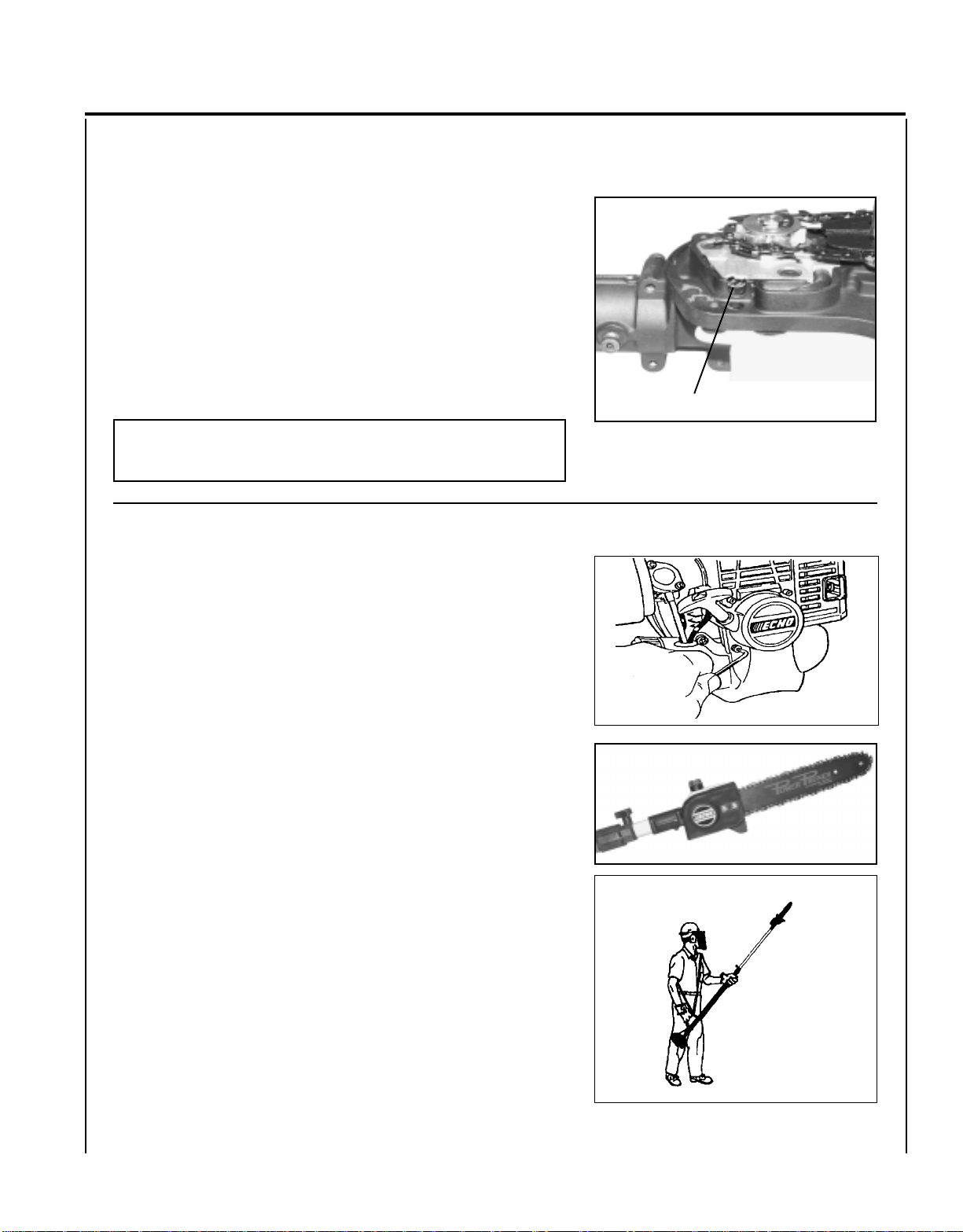

SAW CHAIN TENSION ADJUSTMENT
ToolsRequired:10x19mm(13/32x3/4in.)T-wrenchprovided
WARNING DANGER
Always wear gloves when handling saw chain, otherwise serious
personal injury may result.
To Adjust Saw Chain Tension.
1. Loosen two (2) 10 mm (13/32 in.) guide bar nuts (A) located on
cutting attachment using the T-wrench provided.
2. Turn the adjuster slot (B) clockwise until saw chain touches the
bottom of guide bar. Turning adjuster slot (B) counter clockwise
will loosen saw chain on guide bar.
3. Tighten guide bar nuts firmly. Move saw chain backwards on
guide bar by hand. Saw chain should move freely on guide bar if it
is in proper mesh with sprocket.
Keep the saw chain lubricated and properly adjusted and the guide bar
nuts tightened firmly at all times. If saw chain is difficult to rotate or
binds on guide bar, it is too tight.
B
B
A

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
17
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] (mid grade or higher) gasoline or
gasohol known to be good quality. Gasohol may contain up to 10%
Ethyl(grain)alcoholor15%MTBE(methyltertiary-butylether).
Gasohol containing methanol (wood alcohol) is NOT approved.
Two-StrokeOil- Atwo-strokeengineoilmeetingISO-L-EGDStandard
(ISO/CD13738),mustbeused.EchobrandPremium50:1oilmeetsthis
standard. Engine problems due to inadequate lubrication caused by
failuretouseanISO-L-EGDapprovedoil,suchasEchoPremium50:1
Two-strokeOil,willvoidthetwo-strokeenginewarranty.(Emission
related parts only are covered for two years, regardless of two-stroke
oil used, per the statement listed in the EPA Phase I/California Emission
DefectWarrantyExplanation.)
Mixing- Follow directions on the oil container.
Handling Fuel
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesorsparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuelaunitwhentheengineisHOT!
• NEVERrefuel aunitwiththeenginerunning.
• DONOT fillfueltanksindoors.ALWAYS fillfueltanks out
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.
R + M
2

18
AfterRefueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting the
engine.
Afteruse;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
Storage -
Fuel storage laws vary by locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved,
air tight container. Store in a well ventilated, unoccupied building, away
from sparks and flames. Do not store fuel longer than 30 days.
IMPORTANT
Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.
IMPORTANT
Stored two-stroke fuel may separate. ALWAYS shake fuel con-
tainer thoroughly before each use.
SMTWTF S
1234567
8 9 10 1112 13 14
1516 17 1819 20 21
2223 24 2526 27 28
2930 31
3 M
(10FT.)MINIMUM
LUBRICATING THE GUIDE BAR AND SAW CHAIN
Automatic Oiling System
1. Wipe debris fromaroundoilfillcap.
2. Remove oilfillcapand fill reservoirwithaquality, low viscosity
guide bar and saw chain oil.
NOTE
The discharge volume of the automatic oiler is preset to deliver 3 to
4 cc/min. at normal operating RPM. During heavy or dry cutting
conditions the oil discharge volume may be adjusted to assure
adequate lubrication. Refill the oil reservoir with each tank of fuel.
IMPORTANT
To prevent plastic deterioration, do not use synthetic or silicone
based oil.

P OWER P RUNER
TM
O PERATOR ' S M ANUAL
19
ADJUSTING AUTOMATIC OILER
Toolsrequired: 10x19mm(13/32x3/4)T-Wrenchprovided
1. Remove two (2) 10 mm guide bar retaining nuts and sprocket cover.
2. From bottom of gear case, turn adjustment screw (A) clockwise to
decrease oil volume - counter clockwise to increase oil volume.
NOTE
Verylittlevisibleoilonthesawchainwillprovidesufficient
lubrication.
EQUIPMENT CHECK
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Check that the cutting attachment is firmly attached and the saw
chain is correctly tensioned on the guide bar. Dull, loose or damaged
saw chain should not be used. Refer to page 30 for correct Filing Saw
Chain procedures.
• Check that shoulder harness is adjusted for safe, comfortable
operation. See figure at right for proper adjustment.
A

20
OPERATION
WARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions which can
cause serious injury or death.
• Provide all operators of this equipment with the Operator's Manual,
and instructions for safe operation.
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always evaluate the area being cut for overhead hazards, such as
dead branches which may fall and strike the operator or helpers.
• Be aware of branches bouncing when striking the ground.
• Larger branches should be removed in sections.
• During operation, the complete unit, especially the shaft tube and
bearing housing may become very hot, too hot to touch. Avoid
contact during and immediately after operation.
15 M
(50ft.)
DETERMINE OPERATION AREA
• Before starting the unit, equip yourself and fellow workers in the 15 M
(50 ft.) safety zone with the required protective equipment and
clothing.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions such as overhead electrical lines or dead
branches.
• Spectators, children and animals must be prevented from coming
nearer than 15 M (50 ft.) while the pruner is in use.
