Echo PPT-2620 User manual

X7507820600
© 2/2017 ECHO Inc.
ENGLISH
Operator’s Manual
Specifications, descriptions and illustrative material in this literature are
as accurate as known at the time of publication, but are subject to
change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
PPT-2620 / H
POWER PRUNERTM
Burn Hazard
The muffler or catalytic muffler and surrounding cover may
become extremely hot. Always keep clear of exhaust and
muffler area, otherwise serious personal injury may occur.
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects, or other reproductive
harm.
Users of this equipment risk injury to themselves and others
if the unit is used improperly and/or safety precautions are
not followed. Echo provides an operator’s manual and a
safety manual. Both must be read and understood for proper
and safe operation. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.

TABLE OF CONTENTS PPT-2620
2 X7507820600
© 2/2017 ECHO Inc.
TABLE OF CONTENTS
Table of Contents ........................................................................................ 2
Introduction ................................................................................................. 4
Servicing Information .................................................................................. 4
Parts/Serial Number ............................................................................ 4
Service................................................................................................. 4
Echo Consumer Product Support ........................................................ 5
Product Registration ............................................................................ 5
Additional or Replacement Manuals .................................................... 5
Safety .......................................................................................................... 5
Manual Safety Symbols and Important Information ............................. 5
International Symbols .......................................................................... 6
Personal Condition and Safety Equipment .......................................... 8
Kickback............................................................................................. 12
Equipment.......................................................................................... 13
Emission Control (Exhaust & Evaporative) .............................................. 15
CARB And EPA Emissions Control Information................................. 15
Description ................................................................................................ 16
Contents.................................................................................................... 19
Assembly................................................................................................... 20
Drive Shaft/Handle Assembly ............................................................ 20
Cutting Attachment to Drive Shaft Installation ................................... 20
Saw Chain Adjustment....................................................................... 22
Operation .................................................................................................. 23
Fuel.................................................................................................... 23
Lubricating the Guide Bar and Saw Chain......................................... 26
Note: Very little visible oil on the saw chain will provide sufficient
lubrication. ......................................................................................... 27
Starting Cold Engine.......................................................................... 27
Starting Warm Engine........................................................................ 28
Stopping Engine ................................................................................ 30
Pruning Techniques ........................................................................... 31

PPT-2620 TABLE OF CONTENTS
X7507820600 3
© 2/2017 ECHO Inc.
ENGLISH
Maintenance ............................................................................................. 32
Skill Levels......................................................................................... 33
Maintenance Intervals ....................................................................... 33
Air Filter ............................................................................................. 34
Fuel Filter .......................................................................................... 35
Spark Plug......................................................................................... 36
Cooling System ................................................................................. 37
Exhaust System ................................................................................ 38
Carburetor Adjustment ...................................................................... 40
Lubrication......................................................................................... 42
Guide Bar and Saw Chain Replacement........................................... 43
Filing Standard Saw Chain ................................................................ 44
Troubleshooting ........................................................................................ 47
Storage ..................................................................................................... 48
Long Term Storage (Over 30 Days)................................................... 48
Specifications ........................................................................................... 50
Product Registration ................................................................................. 52
Notes ........................................................................................................ 54

INTRODUCTION PPT-2620
4 X7507820600
© 2/2017 ECHO Inc.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and
manufactured to provide long life and on-the-job dependability. Read and
understand this manual and the safety manual. Keep the manuals in a safe
place for future reference.
The operators manual contains specifications and information for safety,
operation, maintenance, storage and assembly specific to this product.
Scan the QR codes throughout the operator’s manual for more information.
The safety manual explains possible hazards and the measures you should
take to insure safe operation.
SERVICING INFORMATION
Parts/Serial Number
Genuine ECHO Parts and
Assemblies for your ECHO
products are available only from
an Authorized ECHO Dealer.
When you do need to buy parts
always have the Model Number
and Serial Number of the unit
with you. For future reference
write them in the space provided
below.
Model No. _________________
Serial No. _________________
Service
Service of this product during
the warranty period must be performed by an Authorized ECHO Service
Dealer. For the name and address of the Authorized ECHO Service Dealer
nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site. www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.

PPT-2620 SAFETY
X7507820600 5
© 2/2017 ECHO Inc.
ENGLISH
Echo Consumer Product Support
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm
(Central Standard Time) Monday through Friday. Before calling, please
know the model and serial number of your unit.
Product Registration
Register your ECHO equipment on-line at www.echo-usa.com or by filling
out the product registration sheet included in this manual. Registering your
product confirms warranty coverage and provides a direct link to ECHO if
we find it necessary to contact you.
Additional or Replacement Manuals
Replacement Operator or Safety Manuals, and Parts
Catalogs, are available from your Authorized ECHO
Service Dealer, or at www.echo-usa.com, or by contacting
ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047
(800-673-1558). Always check www.echo-usa.com for
updated information.
Safety Videos are available from your Authorized ECHO Service Dealer. A
$5.00 shipping charge is required for each video.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.

SAFETY PPT-2620
6 X7507820600
© 2/2017 ECHO Inc.
The safety alert symbol accompanied by the wrod “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.

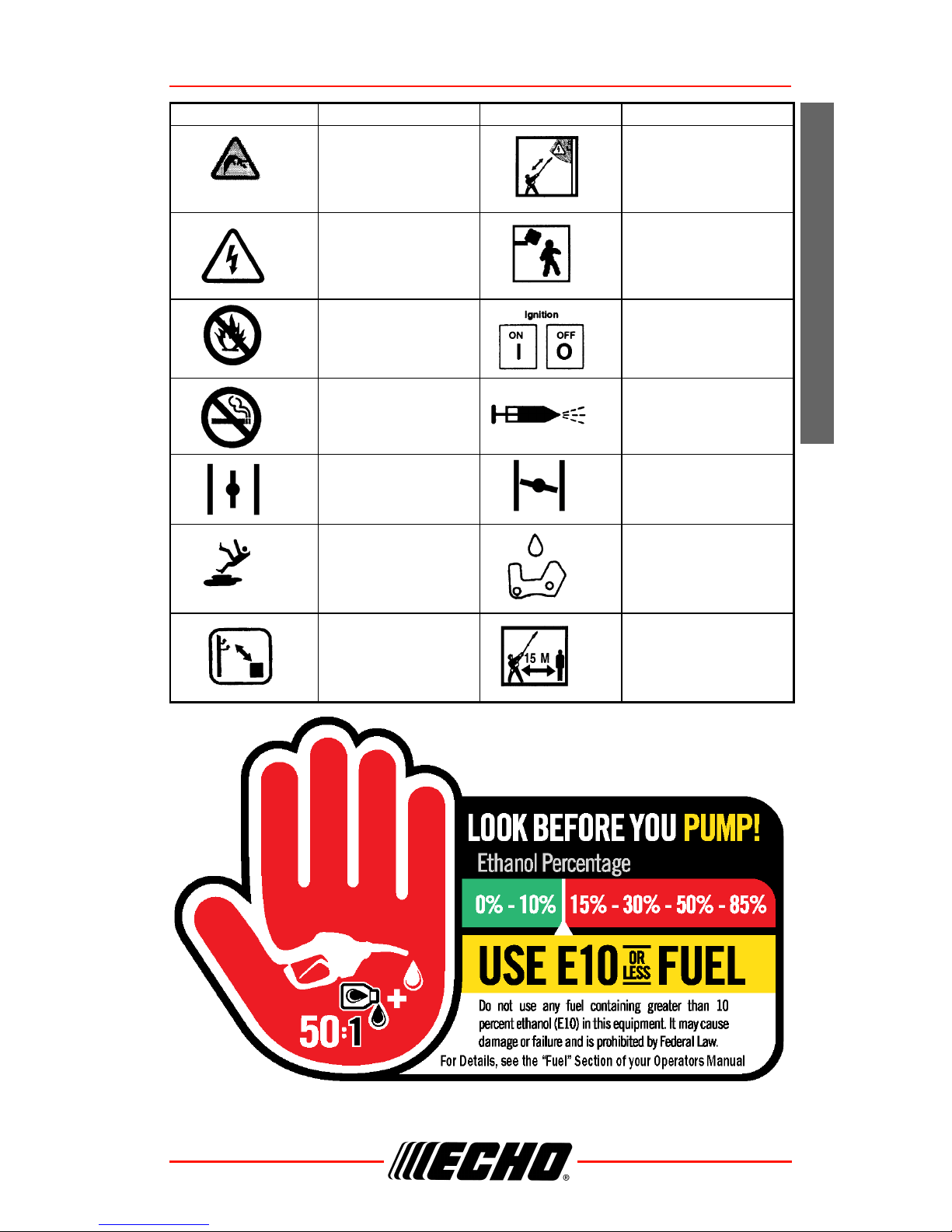

International Symbols
Symbol Description Symbol Description
Warning, See
Operator’s Manual
Carburetor Adjustment -
High Speed Mixture
Wear Eye, Ear and
Head Protection
Carburetor Adjustment -
Idle Speed
Wear Hand and Foot
Protection
Carburetor Adjustment -
Low Speed Mixture
Safety/Alert Emergency Stop
Hot Surface Fuel and Oil Mixture

PPT-2620 SAFETY
X7507820600 7
© 2/2017 ECHO Inc.
ENGLISH
Finger Severing
Do not operate closer
than 15 m (50 ft.) from
electrical hazard.
Avoid all power lines.
This unit is not insulated
against electrical
current.
Plan retreat path from
falling objects.
DO NOT Allow Flames
or Sparks Near Fuel Ignition ON / OFF
DO NOT Smoke Near
Fuel Primer Bulb
Choke Control “RUN”
Position (Choke Open)
Choke Control “COLD
START” Position (Choke
Closed)
Wear Slip Resistant
Footwear
Chain Lubrication
Do not operate closer
than 15 m (50 ft.) from
electrical hazards.
Keep bystanders at least
4.5 m (15 ft.) away.
Symbol Description Symbol Description

SAFETY PPT-2620
8 X7507820600
© 2/2017 ECHO Inc.
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well
Eye Protection
• Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
• For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.

PPT-2620 SAFETY
X7507820600 9
© 2/2017 ECHO Inc.
ENGLISH
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
The components of this machine generate an electromagnetic
field during operation, which may interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in
injury. Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions may result
in painful wrist/hand/arm injuries.

SAFETY PPT-2620
10 X7507820600
© 2/2017 ECHO Inc.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially
the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by
performing vigorous arm
exercises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to
fill each day with jobs where
operating the unit or other hand-
held power equipment is not
required.
• If you experience discomfort, redness, and swelling of the fingers followed
by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibration.
Repetitive Stress Injuries
(RSI)
It is believed that overusing the
muscles and tendons of the fingers,
hands, arms, and shoulders may
cause soreness, swelling,
numbness, weakness, and extreme
pain in those areas. Certain
repetitive hand activities may put
you at a high risk for developing a
Repetitive Stress Injury (RSI). An
extreme RSI condition is Carpal
Tunnel Syndrome (CTS), which
could occur when your wrist swells
and squeezes a vital nerve that runs
through the area. Some believe that
prolonged exposure to vibration may contribute to CTS. CTS can cause
severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try
to maintain a straight wrist position. Also, when grasping, use your whole
hand, not just the thumb and index finger.

PPT-2620 SAFETY
X7507820600 11
© 2/2017 ECHO Inc.
ENGLISH
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death may result.
Do not operate this product indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous emissions
and can cause serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and Safety
Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.
Use Proper Clothing & Equipment
• Always wear head protection with full face shield to help protect against
falling branches and debris.
Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not over reach.

SAFETY PPT-2620
12 X7507820600
© 2/2017 ECHO Inc.
• Operate the Power PrunerTM only from the ground or out of an approved
bucket lift.
• Always evaluate the branches to be pruned for hazards such as loose
dead branches which may fall and strike the operator or helpers. Remove
hazards before pruning.
• Plan retreat path from falling objects.
• Cut branches bounce when striking ground.
• Check that shoulder harness is adjusted for safe, comfortable operation.
• Turn the Power PrunerTM off when moving from tree to tree.
• Avoid any contact with saw chain..
Avoid Hot Surfaces
• Keep exhaust area clear of flammable
debris. Avoid contact during and
immediately after operation.
Kickback
Kickback can lead to dangerous loss of control of the Power
PrunerTM and result in serious injury to the operator or any one
standing close by. Hold the Power PrunerTM firmly with both
hands with thumbs and fingers encircling the front and rear
handles. Be aware of the down and outward path the pruner will
take after the cut is made.

PPT-2620 SAFETY
X7507820600 13
© 2/2017 ECHO Inc.
ENGLISH
Kickback may occur when the moving saw
chain at the nose or tip of the guide bar
touches an object, or when the wood
closes in and pinches the saw chain in the
cut. In some cases this may cause a
lightning-fast reverse action, kicking the
guide bar and saw chain up and back or
down and back towards the operator.
Either of these reactions may cause the
operator to lose control of the Power
PrunerTM which could result in serious
personal injury.
With a basic understanding of kickback,
you can reduce or eliminate the element of surprise which contributes to
accidents.
Avoid contact of the guide bar tip with any object while the saw chain is
moving.
Cut only wood. Avoid striking concrete, metal, wire, or other obstructions
which could cause kickback or damage to the saw chain.
If the saw chain does strike a foreign object, immediately stop the engine,
inspect and repair the Power PrunerTM if necessary.
Equipment
Use only ECHO attachments. Serious injury may result from the
use of a non-approved attachment combination. ECHO, INC. will
not be responsible for the failure of cutting devices,
attachments or accessories which have not been tested and
approved by ECHO. Read and comply with all safety
instructions listed in this manual and safety manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or
replace as needed.
Guide Bar and Saw Chain
• Check that the cutting attachment, guide bar, and saw chain is firmly
attached and in safe operating condition.
• Use only one Echo extension on the pruner.

SAFETY PPT-2620
14 X7507820600
© 2/2017 ECHO Inc.
• Do not hit rocks, stones, tree stumps, and other foreign objects with the
saw chain.
• Do not cut into the ground with the saw chain.
• If cutting attachment end strikes an obstruction, stop engine immediately
and inspect saw chain for damage.
• Do not operate with a dull, fractured, or discolored saw chain.
• Remove all foreign objects from work area.
• Always cover the guide bar and saw chain with guide bar cover during
transportation and for storage.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
• ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.
Periodically Check fuel system (fuel lines, vent, grommet, fuel
tank, and fuel cap) for leaks especially if the unit is dropped. If
damage or leaks are found, do not use unit, otherwise serious
personal injury or property damage may occur. Have unit
repaired by an authorized servicing dealer before using.

PPT-2620 EMISSION CONTROL
X7507820600 15
© 2/2017 ECHO Inc.
ENGLISH
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for the
engine is EM (engine modification)
and, if the second to last character
of the Engine Family on the
Emission Control Information label
(sample below) is “B”, “C”, “K”, or
“T”, the emission control system is
EM and TWC (3-way catalyst). The
fuel tank/fuel line emission control
system is EVAP (evaporative emissions). Evaporative emissions for
California models are only applicable to fuel tanks.

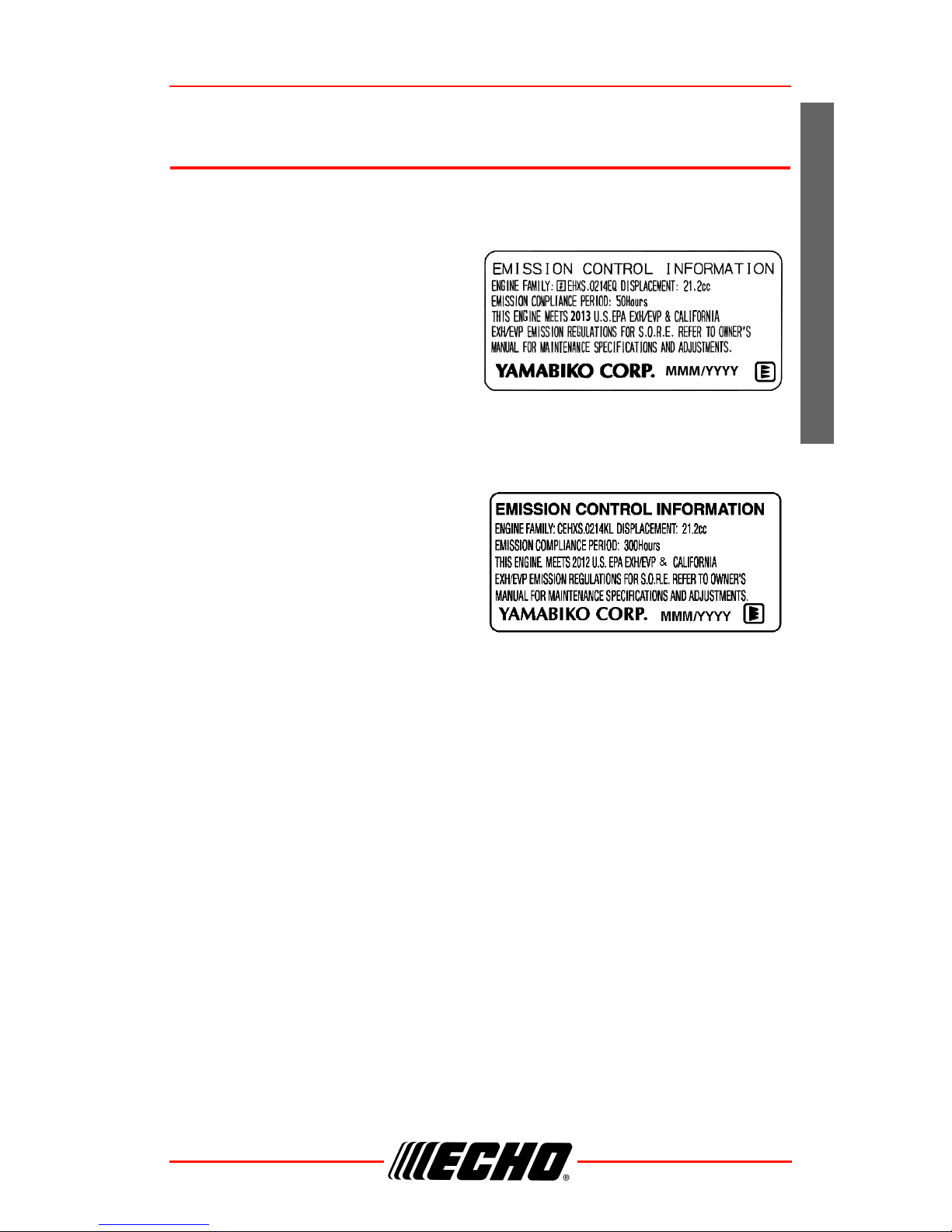

An Emission Control Label is
located on the engine. (This is an
EXAMPLE ONLY, information on
label varies by engine FAMILY).
Product Emission Durability
(Emission Compliance Period)
The 50 or 300 hour emission
compliance period is the time span selected by the manufacturer certifying
the engine emissions output meets applicable emissions regulations,
provided that approved maintenance procedures are followed as listed in
the Maintenance Section of this manual.

DESCRIPTION PPT-2620
16 X7507820600
© 2/2017 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your ECHO dealer.
1
1
2
3
4
5
6
7
8
9
10
11
13
23
12
3
14
15
16
17
18
19
20
21 22
2
4
12
5

PPT-2620 DESCRIPTION
X7507820600 17
© 2/2017 ECHO Inc.
ENGLISH
1. POWER HEAD - Factory Assembled to the Drive shaft assembly.
Includes the Engine, Clutch, Fuel System, Ignition System and Recoil
Starter.
2. THROTTLE HANDLE - FOR RIGHT HAND - Contains Stop Switch,
Throttle Lockout, and Throttle Trigger.
3. THROTTLE TRIGGER LOCKOUT - This lever must be held during
starting. Operation of the throttle trigger is prevented unless throttle
trigger lockout lever is engaged.
4. STOP SWITCH - “SLIDE SWITCH” mounted on top of the Throttle
Trigger Housing. Move switch FORWARD to RUN, BACK to STOP.
5. STRAP HOOK - Used to secure unit to shoulder harness
6. LOWER SHAFT TUBE – Durable fiberglass mesh housing.
7. CUTTING ATTACHMENT - Sealed, gear ratio is 1.5:1 reduction.
8. AUTOMATIC OILER ASSEMBLY - Self oiling. Use high quality, low
viscosity, non-detergent bar and chain oil.
9. GUIDE BAR
10. SAW CHAIN - Chain, serving as a cutting tool.
11. CUTTING SHOE - Used to capture and stabilize branch while cutting.
Place cutting shoe against branch, accelerate and lower saw chain into
branch.
12. THROTTLE TRIGGER - Controls engine speed. Spring loaded to
return to idle when released. During acceleration, press trigger
gradually for best operating technique.
13. SHOULDER HARNESS - An adjustable strap that suspends the unit
from the operator.
14. RECOIL STARTER HANDLE - Pull handle slowly until recoil starter
engages, then quickly and firmly. When engine starts return handle
slowly. DO NOT let handle snap back or damage will occur.
15. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER
WITH CATALYST - The muffler or catalytic muffler controls exhaust
noise and emission. The spark arrestor screen prevents hot, glowing
particles of carbon from leaving the muffler. Keep exhaust area clear of
flammable debris.

DESCRIPTION PPT-2620
18 X7507820600
© 2/2017 ECHO Inc.
16. FUEL TANK - Contains fuel and fuel filter.
17. FUEL TANK CAP - Covers and seals fuel tank opening.
18. PURGE BULB - Pumping purge bulb before starting engine draws
fresh fuel from the fuel tank, purging air from the carburetor.
Pump purge bulb until fuel is visible and flows freely in the clear
fuel tank return line. Pump purge bulb an additional 4 or 5 times.
19. AIR CLEANER ASSEMBLY - Contains replaceable air filter element.
20. CHOKE - The choke control is located at the rear of the air cleaner
housing. Move choke lever to COLD START ( ) to close choke for
cold start. Move choke lever to “RUN” ( ) position to open choke.
21. SPARK PLUG - Provides spark to ignite fuel mixture.
22. TOP GUARD - Provides arm rest during operation and protects arm
from hot engine.
23. GUIDE BAR COVER - Used to cover guide bar and saw chain during
transport and storage. Remove guide bar cover before using unit.

PPT-2620 CONTENTS
X7507820600 19
© 2/2017 ECHO Inc.
ENGLISH
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
____1 Power Head / Handle assembly
____1 Drive Shaft Assembly
____1 Cutting Attachment with Guide Bar & Saw Chain
____1 Operator’s Manual
____1 Safety Manual
____1 Warranty Statement
____1 Safety Glasses
____1 Shoulder Harness
____1 Guide Bar Cover

ASSEMBLY PPT-2620
20 X7507820600
© 2/2017 ECHO Inc.
ASSEMBLY
Drive Shaft/Handle
Assembly
1. Remove protective caps from
handle assembly.
2. Loosen clamping bolts (A) on
drive shaft.
3. Pull flexible drive shaft coupler
(B) 2-3 inches out of handle assembly.
4. Align flexible drive shaft
coupler with drive shaft socket
and slide together until handle
assembly is fully seated into
drive shaft.
5. Tighten clamping bolts (A).
Cutting Attachment to
Drive Shaft Installation
Saw Chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result
1. Loosen the two (2) screws (A)
and remove locator screw (B)
on cutting attachment.
A A
B
A
A
B
