OPERATOR'S MANUAL
MANUEL D'UTILISATION
BEDIENUNGSANLEITUNG
MANUALE PER L'OPERATORE
MANUAL DE INSTRUCCIONES
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
PPT-236ES
WARNING
READ THE INSTRUCTIONS CAREFULLY AND FOLLOW THE RULES FOR
SAFE OPERATION. FAILURE TO DO SO COULD RESULT IN SERIOUS IN-
JURY.
AVERTISSEMENT
LIRE ATTENTIVEMENT LES INSTRUCTIONS ET SUIVRE LESRÈGLES DE
SECURITÉ.LE NON-RESPECT DES RÈGLES DE SÉCURITÉ ENTRAÎNE UN
ISQUE DE BLESSURE GRAVE.
WARNUNG
LESEN SIE DIE BEDIENUNGSANLEITUNG SORGFÄLTIG DURCH, UND BE
FOLGEN SIE DIE SICHERHEITSREGELN. ANDERNFALLS BESTEHT DAS
RISIKO SCHWERER VERLETZUNGEN.
AVVERTENZA
LEGGERE E SEGUIRE ATTENTAMENTE LE ISTRUZIONI PER LAVORARE
IN CONDIZIONI DI MASSIMA SICUREZZA. LA MANCATA OSSERVANZA
DELLE ISTRUZIONI POTREBBE PROVOCARE LESIONI GRAVI.
ADVERTENCIA
LEA ATENTAMENTE LAS INSTRUCCIONES Y SIGA LAS INDICACIONES
PARA UN FUNCIONAMIENTO SEGURO. DE NO HACERLO, PODRÍA SU-
FRIR LESIONES GRAVES.

1Cover
ENGLISH
(Original instructions)
OPERATOR'S MANUAL
POWER PRUNER
PPT-236ES
WARNING
READ THE INSTRUCTIONS CAREFULLY AND FOLLOW THE
RULES FOR SAFE OPERATION.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.

2
Contents
For safe use of your product............................................................................................... 3
Description.......................................................................................................................... 8
Before you start .................................................................................................................. 9
Packing list ....................................................................................................................9
Assembly ....................................................................................................................... 9
Preparing the fuel ........................................................................................................ 12
Lubricating the guide bar and saw chain ..................................................................... 13
Engine operation............................................................................................................... 14
Starting the engine ...................................................................................................... 14
Stopping the engine..................................................................................................... 15
Pruning operation ............................................................................................................. 16
Pruning techniques...................................................................................................... 17
Maintenance and care ...................................................................................................... 18
Servicing guidelines..................................................................................................... 18
Maintenance and care ................................................................................................. 18
Storage ........................................................................................................................ 24
Specifications.................................................................................................................... 25
Declaration of conformity .................................................................................................. 27

3
For safe use of your product
For safe us e of your product
Important information
WARNING
Please ensure that you read the operator's manual before using your product.
About your operator's manual
This manual contains necessary information about the assembly, operation, and maintenance of your product.
Please read it carefully and absorb its contents.
Always keep your manual in a place where it is readily accessible.
If you have lost your manual or it is damaged and no longer readable, please purchase a new one from your dealer.
The units used in this manual are SI units (International System of Units). Figures in parentheses are reference val-
ues, and there may be a slight conversion error in some cases.
Failure to do so could lead to an accident or serious injury.
Intended use of this product
This product is designed for light to medium trimming of limbs and branches up to 203 mm in diameter.
Do not use this unit for any purpose other than aforementioned.
The content of this manual may be changed without notice for the purpose of upgrades to the product. Some of the
illustrations used may differ from the product itself in order to make the explanations clearer.
Please consult your dealer if anything is unclear or of concern.
Failure to do so could lead to an accident or serious injury.
Do not modify the product
You must not modify the product.
To do so could lead to an accident or serious injury. Any malfunction resulting from a modification to the product will not be
covered by the manufacturer's warranty.
Do not use the product unless it has been checked and maintained
You must not use the product unless it has been checked and maintained. Always ensure that the product is checked
and maintained on a regular basis.
Failure to do so could lead to an accident or serious injury.
Loaning or assigning your product
When loaning your product to another party, ensure that the person borrowing the product receives the operator's
manual along with it.
If you assign your product to another party, please enclose the operator's manual with the product when handing it
over.
Failure to do so could lead to an accident or serious injury.
Users of the product
The product should not be used by:
people who are tired
people who have taken alcohol
people who are on medication
people who are pregnant
people who are in poor physical condition
people who have not read the operator's manual
children
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their prop-
erty.
Failure to observe these instructions could lead to an accident.
The ignition system of this product generates electromagnetic fields during operation. Magnetic fields can cause
pacemaker interference or pacemaker failure. To reduce health risks, we recommend that pacemaker users consult
their physician and the pacemaker manufacturer before operating this product.
National or local regulation can restrict the use of this product.

4
For safe use of your product

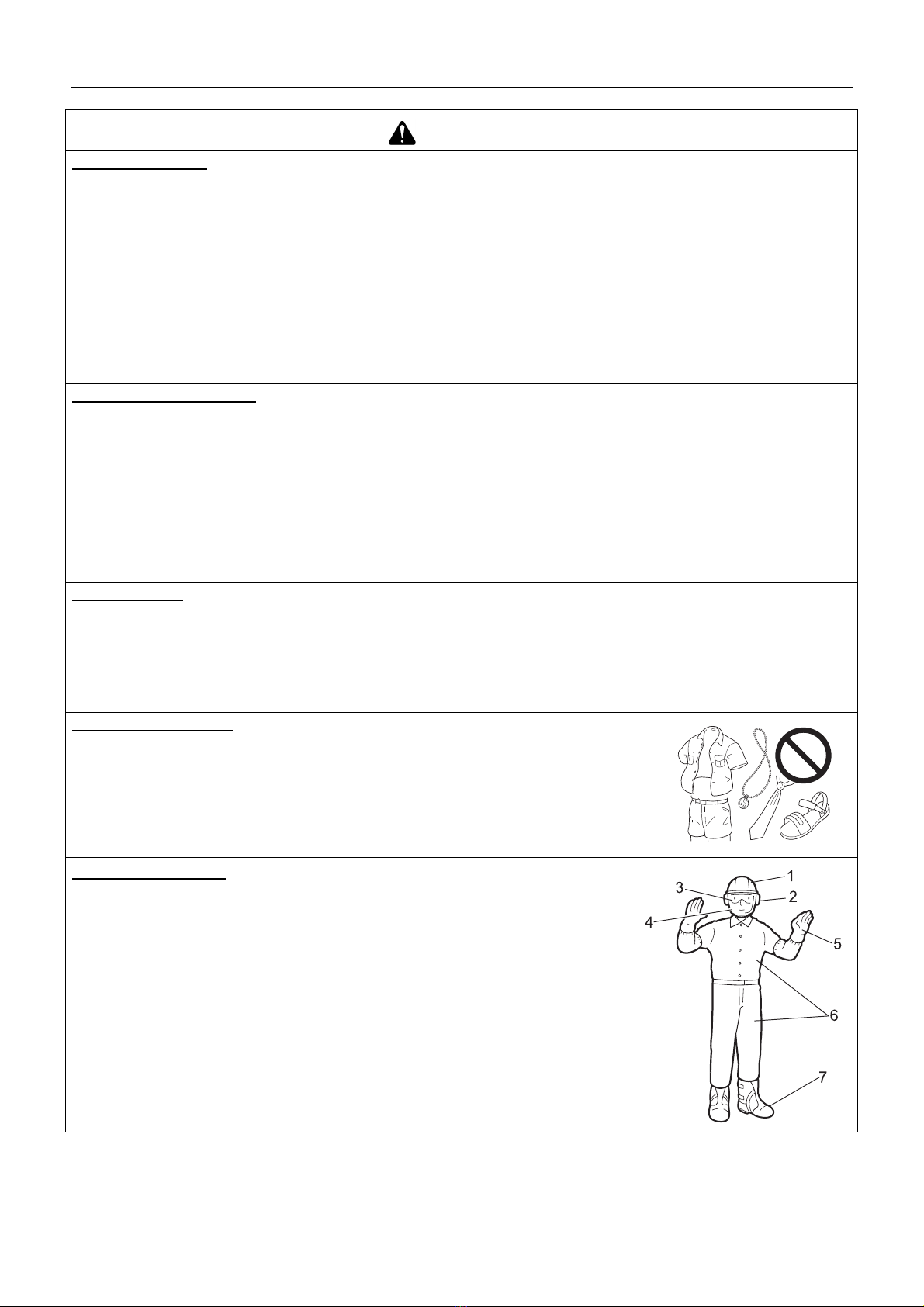

Vibration and cold
It is believed that a condition called Raynaud's Phenomenon which affects the fingers of certain individuals may be
brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning,
followed by loss of colour and numbness in the fingers. The following precautions are strongly recommended be-
cause the minimum exposure which might trigger the ailment is unknown.
Keep your body warm, especially the head and neck, feet and ankles, and hands and wrists.
Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by
not smoking.
Limit the number of hours of operation. Try to fill each day with jobs where operating the trimmer or other hand-
held power equipment is not required.
If you experience discomfort redness and swelling of the fingers, followed by whitening and loss of feeling, con-
sult your physician before exposing yourself further to cold and vibration.
Failure to observe these instructions could result in damage to your health.
Repetitive stress injuries
It is believed that over-using the muscles and tendons of the fingers, hands, arms and shoulders may cause sore-
ness, swelling, numbness, weakness and extreme pain to the areas just mentioned. Certain repetitive hand activities
may put you at a high risk for developing a repetitive stress injury (RSI). To reduce the risk of RSI, do the following:
Avoid using your wrist in a bent, extended or twisted position.
Take periodic breaks to minimize repetition and rest your hands. Reduce the speed and force in which you do the
repetitive movement.
Do exercises to strengthen hand and arm muscles.
See a doctor if you feel tingling, numbness or pain in your fingers, hands, wrists or arms. The sooner RSI is diag-
nosed, the more likely permanent nerve and muscle damage can be prevented.
Failure to observe these instructions could result in damage to your health.
Proper training
Do not permit operation without proper training and protective equipment.
Be thoroughly familiar with the controls and proper use of unit.
Know how to stop the unit and shut off the engine.
Know how to unhook a harnessed unit quickly.
Never allow anyone to use the unit without proper instruction.
Failure to observe these instructions could result in damage to your health.
Wear proper clothing.
Secure hair so it is above shoulder length.
Do not wear ties, jewellery, or loose, dangling clothing which could be caught in the
unit.
Do not wear open toed footwear, or go bare-foot or barelegged.
Failure to observe these precautions could result in damage to your sight or hearing, or lead
to a serious injury.
Wear protective gear
Always wear the following protective gear when working with the pole pruner.
1. Head protection (helmet): Protects the head
2. Ear muffs or ear plugs: Protect the hearing
3. Safety goggles: Protect the eyes
4. Face shield: Protects the face
5. Safety gloves: Protect the hands from cold and vibration
6. Work clothes that fit (long sleeves, long trousers): Protect the body
7. Heavy duty, non-slip protective boots (with toecaps) or non-slip work shoes
(with toecaps): Protect the feet
Failure to observe these precautions could result in damage to your sight or hearing, or
lead to a serious injury.
When necessary, please use the protective gear below.
Dust mask: Protects the breathing apparatus
Bee net: To deal with attacks by bees
WARNING

5
For safe use of your product
Warning notices
Other indicators
Symbols
Environment of use and operation
Do not use the product:
under poor weather conditions.
on steep slopes or in places which give no secure foothold and are thus slippery.
at night or in dark places with poor visibility.
When using the product on a gentle slope, work in a level, contour-like motion.
A serious injury could result if you fall or slip, or fail to operate the product correctly.
For your own health and your safe and comfortable work, operate the machine within the air temperature range of
−5oC to 40oC.
Failure to observe these instructions could result in damage to your health.
Being prepared in case of an injury
In the unlikely event of an accident or injury, please ensure that you are
prepared.
First aid kit
Towels and wipes (to stop any bleeding)
Whistle or mobile phone (for calling outside help)
If you are unable to perform first aid or call for outside help, the injury could
worsen.
Put safety first in the case of fire or smoke
If fire comes from the engine or smoke appears from any area other than the exhaust vent, first distance
yourself from the product to ensure your physical safety.
Use a shovel to throw sand or other such material on the fire to prevent it from spreading, or put it out
with a fire extinguisher.
A panicked reaction could result in the fire and other damage becoming more extensive.
WARNING
DANGER WARNING CAUTION
This symbol accompanied by the
word "DANGER" calls attentions to
an act or a condition which will lead to
serious personal injury or death of op-
erators and bystanders.
This symbol accompanied by the
word "WARNING" calls attentions to
an act or a condition which can lead to
serious personal injury or death of op-
erators and bystanders.
"CAUTION" indicates a potentially
hazardous situation which, if not
avoided, may result in minor or mod-
erate injury.
Circle and slash sym-
bol means whatever is
shown is prohibited.
NOTE IMPORTANT
This enclosed message provides tips
for use, care and maintenance of the
product.
Framed text featuring the word "IM-
PORTANT" contains important infor-
mation about the use, checking,
maintenance and storage of the prod-
uct described in this manual.
Symbol form/shape Symbol description/applica-
tion
Symbol form/shape Symbol description/applica-
tion
Carefully read the operator's
manual Chain lubrication
Wear eyes, ears and head
protection Petrol and oil mixture

6
For safe use of your product
Wear foot protection and
gloves
Choke Control "Cold Start"
Position (Choke Closed)
Emergency stop Choke Control "Run" Position
(Choke Open)
Do not use the product in plac-
es with poor ventilation
Carburettor adjustment
- Idle speed
Beware of fire Beware of high-temperature
areas
Beware of electric shocks Guaranteed sound power lev-
el
Do not operate closer than
15 meters (50 feet) from elec-
trical hazards. Keep bystand-
ers at least 15 meters
(50 feet) away.
Engine start
Chain oiler adjustment Purge bulb (Primer)
Safety/Alert
Symbol form/shape Symbol description/applica-
tion
Symbol form/shape Symbol description/applica-
tion

7
For safe use of your product
Safety decal(s)
The safety decal shown below has been attached to the products described in this manual. Ensure that you understand what
the decal means before using your product.
If the decal becomes unreadable due to wear and tear or damage, or peels off and is lost, please purchase a replacement decal
from your dealer and attach it in the location shown in the illustrations below. Ensure that the decal is readable at all times.
1. Part number X505-002372 2. Part number X505-002362 3. Part number X505-008220

8
Description
Description
1. Power head - Includes the Engine, Clutch, Fuel Sys-
tem, Ignition System and Starter.
2. Throttle trigger - Spring loaded to return to idle when
released. During acceleration press trigger gradually for
best operating technique.
3. Shoulder harness - An adjustable strap that suspends
the unit from the operator.
4. Cutting attachment
5. Cutting shoe - Used to capture and stabilize branch
while cutting. Place cutting shoe against branch, accel-
erate and lower saw chain into branch.
6. Guide bar
7. Saw chain
8. Automatic oiler assembly - Self oiling. Use high qual-
ity, low viscosity, non detergent bar and chain oil.
9. Lower shaft tube - Durable fiberglass mesh housing.
10. Suspension point - Device on which the harness shall
be hooked.
11. Stop switch - Mounted on top of handle assembly.
Move switch forward to run, back to stop.
12. Throttle trigger lockout - This lever must be de-
pressed before throttle trigger can be operated.
13. Throttle handle assembly - Sturdy handle for right
hand placement. Includes stop switch and throttle trig-
ger.
14. Top guard - Protects arm from hot engine.
15. Recoil starter - Pull recoil handle slowly until starter en-
gages, then quickly and firmly. When engine starts re-
turn handle slowly. Do not let handle snap back or
damage will occur.
16. Silencer cover - Cover the silencer not to make opera-
tor touch the hot surface of silencer.
17. Fuel tank - Contains fuel and fuel filter.
18. Fuel tank cap - Covers and seals fuel tank opening.
19. Purge bulb - Pumping purge bulb before starting en-
gine draws fresh fuel from the fuel tank, purging air from
the carburettor. Pump purge bulb until fuel is visible and
flows freely in the clear fuel tank return line. Pump purge
bulb an additional 4 or 5 times.
20. Air cleaner assembly - Contains replaceable air filter
element.
21. Choke - Located above air cleaner housing. Move lever
to starting position (Choke Closed) and back to run po-
sition (Choke Open).
22. Spark plug - Provides spark to ignite fuel mixture.
23. Guide bar cover - Used to cover guide bar and saw
chain during transport and storage. Remove guide bar
cover before using unit.
24. Type and serial number

9
Before you start
Before you start
Packing list
Power head
Handle shaft assembly
Drive shaft assembly
Cutting attachment with guide bar and saw chain
Operator's manual
Socket wrench
L-wrench
Safety goggles
Shoulder harness
Guide bar cover
Assembly
Handle shaft / drive shaft
1. Remove protective caps from handle shaft assembly.
2. Loosen clamping bolts (A) on drive shaft.
3. Pull flexible drive shaft coupler (B) 51 - 76 mm (2 -3 inches)
out of handle shaft.
4. Align flexible drive shaft coupler with drive shaft socket and
slide together until handle shaft is fully seated into drive
shaft.
5. Tighten clamping bolts (A).
Handle shaft / power head
1. Loosen two clamping screws (A).
The following parts are packed separately in the packing box.
When you have unpacked the box, please check the parts that it contains.
Contact your dealer if anything is missing or broken.
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.

10
Before you start
2. Pull flexible drive shaft coupler 51 - 76 mm (2 -3 inches) out
of drive shaft assembly.
3. Align flexible drive shaft coupler with engine socket and slide
together.
4. Tighten clamping bolts.
Throttle linkage and ignition leads
1. Close choke and remove air filter cover.
2. Place inner throttle cable in large hole of carburettor swivel
(A).
3. Loosen nuts (B) and place threaded end of throttle linkage in
bracket slot. Finger tighten nuts (B).
4. Check throttle for freedom of movement and that wide open
throttle / low idle extremes are adjusted properly. If adjust-
ment cannot be achieved with adjusting nuts (B), consult
with your dealer for correct adjustment procedure. Tighten
nuts (B).
5. Connect two ignition stop leads (C,D) from throttle cable tub-
ing to two ignition leads (C,D) on engine.
6. Gather ignition wires and position in clip (E) behind air filter
case.
7. Install air filter and cover.
Cutting attachment to drive shaft installation
1. Loosen the two screws (C) and locator screw (D) on cutting
attachment.

11
Before you start
2. Loosen clamp knob (E) turning anticlockwise.
3. Pull upper tube (F) out of fiberglass lower tube 127-152 mm
(5-6 inches), then slide (F) back into fiberglass lower tube
exposing inner drive shaft (G). Align and join star shaped
drive end of inner drive shaft (G) with cutting attachment
shaft (H).
4. Align ridges (J) on upper tube with seams in cutting attach-
ment.
5. Slide together aligning locator screw (D) in cutting attach-
ment with locating hole (I) in upper tube.
6. Tighten locator screw (D). Tighten two cutting attachment
screws (C).
7. Extend upper tube to desired length. Tighten center clamp
knob (E) turning clockwise.
Saw chain tension adjustment
1. Move stop switch to STOP position.
2. Disconnect spark plug cap.
3. Loosen two gearcase cover nuts (A) until finger tight.
4. Hold the bar nose up, and turn the adjuster screw (B) clock-
wise until the chain fits snugly against the underside of the
bar, as shown. Cold chain only - turn adjuster screw clock-
wise an additional 1/8 - 1/4 turn.
5. Tighten both gearcase cover nuts with nose held up. Tighten
rear nut first.
6. Pull the chain around the guide bar by hand. Reduce the
chain tension if you feel tight spots.
7. When chain is properly tensioned, tighten gear case cover
nuts securely.
WARNING
Always disconnect spark plug cap before servicing cut-
ting attachment. Wear gloves when handling saw chain,
otherwise serious personal injury may result.

12
Before you start
8. Keep chain properly tensioned at all times.
9. Connect spark plug cap.
Preparing the fuel
Fuel
Recommended mixture ratio; 50: 1 (2%) for ISO-L-EGD
Standard (ISO/CD 13738), JASO FC,FD grade and ECHO
Premium 50: 1 oil.
Do not mix directly in engine fuel tank.
Correct cold ten-
sion
Chain needs ten-
sioning
Correct warm
tension
Side link contact-
ing guide bar
Drive link tangs
hanging out of
guide bar
Three mm (1/8")
between side
link and guide
bar at bottom
IMPORTANT
Tighten gearcase cover nuts to 8 - 9 N·m (71 - 80 in. lbs.)
Do not over-tighten nuts. Damage may result.
NOTE
All chains require frequent adjustment.
DANGER
Do not fuel up while the engine is hot or in operation.
Do not smoke or hold a flame near when refuelling.
If you do so, the fuel could ignite and cause fire, leading to burns.
WARNING
Do not fill fuel tanks indoors. Always fill fuel tanks outdoors over bare ground. Do not refuel the product on the load-
ing platform of a truck, or in other such places.
Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize.
Otherwise, fuel may get spewed.
Mop up any fuel that overflows or spills out due to overfilling.
Fuel spills can cause fire and burns when ignited.
After refuelling, always check that there are no leaks or discharges of fuel from the fuel pipe, fuel system grommets,
or around the fuel tank cap. If you do find fuel leaks or discharges, stop using the product immediately and contact
your dealer to have it repaired.
Any fuel leaks could cause fire.
Keep the refuelling tank in a shaded area away from fire.
Use an approved fuel container.
IMPORTANT
Fuel is a mixture of regular grade petrol and an air-cooled 2-stroke engine oil of reputable brand name. Minimum 89 Octane
unleaded petrol is recommended. Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol.
Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days.

13
Before you start
Fuel supply
Do not add so much fuel that it reaches the mouth of the fuel
tank (A). Keep the fuel within the prescribed level (up to the
shoulder level (B) of the fuel tank).
Tighten the fuel tank cap securely after refuelling.
Lubricating the guide bar and saw chain 1. Wipe debris from around oil fill cap.
2. Remove oil fill cap and fill reservoir with a quality, low viscos-
ity guide bar and saw chain oil.
NOTE
The discharge volume of the automatic oiler is preset to de-
liver 3 to 4 ml/min. at normal operating RPM. During heavy
or dry cutting conditions the oil discharge volume may be
adjusted to assure adequate lubrication. Refill the oil reser-
voir with each tank of fuel.
IMPORTANT
To prevent plastic deterioration, do not use synthetic or sili-
cone based oil.

14
Engine operation
Engine operation
Starting the engine
Starting a cold engine
(Connect the spark plug cap if the product has been in storage for
a long period of time.)
1. Remove the guide bar cover.
2. Placing the product on level ground, check to ensure that the
cutting attachment does not come into contact with the sur-
face of the ground or any other impediment using a beam or
other such implement.
3. Move the ignition switch (A) to the Start position.
4. Make sure that the throttle trigger (D) is at the idle speed po-
sition.
WARNING
Be particularly careful to observe the following precautions when starting the engine:
Move at least 3m from the place where you refuelled.
Place the product in a flat, well ventilated place.
Check that there are no fuel leaks.
Check that none of the nuts and bolts are loose.
Leave plenty of space around the product and do not allow people or animals near it.
Start the engine with the throttle trigger in the idle speed position.
Hold the product firmly to the ground when starting the engine.
Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.
Check that there are no abnormal vibrations or sounds once the engine starts. Do not use the product if there are
abnormal vibrations or sounds. Contact your dealer to have it repaired.
Accidents involving parts that fall or shatter off can cause wounds or serious injury.
The exhaust fumes from the engine contain toxic gases. Do not operate the product indoors or in other
ill ventilated places.
The exhaust fumes could cause poisoning.
Do not touch silencer, spark plug, angle transmission, and other high temperature components while
the product is running or for some time after it stops.
You could burn yourself if you touch a high temperature component.
Do not touch spark plug, spark plug wire, and other high voltage components while the product is run-
ning.
You could receive an electric shock if you touch a high voltage component while the product is running.
If the cutting attachment rotates even though the throttle trigger is in the idle speed position when the engine is start-
ed, adjust the carburettor before using the product.
Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.
NOTE
Pull out the starter grip gently at first, and then more rapidly. Do not pull the starter rope out to more than 2/3 of its length.
Do not let go of the starter grip as it returns.

15
Engine operation
5. Move the choke lever (F) to the "Cold Start" (E) position.
6. Alternately press and release the purge bulb (H) until the fuel
is sucked up into it.
7. Checking that the area around you is safe, hold the position
closest to the engine firmly as shown in the illustration, pull-
ing several times on the starter grip (I).
8. If you hear an explosion-like sound and the engine stops im-
mediately, move the choke lever to the "Run" (G) position
and continue pulling on the starter grip to start the engine.
9. If the engine does not stop, return the choke lever gently to
the "Run" position.
10. Leave the engine to warm up at idle speed for a while.
Starting a warm engine
1. Move the ignition switch (A) to the Start position.
2. Make sure that the throttle trigger (D) is at the idle speed po-
sition.
3. Check that the choke lever is in the "Run" position.
4. If no fuel is visible in the purge bulb, alternately press and re-
lease the purge bulb until the fuel is sucked up into it.
5. Checking that the area around you is safe, hold the position
closest to the engine firmly, and pull on the starter grip to
start the engine.
Stopping the engine 1. Move the throttle trigger (B) to the idle speed position and set
the engine to idling (i.e. low speed).
2. Move the ignition switch (A) to the Stop position.
3. In the event of an emergency, stop the engine immediately
using the ignition switch.
4. If the engine fails to stop, move the choke lever to the "Cold
Start" position. The engine will stall and come to a halt (an
emergency stop).
If the engine fails to stop when the ignition switch is used, have
the ignition switch checked and repaired by your dealer before
you use the product again.
5. Always disconnect the spark plug wire from the spark plug to
ensure the engine cannot be started before you work on the
unit or leave it unattended.

16
Pruning operation
Pruning operation
DANGER
All over head electrical conductors and communications wires can have electricity flow with high voltages. This unit
is not insulated against electrical current. Never touch wires directly or indirectly when pruning, otherwise serious
injury or death may result.
The area within a 15 m radius of the product is a danger zone. Be careful to observe the following precautions while
working with the product.
Do not allow children and other people or pets to enter the danger zone.
WARNING
If the cutting attachment rotates even though the throttle trigger is in the idle speed position when the engine is start-
ed, adjust the carburettor before using the product.
Do not start or operate unit unless all guards and protective covers are properly assembled to unit.
Never reach into any opening while the engine is running. Moving parts may not be visible through openings.
Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
Keep a solid stance
Maintain footing and balance at all times. Do not stand on slippery, uneven or unstable surfac-
es. Do not work in odd positions or on ladders. Do not overreach.
Operate the product only from the ground or out of an approved bucket lift.
Always evaluate the branches to be pruned for hazards such as loose dead branches which
may fall and strike the operator or helpers. Remove hazards before pruning.
Plan retreat path from falling objects.
Cut branches bounce when striking ground.
Check that shoulder harness is adjusted for safe, comfortable operation.
Turn the product off when moving from tree to tree.
Avoid any contact with saw chain.
Failure to observe these precautions could cause serious injury.
When transporting the unit, empty the fuel tank, install the guide bar cover, put the unit in an upright position, and
secure it firmly.
Failure to do so could result in damage or injury.
Never attempt to operate the product with one hand.
Ensure that you hook your thumbs around the grips, wrapping them in your
thumb and remaining fingers.
Kickback
Kickback can lead to dangerous loss of control of the product and result in serious in-
jury to the operator or any one standing close by. Hold the product firmly with both
hands with thumbs and fingers encircling the front and rear handles. Be aware of the
down and outward path the pruner will take after the cut is made.
Kickback may occur when the moving saw chain at the nose or tip of the guide bar touches
an object, or when the wood closes in and pinches the saw chain in the cut. In some cases
this may cause a lightning-fast reverse action, kicking the guide bar and saw chain up and
back or down and back towards the operator. Either of these reactions may cause the oper-
ator to lose control of the product which could result in serious personal injury.
With a basic understanding of kickback, you can reduce or eliminate the element of surprise
which contributes to accidents.
Avoid contact of the guide bar tip with any object while the saw chain is moving.
Cut only wood. Avoid striking concrete, metal, wire, or other obstructions which could cause kickback or damage to the
saw chain.
If the saw chain does strike a foreign object, immediately stop the engine, inspect and repair the product if necessary.

17
Pruning operation
Pruning techniques
Plan cut carefully. Check direction branch will fall.
Plan retreat path from falling branch. Cut branches bounce
when striking ground.
Long branches should be removed in several pieces.
Do not stand directly beneath branch being cut.
When ready to cut: Hold "cutting shoe" against branch. This
will prevent whipping of the branch. Do not use back and forth
sawing action.
Look out for branch immediately behind the branch being cut.
If saw chain hits rear branch damage to saw chain may occur.
Accelerate to full throttle.
Apply cutting pressure.
Ease cutting pressure when nearing end of cut to maintain
control.
When pruning a limb 102 mm diameter or larger cut as follows:
(1) Under cut 1/4 limb diameter near tree trunk.
(2) Finish top cut slightly farther out on limb.
(3) Flush cut stub at trunk.
Do not use for felling or bucking.
Check that the cutting attachment, guide bar, and saw chain is firmly attached and in safe operating condition.
Use only one YAMABIKO-approved extension on the pruner.
Do not hit rocks, stones, tree stumps, and other foreign objects with the saw chain.
Do not cut into the ground with the saw chain.
If cutting attachment end strikes an obstruction, stop engine immediately and inspect saw chain for damage.
Do not operate with a dull, fractured, or discolored saw chain.
Remove all foreign objects from work area.
Always cover the guide bar and saw chain with guide bar cover during transportation and for storage.
Operation of this equipment may create sparks that can start fires around dry vegetation. This product is equipped with a spark
arrestor and a spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating
to fire prevention requirements.
NOTE
Use of Pruner may be subject to local regulations.
Guide against branch
Blade hits rear branch

18
Maintenance and care
Maintenance and care
Servicing guidelines
Maintenance and care
WARNING
Observe the following precautions when checking and maintaining your product after use:
Turn the engine off and do not attempt to check or maintain the product until the engine has cooled.
You could burn yourself.
Remove the spark plug cap before performing checks and maintenance.
An accident could occur if the product starts unexpectedly.
IMPORTANT
Checking and maintenance requires specialist knowledge. If you are unable to check and maintain the product or deal with a
fault yourself, consult your dealer. Do not attempt to dismantle the product.
For spare parts and consumables, please use only genuine parts and designated products and components. Using parts from
other manufacturers or non-designated components may result in a malfunction.
Area Maintenance Page Daily or be-
fore use
Every refuel 3 months or
90 hours
Yearly 600
hours
Air Filter Inspect/Clean 19 I / C * R *
Choke Shutter Inspect/Clean - I / C
Fuel Filter Inspect/Replace 19 I * I / R *
Fuel System Inspect/Replace 19 I * I*
Spark Plug Inspect/Clean/Replace 21 I/C/R *
Carburettor Adjust/Replace and adjust 19 I/R
Cooling System Inspect/Clean 20 I / C
Muffler Spark Arrestor Inspect/Clean/Replace 20 I/C/R *
Cylinder Exhaust Port Inspect/Clean/Decarbon 20 I / C
Flexible shaft Inspect/Grease - I(1)
Guide Bar / Sprocket Nose Inspect/Clean/Lubricate 21 I / C * I
Saw Chain Inspect/Sharpen/Replace/
Tension
11/22 I * I *
Recoil Starter Rope Inspect/Clean - I / C *
Screws/Nuts/Bolts Inspect/Tighten/Replace - I *
Maintenance procedure letter codes: I= Inspect, R= Replace, C= Clean
(1) Apply good quality lithium grease every 25 hours of use.
* All recommendations to replace are based on the finding of damage or wear during inspection.
IMPORTANT
Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance.
If you have any questions or problems, please contact your dealer.
