Echolite Echolite DSB-771 User manual

Echolite DSB-771
Echolite DSB-791
User`s manual

1
IMP O R TA N T S A F E T Y I N S T R U C T I O N S
T hank y o u f o r c h oo s in g o u r p r o duc t. B efo re i n s ta lla tio n, w e w o uld
lik e t o r em i n d y o u o f s o me n o tes , w h i c h i s v er y i mpo r ta n t f or
ope ra tin g s afely a nd p r ope rly, a s f ollows :
1.Be sure to read this user manual before starting your operation.
2.Never open the cover. It is very dangerous to touch the inside stuff of
the unit due to possible electric shock.
3. If you don't use this unit for long time, please pull the power plug out
from the outlet. Do not use a damaged power cord.
4. Do not touch the power with wet hands. If there is liquid flow into the
unit, pull out the power cord immediately because it may cause fire or
electric shock.
5. Place the unit in a well ventilated and no heat environment.
6. You must install the dish with correct direction and angle. If the dish
is not working properly, contact your local dealer.
7. Install the unit horizontally. Unbalanced installation may cause the
unit to be damaged by itself
8. When the unit is suddenly moved to a hot area from a cold area, it
may cause some problems. In that case, turn off the power, and turn on
again after 1-2 hours.
9.Install the unit in a place with:
good ventilation
suitable temperature
no direct sunrays
low humidity
low vibration influence
10.Do not put heavy objects on the unit.
U s e r s Ma n ua l
,
ECHOLITE DSB 771 User manual ECHOLITE DSB 791

C O NS IS T S O F T W O P A R T S
G e n e r a l :
This mark appears on the rear panel of the receiver.
PA R T I
This mark consists of two Graphical Symbols and warning message. The detailed
specifications are as follows:
C A U T I O N : T o r e duc e t h e r is k
of e le c tr ic s h oc k , d o n't r emo v e
c o v e r ( o r b a c k ). E quipme nt
s er v ic e a nd m a intena n c e
s ho uld b e u n der ta k e n o n ly
by t ra ine d p er s o nn e l.
PA R T I I
Each symbol stands for specific meaning.
The lightning flash with arrow symbol, within an equilateral
triangle, is to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may
be of sufficient magnitude to constitute a risk to persons.
The exclamation point, within an equilateral triangle, is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
!
C A U T IO N
R I S K O F E L E C T R IC B H O C K
D O N O T O P E N
S H O C K H A ZA R O : D O N O T O P E N
R I S Q UE D E C H OC : NE P A S E N L E V E R
2
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

Ta ble o f C on ten ts
1£G e n e r a l I n fo r m a ti o n ------------------------------------ 29
1.1 Main Features--------------------------------------------------
1.2 For Your Safety-------------------------------------------------
1.3 Unpacking--------------------------------------------------------
1.4 General Operationeratin---------------------------------------------
1.5 Front Panel----------------------------------------------------
1.6 Rear Panel-----------------------------------------------------
1.7 RCU-------------------------------------------------------------
2 . I ns ta lla ti on o f S T B ---------------------------------

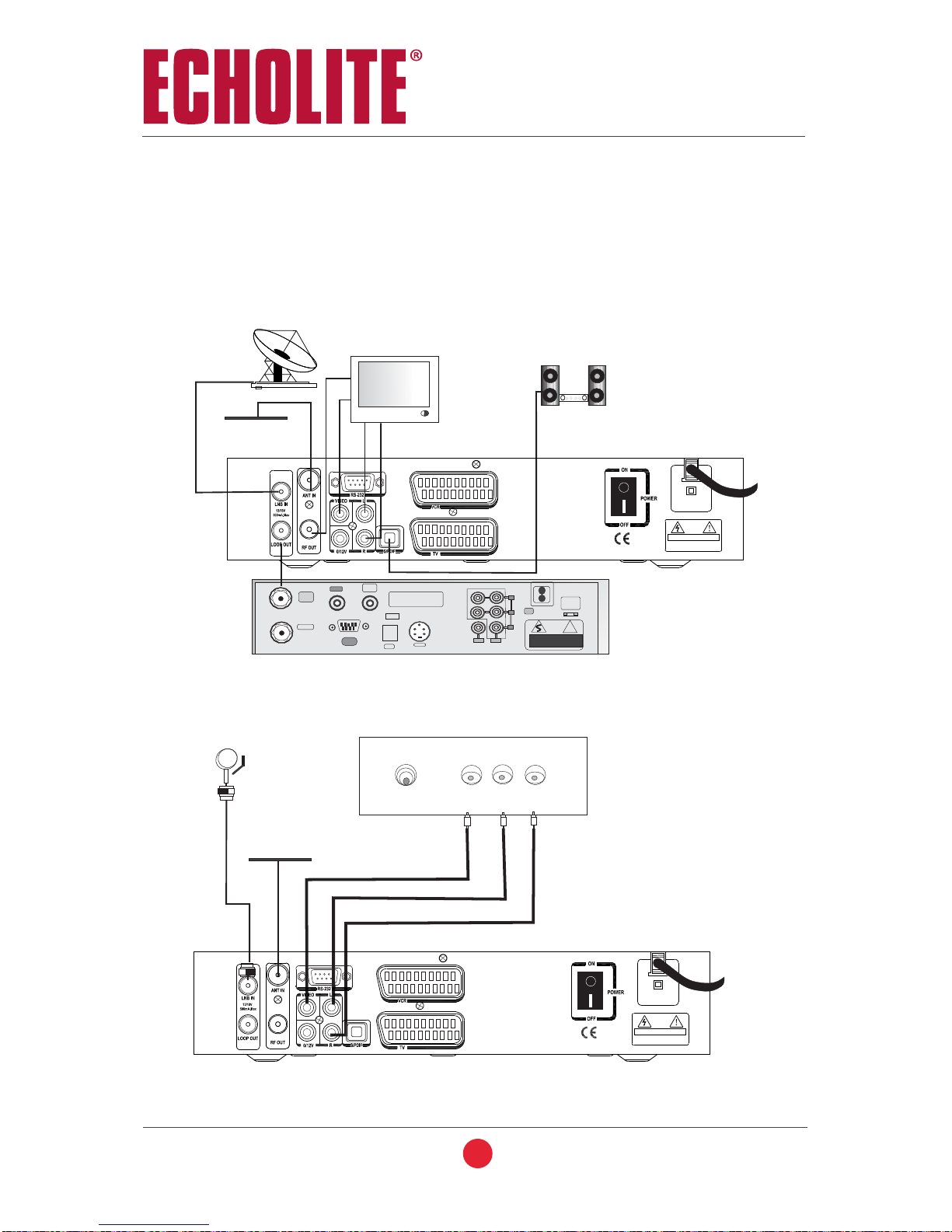

2.1 Connecting toAntenna and TV-------------------------------
2.2 Connecting to TV using RCASupport---------------------
2.3 Connecting to TV/VCR using RCASupport --------------
2.4 Connecting to TV using RF Support ----------------------
2.5Connecting to another SVR --------------------------------
3 . M en u I n f o r m a tio n ---- -
- --- - --- - --- - --- - --
4. S y s tem I n s ta lla ti on -------- -----------------------------
4.1Satellite Setup ------------------------------
4.1.1 Automatic Setting
Motor Setting
------------------
4.1.2 Manual Search
4.1.4 --------------------------------
4.1.5 ------------------------------------------
5. ------------------------
5.1 System Options--------------------------------------------
5.2 --------------------------------
5.3 AV Setting ------------------------------------------
5.4
VideoAdjust
Time Setting
--------------------------------------------
5.5Parental Control -------- ------------------------------
5.6 ------------------------------------
------
----------
---------
--------
--
-----------
-----------
------------
------------
---------
----------
-----------
----------
-----------
----- -
---- - -- --- - -- --- - -- --- - -- --- - -- -
- --- - --- - --- - --- - ---- -
-------
--------------------------
------------------------------
----------------------------------------------
--------------------
--
--
------------
-------------
---------------
--------------
---------------
--------------
--------------
------------
P r e f e r en c e s ---------------
About Receiver ---
---
-----------------------
-------
-
-
-
-
-
- --
-
29
30
30
30
32
31
33
34
34
34
35
35
36
36
37
37
37
38
38
38
38
39
39
39
40
40
4.1.3 Blind Search ---------------------------------------------------38
Automatic Search
4.2 Terrestrial Setup ------------------------------------------------------
38
4.2.1 Automatic Search -----------------------------------------------
38
4.2.2 Manual Search -
-- ----------------------------------------------
38
4.3 Factory Default ------------------------------------------------------
38
3
U s e r s Ma n ua l
,
User manual
40
ECHOLITE DSB 771 ECHOLITE DSB 791

-----
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-------------------------
7. G e n e r a l V ie wing F u n c tio n ---------------------- 40
7.1 Channel List -------------------------------------------- 42
7.2 Select Channel ---------------------------------------------
7.3 Previous Channel Recall ---------------------------------------
7.4 TV/SAT Mode -------------------------------------------------
7.5 TV/RADIO Mode ---------------------------------------------
7.6 Channel Information --------------------------------------------
7.7 Favourite List --------------------------------------------------
------------------------------
10. E P G (E le c tr o n i c P r o g r a m G u i de )------------------
11 . Te c h nic a l S pe c ific a tio n --------------------------------
12.Tr o uble S h o o ting ----------------------------------------
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-------------
-----------
---- -----
-------
7.8 Volume /adion Control------
7.9
7.11
Position
Zoom Function
----
7.12PIP (Picture in picture function)
9. G a m e ---------------------------------------------------------------
-------------------------------------------------------------7.10 SAT ---------
-- ---
--
----- 42
43
43
43
43
43
43
44
44
44
44
44
44
46
48
---- -
---
----
6. C ha n nel M a n a ge r ------------------------------------
6.1 Channel Manager --------------------------------------------
6.2 Set Favourites ---------------------------------------------
-----------
---
40
41
42
8. U S B f u nc tio n ---------------------------------------------------- 44
4
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

1. G e n e r a l I n fo r m a ti o n
The digital satellite receiver allows you to view digital satellite programs. This
user's manual covers the installation of the receiver and the necessary steps
to operate various features. It also explains special features available only in
this receiver in details, which will help you to take full advantage of these features.
1. 1 M a i n F e a tu r es
Fully MPEG2, DVB compliant
DigitalAudio withAC-3 support by SPDIF£Optional£
PIG (Picture In Graphic) support DiSEqC1.2 positioner for
multi-satellites (63 satellites)
C/Ku band control for each antenna
User Friendly and easy-to-use menu system
Various channel editing functions (favorite, moving, locking, renaming,
deleting and sorting)
User programmable various satellite & transponder information
Automatic search for newly added transponder (NetworkAuto Search),
stores up to 5000 channels
Easy and fast software upgrade through RS-232 port
Timer function, automatically turns On/Off by setting function
(daily, weekly, monthly, one time)
Automatic reserved channel moving system
Electronic Program Guide (EPG)
OSD Teletext (DVB ETS 300 706) and Subtitle function support
VBI teletext support
Antenna positioning help feature
Multi video output CVBS, RGB
Provides various switch types, LNB types and NTSC/PAL/SECAM
monitor type
SCPC/MCPC receivable from C/Ku band satellite
Multi LNB controlled by DiSEqC 1.0/1.1/1.2 and 22KHz switching
256 color On-Screen-Display
Automatic PAL/NTSC/SECAM conversion
Automatic last channel saving
Blind search
DVB-S, DVB-TCOMBO(DVB T+S)
USB 2.0 port
USB software upgradtion and JPG file play Via USB
5
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

1. 2 F o r Y o u r S a fe ty
Keep receiver placed in clean space with sufficient ventilation
Do not cover the STB with or place it on a unit that emits heat
Clean the case by a soft cloth with a little washing liquid.
Do not connect or modify cables when the receiver is plugged on
Do not remove the cover
Do not let the unit exposed to extreme heat, cold or humid conditions
No liquids or any other materials to come inside of the unit.
1. 3 U n pa c k i ng
Please open the package and make sure the following items are inside:
Remote Control Unit (RCU)
User's Manual
Digital Satellite Receiver
1. 4 G en er a l O pe r a tio n o f r e c eiv e r
You can easily find the everyday operation of your receiver in this manual.
There are a series of friendly menus displayed on screen when you turn
on the unit. These menus will guide you through installation, channel
organizing, viewing program and many other functions.
All functions can be achieved by using the buttons on the RCU, and
some of them can also be access by using the buttons on the front panel.
Pay attention to T V /S AT Key. Press once, to change from Sat mode to
normal TV mode. Press twice, it'll change from TV mode to VCR mode,
to transfer signal from VCR to TV.
Please be aware that any new software ported afterwards may change
the functions of the receiver.
Should you encounter any difficulties with the operation of your unit,
please find help from the Problem Shooting section in this manual, or
call the local after-sale service center.
6
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

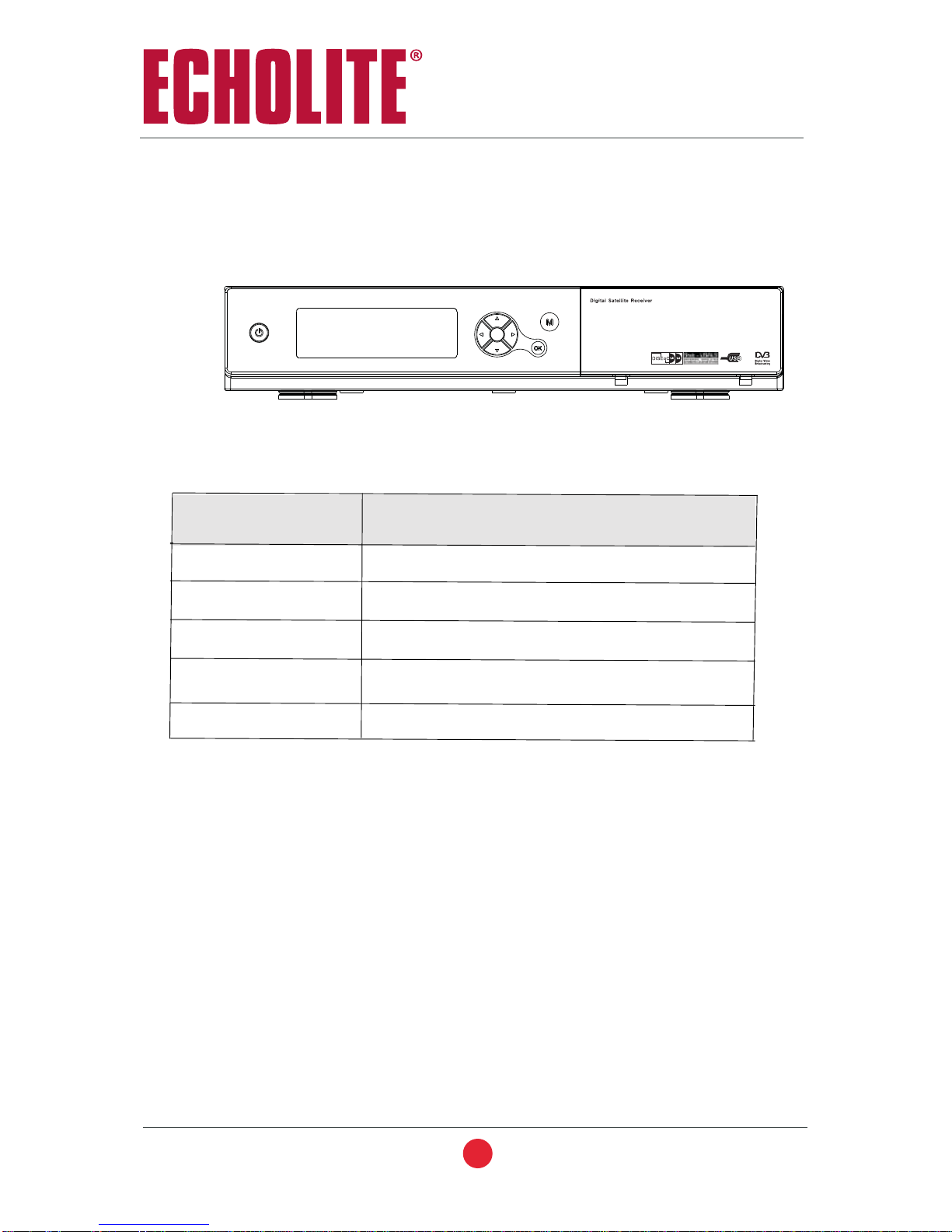

1. 5 F r o nt P a n e l
K e y F U N C T IO N
ME N U
O K
Shows the main menu and back to previous menu
Confirm the selection, or junp back to last menu
Channel change (up/down)
Volume control(up/down)
Turn on /off receiver
P O W E R
C H + C H -
V O L + V O L -
2.0
CE RT IF I E D
HI- S PE E D
7
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

CONNECT OR FUNCTION
LN B IN Connect to satellite antenna cable
LOOP OU T Connect to another receiver (IF loop through output from digital tuner)
R S232 Connect to PC for software upgrade
VI DEO Connect to the TV s video port
AUDIO R /L Connect to TV s audio ports
S/ P DIF Connect to TV for digital audio output (Optional)
VC R SC AR T Connect to VCR using SCART cable
TV SC AR T Connect to TV using SCART cable
ANT IN Signal input from local CATV network or outdoor TV antenna
R F OU T UHF RF output to TV set s antenna in
POWER ON/OFF Power on/ off the receiver
1. 6 R ea r P a n el
N o te : S/PDIF port can be replaced by 0/12V, as an option
to control external 0/12V switch.
`
`
`
R I S K O F E L E C TR IC S HO C K
C A U T I O N
DO N O T O P E N
M A D E I N P . R . C
A C 9 0V- 2 65 V
50 H z /6 0 H z 3 0W. MA X
8
U s e r s Ma n ua l
,
User manualECHOLITE DSB 771 ECHOLITE DSB 791

U s e r s Ma n ua l
,
1. 7¡R C U
C H
V O L
To jump back to the previous channel you've viewed
Teletext Key
Subtitle key
Zoom in / out the selected picture
Picture in Picture function
show main menu on screen, or jump back to previous
menu in sub-menu setting conditions
Escape from present menu and save the settings
Confirm the selected item in the menu screen or
show the Channel list
Volume control, or more cursor left/ right
Channel change, or move cursor down/ up
Show EPG (Electronic Program Guide)
Display the favorite channel list
Shows current channel's information
UHF channel selection
Select theAudio language
Display position bar on the screen to adjust the
antenna or for manual search
PAL/NTSC selection
When watching a channel,mutes the sound
TTX
S U B . T
Z O O M
U H F
O K
ME N U
E P G
A U D IO
P O S I T IO N
E X IT
P A U S E
FA V
T V /S A T
S AT
R E C A L L
P A L /N T S C
0-9
S L E E P
Turn on /off the STB
Switch among TV/AV/VCR mode
Pause the ongoing Video andAudioe
Set time to standby
Display the satellite list which has been searched
Keys to enter the channel
`
s number
K E Y F U N C T I O N
i
T V /R A D IO Switch watch TV program or radio program
MU T E
MP
REC
T/S To record current channel
Time shift
9
User manualECHOLITE DSB 771 ECHOLITE DSB 791

2. I ns ta lla tio n o f r e c eiv e r
Please find relevant reference of installation described as below. When
connecting new equipment to the receiver, be sure checking first related
instructions for the proper way of installation.
2. 1 C o nn ec ting t o A n te nn a a nd T V
!
CAUTION
RISK OF ELECTRIC S HOCK
D O N O T O P E N
2. 2 C o nn ec ting t o T V u s i n g R C A S uppor t
T V
IN
V ID E O A U D I O
S A T E L L I T E
D I S H R
L
U s er s Ma nu a l
,
R I S K O F E L E C T R IC S HO C K
C A U T I O N
DO N O T O P E N
MA DE I N C HI N A
A C 9 0V- 2 65 V
50 H z /6 0 H z 3 0W. MA X
R I S K O F E L E C T R IC S HO C K
C A U T I O N
DO N O T O P E N
MA DE I N C HI N A
A C 9 0V- 2 65 V
50 H z /6 0 H z 3 0W. MA X
C A B L E
O R
O F F - A I R A N T E N I N A
IN
C A B L E O R
O F F - A I R A N T E N I N A
10
User manualECHOLITE DSB 771 ECHOLITE DSB 791
