EchoMaster Pro PS-RBP User manual
User Manual
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP
PS-RDIS
3
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
2
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Fitting Instructions
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
Introduction
Box Contents Key Features
uTriangulation technology
u2 or 4 sensor installation
uLow prole, paintable sensors
uWide detection angle with minimal blind area
uOE sounding tone
uDip switch settings for detection zones
uSelf-diagnostic mode at startup
uCompatible with optional display
(P/N: PA-DISPLAY)
u4 Bumper Mount Sensors
with 18” Pigtail
u4 Black Rubber Seals
u4 6° Sensor Sleeves
u4 12° Sensor Sleeves
uControl Module
uSpeaker with Volume Control
uPower Harness
u22.5mm Hole Saw
uAccessory Pack
uMeasuring Tape
uUser Manual
uWarranty Card
Congratulations on purchasing EchoMaster PRO parking sensors. This ultrasonic
detection system is designed to assist in the avoidance of obstacles while reversing.
Disclaimer:
EchoMaster® is strictly a driver assistance device, and should not be relied upon as a substitute for safe driving
practices. Use common sense when parking and always follow recommended safe driving guidelines from your local,
State and County Department of Motor Vehicles regarding parking procedures. To help prevent accidents, always
use caution when parking, looking visually to ensure your path is clear. Keep speeds under three miles per hour. The
owner shall not be entitled to recover from the Company, its successors or assignees, incidental and consequential
damages, such as personal injury, loss of income, loss of time, loss of prots, loss of vehicle use or property damage.
No employee, agent or representative of the Company of the Selling Retailer may modify, alter or extend this Warranty
in any way. This Warranty gives you specic legal rights. You may also have other rights under this Warranty which
may vary from state to state.
Note: Under no circumstances should you attempt to open the control box or any other component. Doing so will void
all manufacturer’s warranties.
This manual covers products:
PS-RBP-B (ParkAlert Rear Sensor System with Buzzer - Gloss Black sensors)
PS-RBP-M (ParkAlert Rear Sensor System with Buzzer - Matte Black sensors)
PS-RBP-S (ParkAlert Rear Sensor System with Buzzer - Silver sensors)
PS-RBP-W (ParkAlert Rear Sensor System with Buzzer - White sensors)
PS-RDIS-B (ParkAlert Rear Sensor System with Display - Gloss Black sensors)
PS-RDIS-M (ParkAlert Rear Sensor System with Display - Matte Black sensors)
PS-RDIS-S (ParkAlert Rear Sensor System with Display - Silver sensors)
PS-RDIS-W (ParkAlert Rear Sensor System with Display - White sensors)
Recommended Tools
for Installation
u High torque drill, use slow speed
(approx 400 rpm)
u Grease Pencil and Center Punch
for marking drill point
u 1/8” carbide tipped drill bit for
starting pilot hole
u Hole Saw 22.5mm (Included)
u Pliers, Crimpers & Soldering Iron
u Multi-Meter
u Zinc Galvanizer or a rust inhibitor
for metal (OPT P/N: EMZ)
u Safety goggles
u Angle Gauge Sleeve Selector (OPT P/N: SP1022)
u Measuring Tape
Optional Tools
u Panel tool (for situations requiring plastic, inner
panels to be removed)
u Phillips head tip for drill
u Wire pulling tool (for routing wires)/ Fishing tool
u Semi-circular metal le (for smoothing hole
edges when necessary)- DO NOT use ngers
to test holes for burrs or smoothness.
EDGES ARE SHARP!!!
Determining Sensor Position: Measure Twice, Cut Once!
Inspect behind the bumper in the approximate mounting area to check for any
possible obstructions.
A proper installation will take into consideration two factors:
(1) Placement: height and distance either side of bumper center.
(2) Angle: accurate detection depends on the correct sensor angle.
The sensors need a 1” clearance space behind the bumper to be completely inserted.
Some bumpers have an outside cover or fascia and a metal backing. You may have to
drill through both layers to ensure you have enough clearance in order to t the
sensors. Other bumpers require some removal of foam backing.
CAUTION: Be careful of hot engine parts and/or sharp edges under bumper.
DO NOT INSTALL SENSORS ABOVE EXHAUST PIPE.
Doing so may cause false alerts.
5
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
4
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Fitting Instructions - (continued)
Sensor Install: Sensors must be installed in order 1-4 from left to right with control
module harness entering trunk near sensor #4. If only using 2 sensors for the install, it
is recommended to use sensors 2 and 3.
Choosing the Correct Angle Sleeve (Optional angle gauge: SP1022)
Vehicle is parked on at and level ground and
the parking brake is set. Place the Angle Gauge
at against the surface of the bumper. The
swingarm will point to the correct measurement.
DO NOT CONTINUE TO NEXT STEP IF ARM
FALLS BEYOND THE LAST LINE ON THE MARKER!
This means that the placement is too steep; re-evaluate
placement and nd a better area.
Drilling Holes and Installing Sensors
Warnings / Precautions: Please consult with us before installing on a vehicle with any
rear or front mounted external appliances, like spare tires, bike racks, brush guards,
etc, which may interfere with the system’s detection and cause false detection.
Using the provided Hole Saw, cut the
sensor holes. Always wear approved
safety glasses when drilling and use
caution. If drilling a metal bumper, coat
edges of holes with Zinc Galvanizer, a
rust inhibitor.
Ensure correct angle sleeve
is being used. Insert sensor
with the “up” marking
facing up.
(2) Mount Sensor(1) The Sensor Holes
Fitting Instructions - (continued)
Connecting the Power Harness
NOTE: It is recommended to solder all connections.
To nd reverse power, remove tail light and
examine where and what wires plug into the reverse
bulb. Locate and verify with a volt meter. The wire
carries 12 volts when in reverse and 0 volts when out
of reverse.
Once the reverse wires are found,
connect the red wire from the power
harness to it. Connect the black ground wire
from the unit’s wiring harness to the vehicle’s
ground wire. Route cable to
control module and plug in.
NEVER USE A TEST LIGHT TO PROBE WIRES
Running Sensors to Control Module
Many vehicles will have factory grommets to allow routing of wires from the outside
to the inside of the vehicle. If you are drilling a hole through a metal body panel
to route your sensor wires into the passenger compartment, determine where the
sensor wires will enter into the passenger compartment and route to control module.
Control module must be on right (passenger side) of vehicle.
Mounting Speaker
The speaker has 3 adjustment positions: Hi, Low, and Off. You usually want to keep
the speaker on the same side of the vehicle as the control module for ease. Clean the
mounting area with the supplied alcohol pad, afx adhesive to the back of the speak-
er, and rmly press the speaker into place. Route speaker cable to control module and
plug into power harness.
If using display, please refer to PA-DISPLAY user manual for mounting instructions.
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
7
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
6
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Fitting Instructions - (continued)
You will want to mount the control module behind one of the vehicle’s body panels.
Clean a suitable location using the provided alcohol swab. Plug in all the wires, adjust
dip switches, then peel backing of Velcro liner to mount. Finish by securing any loose
and/or excess wiring. Before reassembling any panels that might have been removed
from the vehicle, test the system.
Mounting Control Module

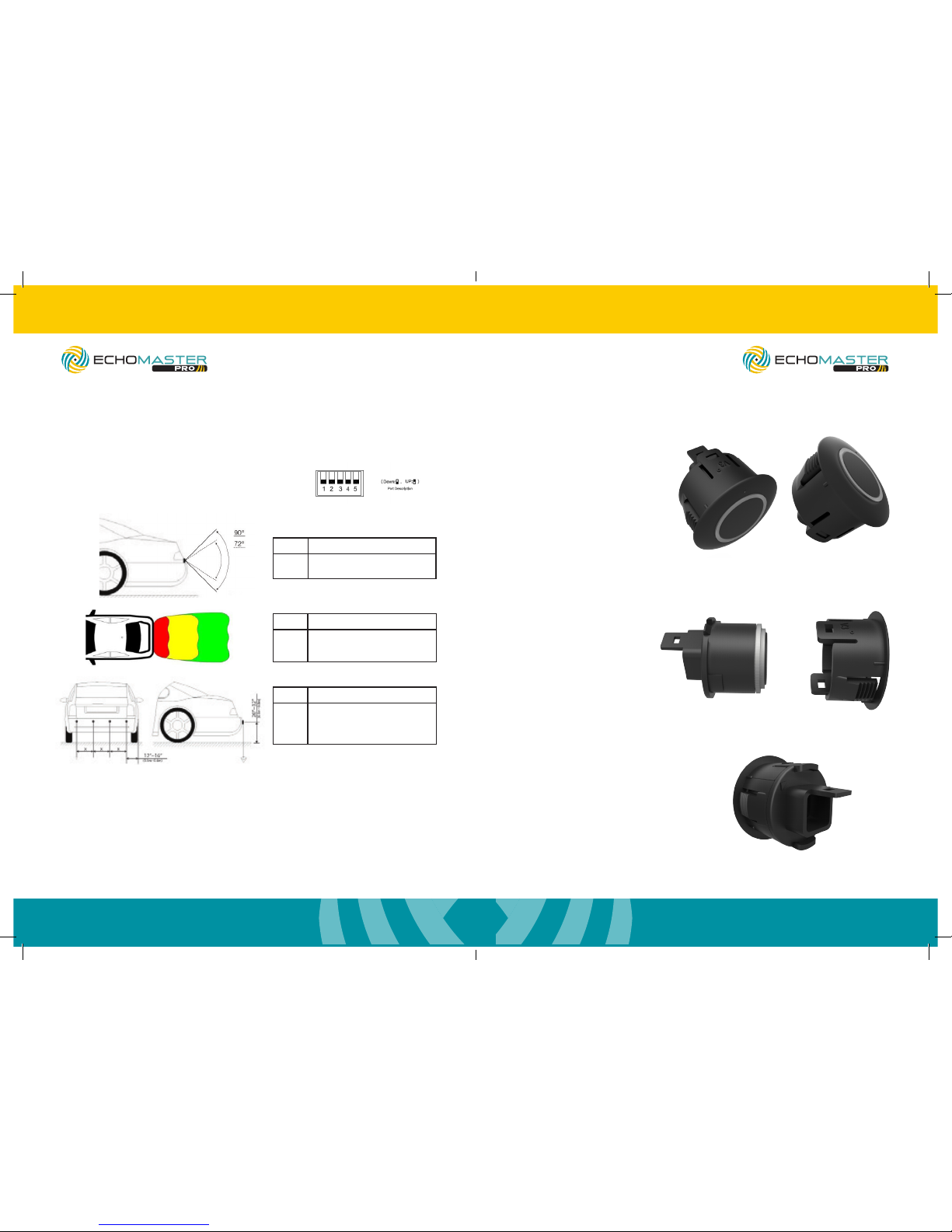

Choosing Correct Dip Switch Conguration
Switch Vertical Angle
1 Down: Original Coverage Range
Up: Reduce 20% Coverage Range
Switch Zone Range
2 & 3 Down & Down: Default Zone Range
Down & Up: Add 20in to Range
Up & Down: Add 28in to Range
Switch Sensor Spacing (in)
4 & 5 Down & Down: 16-16-16
Down & Up: 14-20-14
Up & Down: 12-24-12
Up & Up: 8-32-8
For most vehicles, all switches DOWN will work ne.
However, should you need to make changes,
please see below.
Sensor Assembly
Step 1
To take the sleeve off of the
sensors lift up on 1 clip and
push the sensor out with
your thumb.
Step 2
Slide the sensor angle
sleeves onto the sensors.
The embossed angle
measurement should be on
the same side as the clip.
Step 3
Ensure that the arrow
molded into the back of the
sensor points to the line on
the angle sleeve.
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
9
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
8
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Sensor Painting
Step 1
Remove the silicon gasket
and disconnect cable before
painting the sensors.
Certain colors may require a
thin coat of primer.
Step 2
Paint the front of the sensors and the
angle sleeve. Avoid getting excessive
paint on the back of the sensors.
Paint thickness should not exceed
1mm or sensors may not function
properly.
Note: Gasket is only removable on
paintable sensors.
Step 3
After the paint has fully dried, reassemble the sensors as shown below.
Wiring Diagram
Operating Guide
System will become engaged when vehicle is put into reverse. The system should beep one time
when reverse is activated to notify the driver that it is on and working. Once an object is detected
within the range, the system will alert the driver via audible tone or visual indicator (if using the
display).
NOTE:
If using optional display (PA-DISPLAY)
connect to main harness in place
of speaker
Distance Awareness Display/Alarm Sound
<12”/ <0.3m Danger -P- (STOP)/Beep (Biiiiiiiiiiiiiiiiiii)
12” – 19”/ 0.3-0.5m Danger Inches/Bi. Bi
19” – 27”/ 0.5-0.7m Caution Inches/Bi.. Bi
27” – 35”/ 0.7-0.9m Caution Inches/Bi… Bi
35” – 47” / 0.9-1.2m Safety Inches/Bi…. Bi
47” – 67” / 1.2-1.7m Safety Inches/Bi….. Bi
>67” / >1.7m Outside Inches (up to 98”)/None
NOTE - The chart reects the default zone range. Performance may be affected by the following:
Heavy rain, loose gravel/bumpy road, steep slopes, at/smooth surfaces. Keep sensor surface
free of snow, ice, mud, etc.
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
11
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
10
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
PROBLEM REASON SOLUTION
System doesn’t react when
reverse is engaged
System is not powered up or
wrong connection of power
cable
Check the power and
ground connections
Invalid connection between
speaker/display and control
module
Check the connection
between speaker/display
and control module
After activation, system
continuously beeps for 3
seconds
Invalid connection between
sensors and control module
Check the connection
between sensors and
control module
All sensors are defective Replace the defective
sensors
False alarms
Sensors pointing down Change angle sleeve
Sensors rotated Note ‘UP’ marking on
sensor and adjust
accordingly
Troubleshooting

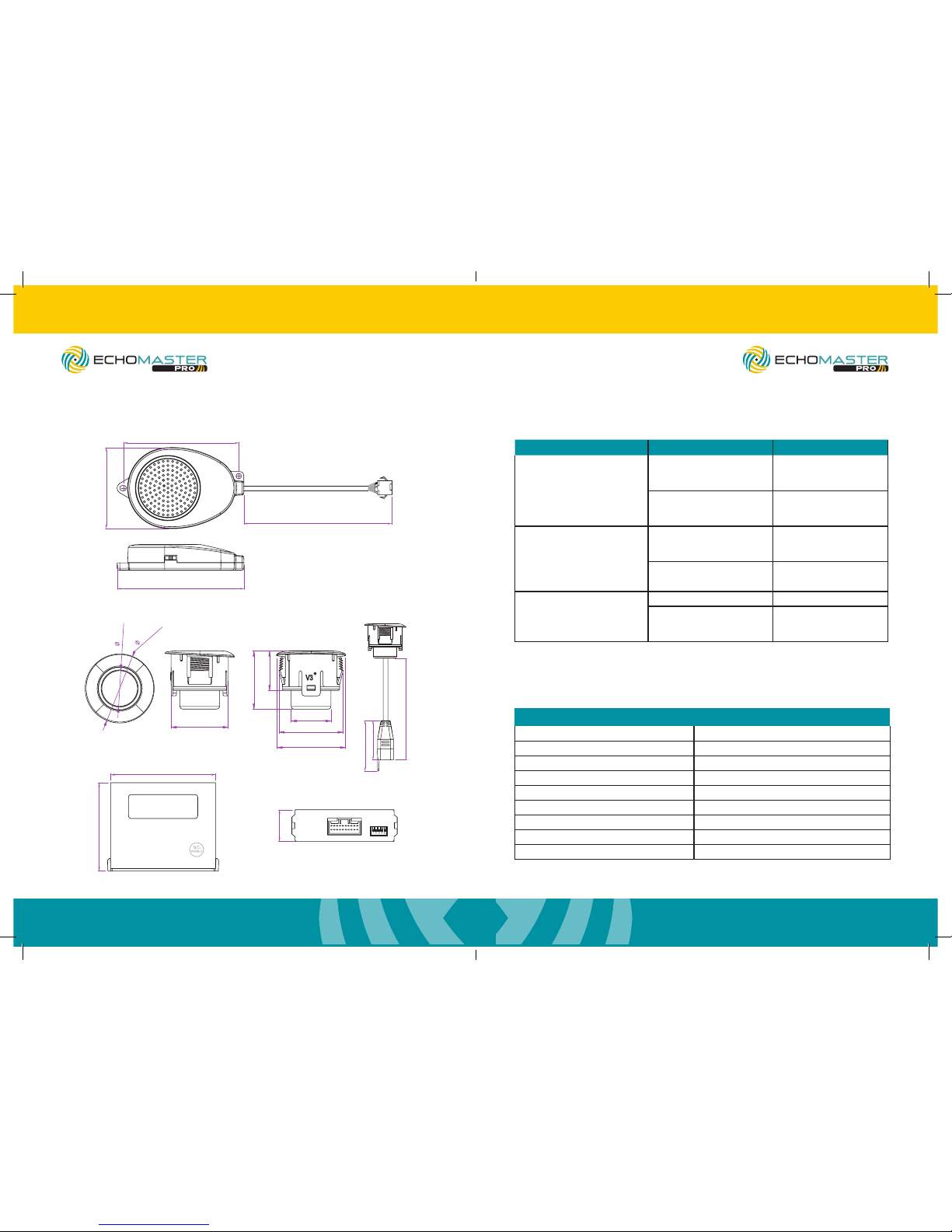

87.3mm /3.4”
74mm /2.9”
28mm/1.1”
14.0mm / 0.55”
26.0mm / 1.0”
21.9mm / 0.9”
14.9mm / 0.6”
21.5mm / 0.8”
26mm / 1.0”
24.2mm / 0.95”
15.0mm/0.9”
460mm/18”
32mm/1.25”
25mm/0.98”
Dimensions (mm/in)
63.7mm / 2.5”
44.8mm / 1.7”
70.2 / 2.8”
2500mm / 98.4”
Specications
PS-RBP-B/M/W/S - PS-RDIS-B/M/W/S
Operating Voltage Range 10.5 - 16V DC
Rated Voltage 12V DC
Rated Current 400mA
Operating Temperature -20C - +70C
Waterproof Grade (Sensors & Module) IP67 - Module: IP40
Detection Range 0-1.7m; 0-8.2ft
Harness Length 8 feet
Hole Saw 22.5mm
Angle Sleeves 6 degrees and 12 degrees
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760
Woolmer Way, Bordon, Hampshire, United Kingdom
EchoMaster is a Power Brand of AAMP Global.
EchoMaster.com
This manual suits for next models
9
Table of contents
Popular Accessories manuals by other brands
SICK
SICK SIM2000ST operating instructions
USA Measurements
USA Measurements US-5011 User's & technical manual
TFA
TFA 30.3310.02 quick reference
Siemens
Siemens TA1Q300 installation instructions
Lion Precision
Lion Precision LRD2100 user guide
IFM Electronic
IFM Electronic Efector 200 O6T3 Series operating instructions
